1 3
Giant  |  SKU: 1913007204

Giant TCR Advanced SL Frameset (2025)

$5,29900
  • System Optimisation - The frame, fork and integrated seatpost are engineered, developed and tested to perform as a system.
  • Featuring a greater stiffness-to-weight ratio than the previous generation, along with new aero tube shaping and a lighter overall weight, this uncompromising race bike delivers explosive acceleration and unyielding pedalling stiffness.
  • From the truncated ellipse shape of frameset tubing to a new cockpit design and component integration, it all adds up to a more streamlined profile that helps give the flagship TCR Advanced SL 0 model a 4.19-watt advantage over the previous generation.
Colour: Carbon
Size

Pickup in-store only. Shipping not available.
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay

Sizing Chart

Sizing and Geometry

Giant TCR

Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.

Frame size Rider Height Rider Height (cm)
XS 5'2"-5'6" 157-169
S 5'5"-5'9" 165-175
M 5'7"-5'11" 171-181
ML 5'10"-6'2" 177-187
L 6'0"-6'4" 183-193
XL 6'2"-6'6" 189-199



Geometry

bike diagram with measurements referenced in table that follows

    XS S M ML L XL
A Seat Tube Length (mm) 680 710 740 770 800 830
B Seat Tube Angle 74.5° 74.0° 73.5° 73.0° 73.0° 72.5°
C Top Tube Length (mm) 520 535 550 565 580 600
D Head Tube Length (mm) 120 130 145 165 185 200
E Head Tube Angle 71.0° 72.3° 73.0° 73.0° 73.0° 73.0°
F Fork Rake (mm) 45 45 45 45 45 45
G Trail (mm) 72 64 59 59 59 59
H Wheelbase (mm) 976 977 980 991 1006 1020
I Chain Stay Length (mm) 405 405 405 405 405 405
J Bottom Bracket Drop (mm) 72 69.5 69.5 67 67 67
K Stack (mm) 517 528 545 562 581 596
L Reach (mm) 376 383 388 393 402 412
M Stand Over Height (mm) 703 722 743 771 798 822
O Stem Length (mm) 80 90 100 110 110 120
P Crank Length (mm) 170 170 172.5 172.5 175 175
Q Wheel Size 700C 700C 700C 700C 700C 700C

Shipping Information

Certain bike brands cannot be shipped and are only available for Click and Collect.

These include but are not limited to the following brands: Giant, GT, Liv, Momentum and Mongoose.

For all other brands, we can provide a shipping quote to your postcode. Please contact us by email at staff@ivanhoecycles.com.au, or text us on 0417 122 950.

Fully assembled when you Click & Collect in-store
Buy Now, Pay Later with ZIP
Free service adjustment within first 6 months

Giant TCR Advanced SL Frameset (2025)

Combining best-in-class stiffness-to-weight with strategically placed aero tube shaping, this frameset is engineered for faster climbing, explosive acceleration and unyielding pedalling stiffness for race-winning performance.

This is where the TCR Advanced SLs most quantifiable gains can be found compared to previous generation models. Every tube shape was analysed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles.

Integrated disc brakes deliver smooth, powerful stopping power and modulation for added control in variable weather and road conditions. Flat mounts and new thru-axles boost stiffness and improve overall handling, while added frame and fork clearance allows for larger diameter tyres up to 32mm.

HOW WILL YOU BUILD IT?

Are you happy with the existing parts on your road bike? Or do you want to build it with the latest Shimano, Campagnolo or SRAM components?

Would you build it like an all-road bike (like the TCR AR) with wide range gears and wide tyres? Or keep it light and fast?

With our expertise in road, allow us to help you decide the best course of action.

THE CARBON

Advanced SL is the best carbon we produce. This professional-grade raw carbon material is woven in our own factory using our most advanced engineering and construction methods including:

  • Continuous Fibre Technology to add strength while reducing weight.
  • Carbon Nanotube Technology resin to improve impact resistance.
  • Fusion Process for lighter and stronger tube junctions.



CUTTING-EDGE COMPOSITE ASSEMBLY

Up to 150 small individual carbon swatches are placed using robotic layup assembly.

The swatches are laser-cut so that smaller, ultra-precise sections can be used, resulting in lighter weight framesets.

Carbon Nanotube Technology resin improves impact resistance, and Fusion Process creates lighter, stronger frame junctions.

POWER

A massively oversized bottom-bracket and chain-stay area features a fully integrated, 86mm wide bottom-bracket design.

Symmetric chain-stays provide additional stiffness on the driveside and stability on the non-driveside.

SPECIFICATIONS

Sizes XL

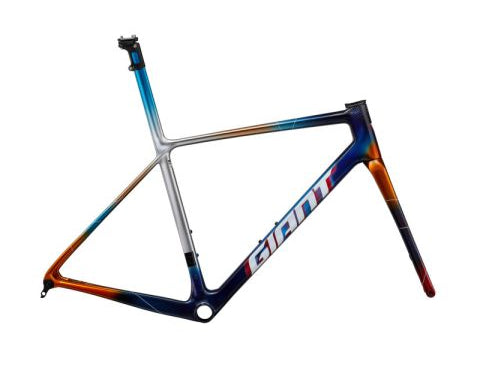

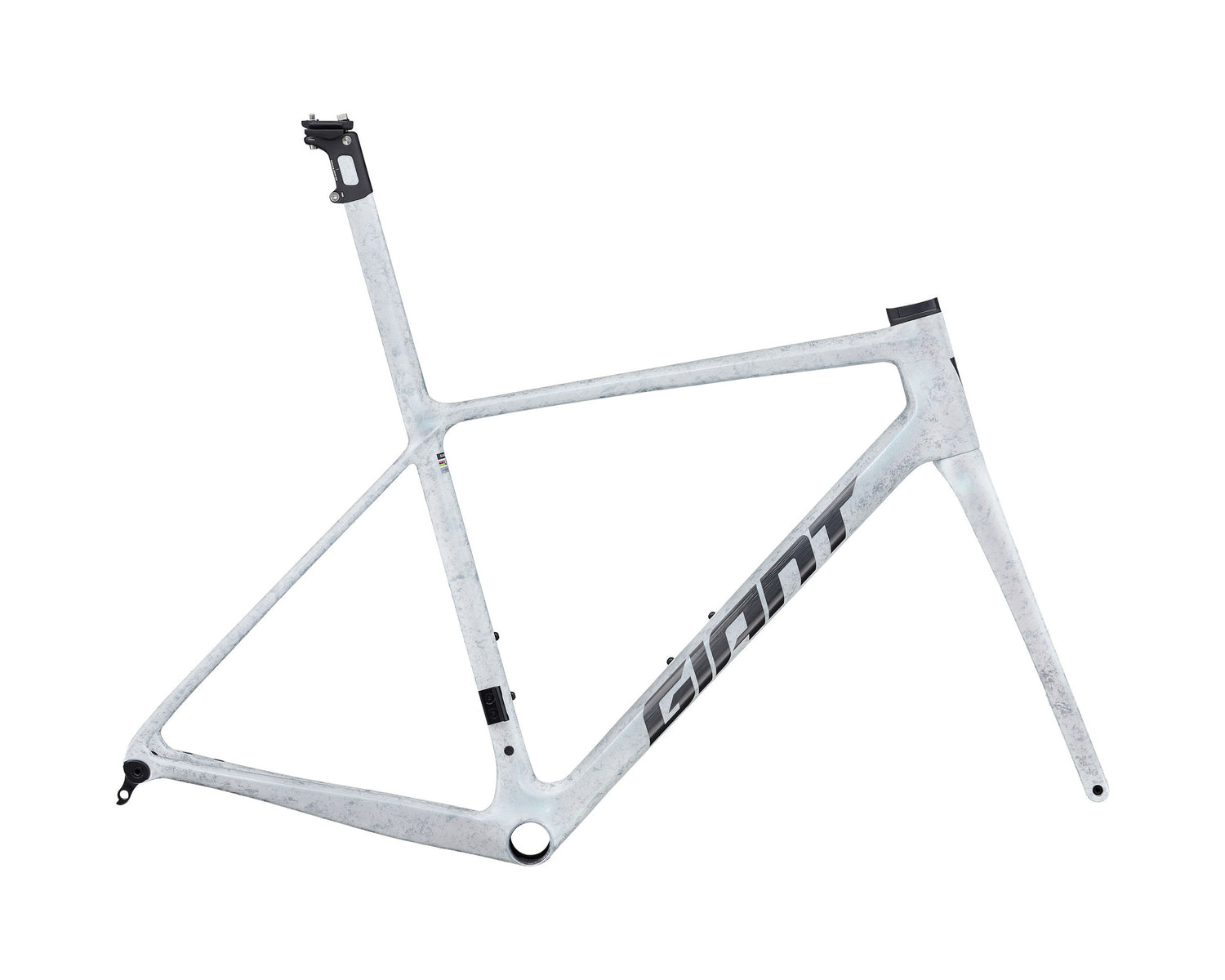

Colour Maraya Blue, Opal
Frame Advanced SL-Grade Composite, integrated seatpost, disc
Fork Advanced SL-Grade Composite, full-composite OverDrive 2 steerer, disc
Seatpost Advanced SL-Grade composite, integrated design, -5/+15mm offset
Bottom Bracket BB86 accepts press fit style BB only, bearing set not included
Extras Front & rear 12mm thru-axles, 20mm & 45mm ISP clamps
Notes We reserve the right to make changes to the product and component information appearing on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials.

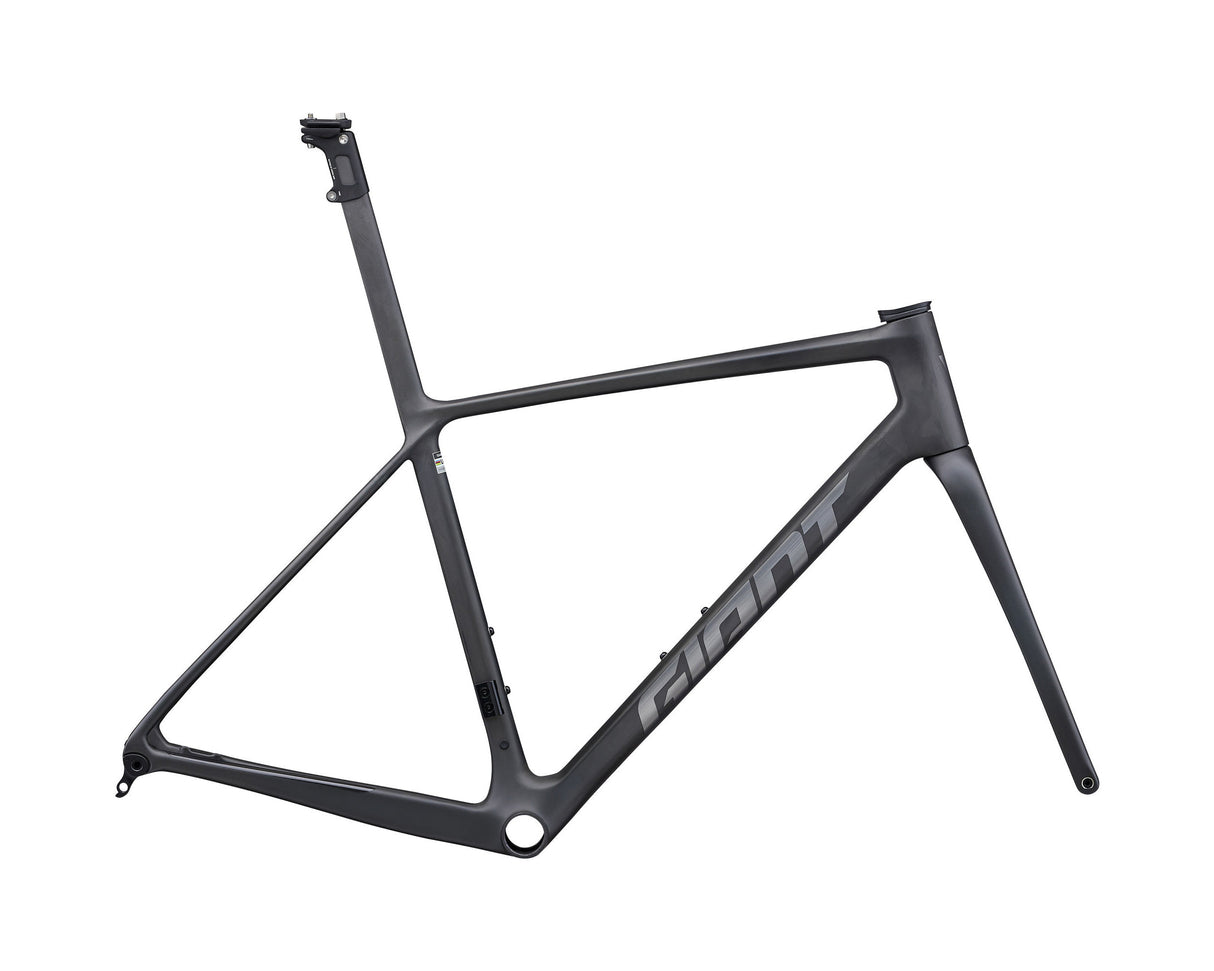

Giant TCR Advanced SL Frameset (2025) raw carbon

Giant TCR Advanced SL (2025) Frameset

$5,29900

Colour

Size

  • S
  • XL
  • M
  • L
  • XS
  • ML

Motor

N/A

Controller

N/A

Display

N/A

Battery

N/A

Charger

N/A

Sizes

N/A

Frame material

Carbon

Frame

Advanced SL-Grade Composite, 12x142mm thru-axle, integrated seatpost, disc

Fork

Advanced SL-Grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc

Handlebar

N/A

Grips

N/A

Bar Tape

N/A

Headset

N/A

Stem

N/A

Seatpost

Advanced SL-Grade composite, integrated design, -5/+15mm offset

Saddle

N/A

Pedals

N/A

Shifters

N/A

Front Derailleur

N/A

Rear Derailleur

N/A

Brakes

N/A

Brake Levers

N/A

Cassette/Freewheel

N/A

Chain

N/A

Crankset

N/A

Bottom Bracket

BB86 accepts press fit style BB only, bearing set not included

Rims

N/A

Hubs

N/A

Spokes

N/A

Tyres

N/A

Wheel Size

N/A

Extras

Front & rear 12mm thru-axles, 20mm & 45mm ISP clamps
