Giant  |  SKU: 2211046105

Giant Trance Advanced Pro 29 1 Mountain Bike (2022)

$4,99900 $8,79900
  • Flip Chip adjustable frame geometry
  • Full carbon composite frame
  • Maestro suspension: 130mm Front / 120mm Rear
  • Shimano SLX 12 Speed Drivetrain
Colour: Black Diamond
Size

Pickup in-store only. Shipping not available.
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay

Sizing Chart

Sizing and Geometry

Giant Trance

Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.

Sizing Rider Height Rider Height (cm)
S 5′ 4″ – 5′ 8″ 163 – 172
M 5′ 7″ – 5′ 11″ 171 – 180
L 5′ 10″ – 6′ 2″ 179 – 188
XL 6′ 2″ – 6′ 6″ 187 – 198


Geometry

bike diagram with measurements referenced in table that follows

    S M L XL
    LOW | MID | HIGH LOW | MID | HIGH LOW | MID | HIGH LOW | MID | HIGH
A Seat Tube Length (mm) 400 425 450 475
A1 Seat Post Insertion Depth (mm) 280 305 330 355
B Seat Tube Angle 76.8° | 77.2° | 77.5° 76.8° | 77.2° | 77.5° 76.8° | 77.2° | 77.5° 76.8° | 77.2° | 77.5°
C Top Tube Length (mm) 571 | 570 | 569 602 | 601 | 600 624 | 623 | 622 657 | 656 | 655
D Head Tube Length (mm) 100 105 115 125
E Head Tube Angle 64.4° | 64.8° | 65.1° 64.4° | 64.8° | 65.1° 64.4° | 64.8° | 65.1° 64.4° | 64.8° | 65.1°
F Fork Rake (mm) 44 44 44 44
G Trail (mm) 134.1 | 131.3 | 128.4 134 | 131.3 | 128.5 133.9 | 131.3 | 128.5 133.9 | 131.3 | 128.6
H Wheelbase (mm) 1190 | 1190 | 1189 1222 | 1222 | 1221 1246 | 1246 | 1245 1281 | 1280 | 1280
I Chain Stay Length (mm) 440 | 439 | 438 440 | 439 | 438 440 | 439 | 438 440 | 439 | 438
J Bottom Bracket Drop (mm) 40 | 35 | 30 40 | 35 | 30 40 | 35 | 30 40 | 35 | 30
K Stack (mm) 617 | 614 | 611 621 | 619 | 616 631 | 628 | 625 640 | 637 | 634
L Reach (mm) 426 | 430 | 434 456 | 460 | 464 476 | 480 | 484 507 | 510 | 514
M Stand Over Height (mm) 733 | 737 | 742 737 | 741 | 746 754 | 759 | 763 752 | 757 | 762
O Stem Length (mm) 40 40 50 50
P Crank Length (mm) 165 170 170 170
Q Wheel Size [F] 29" [R [F] 29" [R [F] 29" [R [F] 29" [R

Shipping Information

Certain bike brands cannot be shipped and are only available for Click and Collect.

These include but are not limited to the following brands: Giant, GT, Liv, Momentum and Mongoose.

For all other brands, we can provide a shipping quote to your postcode. Please contact us by email at staff@ivanhoecycles.com.au, or text us on 0417 122 950.

Fully assembled when you Click & Collect in-store
Buy Now, Pay Later with ZIP
Free service adjustment within first 6 months

Shred hard and shred fast with this lively 29er. It’s built on a full-composite frame with adjustable geometry, giving you smooth control to blitz technical trails at speed.

Adjustable Frame Geometry

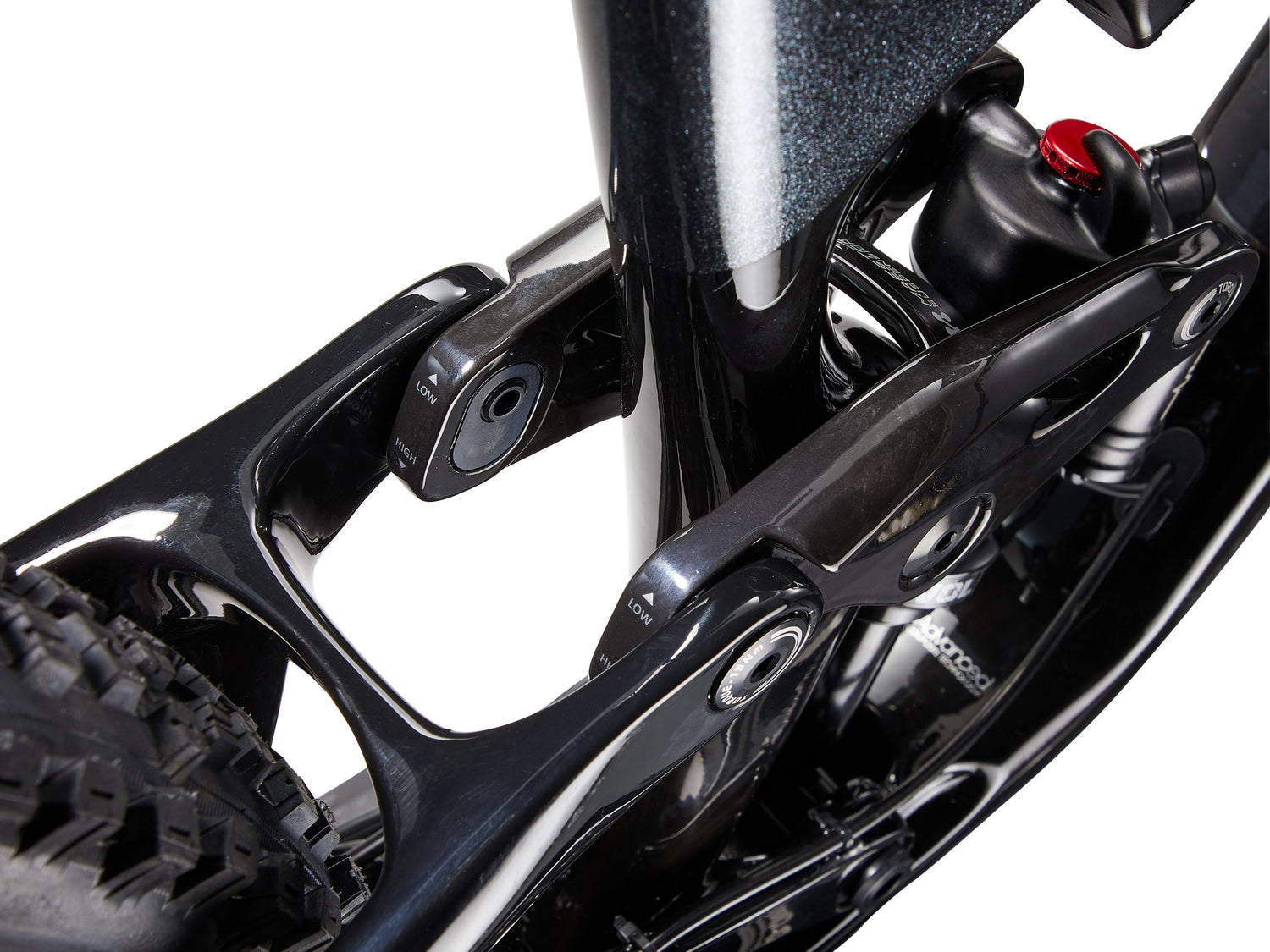

New flip chip feature lets you change the head tube and seat tube angles, as well as the bottom bracket height, to fine-tune handling for varying trail conditions and individual riding style.

Confidence and Control

Larger 29-inch diameter wheels optimised to roll over rough terrain with balance and stability, giving you the momentum to tackle technical climbs and the confidence to fly on fast, rugged singletrack descents.

Progressive Trail Design

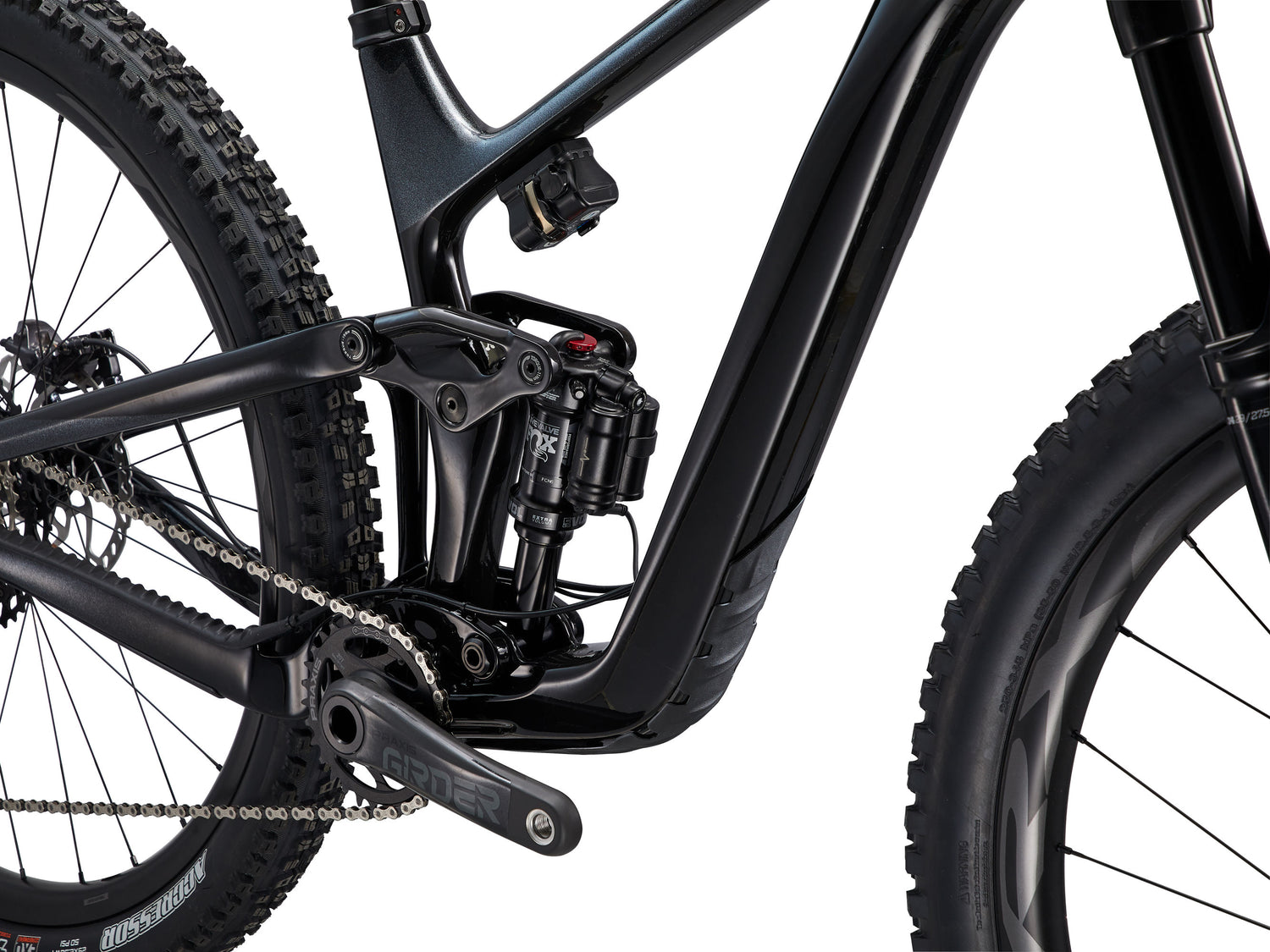

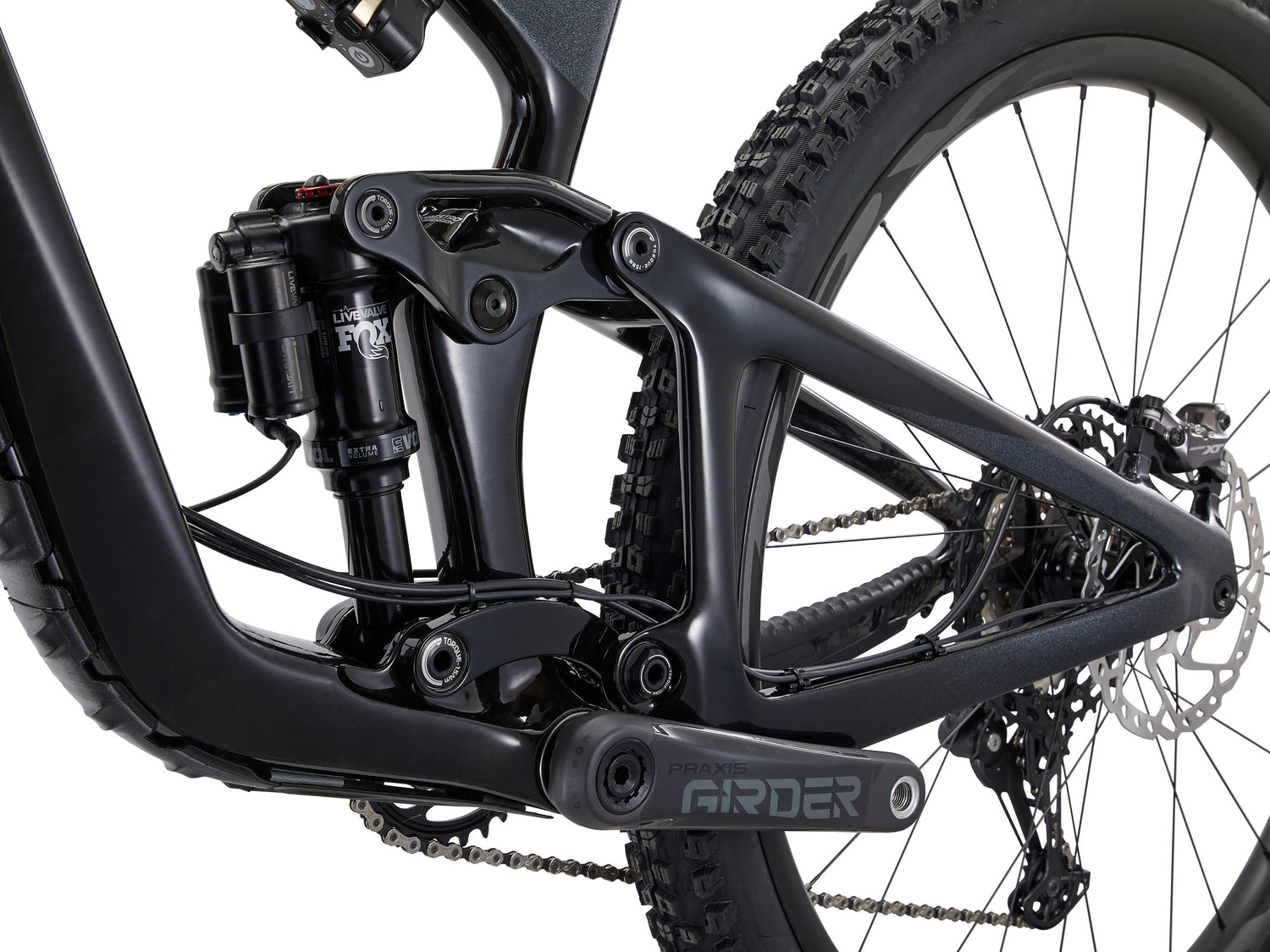

Lightweight Advanced-grade composite frameset features a longer reach and steeper seat tube for aggressive trail riding and improved climbing capabilities. Updated Maestro rear suspension features 120mm of rear wheel travel paired with a 130mm fork up front.

Giant Trance Advanced Pro 29 1 (2022)

$4,99900 $8,79900

Colour

Size

  • S
  • M
  • L
  • XL

Motor

N/A

Controller

N/A

Display

N/A

Battery

N/A

Charger

N/A

Sizes

N/A

Frame material

Carbon

Frame

Advanced-Grade Composite front and rear triangles, 120mm Maestro suspension, flip chip, UDH hanger, 12x148mm thru-axle, 55mm Chainline

Fork

Fox 34 Float Rhythm, 130mm, GRIP damper, Boost 15x110 Kabolt, 44mm offset, custom tuned for Giant

Handlebar

Giant Contact TR35, alloy, 35mm

Grips

Giant Tactal Pro Single lock-on

Bar Tape

N/A

Headset

N/A

Stem

Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm

Seatpost

TranzX travel-adjustable dropper, remote S: 120-150mm travel / 30.9 x 459mm M: 140-170mm travel / 30.9 x 499mm L: 170-200mm travel / 30.9 x 525mm XL: 170-200mm travel / 30.9 x 525mm

Saddle

Giant Romero SL

Pedals

N/A

Shifters

Shimano SLX SL-M7100, 1x12

Front Derailleur

N/A

Rear Derailleur

Shimano SLX RD-M7100

Brakes

Shimano Deore BR-M6120, hydraulic, Shimano RT-56 rotors [F]180mm, [R]180mm

Brake Levers

Shimano Deore BL-M6100

Cassette/Freewheel

Shimano SLX, 10x51

Chain

KMC X-12

Crankset

Shimano MT5121, 30t S:165mm, M:170mm, L:170mm, XL:170mm, 55mm chainline

Bottom Bracket

Shimano, press fit

Rims

Giant TRX 2 Carbon 29 WheelSystem

Hubs

Giant TRX 2 Carbon 29 WheelSystem

Spokes

Giant TRX 2 Carbon 29 WheelSystem

Tyres

[F] Maxxis Minion DHF 29x2.5 WT, 3C MaxxTerra, EXO, TR [R] Maxxis Aggressor 29x2.5, EXO, TR, tubeless

Wheel Size

N/A

Extras

Tubeless prepared, 2.6" max tyre size, 34t max chainring size
