Giant | SKU: 2311046105

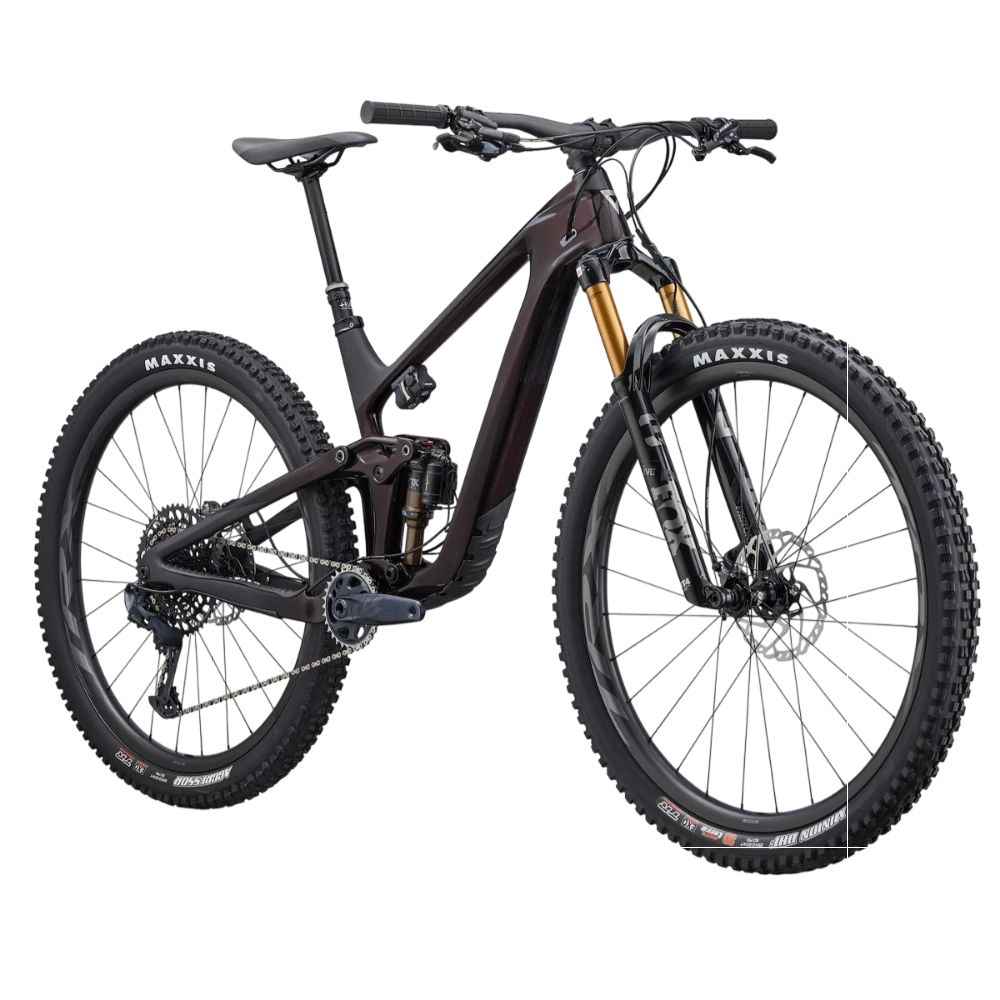

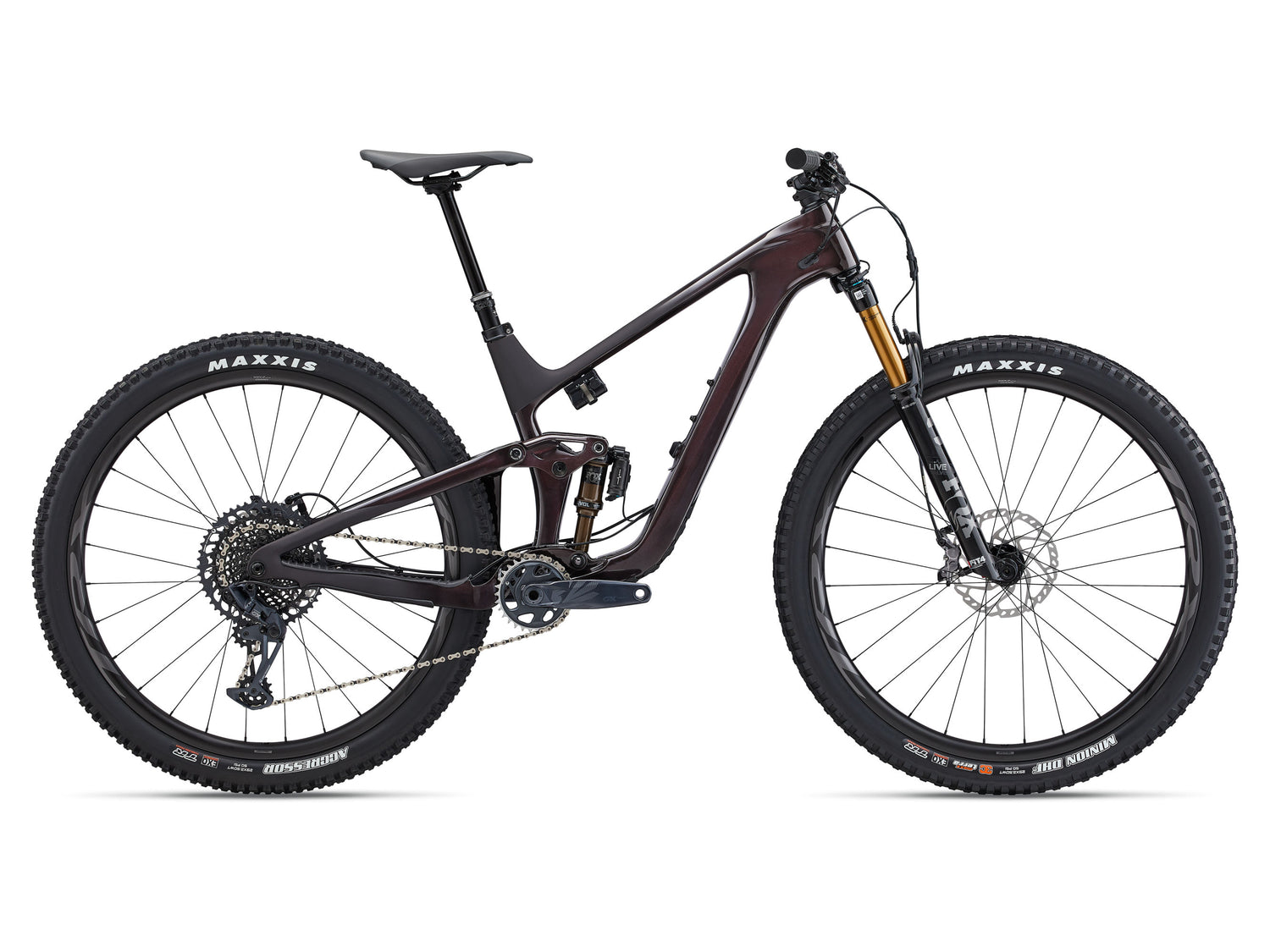

Giant Trance Advanced Pro 29 1 (2023)

Name: Giant Trance Advanced Pro 29 1 (2023)
Brand: Giant
SKU: 2311046105
Price: 4999.0 AUD
Availability: OutOfStock

$4,999⁰⁰ ~~$8,999⁰⁰~~

Colour: Cordovan/Chrome

Size

S M L XL

Product variants

Pickup in-store only. Shipping not available.

Sizing Chart

Sizing and Geometry

Giant Trance

Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.

Sizing	Rider Height	Rider Height (cm)
S	5′ 4″ – 5′ 8″	163 – 172
M	5′ 7″ – 5′ 11″	171 – 180
L	5′ 10″ – 6′ 2″	179 – 188
XL	6′ 2″ – 6′ 6″	187 – 198

Geometry

bike diagram with measurements referenced in table that follows

		S	M	L	XL
		LOW \| MID \| HIGH	LOW \| MID \| HIGH	LOW \| MID \| HIGH	LOW \| MID \| HIGH
A	Seat Tube Length (mm)	400	425	450	475
A1	Seat Post Insertion Depth (mm)	280	305	330	355
B	Seat Tube Angle	76.8° \| 77.2° \| 77.5°	76.8° \| 77.2° \| 77.5°	76.8° \| 77.2° \| 77.5°	76.8° \| 77.2° \| 77.5°
C	Top Tube Length (mm)	571 \| 570 \| 569	602 \| 601 \| 600	624 \| 623 \| 622	657 \| 656 \| 655
D	Head Tube Length (mm)	100	105	115	125
E	Head Tube Angle	64.4° \| 64.8° \| 65.1°	64.4° \| 64.8° \| 65.1°	64.4° \| 64.8° \| 65.1°	64.4° \| 64.8° \| 65.1°
F	Fork Rake (mm)	44	44	44	44
G	Trail (mm)	134.1 \| 131.3 \| 128.4	134 \| 131.3 \| 128.5	133.9 \| 131.3 \| 128.5	133.9 \| 131.3 \| 128.6
H	Wheelbase (mm)	1190 \| 1190 \| 1189	1222 \| 1222 \| 1221	1246 \| 1246 \| 1245	1281 \| 1280 \| 1280
I	Chain Stay Length (mm)	440 \| 439 \| 438	440 \| 439 \| 438	440 \| 439 \| 438	440 \| 439 \| 438
J	Bottom Bracket Drop (mm)	40 \| 35 \| 30	40 \| 35 \| 30	40 \| 35 \| 30	40 \| 35 \| 30
K	Stack (mm)	617 \| 614 \| 611	621 \| 619 \| 616	631 \| 628 \| 625	640 \| 637 \| 634
L	Reach (mm)	426 \| 430 \| 434	456 \| 460 \| 464	476 \| 480 \| 484	507 \| 510 \| 514
M	Stand Over Height (mm)	733 \| 737 \| 742	737 \| 741 \| 746	754 \| 759 \| 763	752 \| 757 \| 762
O	Stem Length (mm)	40	40	50	50
P	Crank Length (mm)	165	170	170	170
Q	Wheel Size	[F] 29" [R	[F] 29" [R	[F] 29" [R	[F] 29" [R

Shipping Information

Certain bike brands cannot be shipped and are only available for Click and Collect.

These include but are not limited to the following brands: Giant, GT, Liv, Momentum and Mongoose.

For all other brands, we can provide a shipping quote to your postcode. Please contact us by email at staff@ivanhoecycles.com.au, or text us on 0417 122 950.

Fully assembled when you Click & Collect in-store

Buy Now, Pay Later with ZIP

Free service adjustment within first 6 months

Sizing and Geometry

Giant Trance

Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.

Sizing	Rider Height	Rider Height (cm)
S	5′ 4″ – 5′ 8″	163 – 172
M	5′ 7″ – 5′ 11″	171 – 180
L	5′ 10″ – 6′ 2″	179 – 188
XL	6′ 2″ – 6′ 6″	187 – 198

Geometry

bike diagram with measurements referenced in table that follows

		S	M	L	XL
		LOW \| MID \| HIGH	LOW \| MID \| HIGH	LOW \| MID \| HIGH	LOW \| MID \| HIGH
A	Seat Tube Length (mm)	400	425	450	475
A1	Seat Post Insertion Depth (mm)	280	305	330	355
B	Seat Tube Angle	76.8° \| 77.2° \| 77.5°	76.8° \| 77.2° \| 77.5°	76.8° \| 77.2° \| 77.5°	76.8° \| 77.2° \| 77.5°
C	Top Tube Length (mm)	571 \| 570 \| 569	602 \| 601 \| 600	624 \| 623 \| 622	657 \| 656 \| 655
D	Head Tube Length (mm)	100	105	115	125
E	Head Tube Angle	64.4° \| 64.8° \| 65.1°	64.4° \| 64.8° \| 65.1°	64.4° \| 64.8° \| 65.1°	64.4° \| 64.8° \| 65.1°
F	Fork Rake (mm)	44	44	44	44
G	Trail (mm)	134.1 \| 131.3 \| 128.4	134 \| 131.3 \| 128.5	133.9 \| 131.3 \| 128.5	133.9 \| 131.3 \| 128.6
H	Wheelbase (mm)	1190 \| 1190 \| 1189	1222 \| 1222 \| 1221	1246 \| 1246 \| 1245	1281 \| 1280 \| 1280
I	Chain Stay Length (mm)	440 \| 439 \| 438	440 \| 439 \| 438	440 \| 439 \| 438	440 \| 439 \| 438
J	Bottom Bracket Drop (mm)	40 \| 35 \| 30	40 \| 35 \| 30	40 \| 35 \| 30	40 \| 35 \| 30
K	Stack (mm)	617 \| 614 \| 611	621 \| 619 \| 616	631 \| 628 \| 625	640 \| 637 \| 634
L	Reach (mm)	426 \| 430 \| 434	456 \| 460 \| 464	476 \| 480 \| 484	507 \| 510 \| 514
M	Stand Over Height (mm)	733 \| 737 \| 742	737 \| 741 \| 746	754 \| 759 \| 763	752 \| 757 \| 762
O	Stem Length (mm)	40	40	50	50
P	Crank Length (mm)	165	170	170	170
Q	Wheel Size	[F] 29" [R	[F] 29" [R	[F] 29" [R	[F] 29" [R

Shred hard and shred fast with this lively 29er. It's built on an all-new full-composite frame with adjustable geometry, giving you smooth control to blitz technical trails at speed.

New flip chip feature lets you change the head tube and seat tube angles, as well as the bottom bracket height, to fine-tune handling for varying trail conditions and individual riding style.

Larger 29-inch diameter wheels optimised to roll over rough terrain with balance and stability, giving you the momentum to tackle technical climbs and the confidence to fly on fast, rugged singletrack descents.

Lightweight composite frameset features a longer reach and steeper seat tube angle for aggressive trail riding and improved climbing capabilities.

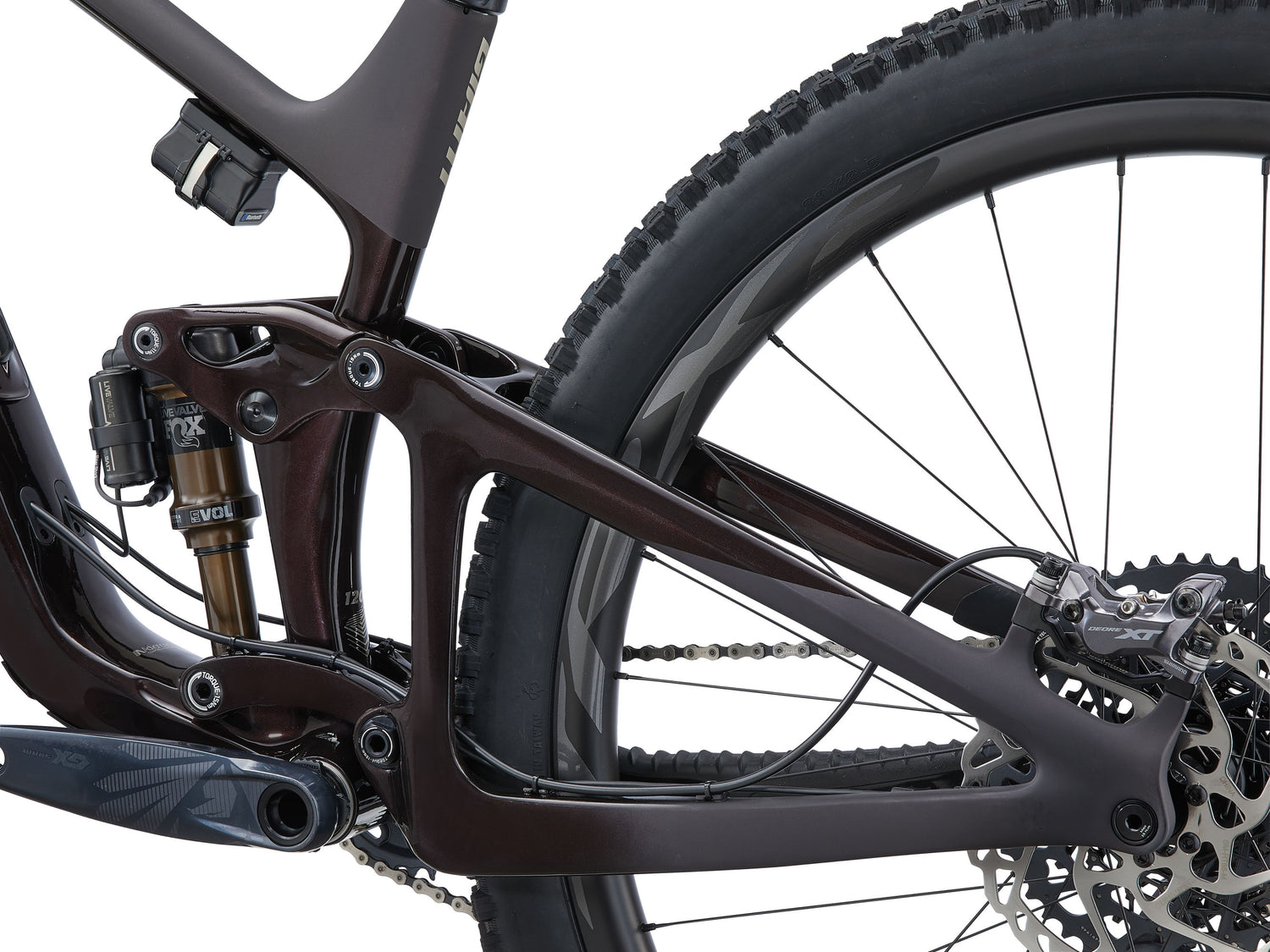

Maestro rear suspension features 120mm of rear wheel travel paired with a 130mm fork up front.

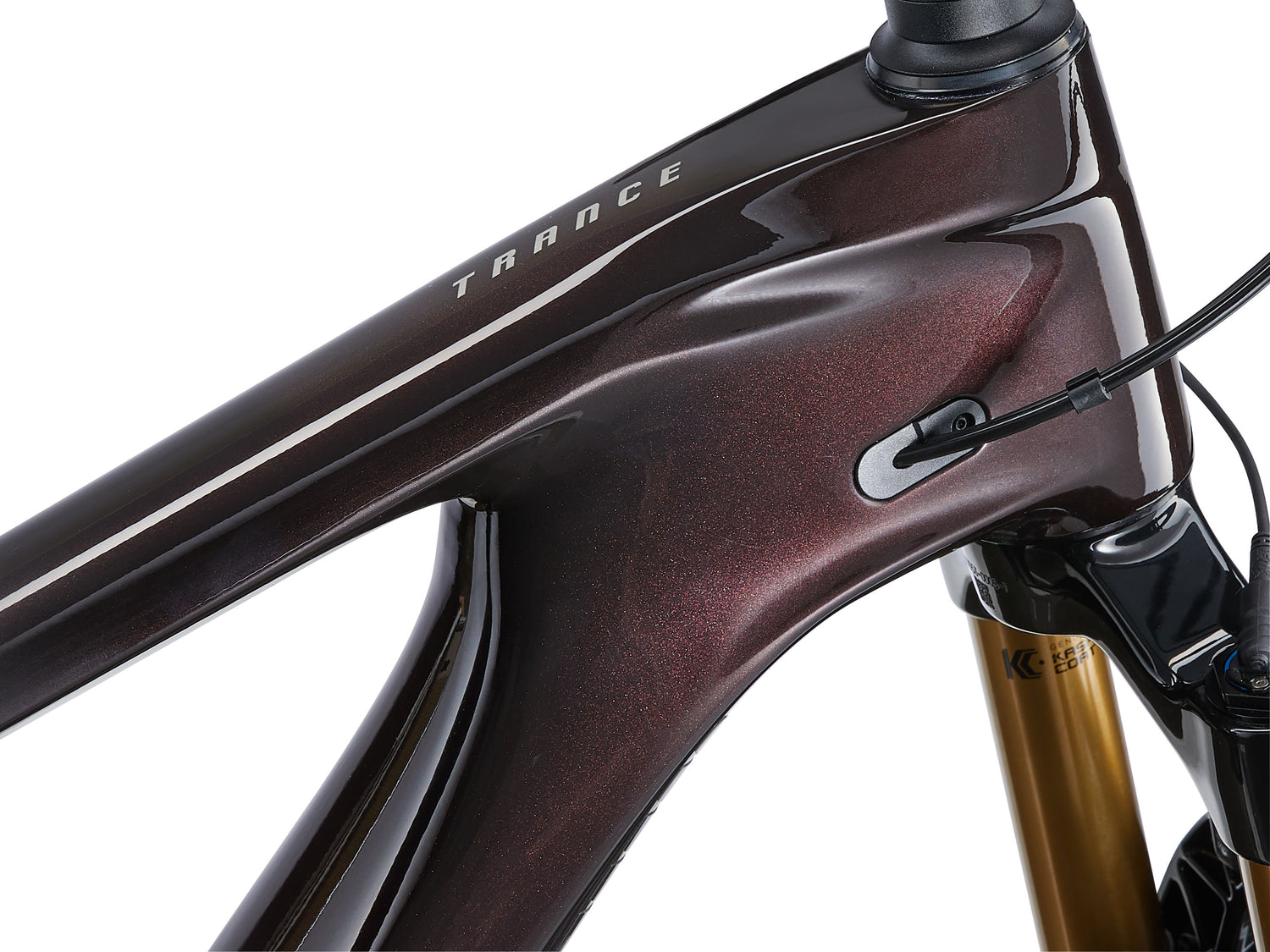

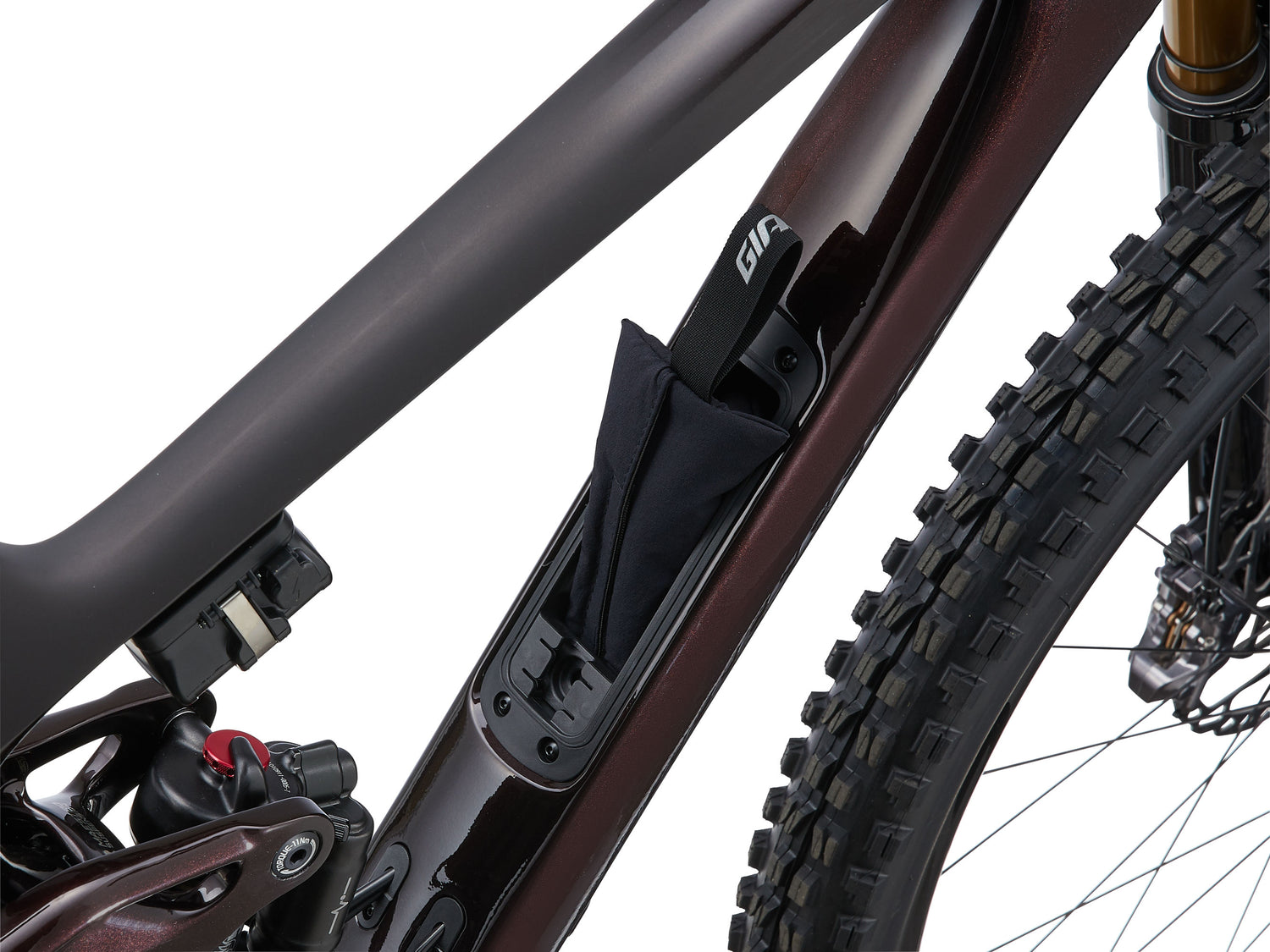

The frame also includes a cleanly integrated storage space in the down tube for tools, snacks or other essentials.

Frame material

Carbon
Frame

Advanced-Grade Composite front and rear triangles, 120mm Maestro suspension, flip chip - Maestro, 12x148mm thru-axle, integrated downtube storage

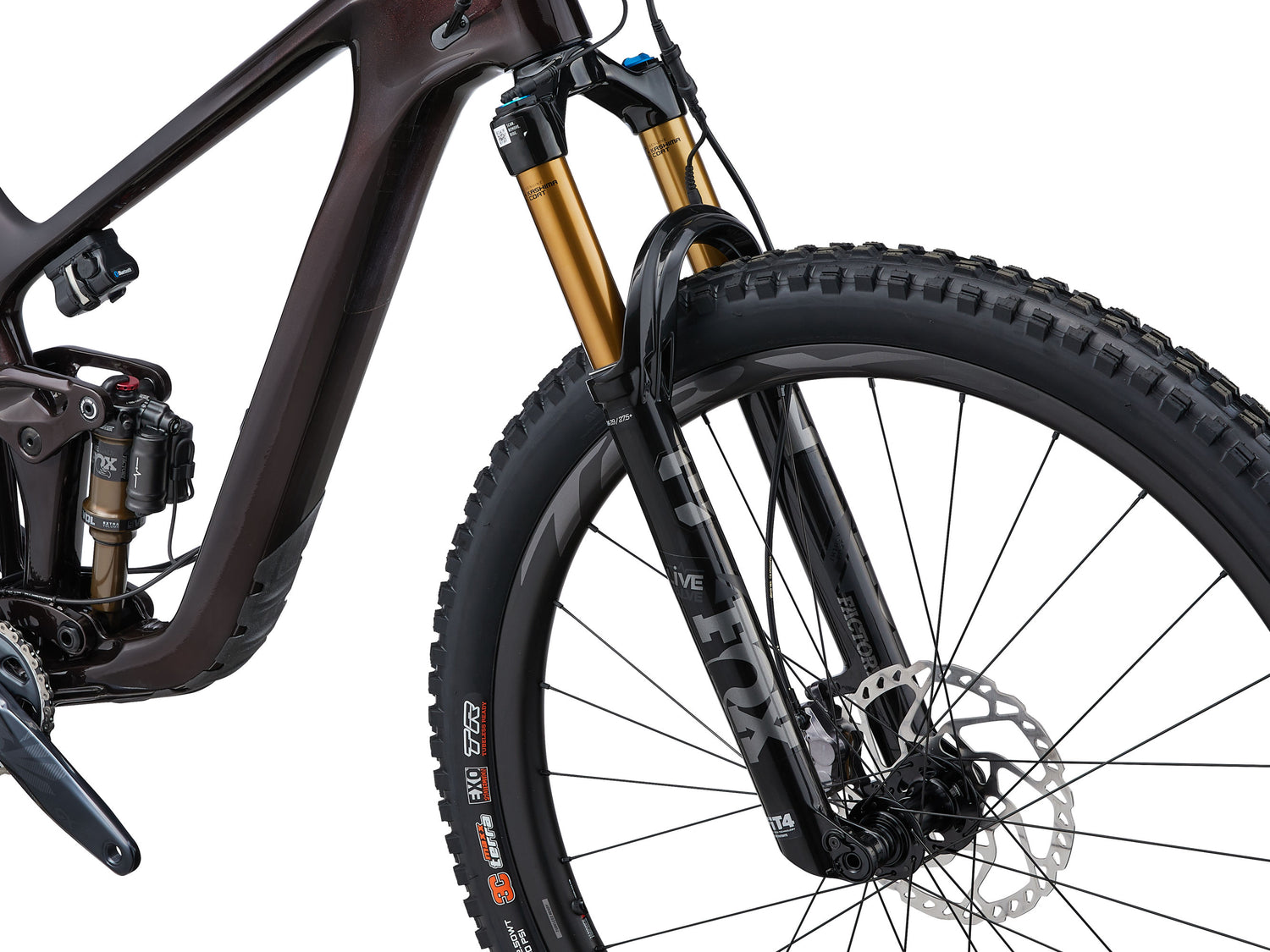

Fork

Fox 34 Factory Live Valve, 130mm, FIT4 damper, Boost 15x110 Kabolt, 44mm offset, custom tuned for Giant

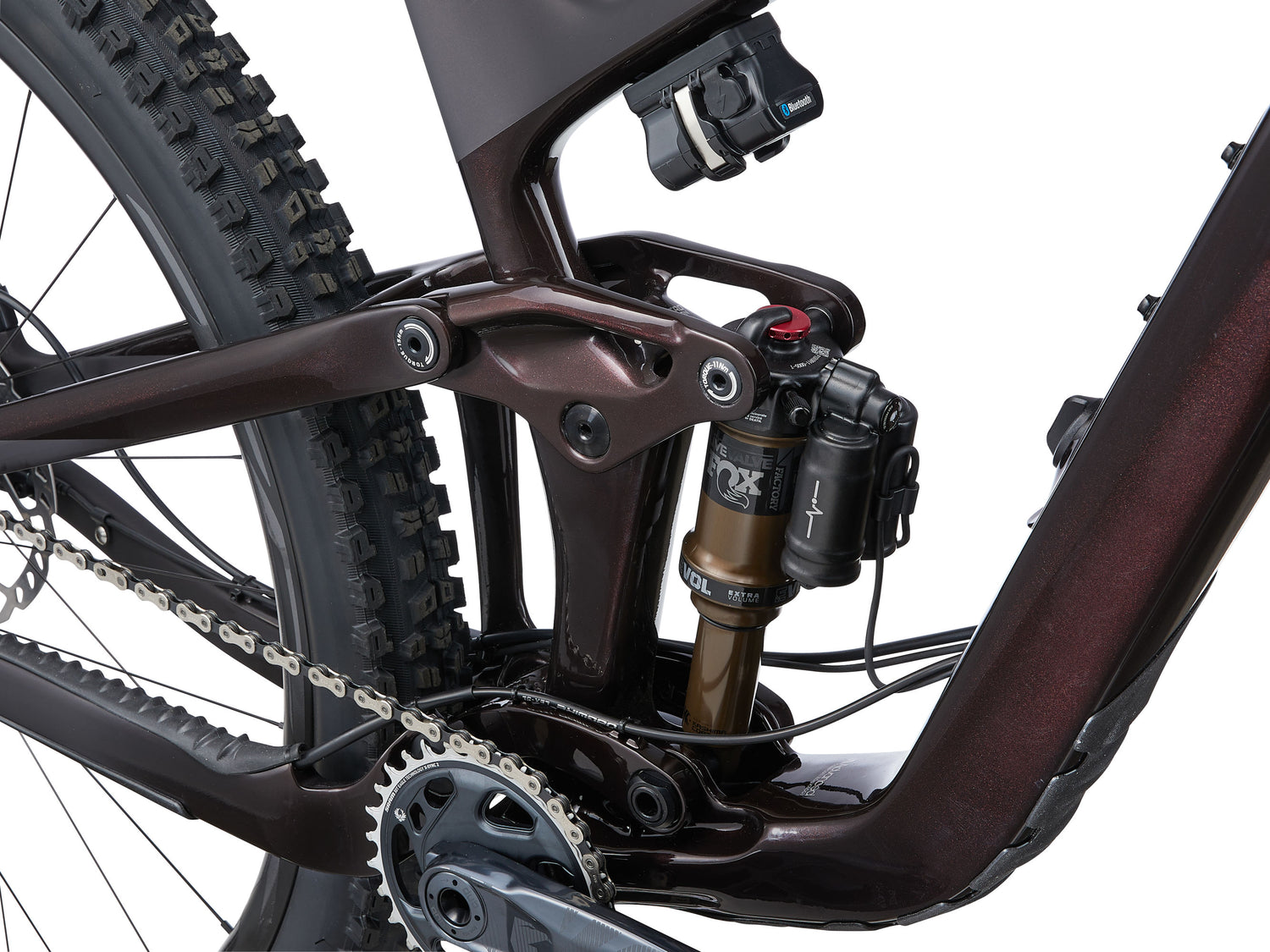

Shock

Fox Factory Live Valve, custom tuned for Giant

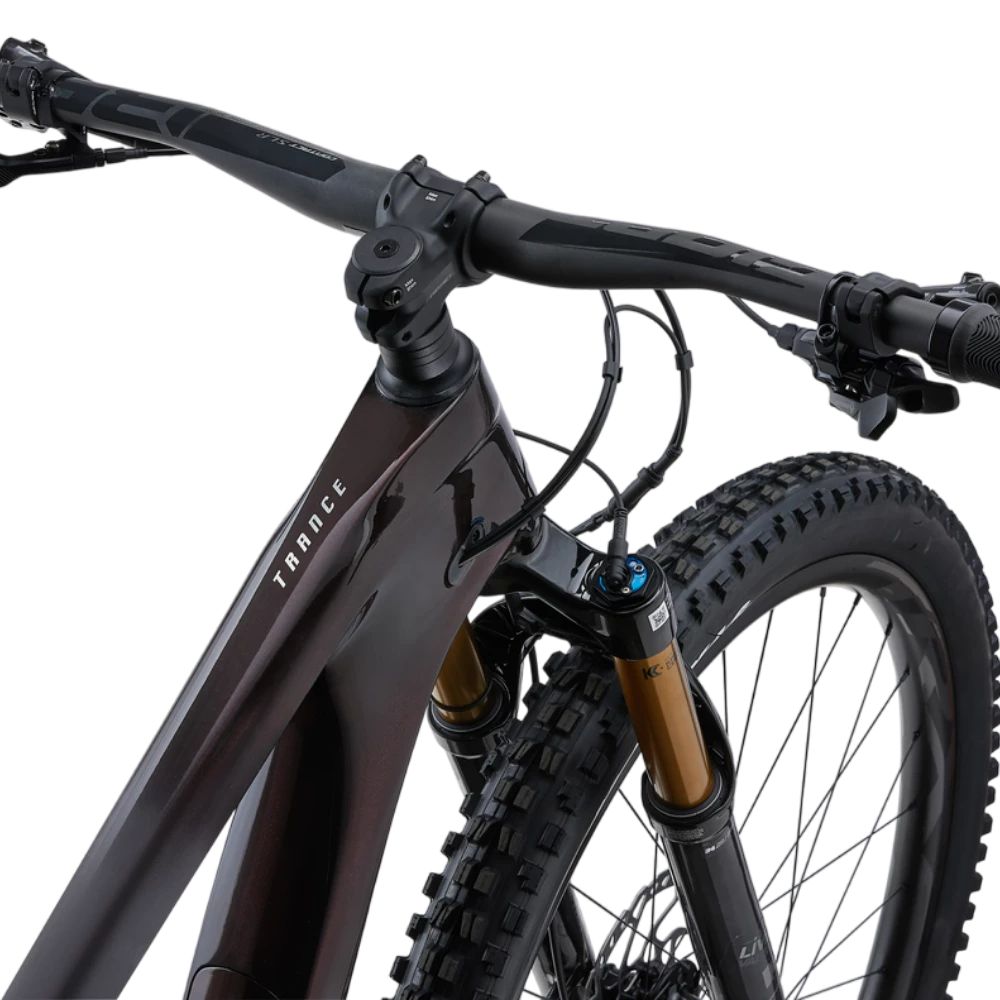

Handlebar

Giant Contact SLR TR35
Grips

Giant Tactal Pro Single lock-on
Stem

Giant Contact SL 35 | S:40mm, M:40mm, L:50mm, XL:50mm
Seatpost

TranzX travel-adjustable dropper, remote S: 120-150mm travel / 30.9 x 459mm, M: 140-170mm travel / 30.9 x 499mm, L: 170-200mm travel / 30.9 x 525mm, XL: 170-200mm travel / 30.9 x 525mm
Saddle

Giant Romero SL
Pedals

N/A
Shifters

SRAM GX Eagle, 1x12 speed

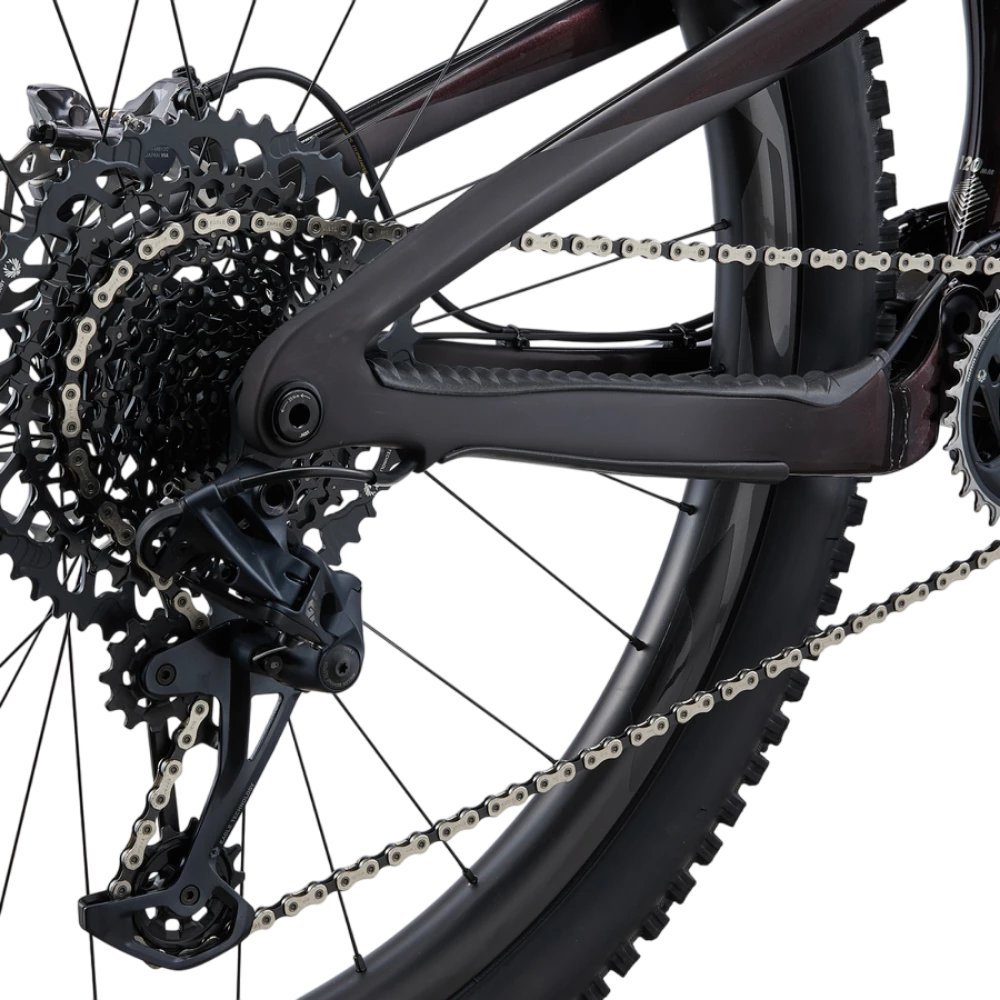

Rear Derailleur

SRAM GX Eagle
Brakes

Shimano Deore XT BR-M8120, hydraulic | Shimano RT-66 rotors [F]180mm, [R]180mm
Brake Levers

Shimano Deore XT BL-M8100
Cassette/Freewheel

SRAM GX, 10T-52T
Chain

SRAM GX
Crankset

SRAM GX, 30T, 55mm chainline
Bottom Bracket

SRAM DUB, press fit
Rims

Giant TRX 2 29 Carbon WheelSystem
Hubs

[F] Giant MTB alloy, 6-bolt [R] Giant MTB alloy, 3-pawl driver, 6-bolt
Spokes

Sapim
Tyres

[F] Maxxis Minion DHF 29x2.5 WT, 3C MaxxTerra, EXO, TR [R] Maxxis Aggressor 29x2.5, EXO, TR, tubeless
Extras

Tubeless prepared, 2.6” max tyre size | 34t max chainring size
Notes

Please note that, based on component availability and other factors, specifications are subject to change without notice.
Speeds (rear)

12 Speed
Age Group

Adults
Gender

Mens
Discipline

Mountain
SKUs

Cordovan/Chrome/S: 2311046104, Cordovan/Chrome/M: 2311046105, Cordovan/Chrome/L: 2311046107, Cordovan/Chrome/XL: 2311046108
