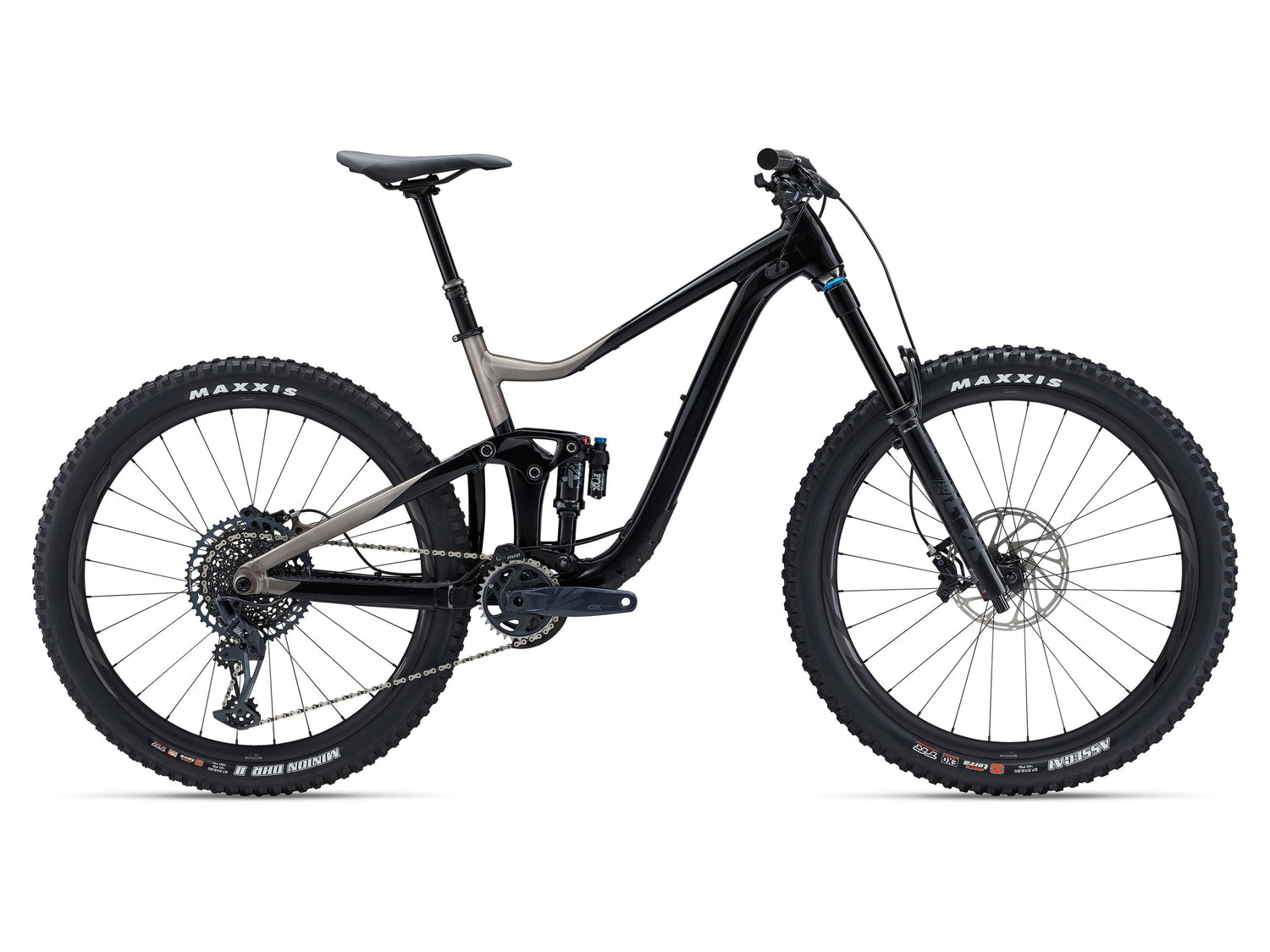

Giant Trance X 1 (2022)

Name: Giant Trance X 1 (2022)
Brand: Giant
SKU: 2211077105
Price: 3599.0 AUD
Availability: InStock

$3,599⁰⁰ ~~$6,499⁰⁰~~

Colour: Black/Smoke Metal

Giant Trance X 1 (2022) dual-suspension mountain bike

Size

M L XL

Product variants

PICKUP IN-STORE ONLY. Shipping not available on bikes.

Fully assembled, ready to ride

Buy Now, Pay Later with ZIP

Free service adjustment within first 6 months

Sizing Chart

Sizing and Geometry

Giant Trance

Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.

Sizing	Rider Height	Rider Height (cm)
S	5′ 4″ – 5′ 8″	163 – 172
M	5′ 7″ – 5′ 11″	171 – 180
L	5′ 10″ – 6′ 2″	179 – 188
XL	6′ 2″ – 6′ 6″	187 – 198

Geometry

bike diagram with measurements referenced in table that follows

		S	M	L	XL
		LOW \| MID \| HIGH	LOW \| MID \| HIGH	LOW \| MID \| HIGH	LOW \| MID \| HIGH
A	Seat Tube Length (mm)	400	425	450	475
A1	Seat Post Insertion Depth (mm)	280	305	330	355
B	Seat Tube Angle	76.8° \| 77.2° \| 77.5°	76.8° \| 77.2° \| 77.5°	76.8° \| 77.2° \| 77.5°	76.8° \| 77.2° \| 77.5°
C	Top Tube Length (mm)	571 \| 570 \| 569	602 \| 601 \| 600	624 \| 623 \| 622	657 \| 656 \| 655
D	Head Tube Length (mm)	100	105	115	125
E	Head Tube Angle	64.4° \| 64.8° \| 65.1°	64.4° \| 64.8° \| 65.1°	64.4° \| 64.8° \| 65.1°	64.4° \| 64.8° \| 65.1°
F	Fork Rake (mm)	44	44	44	44
G	Trail (mm)	134.1 \| 131.3 \| 128.4	134 \| 131.3 \| 128.5	133.9 \| 131.3 \| 128.5	133.9 \| 131.3 \| 128.6
H	Wheelbase (mm)	1190 \| 1190 \| 1189	1222 \| 1222 \| 1221	1246 \| 1246 \| 1245	1281 \| 1280 \| 1280
I	Chain Stay Length (mm)	440 \| 439 \| 438	440 \| 439 \| 438	440 \| 439 \| 438	440 \| 439 \| 438
J	Bottom Bracket Drop (mm)	40 \| 35 \| 30	40 \| 35 \| 30	40 \| 35 \| 30	40 \| 35 \| 30
K	Stack (mm)	617 \| 614 \| 611	621 \| 619 \| 616	631 \| 628 \| 625	640 \| 637 \| 634
L	Reach (mm)	426 \| 430 \| 434	456 \| 460 \| 464	476 \| 480 \| 484	507 \| 510 \| 514
M	Stand Over Height (mm)	733 \| 737 \| 742	737 \| 741 \| 746	754 \| 759 \| 763	752 \| 757 \| 762
O	Stem Length (mm)	40	40	50	50
P	Crank Length (mm)	165	170	170	170
Q	Wheel Size	[F] 29" [R	[F] 29" [R	[F] 29" [R	[F] 29" [R

Shipping Information

Certain bike brands cannot be shipped and are only available for Click and Collect.

These include but are not limited to the following brands: Giant, GT, Liv, Momentum and Mongoose.

For all other brands, we can provide a shipping quote to your postcode. Please contact us by email at staff@ivanhoecycles.com.au, or text us on 0417 122 950.

Sizing and Geometry

Giant Trance

Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.

Sizing	Rider Height	Rider Height (cm)
S	5′ 4″ – 5′ 8″	163 – 172
M	5′ 7″ – 5′ 11″	171 – 180
L	5′ 10″ – 6′ 2″	179 – 188
XL	6′ 2″ – 6′ 6″	187 – 198

Geometry

bike diagram with measurements referenced in table that follows

		S	M	L	XL
		LOW \| MID \| HIGH	LOW \| MID \| HIGH	LOW \| MID \| HIGH	LOW \| MID \| HIGH
A	Seat Tube Length (mm)	400	425	450	475
A1	Seat Post Insertion Depth (mm)	280	305	330	355
B	Seat Tube Angle	76.8° \| 77.2° \| 77.5°	76.8° \| 77.2° \| 77.5°	76.8° \| 77.2° \| 77.5°	76.8° \| 77.2° \| 77.5°
C	Top Tube Length (mm)	571 \| 570 \| 569	602 \| 601 \| 600	624 \| 623 \| 622	657 \| 656 \| 655
D	Head Tube Length (mm)	100	105	115	125
E	Head Tube Angle	64.4° \| 64.8° \| 65.1°	64.4° \| 64.8° \| 65.1°	64.4° \| 64.8° \| 65.1°	64.4° \| 64.8° \| 65.1°
F	Fork Rake (mm)	44	44	44	44
G	Trail (mm)	134.1 \| 131.3 \| 128.4	134 \| 131.3 \| 128.5	133.9 \| 131.3 \| 128.5	133.9 \| 131.3 \| 128.6
H	Wheelbase (mm)	1190 \| 1190 \| 1189	1222 \| 1222 \| 1221	1246 \| 1246 \| 1245	1281 \| 1280 \| 1280
I	Chain Stay Length (mm)	440 \| 439 \| 438	440 \| 439 \| 438	440 \| 439 \| 438	440 \| 439 \| 438
J	Bottom Bracket Drop (mm)	40 \| 35 \| 30	40 \| 35 \| 30	40 \| 35 \| 30	40 \| 35 \| 30
K	Stack (mm)	617 \| 614 \| 611	621 \| 619 \| 616	631 \| 628 \| 625	640 \| 637 \| 634
L	Reach (mm)	426 \| 430 \| 434	456 \| 460 \| 464	476 \| 480 \| 484	507 \| 510 \| 514
M	Stand Over Height (mm)	733 \| 737 \| 742	737 \| 741 \| 746	754 \| 759 \| 763	752 \| 757 \| 762
O	Stem Length (mm)	40	40	50	50
P	Crank Length (mm)	165	170	170	170
Q	Wheel Size	[F] 29" [R	[F] 29" [R	[F] 29" [R	[F] 29" [R

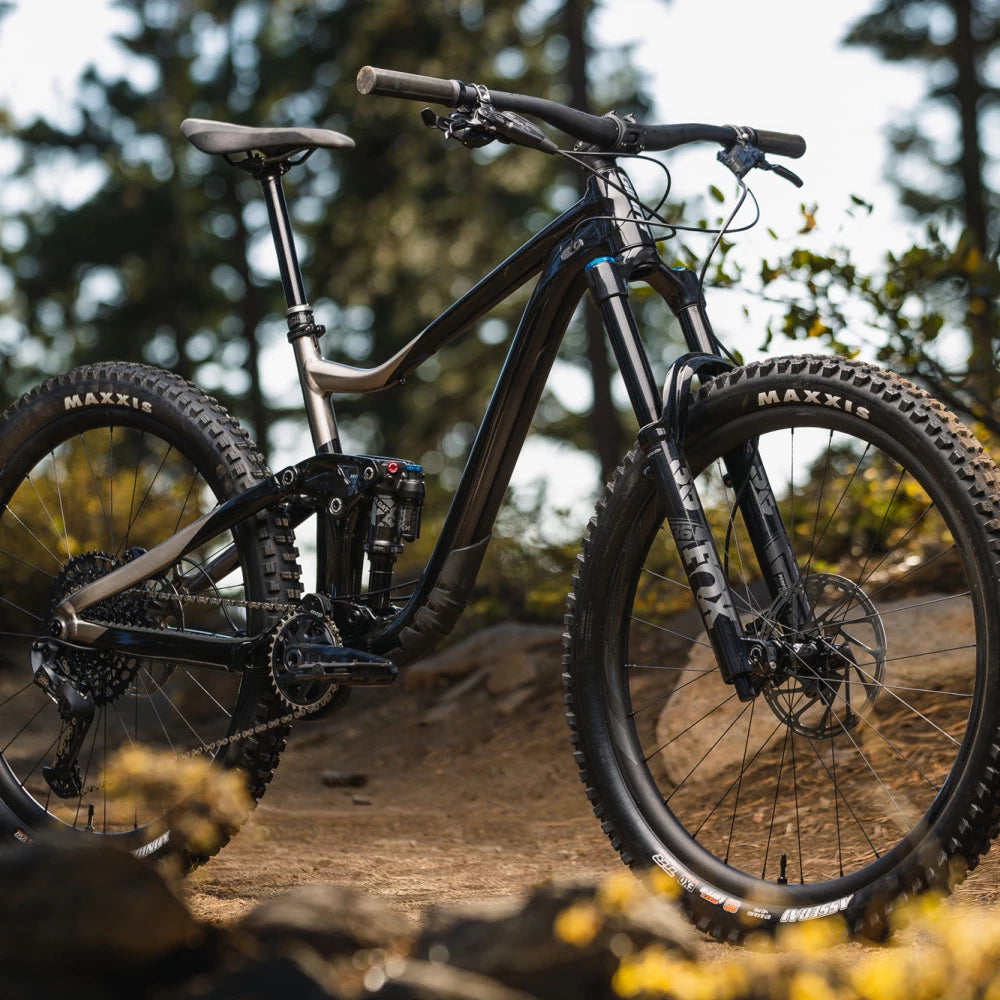

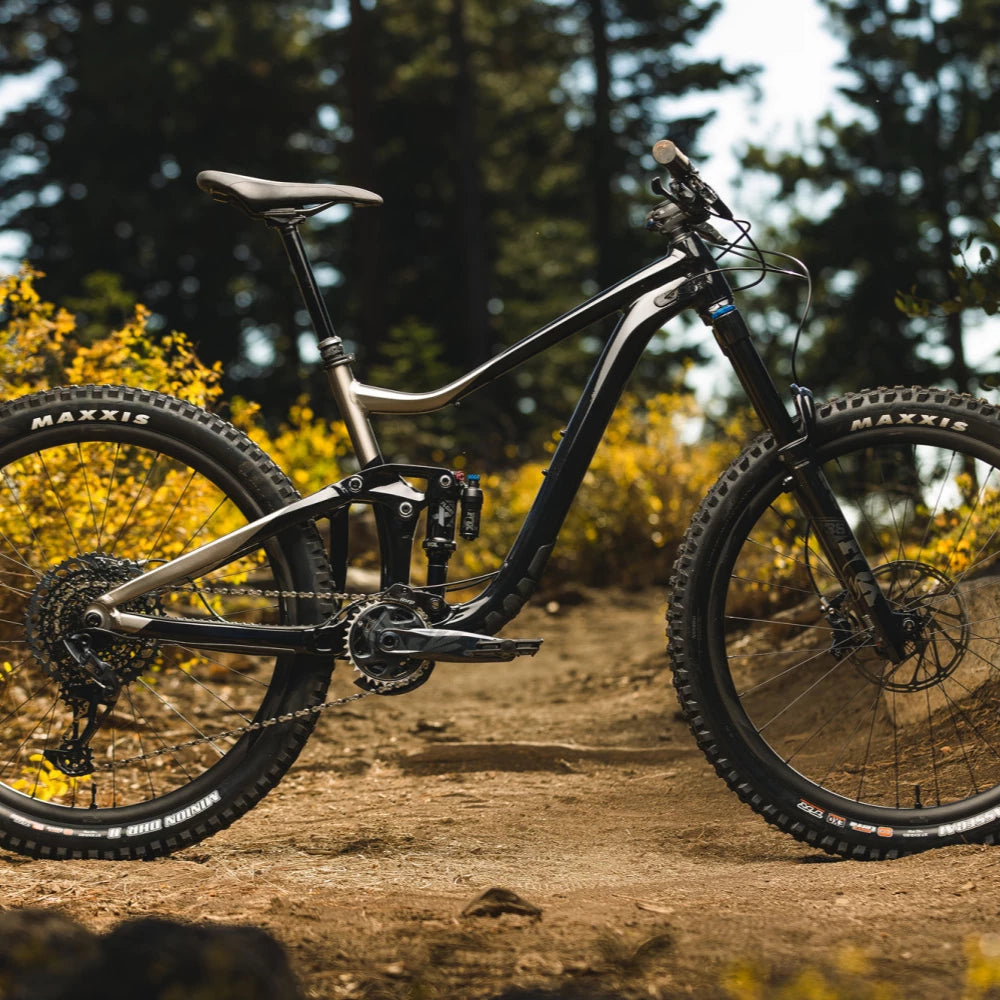

Giant Trance X 1 (2022)

Float through rock gardens, hit the jumps, and find the faster line.

With quick-handling 27.5 wheels and adjustable frame geometry, this lively trail bike is a party on wheels.

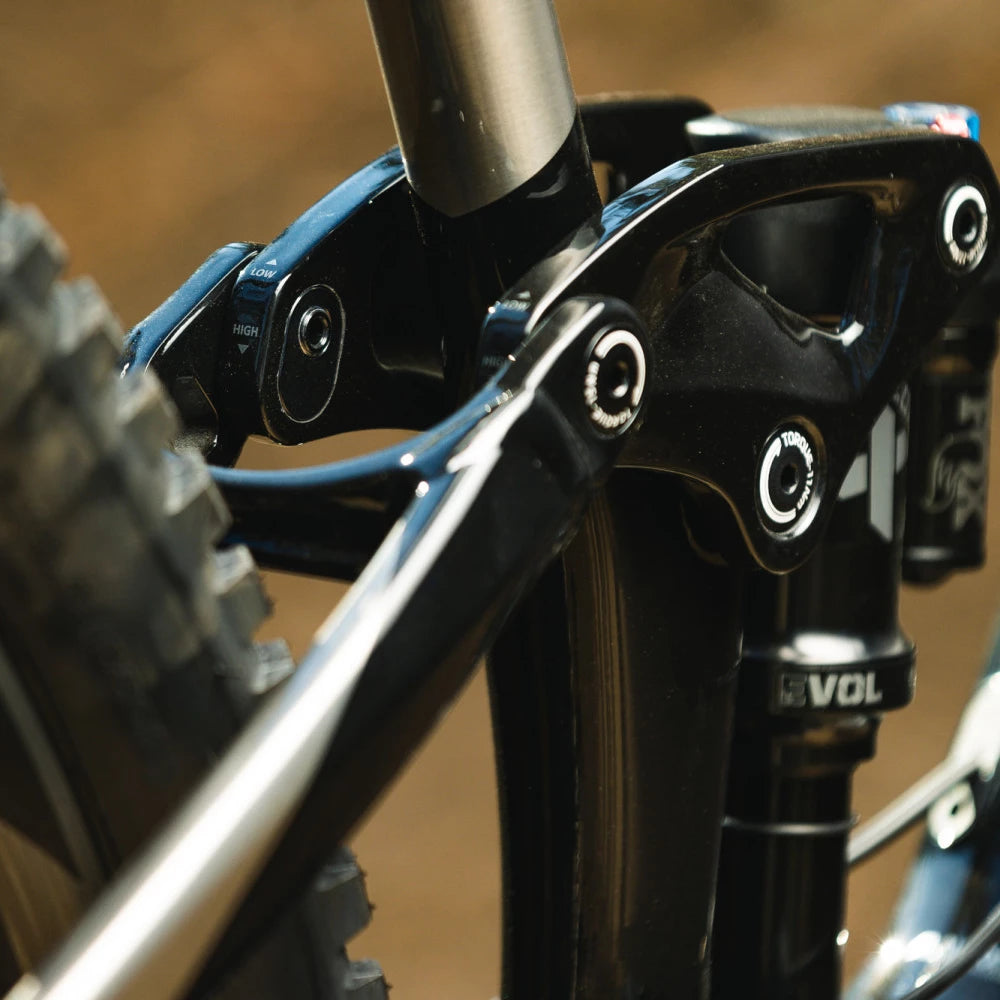

New flip chip feature lets you change the head-tube and seat-tube angles, as well as the bottom bracket height, to fine-tune handling for varying trail conditions and individual riding style.

27.5-inch wheels balance agility and control, giving you the ability to roll over rugged terrain, flick the bike at speed, change lines, and explode out of corners.

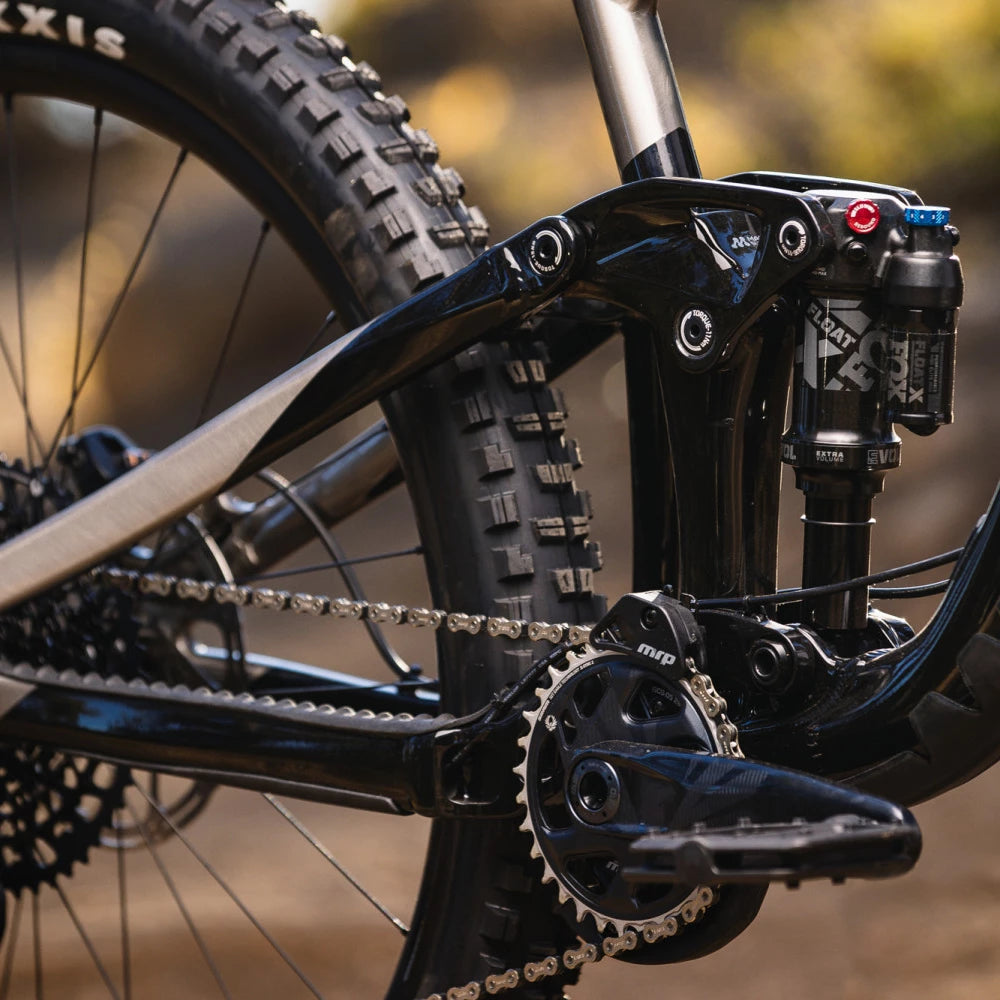

Updated Maestro rear suspension features a trunnion mount shock with a longer stroke and smoother feel. With 145mm of rear travel (and 160mm up front), it has an Advanced Forged Composite upper rocker arm for increased stiffness and strength plus lower overall frame weight.

Frame material

Aluminium
Frame

ALUXX SL-grade aluminium, 145mm Maestro suspension, Flip chip, 12x148mm thru-axle
Fork

Fox 36 Performance Elite, GRIP 2 damper, 37mm offset // 160mm trvel // 15x110 Kabolt X // Custom tuned for Giant
Shock

Fox Float X Performance Elite, Custom tuned for Giant
Handlebar

Giant Contact TR35, alloy, 35mm
Grips

Giant Tactal Pro Single lock-on
Headset

1 1/8" A-Head Threadless
Stem

Giant Contact SL 35 | S:40mm, M:40mm, L:50mm, XL:50mm
Seatpost

TranzX travel-adjustable dropper, remote | S:120-150mm travel, M:140-170mm travel, L:170-200mm travel, XL:170-200mm travel
Saddle

Giant Romero
Pedals

N/A
Shifters

SRAM GX Eagle, 12 speed
Front Derailleur

N/A
Rear Derailleur

SRAM GX Eagle, 12 speed
Brakes

SRAM Code R, hydraulic, SRAM CenterLine rotors | [F]200mm, [R]180mm
Brake Levers

SRAM Code R
Cassette/Freewheel

SRAM XG-1275, 10T-52T, 12 speed
Chain

SRAM GX Eagle, 12 speed
Crankset

SRAM GX Eagle, 32T | S:165mm, M:170mm, L:170mm, XL:170mm
Bottom Bracket

SRAM DUB, press fit
Tyres

[F] Maxxis Assegai 27.5x2.6, 3C MaxxTerra, EXO, TR [R] Maxxis Minion DHRII 27.5x2.6, 3C MaxxTerra, EXO, TR, tubeless
Extras

Tubeless prepared, 2.6” max tyre size, 34t max chainring size, MRP AMG CS chain guide
Notes

Please note that, based on component availability and other factors, specifications are subject to change without notice.
Speeds (rear)

12 Speed
Age Group

Adults
Gender

Mens
