Giant | SKU: 9110002104

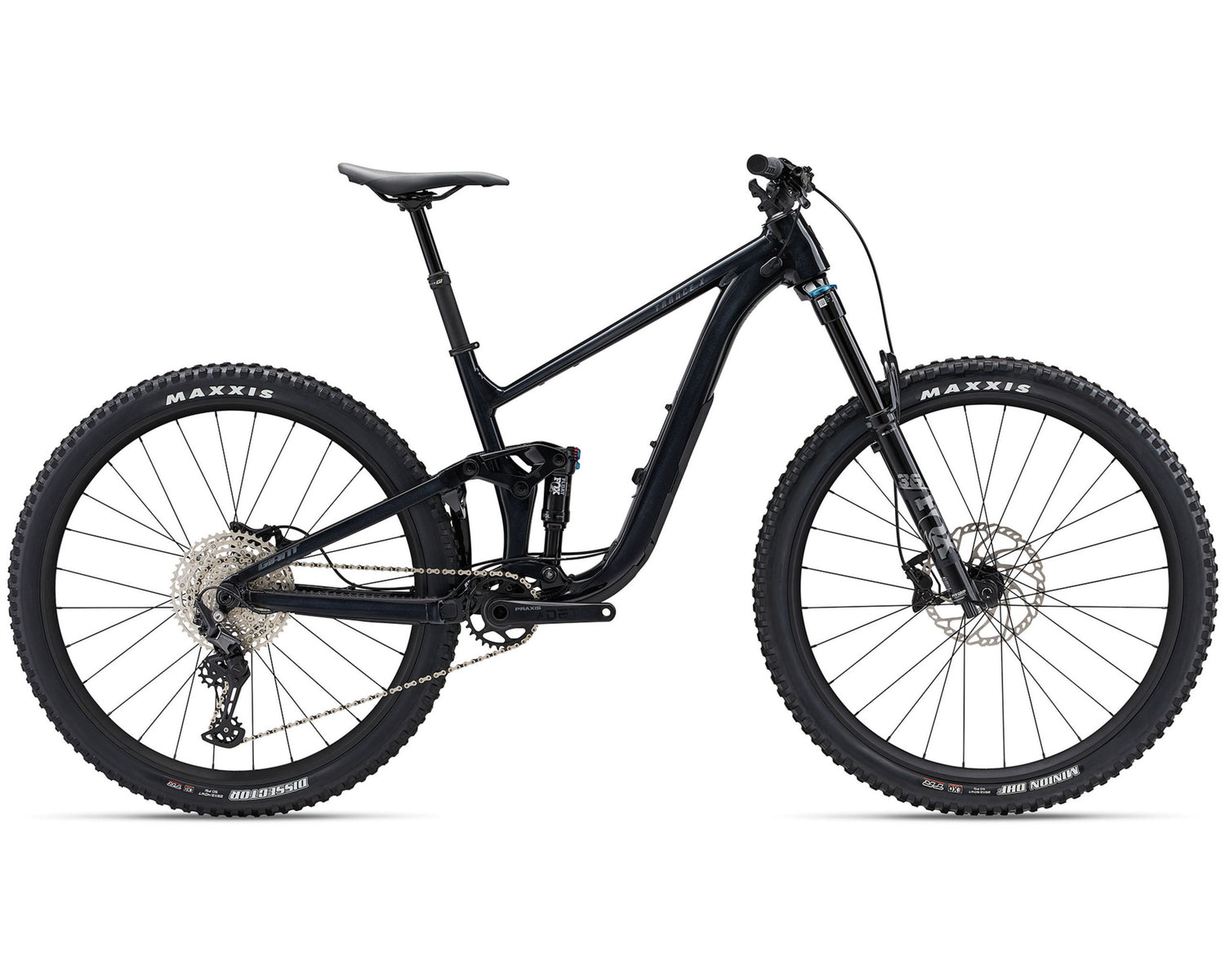

Giant Trance X 2 Mountain Bike (2024)

$4,699⁰⁰

ALUXX SL-Grade Aluminium front and rear triangles | 140mm travel
Fox 36 Float Rhythm fork | 150mm travel
Fox Float Performance Shock
Shimano Deore 12s drivetrain

Colour: Metallic Black

S M L XL

Product variants

Special Order: This product will be ordered from our supplier upon purchase and available for collection within 7-14 business days. Read T&Cs here.

Fully assembled when you Click & Collect in-store

Buy Now, Pay Later with ZIP

Free service adjustment within first 6 months

Sizing Chart

Sizing and Geometry

Giant Trance

Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.

Sizing	Rider Height	Rider Height (cm)
S	5′ 4″ – 5′ 8″	163 – 172
M	5′ 7″ – 5′ 11″	171 – 180
L	5′ 10″ – 6′ 2″	179 – 188
XL	6′ 2″ – 6′ 6″	187 – 198

Geometry

bike diagram with measurements referenced in table that follows

		S	M	L	XL
		LOW \| MID \| HIGH	LOW \| MID \| HIGH	LOW \| MID \| HIGH	LOW \| MID \| HIGH
A	Seat Tube Length (mm)	400	425	450	475
A1	Seat Post Insertion Depth (mm)	280	305	330	355
B	Seat Tube Angle	76.8° \| 77.2° \| 77.5°	76.8° \| 77.2° \| 77.5°	76.8° \| 77.2° \| 77.5°	76.8° \| 77.2° \| 77.5°
C	Top Tube Length (mm)	571 \| 570 \| 569	602 \| 601 \| 600	624 \| 623 \| 622	657 \| 656 \| 655
D	Head Tube Length (mm)	100	105	115	125
E	Head Tube Angle	64.4° \| 64.8° \| 65.1°	64.4° \| 64.8° \| 65.1°	64.4° \| 64.8° \| 65.1°	64.4° \| 64.8° \| 65.1°
F	Fork Rake (mm)	44	44	44	44
G	Trail (mm)	134.1 \| 131.3 \| 128.4	134 \| 131.3 \| 128.5	133.9 \| 131.3 \| 128.5	133.9 \| 131.3 \| 128.6
H	Wheelbase (mm)	1190 \| 1190 \| 1189	1222 \| 1222 \| 1221	1246 \| 1246 \| 1245	1281 \| 1280 \| 1280
I	Chain Stay Length (mm)	440 \| 439 \| 438	440 \| 439 \| 438	440 \| 439 \| 438	440 \| 439 \| 438
J	Bottom Bracket Drop (mm)	40 \| 35 \| 30	40 \| 35 \| 30	40 \| 35 \| 30	40 \| 35 \| 30
K	Stack (mm)	617 \| 614 \| 611	621 \| 619 \| 616	631 \| 628 \| 625	640 \| 637 \| 634
L	Reach (mm)	426 \| 430 \| 434	456 \| 460 \| 464	476 \| 480 \| 484	507 \| 510 \| 514
M	Stand Over Height (mm)	733 \| 737 \| 742	737 \| 741 \| 746	754 \| 759 \| 763	752 \| 757 \| 762
O	Stem Length (mm)	40	40	50	50
P	Crank Length (mm)	165	170	170	170
Q	Wheel Size	[F] 29" [R	[F] 29" [R	[F] 29" [R	[F] 29" [R

Bike Shipping

Delivery is available upon specific request for our special order bikes.

Bikes may only be shipped directly to a qualified bike mechanic or bike shop of your choosing, who must complete the assembly of the bike. We strictly cannot ship an unbuilt bike direct to consumer.

The buyer is responsible for all shipping and assembly costs, and is responsible for arranging assembly with their nominated bike store or mechanic.

To request a shipping quote, please submit a request and include the delivery postcode, business name of your nominated bike shop or bike mechanic, and the exact model & frame size of the bike.

Please note: All bikes sold by Ivanhoe Cycles must be assembled by a qualified mechanic or bike shop. Any assembly undertaken without professional assistance is at the customer's risk and any injury as a result of the build without professional assistance will not be covered by the warranty.

Assembly

Every bike purchased or collected in-store at Ivanhoe Cycles is fully assembled by our qualified mechanics free of charge.

Bikes ordered online for shipping* will require partial assembly, including but not limited to: installing handlebar, seatpost, front wheel; adjusting gears and brakes; tuning suspension; installing accessories or bar tape.

Disclaimer: Ivanhoe Cycles strongly advises having your assembly completed by an experienced bicycle mechanic. Any assembly undertaken without professional assistance is at the customer's risk and any injury as a result of the build without professional assistance will not be covered by the warranty.

*Shipping is restricted to certain brands due to assembly requirements.

Returns / Cancellations

If your special ordered item arrives faulty, damaged, or is differently than described, you are entitled to a full refund or replacement.

Cancellations and returns are not accepted on special orders if the consumer:
- changed their mind
- found the item cheaper elsewhere
- decided they didn't like the purchase or had no use for it
- ordered the wrong item

For more information, please read our Special Order terms and conditions.

Sizing and Geometry

Giant Trance

Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.

Sizing	Rider Height	Rider Height (cm)
S	5′ 4″ – 5′ 8″	163 – 172
M	5′ 7″ – 5′ 11″	171 – 180
L	5′ 10″ – 6′ 2″	179 – 188
XL	6′ 2″ – 6′ 6″	187 – 198

Geometry

bike diagram with measurements referenced in table that follows

		S	M	L	XL
		LOW \| MID \| HIGH	LOW \| MID \| HIGH	LOW \| MID \| HIGH	LOW \| MID \| HIGH
A	Seat Tube Length (mm)	400	425	450	475
A1	Seat Post Insertion Depth (mm)	280	305	330	355
B	Seat Tube Angle	76.8° \| 77.2° \| 77.5°	76.8° \| 77.2° \| 77.5°	76.8° \| 77.2° \| 77.5°	76.8° \| 77.2° \| 77.5°
C	Top Tube Length (mm)	571 \| 570 \| 569	602 \| 601 \| 600	624 \| 623 \| 622	657 \| 656 \| 655
D	Head Tube Length (mm)	100	105	115	125
E	Head Tube Angle	64.4° \| 64.8° \| 65.1°	64.4° \| 64.8° \| 65.1°	64.4° \| 64.8° \| 65.1°	64.4° \| 64.8° \| 65.1°
F	Fork Rake (mm)	44	44	44	44
G	Trail (mm)	134.1 \| 131.3 \| 128.4	134 \| 131.3 \| 128.5	133.9 \| 131.3 \| 128.5	133.9 \| 131.3 \| 128.6
H	Wheelbase (mm)	1190 \| 1190 \| 1189	1222 \| 1222 \| 1221	1246 \| 1246 \| 1245	1281 \| 1280 \| 1280
I	Chain Stay Length (mm)	440 \| 439 \| 438	440 \| 439 \| 438	440 \| 439 \| 438	440 \| 439 \| 438
J	Bottom Bracket Drop (mm)	40 \| 35 \| 30	40 \| 35 \| 30	40 \| 35 \| 30	40 \| 35 \| 30
K	Stack (mm)	617 \| 614 \| 611	621 \| 619 \| 616	631 \| 628 \| 625	640 \| 637 \| 634
L	Reach (mm)	426 \| 430 \| 434	456 \| 460 \| 464	476 \| 480 \| 484	507 \| 510 \| 514
M	Stand Over Height (mm)	733 \| 737 \| 742	737 \| 741 \| 746	754 \| 759 \| 763	752 \| 757 \| 762
O	Stem Length (mm)	40	40	50	50
P	Crank Length (mm)	165	170	170	170
Q	Wheel Size	[F] 29" [R	[F] 29" [R	[F] 29" [R	[F] 29" [R

Giant Trance X 2 Mountain Bike (2024)

Find your flow on technical trails and beyond. With adjustable geometry, the option to switch rear wheel size, and 140mm of smooth Maestro rear suspension, this versatile trail bike delivers the perfect balance of agility, control, and confidence to take on any singletrack with ease.

Updated suspension

A new Maestro rear suspension system gives trail riders 140mm of rear travel. The trunnion mount shock and Advanced Forged Composite rocker arm combine for a longer stroke that has a smooth, active feel, plus greater stiffness in the chassis for precision control. The rear suspension is paired with a 150mm travel fork, providing superior confidence and control on technical singletrack.

Adjustable trail geometry

A three-position Maestro flip chip lets riders dial in frame geometry for their riding style and terrain.

The high setting adds more ground clearance, a good option for tight, technical terrain.

In the low setting, the head tube gets slacker and the bottom bracket drops, ideal for confident handling at higher speeds.

The middle position is neutral. In addition, a new headset flip chip adjusts reach so that riders can easily achieve their preferred positioning.

Rear wheel options

All models come with 29-inch front and rear wheels, but the flip chip lets you opt for a mixed wheel setup including a 27.5 rear.

The stock 29-inch rear wheel optimises stability and roll-over capabilities, while a 27.5 delivers a more agile, snappier feel and more saddle-to-tyre clearance in the rear.

Some riders favour this “mullet” setup for riding steep, technical terrain.

Frame material

Aluminium
Frame

ALUXX SL-Grade Aluminium front and rear triangles, 140mm Maestro suspension, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, flip chip - Maestro 3, flip chip - headset, integrated down tube storage
Fork

Fox 36 Float Rhythm, 150mm, GRIP damper, 15x110 Kabolt X, 44mm offset
Shock

Fox Float Performance, 185/52.5, custom tuned for Giant
Handlebar

Giant Contact TR35, alloy, 20mm rise
Grips

Giant Tactal Pro Single Lock-On, 132x35mm
Stem

Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm
Saddle

Giant Romero
Pedals

N/A
Shifters

Shimano Deore, 1x12
Rear Derailleur

Shimano Deore, Shadow +
Brake Levers

Shimano Deore BL-MT401
Cassette/Freewheel

Shimano Deore M6100, 10x51
Chain

KMC X-12
Crankset

Praxis Cadet HD M24, 30t, 55mm chainline S:165mm, M:170mm, L:170mm, XL:170mm
Bottom Bracket

Praxis, press fit
Rims

Giant AM Tubeless ready Alloy 29, 30mm inner width
Hubs

Giant AM Tubeless ready Alloy 29, 30mm inner width
Spokes

Sapim Race
Tyres

[F] Maxxis Minion DHF, 29x2.5 WT, 60 tpi, EXO, TR [R] Maxxis Dissector 29x2.4 WT, 60 tpi, EXO TR, tubeless
Extras

[F] Maxxis Minion DHF, 29x2.5 WT, 60 tpi, EXO, TR [R] Maxxis Dissector 29x2.4 WT, 60 tpi, EXO TR, tubeless
Notes

Please note that, based on component availability and other factors, specifications are subject to change without notice.
Speeds (rear)

12 Speed
Age Group

Adults, Teenagers
Gender

Mens, Unisex
Discipline

Mountain
SKUs

Metallic Black/S: 9110002104, Metallic Black/M: 9110002105, Metallic Black/L: 9110002107, Metallic Black/XL: 9110002108
