PRODUCT DETAILS

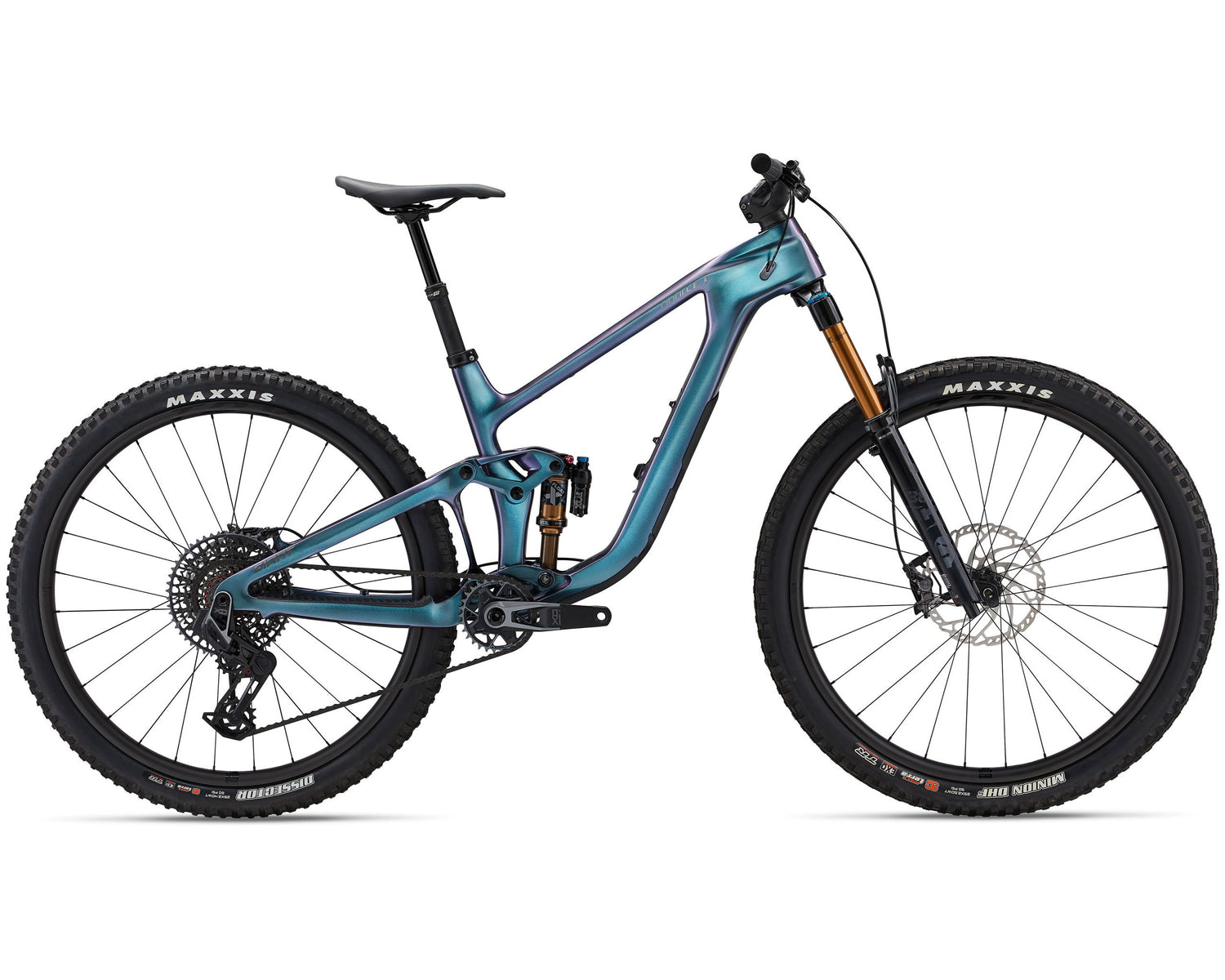

GIANT TRANCE X ADVANCED 0 2024 - BLUE DRAGONFLY
Float up technical climbs and sail down chunky descents.
Our all-new Giant Trance X Advanced is a full-carbon trail bike that delivers 140mm of smooth Maestro rear wheel suspension travel. And lot of adjustability. You can dial in frame geometry and switch the rear wheel size for the terrain.
We’ve added 5mm of travel over the previous generation, going from 135mm to 140mm. And this is paired to a 150mm travel front suspension fork.
A 3-position Flip-Chip lets riders dial in frame geometry for your riding style and terrain.
The HIGH setting adds more ground clearance; a good option for tight, technical terrain.
The LOW setting creates a slacker head angle and lower bottom bracket for confident handling at higher speeds.
And the MIDDLE position is neutral.
Lastly, a new headset Flip-Chip provides 10mm of REACH adjustment.
All models come with 29-inch front and rear wheels, but the flip chip lets you opt for a mixed wheel setup including a 27.5 rear.
The 29-setup optimises stability and holding momentum over rough terrain. The 27.5 rear wheel setup delivers a snappier feel and more saddle-to-tyre clearance. You may also prefer this âÂÂmulletâ setup for riding steep, technical terrain.
SPECIFICATIONS
Sizes | S, M, L, XL |
Colour | Blue Dragonfly/Chrome |
Frame | Advanced-Grade Composite front and rear triangles, 140mm Maestro suspension, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, flip chip - Maestro 3, flip chip - headset, integrated down tube storage |
Fork | Fox 36 Factory, 150mm, GRIP 2 damper, 15x110 Kabolt X, 44mm offset |
Shock | Fox Float X Factory, two-position LSC adjust, 185/52.5, custom tuned for Giant |
Handlebar | Giant Contact SLR Trail Integrated, composite, 35mm |
Grips | Giant Tactal Pro Single Lock-On, 132x35mm |
Stem | Giant Contact Integrated SLR Trail S:40mm, M:40mm, L:50mm, XL:50mm |
Seatpost | Contact Switch AT dropper, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 170-200mm travel / 30.9 x 530mm |
Saddle | Giant Romero SL |
Pedals | N/A |
Shifters | SRAM AXS Pod, 1x12 |
Front Derailleur | N/A |
Rear Derailleur | SRAM XO Eagle AXS, T-Type |
Brakes | Shimano Deore XT BR-M8120, hydraulic, four piston, Shimano RT-66 rotors [F]203mm, [R]180mm |
Brake Levers | Shimano Deore XT BL-M8100 |
Cassette | SRAM XO, T-Type, 10x52T |
Chain | SRAM XO, T-Type |
Crankset | SRAM XO, T-Type, 30t, 55mm chainline S:165mm, M:170mm, L:170mm, XL:170mm |
Bottom Bracket | SRAM DUB, press fit |
Rims | Giant TRX WheelSystem, carbon, hookless, 30mm inner width, 40mm outer width, 22mm height, Wide Guard Technology |
Hubs | [F] Giant MTB alloy, six-bolt // [R] Giant MTB alloy, 72t POE (Points of Engagement), six-bolt, XD driver body |
Spokes | Sapim, 28, straight pull, DBL Technology |
Tyres | [F] Maxxis Minion DHF, 29x2.5 WT, 3C 60 tpi, MaxxTerra, EXO, TR [R] Maxxis Dissector 29x2.4 WT, 60 tpi, 3C MaxxTerra, TR, tubeless |
Extras | Tubeless prepared, 2.5” max tyre size, 34t max chainring size, 3M tailgate protector, down tube and chainstay protection |
Notes | We reserve the right to make changes to the product and component information appearing on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials. |
