Giant Trance X Advanced E+ Elite 1 (2024)
Giant Trance X Advanced E+ Elite 1 (2024) - Raw Carbon / L is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Sizing Chart
Sizing Chart
Sizing and Geometry
Giant Trance E+
Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.
| Sizing | Rider Height | Rider Height (cm) |
|---|---|---|
| S | 5′ 4″ – 5′ 9″ | 163 – 174 |
| M | 5′ 7″ – 6′ 0″ | 171 – 182 |
| L | 5′ 10″ – 6′ 3″ | 179 – 190 |
| XL | 6′ 2″ – 6′ 6″ | 187 – 199 |
Geometry
| S | M | L | XL | ||
|---|---|---|---|---|---|
| LOW | HIGH | LOW | HIGH | LOW | HIGH | LOW | HIGH | ||
| A | Seat Tube Length (inch) | 15.7 | 16.7 | 17.7 | 18.7 |
| A1 | Seat Post Insertion Depth (inch) | 8.7 | 9.6 | 10.6 | 11.6 |
| B | Seat Tube Angle | 77.2° | 78.0° | 76.0° | 76.7° | 76.0° | 76.7° | 76.0° | 76.7° |
| C | Top Tube Length (inch) | 22.7 | 22.6 | 23.9 | 23.8 | 25 | 25 | 26.2 | 26.1 |
| D | Head Tube Length (inch) | 3.7 | 3.9 | 4.5 | 5.1 |
| E | Head Tube Angle | 65.7° | 66.5° | 65.8° | 66.5° | 65.8° | 66.5° | 65.8° | 66.5° |
| F | Fork Rake (inch) | 1.7 | 1.7 | 1.7 | 1.7 |
| G | Trail (inch) | 4.4 | 4.3 | 4.4 | 4.3 | 4.4 | 4.3 | 4.4 | 4.3 |
| H | Wheelbase (inch) | 47 | 47 | 47.8 | 47.7 | 49 | 49 | 50.2 | 50.2 |
| I | Chain Stay Length (inch) | 17.6 | 17.6 | 17.6 | 17.6 | 17.6 | 17.6 | 17.6 | 17.6 |
| J | Bottom Bracket Drop (inch) | 0.4 | 0.4 | 0.4 | 0.4 |
| K | Stack (inch) | 23.9 | 23.7 | 24.1 | 23.8 | 24.6 | 24.4 | 25.2 | 24.9 |
| L | Reach (inch) | 17.3 | 17.6 | 18 | 18.2 | 18.9 | 19.2 | 19.9 | 20.2 |
| M | Stand Over Height (inch) | 28.6 | 28.9 | 28.9 | 29.2 | 28.8 | 29.2 | 29.2 | 29.5 |
| O | Stem Length (inch) | 1.6 | 1.6 | 2 | 2 |
| P | Crank Length (inch) | 6.3 | 6.5 | 6.5 | 6.7 |
| Q | Wheel Size | 29" [F] 27.5" [R] | 29" [F] 27.5" [R] | 29" [F] 27.5" [R] | 29" [F] 27.5" [R] |
Shipping Information
Shipping Information
Certain bike brands cannot be shipped and are only available for Click and Collect.
These include but are not limited to the following brands: Giant, GT, Liv, Momentum and Mongoose.
For all other brands, we can provide a shipping quote to your postcode. Please contact us by email at staff@ivanhoecycles.com.au, or text us on 0417 122 950.
Sizing and Geometry
Giant Trance E+
Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.
| Sizing | Rider Height | Rider Height (cm) |
|---|---|---|
| S | 5′ 4″ – 5′ 9″ | 163 – 174 |
| M | 5′ 7″ – 6′ 0″ | 171 – 182 |
| L | 5′ 10″ – 6′ 3″ | 179 – 190 |
| XL | 6′ 2″ – 6′ 6″ | 187 – 199 |
Geometry
| S | M | L | XL | ||
|---|---|---|---|---|---|
| LOW | HIGH | LOW | HIGH | LOW | HIGH | LOW | HIGH | ||
| A | Seat Tube Length (inch) | 15.7 | 16.7 | 17.7 | 18.7 |
| A1 | Seat Post Insertion Depth (inch) | 8.7 | 9.6 | 10.6 | 11.6 |
| B | Seat Tube Angle | 77.2° | 78.0° | 76.0° | 76.7° | 76.0° | 76.7° | 76.0° | 76.7° |
| C | Top Tube Length (inch) | 22.7 | 22.6 | 23.9 | 23.8 | 25 | 25 | 26.2 | 26.1 |
| D | Head Tube Length (inch) | 3.7 | 3.9 | 4.5 | 5.1 |
| E | Head Tube Angle | 65.7° | 66.5° | 65.8° | 66.5° | 65.8° | 66.5° | 65.8° | 66.5° |
| F | Fork Rake (inch) | 1.7 | 1.7 | 1.7 | 1.7 |
| G | Trail (inch) | 4.4 | 4.3 | 4.4 | 4.3 | 4.4 | 4.3 | 4.4 | 4.3 |
| H | Wheelbase (inch) | 47 | 47 | 47.8 | 47.7 | 49 | 49 | 50.2 | 50.2 |
| I | Chain Stay Length (inch) | 17.6 | 17.6 | 17.6 | 17.6 | 17.6 | 17.6 | 17.6 | 17.6 |
| J | Bottom Bracket Drop (inch) | 0.4 | 0.4 | 0.4 | 0.4 |
| K | Stack (inch) | 23.9 | 23.7 | 24.1 | 23.8 | 24.6 | 24.4 | 25.2 | 24.9 |
| L | Reach (inch) | 17.3 | 17.6 | 18 | 18.2 | 18.9 | 19.2 | 19.9 | 20.2 |
| M | Stand Over Height (inch) | 28.6 | 28.9 | 28.9 | 29.2 | 28.8 | 29.2 | 29.2 | 29.5 |
| O | Stem Length (inch) | 1.6 | 1.6 | 2 | 2 |
| P | Crank Length (inch) | 6.3 | 6.5 | 6.5 | 6.7 |
| Q | Wheel Size | 29" [F] 27.5" [R] | 29" [F] 27.5" [R] | 29" [F] 27.5" [R] | 29" [F] 27.5" [R] |

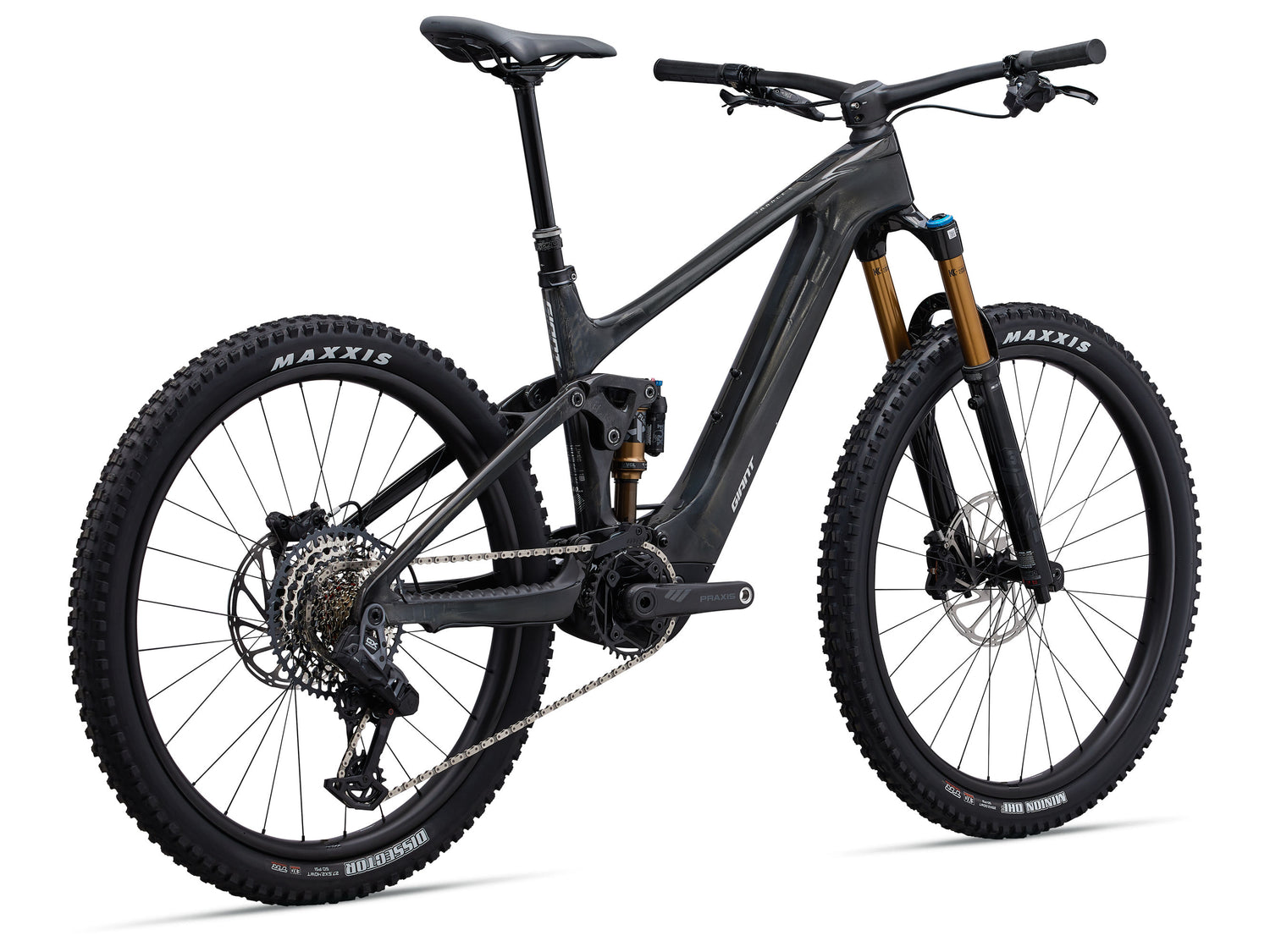

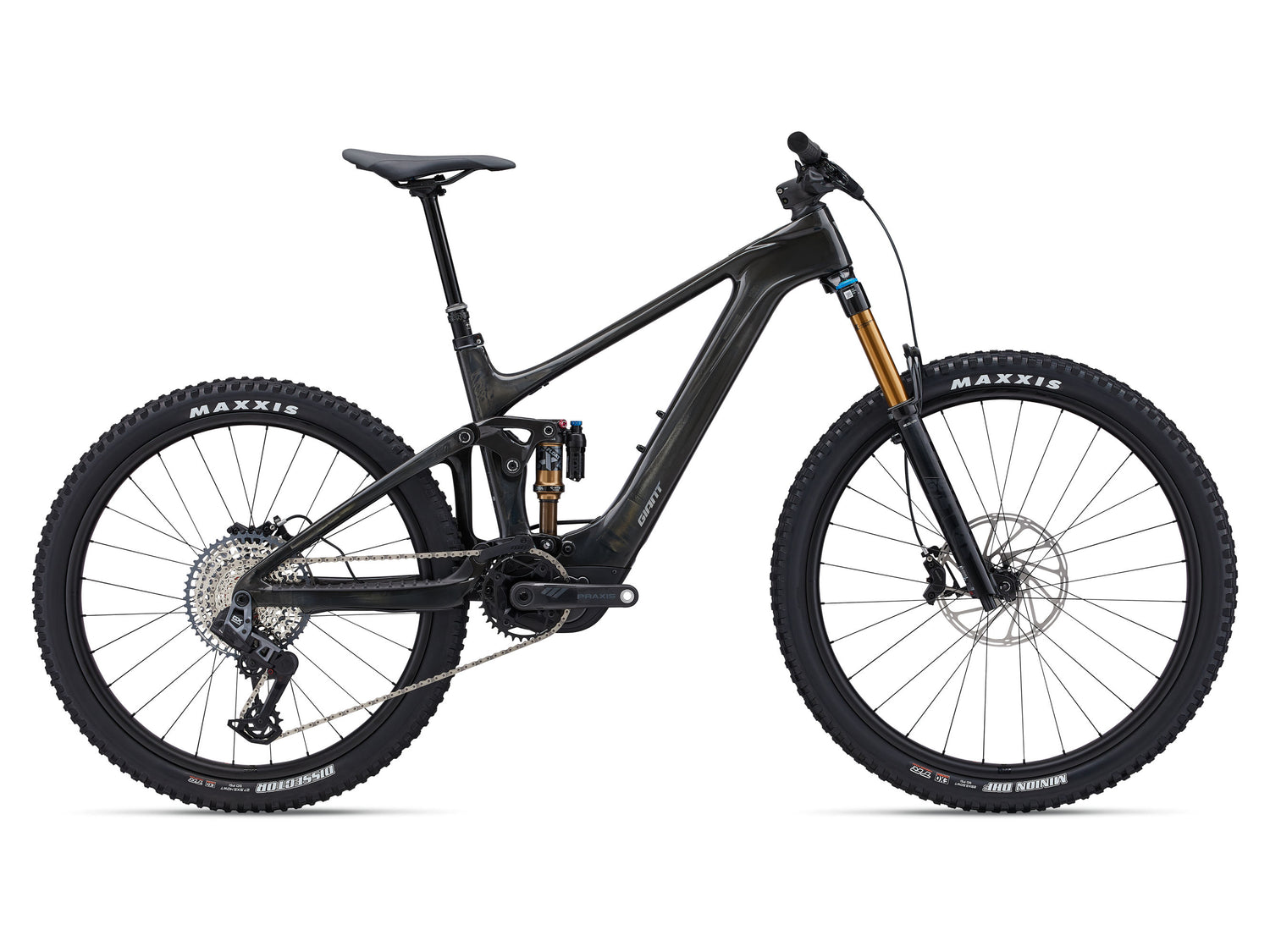

Giant Trance X Advanced E+ Elite 1 (2024)
Accelerate up climbs, float through rock gardens, experience more power, agility and control with this lightweight, full-suspension E-MTB. A new ultra-slim battery minimises weight so you can ride technical trails the way you always dreamed of.
Weightless

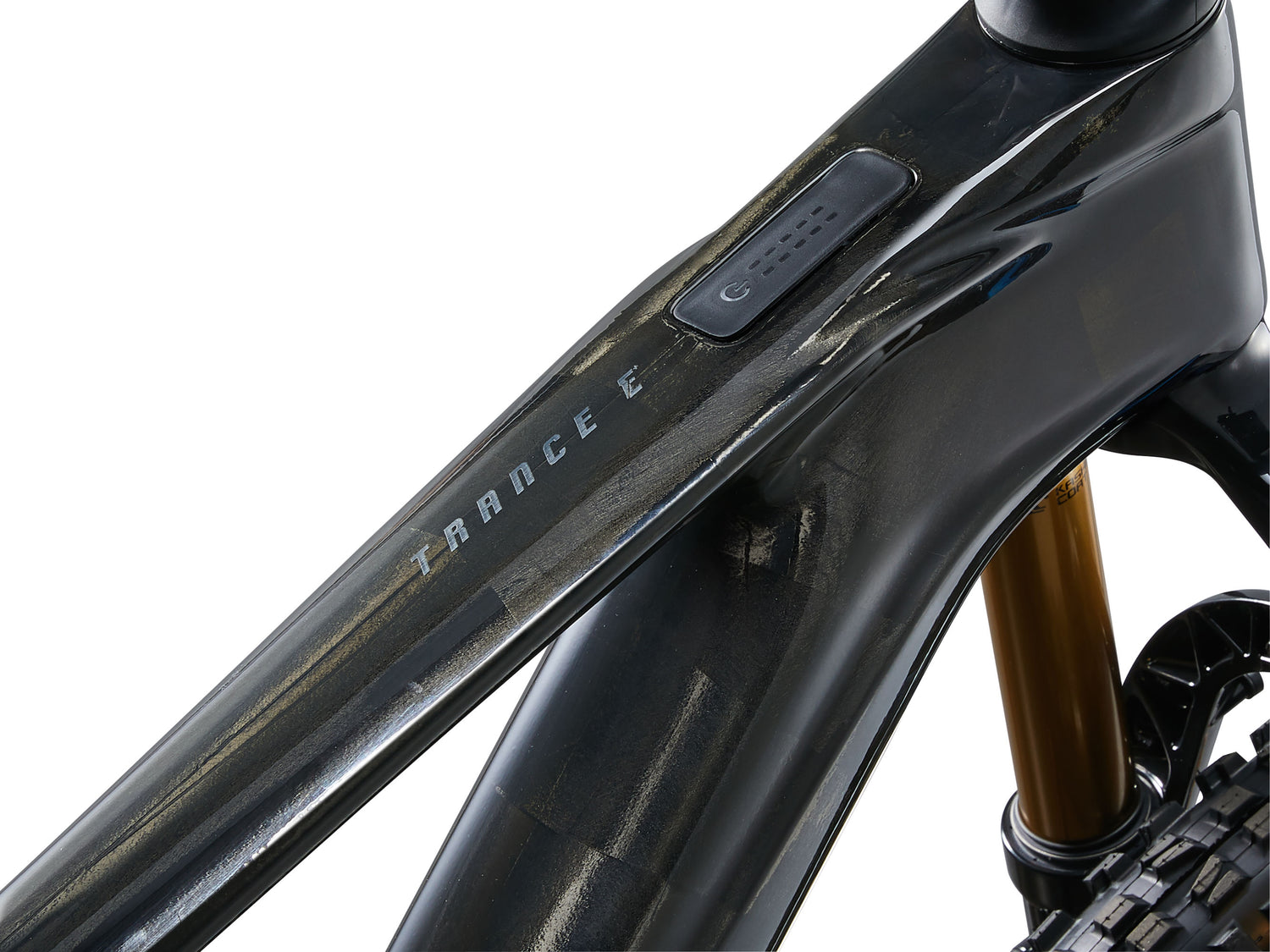

New EnergyPak 400 battery is designed to be ultra slim. You get all the power but in a smaller package that's cleanly integrated with the carbon frameset.
Integration
RideControl Ergo 3 remote attaches to the all-new composite Giant Contact SLR integrated handlebar. The control can be mounted to either side of the handlebar so you can customise your controls for a clean, uncluttered cockpit.
More Power

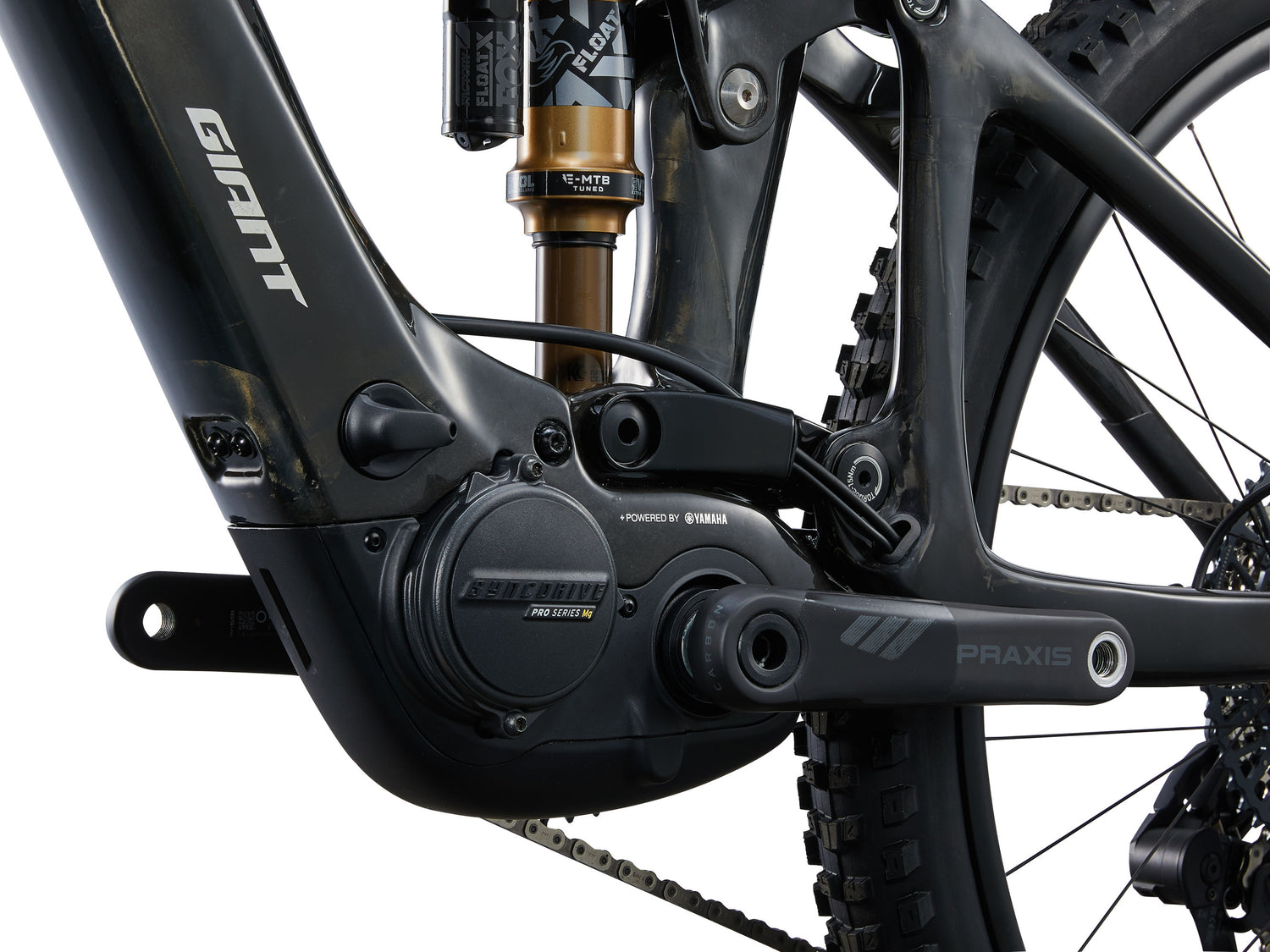

New SyncDrive Pro motor, co-developed with Yamaha, puts out a powerful 85Nm of torque and weighs just 2.7kg. The result is quicker acceleration and climbing capabilities on technical trails.
How far can I expect to ride on a single battery charge?
The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.
The bar below gives an approximate range. Conditions are categorised as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.
- Extreme: 35 km
- Good: 70 km
- Ideal: 130 km
-
Motor
-
Controller
-
Display
-
Battery
-
Frame material
-
Frame
-
Fork
-
Shock
-
Handlebar
-
Grips
-
Stem
-
Seatpost
-
Saddle
-
Pedals
-
Shifters
-
Rear Derailleur
-
Brakes
-
Brake Levers
-
Cassette/Freewheel
-
Chain
-
Crankset
-
Rims
-
Hubs
-
Spokes
-
Tyres
-
Lights
-
Extras
-
Notes
-
Speeds (rear)12 Speed
-
Age GroupAdults
-
GenderMens
-
DisciplineMountain, Electric
-
SKUsRaw Carbon/S: 6028031104, Raw Carbon/M: 6028031105, Raw Carbon/L: 6028031107, Raw Carbon/XL: 6028031108
