Giant Trinity Advanced SL 1 (2027)
Giant Trinity Advanced SL 1 (2027) - Ember Violet/Carbon / XS : This product is available for backorder only. Will ship as soon as it is back in stock.
Couldn't load pickup availability
Sizing Chart
Sizing Chart
Sizing and Geometry
Giant Trinity
Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.
| Frame size | Rider Height | Rider Height (cm) |
| XS | 5'3"-5'7" | 159-169 |
| S | 5'5"-5'9" | 166-176 |
| M | 5'8"-6'0" | 173-182 |
| L | 5'11"-6'3" | 181-191 |
Â
Geometry
| Â | Â | XS | S | M | L |
|---|---|---|---|---|---|
| A | Seat Tube Length (mm) | 482 | 495 | 525 | 552 |
| B | Seat Tube Angle | 77.0° | 77.0° | 77.0° | 77.0° |
| C | Top Tube Length (mm) | 510 | 530 | 554 | 579 |
| D | Head Tube Length (mm) | 85 | 105 | 125 | 145 |
| E | Head Tube Angle | 72.0° | 73.0° | 73.0° | 73.0° |
| F | Fork Rake (mm) | 40 | 40 | 40 | 40 |
| G | Trail (mm) | 69.4 | 63 | 63 | 63 |
| H | Wheelbase (mm) | 974 | 988 | 1013 | 1039 |
| I | Chain Stay Length (mm) | 405 | 405 | 405 | 405 |
| J | Bottom Bracket Drop (m) | 70 | 70 | 70 | 70 |
| K | Stack (mm) | 490 | 513 | 532 | 551 |
| L | Reach (mm) | 397 | 412 | 432 | 452 |
| M | Stand Over Height (mm) | 758 | 786 | 814 | 838 |
| P | Crank Length (mm) | 160 | 165 | 170 | 172.5 |
| Q | Wheel Size | 700C | 700C | 700C | 700C |
| R | Arm Pad Stack | (TRI) 629-709 | (TT) 582-662 | (TRI) 653-733 | (TT) 605-685 | (TRI) 672-752 | (TT) 624-704 | (TRI) 691-771 | (TT) 643-723 |
| S | Arm Pad Reach | (TRI) 323-398 | (TT) 339-414 | (TRI) 340-415 | (TT) 355-430 | (TRI) 360-435 | (TT) 375-450 | (TRI) 380-455 | (TT) 395-470 |
| V | Pad Reach Min | 323 | 338 | 358 | 378 |
| W | Pad Reach Man | 398 | 413 | 433 | 453 |
Shipping Information
Shipping Information
This product: Pickup in-store only. Shipping not available.
Shipping availableâ€
We offer shipping on select brands including: Rocky Mountain, Orbea, XDS, Icon, Jamis, Shogun, Schwinn, BYK, Kidvelo. These bikes are shipped unbuilt in their original box.
†Only bikes stocked at our Warehouse location are available for shipping.
Shipping upon request to your local bike shop
Some brands require the bike is delivered directly to a bicycle shop or mechanic for assembly, and shipping is not available to your residence. These include GT, Cannondale, .
Request a shipping quote to proceed.
Pickup in-store only
Certain bike brands cannot be shipped and are only available for Click and Collect or purchase in-store.
These include but are not limited to the following brands:Â Giant, Norco, Liv, Momentum, Malvern Star and Mongoose.Â
Pre-assembled bikes
†Any bikes in stock at our Heidelberg Heights, Hallam or Hoppers Crossing store locations are already fully assembled, and therefore only available for Click and Collect or purchase in-store.
Sizing and Geometry
Giant Trinity
Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.
| Frame size | Rider Height | Rider Height (cm) |
| XS | 5'3"-5'7" | 159-169 |
| S | 5'5"-5'9" | 166-176 |
| M | 5'8"-6'0" | 173-182 |
| L | 5'11"-6'3" | 181-191 |
Â
Geometry
| Â | Â | XS | S | M | L |
|---|---|---|---|---|---|
| A | Seat Tube Length (mm) | 482 | 495 | 525 | 552 |
| B | Seat Tube Angle | 77.0° | 77.0° | 77.0° | 77.0° |
| C | Top Tube Length (mm) | 510 | 530 | 554 | 579 |
| D | Head Tube Length (mm) | 85 | 105 | 125 | 145 |
| E | Head Tube Angle | 72.0° | 73.0° | 73.0° | 73.0° |
| F | Fork Rake (mm) | 40 | 40 | 40 | 40 |
| G | Trail (mm) | 69.4 | 63 | 63 | 63 |
| H | Wheelbase (mm) | 974 | 988 | 1013 | 1039 |
| I | Chain Stay Length (mm) | 405 | 405 | 405 | 405 |
| J | Bottom Bracket Drop (m) | 70 | 70 | 70 | 70 |
| K | Stack (mm) | 490 | 513 | 532 | 551 |
| L | Reach (mm) | 397 | 412 | 432 | 452 |
| M | Stand Over Height (mm) | 758 | 786 | 814 | 838 |
| P | Crank Length (mm) | 160 | 165 | 170 | 172.5 |
| Q | Wheel Size | 700C | 700C | 700C | 700C |
| R | Arm Pad Stack | (TRI) 629-709 | (TT) 582-662 | (TRI) 653-733 | (TT) 605-685 | (TRI) 672-752 | (TT) 624-704 | (TRI) 691-771 | (TT) 643-723 |
| S | Arm Pad Reach | (TRI) 323-398 | (TT) 339-414 | (TRI) 340-415 | (TT) 355-430 | (TRI) 360-435 | (TT) 375-450 | (TRI) 380-455 | (TT) 395-470 |
| V | Pad Reach Min | 323 | 338 | 358 | 378 |
| W | Pad Reach Man | 398 | 413 | 433 | 453 |

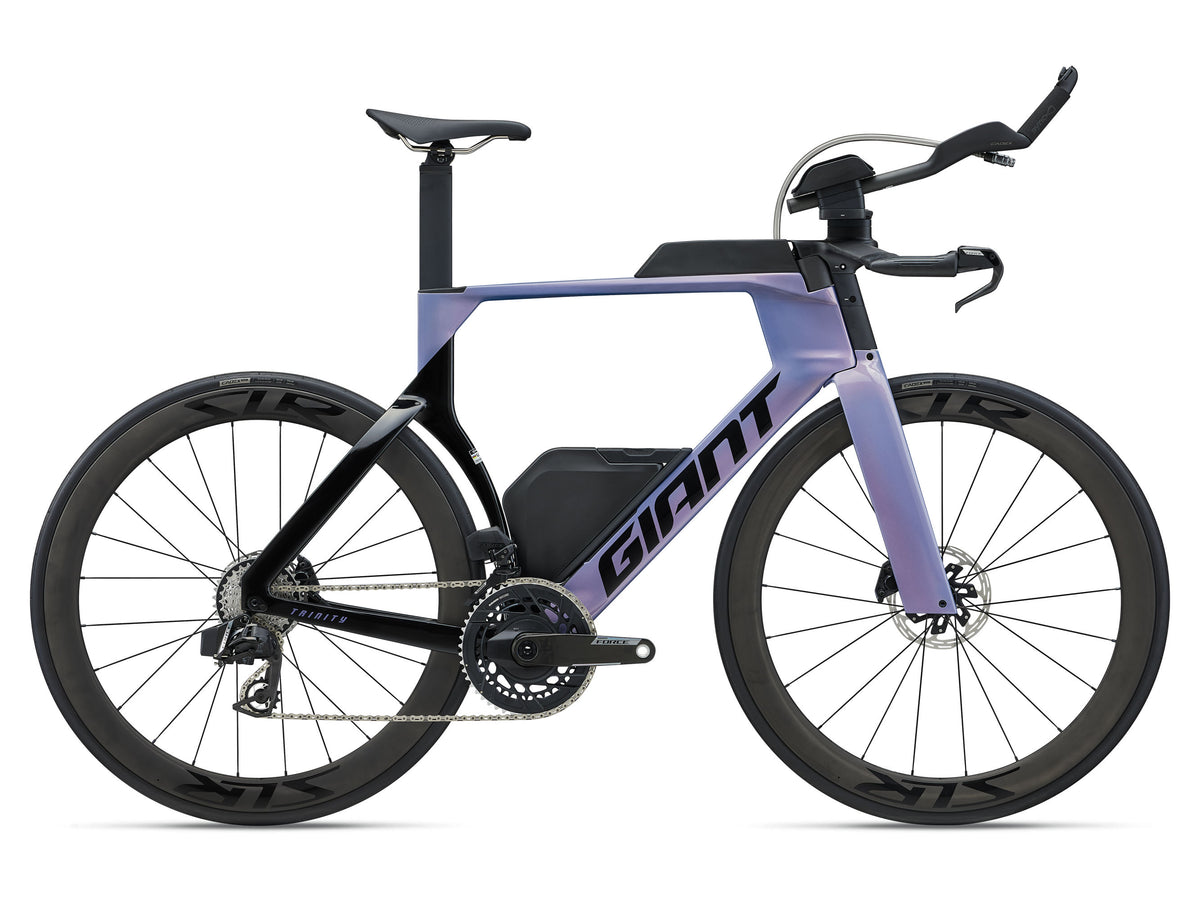

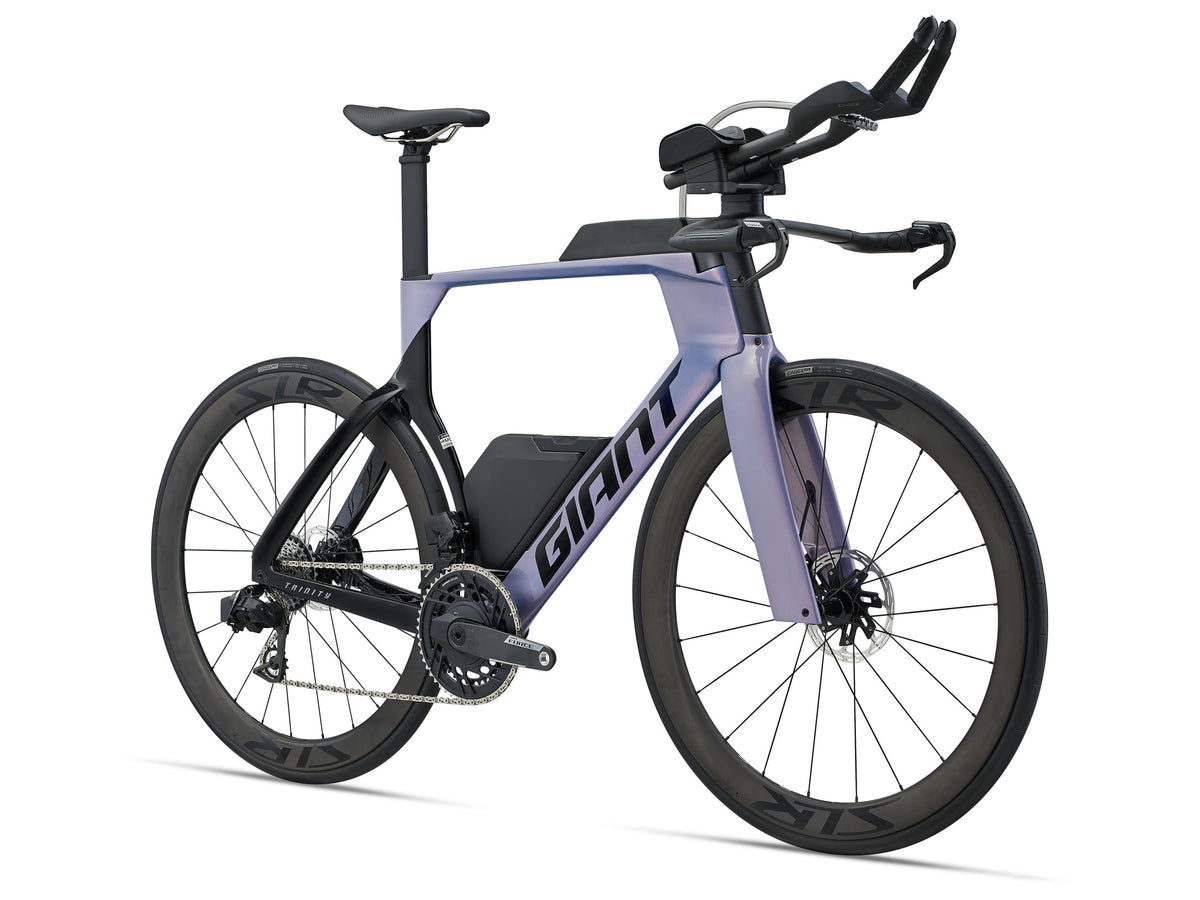

Giant Trinity Advanced SL 1 (2027)
From windswept flats to climbs, corners and descents, the new Trinity Advanced SL delivers dynamic speed and control when every second counts. Easily adaptable to triathlon or TT, and featuring aero-integrated hydration and fuelling systems, it's lighter, more aerodynamic and smoother riding than the previous generation, with greater adjustability to dial in position and fit.
FEATURES
Full-speed dynamics
All-new composite frameset designed for flat-out speed and pinpoint control when racing against the clock. Lighter weight for faster climbing, integrated disc brakes for confident cornering and descending, added compliance for smoother ride performance, plus an integrated bento box and hydration straw to help riders produce full power without disturbing their riding position.
Ultimate aero efficiency
AeroSystem Shaping Technology with truncated ellipse tubing for a 5.9-watt aero advantage and greater stiffness-to-weight ratio over the previous generation Trinity. In addition, the hydration reservoir, bottles and bento box form an aero-optimised, integrated fuelling system.
Personalised fit
With a far greater range of adjustability compared to previous Trinity models—including three seatpost offset positions (51mm range) and 24x more armrest positioning options (stack, reach, angle and width)—it's easier than ever to dial in fit for all body types and any riding position using simple two-bolt mechanisms.
SPECIFICATIONS
| Sizes | XS, S, M, L |
| Colours | Ember Violet/Carbon |
| Frame | Advanced SL-grade composite, 12x142mm thru-axle, disc |
| Fork | Advanced SL-grade composite, full-composite steerer, 12x100mm, disc |
| Handlebar | AeroDrive base bar with Sync armrest set, 10 and 15-degree extension wedge |
| Grips | Rubber integrated |
| Stem | AeroDrive integrated stem |
| Seatpost | Trinity Composite |
| Saddle | Giant Contact SL Tri |
| Shifters | SRAM eTap AXS Wireless Blips - extension and basebar mounted |
| Front Derailleur | SRAM Force AXS, FD-Force-E-E1 |
| Rear Derailleur | SRAM Force AXS, RD-Force-E-E1 |
| Brakes | SRAM Force AXS HRD, ED-Force-AERO-E1, SRAM PaceLine X rotors [F]160mm, [R]140mm |
| Brake Levers | SRAM Force AXS HRD, ED-Force-AERO-E1 |
| Cassette | SRAM Force E1 XG-1270, 12-speed, 10-33 |
| Chain | SRAM Force-E1, 12-speed |
| Crankset | SRAM Force E1, DUB, 37/50 with SRAM power meter XS: 160mm, S: 165mm, M: 170mm, L: 172.5mm |
| Bottom Bracket | SRAM DUB, Press Fit |
| Rims | Giant SLR 1 50 Carbon Disc WheelSystem, [F]50mm, [R]50mm |
| Hubs | [F] Giant Low Friction Hub, CenterLock, 21H [R] Giant Low Friction Hub, 40T ratchet driver, CenterLock, 24H |
| Spokes | Sapim CX-Ray |
| Tyres | CADEX Aero, tubeless, 700x28c (28mm), folding |
| Extras | Bento box top tube storage, hydration kit, Cockpit bottle mount, computer mount, tubeless prepared |
| Max Tyre Clearance | 30mm |
| Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
-
Frame material
-
Age GroupAdults
-
GenderMens
-
DisciplineTriathlon/TT
-
SKUsEmber Violet/Carbon/XS: 9138007103, Ember Violet/Carbon/S: 9138007104, Ember Violet/Carbon/M: 9138007105, Ember Violet/Carbon/L: 9138007107
