Giant  |  SKU: 1917001103

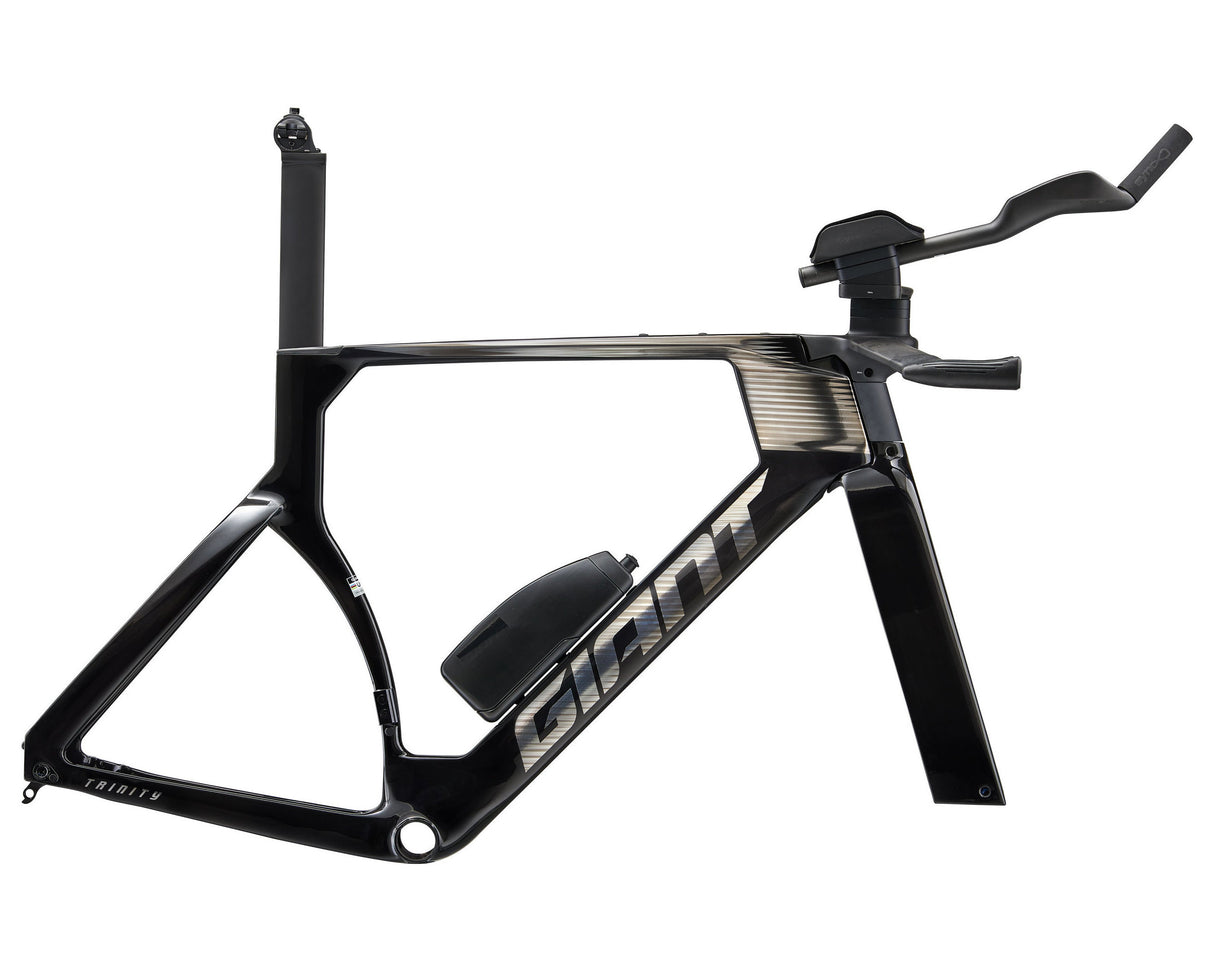

Giant Trinity Advanced SL Triathlon Frameset (2025)

$6,99900
  • Advanced SL-Grade Composite frame and fork
  • AeroDrive base bar with Sync armrest set, 10 and 15-degree extension wedge
  • Giant base bar with integrated stem combination with Sync rest se
  • Bento box top tube storage, hydration kit, computer mount, 30mm max tyre size
Colour: Carbon/Chrome
Size

Special Order: This product will be ordered from our supplier upon purchase and available for collection within 7-14 business days. Read T&Cs here.
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
Fully assembled when you Click & Collect in-store
Buy Now, Pay Later with ZIP
Free service adjustment within first 6 months

Sizing Chart

Sizing and Geometry

Giant Trinity

Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.

Frame size Rider Height Rider Height (cm)
XS 5'3"-5'7" 159-169
S 5'5"-5'9" 166-176
M 5'8"-6'0" 173-182
L 5'11"-6'3" 181-191



Geometry

Giant Trinity Sizing and Geometry Graphic
    XS S M L
A Seat Tube Length (mm) 482 495 525 552
B Seat Tube Angle 77.0° 77.0° 77.0° 77.0°
C Top Tube Length (mm) 510 530 554 579
D Head Tube Length (mm) 85 105 125 145
E Head Tube Angle 72.0° 73.0° 73.0° 73.0°
F Fork Rake (mm) 40 40 40 40
G Trail (mm) 69.4 63 63 63
H Wheelbase (mm) 974 988 1013 1039
I Chain Stay Length (mm) 405 405 405 405
J Bottom Bracket Drop (m) 70 70 70 70
K Stack (mm) 490 513 532 551
L Reach (mm) 397 412 432 452
M Stand Over Height (mm) 758 786 814 838
P Crank Length (mm) 160 165 170 172.5
Q Wheel Size 700C 700C 700C 700C
R Arm Pad Stack (TRI) 629-709 | (TT) 582-662 (TRI) 653-733 | (TT) 605-685 (TRI) 672-752 | (TT) 624-704 (TRI) 691-771 | (TT) 643-723
S Arm Pad Reach (TRI) 323-398 | (TT) 339-414 (TRI) 340-415 | (TT) 355-430 (TRI) 360-435 | (TT) 375-450 (TRI) 380-455 | (TT) 395-470
V Pad Reach Min 323 338 358 378
W Pad Reach Man 398 413 433 453

Bike Shipping

Delivery is available upon specific request for our special order bikes.

Bikes may only be shipped directly to a qualified bike mechanic or bike shop of your choosing, who must complete the assembly of the bike. We strictly cannot ship an unbuilt bike direct to consumer.

The buyer is responsible for all shipping and assembly costs, and is responsible for arranging assembly with their nominated bike store or mechanic.

To request a shipping quote, please submit a request and include the delivery postcode, business name of your nominated bike shop or bike mechanic, and the exact model & frame size of the bike.

Please note: All bikes sold by Ivanhoe Cycles must be assembled by a qualified mechanic or bike shop. Any assembly undertaken without professional assistance is at the customer's risk and any injury as a result of the build without professional assistance will not be covered by the warranty.

Assembly

Every bike purchased or collected in-store at Ivanhoe Cycles is fully assembled by our qualified mechanics free of charge.

Bikes ordered online for shipping* will require partial assembly, including but not limited to: installing handlebar, seatpost, front wheel; adjusting gears and brakes; tuning suspension; installing accessories or bar tape.

Disclaimer: Ivanhoe Cycles strongly advises having your assembly completed by an experienced bicycle mechanic. Any assembly undertaken without professional assistance is at the customer's risk and any injury as a result of the build without professional assistance will not be covered by the warranty.

*Shipping is restricted to certain brands due to assembly requirements.

Returns / Cancellations

If your special ordered item arrives faulty, damaged, or is differently than described, you are entitled to a full refund or replacement.

Cancellations and returns are not accepted on special orders if the consumer:
- changed their mind
- found the item cheaper elsewhere
- decided they didn't like the purchase or had no use for it
- ordered the wrong item

Contact us with any product enquiries you have prior to purchasing.

For more information, please read our Special Order terms and conditions.

Giant Trinity Advanced SL Triathlon Frameset (2025)

From windswept flats to climbs, corners and descents, the new Trinity Advanced SL delivers dynamic speed and control when every second counts. Engineered to meet the demands of both triathletes and time trial racers, this next-generation frameset features integrated hydration and fuelling systems, lighter construction, and a refined fit system to help you achieve peak aero performance.

Full-Speed Dynamics

The reengineered composite frameset is 558g lighter than the previous generation, giving you faster climbing and improved compliance. Integrated disc brakes provide confident cornering and descending, while built-in fuelling and hydration systems allow you to maintain power without disrupting your aero position.

Ultimate Aero Efficiency

AeroSystem Shaping Technology uses truncated ellipse tubing for a 5.9-watt aero gain and improved stiffness-to-weight ratio. The hydration reservoir, aero bottle mounts and integrated bento box all work together as one wind-cheating unit.

Personalised Fit

With four seatpost offset positions and 24x more armrest positioning options than previous models, the fit system allows full personalisation of stack, reach, angle and width using simple two-bolt adjusters. It's easier than ever to find your optimal TT or triathlon race position.
Giant Trinity Advanced SL Triathlon Frameset (2025)

Giant Trinity Advanced SL Triathlon Frameset (2025)

$6,99900

Colour

Size

  • XS
  • S
  • M
  • L

Motor

N/A

Controller

N/A

Display

N/A

Battery

N/A

Charger

N/A

Sizes

N/A

Frame material

Carbon

Frame

Advanced SL-Grade Composite, 12x142mm thru-axle, disc

Fork

Advanced SL-Grade Composite, full-composite steerer, 12x100mm thru-axle, disc

Handlebar

AeroDrive base bar with Sync armrest set, 10 and 15-degree extension wedge

Grips

N/A

Bar Tape

N/A

Headset

N/A

Stem

Giant base bar with integrated stem combination with Sync rest set, 10 and 15-degree extension wedge

Seatpost

Trinity Composite

Saddle

N/A

Pedals

N/A

Shifters

N/A

Front Derailleur

N/A

Rear Derailleur

N/A

Brakes

N/A

Brake Levers

N/A

Cassette/Freewheel

N/A

Chain

N/A

Crankset

N/A

Bottom Bracket

N/A

Rims

N/A

Hubs

N/A

Spokes

N/A

Tyres

N/A

Wheel Size

N/A

Extras

Sync armrest set, Bento box top tube storage, hydration kit, computer mount, 30mm max tyre size
