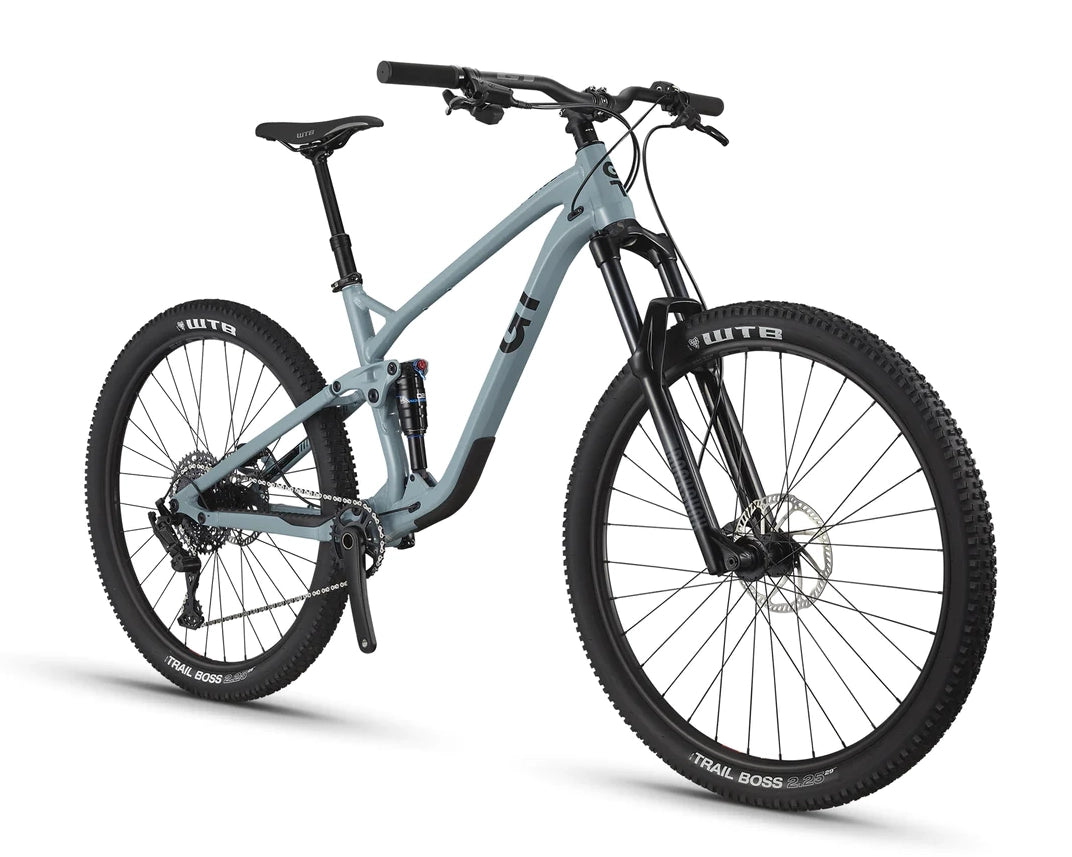

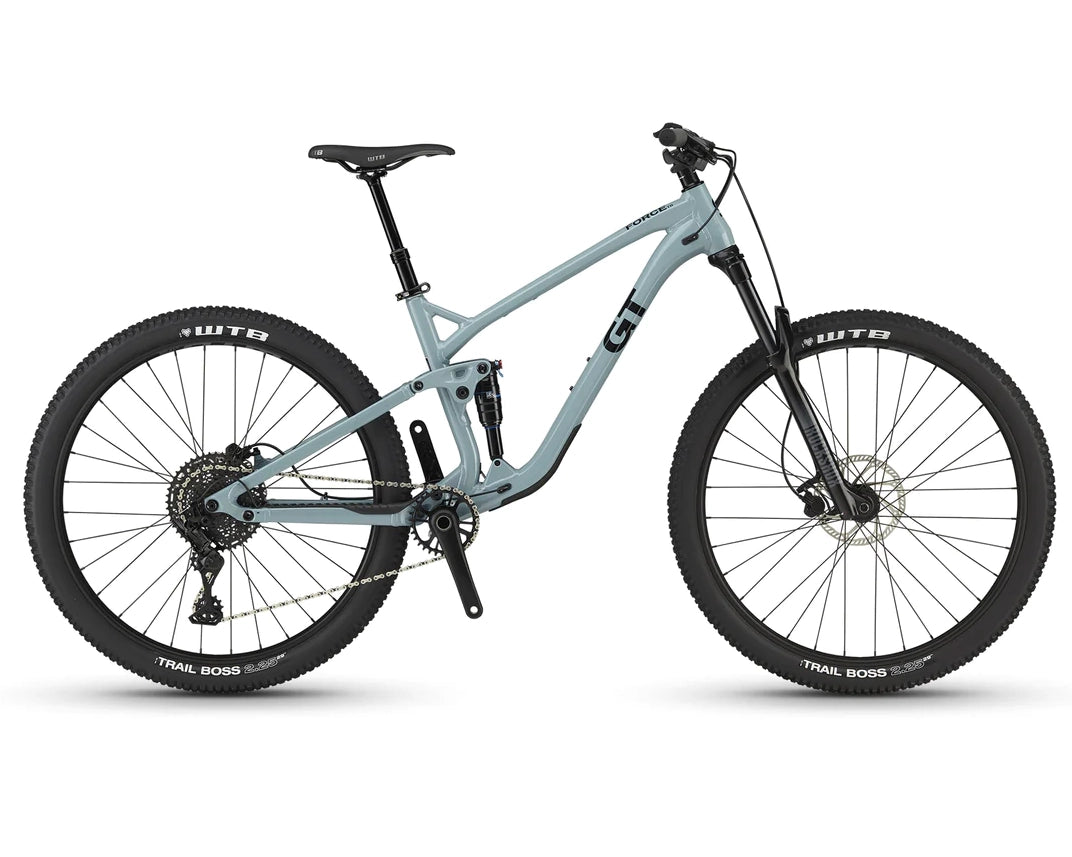

GT Sensor Sport
GT Sensor Sport - June Gloom / S : This product is available for backorder only. Will ship as soon as it is back in stock.
Couldn't load pickup availability
Sizing Chart
Sizing Chart
Fit Guide
| XS | 4'8" - 5'1" |
| S | 5'0" - 5'6" |
| M | 5'5" - 5'11" |
| L | 5'10" - 6'2" |
| XL | 6'1" - 6'6" |
Geometry
| Sizes (mm) | SM | MD | LG | XL |
|---|---|---|---|---|
| Seat tube length | 395 | 420 | 445 | 460 |
| Seat tube angle effective | 77.5 ° | 77.5 ° | 77.5 ° | 77.5 ° |
| Top tube horizontal | 551 | 579 | 607 | 646 |
| Top tube actual | 522 | 547 | 573 | 609 |
| Head tube angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Standover | 740 | 740 | 745 | 755 |
| Head tube length | 110 | 120 | 130 | 140 |
| Wheelbase | 1176 | 1205 | 1234 | 1273 |
| Front center | 738 | 767 | 797 | 836 |
| Chainstay length | 440 | 440 | 440 | 440 |
| Bottom bracket drop | 35 | 35 | 35 | 35 |
| Bottom bracket height | 345 | 345 | 345 | 345 |
| Fork rake | 44 | 44 | 44 | 44 |
| Trail | 125 | 125 | 125 | 125 |
| Stack | 615 | 624 | 633 | 642 |
| Reach | 425 | 450 | 475 | 510 |
| Travel front | 140 | 140 | 140 | 140 |
| Travel rear | 130 | 130 | 130 | 130 |
Shipping Information
Shipping Information
This product: Shipping available upon request. Contact us for a quote.
Shipping available†
We offer shipping on select brands including: Rocky Mountain, Orbea, XDS, Icon, Jamis, Shogun, Schwinn, BYK, Kidvelo. These bikes are shipped unbuilt in their original box.
†Only bikes stocked at our Warehouse location are available for shipping.
Shipping upon request to your local bike shop
Some brands require the bike is delivered directly to a bicycle shop or mechanic for assembly, and shipping is not available to your residence. These include GT, Cannondale, .
Request a shipping quote to proceed.
Pickup in-store only
Certain bike brands cannot be shipped and are only available for Click and Collect or purchase in-store.
These include but are not limited to the following brands: Giant, Norco, Liv, Momentum, Malvern Star and Mongoose.
Pre-assembled bikes
†Any bikes in stock at our Heidelberg Heights, Hallam or Hoppers Crossing store locations are already fully assembled, and therefore only available for Click and Collect or purchase in-store.
Fit Guide
| XS | 4'8" - 5'1" |
| S | 5'0" - 5'6" |
| M | 5'5" - 5'11" |
| L | 5'10" - 6'2" |
| XL | 6'1" - 6'6" |
Geometry
| Sizes (mm) | SM | MD | LG | XL |
|---|---|---|---|---|
| Seat tube length | 395 | 420 | 445 | 460 |
| Seat tube angle effective | 77.5 ° | 77.5 ° | 77.5 ° | 77.5 ° |
| Top tube horizontal | 551 | 579 | 607 | 646 |
| Top tube actual | 522 | 547 | 573 | 609 |
| Head tube angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Standover | 740 | 740 | 745 | 755 |
| Head tube length | 110 | 120 | 130 | 140 |
| Wheelbase | 1176 | 1205 | 1234 | 1273 |
| Front center | 738 | 767 | 797 | 836 |
| Chainstay length | 440 | 440 | 440 | 440 |
| Bottom bracket drop | 35 | 35 | 35 | 35 |
| Bottom bracket height | 345 | 345 | 345 | 345 |
| Fork rake | 44 | 44 | 44 | 44 |
| Trail | 125 | 125 | 125 | 125 |
| Stack | 615 | 624 | 633 | 642 |
| Reach | 425 | 450 | 475 | 510 |
| Travel front | 140 | 140 | 140 | 140 |
| Travel rear | 130 | 130 | 130 | 130 |
The Sensor is ready to feast on any feature you throw at it, whether up or down. Redesigned to be significantly lighter than its predecessor, the new Sensor is Trail-Tuned and ready to rip.
It’s hard having fun (said no one ever).
With its lightweight alloy design and bottomless appetite for all types of trails, Sensor Sport is ready to launch your new obsession with dirt from the first pedal stroke.
Sensor’s fit and feel is optimised across all frame sizes, delivering smooth confidence on every up, down and in between that stands before you and your own ambitions.
Big jumps? Little bumps?
Gobble it all up with the stiff yet spry 130mm LTS suspension platform, chosen for its supreme efficiency and predictable, precise handling when you need it the most.
Packaged with low-maintenance microSHIFT drivetrain, internal cable routing and integrated frame protection, its ready-to-rock performance won’t ever ask to take a day off.
Trail-Tune Geometry
With the goal of maximising good times on trail; Sensor’s geometry inspires riders to push their fun to a whole new level. It’s 65 degree head-tube angle keeps it poised on the descents and the steep 77 degree seat-tube angle makes climbing a breeze.
LTS Suspension
Linkage Tuned Suspension provides a consistent and efficient suspension platform. The 4-bar system is designed to be a highly tunable suspension platform that maintains ground hugging traction even under heavy braking.
-
Frame material
-
Frame
-
Fork
-
Shock
-
Handlebar
-
Grips
-
Headset
-
Stem
-
Seatpost
-
Saddle
-
Pedals
-
Shifters
-
Rear Derailleur
-
Brakes
-
Brake Levers
-
Cassette/Freewheel
-
Chain
-
Crankset
-
Bottom Bracket
-
Rims
-
Hubs
-
Tyres
-
Notes
-
Compatible Bike Type
-
Speeds (rear)10 Speed
-
Age GroupAdults
-
GenderMens, Unisex
-
DisciplineMountain
-
SKUsJune Gloom/S: G24502U10SM, June Gloom/M: G24502U10MD, June Gloom/L: G24502U10LG, June Gloom/XL: G24502U10XL
