Jamis  |  SKU: 845436086743

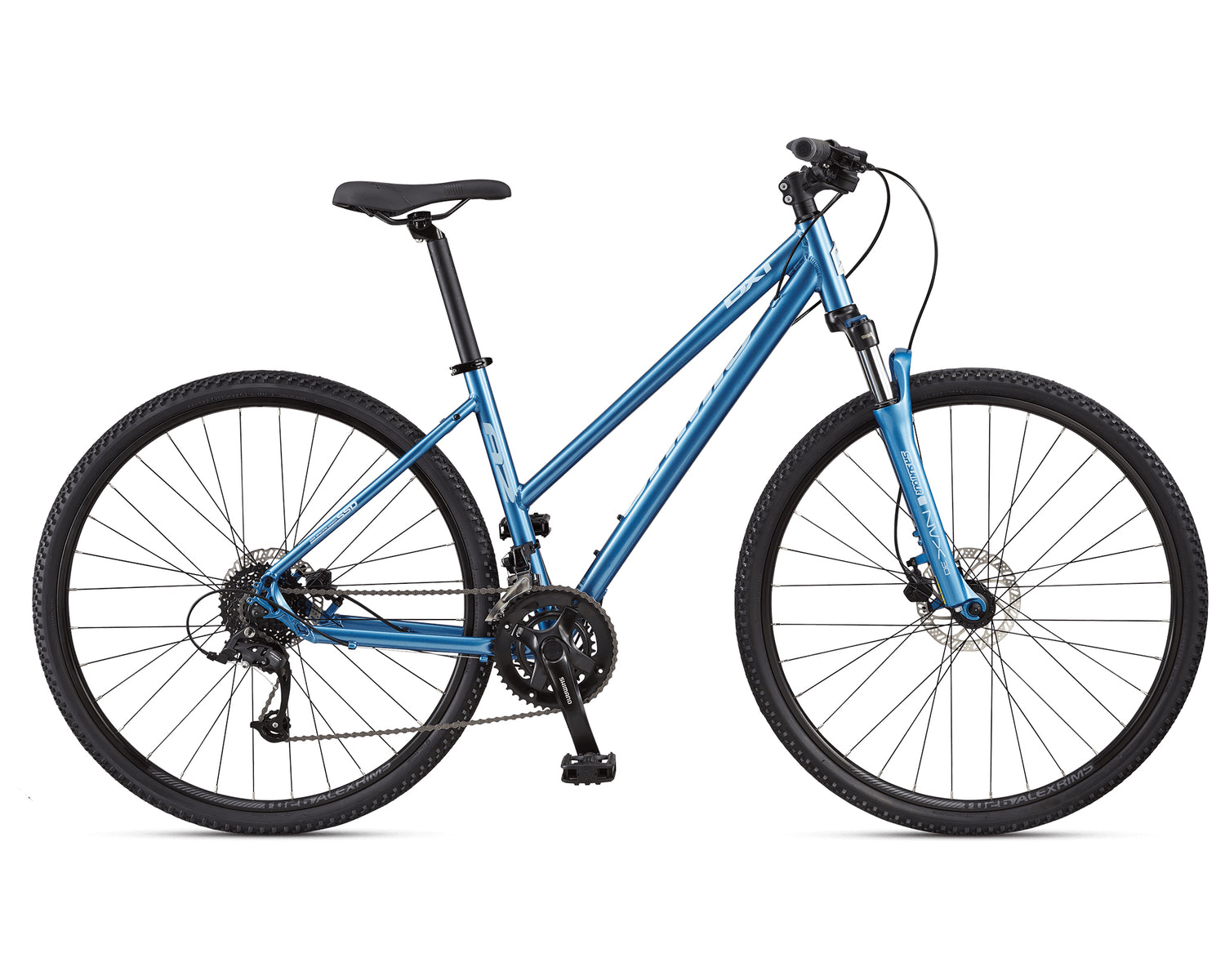

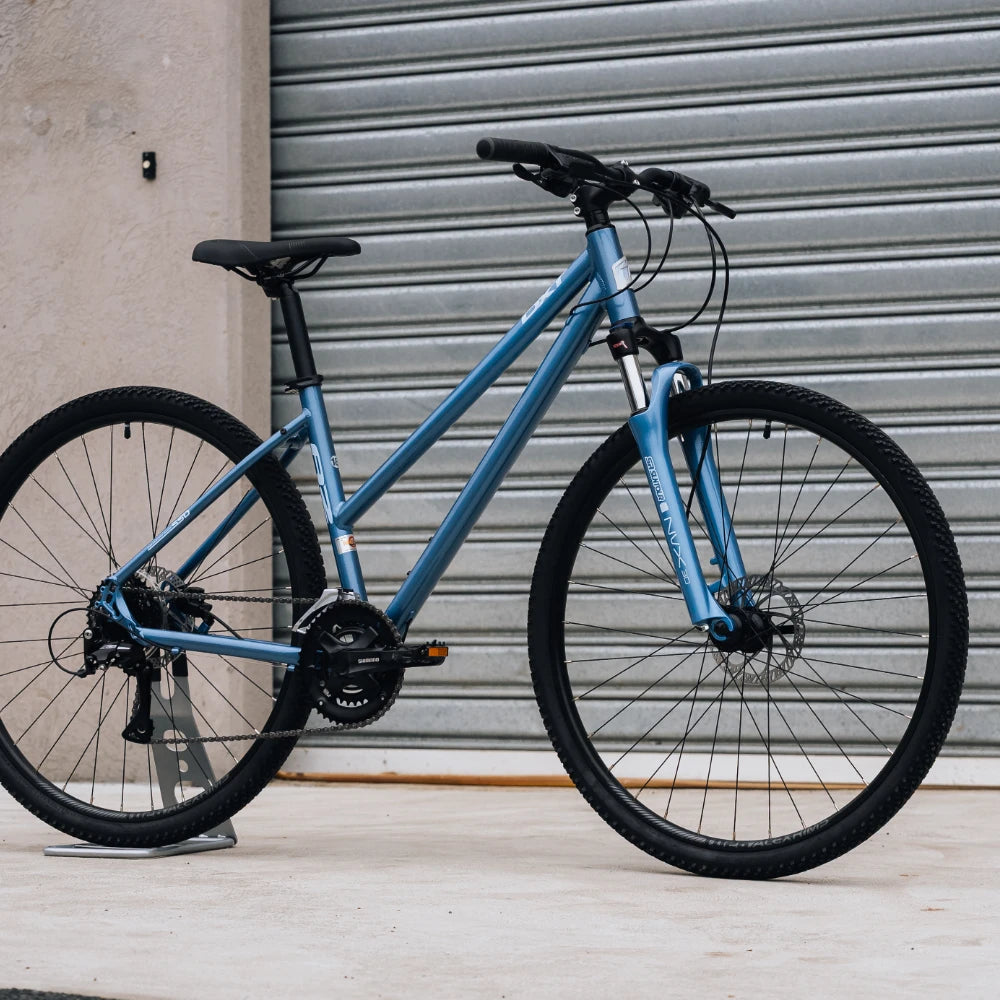

Jamis DXT A2 Step-Through

$79900
  • Low-entry aluminium frame with internal cable routing
  • Suntour Suspension Fork with 75mm travel
  • Shimano 2×8-Speed Gears
  • Tektro Hydraulic Disc Brakes
  • Mounts for racks, fenders, and kickstand
Color
Size
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay

Shipping Information

This product:

Shipping available†

We offer shipping on select brands including: Rocky Mountain, Orbea, XDS, Icon, Jamis, Shogun, Schwinn, BYK, Kidvelo. These bikes are shipped unbuilt in their original box.

†Only bikes stocked at our Warehouse location are available for shipping.

Shipping upon request to your local bike shop

Some brands require the bike is delivered directly to a bicycle shop or mechanic for assembly, and shipping is not available to your residence. These include GT, Cannondale, .

Request a shipping quote to proceed.

Pickup in-store only

Certain bike brands cannot be shipped and are only available for Click and Collect or purchase in-store.

These include but are not limited to the following brands: Giant, Norco, Liv, Momentum, Malvern Star and Mongoose.

Pre-assembled bikes

†Any bikes in stock at our Heidelberg Heights, Hallam or Hoppers Crossing store locations are already fully assembled, and therefore only available for Click and Collect or purchase in-store.

Fully assembled when you Click & Collect in-store
Buy Now, Pay Later with ZIP
Free service adjustment within first 6 months

The dual-sport DXT’s are pumped-up, go-anywhere/do-anything versions of our Allegro fitness bikes. With more gearing range to take on steeper hills and tougher terrain. Wider tires with a trail-capable tread for access to more riding areas, both paved and packed. And disc brakes and suspension forks for real off-road exploration and off-pavement adventure

The advantages of disc brakes over rim brakes on a versatile bike like the DXT far exceed their sole disadvantage, weight gain. Besides their incredible power and modulation, they’re just plain safer, especially in the rain. Once rims get wet or muddy, using friction to stop the wheel at its circumference is less efficient than using friction to stop a less wet or muddy small diameter disc near the center of the wheel from rotating. And eliminating the rim from braking surface duties results in a longer lasting wheel.

Drivetrain-wise you get a Shimano 2×8 (16-speed) setup: Altus RapidFire shifters, Acera rear derailleur, TY710 front, an 11–34T cassette and a 46/30T crank. That range covers short, steep climbs without spinning out on flats. Alex TD26 double-wall rims (36h) with alloy disc hubs add everyday durability, while contact points are chosen for comfort—an ergo grip set, micro-adjust seatpost and Jamis Touring saddle.

KEY FEATURES

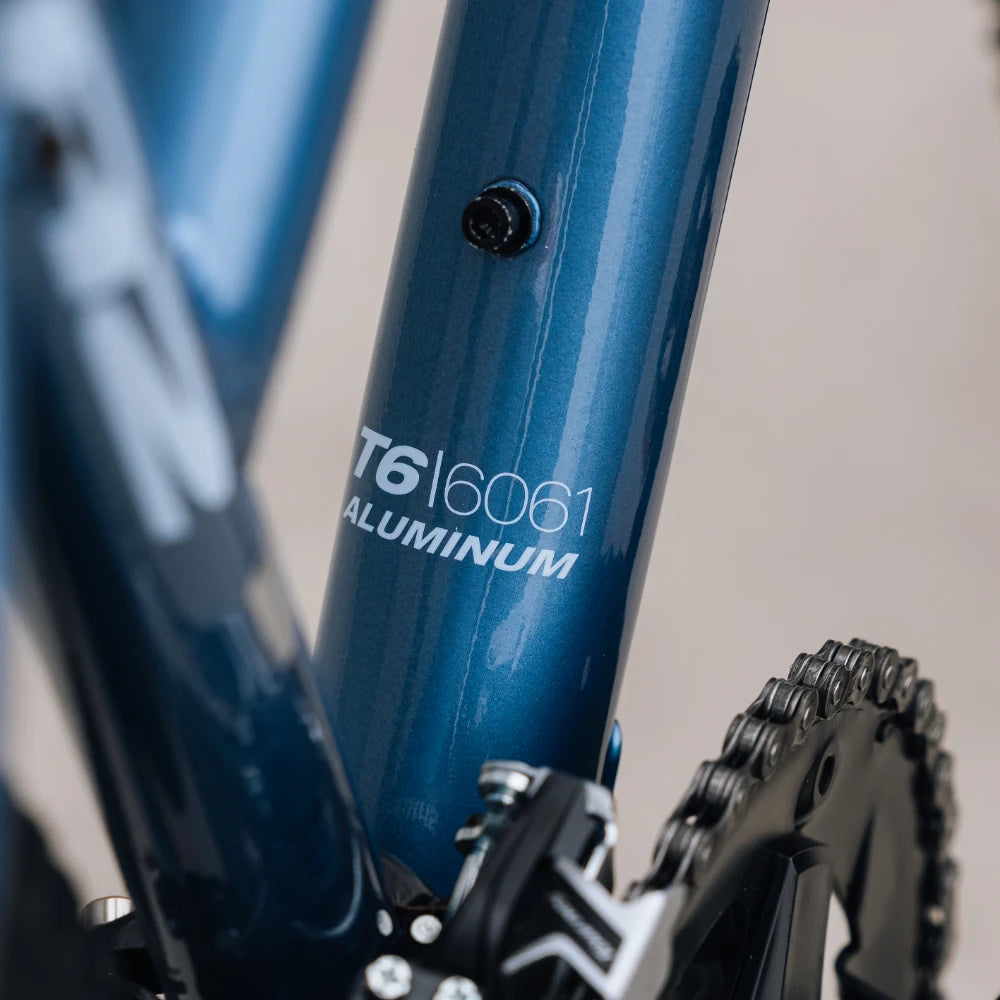

  • 6061 aluminum step-over frame

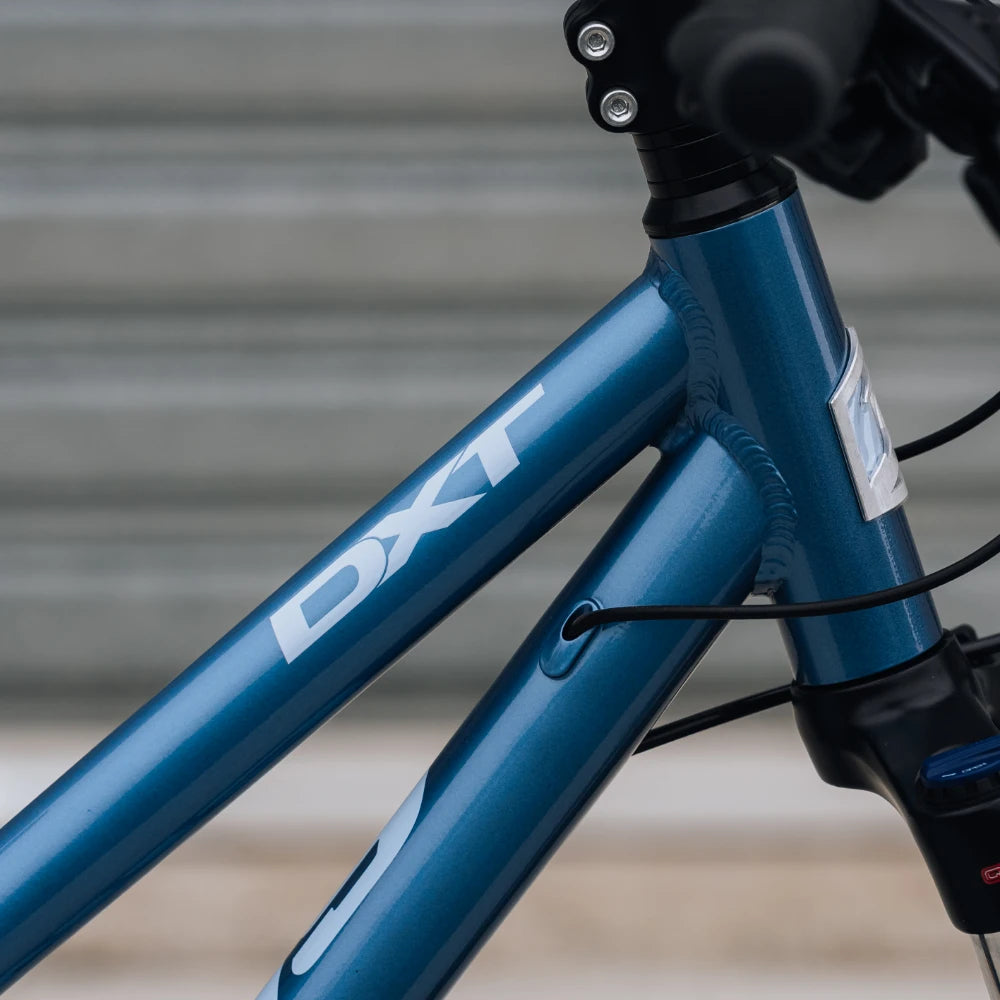

  • Internal cable routing
  • SR/Suntour NVX HLO suspension fork
  • Alex TD26 disc specific double wall alloy rims
  • Shimano 16-speed drivetrain
  • VP sealed cartridge bottom bracket
  • Tektro hydraulic disc brakes
  • Shimano Acera RD-M360 rear and Shimano FD-TY710-2 front
  • Jamis Touring saddle with SL cover

SPECIFICATIONS

Model Jamis DXT A2 Step-Through
Frame Size Specific Design 6061 aluminum, internal cable routing, post-mount disc, kickstand mount, fender/rack & ring-lock mounts, replaceable hanger

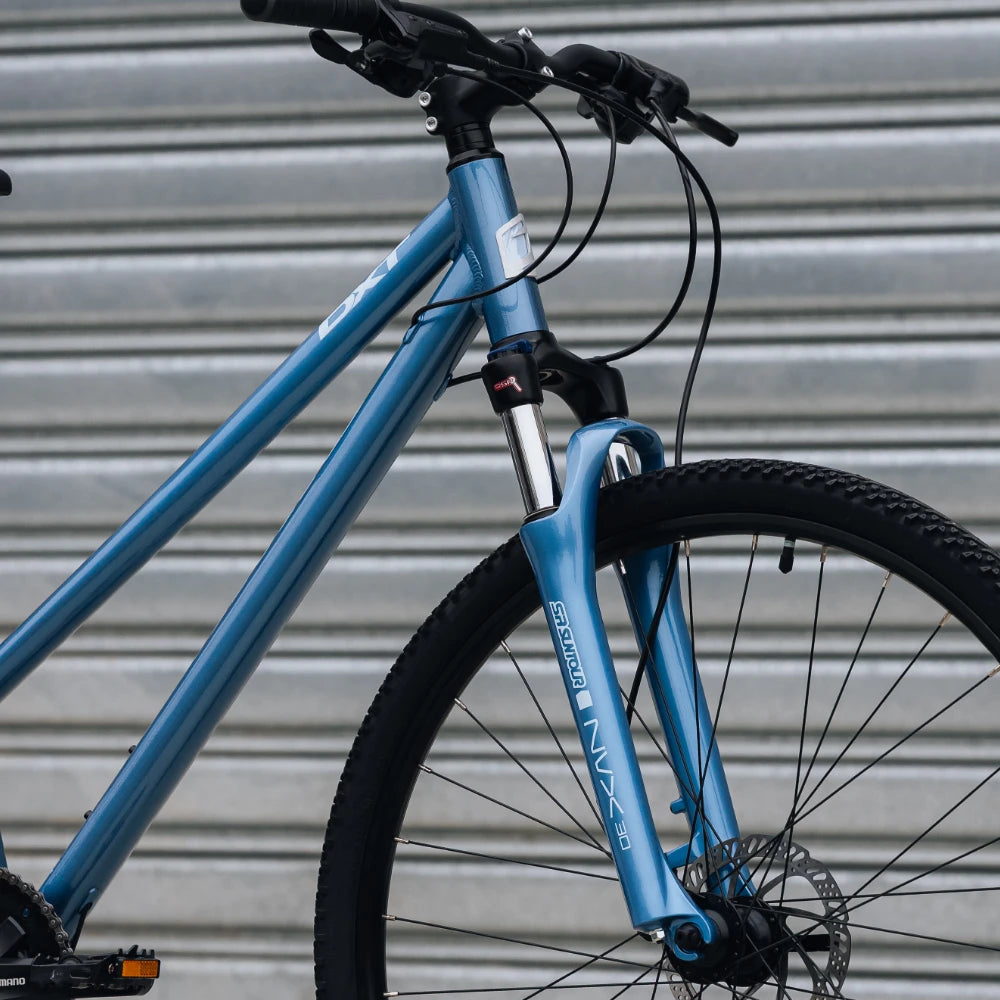

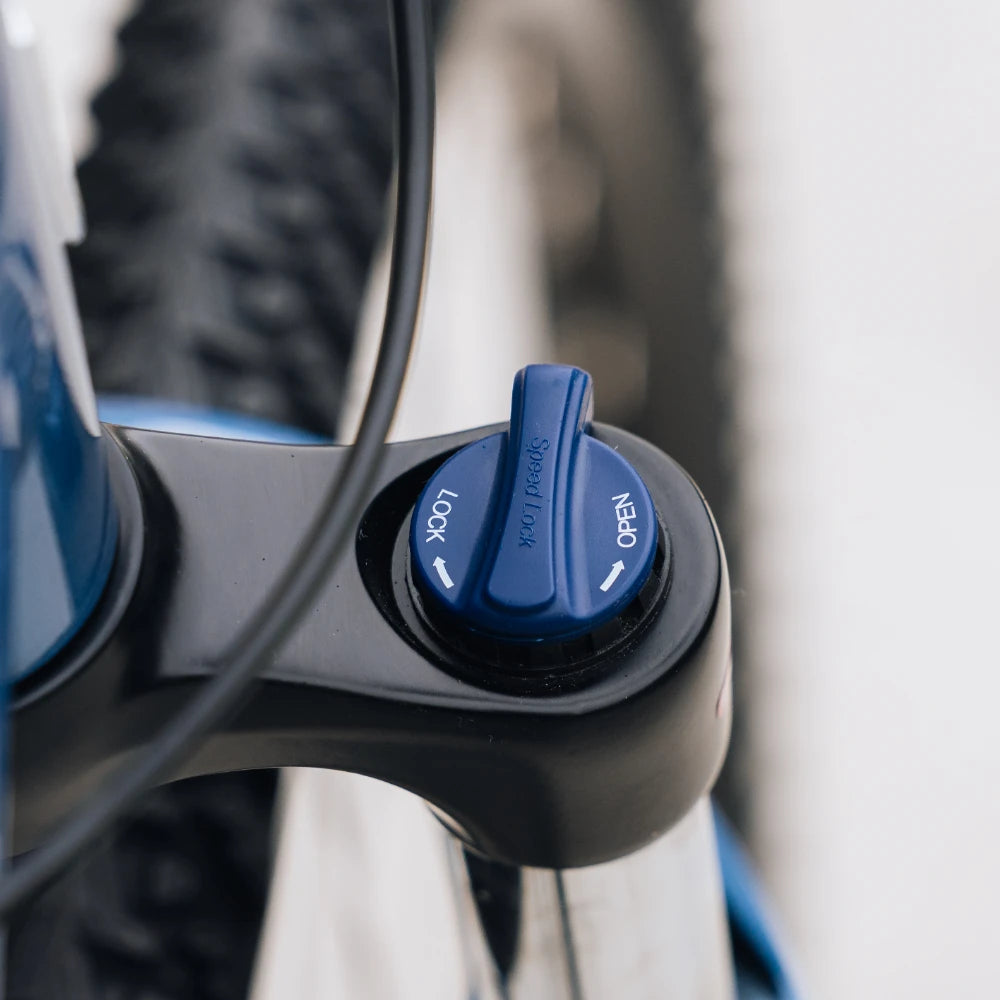

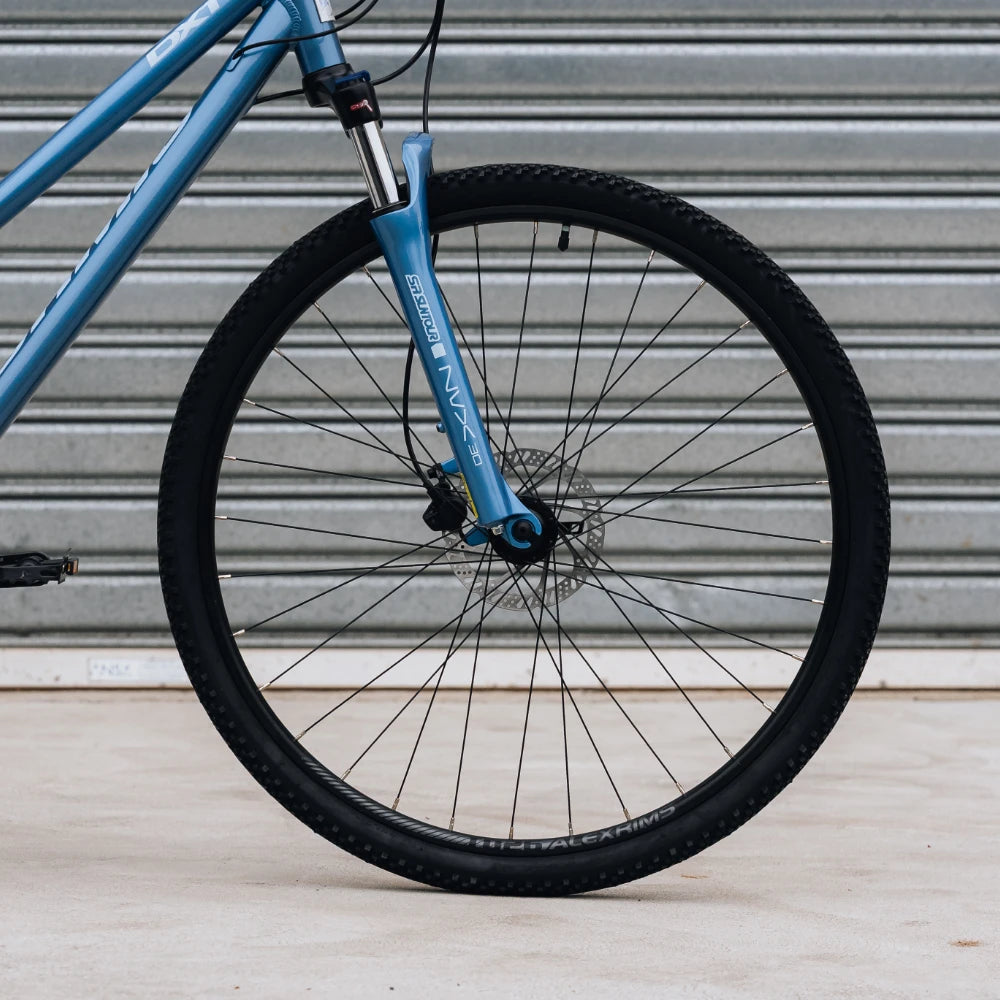

Fork SR Suntour NVX HLO, 75mm travel, hydraulic lockout, 1-1/8" steerer, 28mm stanchions, alloy crown/lowers
Headset Internal cup, threadless, 1-1/8"

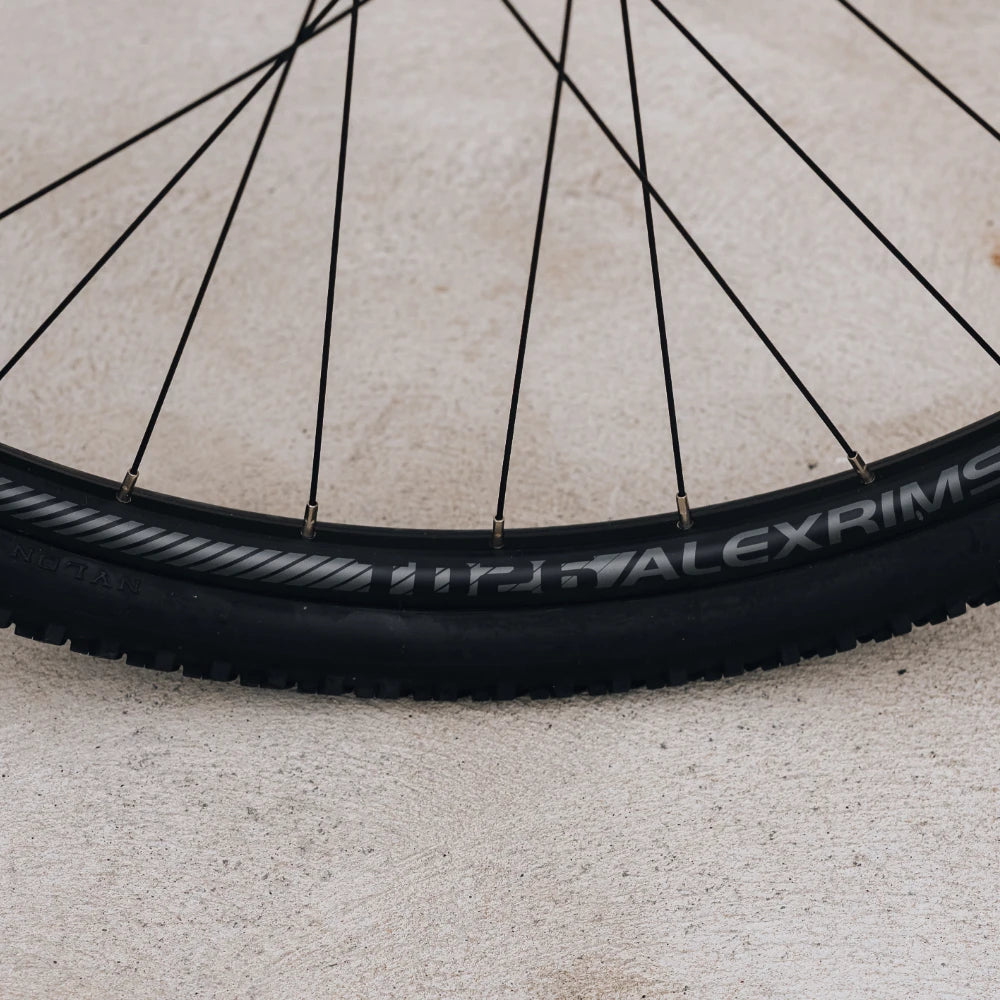

Wheels Alex TD26 double-wall alloy rims, 36h, alloy disc hubs (QR), 14g black spokes
Tyres CST Dual Sport, 700 x 42c

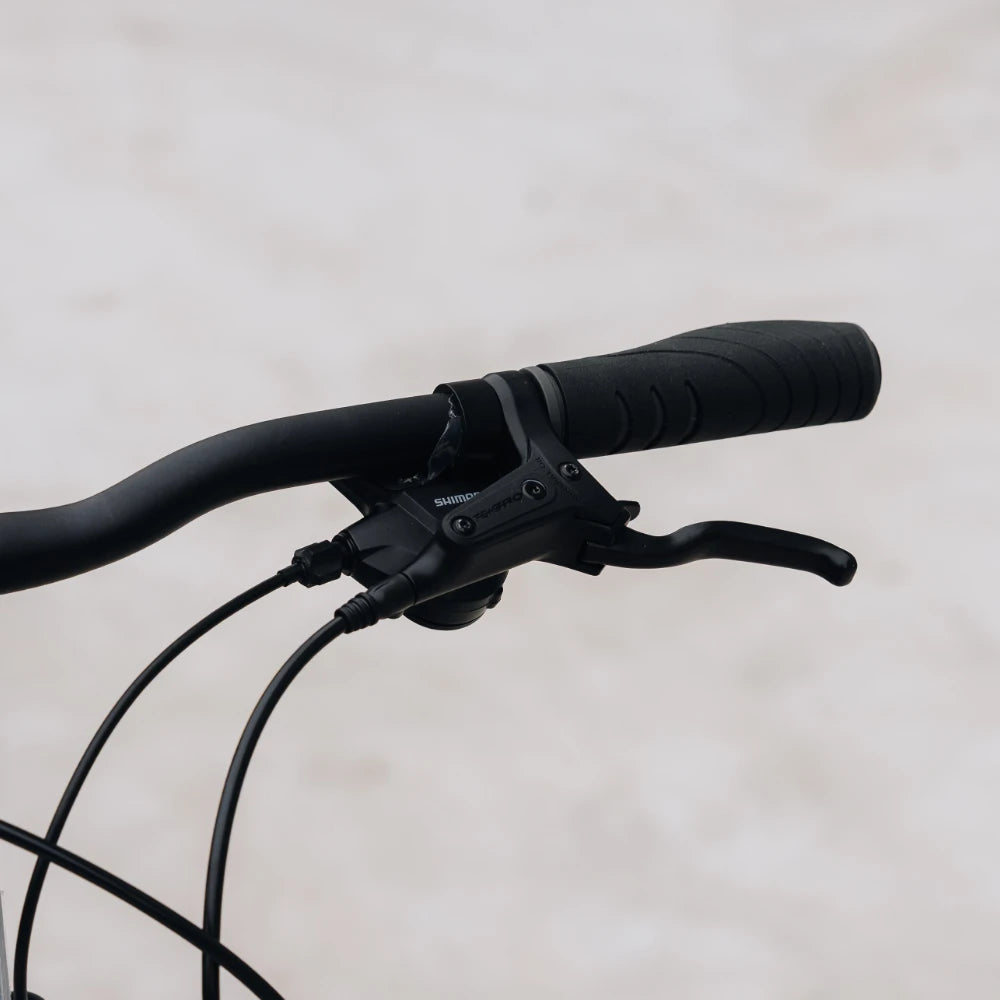

Shifters Shimano Altus RapidFire SL-M315, 16-speed

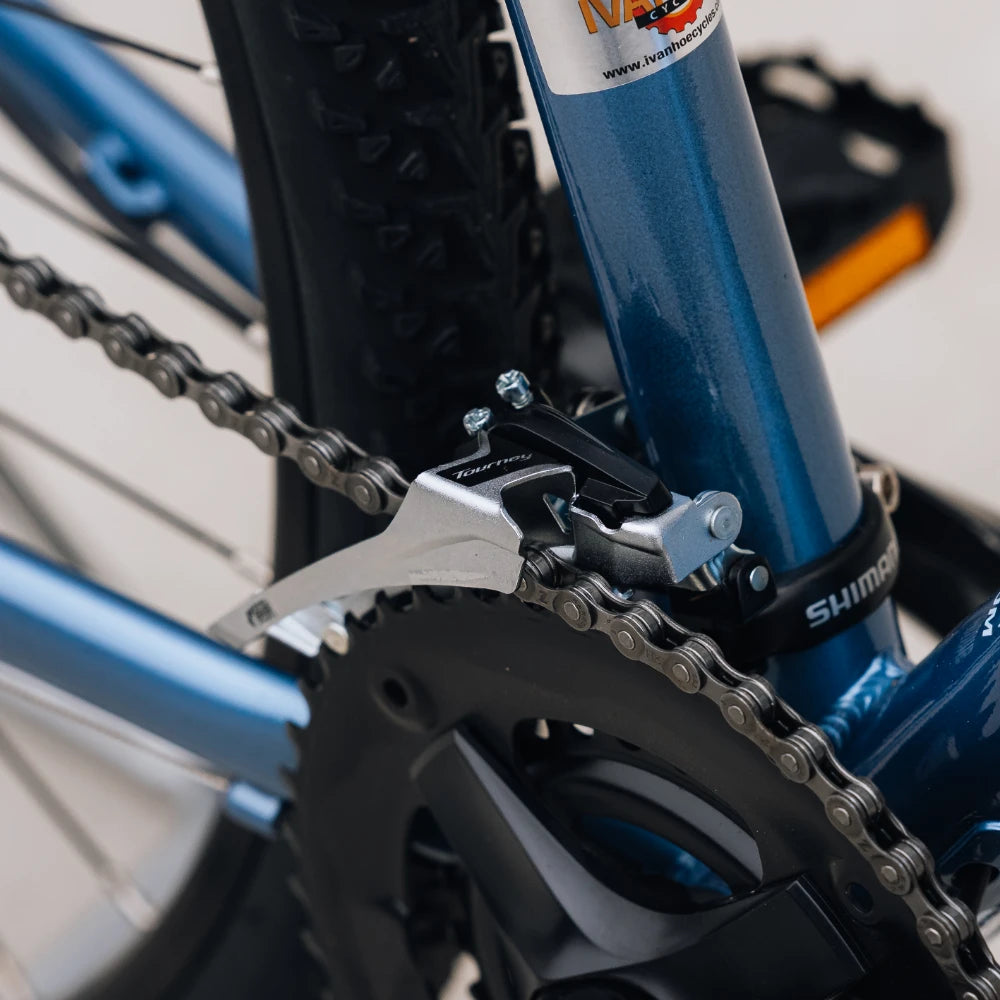

Front Derailleur Shimano FD-TY710-2

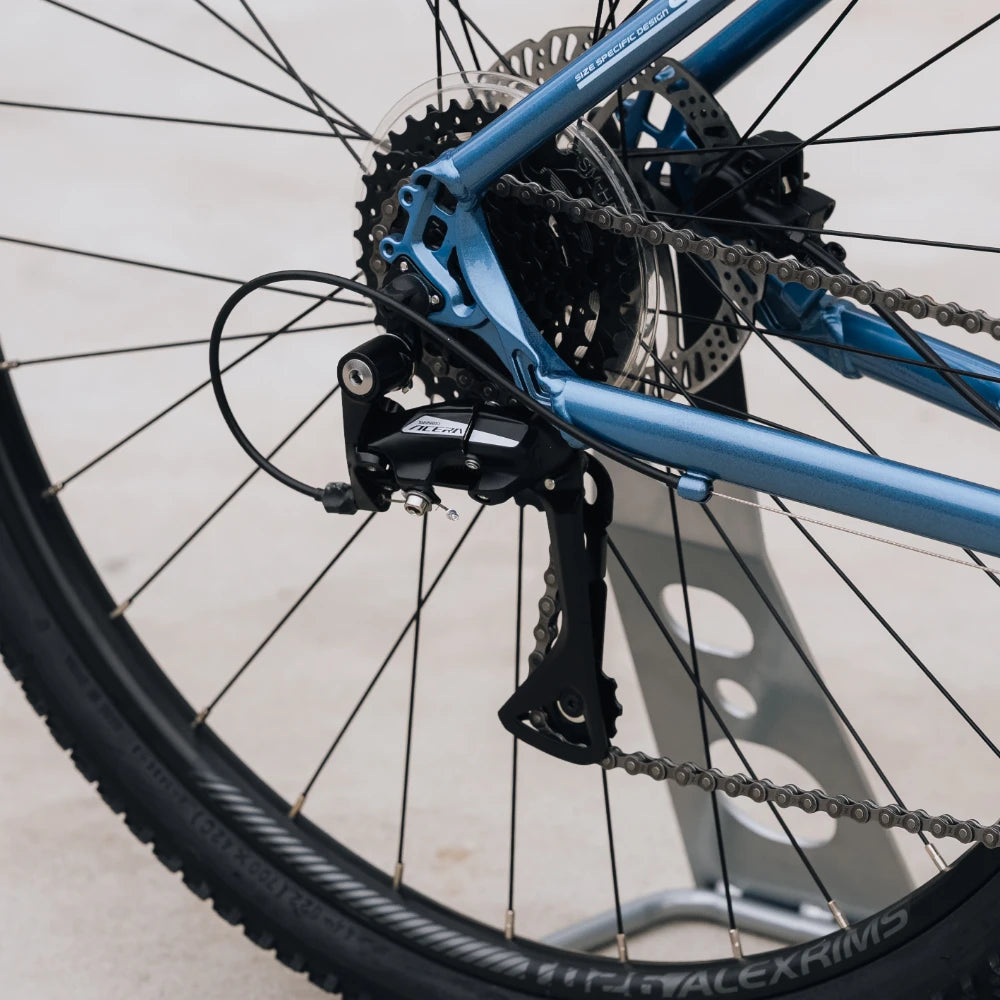

Rear Derailleur Shimano Acera RD-M360

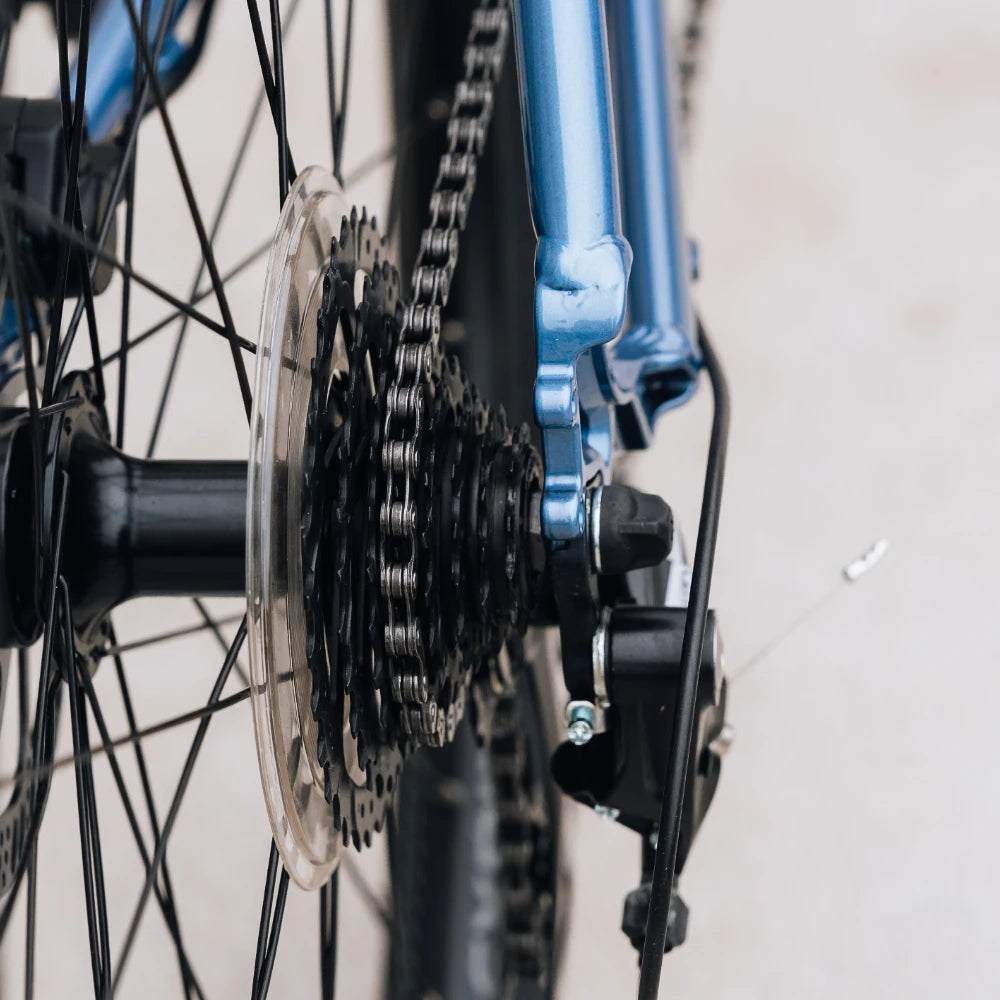

Cassette Shimano HG31, 8-speed, 11–34T

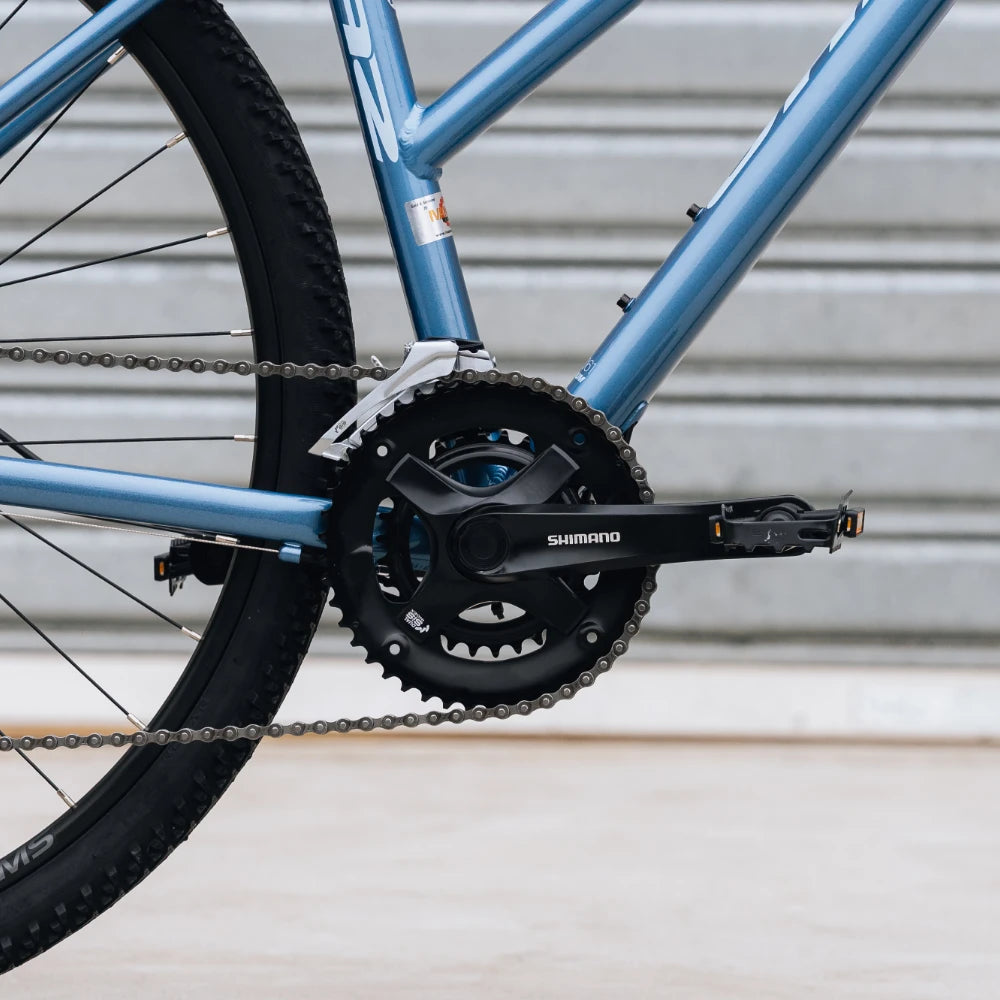

Crankset Shimano FC-TY501-2, 46/30T; 170mm (S/M), 175mm (L/XL)
Bottom Bracket VP sealed cartridge, 68 x 122.5mm
Chain KMC Z7

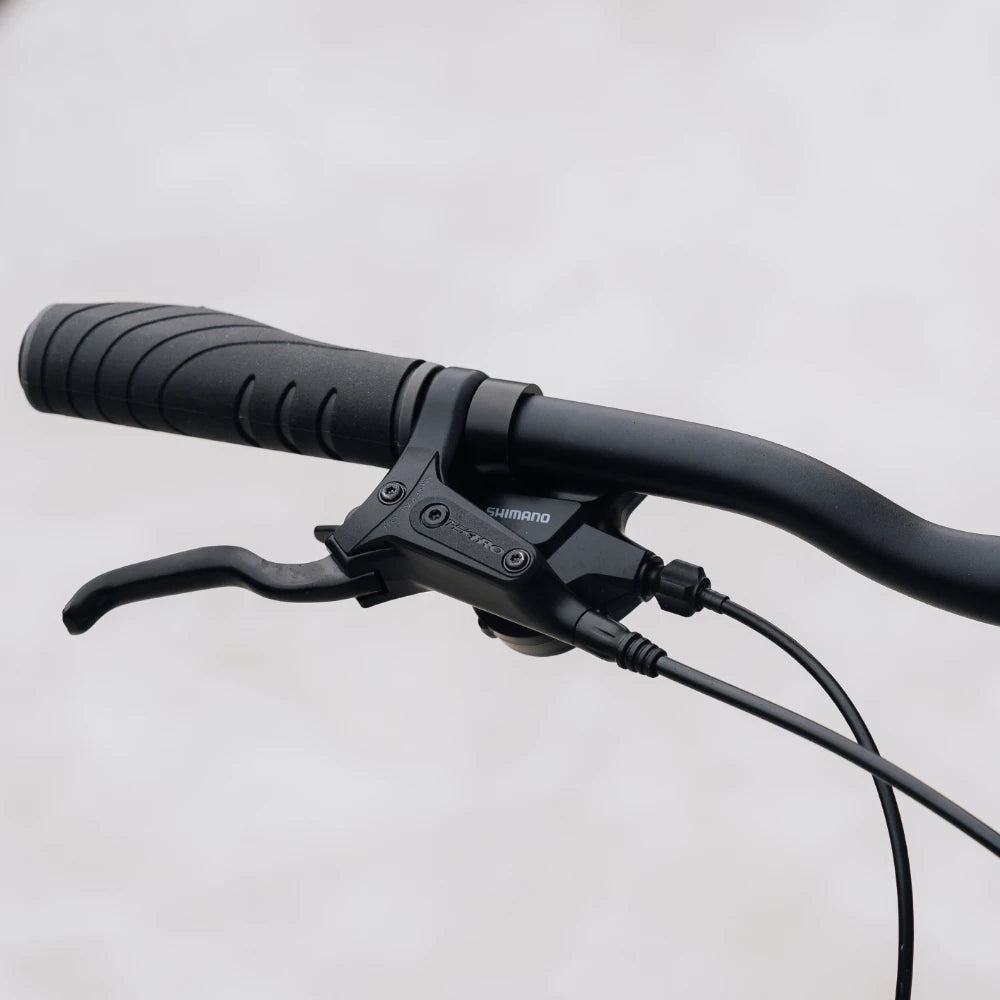

Brakes Tektro HD-M275/276 hydraulic discs, 160mm rotors
Handlebar Jamis riser, double-butted alloy, 25.4mm clamp, 20mm rise, 10° sweep; 640mm (S), 660mm (M–XL)

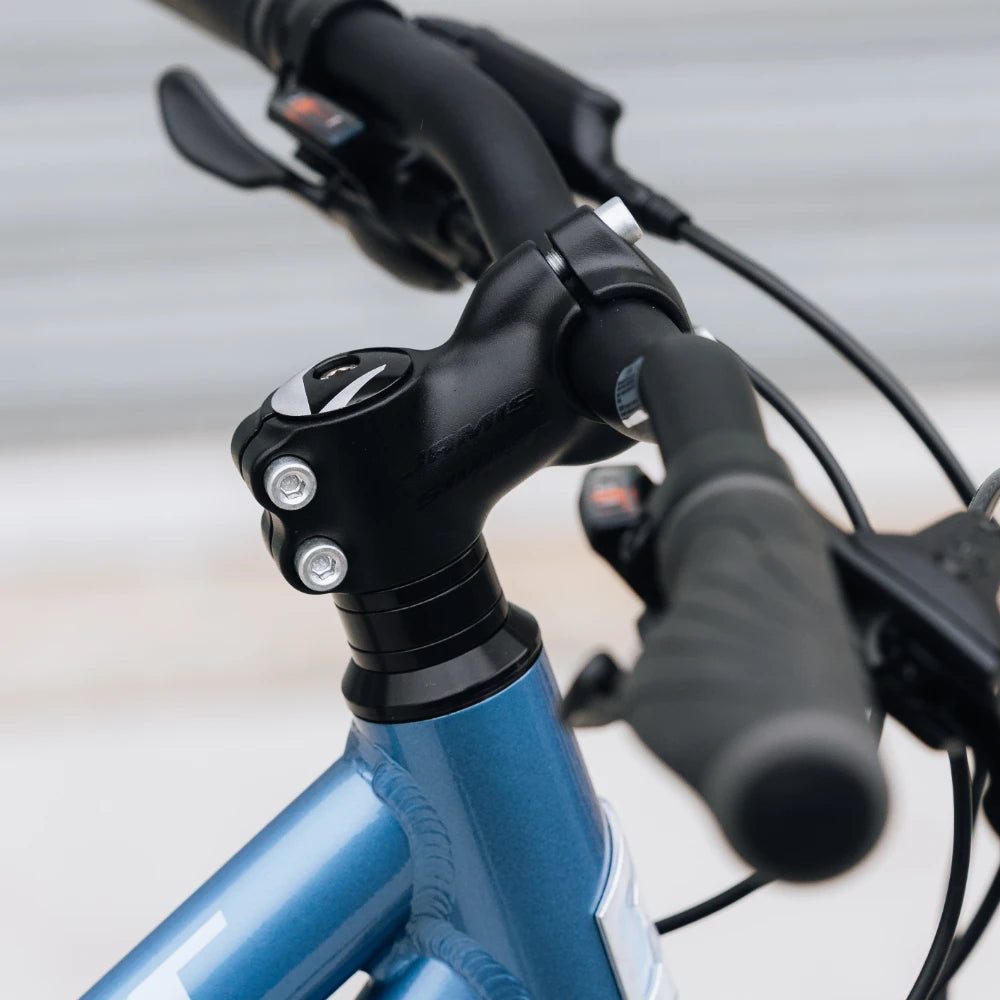

Stem Jamis Trekking, 3D-forged alloy, 15° rise; 60mm (S/M), 90mm (L/XL)
Grips ERGO type

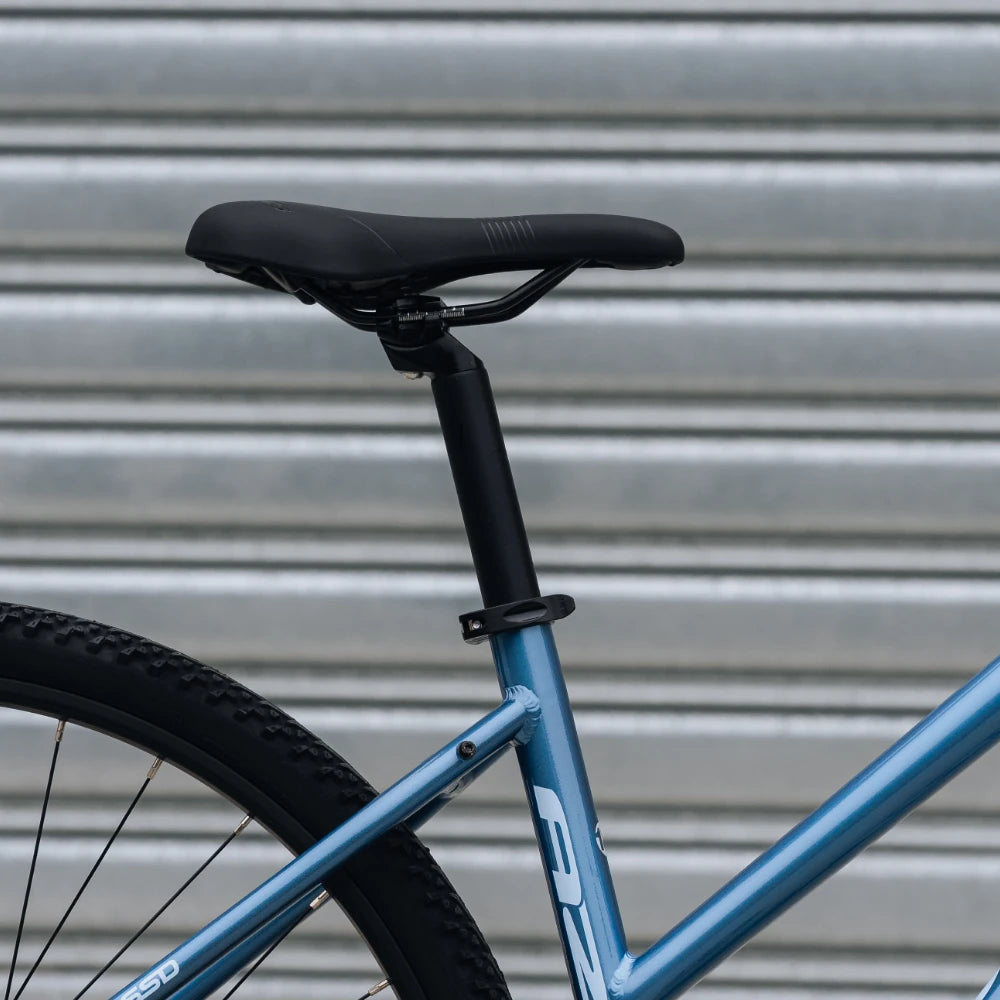

Seatpost Jamis alloy micro-adjust, 31.6 x 350mm, QR clamp

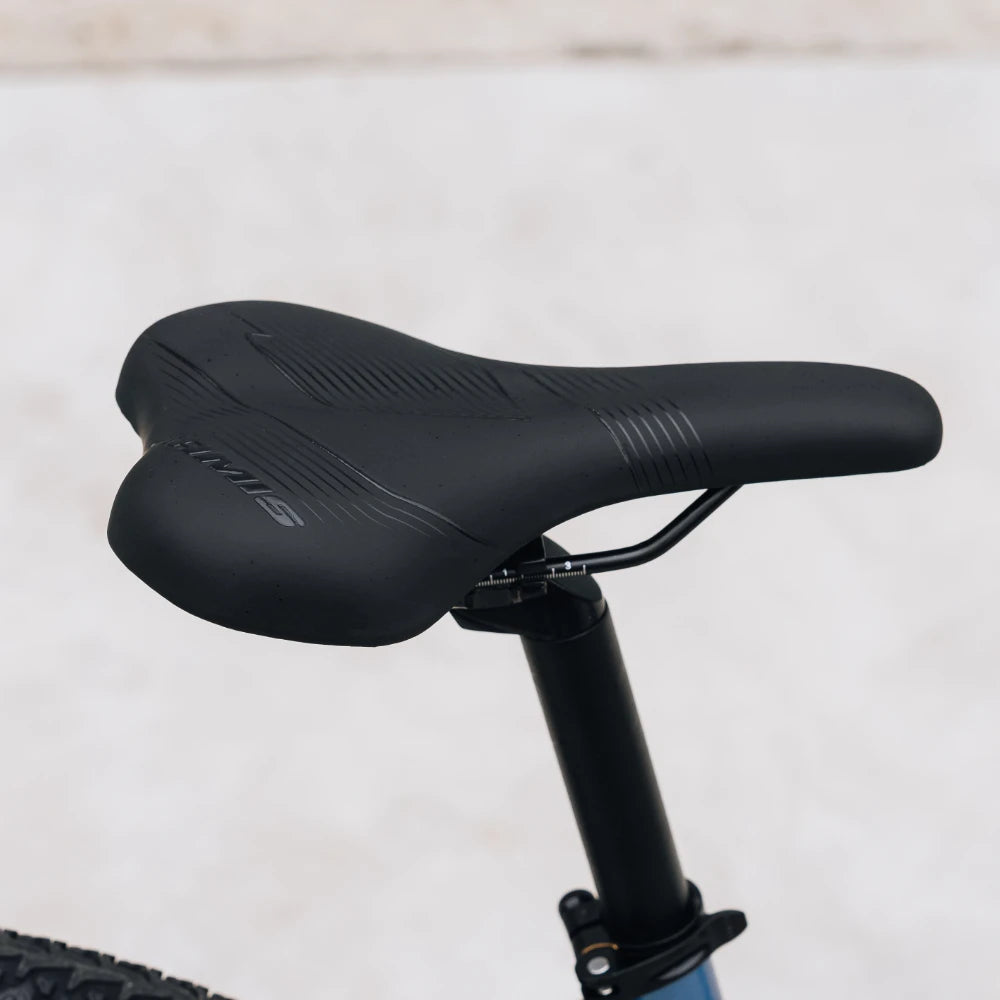

Saddle Jamis Touring with SL cover
Sizes 15", 17", 19", 21", 23" (frame size availability varies by market)
Colour Gloss Black (Step-Through image on AU page)
Weight (claimed) 31.25 lb

Jamis DXT A2 Step-Through

$79900

Color

  • Frost

Size

  • 14"
  • 18"
  • 20"

Motor

N/A

Controller

N/A

Display

N/A

Battery

N/A

Charger

N/A

Sizes

N/A

Frame material

Aluminium

Frame

Size Specific Design 6061 aluminum with fast back rear triangle, 1 1/8” head tube, internal cable routing, chain stays disc brake mounts, 34.9mm seat tube, kickstand mount, replaceable derailleur hanger, fender/rack eyelets and ring lock mount eyelets.

Fork

SR/Suntour NVX HLO, aluminum lowers, coil spring, 28mm stanchions, 1-1/8” steerer, aluminum crown, hydraulic lock out, 75mm travel

Handlebar

Jamis Riser bar, double-butted aluminum, 25.4 x 10 ̊ sweep x 20mm rise x 640mm (14-18”), 660mm (20”)

Grips

ERGO Type Grip

Bar Tape

N/A

Headset

Internal Cup, threadless, 1 1/8”

Stem

Jamis Trekking, 3D forged alloy, 15 ̊ rise, Length-60mm

Seatpost

Jamis alloy micro-adjust, 31.6 x 350mm alloy clamp with QR seatpin

Saddle

Jamis Touring Women’s with SL cover

Pedals

Platform

Shifters

Shimano Altus Rapid Fire SL-M315, 16-speed

Front Derailleur

Shimano FD-TY710-2 Front

Rear Derailleur

Shimano Acera RD-M360 rear

Brakes

Tektro HD-276 hydraulic disc brakes with 83mm reach, 160mm rotors

Brake Levers

Tektro brake levers.

Cassette/Freewheel

Shimano HG31, 8-speed, 11-34T

Chain

KMC Z7

Crankset

Shimano FC-TY501-2, 46/30, 170mm

Bottom Bracket

VP sealed cartridge, 68 x 122.5mm

Rims

Alex TD26 disc specific double wall alloy rims, 36H

Hubs

Alloy disc hubs with QR, 36H

Spokes

14g black electroplated spokes

Tyres

CST Dual Sport Tire, 700 x 42c

Wheel Size

N/A

Extras

N/A
