Jamis | SKU: 845436085593

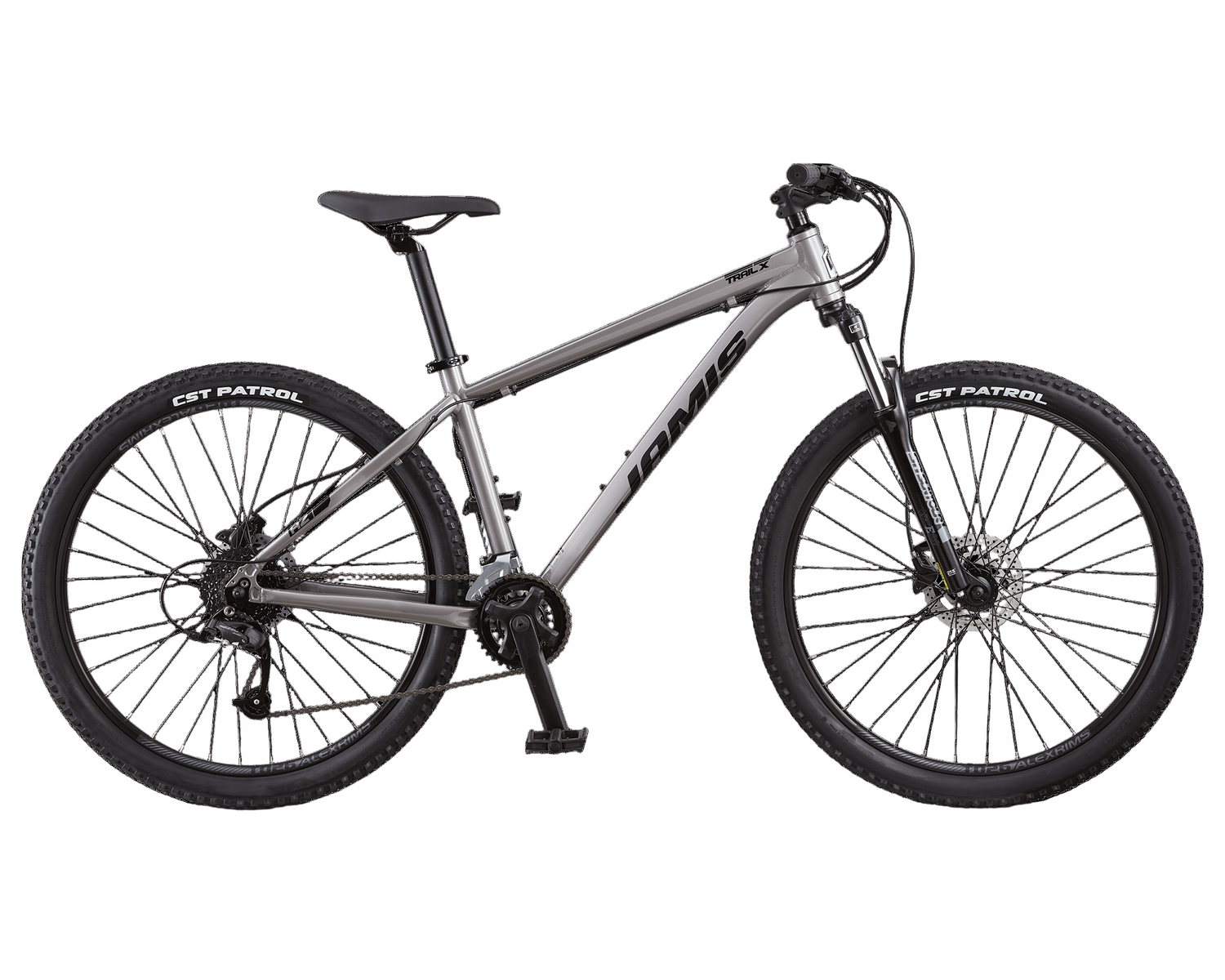

Jamis Trail X A2 Mountain Bike

$699⁰⁰

6061 aluminium frame
SR Suntour XCE 28 DS 27.5”, coil spring, external preload adjustor
Alex TD26 27.5” rims, 32H, alloy disc hubs
Shimano MT200 hydraulic disc brakes

Colour: Monterey Grey

Jamis Trail X A2 Mountain Bike

Size

17" 19"

Product variants

Shipping options available.

Shipping Information

Certain bike brands cannot be shipped and are only available for Click and Collect.

These include but are not limited to the following brands: Giant, GT, Liv, Momentum and Mongoose.

For all other brands, we can provide a shipping quote to your postcode. Please contact us by email at staff@ivanhoecycles.com.au, or text us on 0417 122 950.

Fully assembled when you Click & Collect in-store

Buy Now, Pay Later with ZIP

Free service adjustment within first 6 months

Jamis Trail X A2 Mountain Bike

The Jamis Trail X delivers confident, all-day handling with a 6061 aluminium frame and SR Suntour XCE 28 DS 27.5" fork. Reliable Alex TD26 27.5" rims and alloy disc hubs pair with an 8-speed Shimano drivetrain and sealed cartridge bottom bracket for smooth, low-maintenance performance. Shimano MT200 hydraulic disc brakes provide consistent stopping power, while the Jamis XC alloy cockpit and ATB Sport saddle round out a comfortable, trail-ready ride.

Features

Frame material

Aluminium
Frame

6061 aluminum main tubes, over-sized seat tube, zero-stack head tube, over-sized stays, replaceable derailleur hanger
Fork

SR Suntour XCE 28 DS 27.5”, coil spring, external preload adjustor, 28mm stanchions, aluminum lowers, 100mm travel
Handlebar

Jamis XC alloy riser, 31.8 x 20mm rise x 740mm
Grips

Kraton
Headset

Zero-stack internal cup, 8mm cone spacer
Stem

Jamis XC alloy threadless, 31.8 x 3 ̊ rise x 60mm
Seatpost

Jamis alloy micro-adjust, 31.6 x 350mm (15”) 400mm (17”-21”)
Saddle

Jamis ATB Sport
Pedals

Platform
Shifters

Shimano EF505, 2×8-speed
Front Derailleur

Shimano Altus
Rear Derailleur

Shimano Tourneyt
Brakes

Shimano MT200 hydraulic disc, Shimano RT26 160mm rotors
Cassette/Freewheel

Shimano HG31, 8-speed, 11-32T
Chain

KMC Z8.3, 8-speed
Crankset

Forged Alloy, 36/22T
Bottom Bracket

Sealed cartridge
Tyres

CST Patrol, 27.5 x 2.25”
Wheelset

Alex TD26 27.5” double wall rims, 32H, alloy disc hubs, 14G black electroplated spokes
Notes

Please note that, based on component availability and other factors, specifications are subject to change without notice.
Speeds (rear)

8 Speed
Age Group

Adults, Teenagers
Gender

Mens, Unisex
Discipline

Mountain
SKUs

Monterey Grey/17": 845436085593, Monterey Grey/19": 845436085616
Supplier SKUs

Monterey Grey/17": JSMT-22TRAA2MG-17, Monterey Grey/19": JSMT-22TRAA2MG-19

Jamis Trail X A2 Mountain Bike

Jamis Trail X A2

$699⁰⁰

Colour

Jamis Trail X A2 Mountain Bike

Size

17"
19"

Motor

N/A

Controller

N/A

Display

N/A

Battery

N/A

Charger

N/A

Sizes

N/A

Frame material

Aluminium

Frame

6061 aluminum main tubes, over-sized seat tube, zero-stack head tube, over-sized stays, replaceable derailleur hanger

Fork

SR Suntour XCE 28 DS 27.5”, coil spring, external preload adjustor, 28mm stanchions, aluminum lowers, 100mm travel

Handlebar

Jamis XC alloy riser, 31.8 x 20mm rise x 740mm

Grips

Kraton

Bar Tape

N/A

Headset

Zero-stack internal cup, 8mm cone spacer

Stem

Jamis XC alloy threadless, 31.8 x 3 ̊ rise x 60mm

Seatpost

Jamis alloy micro-adjust, 31.6 x 350mm (15”) 400mm (17”-21”)

Saddle

Jamis ATB Sport

Pedals

Platform

Shifters

Shimano EF505, 2×8-speed

Front Derailleur

Shimano Altus

Rear Derailleur

Shimano Tourneyt

Brakes

Shimano MT200 hydraulic disc, Shimano RT26 160mm rotors

Brake Levers

N/A

Cassette/Freewheel

Shimano HG31, 8-speed, 11-32T

Chain

KMC Z8.3, 8-speed

Crankset

Forged Alloy, 36/22T

Bottom Bracket

Sealed cartridge

Rims

N/A

Hubs

N/A

Spokes

N/A

Tyres

CST Patrol, 27.5 x 2.25”

Wheel Size

N/A

Extras

N/A

--> --> --> --> --> -->
