Liv  |  SKU: 9017034124

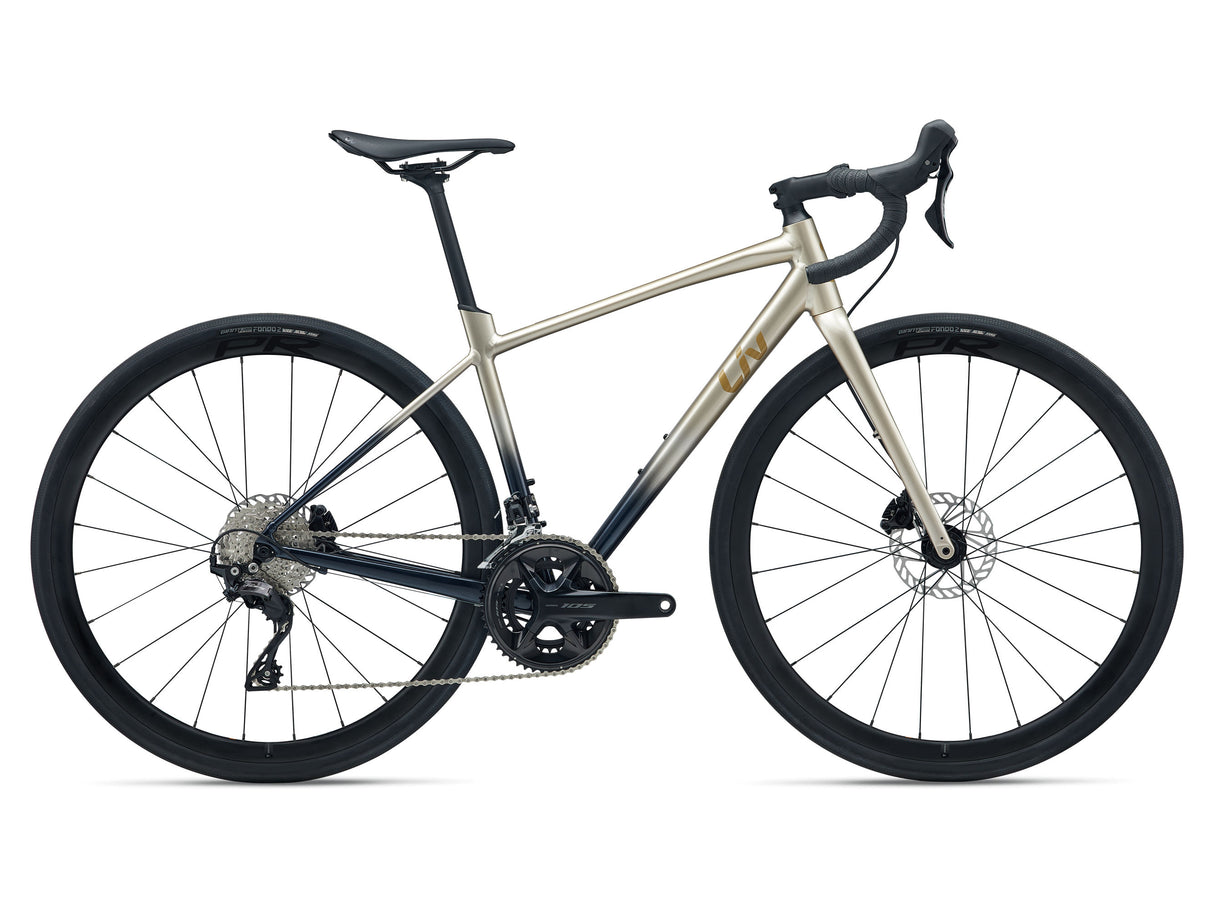

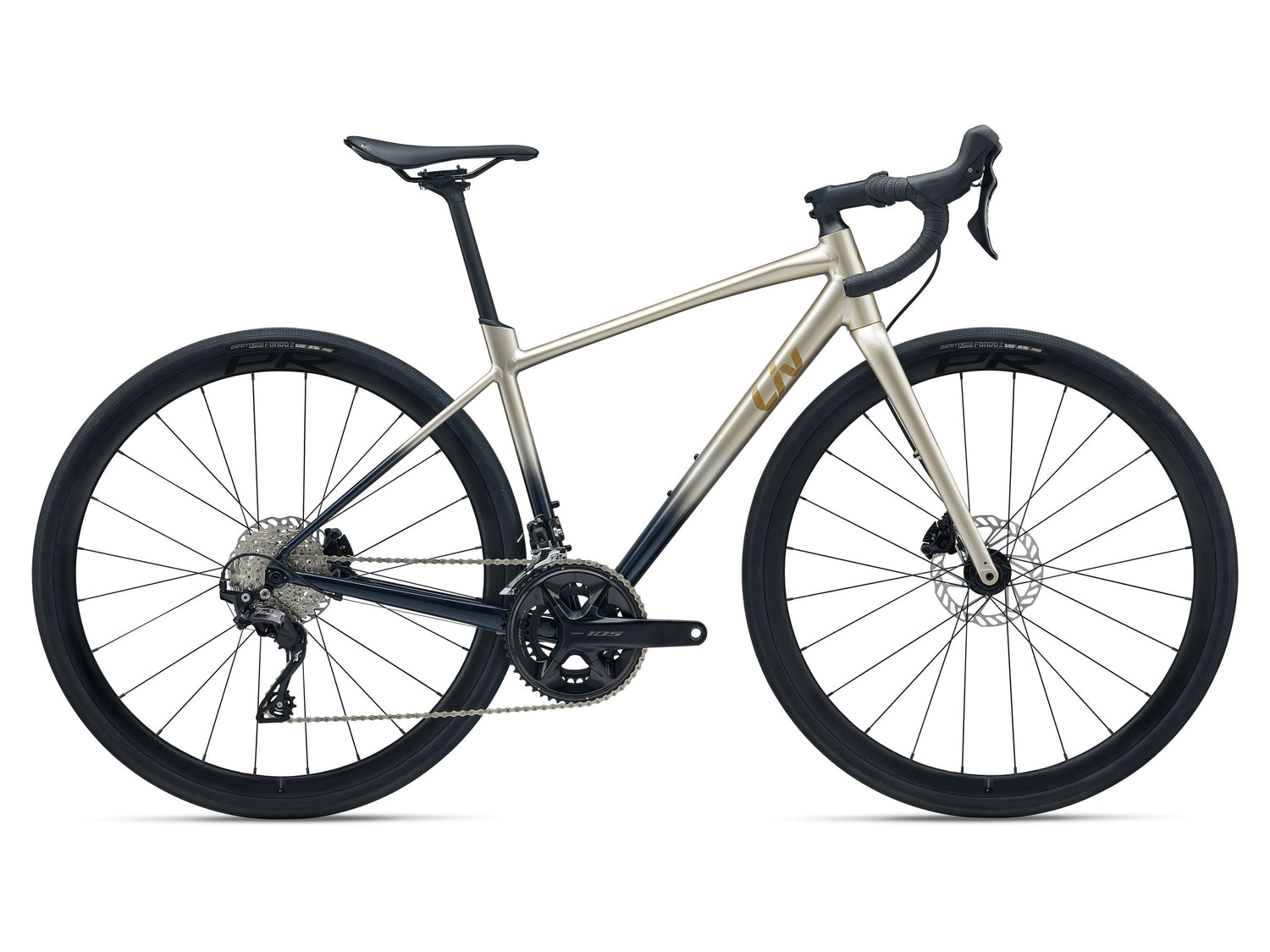

Liv Avail AR 1 (2026)

$2,49900 $2,69900
Colour: Sandshell/Cold Night
Size
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay

Sizing Chart

Sizing to be used as a reference only.

SIZE CHART

Size Height (cm) Height (feet)
XS 153 cm – 162 cm 5’0” – 5’4”
S 158 cm – 169 cm 5’2” – 5’7”
M 165 cm – 174 cm 5’5” – 5’9”



GEOMETRY

bike diagram with measurements referenced in table that follows

Size XS S M
mm inch mm inch mm inch
A Seat Tube Length 430 16.9 465 18.3 500 19.7
B Seat Tube Angle 75.0° 74.5° 74.0°
C Top Tube Length 515 20.3 525 20.7 540 21.3
D Head Tube Length 135 5.3 150 5.9 170 6.7
E Head Tube Angle 70.5° 72.0° 72.0°
F Fork Rake 45 1.8 45 1.8 45 1.8
G Trail 73 2.9 63.5 2.5 63.5 2.5
H Wheelbase 998 39.3 990 39.0 1000 39.4
I Chain Stay Length 420 16.5 420 16.5 420 16.5
J Bottom Bracket Drop 70 2.8 70 2.8 70 2.8
K Stack 530 20.9 550 21.7 569 22.4
L Reach 372 14.6 372 14.6 377 14.8
M Stand Over Height 687 27.0 716 28.2 744 29.3
O Stem Length 70 2.8 80 3.1 90 3.5
P Crank Length 165 6.5 170 6.7 170 6.7

Shipping Information

This product:

Shipping available†

We offer shipping on select brands including: Rocky Mountain, Orbea, XDS, Icon, Jamis, Shogun, Schwinn, BYK, Kidvelo. These bikes are shipped unbuilt in their original box.

†Only bikes stocked at our Warehouse location are available for shipping.

Shipping upon request to your local bike shop

Some brands require the bike is delivered directly to a bicycle shop or mechanic for assembly, and shipping is not available to your residence. These include GT, Cannondale, .

Request a shipping quote to proceed.

Pickup in-store only

Certain bike brands cannot be shipped and are only available for Click and Collect or purchase in-store.

These include but are not limited to the following brands: Giant, Norco, Liv, Momentum, Malvern Star and Mongoose.

Pre-assembled bikes

†Any bikes in stock at our Heidelberg Heights, Hallam or Hoppers Crossing store locations are already fully assembled, and therefore only available for Click and Collect or purchase in-store.

Fully assembled when you Click & Collect in-store
Buy Now, Pay Later with ZIP
Free service adjustment within first 6 months

Whether it’s navigating asphalt or venturing through an unpaved short cut, the Avail AR is smooth on flats, spry on climbs and confident on descents.

Comfort

The lightweight ALUXX aluminum frame features the latest endurance geometry with an Advanced-grade composite fork and D-Fuse seatpost to diminish vibrations.

Control

The 32c tires provide stability on both road and off-road surfaces, with compatibility for tubeless tires up to 38c. The OverDrive steerer and powerful disc brakes ensure precise handling and reliable stopping power, giving you confidence on any terrain.

Carrying Capacity

Equipped with frame mounts for racks and fenders, the Avail AR ensures you're ready for longer journeys with all the necessary gear and protection.



SPECIFICATIONS

Sizes XXS, XS, S, M, L
Colors Sandshell/Cold Night
Frame ALUXX-grade aluminum, 12x142mm thru-axle, disc
Fork Advanced-grade composite, full-composite OverDrive steerer, 12x100mm, disc
Shock N/A
Handlebar Liv D-Fuse SL, 31.8mm, XXS: 380mm, XS: 380mm, S: 400mm, M: 400mm, L: 420mm
Grips Liv All Condition
Stem Giant Contact, XXS: 70mm, XS: 70mm, S: 80mm, M: 90mm, L: 90mm
Seatpost Giant D-Fuse, composite, XXS: 350mm, XS: 350mm, S: 350mm, M: 350mm, L: 350mm
Saddle Liv Approach
Shifters Shimano 105
Front Derailleur Shimano 105
Rear Derailleur Shimano 105
Brakes Shimano 105 hydraulic, Giant MPH rotors, [F]160mm, [R]160mm
Brake Levers Shimano 105
Cassette Shimano 105, 12-speed, 11x36
Chain KMC X12
Crankset Shimano 105, 34/50, XXS: 165mm, XS: 165mm, S: 170mm, M: 170mm, L: 172.5mm
Bottom Bracket Shimano BB-RS501
Rims Giant P-R2 Disc, alloy
Hubs Giant alloy, 12mm thru-axle
Spokes Sapim
Tires Giant Gavia Fondo 2, 700x32c, tubeless
Extras tubeless prepared, 38mm max tire size
Max Tire Clearance 38mm
Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Liv Avail AR 1 (2026)

$2,49900 $2,69900

Colour

Size

  • XS
  • S
  • M

Motor

N/A

Controller

N/A

Display

N/A

Battery

N/A

Charger

N/A

Sizes

N/A

Frame material

Aluminium

Frame

ALUXX-grade aluminum, 12x142mm thru-axle, disc

Fork

Advanced-grade composite, full-composite OverDrive steerer, 12x100mm, disc

Handlebar

Liv D-Fuse SL, 31.8mm, XXS: 380mm, XS: 380mm, S: 400mm, M: 400mm, L: 420mm

Grips

N/A

Bar Tape

Liv All Condition

Headset

N/A

Stem

Giant Contact, XXS: 70mm, XS: 70mm, S: 80mm, M: 90mm, L: 90mm

Seatpost

Giant D-Fuse, composite, XXS: 350mm, XS: 350mm, S: 350mm, M: 350mm, L: 350mm

Saddle

Liv Approach

Pedals

N/A

Shifters

Shimano 105

Front Derailleur

Shimano 105

Rear Derailleur

Shimano 105

Brakes

Shimano 105 hydraulic, Giant MPH rotors, [F]160mm, [R]160mm

Brake Levers

Shimano 105

Cassette/Freewheel

Shimano 105, 12-speed, 11x36

Chain

KMC X12

Crankset

Shimano 105, 34/50, XXS: 165mm, XS: 165mm, S: 170mm, M: 170mm, L: 172.5mm

Bottom Bracket

Shimano BB-RS501

Rims

Giant P-R2 Disc, alloy

Hubs

Giant alloy, 12mm thru-axle

Spokes

Sapim

Tyres

N/A

Wheel Size

N/A

Extras

Tubeless prepared, 38mm max tire size
