Need delivery by Xmas? Check our Delivery Dates guide.

Need some Gift Ideas?
1 4
Liv  |  SKU: 2311020105

Liv Intrigue 29 1 Women's Dual Suspenion Mountain Bike (2023)

$2,79900 $4,99900
Colour: Brush Aluminium
Size

Special Order: This product will be ordered from our supplier upon purchase and available for collection within 7-14 business days. Read T&Cs here.
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
Fully assembled when you Click & Collect in-store
Buy Now, Pay Later with ZIP
Free service adjustment within first 6 months

Sizing Chart

Sizing and Geometry

Liv Intrigue

Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.

Sizing Rider Height Rider Height (cm)
S 5′ 2″ – 5′ 7″ 158 – 169
M 5′ 5″ – 5′ 9″ 164 – 175
L 5′ 7″ – 5′ 11″ 170 – 181


Geometry

bike diagram with measurements referenced in table that follows



    S M L
    LOW | HIGH LOW | HIGH LOW | HIGH
A Seat Tube Length (mm) 425 435 460
B Seat Tube Angle 77.0° | 77.8° 77.0° | 77.8° 77.0° | 77.8°
C Top Tube Length (mm) 558 | 557 574 | 573 599 | 597
D Head Tube Length (mm) 105 110 125
E Head Tube Angle 65.8° | 66.5° 65.8° | 66.5° 65.8° | 66.5°
F Fork Rake (mm) 44 44 44
G Trail (mm) 122 | 117 122 | 117 122 | 117
H Wheelbase (mm) 1160 | 1160 1177 | 1176 1205 | 1204
I Chain Stay Length (mm) 438 | 435 438 | 435 438 | 435
J Bottom Bracket Drop (mm) 40 | 30 40 | 30 40 | 30
K Stack (mm) 620 | 614 625 | 618 639 | 632
L Reach (mm) 415 | 424 430 | 438 451 | 460
M Stand Over Height (mm) 731 | 740 737 | 746 756 | 765
O Stem Length (mm) 50 50 50
P Crank Length (mm) 170 170 175
Q Wheel Size 29" 29" 29"

Bike Shipping

Delivery is available upon specific request for our special order bikes.

Bikes may only be shipped directly to a qualified bike mechanic or bike shop of your choosing, who must complete the assembly of the bike. We strictly cannot ship an unbuilt bike direct to consumer.

The buyer is responsible for all shipping and assembly costs, and is responsible for arranging assembly with their nominated bike store or mechanic.

To request a shipping quote, please submit a request and include the delivery postcode, business name of your nominated bike shop or bike mechanic, and the exact model & frame size of the bike.

Please note: All bikes sold by Ivanhoe Cycles must be assembled by a qualified mechanic or bike shop. Any assembly undertaken without professional assistance is at the customer's risk and any injury as a result of the build without professional assistance will not be covered by the warranty.

Assembly

Every bike purchased or collected in-store at Ivanhoe Cycles is fully assembled by our qualified mechanics free of charge.

Bikes ordered online for shipping* will require partial assembly, including but not limited to: installing handlebar, seatpost, front wheel; adjusting gears and brakes; tuning suspension; installing accessories or bar tape.

Disclaimer: Ivanhoe Cycles strongly advises having your assembly completed by an experienced bicycle mechanic. Any assembly undertaken without professional assistance is at the customer's risk and any injury as a result of the build without professional assistance will not be covered by the warranty.

*Shipping is restricted to certain brands due to assembly requirements.

Returns / Cancellations

If your special ordered item arrives faulty, damaged, or is differently than described, you are entitled to a full refund or replacement.

Cancellations and returns are not accepted on special orders if the consumer:
- changed their mind
- found the item cheaper elsewhere
- decided they didn't like the purchase or had no use for it
- ordered the wrong item

Contact us with any product enquiries you have prior to purchasing.

For more information, please read our Special Order terms and conditions.

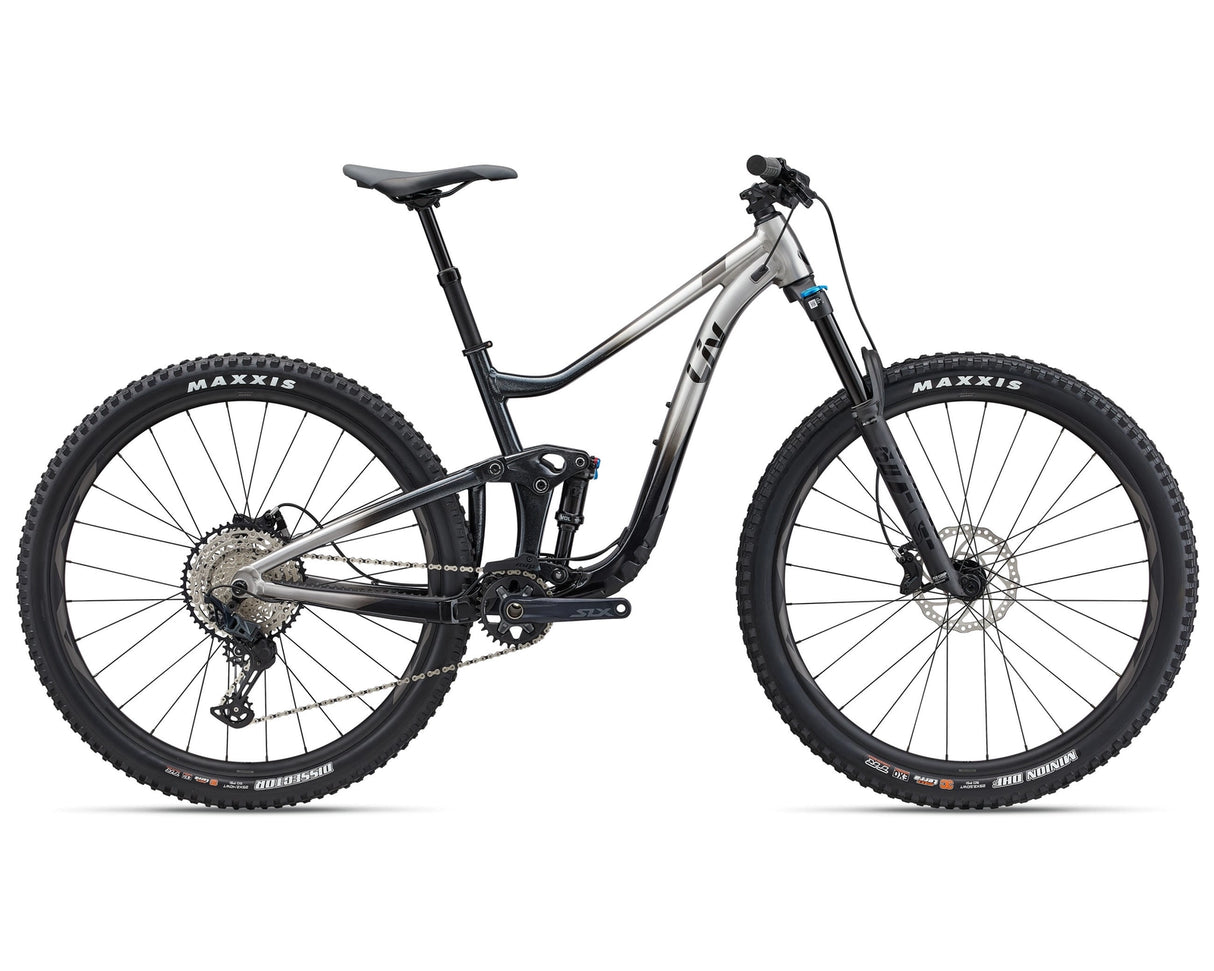

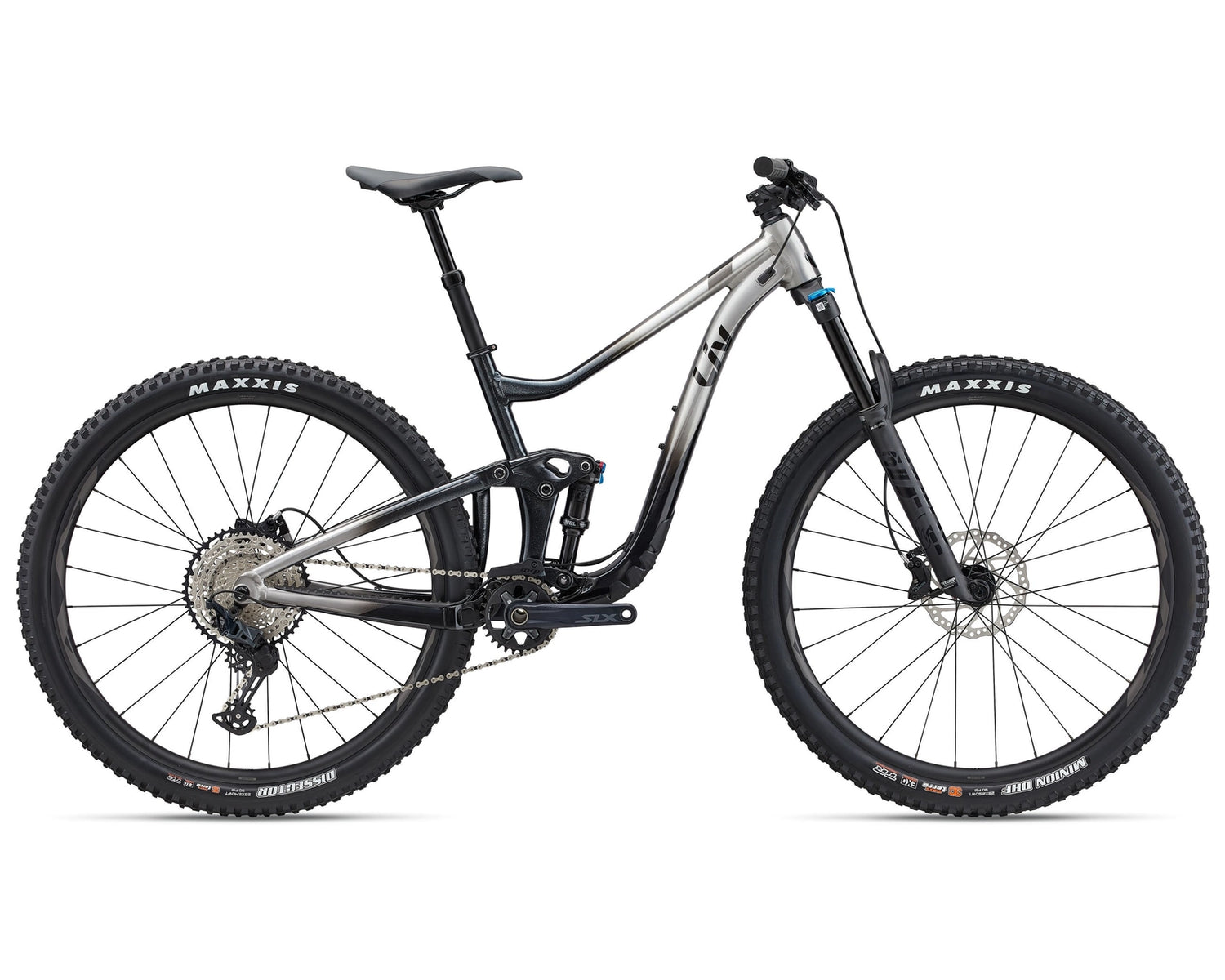

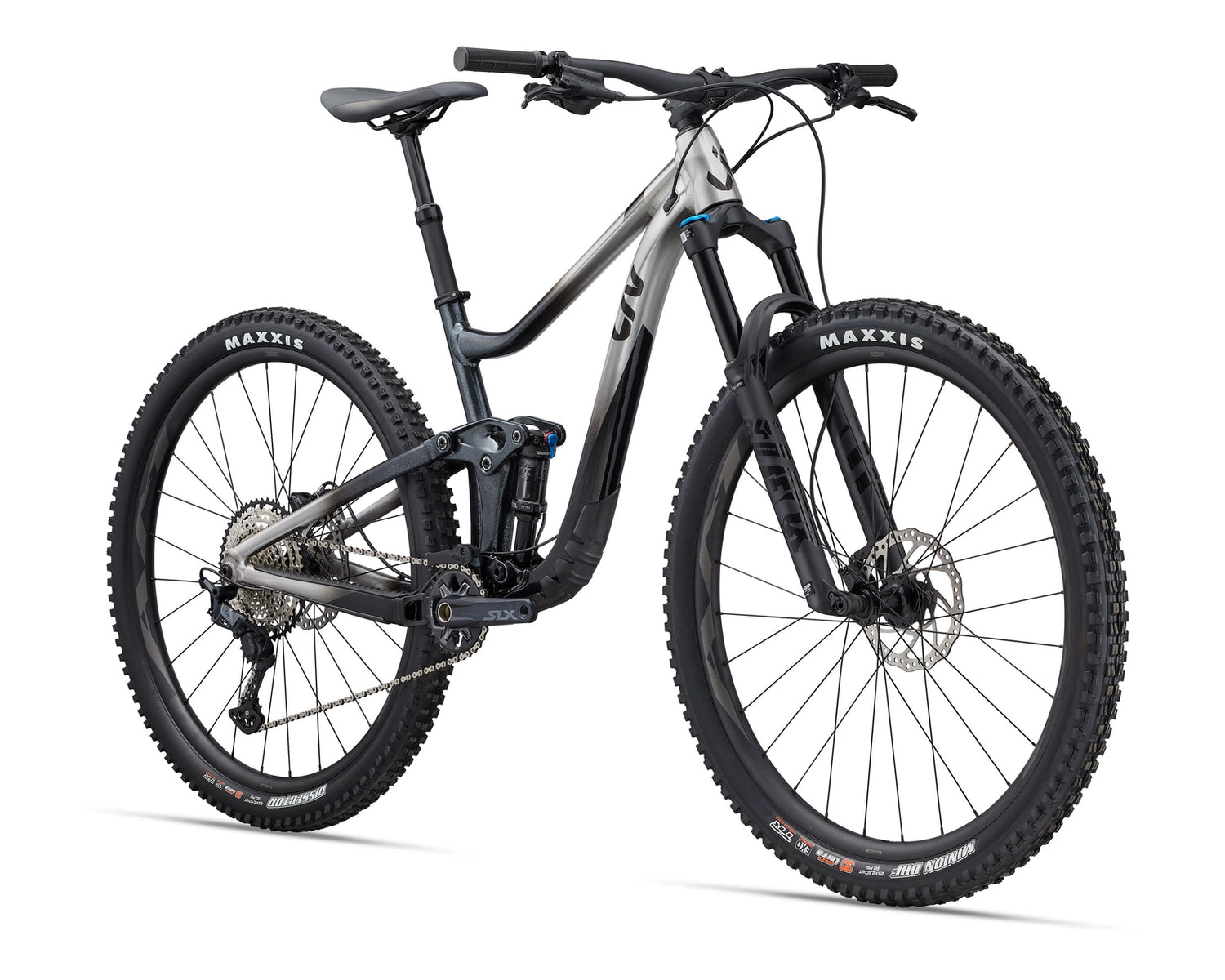

Liv Intrigue 29 1 (2023)

Built to cover ground, mow over techy singletrack, and charge down aggressive terrain, the Liv Intrigue 29 prefers the rowdy side of life.

Trail Ready

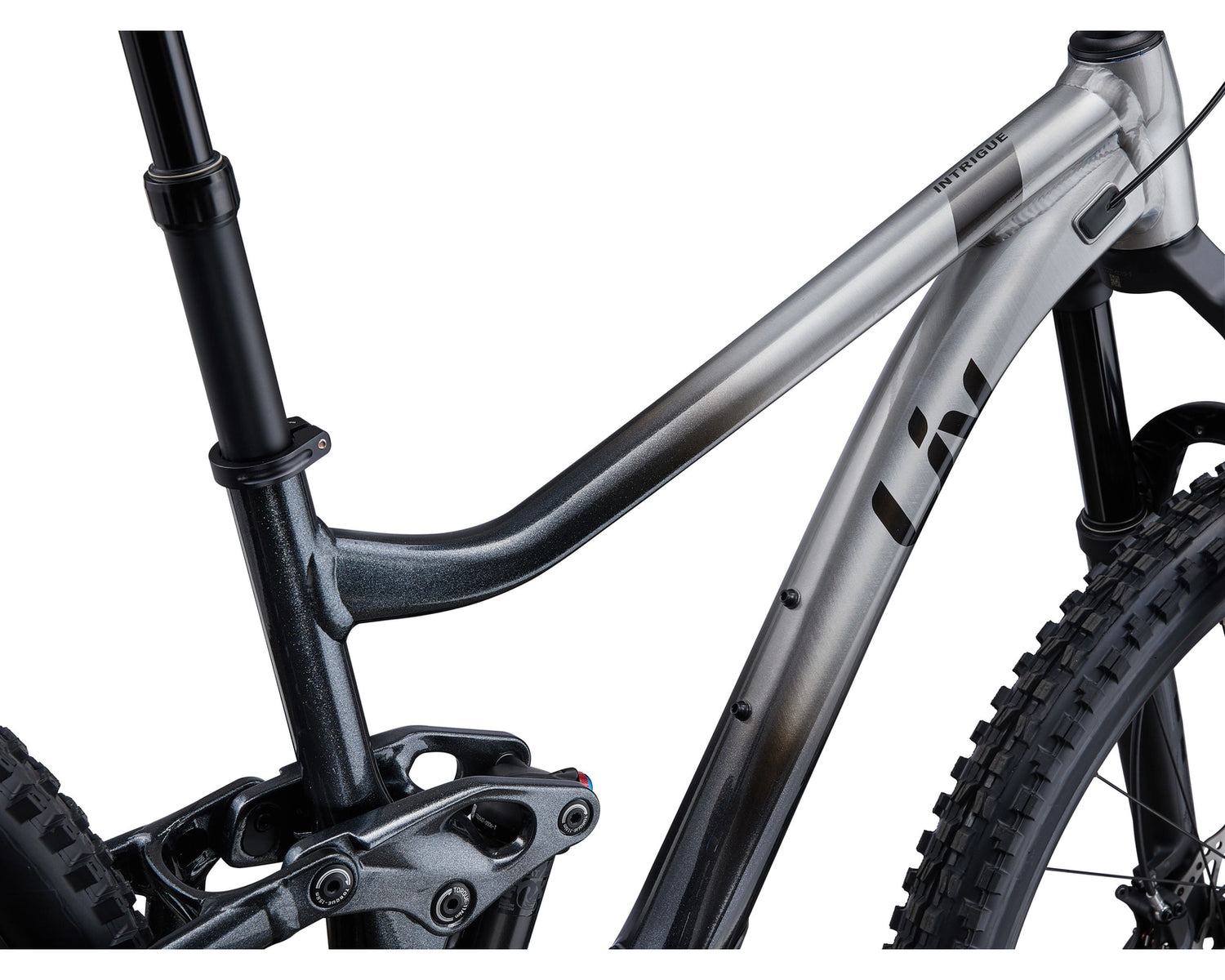

ALUXX SL-Grade Aluminium frame, a dropper seatpost and wide, grippy tyres keep you planted and help you tackle technical trails.

Balanced Agility

Obstacle-eating 29-inch wheels offer smooth handling and roll easily over small roots and rocks.

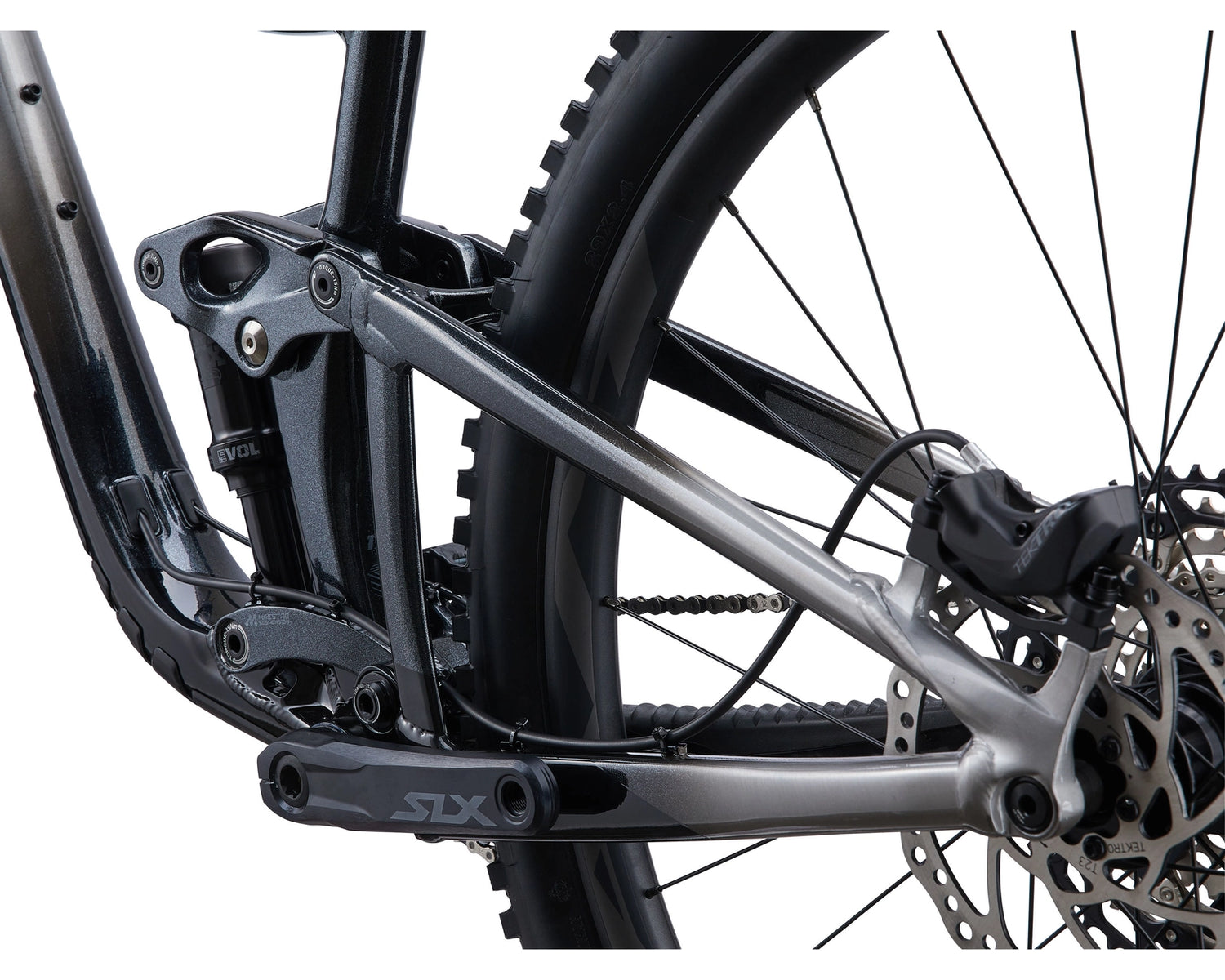

Custom Tuned Suspension

The 125mm of Maestro Suspension has been custom tuned by women, for women to provide optimal performance for the rider and the bike’s intended use, resulting in improved traction and control.

Liv Intrigue 29 1 (2023)

$2,79900 $4,99900

Colour

Size

  • S
  • M
  • L

Motor

N/A

Controller

N/A

Display

N/A

Battery

N/A

Charger

N/A

Sizes

N/A

Frame material

Aluminium

Frame

ALUXX SL-Grade Aluminium front and rear triangles, 125mm Maestro Suspension, flip chip

Fork

Fox 34 Float Performance, 140mm, GRIP damper, Boost, 15x110, Kabolt, tapered, 44mm offset, custom tuned for Liv

Handlebar

Giant Contact SL TR35

Grips

Liv Tactal single lock-on

Bar Tape

N/A

Headset

N/A

Stem

Giant Contact SL, 35mm S:50mm, M:50mm, L:50mm

Seatpost

Giant Contact Switch dropper, remote

Saddle

Liv Sylvia

Pedals

N/A

Shifters

Shimano SLX M7100, 1x12

Front Derailleur

N/A

Rear Derailleur

Shimano SLX M7100, Shadow+

Brakes

Tektro M750, hydraulic, Tektro rotors [F]180mm, [R]180mm

Brake Levers

Tektro HDM-750

Cassette/Freewheel

Shimano SLX M7100, 10x51

Chain

KMC X-12

Crankset

Shimano SLX M7100, 30t S:170mm, M:170mm, L:170mm

Bottom Bracket

Shimano, press fit

Rims

Giant AM 29, tubeless ready, sleeve-joint, 30mm inner width

Hubs

[F] alloy 15x110, sealed bearing, [R] alloy 12x148, sealed bearing

Spokes

Sapim

Tyres

[F] Maxxis Minion DHF 29x2.5WT, 3C Max Terra, EXO, TR, tubeless [R] Maxxis Dissector 29x2.4WT, 3C Max Terra, EXO, TR, tubeless

Wheel Size

N/A

Extras

Tubeless prepared, max tyre size 2.5", max chainring size 32t
