Liv | SKU: 9059002104

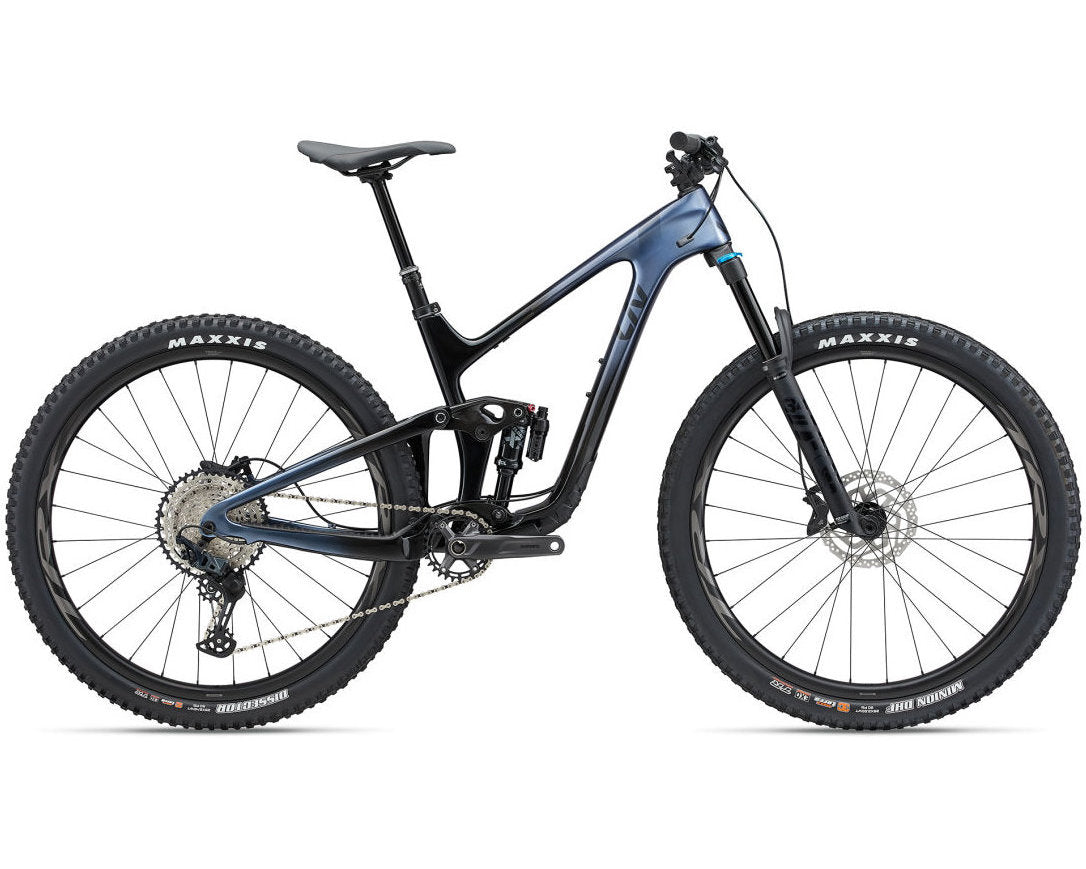

Liv Intrigue Advanced 29 1 Women's MTB (2024)

$4,999⁰⁰ ~~$6,599⁰⁰~~

Advanced-grade carbon front and rear triangles | 125mm travel
Fox 34 Performance fork | 140mm travel
Fox Float X Performance shock
Shimano SLX Shadow+ 1x12-speed

Colour: Ice Age

Liv Intrigue Advanced 29 1 Women's MTB (2024)

S M L

Product variants

Special Order: This product will be ordered from our supplier upon purchase and available for collection within 7-14 business days. Read T&Cs here.

Fully assembled when you Click & Collect in-store

Buy Now, Pay Later with ZIP

Free service adjustment within first 6 months

Sizing Chart

Sizing and Geometry

Liv Intrigue

Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.

Sizing	Rider Height	Rider Height (cm)
S	5′ 2″ – 5′ 7″	158 – 169
M	5′ 5″ – 5′ 9″	164 – 175
L	5′ 7″ – 5′ 11″	170 – 181

Geometry

bike diagram with measurements referenced in table that follows

		S	M	L
		LOW \| HIGH	LOW \| HIGH	LOW \| HIGH
A	Seat Tube Length (mm)	425	435	460
B	Seat Tube Angle	77.0° \| 77.8°	77.0° \| 77.8°	77.0° \| 77.8°
C	Top Tube Length (mm)	558 \| 557	574 \| 573	599 \| 597
D	Head Tube Length (mm)	105	110	125
E	Head Tube Angle	65.8° \| 66.5°	65.8° \| 66.5°	65.8° \| 66.5°
F	Fork Rake (mm)	44	44	44
G	Trail (mm)	122 \| 117	122 \| 117	122 \| 117
H	Wheelbase (mm)	1160 \| 1160	1177 \| 1176	1205 \| 1204
I	Chain Stay Length (mm)	438 \| 435	438 \| 435	438 \| 435
J	Bottom Bracket Drop (mm)	40 \| 30	40 \| 30	40 \| 30
K	Stack (mm)	620 \| 614	625 \| 618	639 \| 632
L	Reach (mm)	415 \| 424	430 \| 438	451 \| 460
M	Stand Over Height (mm)	731 \| 740	737 \| 746	756 \| 765
O	Stem Length (mm)	50	50	50
P	Crank Length (mm)	170	170	175
Q	Wheel Size	29"	29"	29"

Bike Shipping

Delivery is available upon specific request for our special order bikes.

Bikes may only be shipped directly to a qualified bike mechanic or bike shop of your choosing, who must complete the assembly of the bike. We strictly cannot ship an unbuilt bike direct to consumer.

The buyer is responsible for all shipping and assembly costs, and is responsible for arranging assembly with their nominated bike store or mechanic.

To request a shipping quote, please submit a request and include the delivery postcode, business name of your nominated bike shop or bike mechanic, and the exact model & frame size of the bike.

Please note: All bikes sold by Ivanhoe Cycles must be assembled by a qualified mechanic or bike shop. Any assembly undertaken without professional assistance is at the customer's risk and any injury as a result of the build without professional assistance will not be covered by the warranty.

Assembly

Every bike purchased or collected in-store at Ivanhoe Cycles is fully assembled by our qualified mechanics free of charge.

Bikes ordered online for shipping* will require partial assembly, including but not limited to: installing handlebar, seatpost, front wheel; adjusting gears and brakes; tuning suspension; installing accessories or bar tape.

Disclaimer: Ivanhoe Cycles strongly advises having your assembly completed by an experienced bicycle mechanic. Any assembly undertaken without professional assistance is at the customer's risk and any injury as a result of the build without professional assistance will not be covered by the warranty.

*Shipping is restricted to certain brands due to assembly requirements.

Returns / Cancellations

If your special ordered item arrives faulty, damaged, or is differently than described, you are entitled to a full refund or replacement.

Cancellations and returns are not accepted on special orders if the consumer:
- changed their mind
- found the item cheaper elsewhere
- decided they didn't like the purchase or had no use for it
- ordered the wrong item

For more information, please read our Special Order terms and conditions.

Sizing and Geometry

Liv Intrigue

Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.

Sizing	Rider Height	Rider Height (cm)
S	5′ 2″ – 5′ 7″	158 – 169
M	5′ 5″ – 5′ 9″	164 – 175
L	5′ 7″ – 5′ 11″	170 – 181

Geometry

		S	M	L
		LOW \| HIGH	LOW \| HIGH	LOW \| HIGH
A	Seat Tube Length (mm)	425	435	460
B	Seat Tube Angle	77.0° \| 77.8°	77.0° \| 77.8°	77.0° \| 77.8°
C	Top Tube Length (mm)	558 \| 557	574 \| 573	599 \| 597
D	Head Tube Length (mm)	105	110	125
E	Head Tube Angle	65.8° \| 66.5°	65.8° \| 66.5°	65.8° \| 66.5°
F	Fork Rake (mm)	44	44	44
G	Trail (mm)	122 \| 117	122 \| 117	122 \| 117
H	Wheelbase (mm)	1160 \| 1160	1177 \| 1176	1205 \| 1204
I	Chain Stay Length (mm)	438 \| 435	438 \| 435	438 \| 435
J	Bottom Bracket Drop (mm)	40 \| 30	40 \| 30	40 \| 30
K	Stack (mm)	620 \| 614	625 \| 618	639 \| 632
L	Reach (mm)	415 \| 424	430 \| 438	451 \| 460
M	Stand Over Height (mm)	731 \| 740	737 \| 746	756 \| 765
O	Stem Length (mm)	50	50	50
P	Crank Length (mm)	170	170	175
Q	Wheel Size	29"	29"	29"

Liv Intrigue Advanced 29 1 Women's MTB (2024)

The Liv Intrigue Advanced 29 1 Women's MTB (2024) is designed for riders who embrace speed, control, and technical trail challenges. Whether you're climbing steep sections or descending aggressive terrain, this women's mtb delivers confident performance with a lightweight Advanced-Grade composite frame, carbon wheelset, and custom-tuned Maestro Suspension.

Top Performance Trail

Built with a premium composite frame, carbon wheels, and flip chip adjustable geometry, the Intrigue Advanced 29 1 is engineered for versatility and efficiency on demanding trails.

Balanced Agility

29-inch wheels provide excellent rollover capability, offering smooth handling and stability over roots, rocks, and uneven terrain.

Custom Tuned Suspension

With 125mm of Maestro Suspension tuned specifically for women, this bike ensures responsive traction and control, perfectly suited for the demands of trail riding.

Frame material

Carbon
Frame

Advanced-grade composite front and rear triangles, 125mm Maestro Suspension, flip chip – Maestro
Fork

Fox 34 Performance, 140mm, Grip 2 damper, Boost, 15x110, Kabolt, tapered, 44mm offset, custom tuned for Liv
Shock

Fox Float X Performance 185x50, custom tuned for Liv
Handlebar

Giant Contact TR35, alloy, 35mm
Grips

Liv Tactal single lock-on
Stem

Giant Contact SL, 35mm S: 50mm, M: 50mm, L: 50mm
Seatpost

TranzX travel-adjustable dropper, remote S: 120-150mm travel / 30.9 x 459mm M: 120-150mm travel / 30.9 x 459mm L: 140-170mm travel / 30.9 x 499mm
Saddle

Liv Sylvia
Pedals

N/A
Shifters

Shimano SLX M7100, 1x12
Rear Derailleur

Shimano SLX M7100, Shadow +
Brakes

Shimano M6120, hydraulic, Shimano RT-26 rotors [F]180mm, [R]180mm
Brake Levers

Shimano Deore BL-M6100
Cassette/Freewheel

Shimano SLX M7100, 10x51
Chain

KMC X12
Crankset

Shimano MT512, 30t S:170mm, M:170mm, L:170mm
Bottom Bracket

Shimano, press fit
Rims

Giant TRX 2 29 Carbon WheelSystem, 30mm inner width
Hubs

[F] Giant MTB alloy, 6-bolt, [R] Giant MTB alloy, 3-pawl driver, 6-bolt
Spokes

Sapim
Tyres

[F] Maxxis Minion DHF 29x2.5WT, 3C Max Terra, EXO, TR, tubeless [R] Maxxis Dissector 29x2.4WT, 3C Max Terra, EXO, TR, tubeless
Extras

Tubeless prepared, max tyre size 2.5", max chainring size 32t
Notes

Please note that, based on component availability and other factors, specifications are subject to change without notice.
Speeds (rear)

12 Speed
Age Group

Adults, Teenagers
Gender

Womens
Discipline

Mountain
SKUs

Ice Age/S: 9059002104, Ice Age/M: 9059002105, Ice Age/L: 9059002107
