Liv  |  SKU: 2311095105

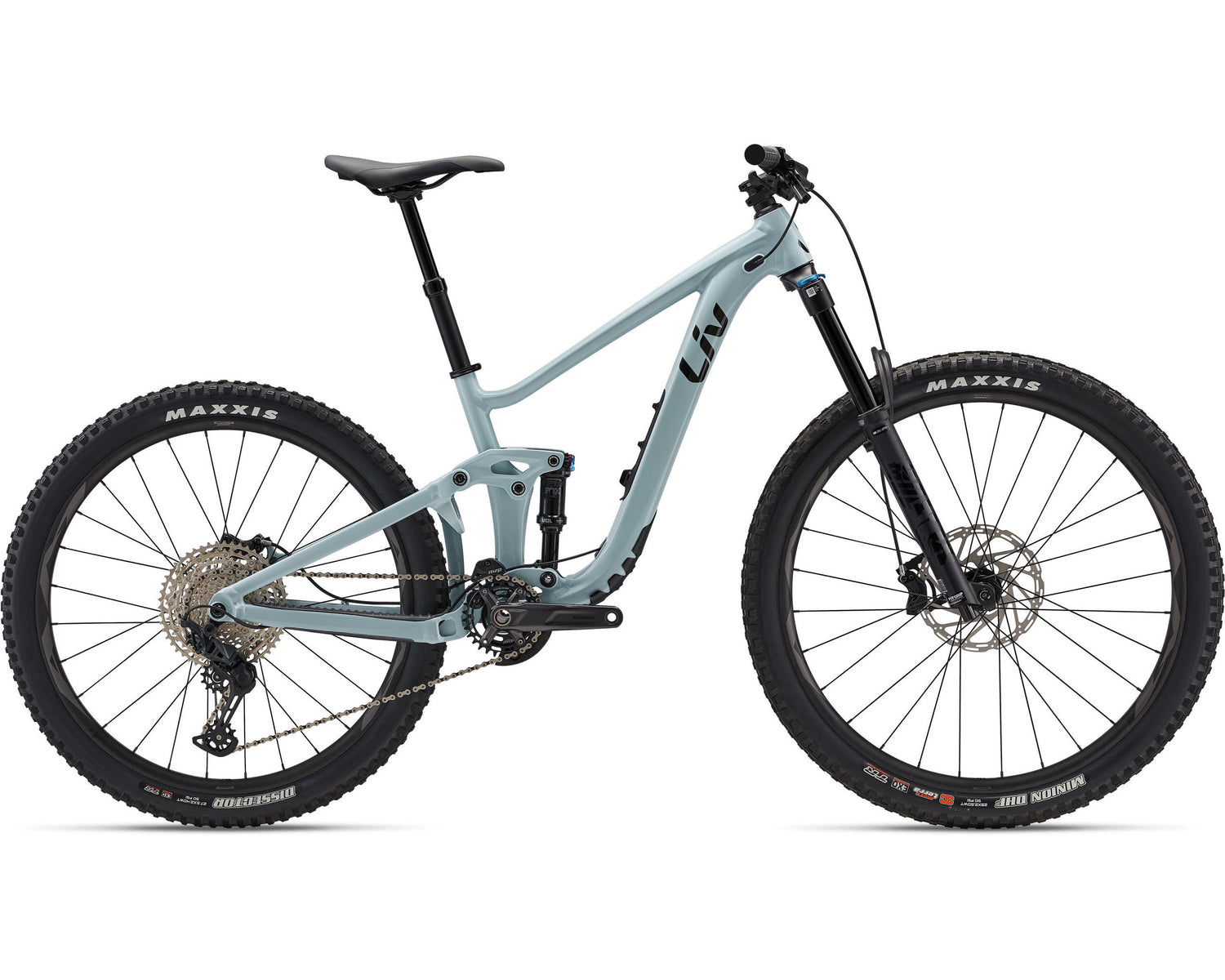

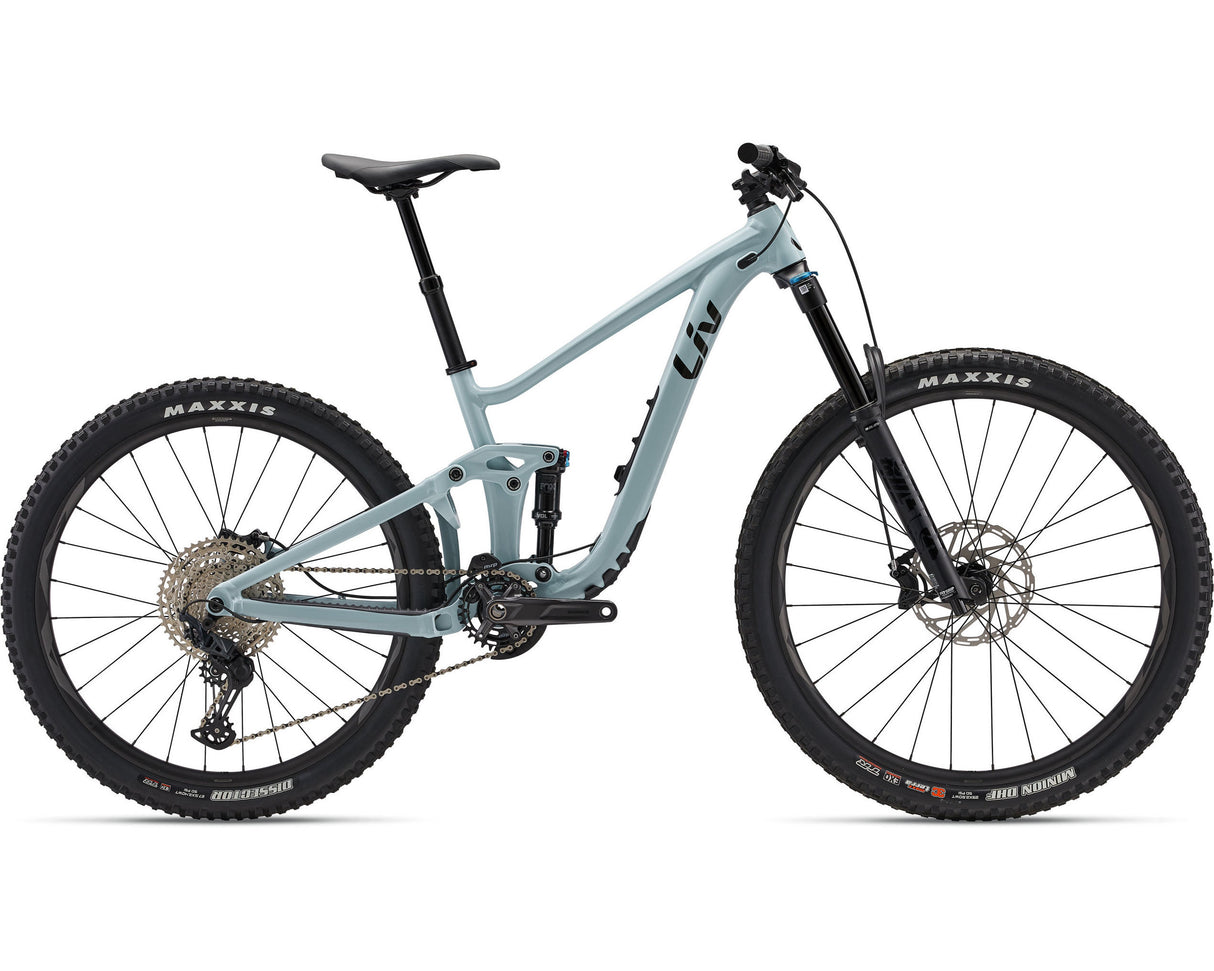

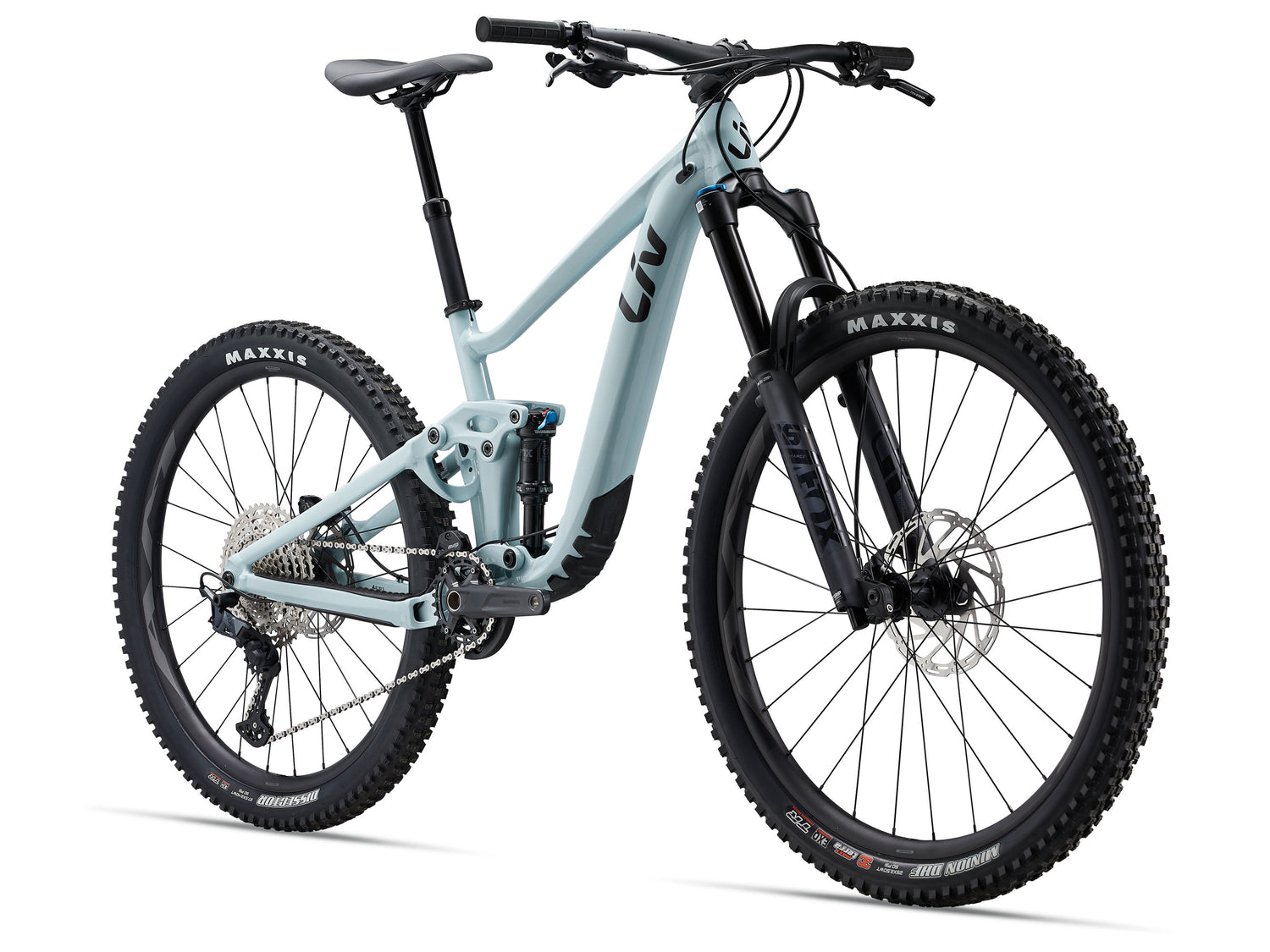

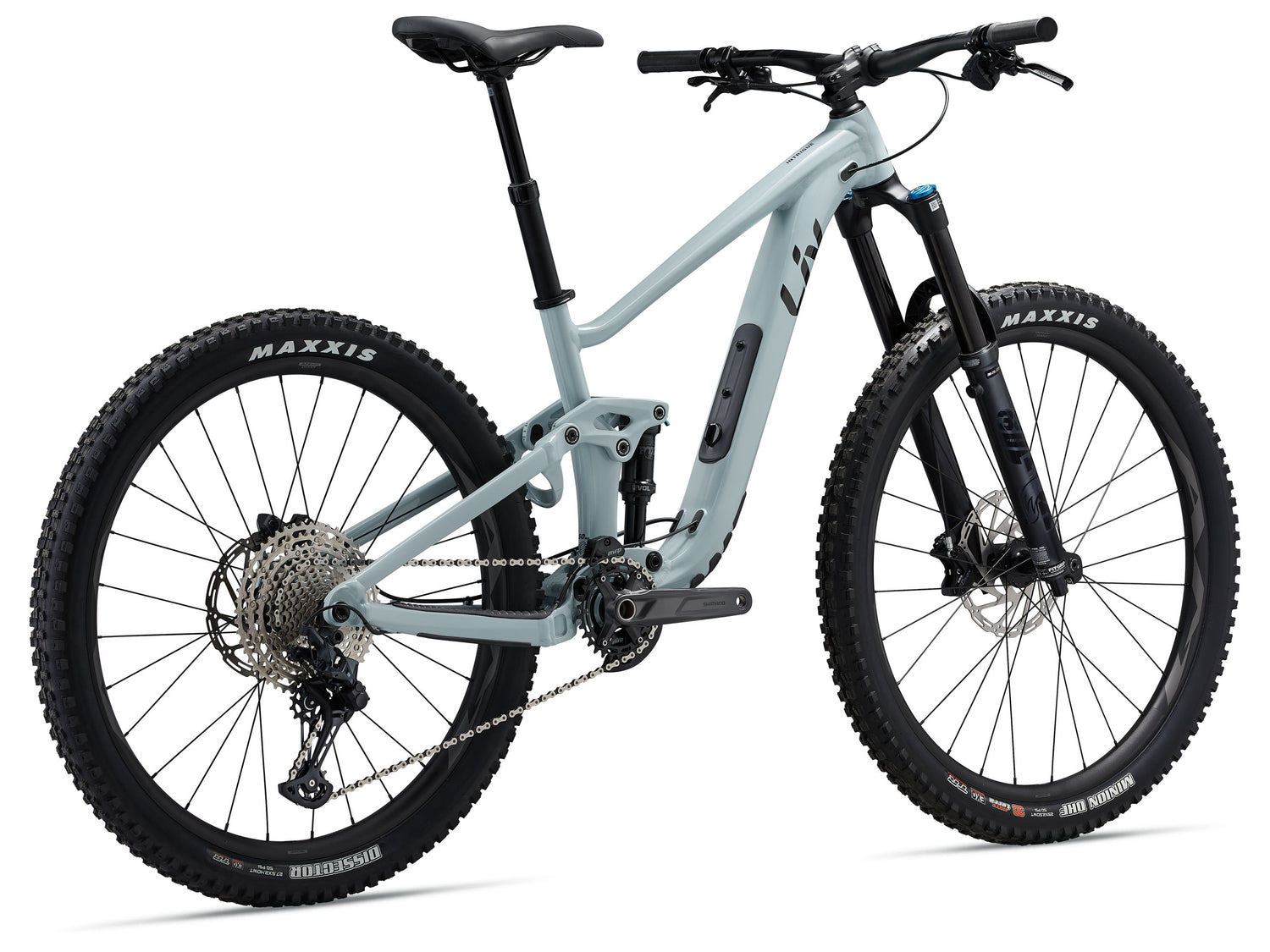

Liv Intrigue LT 1 Women's MTB (2023)

$3,09900 $4,79900
  • ALUXX SL-Grade aluminium front and rear triangles | 150mm travel
  • Fox 36 Float Performance fork | 160mm travel

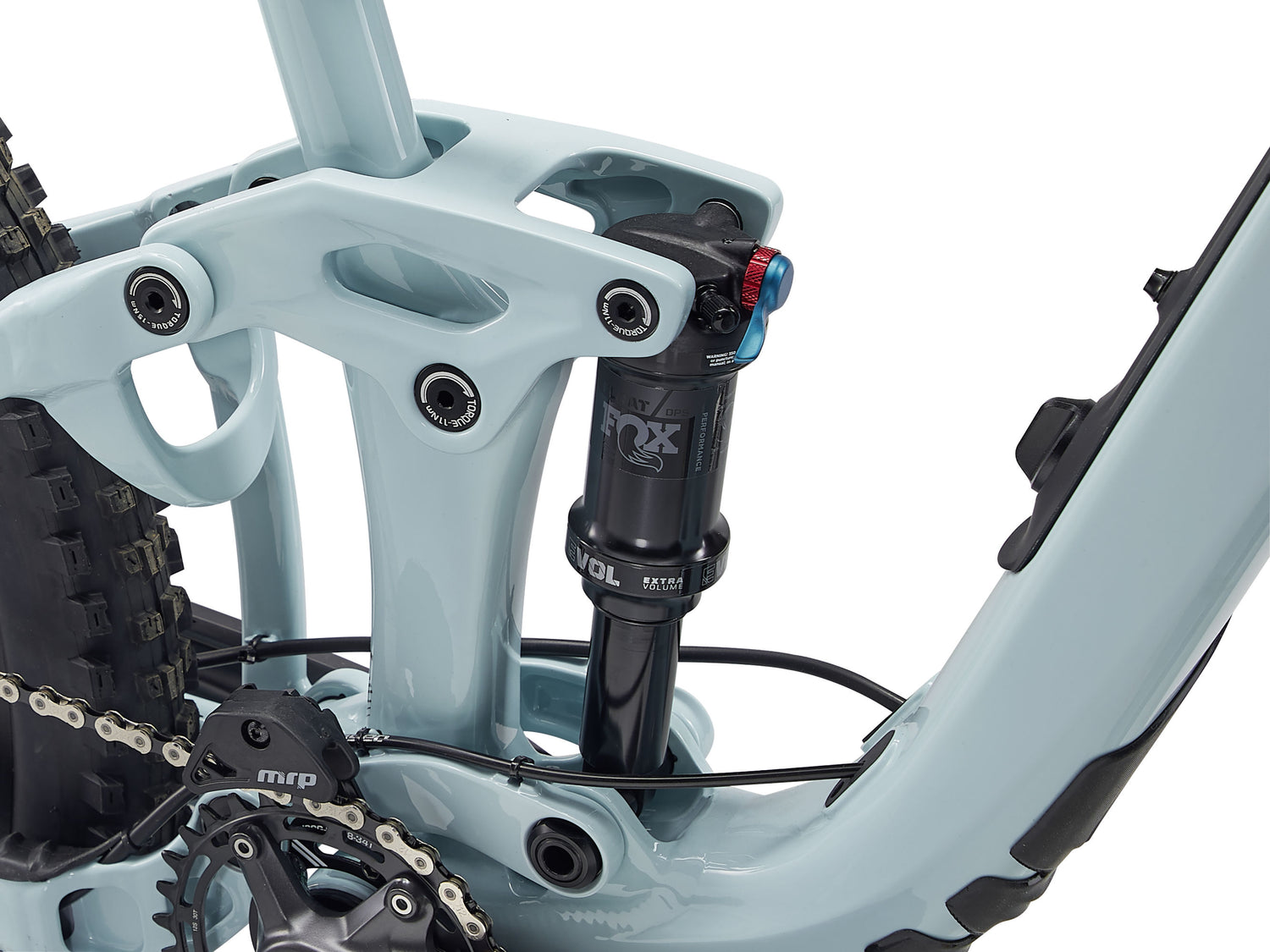

  • Fox Float DPS Performance shock
  • Shimano XLS Shadow+ 1x12-speed drivetrain
Colour: Soap Suds
Size

Special Order: This product will be ordered from our supplier upon purchase and available for collection within 7-14 business days. Read T&Cs here.
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
Fully assembled when you Click & Collect in-store
Buy Now, Pay Later with ZIP
Free service adjustment within first 6 months

Sizing Chart

Sizing and Geometry

Liv Intrigue

Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.

Sizing Rider Height Rider Height (cm)
S 5′ 2″ – 5′ 7″ 158 – 169
M 5′ 5″ – 5′ 9″ 164 – 175
L 5′ 7″ – 5′ 11″ 170 – 181


Geometry

bike diagram with measurements referenced in table that follows



    S M L
    LOW | HIGH LOW | HIGH LOW | HIGH
A Seat Tube Length (mm) 425 435 460
B Seat Tube Angle 77.0° | 77.8° 77.0° | 77.8° 77.0° | 77.8°
C Top Tube Length (mm) 558 | 557 574 | 573 599 | 597
D Head Tube Length (mm) 105 110 125
E Head Tube Angle 65.8° | 66.5° 65.8° | 66.5° 65.8° | 66.5°
F Fork Rake (mm) 44 44 44
G Trail (mm) 122 | 117 122 | 117 122 | 117
H Wheelbase (mm) 1160 | 1160 1177 | 1176 1205 | 1204
I Chain Stay Length (mm) 438 | 435 438 | 435 438 | 435
J Bottom Bracket Drop (mm) 40 | 30 40 | 30 40 | 30
K Stack (mm) 620 | 614 625 | 618 639 | 632
L Reach (mm) 415 | 424 430 | 438 451 | 460
M Stand Over Height (mm) 731 | 740 737 | 746 756 | 765
O Stem Length (mm) 50 50 50
P Crank Length (mm) 170 170 175
Q Wheel Size 29" 29" 29"

Bike Shipping

Delivery is available upon specific request for our special order bikes.

Bikes may only be shipped directly to a qualified bike mechanic or bike shop of your choosing, who must complete the assembly of the bike. We strictly cannot ship an unbuilt bike direct to consumer.

The buyer is responsible for all shipping and assembly costs, and is responsible for arranging assembly with their nominated bike store or mechanic.

To request a shipping quote, please submit a request and include the delivery postcode, business name of your nominated bike shop or bike mechanic, and the exact model & frame size of the bike.

Please note: All bikes sold by Ivanhoe Cycles must be assembled by a qualified mechanic or bike shop. Any assembly undertaken without professional assistance is at the customer's risk and any injury as a result of the build without professional assistance will not be covered by the warranty.

Assembly

Every bike purchased or collected in-store at Ivanhoe Cycles is fully assembled by our qualified mechanics free of charge.

Bikes ordered online for shipping* will require partial assembly, including but not limited to: installing handlebar, seatpost, front wheel; adjusting gears and brakes; tuning suspension; installing accessories or bar tape.

Disclaimer: Ivanhoe Cycles strongly advises having your assembly completed by an experienced bicycle mechanic. Any assembly undertaken without professional assistance is at the customer's risk and any injury as a result of the build without professional assistance will not be covered by the warranty.

*Shipping is restricted to certain brands due to assembly requirements.

Returns / Cancellations

If your special ordered item arrives faulty, damaged, or is differently than described, you are entitled to a full refund or replacement.

Cancellations and returns are not accepted on special orders if the consumer:
- changed their mind
- found the item cheaper elsewhere
- decided they didn't like the purchase or had no use for it
- ordered the wrong item

Contact us with any product enquiries you have prior to purchasing.

For more information, please read our Special Order terms and conditions.

The Liv Intrigue LT 1 Women's MTB (2023) is a long-travel trail bike built for women who want to ride harder, descend steeper, and say yes to every challenge.

Designed with ALUXX SL-Grade aluminium and 150mm of custom-tuned Maestro rear suspension, this womens mtb delivers the strength, control, and confidence needed for park days, enduro races, and everything in between.

Performance Long Travel Trail

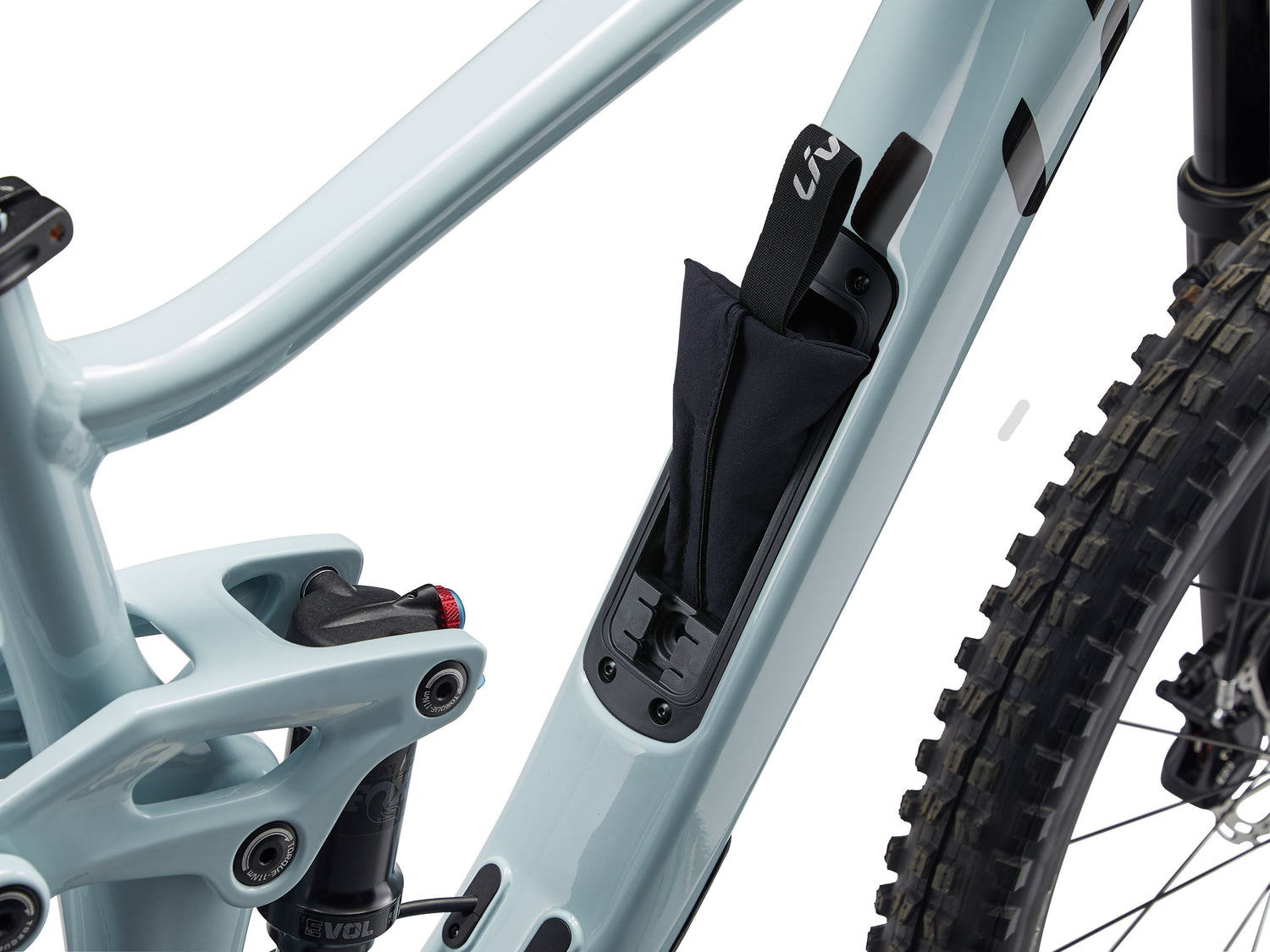

Built to be both agile and capable, the Intrigue LT 1 features 160mm of front suspension and a slacker head tube angle for more confidence on technical terrain. The longer reach keeps you centred through corners, while integrated downtube storage adds everyday practicality for big rides.

Adjustable Frame Geometry

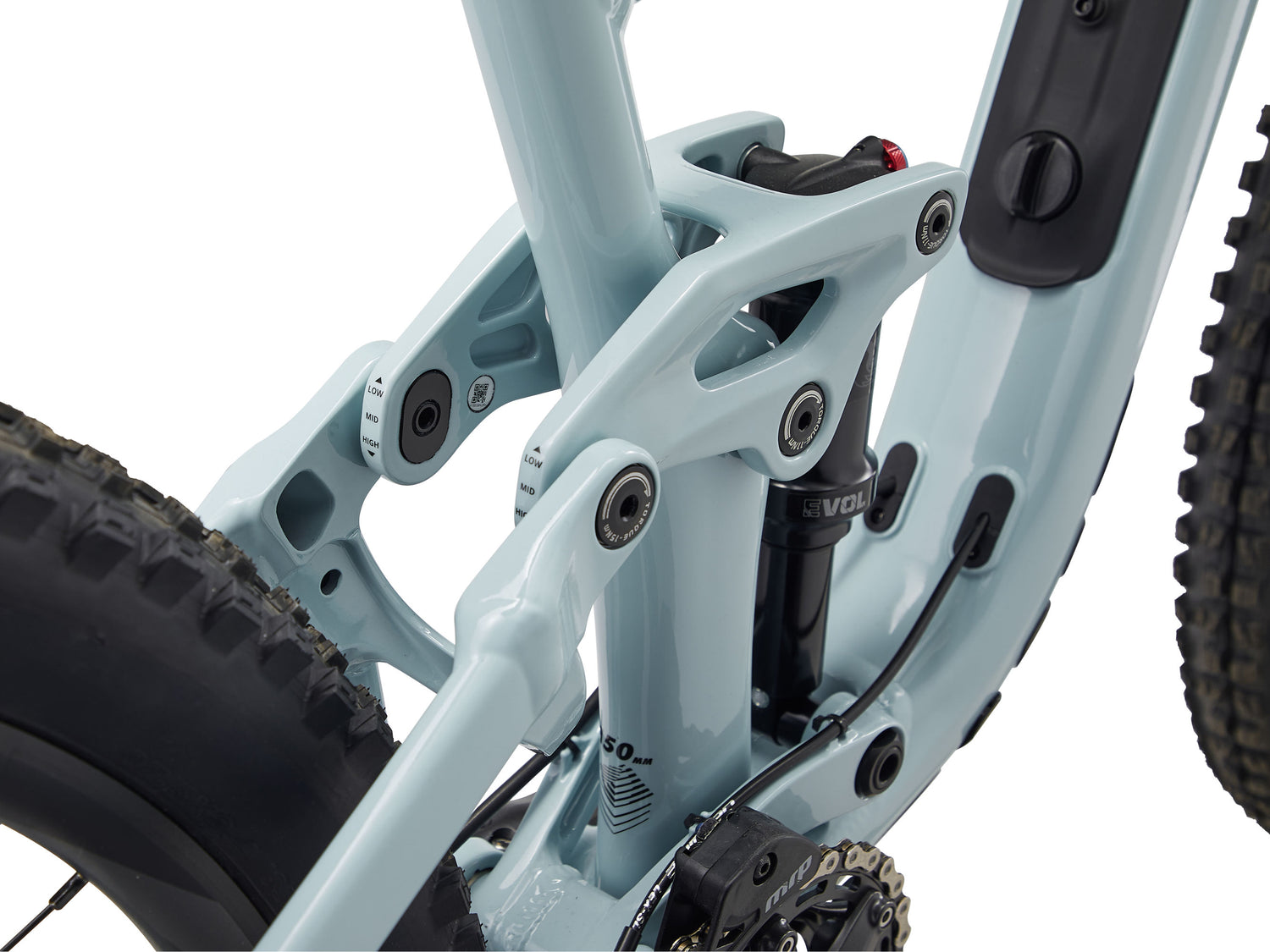

With the new flip chip Maestro 3, you can adjust your bike’s head and seat tube angles, bottom bracket height, and rear wheel size (M and L only) to match your preferred riding style and trail conditions.

Best of Both Wheels

XS and S frame sizes use a MX wheel setup (29" front, 27.5" rear) for playful control and fast rolling. M and L sizes come with dual 29" wheels and offer the option to swap to a 27.5" rear, letting you tailor the ride feel between fast and stable or quick and nimble.
Liv Intrigue LT 1 Women's MTB (2023)

Liv Intrigue LT 1 (2023)

$3,09900 $4,79900

Colour

Size

  • S
  • M
  • L

Motor

N/A

Controller

N/A

Display

N/A

Battery

N/A

Charger

N/A

Sizes

N/A

Frame material

Aluminium

Frame

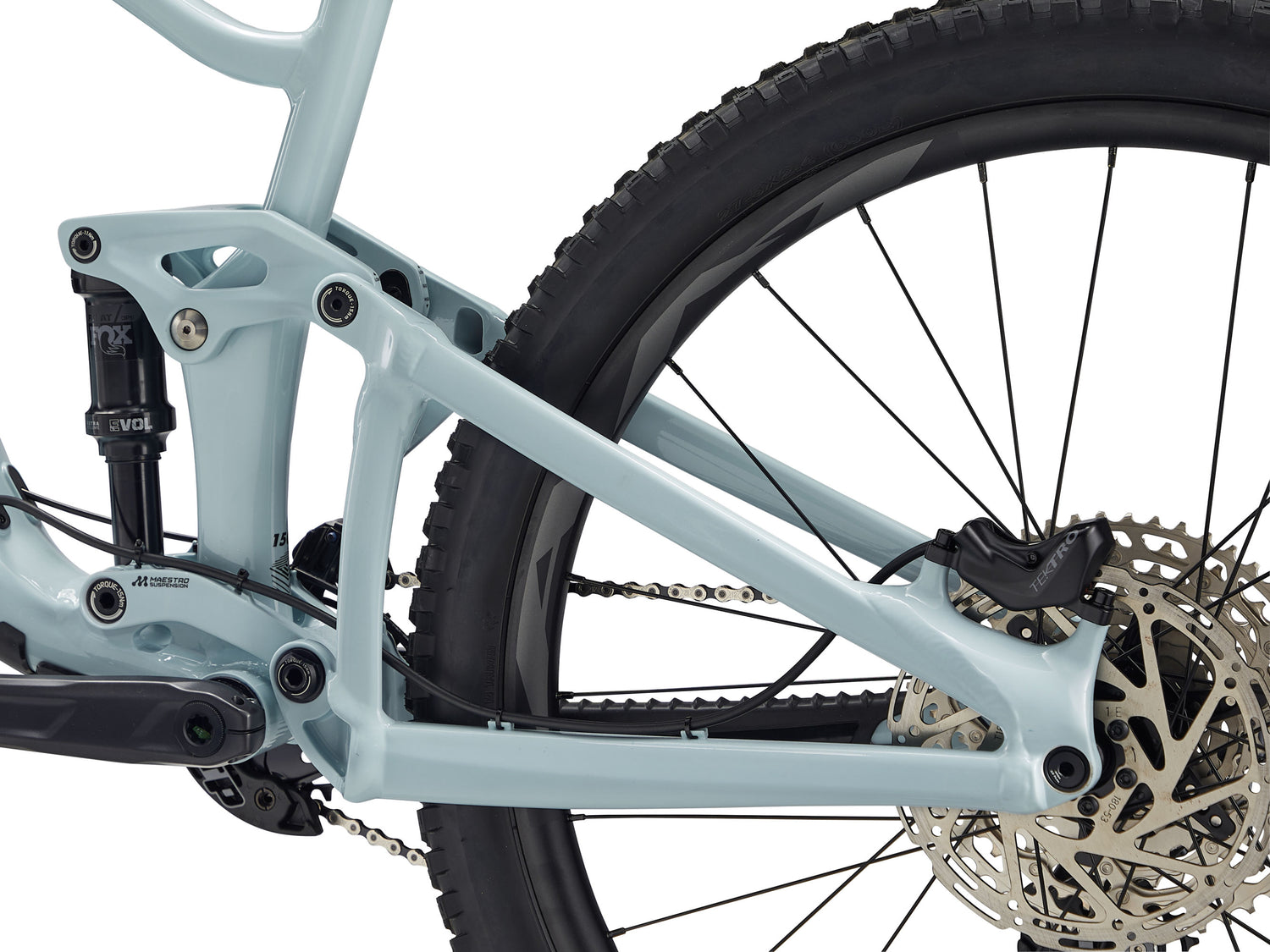

ALUXX SL-Grade aluminium front and rear triangles, 150mm Maestro Suspension, flip chip 3 position, integrated downtube storage, 55mm Chain line

Fork

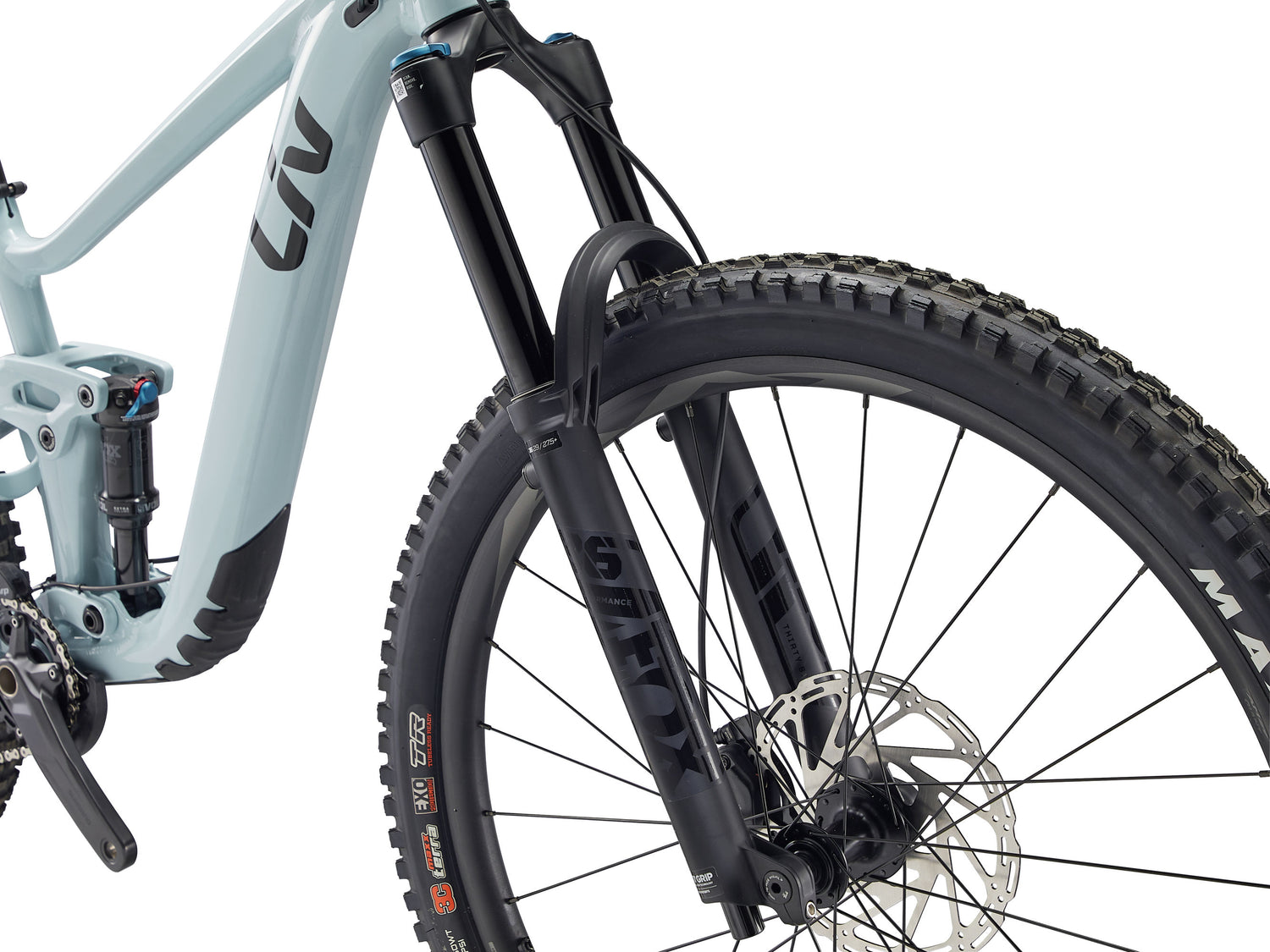

Fox 36 Float Performance, 160mm, Grip damper, Boost, 15x110, Kabolt X, tapered, 44mm offset, custom tuned for Liv

Handlebar

Giant Contact, 35mm

Grips

Liv Tactal single lock-on

Bar Tape

N/A

Headset

N/A

Stem

Giant Contact SL

Seatpost

Giant Contact Switch dropper, remote

Saddle

Liv Sylvia

Pedals

N/A

Shifters

Shimano SLX M7100 , 1x12

Front Derailleur

N/A

Rear Derailleur

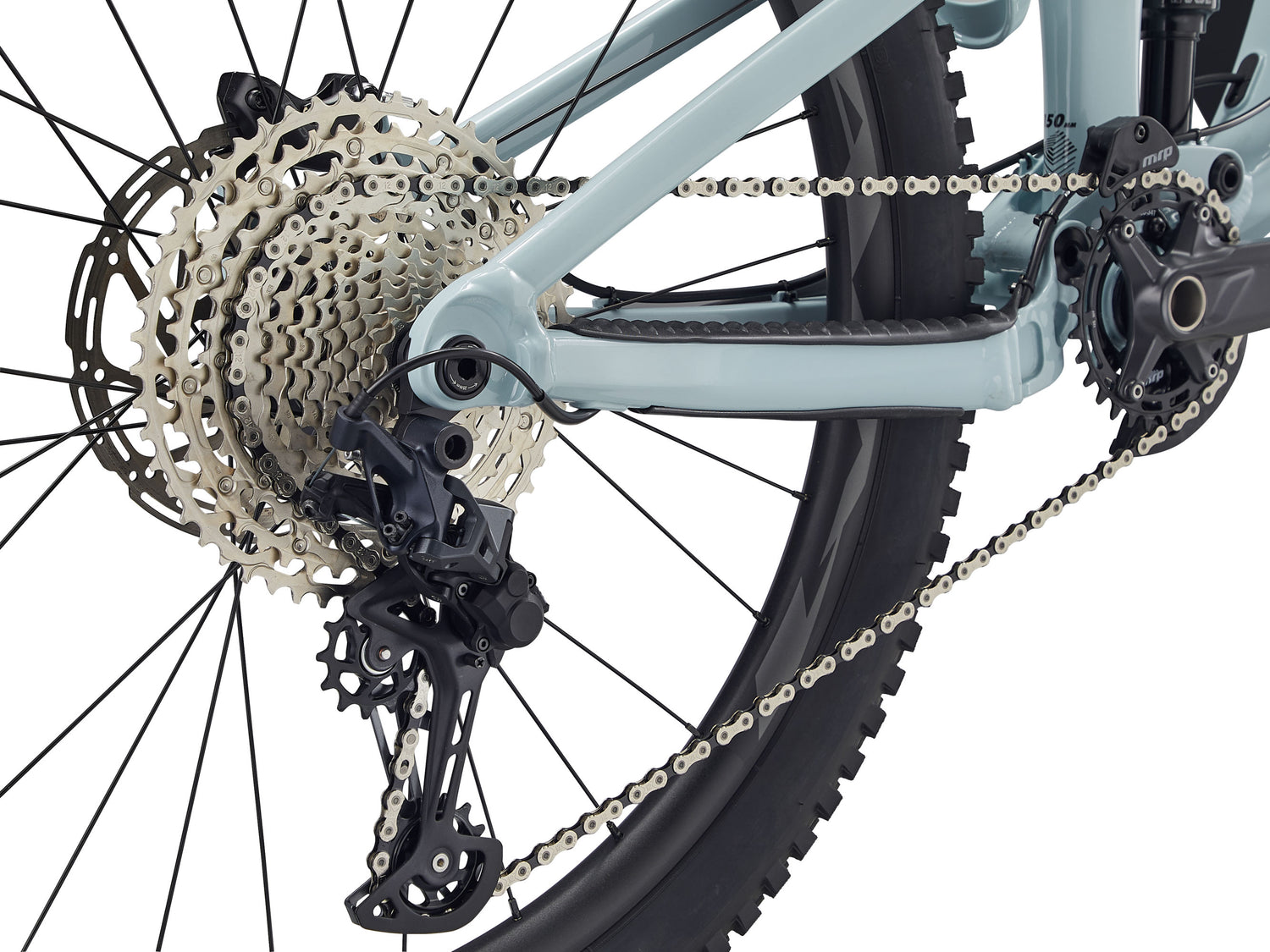

Shimano SLX M7100, Shadow +

Brakes

Tektro M750, hydraulic, Tektro rotors [F]203mm, [R]180mm

Brake Levers

Tektro HDM-750

Cassette/Freewheel

Shimano Deore, 10x51

Chain

KMC X-12

Crankset

Shimano M5121, 30t, 55mm chainline

Bottom Bracket

Shimano, press fit

Rims

Giant AM, tubeless ready, sleeve-joint, 30mm inner width XS/S: [F] 29, [R] 27.5 M/L: [F]29, [R]29

Hubs

Alloy

Spokes

Stainless

Tyres

[F] Maxxis Minion DHF 29x2.5WT, 3C Max Terra, EXO, TR, tubeless [R, size M and L] Maxxis Dissector 29x2.4WT, 3C Max Terra, EXO, TR, or [R, size XS and S] Maxxis Dissector 27.5x2.4WT, 3C Max Terra, EXO, TR, tubeless

Wheel Size

N/A

Extras

MRP AMg CS chainguide, 3M tailgate protector, tubeless prepared, max tyre size 2.5", max chainring size 32t
