Liv Intrigue X Advanced E+ Elite 2 Mountain Bike (2024)
Liv Intrigue X Advanced E+ EL 2 (2024) - Digital Blurple / S is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Sizing Chart
Sizing Chart
Sizing and Geometry
Liv Intrigue X E+
Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.
| Sizing | Rider Height | Rider Height (cm) |
|---|---|---|
| XS | 5"0" - 5'4" | 152 - 163 |
| S | 5′2″ – 5′7″ | 158 – 169 |
| M | 5′5″ – 5′9″ | 164 – 175 |
| L | 5'7" - 5'11" | 170 - 181 |
Geometry
| Â | Â | XS | S | M | L |
|---|---|---|---|---|---|
| Â | Â | LOW | HIGH | LOW | HIGH | LOW | HIGH | LOW | HIGH |
| A | Seat Tube Length (mm) | 380 | 400 | 425 | 450 |
| B | Seat Tube Angle (degrees) | 77.2° | 78.0° | 77.2° | 78.0° | 76.0° | 76.7° | 76.0° | 76.7° |
| C | Top Tube Length (mm) | 557 | 555 | 572 | 570 | 597 | 595 | 622 | 620 |
| D | Head Tube Length (mm) | 95 | 95 | 100 | 115 |
| E | Head Tube Angle (degrees) | 65.7° | 66.5° | 65.7° | 66.5° | 65.8° | 66.5° | 65.8° | 66.5° |
| F | Fork Rake (mm) | 44 | 44 | 44 | 44 |
| G | Trail (mm) | 113 | 108 | 113 | 108 | 113 | 108 | 113 | 108 |
| H | Wheelbase (mm) | 1174 | 1175 | 1188 | 1190 | 1200 | 1201 | 1228 | 1229 |
| I | Chain Stay Length (mm) | 447 | 447 | 447 | 447 | 447 | 447 | 447 | 447 |
| J | Bottom Bracket Drop (mm) | 30 | 20 | 30 | 20 | 30 | 20 | 30 | 20 |
| K | Stack (mm) | 606 | 601 | 606 | 601 | 611 | 605 | 625 | 619 |
| L | Reach (mm) | 419 | 427 | 434 | 442 | 444 | 452 | 466 | 473 |
| M | Stand Over Height (mm) | 722 | 730 | 726 | 735 | 717 | 726 | 711 | 723 |
| O | Stem Length (mm) | 40 | 40 | 40 | 50 |
| P | Crank Length (mm) | 160 | 160 | 165 | 165 |
| Q | Wheel Size | R27.5" / F | R27.5" / F | R27.5" / F | R27.5" / F |
Bike Shipping
Bike Shipping
Delivery is available upon specific request for our special order bikes.
Bikes may only be shipped directly to a qualified bike mechanic or bike shop of your choosing, who must complete the assembly of the bike. We strictly cannot ship an unbuilt bike direct to consumer.
The buyer is responsible for all shipping and assembly costs, and is responsible for arranging assembly with their nominated bike store or mechanic.
To request a shipping quote, please submit a request and include the delivery postcode, business name of your nominated bike shop or bike mechanic, and the exact model & frame size of the bike.
Please note: All bikes sold by Ivanhoe Cycles must be assembled by a qualified mechanic or bike shop. Any assembly undertaken without professional assistance is at the customer's risk and any injury as a result of the build without professional assistance will not be covered by the warranty.
Assembly
Assembly
Every bike purchased or collected in-store at Ivanhoe Cycles is fully assembled by our qualified mechanics free of charge.
Bikes ordered online for shipping* will require partial assembly, including but not limited to: installing handlebar, seatpost, front wheel; adjusting gears and brakes; tuning suspension; installing accessories or bar tape.
Disclaimer: Ivanhoe Cycles strongly advises having your assembly completed by an experienced bicycle mechanic. Any assembly undertaken without professional assistance is at the customer's risk and any injury as a result of the build without professional assistance will not be covered by the warranty.
*Shipping is restricted to certain brands due to assembly requirements.
Returns / Cancellations
Returns / Cancellations
If your special ordered item arrives faulty, damaged, or is differently than described, you are entitled to a full refund or replacement.
Cancellations and returns are not accepted on special orders if the consumer:
- changed their mind
- found the item cheaper elsewhere
- decided they didn't like the purchase or had no use for it
- ordered the wrong item
Contact us with any product enquiries you have prior to purchasing.
For more information, please read our Special Order terms and conditions.
Sizing and Geometry
Liv Intrigue X E+
Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.
| Sizing | Rider Height | Rider Height (cm) |
|---|---|---|
| XS | 5"0" - 5'4" | 152 - 163 |
| S | 5′2″ – 5′7″ | 158 – 169 |
| M | 5′5″ – 5′9″ | 164 – 175 |
| L | 5'7" - 5'11" | 170 - 181 |
Geometry
| Â | Â | XS | S | M | L |
|---|---|---|---|---|---|
| Â | Â | LOW | HIGH | LOW | HIGH | LOW | HIGH | LOW | HIGH |
| A | Seat Tube Length (mm) | 380 | 400 | 425 | 450 |
| B | Seat Tube Angle (degrees) | 77.2° | 78.0° | 77.2° | 78.0° | 76.0° | 76.7° | 76.0° | 76.7° |
| C | Top Tube Length (mm) | 557 | 555 | 572 | 570 | 597 | 595 | 622 | 620 |
| D | Head Tube Length (mm) | 95 | 95 | 100 | 115 |
| E | Head Tube Angle (degrees) | 65.7° | 66.5° | 65.7° | 66.5° | 65.8° | 66.5° | 65.8° | 66.5° |
| F | Fork Rake (mm) | 44 | 44 | 44 | 44 |
| G | Trail (mm) | 113 | 108 | 113 | 108 | 113 | 108 | 113 | 108 |
| H | Wheelbase (mm) | 1174 | 1175 | 1188 | 1190 | 1200 | 1201 | 1228 | 1229 |
| I | Chain Stay Length (mm) | 447 | 447 | 447 | 447 | 447 | 447 | 447 | 447 |
| J | Bottom Bracket Drop (mm) | 30 | 20 | 30 | 20 | 30 | 20 | 30 | 20 |
| K | Stack (mm) | 606 | 601 | 606 | 601 | 611 | 605 | 625 | 619 |
| L | Reach (mm) | 419 | 427 | 434 | 442 | 444 | 452 | 466 | 473 |
| M | Stand Over Height (mm) | 722 | 730 | 726 | 735 | 717 | 726 | 711 | 723 |
| O | Stem Length (mm) | 40 | 40 | 40 | 50 |
| P | Crank Length (mm) | 160 | 160 | 165 | 165 |
| Q | Wheel Size | R27.5" / F | R27.5" / F | R27.5" / F | R27.5" / F |
Liv Intrigue X Advanced E+ EL 2 (2024)

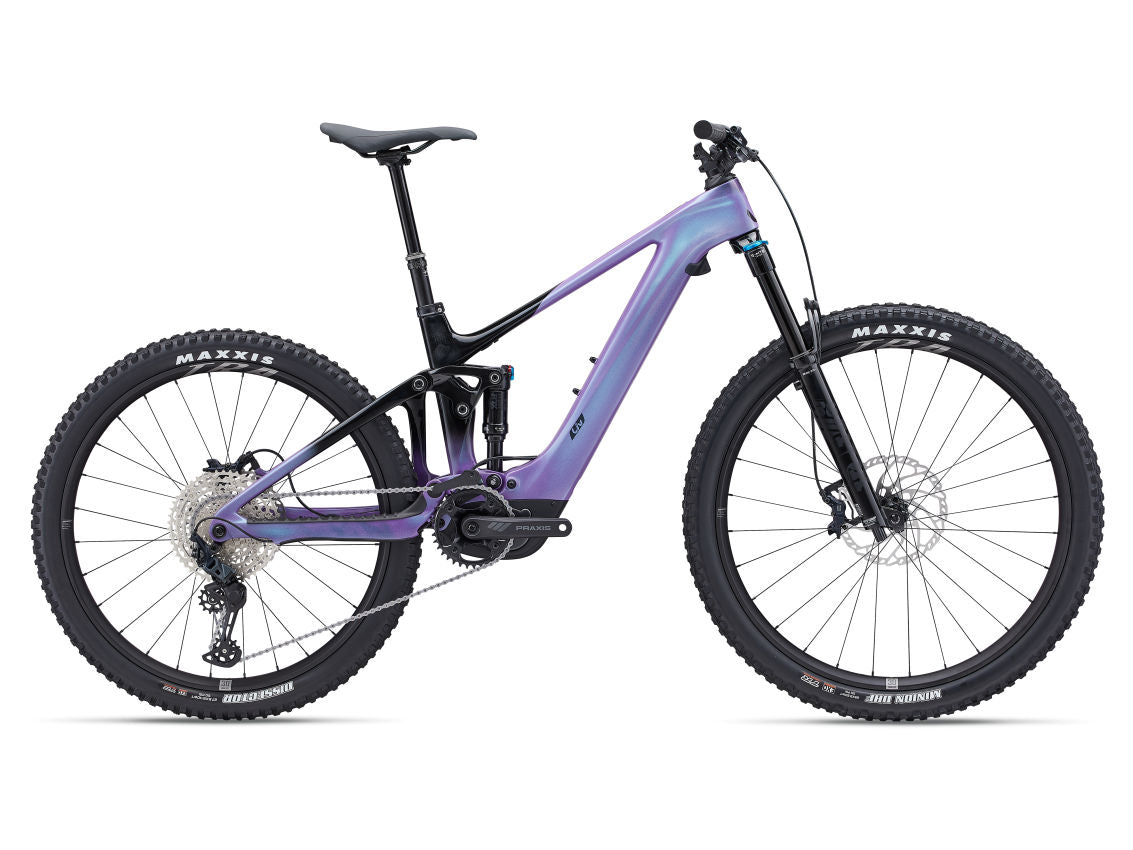

Liv Intrigue X Advanced E+ Elite 2 Women's Electric Mountain Bike (2024)
This full-suspension Electric MTB, with its short chainstay and 140mm (rear)/150mm (front) travel, is engineered to create an ultra-light, efficient and responsive ride. Exceptional shock absorption is an added bonus on rock gardens.
Sleek design
From the integrated control unit to the sleek console on the top tube and the internal cable routing, every design element embodies a high-end, modern look. It combines leading-edge E-MTB design with a user-friendly experience.
Powerful and smooth
A potent 85Nm of torque delivered by the lightweight SyncDrive Pro 2 Mg motor is smooth and instant, keeping you efficient and in control at all times.
The ultra-slim, 400Wh battery hidden in the down tube minimises weight and provides a perfect balance of efficiency and range.
-
Motor
-
Controller
-
Display
-
Battery
-
Frame material
-
Frame
-
Fork
-
Shock
-
Handlebar
-
Grips
-
Stem
-
Seatpost
-
Saddle
-
Pedals
-
Shifters
-
Front Derailleur
-
Rear Derailleur
-
Brakes
-
Brake Levers
-
Cassette/Freewheel
-
Chain
-
Crankset
-
Rims
-
Hubs
-
Spokes
-
Tyres
-
Extras
-
Notes
-
Speeds (rear)12 Speed
-
Age GroupAdults, Teenagers
-
GenderWomens
-
DisciplineMountain, Electric
-
SKUsDigital Blurple/XS: 6029031103, Digital Blurple/S: 6029031104, Digital Blurple/M: 6029031105, Digital Blurple/L: 6029031107
