Liv Intrigue X Advanced E+ Elite 1 Women's E-MTB (2023)
Liv Intrigue X Advanced E+ Elite 1 (2023) - Airglow/Black / S is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Sizing Chart
Sizing Chart
Sizing and Geometry
Liv Intrigue X E+
Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.
| Sizing | Rider Height | Rider Height (cm) |
|---|---|---|
| XS | 5"0" - 5'4" | 152 - 163 |
| S | 5′2″ – 5′7″ | 158 – 169 |
| M | 5′5″ – 5′9″ | 164 – 175 |
| L | 5'7" - 5'11" | 170 - 181 |
Geometry
| Â | Â | XS | S | M | L |
|---|---|---|---|---|---|
| Â | Â | LOW | HIGH | LOW | HIGH | LOW | HIGH | LOW | HIGH |
| A | Seat Tube Length (mm) | 380 | 400 | 425 | 450 |
| B | Seat Tube Angle (degrees) | 77.2° | 78.0° | 77.2° | 78.0° | 76.0° | 76.7° | 76.0° | 76.7° |
| C | Top Tube Length (mm) | 557 | 555 | 572 | 570 | 597 | 595 | 622 | 620 |
| D | Head Tube Length (mm) | 95 | 95 | 100 | 115 |
| E | Head Tube Angle (degrees) | 65.7° | 66.5° | 65.7° | 66.5° | 65.8° | 66.5° | 65.8° | 66.5° |
| F | Fork Rake (mm) | 44 | 44 | 44 | 44 |
| G | Trail (mm) | 113 | 108 | 113 | 108 | 113 | 108 | 113 | 108 |
| H | Wheelbase (mm) | 1174 | 1175 | 1188 | 1190 | 1200 | 1201 | 1228 | 1229 |
| I | Chain Stay Length (mm) | 447 | 447 | 447 | 447 | 447 | 447 | 447 | 447 |
| J | Bottom Bracket Drop (mm) | 30 | 20 | 30 | 20 | 30 | 20 | 30 | 20 |
| K | Stack (mm) | 606 | 601 | 606 | 601 | 611 | 605 | 625 | 619 |
| L | Reach (mm) | 419 | 427 | 434 | 442 | 444 | 452 | 466 | 473 |
| M | Stand Over Height (mm) | 722 | 730 | 726 | 735 | 717 | 726 | 711 | 723 |
| O | Stem Length (mm) | 40 | 40 | 40 | 50 |
| P | Crank Length (mm) | 160 | 160 | 165 | 165 |
| Q | Wheel Size | R27.5" / F | R27.5" / F | R27.5" / F | R27.5" / F |
Bike Shipping
Bike Shipping
Delivery is available upon specific request for our special order bikes.
Bikes may only be shipped directly to a qualified bike mechanic or bike shop of your choosing, who must complete the assembly of the bike. We strictly cannot ship an unbuilt bike direct to consumer.
The buyer is responsible for all shipping and assembly costs, and is responsible for arranging assembly with their nominated bike store or mechanic.
To request a shipping quote, please submit a request and include the delivery postcode, business name of your nominated bike shop or bike mechanic, and the exact model & frame size of the bike.
Please note: All bikes sold by Ivanhoe Cycles must be assembled by a qualified mechanic or bike shop. Any assembly undertaken without professional assistance is at the customer's risk and any injury as a result of the build without professional assistance will not be covered by the warranty.
Assembly
Assembly
Every bike purchased or collected in-store at Ivanhoe Cycles is fully assembled by our qualified mechanics free of charge.
Bikes ordered online for shipping* will require partial assembly, including but not limited to: installing handlebar, seatpost, front wheel; adjusting gears and brakes; tuning suspension; installing accessories or bar tape.
Disclaimer: Ivanhoe Cycles strongly advises having your assembly completed by an experienced bicycle mechanic. Any assembly undertaken without professional assistance is at the customer's risk and any injury as a result of the build without professional assistance will not be covered by the warranty.
*Shipping is restricted to certain brands due to assembly requirements.
Returns / Cancellations
Returns / Cancellations
If your special ordered item arrives faulty, damaged, or is differently than described, you are entitled to a full refund or replacement.
Cancellations and returns are not accepted on special orders if the consumer:
- changed their mind
- found the item cheaper elsewhere
- decided they didn't like the purchase or had no use for it
- ordered the wrong item
Contact us with any product enquiries you have prior to purchasing.
For more information, please read our Special Order terms and conditions.
Sizing and Geometry
Liv Intrigue X E+
Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.
| Sizing | Rider Height | Rider Height (cm) |
|---|---|---|
| XS | 5"0" - 5'4" | 152 - 163 |
| S | 5′2″ – 5′7″ | 158 – 169 |
| M | 5′5″ – 5′9″ | 164 – 175 |
| L | 5'7" - 5'11" | 170 - 181 |
Geometry
| Â | Â | XS | S | M | L |
|---|---|---|---|---|---|
| Â | Â | LOW | HIGH | LOW | HIGH | LOW | HIGH | LOW | HIGH |
| A | Seat Tube Length (mm) | 380 | 400 | 425 | 450 |
| B | Seat Tube Angle (degrees) | 77.2° | 78.0° | 77.2° | 78.0° | 76.0° | 76.7° | 76.0° | 76.7° |
| C | Top Tube Length (mm) | 557 | 555 | 572 | 570 | 597 | 595 | 622 | 620 |
| D | Head Tube Length (mm) | 95 | 95 | 100 | 115 |
| E | Head Tube Angle (degrees) | 65.7° | 66.5° | 65.7° | 66.5° | 65.8° | 66.5° | 65.8° | 66.5° |
| F | Fork Rake (mm) | 44 | 44 | 44 | 44 |
| G | Trail (mm) | 113 | 108 | 113 | 108 | 113 | 108 | 113 | 108 |
| H | Wheelbase (mm) | 1174 | 1175 | 1188 | 1190 | 1200 | 1201 | 1228 | 1229 |
| I | Chain Stay Length (mm) | 447 | 447 | 447 | 447 | 447 | 447 | 447 | 447 |
| J | Bottom Bracket Drop (mm) | 30 | 20 | 30 | 20 | 30 | 20 | 30 | 20 |
| K | Stack (mm) | 606 | 601 | 606 | 601 | 611 | 605 | 625 | 619 |
| L | Reach (mm) | 419 | 427 | 434 | 442 | 444 | 452 | 466 | 473 |
| M | Stand Over Height (mm) | 722 | 730 | 726 | 735 | 717 | 726 | 711 | 723 |
| O | Stem Length (mm) | 40 | 40 | 40 | 50 |
| P | Crank Length (mm) | 160 | 160 | 165 | 165 |
| Q | Wheel Size | R27.5" / F | R27.5" / F | R27.5" / F | R27.5" / F |
Liv Intrigue X Advanced E+ Elite 1 (2023)

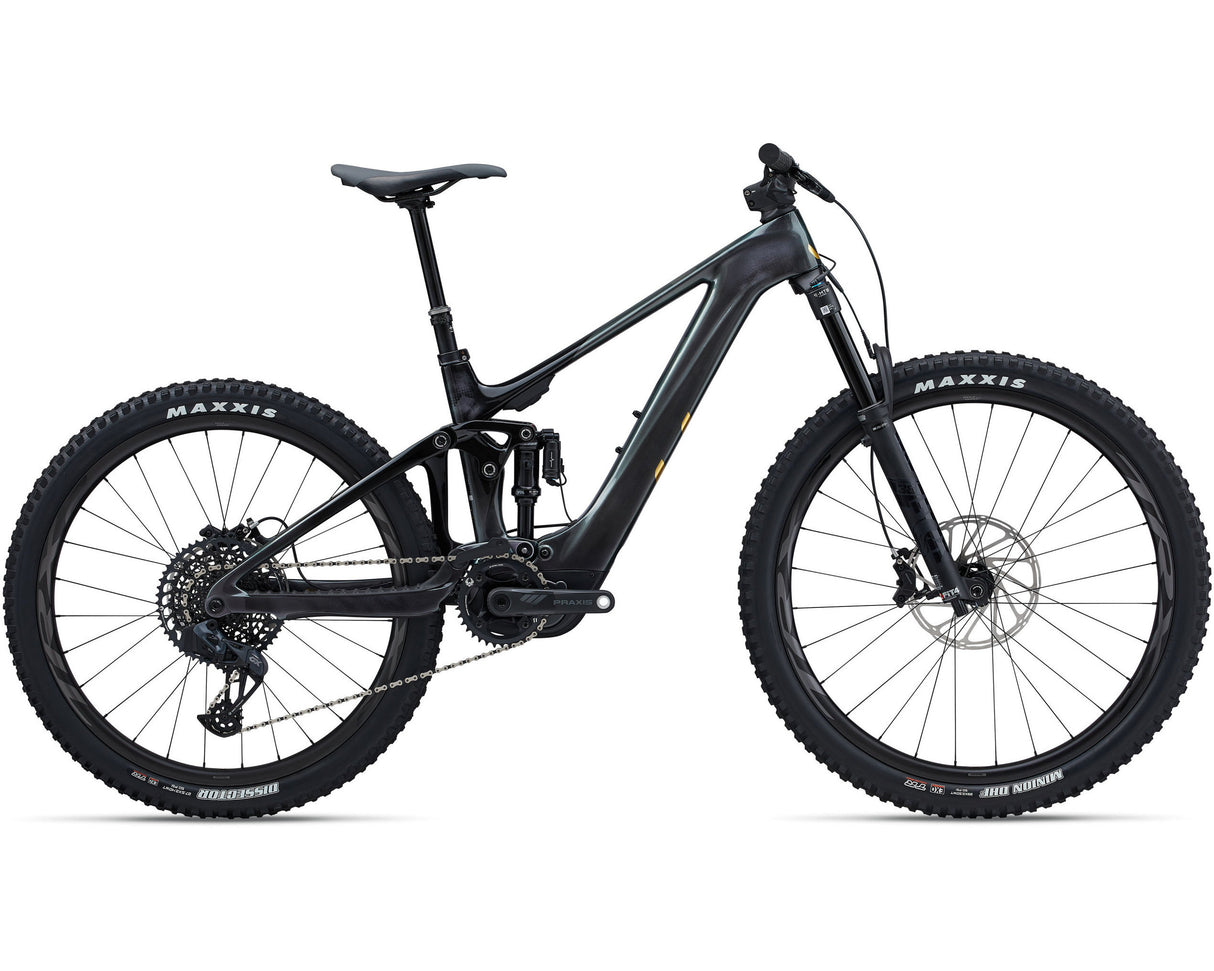

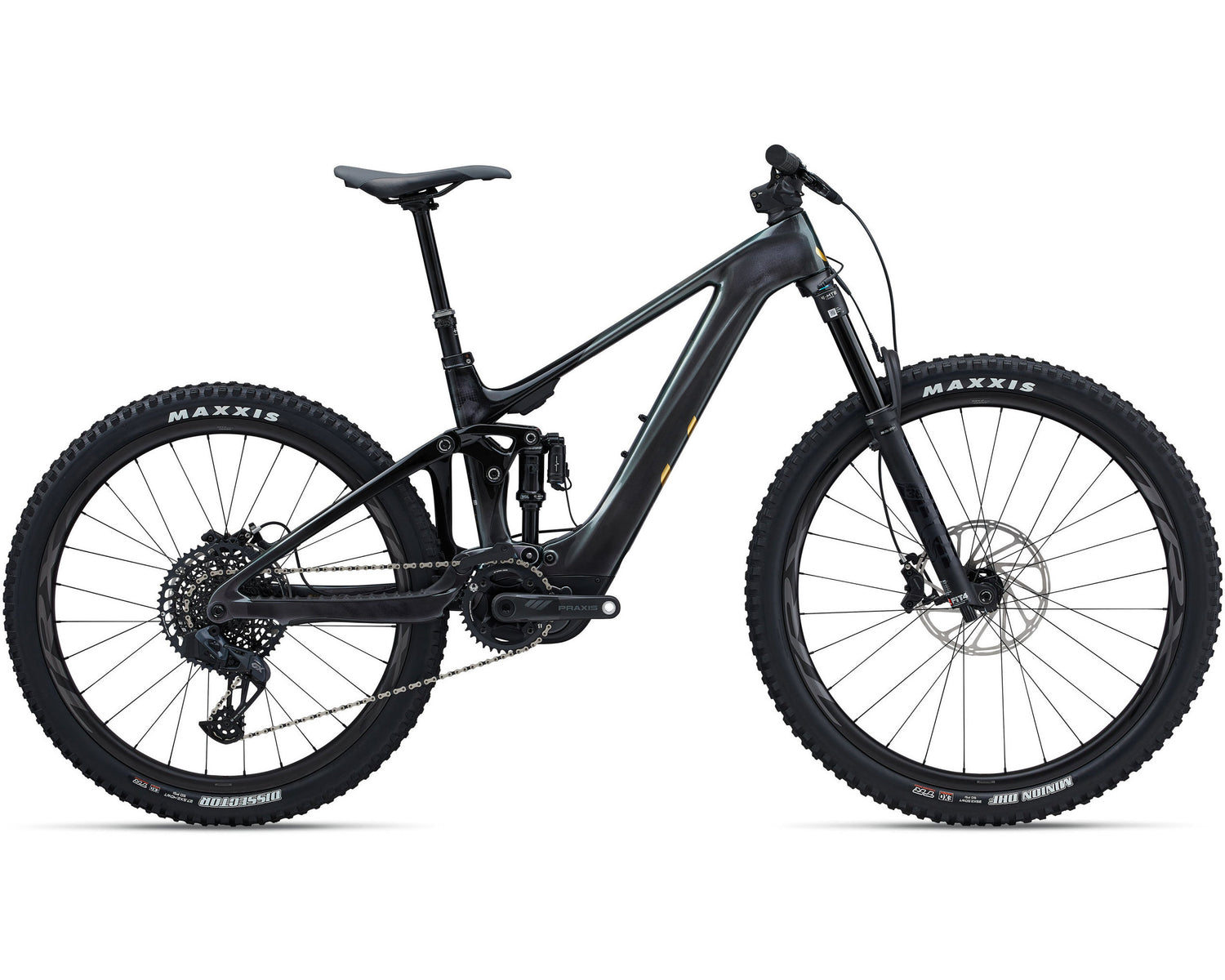

Liv Intrigue X Advanced E+ Elite 1 Women's E-MTB (2023)
The Liv Intrigue X Advanced E+ Elite 1 Women's E-MTB (2023) delivers next-level performance in a remarkably lightweight and responsive design. Engineered specifically for trail-riding women, this full-suspension women's e-mtb combines agile handling, powerful motor support, and premium styling to elevate every ride—whether you're charging through rock gardens, powering up steep climbs, or railing fast corners.
Lightweight and Nimble
With 140mm of rear and 150mm of front suspension, a short chainstay, and an ultra-lightweight carbon frame, this E-MTB offers a highly efficient and responsive ride. It absorbs rough terrain with ease while remaining agile and playful on the trail.
Powerful and Smooth
Powered by the SyncDrive Pro 2 motor delivering 85Nm of torque, you'll experience instant, natural-feeling support. The sleek 400Wh battery is neatly integrated into the downtube, keeping weight low and balance perfect for a confident ride.
Sleek Design
From its internal cable routing to the clean top tube console and integrated control unit, every detail of the Intrigue X Advanced E+ Elite 1 reflects cutting-edge design and intuitive functionality—blending premium performance with style.
-
Motor
-
Controller
-
Display
-
Battery
-
Frame material
-
Frame
-
Fork
-
Shock
-
Handlebar
-
Grips
-
Stem
-
Seatpost
-
Saddle
-
Pedals
-
Shifters
-
Front Derailleur
-
Rear Derailleur
-
Brakes
-
Brake Levers
-
Cassette/Freewheel
-
Chain
-
Crankset
-
Rims
-
Hubs
-
Tyres
-
Extras
-
Notes
-
Speeds (rear)12 Speed
-
Age GroupAdults, Teenagers
-
GenderWomens
-
DisciplineMountain, Electric
-
SKUsAirglow/Black/S: 2313319104, Airglow/Black/M: 2313319105, Airglow/Black/L: 2313319107
