Liv Tempt E+ 26 (2023)
Liv Tempt E+ 26 (2023) - Milky Way is backordered and will ship as soon as it is back in stock.
Pickup currently unavailable at HALLAM
Sizing Chart
Sizing Chart
Sizing and Geometry
Liv Tempt
Sizing to be used as a reference only. The best way to determine your size is to visit us in-store and take the bike for a test-ride.
| Frame size | Rider height |
| S (29") | 158-169cm |
| M (29") | 164-175cm |
| L (29") | 170-181cm |
Geometry
| S (29") | M (29") | L (29") | ||
|---|---|---|---|---|
| A | Seat Tube Length (mm) | 370 | 420 | 450 |
| A1 | Seat Post Insertion Depth (mm) | 320 | 375 | 220 |
| B | Seat Tube Angle | 74.0° | 74.0° | 74.0° |
| C | Top Tube Length (mm) | 570 | 590 | 610 |
| D | Head Tube Length (mm) | 90 | 95 | 105 |
| E | Head Tube Angle | 68.5° | 68.5° | 68.5° |
| F | Fork Rake (mm) | 51 | 51 | 51 |
| G | Trail (mm) | 94.3 | 94.3 | 94.3 |
| H | Wheelbase (mm) | 1119 | 1139 | 1160 |
| I | Chain Stay Length (mm) | 455 | 455 | 455 |
| J | Bottom Bracket Drop (mm) | 55 | 55 | 55 |
| K | Stack (mm) | 596 | 601 | 610 |
| L | Reach (mm) | 399 | 418 | 435 |
| M | Stand Over Height (mm) | 705 | 737 | 757 |
| O | Stem Length (mm) | 40 | 50 | 50 |
| P | Crank Length (mm) | 170 | 170 | 175 |
| Q | Wheel Size | 29" | 29" | 29" |
Shipping Information
Shipping Information
Certain bike brands cannot be shipped and are only available for Click and Collect.
These include but are not limited to the following brands: Giant, GT, Liv, Momentum and Mongoose.
For all other brands, we can provide a shipping quote to your postcode. Please contact us by email at staff@ivanhoecycles.com.au, or text us on 0417 122 950.
Sizing and Geometry
Liv Tempt
Sizing to be used as a reference only. The best way to determine your size is to visit us in-store and take the bike for a test-ride.
| Frame size | Rider height |
| S (29") | 158-169cm |
| M (29") | 164-175cm |
| L (29") | 170-181cm |
Geometry
| S (29") | M (29") | L (29") | ||
|---|---|---|---|---|
| A | Seat Tube Length (mm) | 370 | 420 | 450 |
| A1 | Seat Post Insertion Depth (mm) | 320 | 375 | 220 |
| B | Seat Tube Angle | 74.0° | 74.0° | 74.0° |
| C | Top Tube Length (mm) | 570 | 590 | 610 |
| D | Head Tube Length (mm) | 90 | 95 | 105 |
| E | Head Tube Angle | 68.5° | 68.5° | 68.5° |
| F | Fork Rake (mm) | 51 | 51 | 51 |
| G | Trail (mm) | 94.3 | 94.3 | 94.3 |
| H | Wheelbase (mm) | 1119 | 1139 | 1160 |
| I | Chain Stay Length (mm) | 455 | 455 | 455 |
| J | Bottom Bracket Drop (mm) | 55 | 55 | 55 |
| K | Stack (mm) | 596 | 601 | 610 |
| L | Reach (mm) | 399 | 418 | 435 |
| M | Stand Over Height (mm) | 705 | 737 | 757 |
| O | Stem Length (mm) | 40 | 50 | 50 |
| P | Crank Length (mm) | 170 | 170 | 175 |
| Q | Wheel Size | 29" | 29" | 29" |

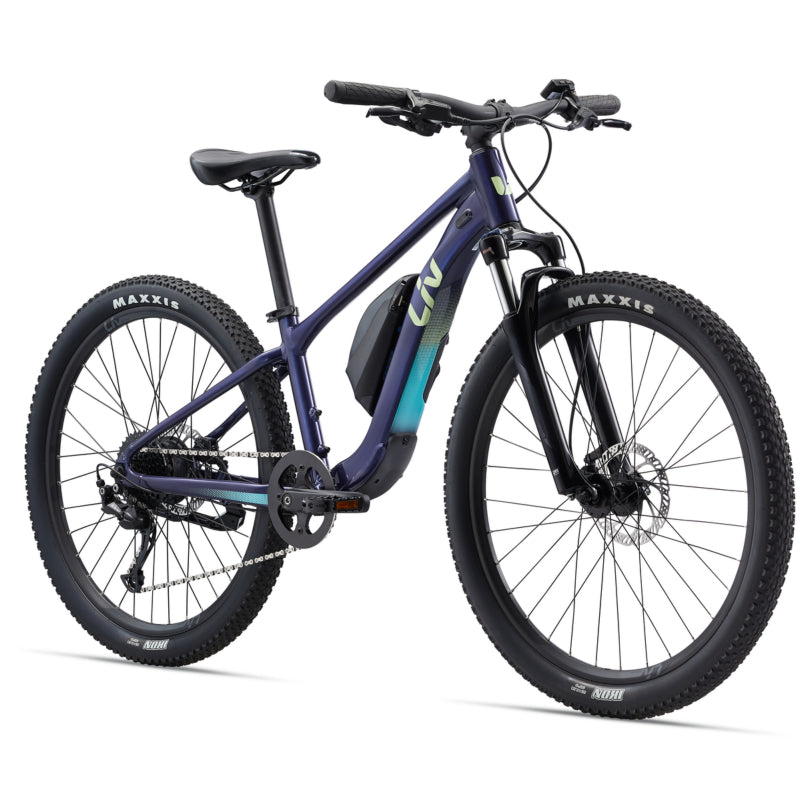

Liv Tempt E+ 26 (2023)
Embark on real-world adventures with the Liv Tempt E+ 26 kids electric mountain bike - built to instill confidence and inspire young riders to seek out new experiences.
DESIGNED FOR PRE-TEENS & TEENS
The Tempt E+ 26 has been sized with young riders in mind, with low standover height and adjustable seatpost, making it ideal for riders between 144-164cm tall.
LIGHTWEIGHT AND AGILE
The Tempt E+ 26 frame is constructed with ALUXX aluminium, making it light and durable. Coupled with a SyncDrive Move motor with 30Nm of natural pedal assistance, the Tempt E+ 26 is agile and easy to manoeuvre.
SAFE AND STABLE
Equipped with disc brakes, 80mm of travel up front, wide 2-inch tyres, and appropriate motor output that won’t overwhelm younger riders (max speed 20km/h). The Tempt E+ 26 is safe, stable, and ready for adventure.
PERFECT FIT
Adjustable seatpost and low standover height for young riders allow for a great fit from the start.
ENERGYPAK 250 / SYNCDRIVE MOVE
The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.
Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.
- Extreme: 25 km
- Good: 45 km
- Ideal: 65 km
SPECIFICATIONS
| Motor | SyncDrive Move, Rear Hub, 30Nm |
| Controller | RideControl Dash |
| Display | RideControl Dash, full colour LCD screen |
| Battery | EnergyPak 240Wh |
| Charger | EnergyPak Smart 4A charger |
| Maximum speed | 22 km/h |
| Sizes | 26” |
| Colour | Milky Way |
| Frame | ALUXX-Grade aluminium, integrated KSA18 kickstand mount |
| Fork | SR Suntour XCM HLO 26”, 80mm travel |
| Handlebar | Giant Connect XC Riser, 31.8mm |
| Grips | Liv Junior |
| Stem | Giant Connect, 50mm |
| Seatpost | Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium |
| Saddle | Liv Youth Sport |
| Pedals | Platform |
| Shifters | Shimano Altus |
| Front Derailleur | N/A |
| Rear Derailleur | Shimano Alivio, 9-speed |
| Brakes | Tektro HD-M282, hydraulic disc, 160mm |
| Brake Levers | Tektro HD-M282 |
| Cassette | Shimano CS-HG200, 11-36T, 9-speed |
| Chain | KMC e.9 Sport |
| Crankset | Forged Alloy minimal Q-factor, 36T |
| Bottom Bracket | N/A |
| Rims | Giant GX03V 26” Aluminium |
| Hubs | Giant eTracker Sport, 9mm QR[F] SyncDrive Move 142mm [R] |
| Spokes | Stainless steel |
| Tyres | Maxxis Ikon 26x2.20” |
| Extras | Direct mount kickstand |
| Notes | We reserve the right to make changes to the product and component information appearing on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials. |
-
Frame material
-
Speeds (rear)9 Speed
-
Age GroupKids
-
GenderGirls
