Malvern Star Axis 1w (2024)

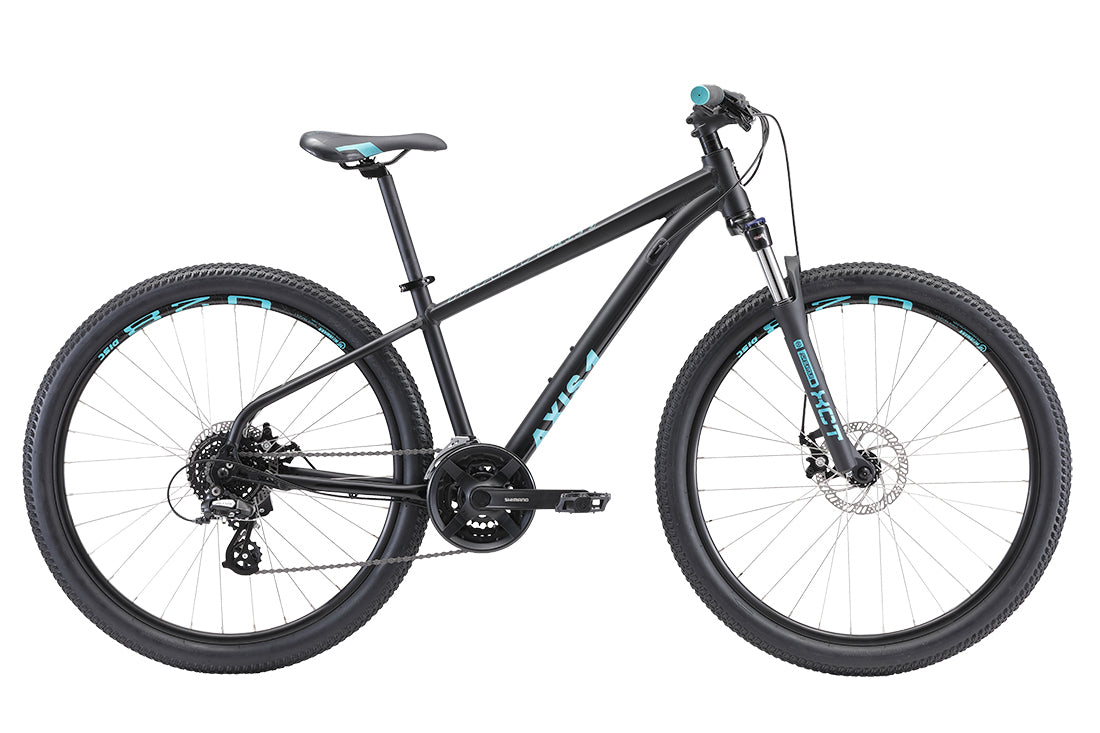

Malvern Star Axis 1 Womens (2024)
The Malvern Star Axis 1 Women's mountain bike is designed with comfort and versatility in mind, making it perfect for riders new to mountain biking or seeking a reliable all-rounder for bike paths and rail trails.
Built on a lightweight alloy frame with a women-specific design, it offers a comfortable fit and easy handling.
The bike features a suspension fork to smooth out uneven trails and a wide-range Shimano drivetrain for effortless gear changes.
With durable components and an emphasis on rider comfort, the Axis 1 is ideal for exploring local paths, parks, and light trails.
- Suspension fork smooths out bumps and impacts on bike paths and rail trails.
- Robust Shimano 24-speed gear system.
- Mechanical disc brakes.
SPECIFICATIONS
| Frame |
Alloy with 3D dropouts, integrated head tube and internally routed cables |
| Fork | Suntour XCT, 27.5, 80mm travel, Lockout |
| Rear Derailleur | Shimano Altus, 8-speed |
| Front Derailleur | Shimano TY700 |
| Shifters | Shimano EF-500, 24-speed |
| Brake Levers | Shimano EF500 with reach adjust |
| Brakes | Tektro M280 Mechanical Disc, 160mm rotor |
| Crankset | Shimano TY301, 24/34/42T, 170mm |
| Bottom Bracket |
Shimano UN-100 cartridge |
| Handlebar |
Alloy, 31.8mm, 640mm wide |
| Stem |
Alloy, 6-degree, 60mm |
| Pedals |
Platform |
| Seatpost | Alloy 27.2mm | XS/S=300mm, M=350mm |
| Saddle |
MTB Sports Womens |
| Hubs |
Alloy, quick-release |
| Rims |
Alloy, double wall, 32H |
| Chain |
KMC Z8.1 |
| Cassette |
Shimano HG-31, 11-34T 8-speed |
| Spokes |
Stainless steel |
| Tyres |
MTB All-Terrain, 27.5 x 2.00 |
| Notes |
We make every effort to ensure accuracy, but reserve the right to update specifications & prices without notification. |
