Norco Fluid FS A2 (2025)
Norco Fluid FS A2 (2025) - Silver / M : This product is available for backorder only. Will ship as soon as it is back in stock.
Couldn't load pickup availability
Sizing Chart
Sizing Chart
Sizing and Geometry
Norco Fluid FS Aluminium
Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.
| Frame Size | Rider Height |
| S | 155 - 165cm |
| M | 164 - 174cm |
| L | 173 - 182cm |
| XL | 183 - 192cm |
| XXL | 190 - 200cm |
Geometry
| Measure (mm) | SM | MD | LG | XL | XXL |
| Seat tube length | 360 | 390 | 410 | 460 | 510 |
| Seat tube angle effective | 76° | 76.3° | 76.7° | 77° | 77.3° |
| Top tube horizontal | 574 | 602 | 630 | 659 | 687 |
| Head tube angle | 65.0° | 65.0° | 65.0° | 65.0° | 65.0° |
| Standover | 678 | 690 | 699 | 736 | 767 |
| Head tube length | 110 | 120 | 130 | 140 | 150 |
| Stem length | 40 | 40 | 40 | 40 | 40 |
| Wheelbase | 1166 | 1205 | 1245 | 1284 | 1323 |
| Chainstay length | 425 | 430 | 435 | 440 | 445 |
| Crank length | 175 | 175 | 175 | 175 | 175 |
| Bottom bracket drop | 30 | 30 | 30 | 30 | 30 |
| Bottom bracket height | 348 | 348 | 348 | 348 | 348 |
| Trail | 128 | 128 | 128 | 128 | 128 |
| Stack | 617 | 626 | 635 | 644 | 653 |
| Reach | 420 | 450 | 480 | 510 | 540 |
| Travel front | 140 | 140 | 140 | 140 | 140 |
| Travel rear | 130 | 130 | 130 | 130 | 130 |
Shipping Information
Shipping Information
This product: Pickup in-store only. Shipping not available.
Shipping available†
We offer shipping on select brands including: Rocky Mountain, Orbea, XDS, Icon, Jamis, Shogun, Schwinn, BYK, Kidvelo. These bikes are shipped unbuilt in their original box.
†Only bikes stocked at our Warehouse location are available for shipping.
Shipping upon request to your local bike shop
Some brands require the bike is delivered directly to a bicycle shop or mechanic for assembly, and shipping is not available to your residence. These include GT, Cannondale, .
Request a shipping quote to proceed.
Pickup in-store only
Certain bike brands cannot be shipped and are only available for Click and Collect or purchase in-store.
These include but are not limited to the following brands: Giant, Norco, Liv, Momentum, Malvern Star and Mongoose.
Pre-assembled bikes
†Any bikes in stock at our Heidelberg Heights, Hallam or Hoppers Crossing store locations are already fully assembled, and therefore only available for Click and Collect or purchase in-store.
Sizing and Geometry
Norco Fluid FS Aluminium
Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.
| Frame Size | Rider Height |
| S | 155 - 165cm |
| M | 164 - 174cm |
| L | 173 - 182cm |
| XL | 183 - 192cm |
| XXL | 190 - 200cm |
Geometry
| Measure (mm) | SM | MD | LG | XL | XXL |
| Seat tube length | 360 | 390 | 410 | 460 | 510 |
| Seat tube angle effective | 76° | 76.3° | 76.7° | 77° | 77.3° |
| Top tube horizontal | 574 | 602 | 630 | 659 | 687 |
| Head tube angle | 65.0° | 65.0° | 65.0° | 65.0° | 65.0° |
| Standover | 678 | 690 | 699 | 736 | 767 |
| Head tube length | 110 | 120 | 130 | 140 | 150 |
| Stem length | 40 | 40 | 40 | 40 | 40 |
| Wheelbase | 1166 | 1205 | 1245 | 1284 | 1323 |
| Chainstay length | 425 | 430 | 435 | 440 | 445 |
| Crank length | 175 | 175 | 175 | 175 | 175 |
| Bottom bracket drop | 30 | 30 | 30 | 30 | 30 |
| Bottom bracket height | 348 | 348 | 348 | 348 | 348 |
| Trail | 128 | 128 | 128 | 128 | 128 |
| Stack | 617 | 626 | 635 | 644 | 653 |
| Reach | 420 | 450 | 480 | 510 | 540 |
| Travel front | 140 | 140 | 140 | 140 | 140 |
| Travel rear | 130 | 130 | 130 | 130 | 130 |

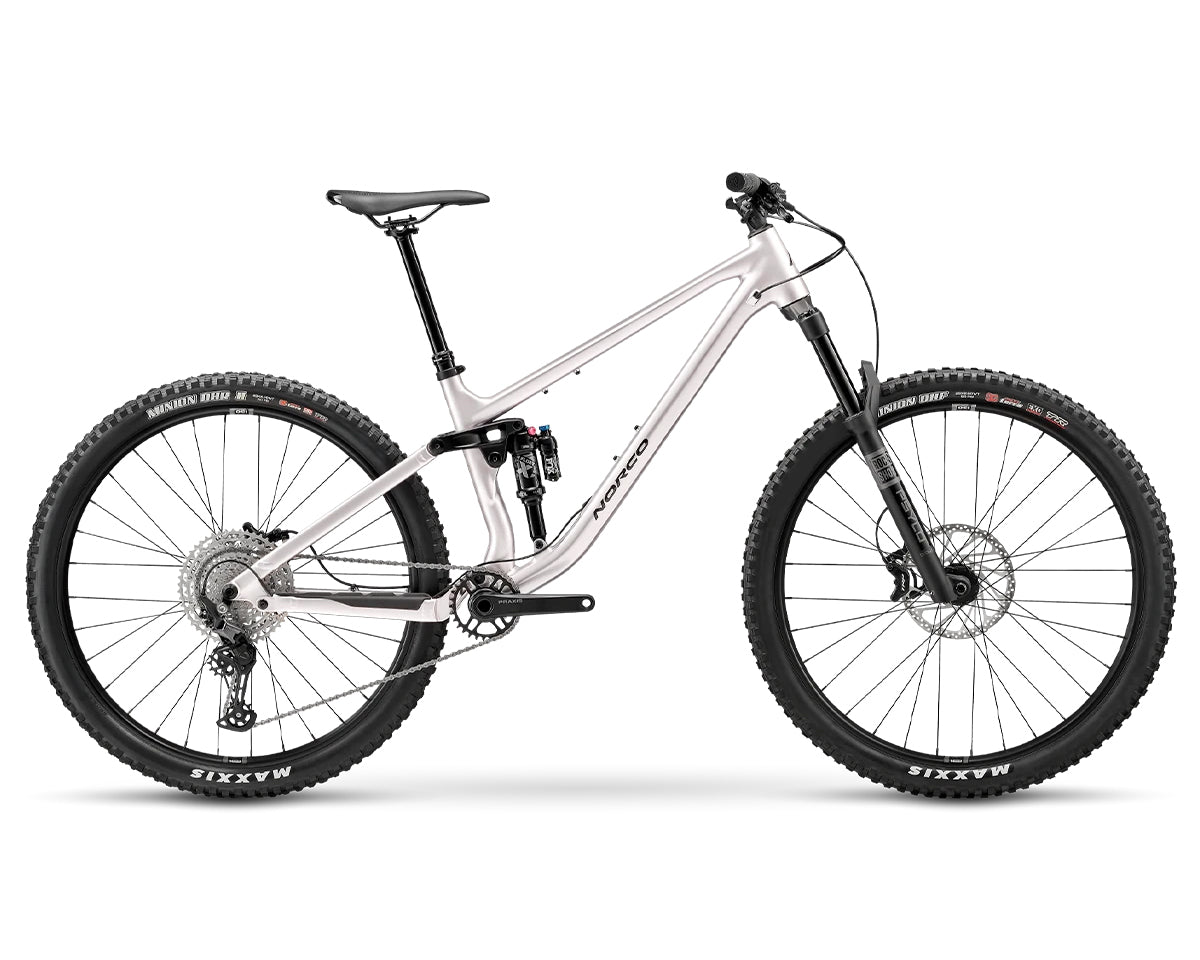

Norco Fluid FS A2 (2025)
The Norco Fluid FS A2 is built to tackle whatever trail leads to becoming the rider you want to be. Named Pinkbike’s Value Bike of the Year, Vital MTB’s Bike of the Year, and most recently, Bicycling Magazine’s Best Value Trail Bike.
The Fluid FS A2's 130mm travel is precision engineered, pairing custom tuned suspension components with 140mm fork travel and boutique level fit & finish for maximum Trail performance & potential.
HIGHLIGHTS
- Intuitive precision handling.
- Top-tier design and features over-deliver as skills evolve.
- Sophisticated suspension components for full-platform performance and tunability.
- Long-travel droppers and generous standover get you through the rough stuff.
- Refined design and expanded size range.
- Ride Aligned™ - Perfect fit, dialled handling and personalised setup in minutes.
- Limited Lifetime Warranty.
-
Frame material
-
Frame
-
Fork
-
Shock
-
Handlebar
-
Grips
-
Headset
-
Stem
-
Seatpost
-
Saddle
-
Pedals
-
Shifters
-
Rear Derailleur
-
Brakes
-
Brake Levers
-
Cassette/Freewheel
-
Chain
-
Crankset
-
Bottom Bracket
-
Rims
-
Hubs
-
Spokes
-
Tyres
-
Notes
-
Compatible Bike Type
-
Speeds (rear)12 Speed
-
Age GroupAdults, Teenagers
-
GenderMens, Unisex
-
DisciplineMountain
-
SKUsSilver/M: 058817722066, Silver/L: 058817722073, Silver/S: 058817722059, Silver/XL: 058817722080
