Norco  |  SKU: 058817725531

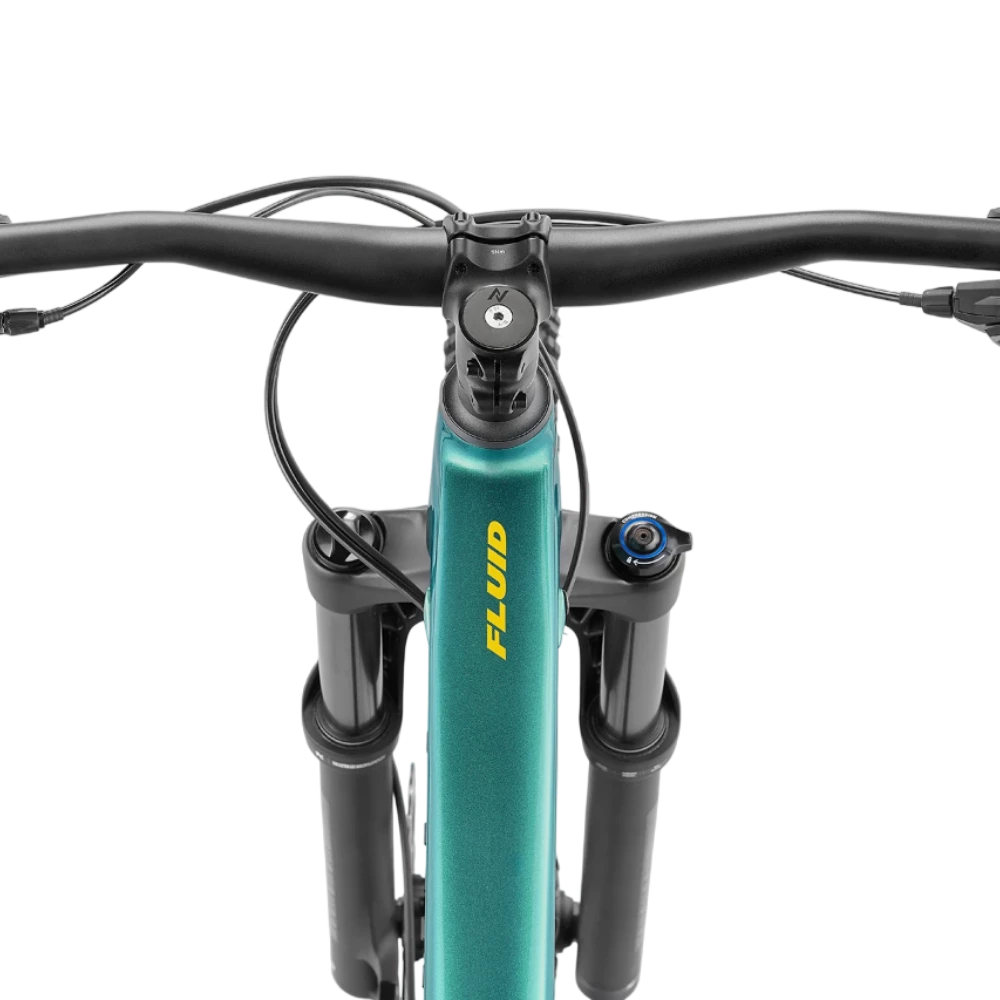

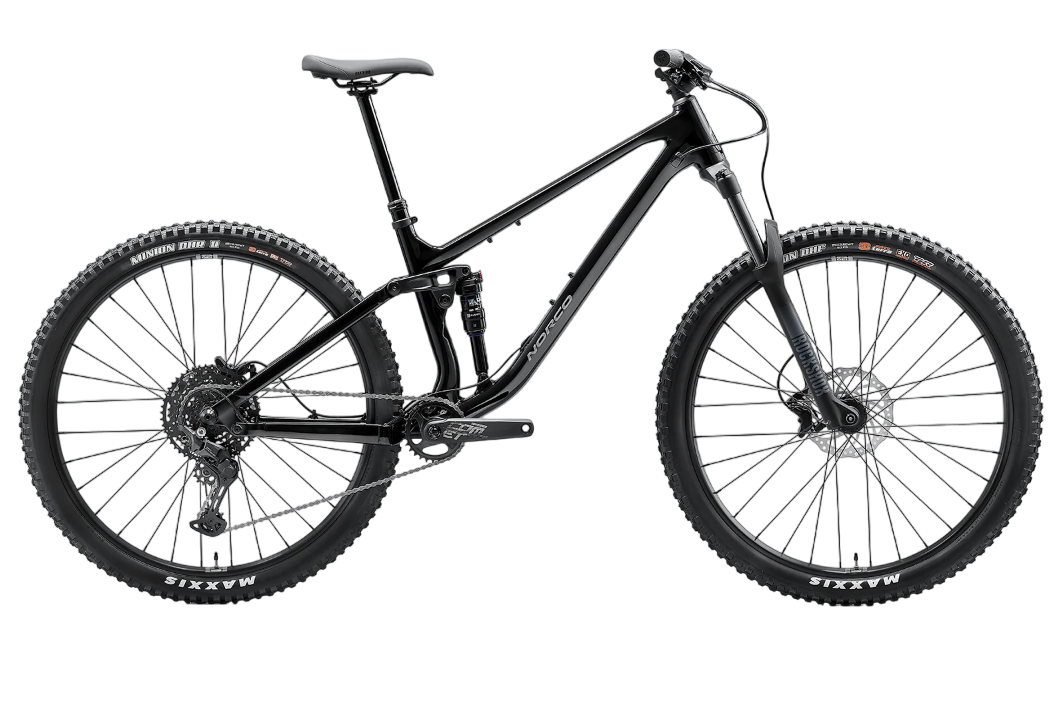

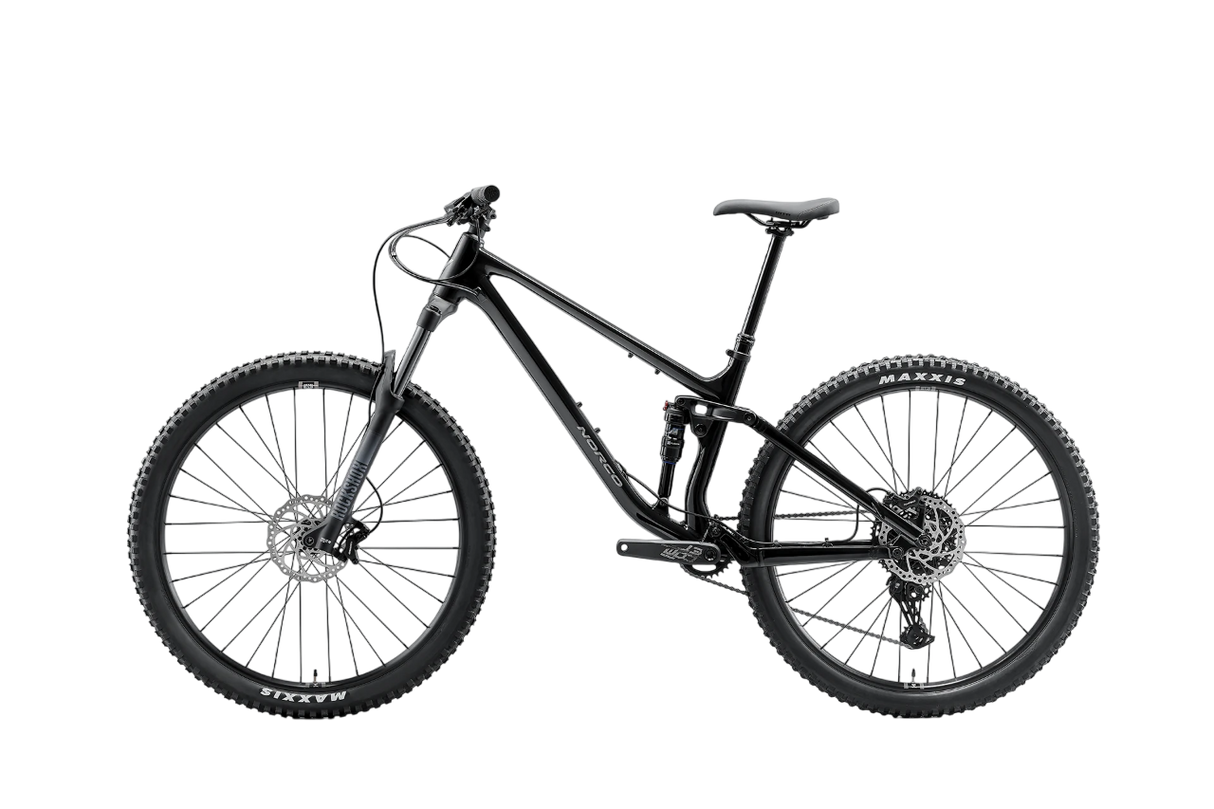

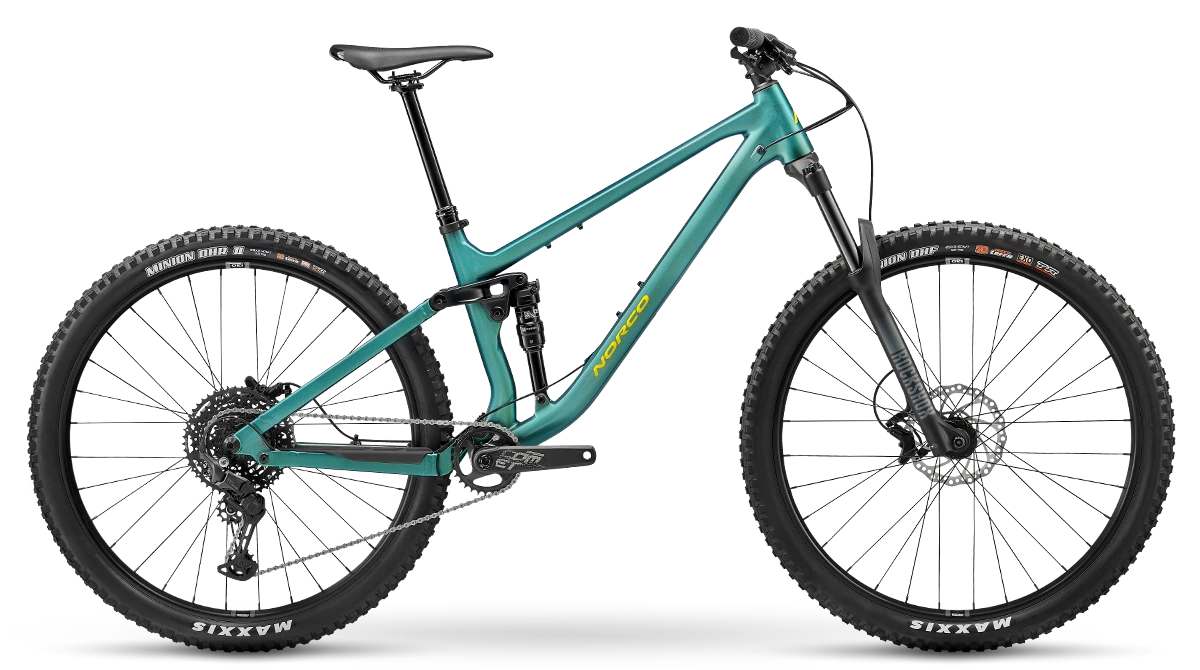

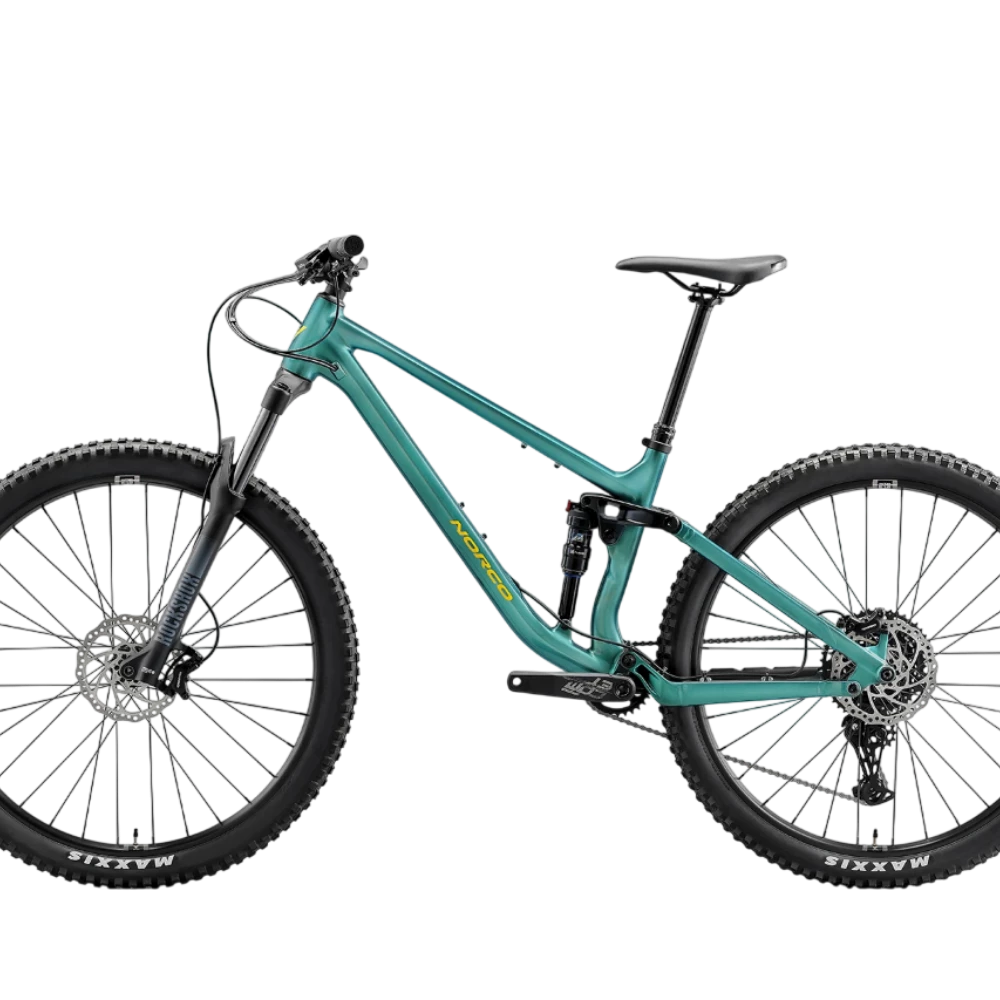

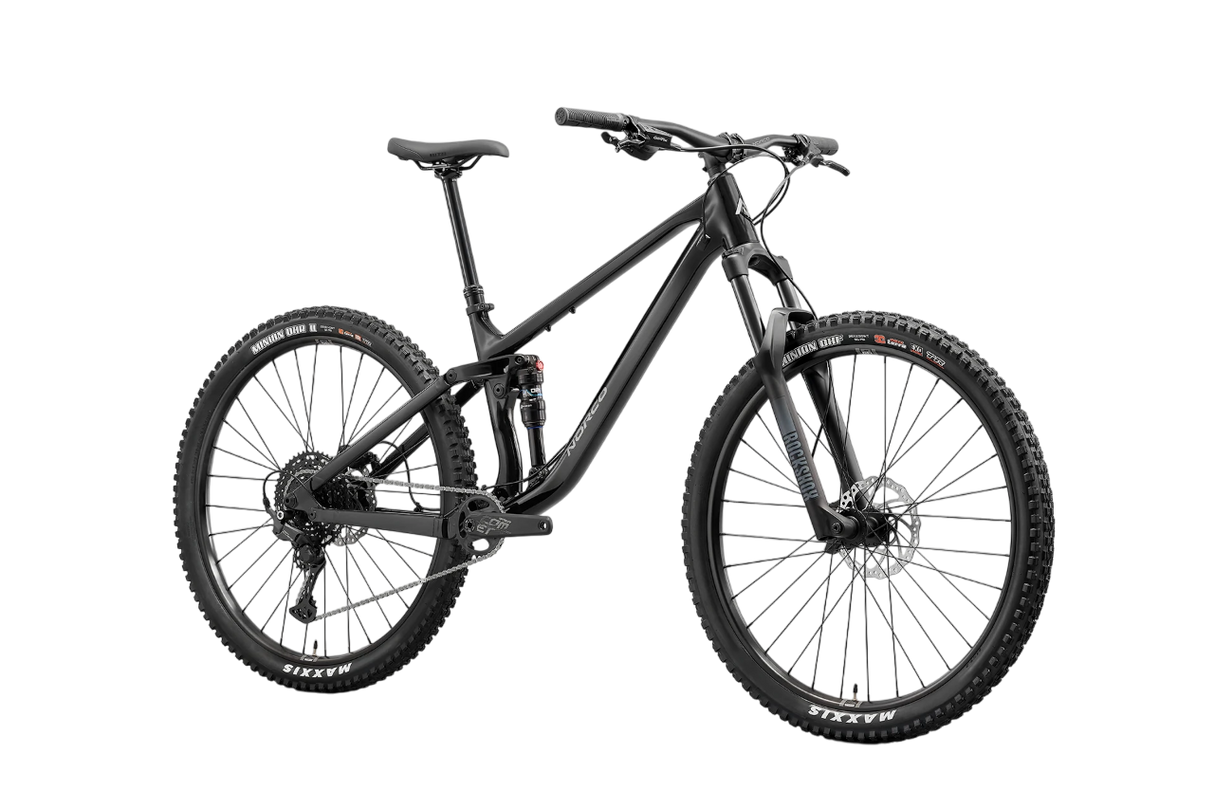

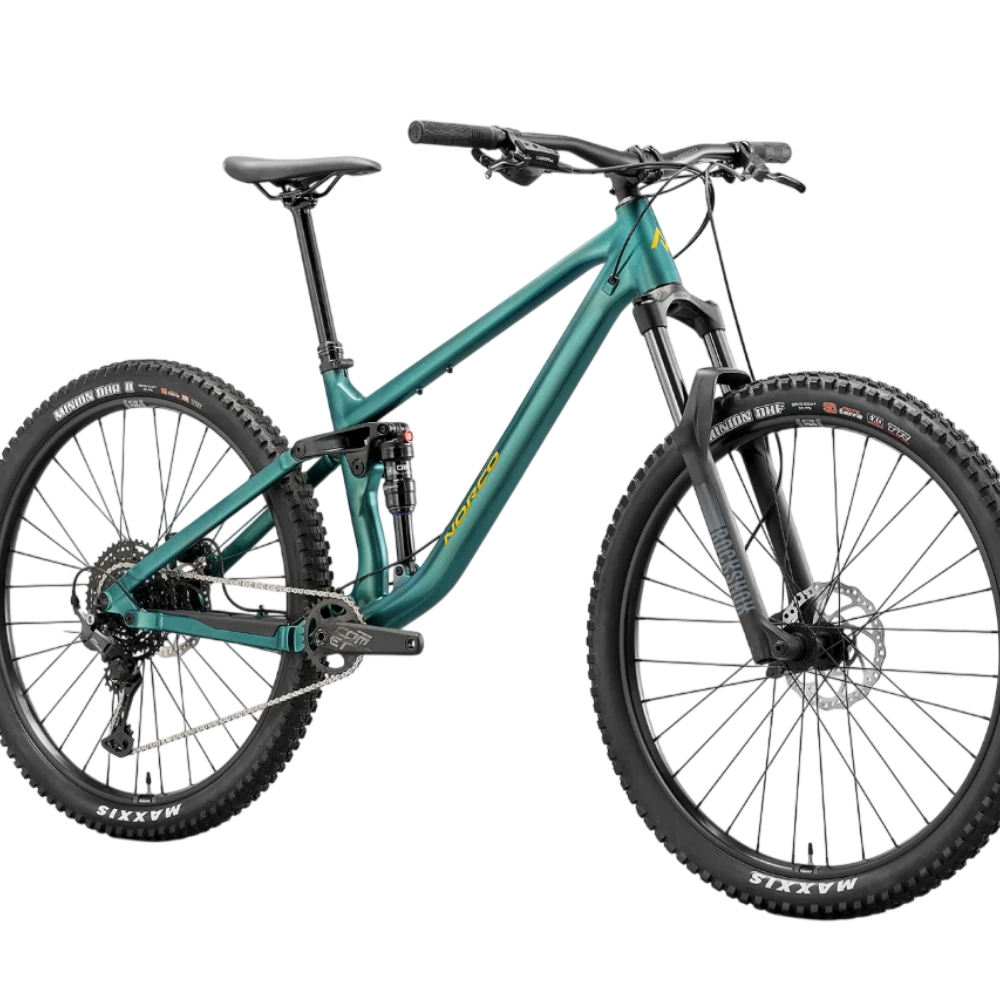

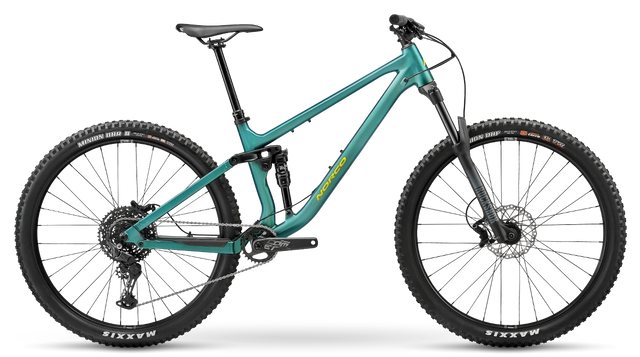

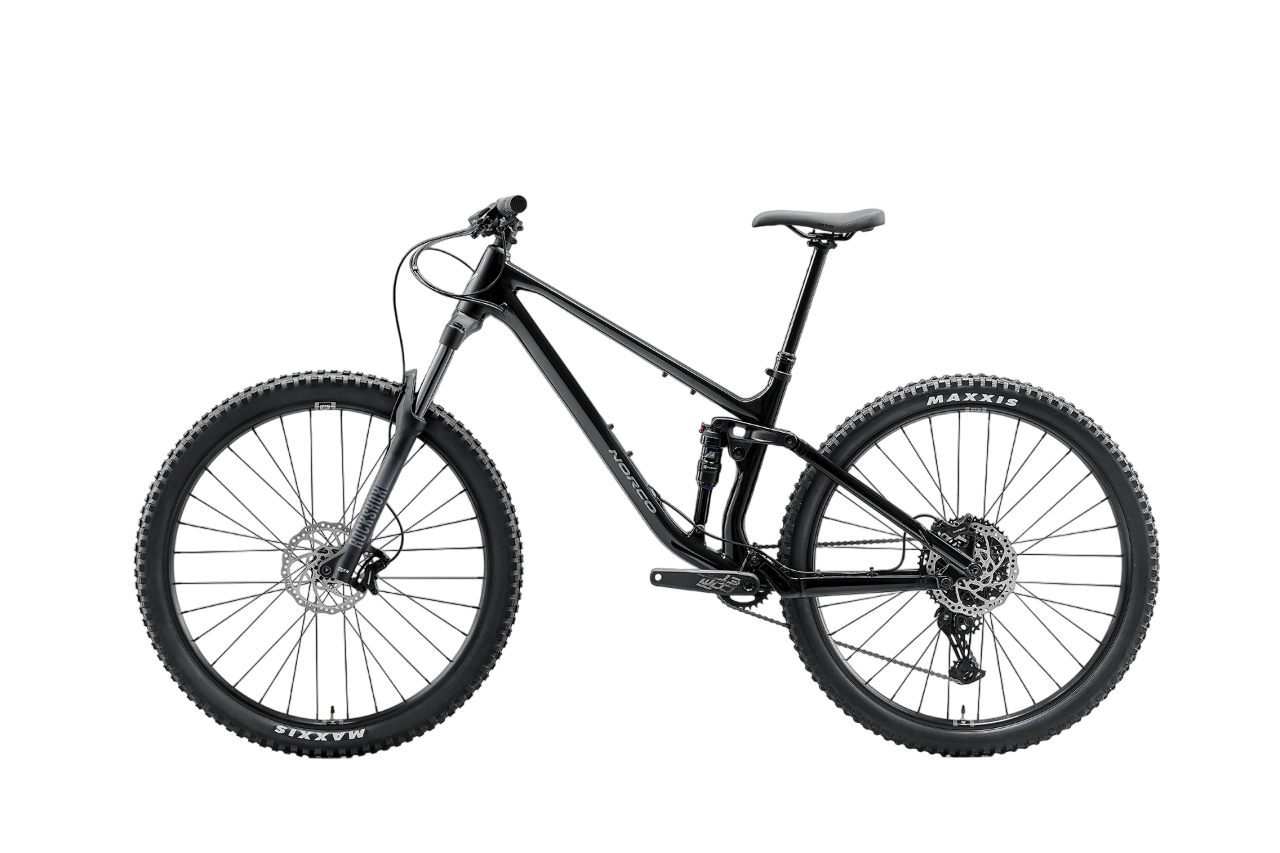

Norco Fluid FS A3 (2025)

$2,99900
Colour: Mint
Size

Pickup in-store only. Shipping not available.
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay

Sizing Chart

Sizing and Geometry

Norco Fluid FS Aluminium

Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.

Frame Size Rider Height
S 155 - 165cm
M 164 - 174cm
L 173 - 182cm
XL 183 - 192cm
XXL 190 - 200cm


Geometry



Norco Fluid FS Aluminium Geometry
Measure (mm) SM MD LG XL XXL
Seat tube length 360 390 410 460 510
Seat tube angle effective 76° 76.3° 76.7° 77° 77.3°
Top tube horizontal 574 602 630 659 687
Head tube angle 65.0° 65.0° 65.0° 65.0° 65.0°
Standover 678 690 699 736 767
Head tube length 110 120 130 140 150
Stem length 40 40 40 40 40
Wheelbase 1166 1205 1245 1284 1323
Chainstay length 425 430 435 440 445
Crank length 175 175 175 175 175
Bottom bracket drop 30 30 30 30 30
Bottom bracket height 348 348 348 348 348
Trail 128 128 128 128 128
Stack 617 626 635 644 653
Reach 420 450 480 510 540
Travel front 140 140 140 140 140
Travel rear 130 130 130 130 130

Shipping Information

Certain bike brands cannot be shipped and are only available for Click and Collect.

These include but are not limited to the following brands: Giant, GT, Liv, Momentum and Mongoose.

For all other brands, we can provide a shipping quote to your postcode. Please contact us by email at staff@ivanhoecycles.com.au, or text us on 0417 122 950.

Fully assembled when you Click & Collect in-store
Buy Now, Pay Later with ZIP
Free service adjustment within first 6 months

The Norco Fluid FS A2 is built to tackle whatever trail leads to becoming the rider you want to be. Named Pinkbike’s Value Bike of the Year, Vital MTB’s Bike of the Year, and most recently, Bicycling Magazine’s Best Value Trail Bike.

The Fluid FS A2's 130mm travel is precision engineered, pairing custom tuned suspension components with 140mm fork travel and boutique level fit & finish for maximum Trail performance & potential.

HIGHLIGHTS

  • Intuitive precision handling.
  • Top-tier design and features over-deliver as skills evolve.
  • Sophisticated suspension components for full-platform performance and tunability.
  • Long-travel droppers and generous standover get you through the rough stuff.
  • Refined design and expanded size range.
  • Ride Aligned™ - Perfect fit, dialled handling and personalised setup in minutes.
  • Limited Lifetime Warranty.

Norco Fluid FS A3 (2025)

$2,99900

Colour

Size

  • S
  • M
  • L
  • XL

Motor

N/A

Controller

N/A

Display

N/A

Battery

N/A

Charger

N/A

Sizes

N/A

Frame material

Aluminium

Frame

6061 Alloy, 130mm Travel, UDH, Hangerless Interface Compatible, Ride Aligned™

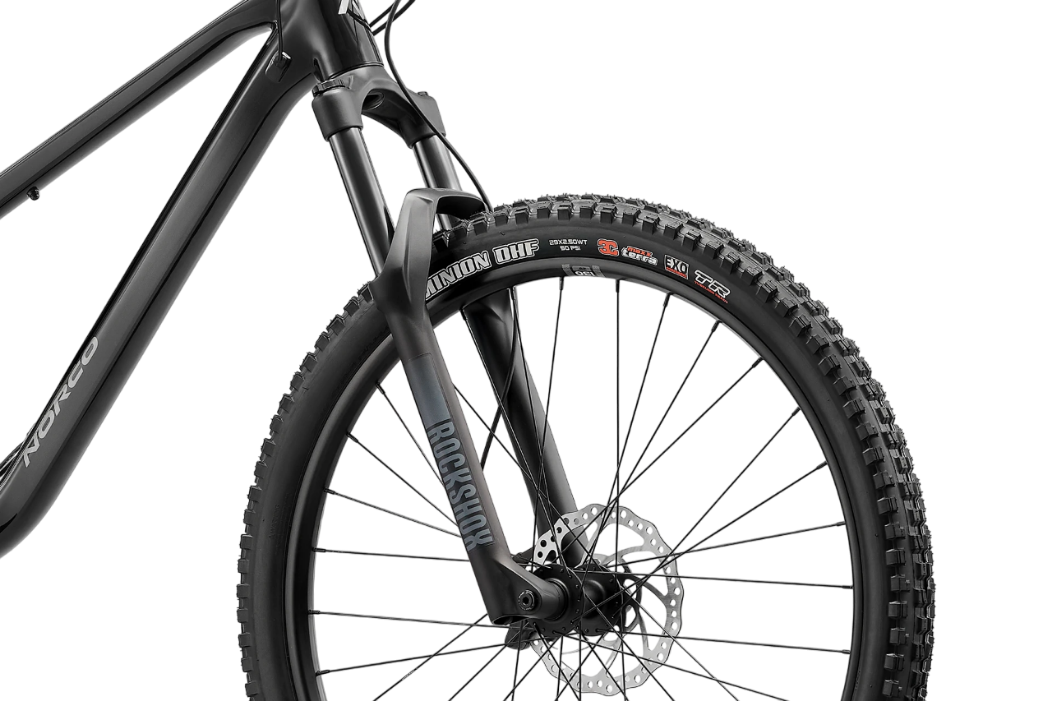

Fork

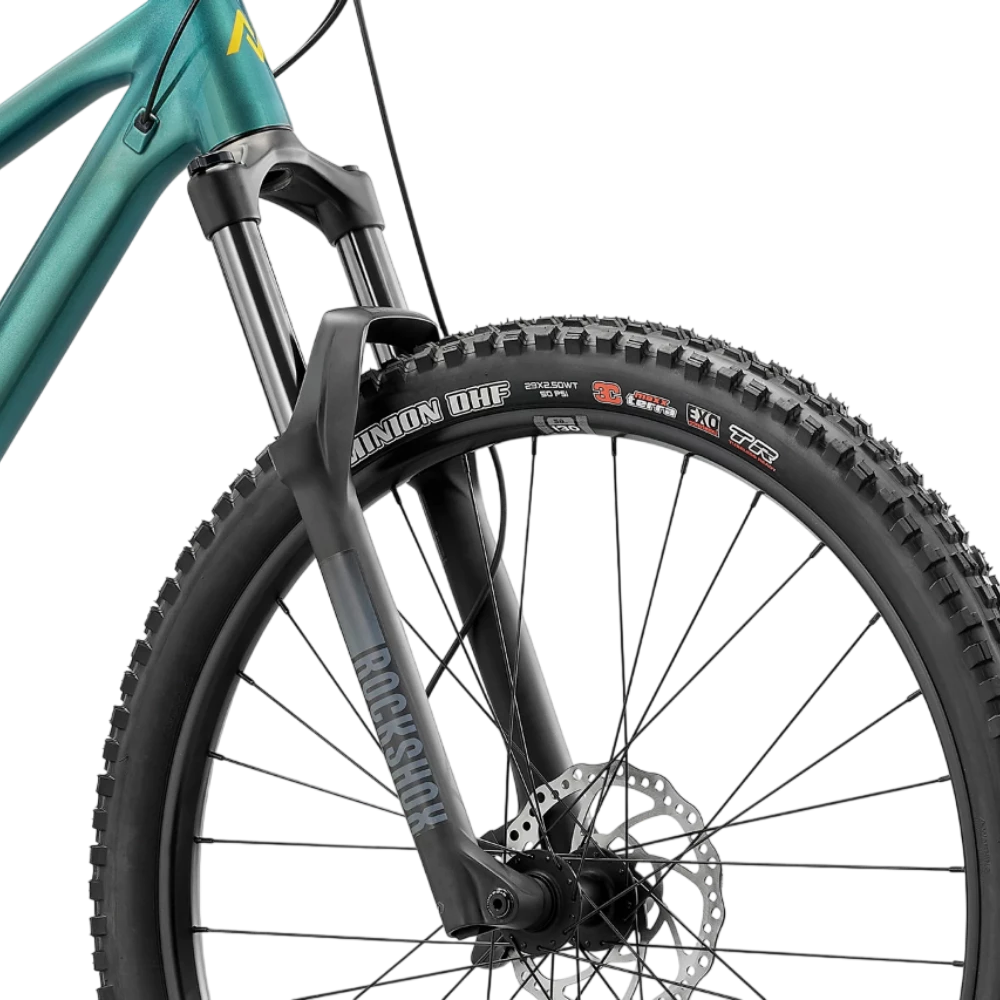

Rock Shox Recon RL 140mm

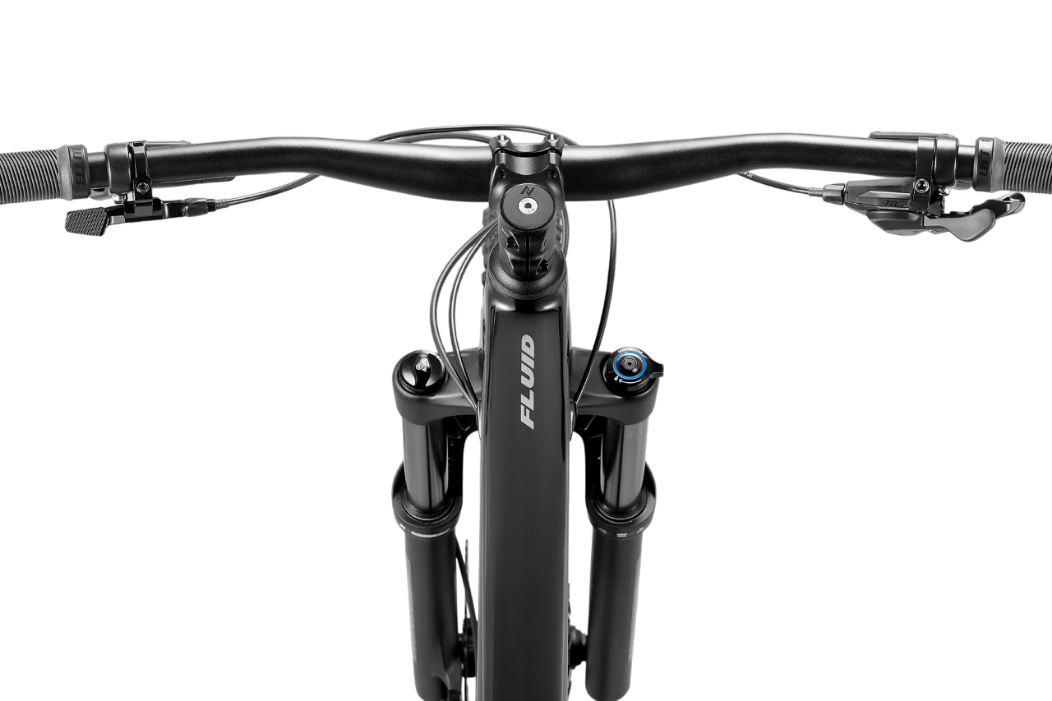

Handlebar

Norco alloy | 800mm wide, 25mm rise, 35mm diameter

Grips

Propalm Pro

Bar Tape

N/A

Headset

Zero Stack Sealed Cartridge Bearings - Tapered

Stem

Norco alloy | Length: 40mm, Clamp: 35mm

Seatpost

TranzX YSI34 Post 34.9mm

Saddle

Norco Trail Saddle

Pedals

Platform

Shifters

Shimano CUES 10 SL-U6000, 1x10 speed

Front Derailleur

N/A

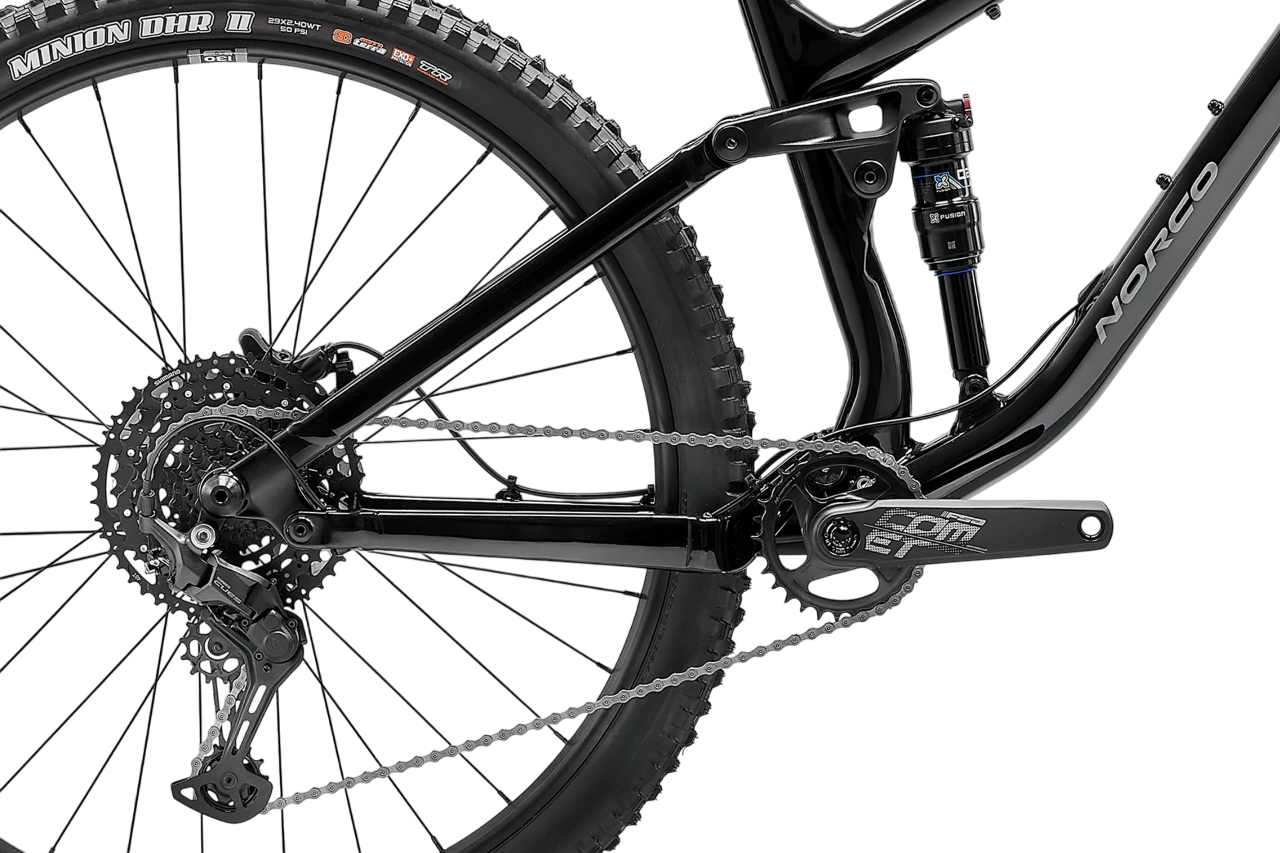

Rear Derailleur

Shimano CUES RD-U6020 10-speed

Brakes

Tektro HD-M535 4-piston | Tektro TR180-22 180mm rotors

Brake Levers

Tektro HD-M535 hydraulic

Cassette/Freewheel

Shimano CUES LG-400 10-speed, 11/48T

Chain

Shimano LG-500

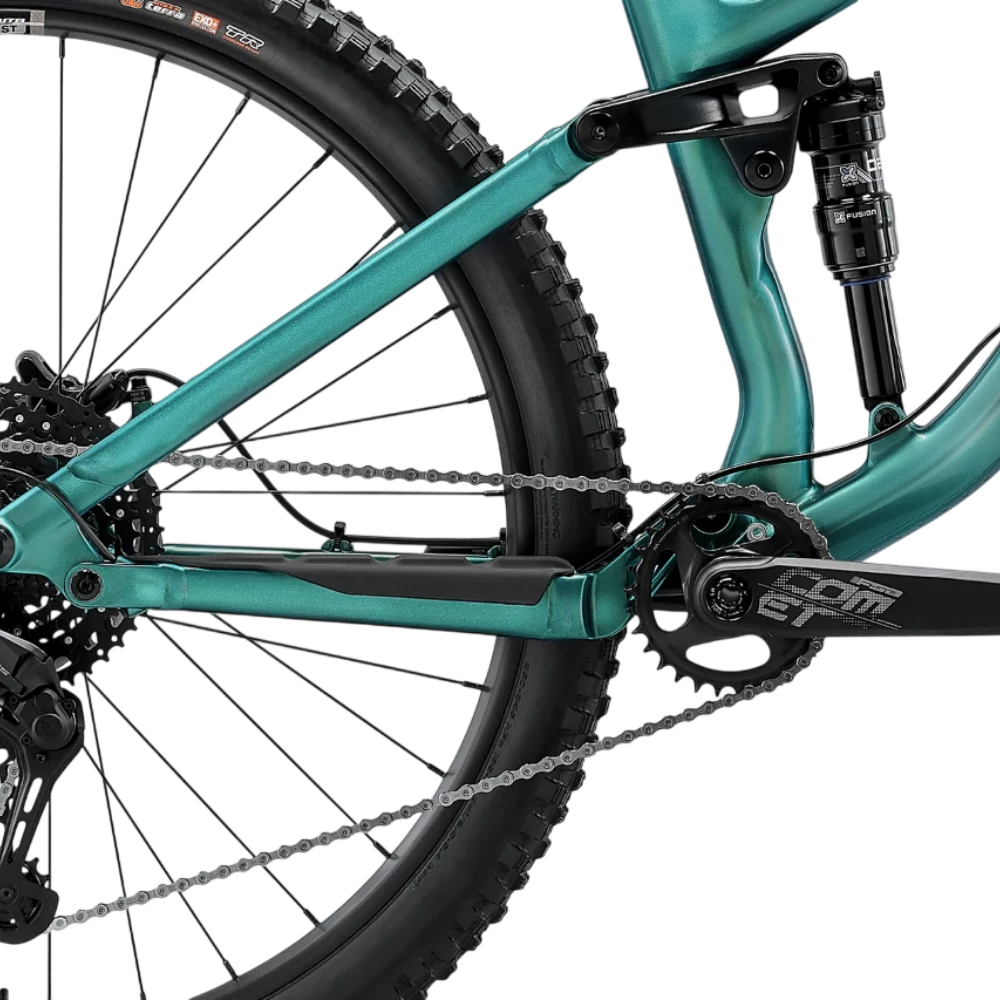

Crankset

FSA Comet 1X DM 30T

Bottom Bracket

FSA MegaExo

Rims

WTB ST 29", 32H

Hubs

[F] Formula DC-511 110x15 32H | [R] Formula DC-3248 148x12 32H

Spokes

Stainless Steel 14g - Black

Tyres

[F] Continental Kryptotal Trail 29" x 2.40" | [R] Continental Xynotal Trail 29" x 2.4"

Wheel Size

N/A

Extras

N/A
