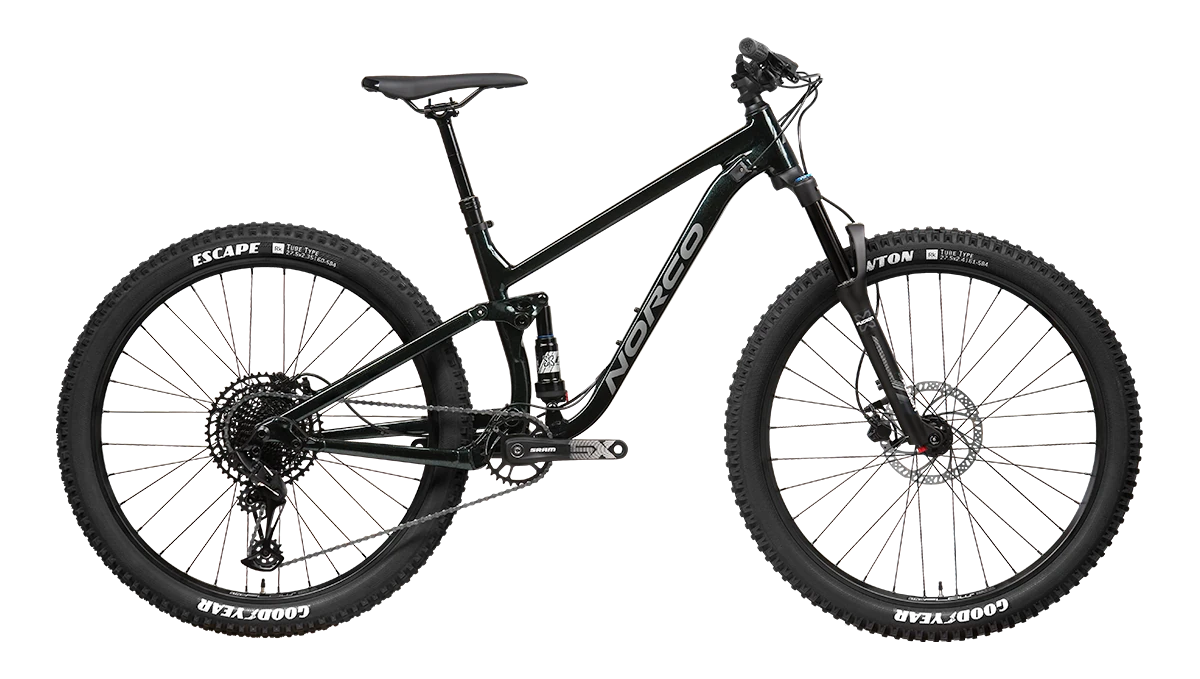

27.5" Norco Fluid FS Youth (2023)

$2,59900
Colour: Black/Chrome

Pickup in-store only. Shipping not available.
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay

Sizing Chart

The chart provided is to be used as a guide only, to help you narrow down which category to begin your search.

Wheel size Rider Height
12" 80-100cm
14" 85-105cm
16" 90-110cm
18" 95-115cm
20" 110-130cm
24" 125-150cm
26"+ 145cm+

Shipping Information

This product: Pickup in-store only. Shipping not available.

Shipping available†

We offer shipping on select brands including: Rocky Mountain, Orbea, XDS, Icon, Jamis, Shogun, Schwinn, BYK, Kidvelo. These bikes are shipped unbuilt in their original box.

†Only bikes stocked at our Warehouse location are available for shipping.

Shipping upon request to your local bike shop

Some brands require the bike is delivered directly to a bicycle shop or mechanic for assembly, and shipping is not available to your residence. These include GT, Cannondale, .

Request a shipping quote to proceed.

Pickup in-store only

Certain bike brands cannot be shipped and are only available for Click and Collect or purchase in-store.

These include but are not limited to the following brands: Giant, Norco, Liv, Momentum, Malvern Star and Mongoose.

Pre-assembled bikes

†Any bikes in stock at our Heidelberg Heights, Hallam or Hoppers Crossing store locations are already fully assembled, and therefore only available for Click and Collect or purchase in-store.

Fully assembled when you Click & Collect in-store
Buy Now, Pay Later with ZIP
Free service adjustment within first 6 months

The Fluid FS Youth’s progressive design provides the features and ride quality of Norco's best adult bikes in a pint-sized package. Standover has been maximized, suspension tunes optimized, and frame geometry honed to bring the distinct Norco ride to every model. Fits riders 141-156cm tall.

FEATURES

  • Features a lower bottom bracket height and more generous standover clearance than previous models.
  • A specially tuned linkage gives young riders the same level of control and suspension performance as our adult bikes.
  • Smaller riders require less spring force in their suspension components and dropper posts. Less spring force needs less damping, so we’ve spec’d youth-specific tunes on all Fluid Youth bikes so the suspension and droppers move properly under a rider below 90 pounds.

SPECIFICATIONS

Colour Black/Chrome Green
Size One Size / XS - Fits riders 141-156cm tall
Frameset
Frame 6061 Alloy, 120mm Travel, UDH, Hangerless Interface Compatible, Ride Aligned™
Fork X-Fusion RC32 Air, 130mm, 46mm Offset, 15x110mm Boost
Rear Shock X-Fusion 02 Pro R, 190x42.5mm Standard
Headset Tapered 1-1/8"–1.5" (ZS44/28.6 | ZS56/40)
Drivetrain
Shifter microSHIFT Advent, 9spd
Rear Derailleur microSHIFT Advent, 9spd, Short Cage Clutch
Crankset Prowheel Junior Alloy, 30T, 155mm
Bottom Bracket Prowheel Cartridge BB
Cassette microSHIFT Advent, 11-38T, 9spd
Chain KMC X9, 9spd
Brakes
Front Brake Tektro HD-J285, 2-P, Resin Pads, 2 finger lever blade
Front Rotor Tektro TR160-22, 160mm, 6-bolt
Rear Brake Tektro HD-J285, 2-P, Resin Pads, 2 finger lever blade
Rear Rotor Tektro TR160-22, 160mm, 6-bolt
Wheels & Tyres
Front Hub Formula DC-511, 15x110mm Boost, 32h, 6-bolt
Rear Hub Formula DC-3248, 12x148mm Boost, HG, 32h, 6-bolt
Rims WTB ST, 27mm ID, 32H
Front Tyre Maxxis Minion DHF, EXO, 27.5"x2.5", Folding
Rear Tyre Maxxis Minion DHR II, EXO, 27.5"x2.4", Folding
Components
Handlebar Norco 6061 Alloy DB, 750mm, 20mm rise
Stem Norco 6061, 35mm Length, 31.8mm Clamp
Grips Norco Youth Lockon, 115mm Length
Seatpost TranzX YSP18BKL, 31.6mm, 100mm, Kids Tune
Saddle WTB Solano Med, 142x240 mm, Steel Rails
Seatpost Clamp Norco Alloy Nutted Clamp, 34.9mm ID
