Norco  |  SKU: 058817734434

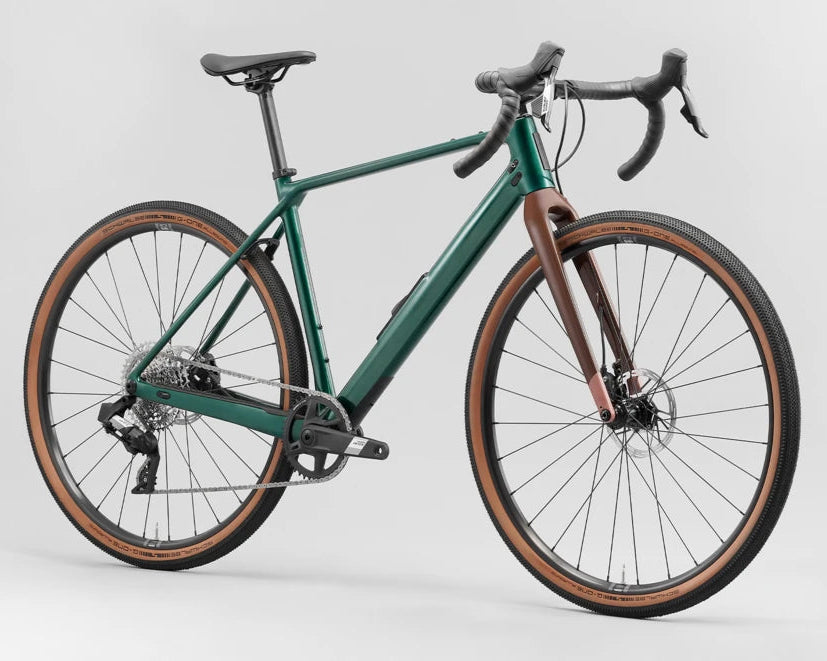

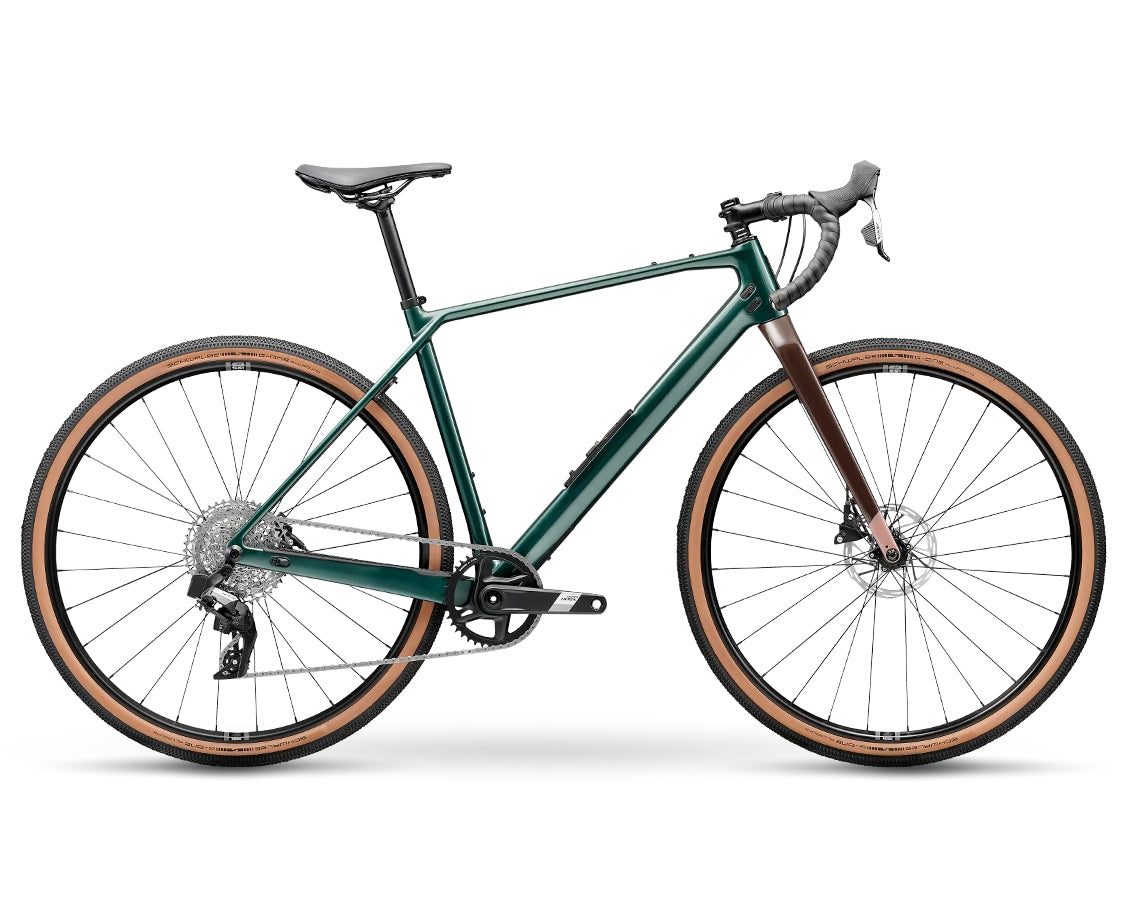

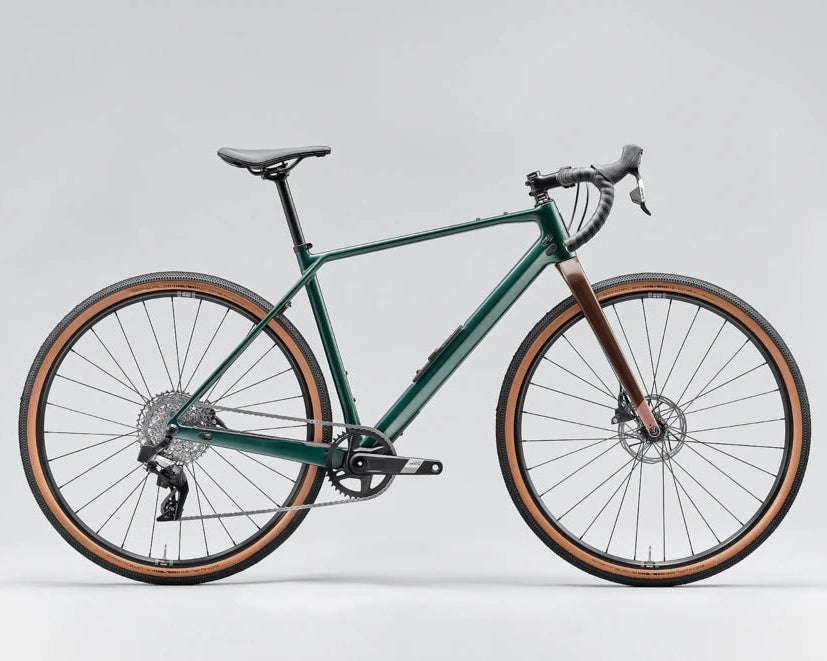

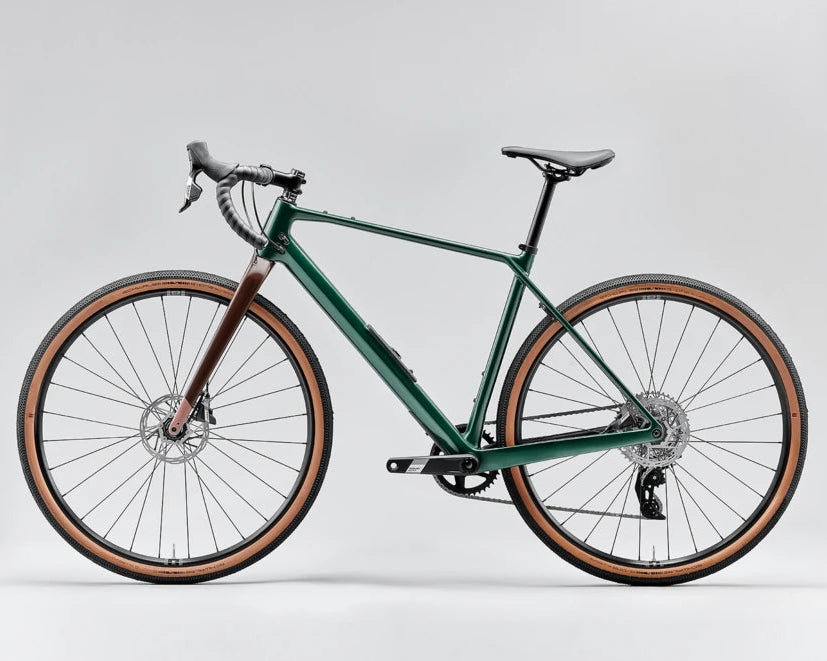

Norco Search C Apex XPLR (2025)

$5,29900
Colour: Agave
Size
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay

Sizing Chart

SIZE CHART

Size # Size Rider Height (ft/in) Rider Height (cm)
1 XS 5'1" – 5'5" 155 – 165 cm
2 S 5'4" – 5'8" 163 – 173 cm
3 M 5'7" – 5'11" 170 – 180 cm
4 L 5'10" – 6'2" 178 – 188 cm
5 XL 6'1" – 6'5" 185 – 196 cm



GEOMETRY

Specification Size 1 Size 2 Size 3 Size 4 Size 5
Horizontal Top Tube (mm) 539 559 583 608 633
Reach (mm) 385 400 415 430 445
Wheelbase (mm) 1037 1056 1082 1108 1132
Chainstay Length (mm) 425 425 427.5 430 430
Seat Tube Angle (°) 74.5 74.25 74.0 73.75 73.5
Seat Tube Length (mm) 440 475 510 545 580
Head Tube Angle (°) 69.5 69.5 69.5 69.5 69.5
Head Tube Length (mm) 100 110 135 160 185
Fork Offset (mm) 51 51 51 51 51
Bottom Bracket Drop (mm) 75 75 75 75 75
Stack (mm) 554 564 587 611 634
Recommended Rider Height 5′1″-5′5″ (155-165 cm) 5′4″-5′8″ (163-173 cm) 5′7″-5′11″ (170-180 cm) 5′10″-6′2″ (178-188 cm) 6′1″-6′5″ (185-196 cm)

Shipping Information

Certain bike brands cannot be shipped and are only available for Click and Collect.

These include but are not limited to the following brands: Giant, GT, Liv, Momentum and Mongoose.

For all other brands, we can provide a shipping quote to your postcode. Please contact us by email at staff@ivanhoecycles.com.au, or text us on 0417 122 950.

Fully assembled when you Click & Collect in-store
Buy Now, Pay Later with ZIP
Free service adjustment within first 6 months

A progressive, modern gravel bike.

The Norco Search C Apex XPLR features new-school gravel geo fit for a fast, lively, confident ride on any terrain. With a taller headtube, slacker head angle, and longer reach, it’s more stable on rough terrain and ready to tackle steeper grades with ease.

The updated, longer fork adds stability and the new geometry is compatible with suspension forks if you want to add some extra cushion. The frame is UDH compatible and supports fitments for all the latest wide range 1x drivetrain technologies.

Fully guided cable routing and a fully threaded BSA bottom bracket makes maintenance a breeze.

KEY FEATURES

  • Modern Gravel Geometry
  • Lightweight full carbon frame
  • SRAM Apex XPLR 12 Speed drivetrain
  • Tyre clearance up to 50c
  • Tubeless prepared
  • Full-coverage fender

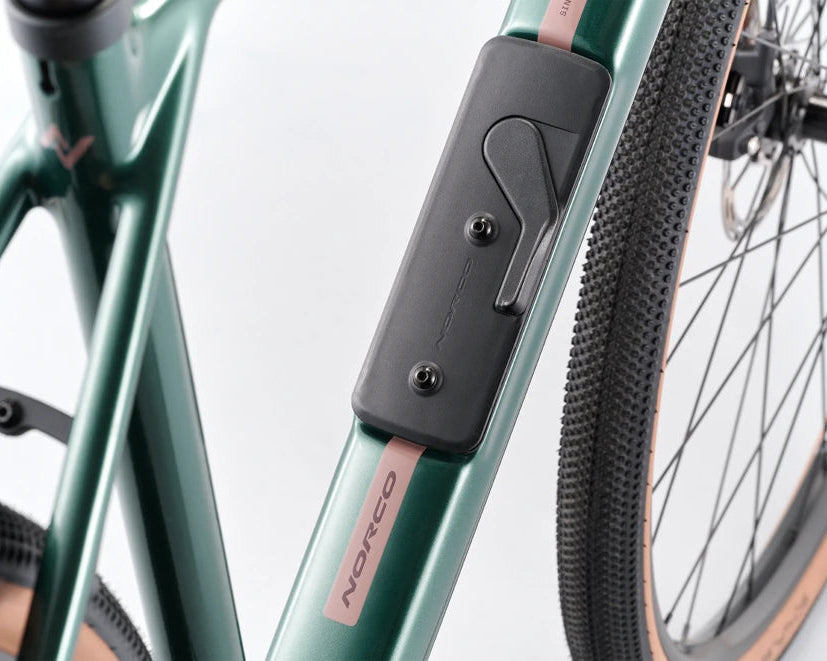

  • Downtube storage
  • Toptube bag mounts

SPECIFICATIONS

Frameset
Frame Search Carbon w/ DT Storage, UDH Compatible

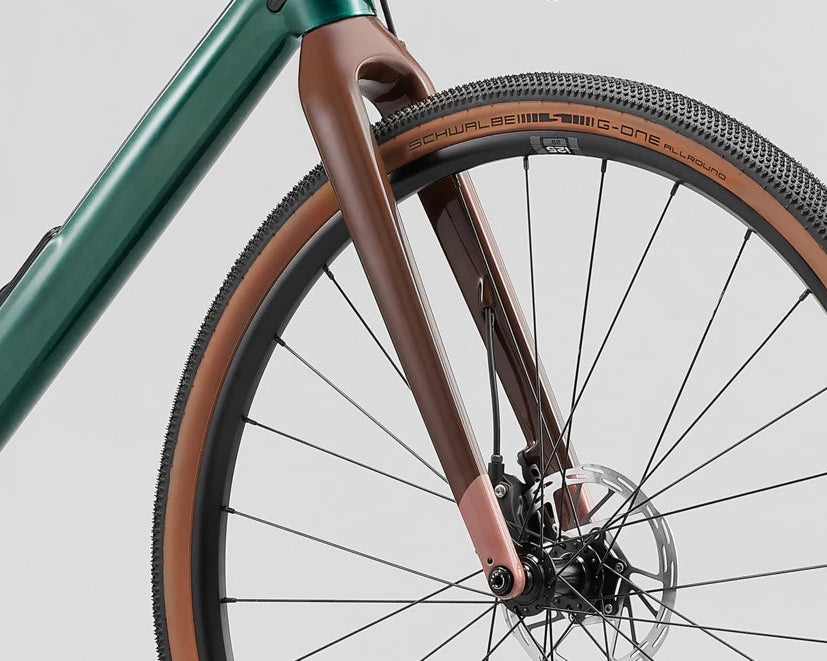

Fork Search Carbon, 51mm Offset, 12x100mm TA

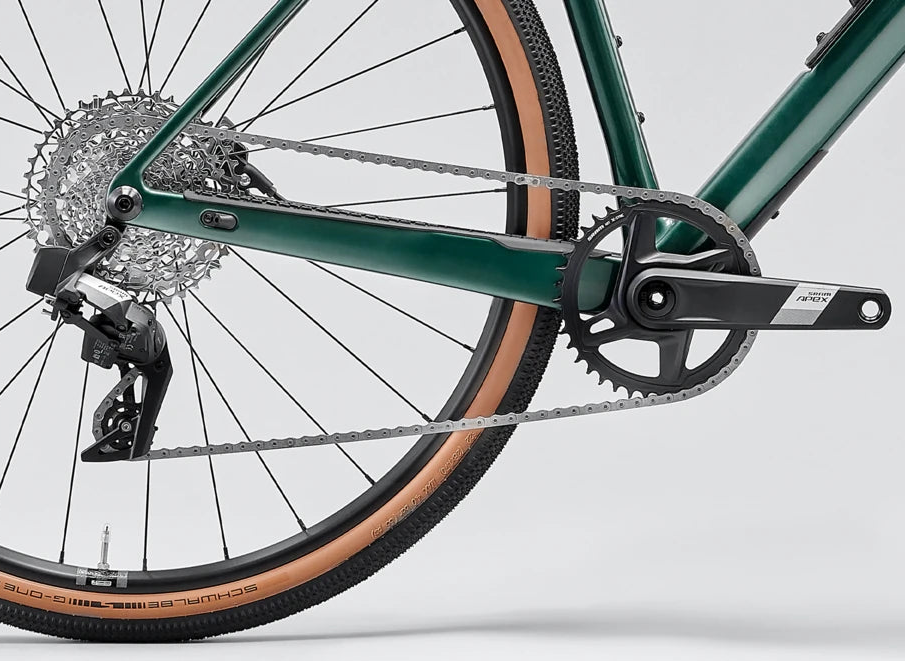

Drivetrain
Rear Shifter SRAM Apex AXS HRD Shift-Brake System
Rear Derailleur SRAM Apex XPLR AXS Rear Derailleur, 12sp
Front Shifter SRAM Apex AXS HRD Shift-Brake System
Crankset SRAM Apex D1 40T, 47.5CL, 170mm
Bottom Bracket SRAM Dub BSA 68 Road Wide
Cassette SRAM XPLR PG-1231, 11-44T, 12sp
Chain SRAM Apex, 118L
Brakes
Front Brake SRAM Apex AXS HRD Shift-Brake System
Front Brake Rotor SRAM Paceline, 160mm, C-lock
Rear Brake SRAM Apex AXS HRD Shift-Brake System
Rear Brake Rotor SRAM Paceline, 160mm, C-lock
Brake Levers SRAM Apex AXS HRD Shift-Brake System
Components

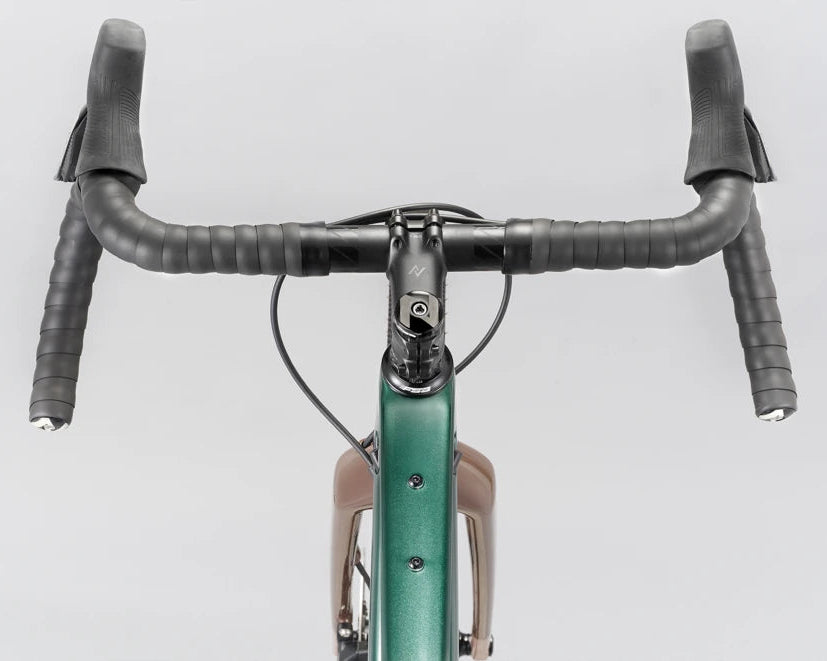

Handlebar Norco Super Flare Aluminum Compact, 40cm (S1,S2) - 42cm (S3) - 44cm (S4) - 46cm (S5), 16 Degree
Stem Norco SL Alloy 70mm Length, 31.8mm Clamp
Seatpost Norco Alloy, 27.2mm, 0Deg Offset, 350mm length
Headset FSA Integrated Sealed Bearings No. 42; Tapered 1-1/8" - 1.5" (IS42/28.6 | IS52/40)
Saddle Selle Royale SRX Gravel, 148mm
Grips Griptacular Shockproof Tape 3mm
Seatpost Clamp Norco Aluminum, 31.8mm ID
Wheels
Front Hub Shimano HB-TC500, 12x100mm, 28H
Rear Hub Shimano FH-TC500, 12x142mm, HG, 28H
Rims WTB Alloy ST i25 2.0, 28h, 25mm ID
Front Tire Schwalbe G-One All Round, Race Guard, 700x45c
Rear Tire Schwalbe G-One All Round, Race Guard, 700x45c
Spokes/Nipples Double Butted, Black Alloy
Valves WTB TCS Tubeless Valve, Brass
Sealant WTB TCS Tubeless Tire Sealant, 8oz/236ml
Rim Tape WTB TCS 2.0 Solid Strip
Weight
Weight 9.5 kg (20.9 lbs)
Weight Size S3
Additional Info
Accessories Norco Storage Bag - Ocean-X Water Resistant

Norco Search C Apex XPLR (2025)

$5,29900

Colour

Size

  • S1
  • S2
  • S3
  • S4
  • S5

Motor

N/A

Controller

N/A

Display

N/A

Battery

N/A

Charger

N/A

Sizes

N/A

Frame material

Carbon

Frame

Search Carbon w/ DT Storage, UDH Compatible

Fork

Search Carbon, 51mm Offset, 12x100mm TA

Handlebar

Norco Super Flare Aluminum Compact, 40cm (S1,S2) - 42cm (S3) - 44cm (S4) - 46cm (S5), 16 Degree

Grips

Griptacular Shockproof Tape 3mm

Bar Tape

N/A

Headset

FSA Integrated Sealed Bearings No. 42 ; Tapered 1-1/8" - 1.5" ( IS42/28.6 | IS52/40 )

Stem

Norco SL Alloy 70mm Length, 31.8mm Clamp

Seatpost

Norco Alloy, 27.2mm, 0Deg Offset, 350mm length // Clamp: Norco Aluminum, 31.8mm ID

Saddle

Selle Royale SRX Gravel, 148mm

Pedals

N/A

Shifters

SRAM Apex AXS HRD Shift-Brake System

Front Derailleur

N/A

Rear Derailleur

SRAM Apex XPLR AXS Rear Derailleur, 12sp

Brakes

SRAM Apex AXS HRD Shift-Brake System, SRAM Paceline, 160mm, Centerlock Rotor

Brake Levers

SRAM Apex AXS HRD Shift-Brake System

Cassette/Freewheel

SRAM XPLR PG-1231, 11-44T, 12sp

Chain

SRAM Apex, 118L

Crankset

SRAM Apex D1 40T, 47.5CL, 170mm

Bottom Bracket

SRAM Dub BSA 68 Road Wide

Rims

WTB Alloy ST i25 2.0, 28h, 25mm ID

Hubs

[F] Shimano HB-TC500, 12x100mm, 28H, [R] Shimano FH-TC500, 12x142mm, HG, 28H

Spokes

Double Butted, Black Alloy

Tyres

Schwalbe G-One All Round, Race Guard, 700x45c

Wheel Size

N/A

Extras

Tubeless Prepared with WTB TCS Tubeless Valve, Sealant and 2.0 Rim Tape
