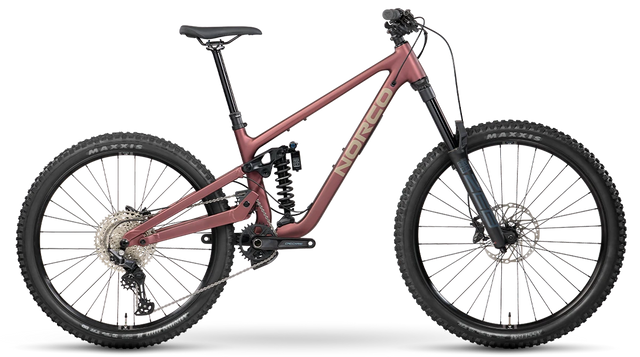

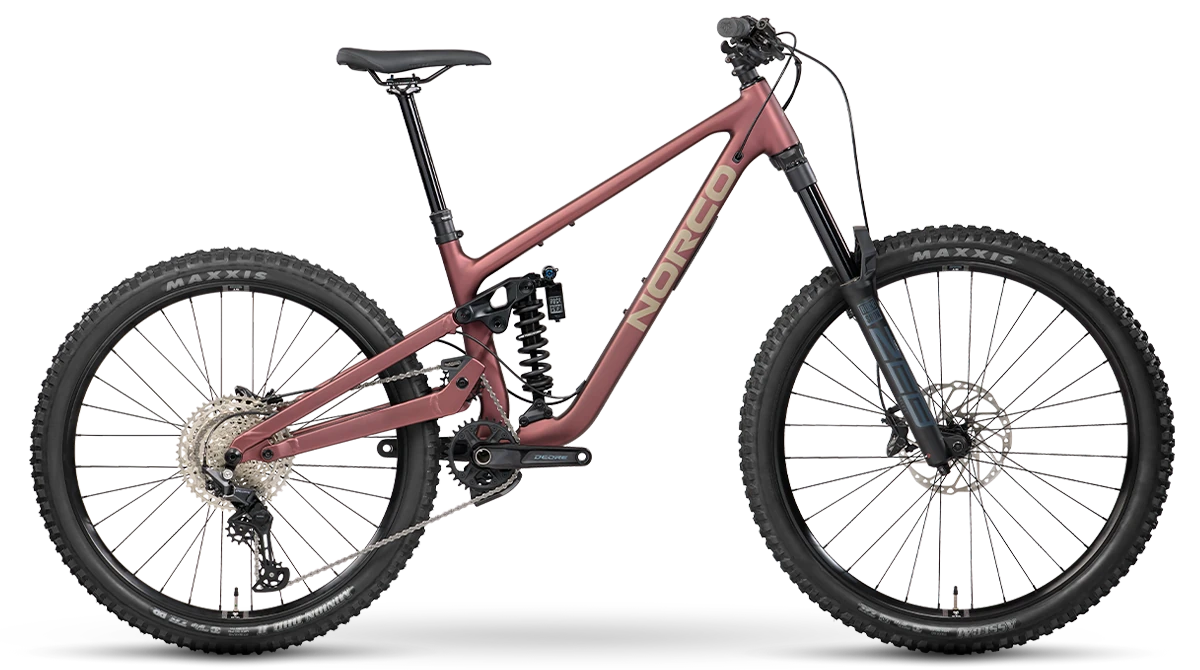

Norco Sight A2 (2026)
Norco Sight A2 (2026) - Matte Plum Purple / SZ2 : This product is available for backorder only. Will ship as soon as it is back in stock.
Couldn't load pickup availability
Sizing Chart
Sizing Chart
Sizing and Geometry
Norco Sight 2026+
Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.
| Size | Rider Height (cm) |
|---|---|
| S1 | 150-165cm |
| S2 | 162.5-172.5cm |
| S3 | 170-180cm |
| S4 | 177.5-187.5cm |
| S5 | 185-200cm |
Geometry
| Specification | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
|---|---|---|---|---|---|---|---|---|---|---|
| Wheel Size | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29" | 29" | 29" | 29" | 29" |
| Travel (Front/Rear mm) | 170 / 160 | |||||||||
| Reach (mm) | 416 | 441 | 466 | 491 | 516 | 416 | 441 | 491 | 466 | 516 |
| Stack (mm) | 622 | 631 | 640 | 650 | 659 | 622 | 631 | 650 | 640 | 659 |
| Head Tube Angle (°) | 63.5 | |||||||||
| Fork Offset (mm) | 44 | |||||||||
| Seat Tube Length (mm) | 350 | 370 | 385 | 430 | 445 | 350 | 370 | 430 | 385 | 445 |
| Effective Seat Tube Angle (°) | 76.25 | 76.50 | 77.00 | 77.25 | 77.50 | 76.25 | 76.50 | 77.25 | 77.00 | 77.50 |
| Rear Centre Length (mm) | 420 | 424 | 428 | 432 | 436 | 426 | 430 | 438 | 434 | 442 |
| Bottom Bracket Drop (Front/Rear mm) | 20.5 / 0 | 20.5 / 20.5 | ||||||||
| Bottom Bracket Height (mm) | 353 | |||||||||
| Horizontal Top Tube (mm) | 567 | 591 | 615 | 639 | 663 | 567 | 591 | 639 | 615 | 663 |
| Wheelbase (mm) | 1187 | 1220 | 1253 | 1287 | 1320 | 1192 | 1225 | 1292 | 1259 | 1326 |
| Standover (mm) | 671 | 685 | 694 | 715 | 725 | 671 | 685 | 715 | 694 | 725 |
| Head Tube Length (mm) | 105 | 115 | 125 | 135 | 145 | 105 | 115 | 135 | 125 | 145 |
| Trail (mm) | 140 | |||||||||
| Recommended Seatpost Drop (mm) | 150 | 170 | 200 | 230 | 150 | 170 | 200 | 230 | ||
| Maximum Post Insertion (mm) | 250 | 270 | 300 | 330 | 250 | 270 | 300 | 330 | ||
| Stem Length (mm) | 40 | |||||||||
| Crank Length (mm) | 170 | |||||||||
| Tyre Size | 2.35" – 2.6" | |||||||||
| Water Bottle Compatibility | 1 × 750 mL | |||||||||
Shipping Information
Shipping Information
This product:
Shipping available†
We offer shipping on select brands including: Rocky Mountain, Orbea, XDS, Icon, Jamis, Shogun, Schwinn, BYK, Kidvelo. These bikes are shipped unbuilt in their original box.
†Only bikes stocked at our Warehouse location are available for shipping.
Shipping upon request to your local bike shop
Some brands require the bike is delivered directly to a bicycle shop or mechanic for assembly, and shipping is not available to your residence. These include GT, Cannondale, .
Request a shipping quote to proceed.
Pickup in-store only
Certain bike brands cannot be shipped and are only available for Click and Collect or purchase in-store.
These include but are not limited to the following brands: Giant, Norco, Liv, Momentum, Malvern Star and Mongoose.
Pre-assembled bikes
†Any bikes in stock at our Heidelberg Heights, Hallam or Hoppers Crossing store locations are already fully assembled, and therefore only available for Click and Collect or purchase in-store.
Sizing and Geometry
Norco Sight 2026+
Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.
| Size | Rider Height (cm) |
|---|---|
| S1 | 150-165cm |
| S2 | 162.5-172.5cm |
| S3 | 170-180cm |
| S4 | 177.5-187.5cm |
| S5 | 185-200cm |
Geometry
| Specification | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
|---|---|---|---|---|---|---|---|---|---|---|
| Wheel Size | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29" | 29" | 29" | 29" | 29" |
| Travel (Front/Rear mm) | 170 / 160 | |||||||||
| Reach (mm) | 416 | 441 | 466 | 491 | 516 | 416 | 441 | 491 | 466 | 516 |
| Stack (mm) | 622 | 631 | 640 | 650 | 659 | 622 | 631 | 650 | 640 | 659 |
| Head Tube Angle (°) | 63.5 | |||||||||
| Fork Offset (mm) | 44 | |||||||||
| Seat Tube Length (mm) | 350 | 370 | 385 | 430 | 445 | 350 | 370 | 430 | 385 | 445 |
| Effective Seat Tube Angle (°) | 76.25 | 76.50 | 77.00 | 77.25 | 77.50 | 76.25 | 76.50 | 77.25 | 77.00 | 77.50 |
| Rear Centre Length (mm) | 420 | 424 | 428 | 432 | 436 | 426 | 430 | 438 | 434 | 442 |
| Bottom Bracket Drop (Front/Rear mm) | 20.5 / 0 | 20.5 / 20.5 | ||||||||
| Bottom Bracket Height (mm) | 353 | |||||||||
| Horizontal Top Tube (mm) | 567 | 591 | 615 | 639 | 663 | 567 | 591 | 639 | 615 | 663 |
| Wheelbase (mm) | 1187 | 1220 | 1253 | 1287 | 1320 | 1192 | 1225 | 1292 | 1259 | 1326 |
| Standover (mm) | 671 | 685 | 694 | 715 | 725 | 671 | 685 | 715 | 694 | 725 |
| Head Tube Length (mm) | 105 | 115 | 125 | 135 | 145 | 105 | 115 | 135 | 125 | 145 |
| Trail (mm) | 140 | |||||||||
| Recommended Seatpost Drop (mm) | 150 | 170 | 200 | 230 | 150 | 170 | 200 | 230 | ||
| Maximum Post Insertion (mm) | 250 | 270 | 300 | 330 | 250 | 270 | 300 | 330 | ||
| Stem Length (mm) | 40 | |||||||||
| Crank Length (mm) | 170 | |||||||||
| Tyre Size | 2.35" – 2.6" | |||||||||
| Water Bottle Compatibility | 1 × 750 mL | |||||||||

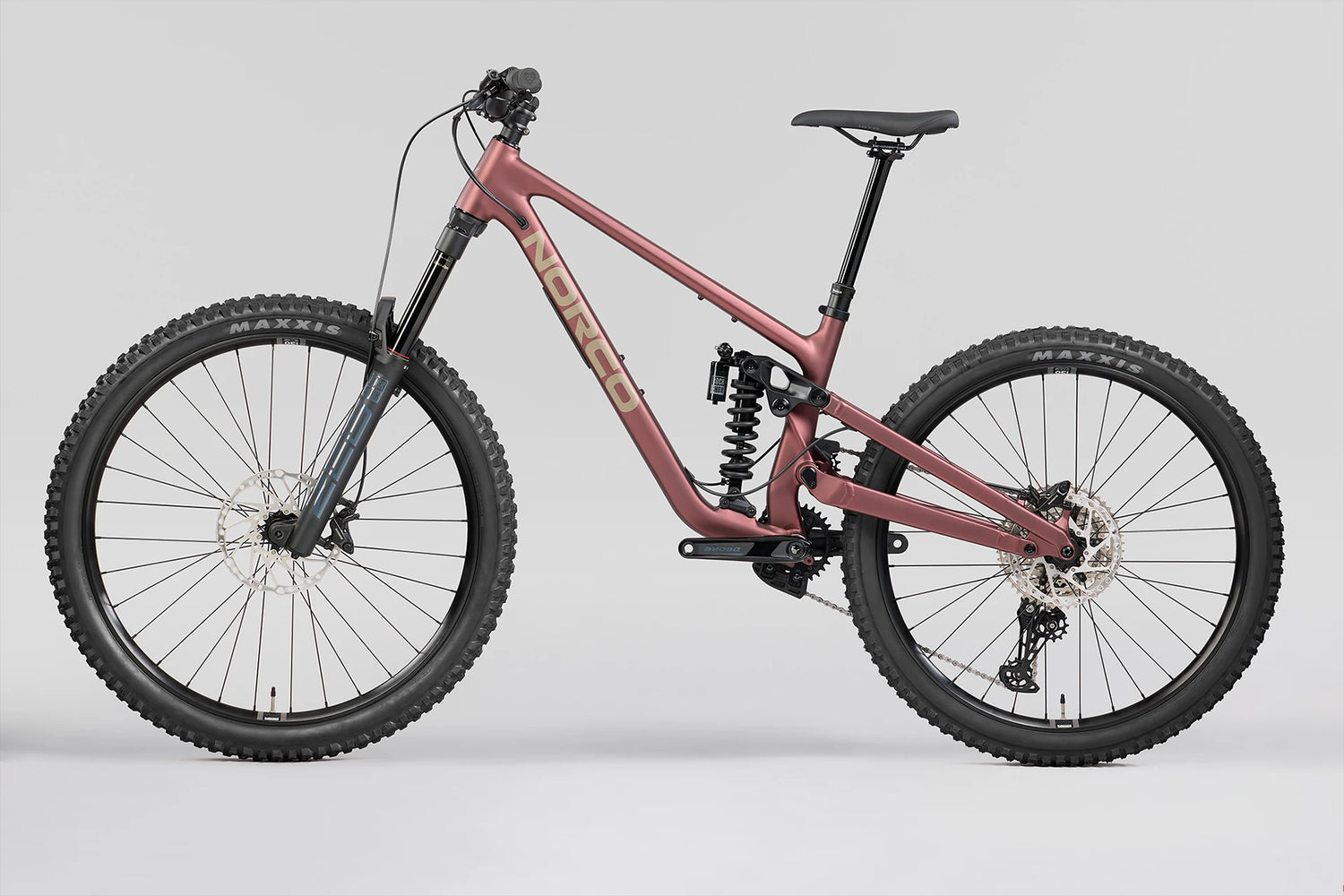

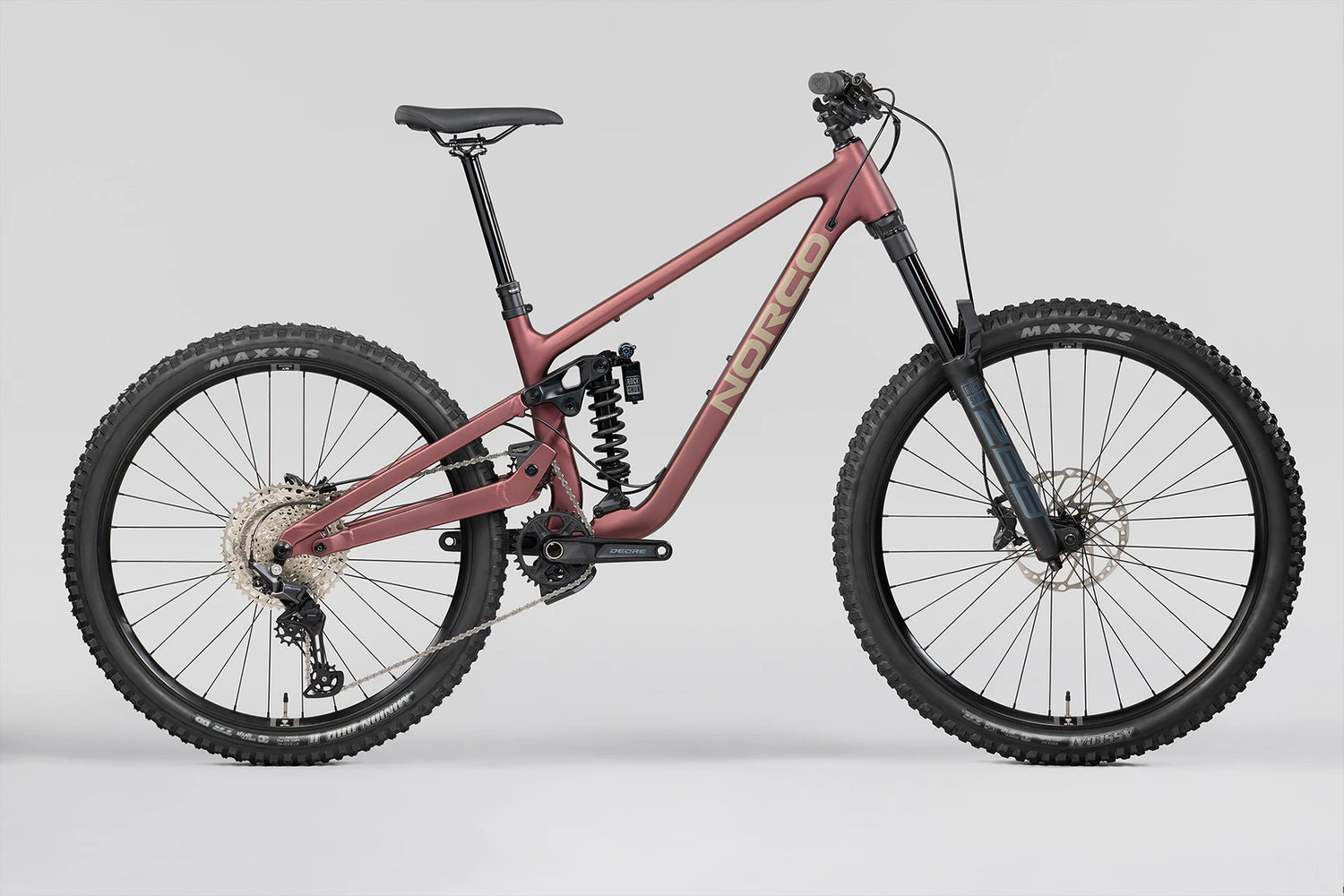

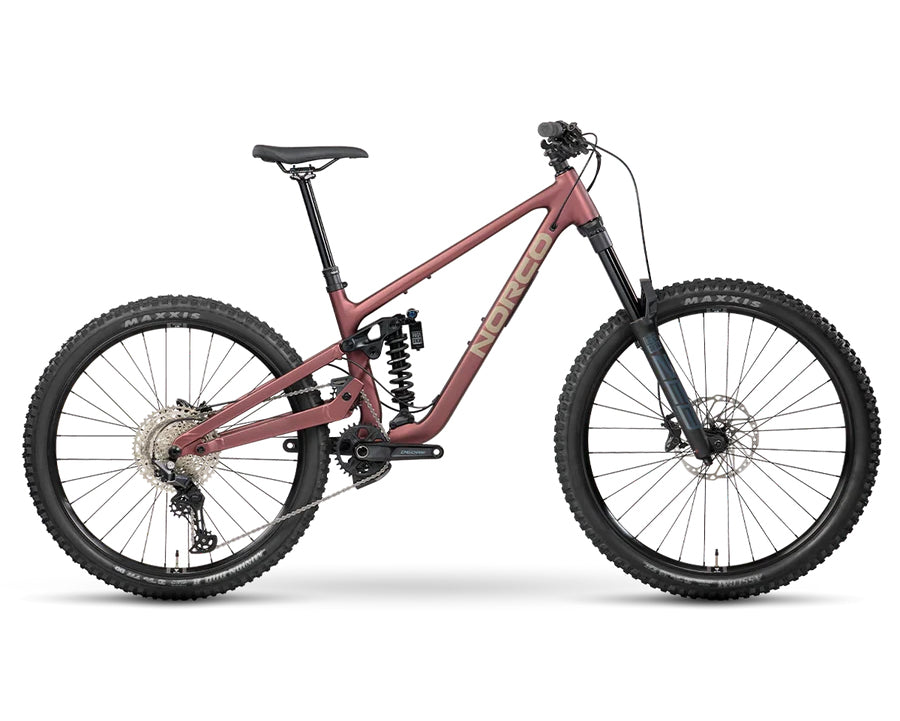

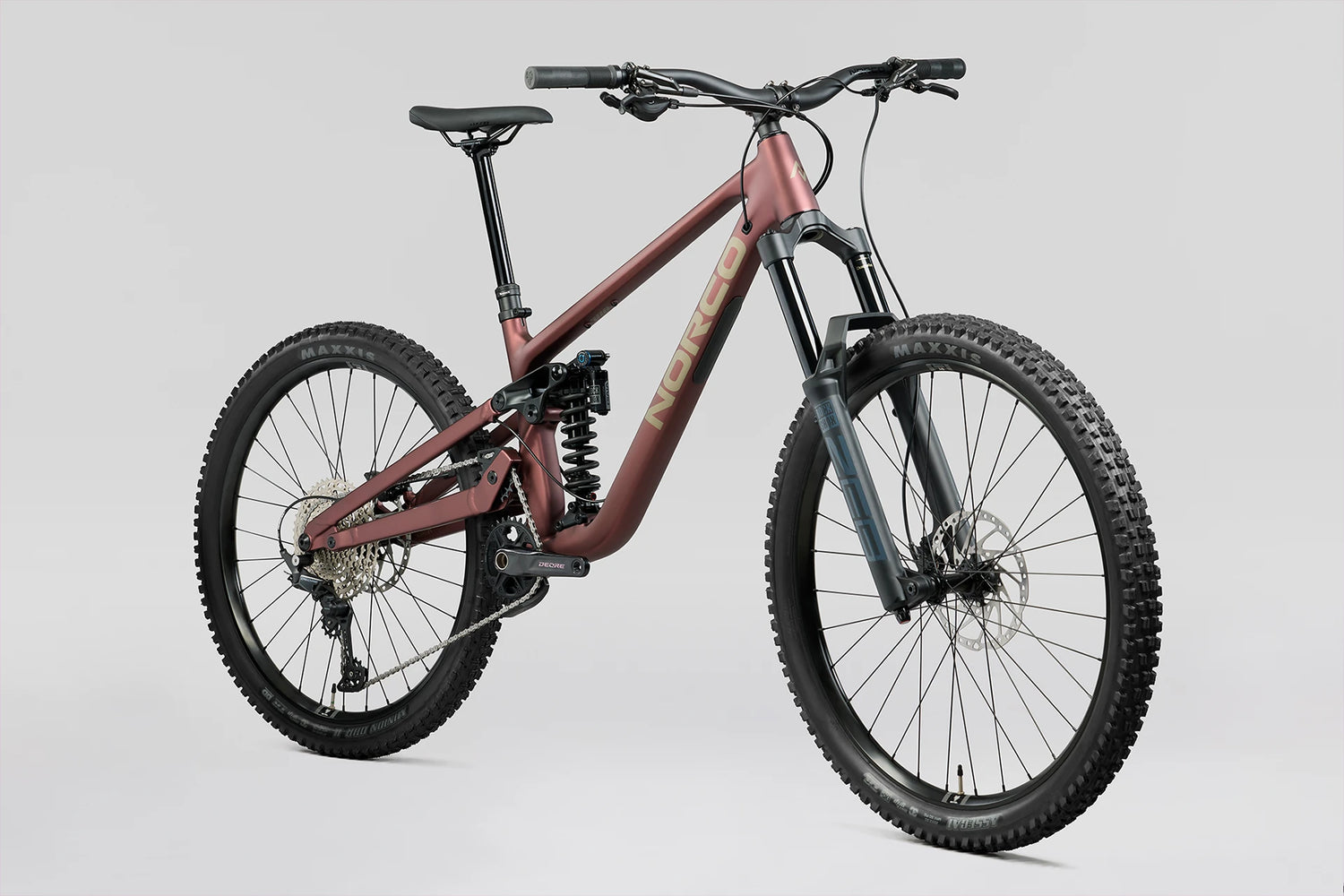

Norco Sight A2 (2026)
The Sight 160 is next level - big travel, big spec, and ready for big mountain riding.
Whether you're out racing an Enduro or love going fast on technical trails, this is your bike to blow through the chunder.
Inspired by the gnarliest trails in the backwoods of BC, built for riders living in areas where the terrain demands more out of the bike they ride.
An all-round beefier build to handle everything you throw down.

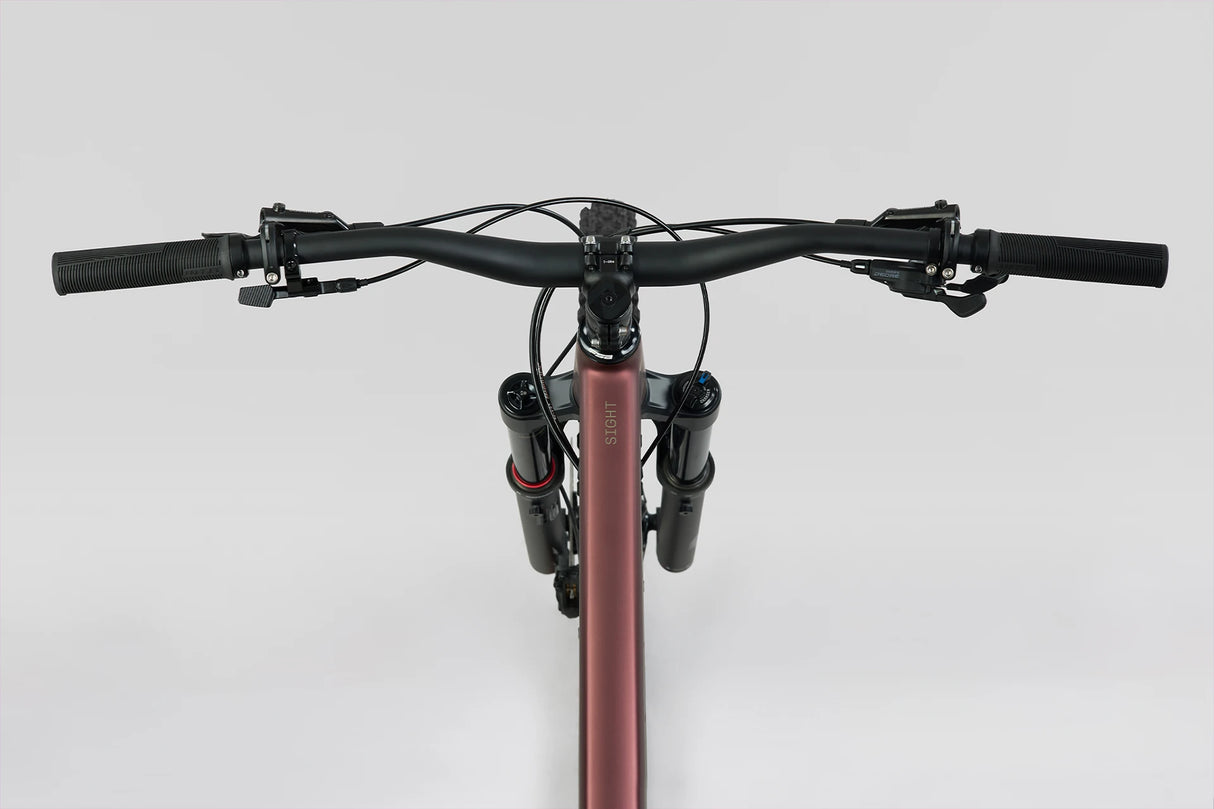

We've stepped up on spec to help you handle more; a 30mm rise bar, big name brakes with metallic pads, Double Down rear tyre casing, and coil rear shock to ride hard.
- 170mm/160mm travel for BC-inspired trails.
- Downhill oriented geometry, with efficient pedalling.
- Burly, high-quality components that can handle it all.
- Balanced weight distribution for top-of-class ride feel across sizes.
- VPSHP Suspension Platform.
- Built to accommodate rider preference in wheel size.
- Ride Aligned™ - Perfect fit, dialled handling and personalised setup in minutes.
- No Other Way Limited Lifetime Warranty.
VPSHP Suspension Platform
Designed around Norco’s VPSHP (Virtual Pivot Suspension | High Pivot) suspension layout, it increases rearward axle path to improve suspension performance in technical terrain, while retaining the dynamic and responsive feel that riders expect from a do-it-all All-Mountain bike.
With 160/150mm of travel, the 2026 Sight takes the best of the Range platform and has tightened it up into a light, pedal friendly, manoeuvrable, high-pivot package.

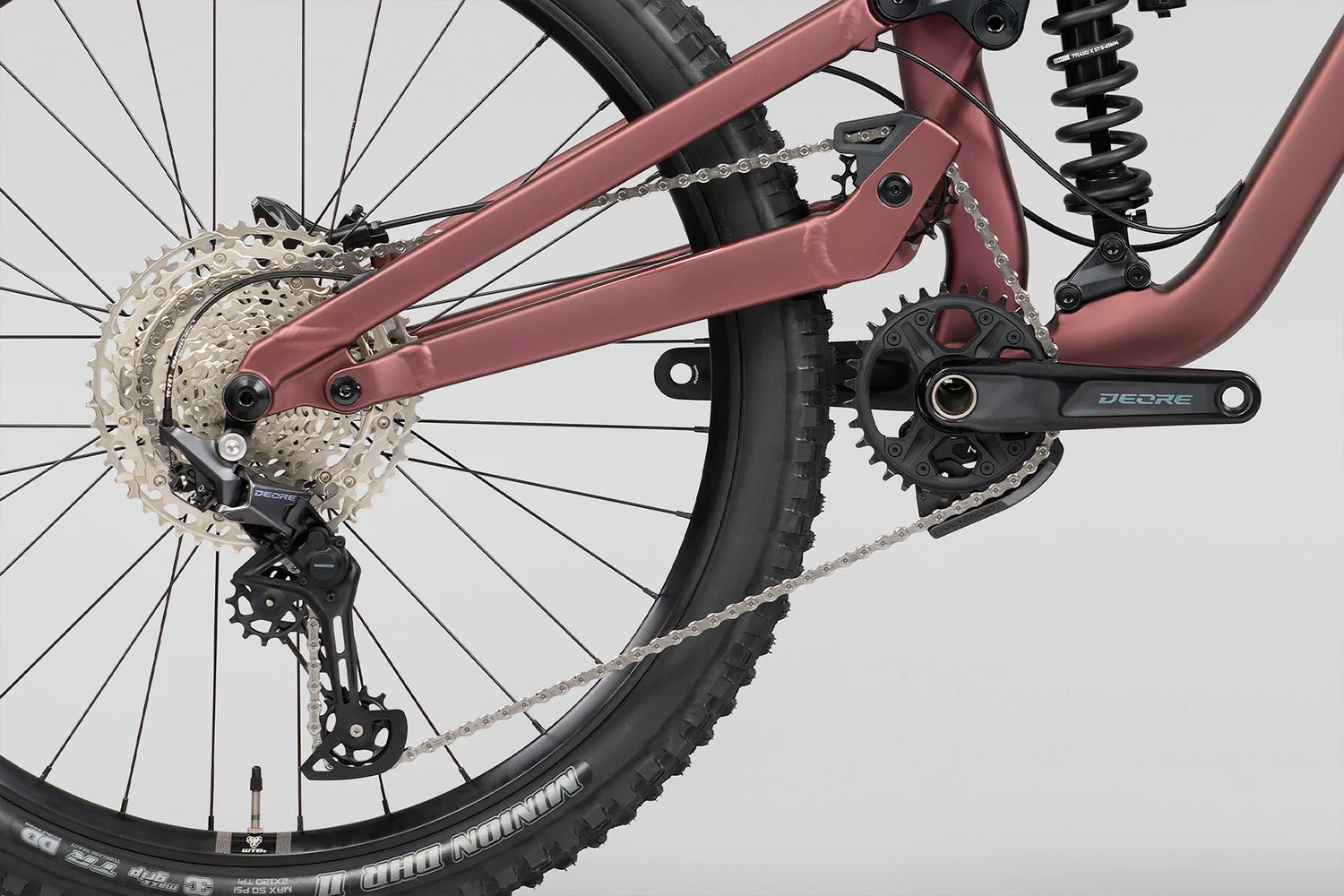

Through extensive testing using an i-track configured idler location, anti-squat has been tuned for efficiency and responsive feel under power. The idler mounted to the chainstay manages chain growth and pedal-kickback.
Swapping the linkarm and lower shock mount with our “Missing Link Kit” converts between 29” and 27.5” to let you pick the wheel-size that suits you best, while maintaining geometry and kinematics to ensure consistent fit and bike setup.
Enduro
Downhill oriented geometry, with efficient pedalling.
Sight 160 features a slacker head-tube angle and a slightly taller bottom bracket than our standard Sight geometry to accommodate all the G's you push and obstacles you roll.
Consistent Across Sizes
Balanced weight distribution for top-of-class ride feel across sizes.
Stabilised rear centres with proportional rear ends, and seat tube angles that steepen from S1 to S5, ensure consistent rider weight distribution. Shorter seat tubes with long dropper posts keep the saddle out of the way on technical descents the Sight is known for.
-
Frame material
-
Frame
-

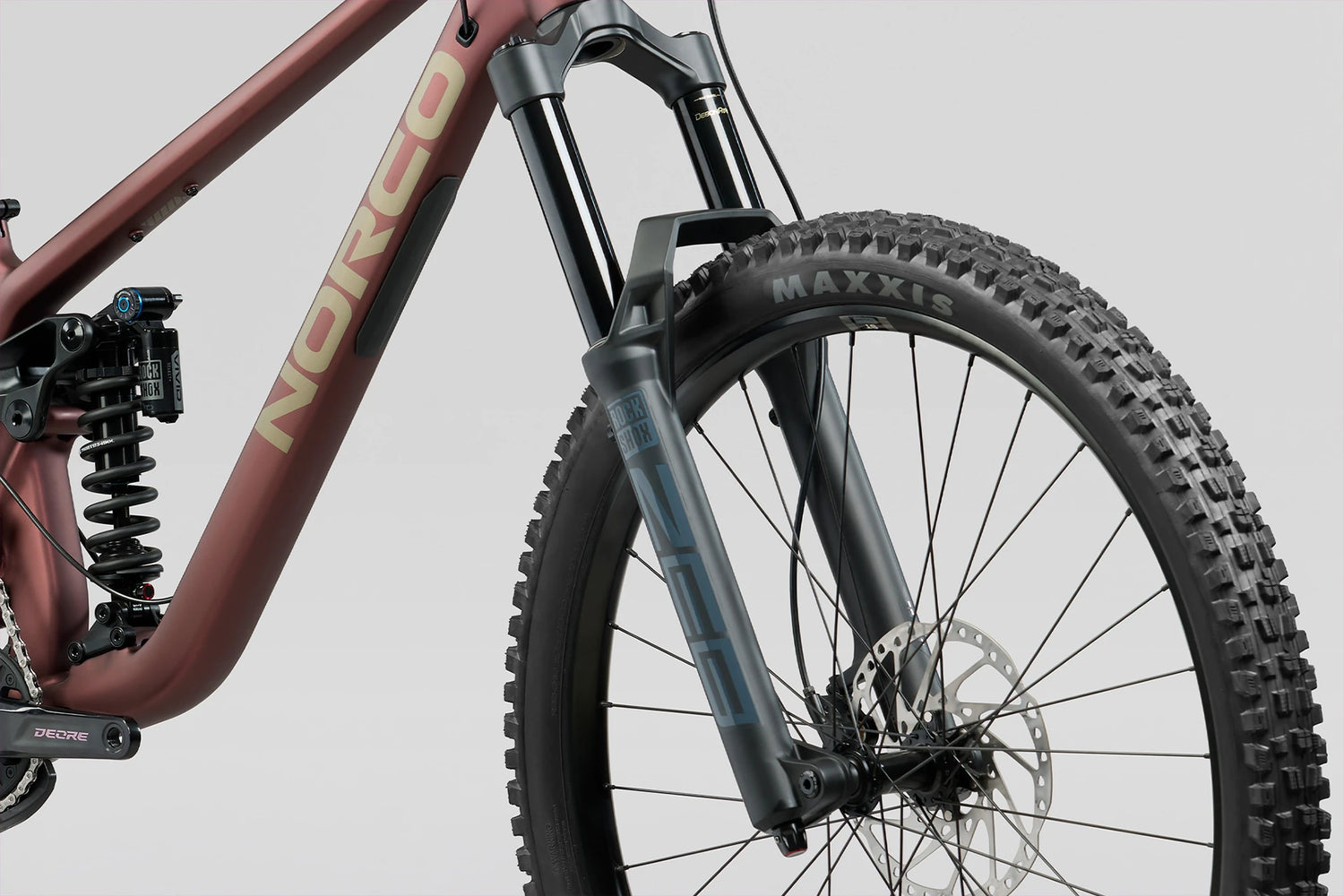

Fork
-
Shock
-

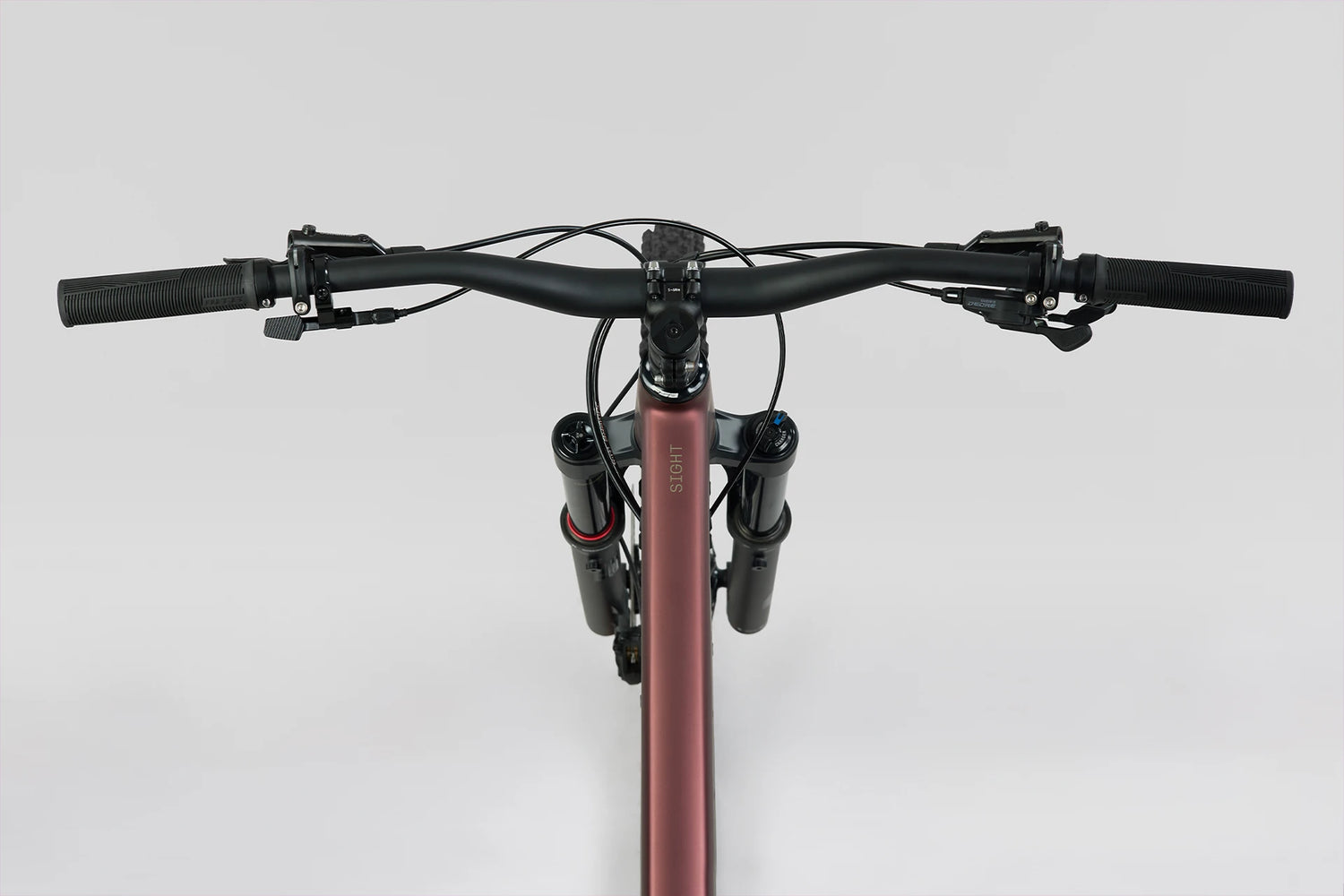

Handlebar
-
Grips
-
Headset
-
Stem
-
Seatpost
-
Saddle
-
Pedals
-
Shifters
-
Rear Derailleur
-
Brakes
-
Brake Levers
-
Cassette/Freewheel
-
Chain
-
Crankset
-
Bottom Bracket
-
Rims
-
Hubs
-
Spokes
-
Tyres
-
Extras
-
Notes
-
Compatible Bike Type
-
Speeds (rear)12 Speed
-
DisciplineMountain
-
SKUsMatte Plum Purple/SZ2: 058817741418, Matte Plum Purple/S1: 058817741401
