Norco  |  SKU: 058817739507

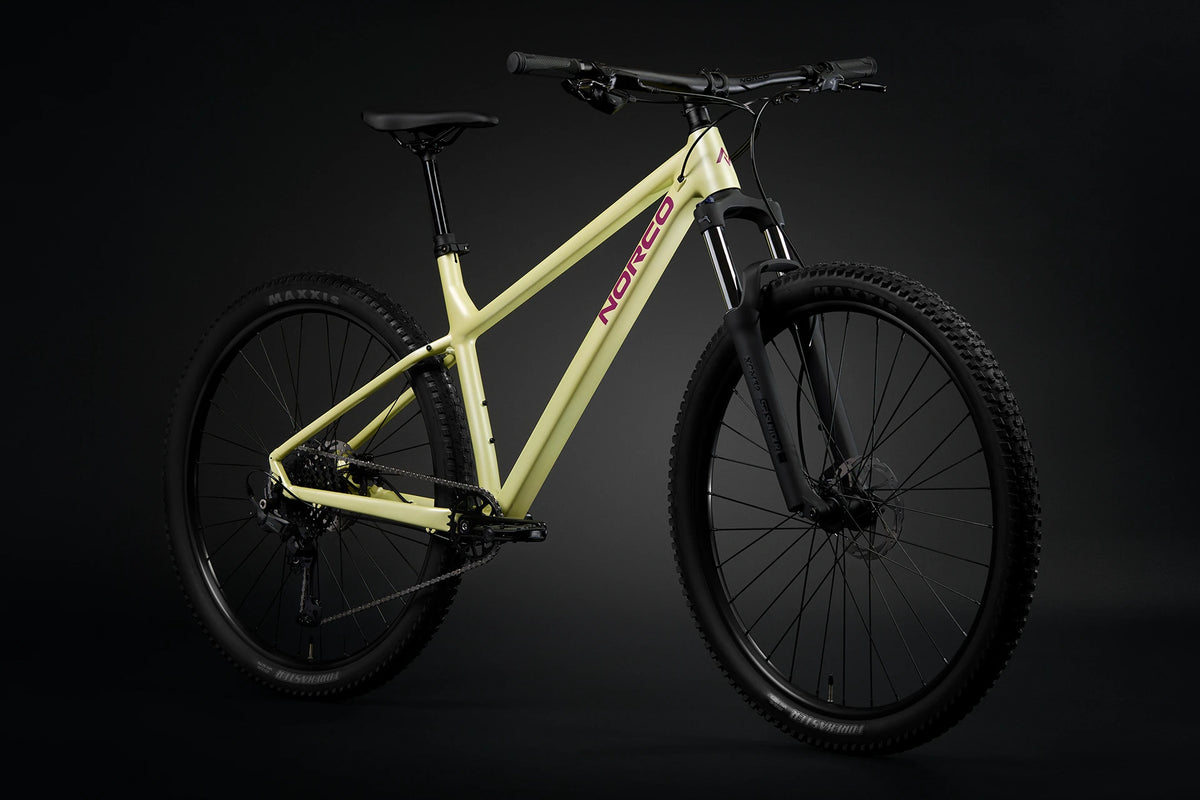

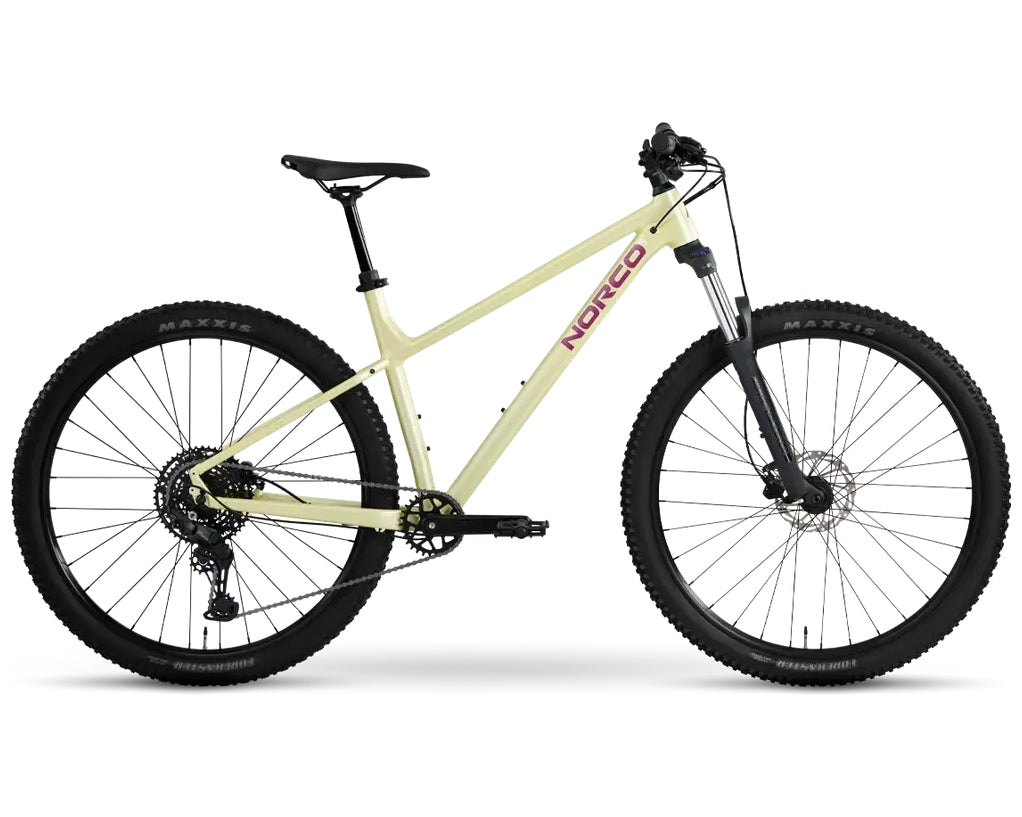

Norco Storm 120 (2026)

$1,29900
  • Lightweight aluminium frame with smooth welds and a tapered head tube
  • SR Suntour XCM32 LO suspension fork with 120mm travel and lockout
  • Shimano CUES 10-speed drivetrain
  • Tektro hydraulic disc brakes
  • Maxxis Forekaster 2.35" tyres on 27.5" (Small) or 29" (Medium-XXL) rims
Colour: Vanilla
Size
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay

Sizing Chart

SIZING CHART

Frame Size Rider Height (ft/in) Rider Height (cm)
S 5'1" – 5'4" 155 – 165 cm
M 5'5" – 5'8" 166 – 175 cm
L 5'9" – 5'11" 176 – 183 cm
XL 6'0" – 6'2" 184 – 190 cm
XXL 6'3" – 6'7" 191 – 200 cm


This sizing chart has been provided as a guide only to help narrow down your frame size. We recommend visiting us instore for a test ride.



GEOMETRY

Geometry 27.5" 29" M 29" L 29" XL 29" XXL
Travel (mm front) 120 120 120 120 120
Reach 410 440 470 500 530
Stack 608 628 637 646 655
Head Tube Angle 67° 67° 67° 67° 67°
Fork Offset 42 46 46 46 46
Seat Tube Length 430 470 510 550 590
Effective Seat Tube Angle 74.5° 74.75° 75° 75.25° 75.5°
Rear Centre Length 430 440 440 440 440
Bottom Bracket Drop 32 52 52 52 52
Bottom Bracket Height 321 321 321 321 321
Horizontal Top Tube 579 611 641 670 699
Wheelbase 1129 1171 1205 1239 1273
Standover 646 671 718 738 769
Head Tube Length 125 105 115 125 135
Trail 104 108 108 108 108
Recommended Seatpost Drop 100 100 100 100 100
Maximum Post Insertion 300 265 300 340 380
Stem Length 50 50 50 50 50
Crank Length 170 170 175 175 175
Tire Size 2.2" – 2.4" 2.2" – 2.4" 2.2" – 2.4" 2.2" – 2.4" 2.2" – 2.4"
Water Bottle Compatible 1 × 620 mL 1 × 620 mL and 1 × 750 mL 2 × 750 mL 2 × 750 mL 2 × 750 mL

Shipping Information

This product:

Shipping available†

We offer shipping on select brands including: Rocky Mountain, Orbea, XDS, Icon, Jamis, Shogun, Schwinn, BYK, Kidvelo. These bikes are shipped unbuilt in their original box.

†Only bikes stocked at our Warehouse location are available for shipping.

Shipping upon request to your local bike shop

Some brands require the bike is delivered directly to a bicycle shop or mechanic for assembly, and shipping is not available to your residence. These include GT, Cannondale, .

Request a shipping quote to proceed.

Pickup in-store only

Certain bike brands cannot be shipped and are only available for Click and Collect or purchase in-store.

These include but are not limited to the following brands: Giant, Norco, Liv, Momentum, Malvern Star and Mongoose.

Pre-assembled bikes

†Any bikes in stock at our Heidelberg Heights, Hallam or Hoppers Crossing store locations are already fully assembled, and therefore only available for Click and Collect or purchase in-store.

Fully assembled when you Click & Collect
Buy Now, Pay Later with ZIP
Free service adjustment in first 6 months

The Norco Storm 120 is a versatile hardtail mountain bike designed for off-road adventure and everyday riding. Its lightweight aluminium frame, 120mm suspension fork and confident trail geometry deliver comfort and control across varied terrain, while Shimano CUES 10-speed gearing makes climbing easier. With hydraulic disc brakes, grippy Maxxis Forekaster tyres and an X-Fusion dropper seatpost, it’s ready for everything from local trails to park paths and city streets.

Key Features

  • Lightweight aluminium frame with smooth welds and a tapered head tube
  • SR Suntour XCM32 LO suspension fork with 120mm travel and lockout
  • Shimano CUES 10-speed drivetrain with a wide-range 11–48T cassette
  • Tektro hydraulic disc brakes with 160mm rotors for reliable stopping power
  • Maxxis Forekaster 2.35" tyres for dependable grip on varied terrain
  • X-Fusion Manic dropper seatpost for quick saddle height adjustment
  • Wide 6061 alloy handlebar for improved control and stability
  • Durable alloy rims with 27mm internal width and stainless steel spokes
  • Size-specific wheel options, with 27.5" wheels on Small and 29" wheels on Medium to XXL

SPECIFICATIONS

Frame Aluminum, Smooth Welding, 10x135mm QR, Tapered Head Tube
Fork SR Suntour XCM32 LO with Lockout, 120mm Travel, 46mm Offset, 15x100mm
Rear Shifter Shimano CUES SL-U6000-10R, 10-speed
Rear Derailleur Shimano CUES RD-U6000, GS, 10-speed
Crankset Prowheel Alloy, 30T, 170mm (S-M), 175mm (L-XXL)
Bottom Bracket Cartridge, ST 73mm, 113mm Axle Length
Cassette Shimano CUES CS-LG300-10, 11-48T, 10-speed
Chain KMC CUES XGlide 9/10/11
Front Brake Tektro HD-M275, Resin Pads
Front Brake Rotor Tektro, 160mm, 6-Bolt
Rear Brake Tektro HD-M275, Resin Pads
Rear Brake Rotor Tektro, 160mm, 6-Bolt
Brake Levers Tektro HD-M275
Handlebar 6061 Alloy Double Butted, 750mm (S) / 780mm (M, L, XL, XXL), 30mm Rise
Stem Alloy, 50mm Length, 31.8mm Clamp
Seatpost X-Fusion Manic LC, 31.6mm, 100mm (S), 125mm (M, L, XL, XXL)
Headset Sealed Cartridge Bearings, Tapered 1-1/8" - 1.5" (IS42/28.6 | IS52/40)
Headset Spacer 3 × 10mm
Saddle Norco XC, Steel Rails
Grips DDK Lock-On, 139mm Length
Pedals Nylon Flat Pedals
Seatpost Clamp Norco Alloy Bolted, 34.9mm ID
Front Hub Formula DC51, 15x100mm, 32H, 6-Bolt
Rear Hub Formula DC-1422, 10x135mm QR, HG, 32H, 6-Bolt
Rims DP 27 Rims, 27mm Internal Width, 32H
Front Tire Maxxis Forekaster, 29x2.35" (27.5x2.35" on Size S), Wire Bead
Rear Tire Maxxis Forekaster, 29x2.35" (27.5x2.35" on Size S), Wire Bead
Spokes/Nipples Stainless Steel, 14G
Weight 14.59kg (32.1lbs) - Size L



Norco Storm 120 (2026)

$1,29900

Colour

Size

  • S
  • M
  • L
  • XL
  • 2XL

Motor

N/A

Controller

N/A

Display

N/A

Battery

N/A

Charger

N/A

Sizes

N/A

Frame material

Aluminium

Frame

Aluminum, Smooth Welding, 10x135mm QR, Tapered Head Tube

Fork

SR Suntour XCM32 LO with Lockout, 120mm Travel, 46mm Offset, 15x100mm

Handlebar

6061 Alloy Double Butted, 750mm (S) / 780mm (M, L, XL, XXL), 30mm Rise

Grips

DDK Lock-On, 139mm Length

Bar Tape

N/A

Headset

Sealed Cartridge Bearings, Tapered 1-1/8" - 1.5" (IS42/28.6 | IS52/40), Spacer: 3 x 10mm

Stem

Alloy, 50mm Length, 31.8mm Clamp

Seatpost

X-Fusion Manic LC, 31.6mm, 100mm (S), 125mm (M, L, XL, XXL), Clamp: Norco Alloy Bolted, 34.9mm ID

Saddle

Norco XC, Steel Rails

Pedals

Platform

Shifters

Shimano CUES SL-U6000-10R, 10-speed

Front Derailleur

N/A

Rear Derailleur

Shimano CUES RD-U6000, GS, 10-speed

Brakes

Tektro HD-M275, Resin Pads | Rotor: Tektro, 160mm, 6-Bolt

Brake Levers

Tektro HD-M275

Cassette/Freewheel

Shimano CUES CS-LG300-10, 11-48T, 10-speed

Chain

KMC CUES XGlide 9/10/11

Crankset

Prowheel Alloy, 30T, 170mm (S-M), 175mm (L-XXL)

Bottom Bracket

Cartridge, ST 73mm, 113mm Axle Length

Rims

DP 27 Rims, 27mm Internal Width, 32H

Hubs

[F] Formula DC51, 15x100mm, 32H, 6-Bolt [R] Formula DC-1422, 10x135mm QR, HG, 32H, 6-Bolt

Spokes

Stainless Steel, 14G

Tyres

Maxxis Forekaster, 29x2.35" (27.5x2.35" on Size S), Wire Bead

Wheel Size

N/A

Extras

N/A
