Norco  |  SKU: 058817732218

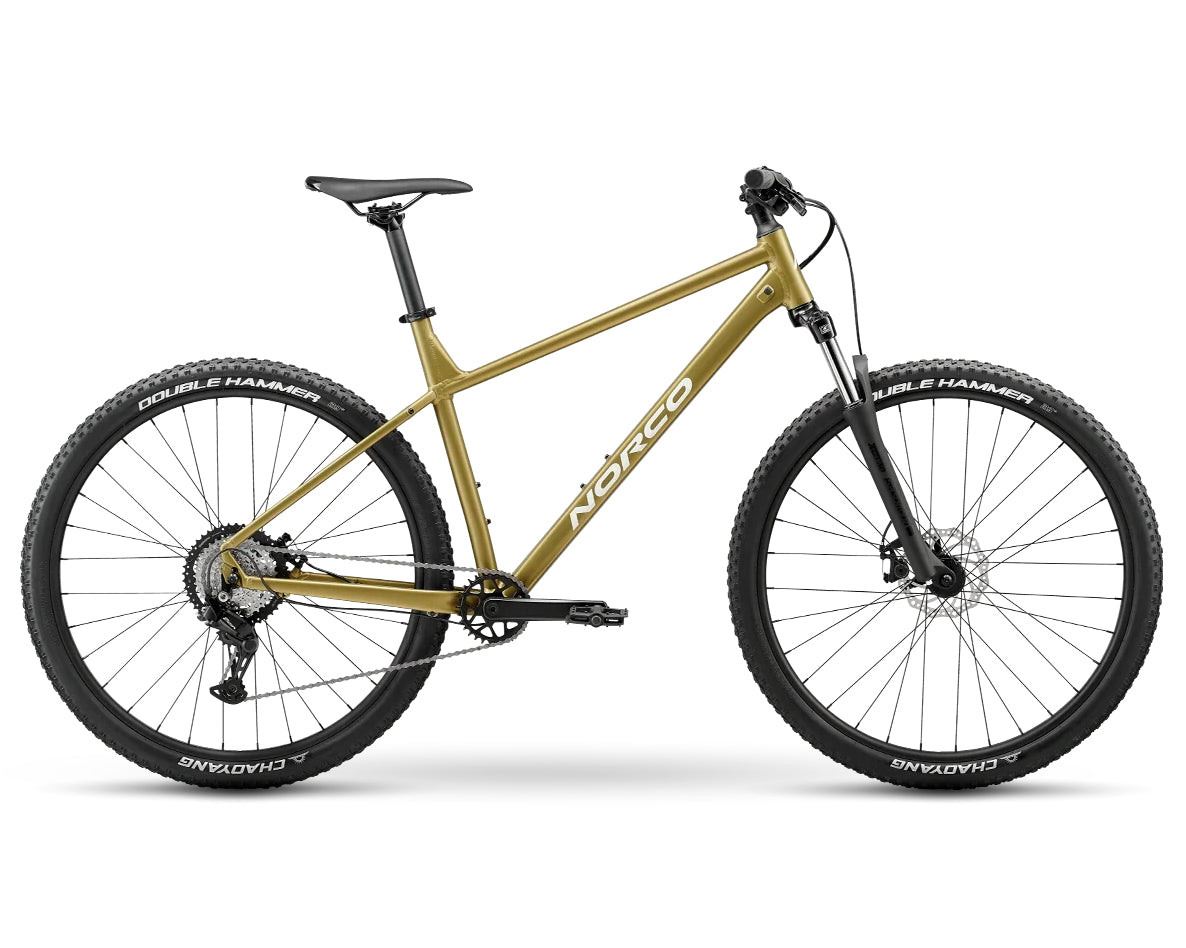

Norco Storm (2025)

$87900
Colour: Habitat Moss Green
Size

Pickup in-store only. Shipping not available.
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay

Sizing Chart

SIZING CHART

Frame Size Rider Height (ft/in) Rider Height (cm)
S 5'1" – 5'4" 155 – 165 cm
M 5'5" – 5'8" 166 – 175 cm
L 5'9" – 5'11" 176 – 183 cm
XL 6'0" – 6'2" 184 – 190 cm
XXL 6'3" – 6'7" 191 – 200 cm


This sizing chart has been provided as a guide only to help narrow down your frame size. We recommend visiting us instore for a test ride.



GEOMETRY

Geometry 27.5" 29" M 29" L 29" XL 29" XXL
Travel (mm front) 120 120 120 120 120
Reach 410 440 470 500 530
Stack 608 628 637 646 655
Head Tube Angle 67° 67° 67° 67° 67°
Fork Offset 42 46 46 46 46
Seat Tube Length 430 470 510 550 590
Effective Seat Tube Angle 74.5° 74.75° 75° 75.25° 75.5°
Rear Centre Length 430 440 440 440 440
Bottom Bracket Drop 32 52 52 52 52
Bottom Bracket Height 321 321 321 321 321
Horizontal Top Tube 579 611 641 670 699
Wheelbase 1129 1171 1205 1239 1273
Standover 646 671 718 738 769
Head Tube Length 125 105 115 125 135
Trail 104 108 108 108 108
Recommended Seatpost Drop 100 100 100 100 100
Maximum Post Insertion 300 265 300 340 380
Stem Length 50 50 50 50 50
Crank Length 170 170 175 175 175
Tire Size 2.2" – 2.4" 2.2" – 2.4" 2.2" – 2.4" 2.2" – 2.4" 2.2" – 2.4"
Water Bottle Compatible 1 × 620 mL 1 × 620 mL and 1 × 750 mL 2 × 750 mL 2 × 750 mL 2 × 750 mL

Shipping Information

Certain bike brands cannot be shipped and are only available for Click and Collect.

These include but are not limited to the following brands: Giant, GT, Liv, Momentum and Mongoose.

For all other brands, we can provide a shipping quote to your postcode. Please contact us by email at staff@ivanhoecycles.com.au, or text us on 0417 122 950.

Fully assembled when you Click & Collect in-store
Buy Now, Pay Later with ZIP
Free service adjustment within first 6 months

The Storm is built for off-road adventure, but is more than happy to lead a double life on city streets and park paths.

KEY FEATURES

  • Progressive design for nimble, confident trail performance.
  • The perfect amount of suspension for comfort and control on the trail.
  • Mechanical systems protected from the elements.
  • Stop on a dime with disc brakes
  • Size-specific wheels optimize the ride.
  • Versatile frame features to take you anywhere.
  • No Other Way Limited Lifetime Warranty.

All-around fun on two wheels.

A staple in the lineup as a progressive off-road bike to take on your next adventure. An all-around bike for city or trails, to discover your favourite way to ride.

Nimble, confident trail performance.

The Storm provides a more forward weight distribution within an extended wheelbase for powerful, efficient pedaling, increased climbing traction and added grip and control on descents.

Comfort and control on the trail.

The perfect amount of suspension travel for off-road adventure and exploration, without feeling like you're carrying around extra weight or bulk when you don't need it.

Mechanical systems protected from the elements.

By routing brake and shift cables within the frame, they are kept out of harm's way and critical systems work longer between services.

Stop on a dime.

The Storm 120 and one of the Storm 100 models comes equipped with hydraulic brakes, while the other Storm 100 model has mechanical brakes, so you can choose what works best for you without compromising on powerful braking.

Size-specific wheels optimize the ride.

Size small is equipped with 27.5" wheels to suit smaller riders and the M, L, XL, and XXL feature 29" wheels for a smooth ride.

Versatile frame features to take you anywhere.

With a lightweight aluminum frame with custom tube shapes, a full breadth of frame sizes, rack and fender mounts, and dual water bottle mounts – it's ready to go anywhere, with anyone.

Limited Lifetime Warranty.

Storm's frame design, hardware and component decisions have been made specifically to keep the Storm on the trail for longer. Accidents can happen, and when they do, Norco's No Other Way Limited Lifetime Guarantee is our promise to get you back on the trail as soon as possible.

SPECIFICATIONS

Frameset
Frame Aluminum, Tig Welding, 10x135mm QR, Tapered HT
Fork Suntour XCT-30 DS Coil, 100mm, 46mm offset, 9x100 QR
Drivetrain
Rear Shifter Shimano Altus SL-M315, 8sp
Rear Derailleur Shimano Essa RD-U2000, 8sp Shadow
Crankset Prowheel Alloy, 30T, 170mm (S-M), 175mm (L - XXL)
Bottom Bracket Cartridge, ST 73mm, 113mm axle length
Cassette Shimano CS-HG400-8, 11-45T, 8spd
Chain KMC Z8
Brakes
Front Brake C-Star BX-351, Mechanical Disc
Front Brake Rotor C-Star, 160mm, 6-Bolt
Rear Brake C-Star BX-351 Mechanical Disc
Rear Brake Rotor C-Star, 160mm, 6-Bolt
Brake Levers C-Star VL-801D Mechanical Disc
Components
Handlebar 6062 Alloy DB 6.1, 760mm, 30mm rise
Stem Alloy 45mm Length, 31.8mm Clamp
Seatpost Alloy 31.6mm, 300mm length
Headset Zero Stack, 1-1/8" Steer, ZS44/28.6 | ZS44/30 1 1/8"
Headset Spacer 3x10mm
Saddle Norco XC, Steel Rail
Grips DDK lock-On, 139mm length
Pedals Nylon Flat Pedal
Seatpost Clamp Norco Alloy QR, 34.9mm ID
Wheels
Front Hub Formula DC-1420, 9x100mm QR, 32h, 6-bolt
Rear Hub Formula DC-1422, 10x135mm QR, HG, 32h, 6-bolt
Rims DP 27 Rims, 27mm ID, 32H
Front Tire CY H-5162, 60TPI, Wire
Rear Tire CY H-5162, 60TPI, Wire
Spokes/Nipples Stainless Steel, 14g



Norco Storm (2025)

$87900

Colour

Size

  • S (27.5")
  • M (29")
  • L (29")
  • XL (29")

Motor

N/A

Controller

N/A

Display

N/A

Battery

N/A

Charger

N/A

Sizes

N/A

Frame material

Aluminium

Frame

Aluminum, Tig Welding, 10x135mm QR, Tapered HT

Fork

Suntour XCT-30 DS Coil, 100mm, 46mm offset, 9x100 QR

Handlebar

6062 Alloy DB 6.1, 760mm, 30mm rise

Grips

DDK lock-On, 139mm length

Bar Tape

N/A

Headset

Zero Stack, 1-1/8" Steer, ZS44/28.6 | ZS44/30 1 1/8"

Stem

Alloy 45mm Length, 31.8mm Clamp

Seatpost

Alloy 31.6mm, 300mm length // Clamp: Norco Alloy QR, 34.9mm ID

Saddle

Norco XC, Steel Rail

Pedals

Platform

Shifters

Shimano Altus SL-M315, 8sp

Front Derailleur

N/A

Rear Derailleur

Shimano Essa RD-U2000, 8sp Shadow

Brakes

C-Star BX-351, Mechanical Disc, 160mm Rotors 6-Bolt

Brake Levers

C-Star VL-801D Mechanical Disc

Cassette/Freewheel

Shimano CS-HG400-8, 11-45T, 8spd

Chain

KMC Z8

Crankset

Prowheel Alloy, 30T, 170mm (S-M), 175mm (L - XXL)

Bottom Bracket

Cartridge, ST 73mm, 113mm axle length

Rims

DP 27 Rims, 27mm ID, 32H

Hubs

[F] Formula DC-1420 , 9x100mm QR, 32h, 6-bolt, [R] Formula DC-1422,10x135mm QR, HG, 32h, 6-bolt

Spokes

Stainless Steel, 14g

Tyres

CY H-5162, 60TPI, Wirebead

Wheel Size

N/A

Extras

N/A
