Orbea Diem 10 (2025)
Orbea Diem 10 (2025) - Spaceship Green / L is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Sizing Chart
Sizing Chart
Sizing and Geometry
Orbea Diem
Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.
| Size | Rider Height (cm) |
|---|---|
| S | 153-172cm |
| M | 164-183cm |
| L | 176-195cm |
| XL | 187-204cm |
Geometry
| Measurement | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29″ | 29″ | 29″ | 29″ |
| Stack (mm) | 601 | 625 | 649 | 673 |
| Reach (mm) | 422 | 438 | 454 | 470 |
| Stack/Reach Ratio | 1.42 | 1.43 | 1.43 | 1.43 |
| Top Tube Length (mm) | 586 | 610 | 634 | 659 |
| Seat Tube Length (mm) | 442 | 468 | 490 | 540 |
| Seat Tube Angle (°) | 74.7 | 74.3 | 74.0 | 73.7 |
| Head Tube Length (mm) | 164 | 187 | 211 | 234 |
| Head Tube Angle (°) | 69.0 | 69.5 | 70.0 | 70.5 |
| Bottom Bracket Drop (mm) | 82 | 82 | 82 | 82 |
| Bottom Bracket Height (mm) | 279 | 279 | 279 | 279 |
| Front Center (mm) | 680 | 699 | 718 | 737 |
| Chainstay Length (mm) | 435 | 435 | 435 | 435 |
| Wheelbase (mm) | 1102 | 1122 | 1141 | 1160 |
| Rake (mm) | 50 | 50 | 50 | 50 |
| Trail (mm) | 80 | 77 | 74 | 71 |
| Standover Height (mm) | 672 | 686 | 700 | 713 |
Bike Shipping
Bike Shipping
Delivery is available upon specific request for our special order bikes.
Bikes may only be shipped directly to a qualified bike mechanic or bike shop of your choosing, who must complete the assembly of the bike. We strictly cannot ship an unbuilt bike direct to consumer.
The buyer is responsible for all shipping and assembly costs, and is responsible for arranging assembly with their nominated bike store or mechanic.
To request a shipping quote, please submit a request and include the delivery postcode, business name of your nominated bike shop or bike mechanic, and the exact model & frame size of the bike.
Please note: All bikes sold by Ivanhoe Cycles must be assembled by a qualified mechanic or bike shop. Any assembly undertaken without professional assistance is at the customer's risk and any injury as a result of the build without professional assistance will not be covered by the warranty.
Assembly
Assembly
Every bike purchased or collected in-store at Ivanhoe Cycles is fully assembled by our qualified mechanics free of charge.
Bikes ordered online for shipping* will require partial assembly, including but not limited to: installing handlebar, seatpost, front wheel; adjusting gears and brakes; tuning suspension; installing accessories or bar tape.
Disclaimer: Ivanhoe Cycles strongly advises having your assembly completed by an experienced bicycle mechanic. Any assembly undertaken without professional assistance is at the customer's risk and any injury as a result of the build without professional assistance will not be covered by the warranty.
*Shipping is restricted to certain brands due to assembly requirements.
Returns / Cancellations
Returns / Cancellations
If your special ordered item arrives faulty, damaged, or is differently than described, you are entitled to a full refund or replacement.
Cancellations and returns are not accepted on special orders if the consumer:
- changed their mind
- found the item cheaper elsewhere
- decided they didn't like the purchase or had no use for it
- ordered the wrong item
Contact us with any product enquiries you have prior to purchasing.
For more information, please read our Special Order terms and conditions.
Sizing and Geometry
Orbea Diem
Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.
| Size | Rider Height (cm) |
|---|---|
| S | 153-172cm |
| M | 164-183cm |
| L | 176-195cm |
| XL | 187-204cm |
Geometry
| Measurement | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29″ | 29″ | 29″ | 29″ |
| Stack (mm) | 601 | 625 | 649 | 673 |
| Reach (mm) | 422 | 438 | 454 | 470 |
| Stack/Reach Ratio | 1.42 | 1.43 | 1.43 | 1.43 |
| Top Tube Length (mm) | 586 | 610 | 634 | 659 |
| Seat Tube Length (mm) | 442 | 468 | 490 | 540 |
| Seat Tube Angle (°) | 74.7 | 74.3 | 74.0 | 73.7 |
| Head Tube Length (mm) | 164 | 187 | 211 | 234 |
| Head Tube Angle (°) | 69.0 | 69.5 | 70.0 | 70.5 |
| Bottom Bracket Drop (mm) | 82 | 82 | 82 | 82 |
| Bottom Bracket Height (mm) | 279 | 279 | 279 | 279 |
| Front Center (mm) | 680 | 699 | 718 | 737 |
| Chainstay Length (mm) | 435 | 435 | 435 | 435 |
| Wheelbase (mm) | 1102 | 1122 | 1141 | 1160 |
| Rake (mm) | 50 | 50 | 50 | 50 |
| Trail (mm) | 80 | 77 | 74 | 71 |
| Standover Height (mm) | 672 | 686 | 700 | 713 |

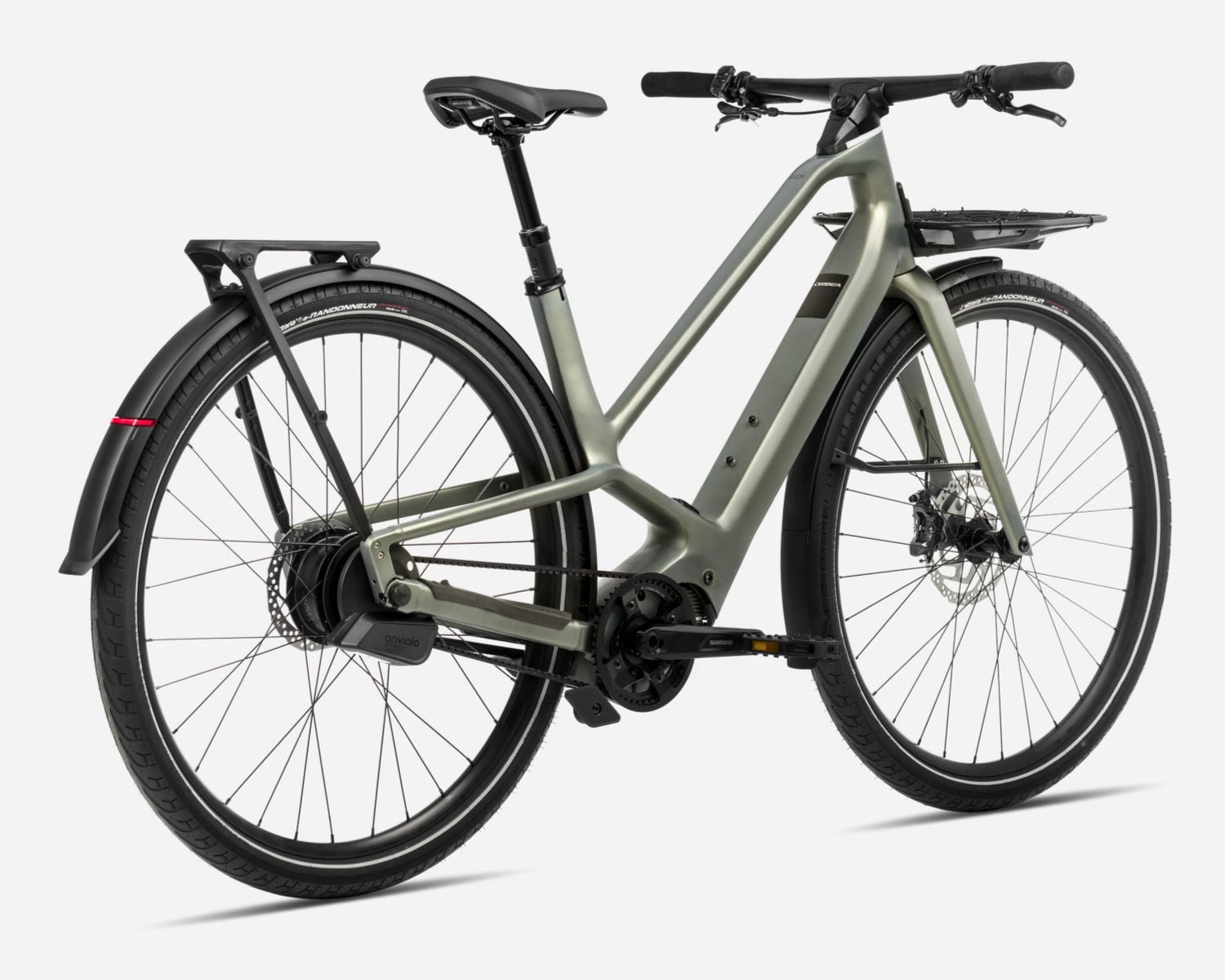

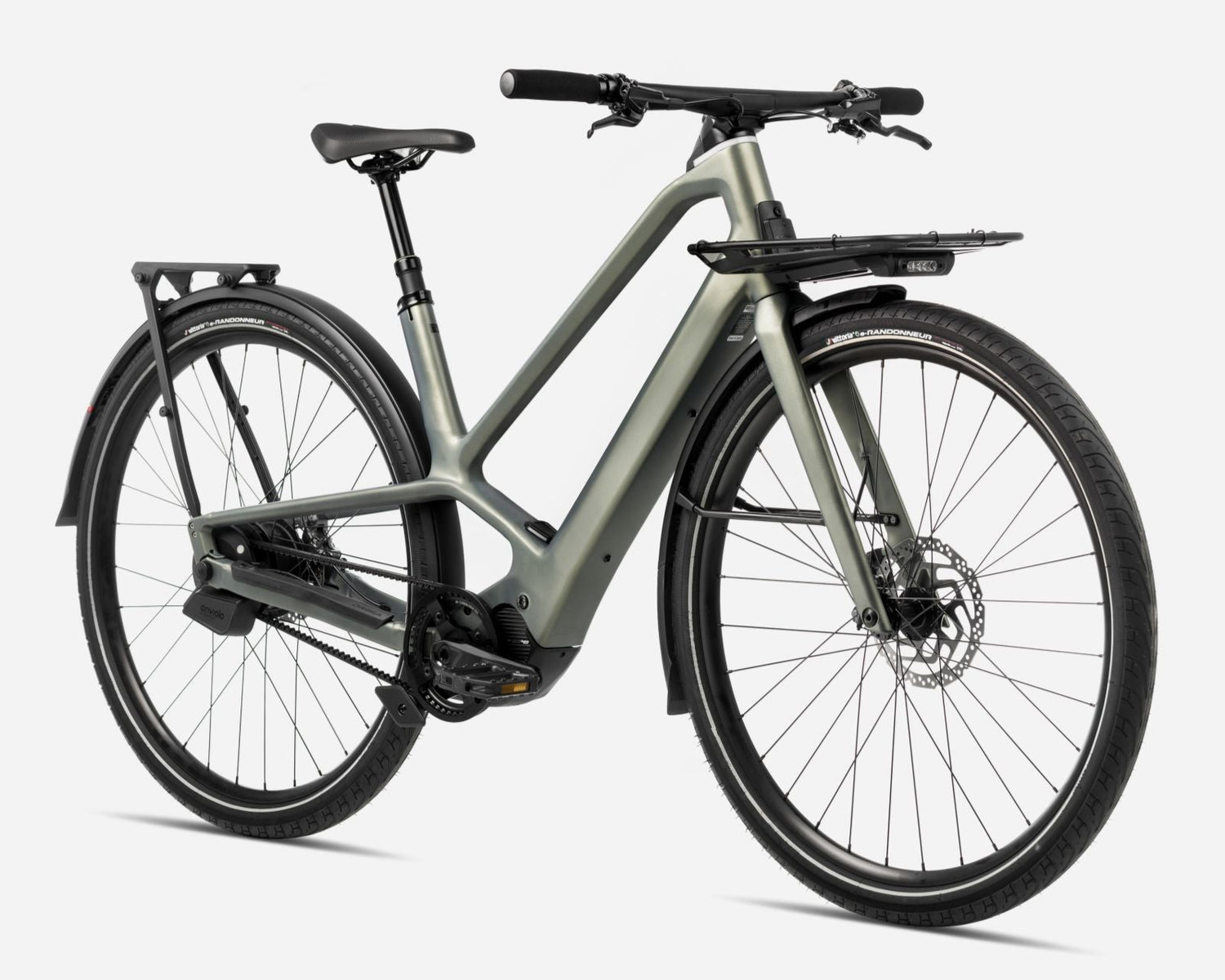

Orbea Diem 10 (2025)

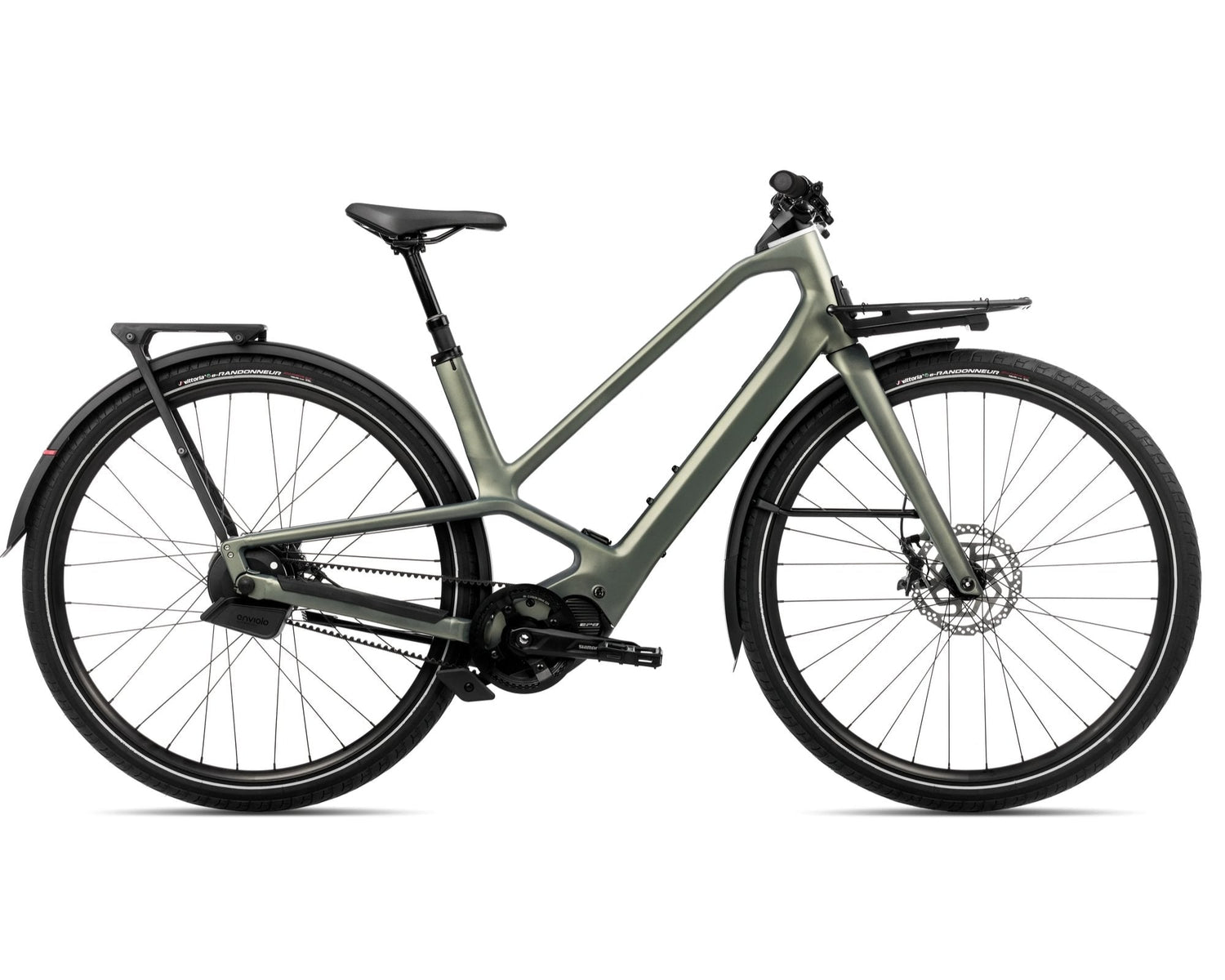

Orbea Diem 10 (2025)
The first bike in our range with automatic shifting! The Diem 10 is a commuter's dream bike, combining power, comfort, accessories and smart technology. Its 630Wh battery and Enviolo's maintenance-free, automatic shifting and belt drive system makes the Diem 10 the most powerful urban e-bike we've seen. The Diem 10 comes accessorized with front and rear carrier racks for luggage, front & rear lights, mudguards, and kickstand.
Congested. Crowded. Delayed. Disconnected. Why can’t moving around the city be seamless? In fact, why can’t it be a pleasure? Make the journey the best part of your day.
A to B should be a pleasure, not a chore. Diem is a powerful Urban Ebike you can count on, a trusty partner that brings a touch of class to the day-to-day. From the first moment you ride it, you know you are on something special. Grab a Diem and seize the day!

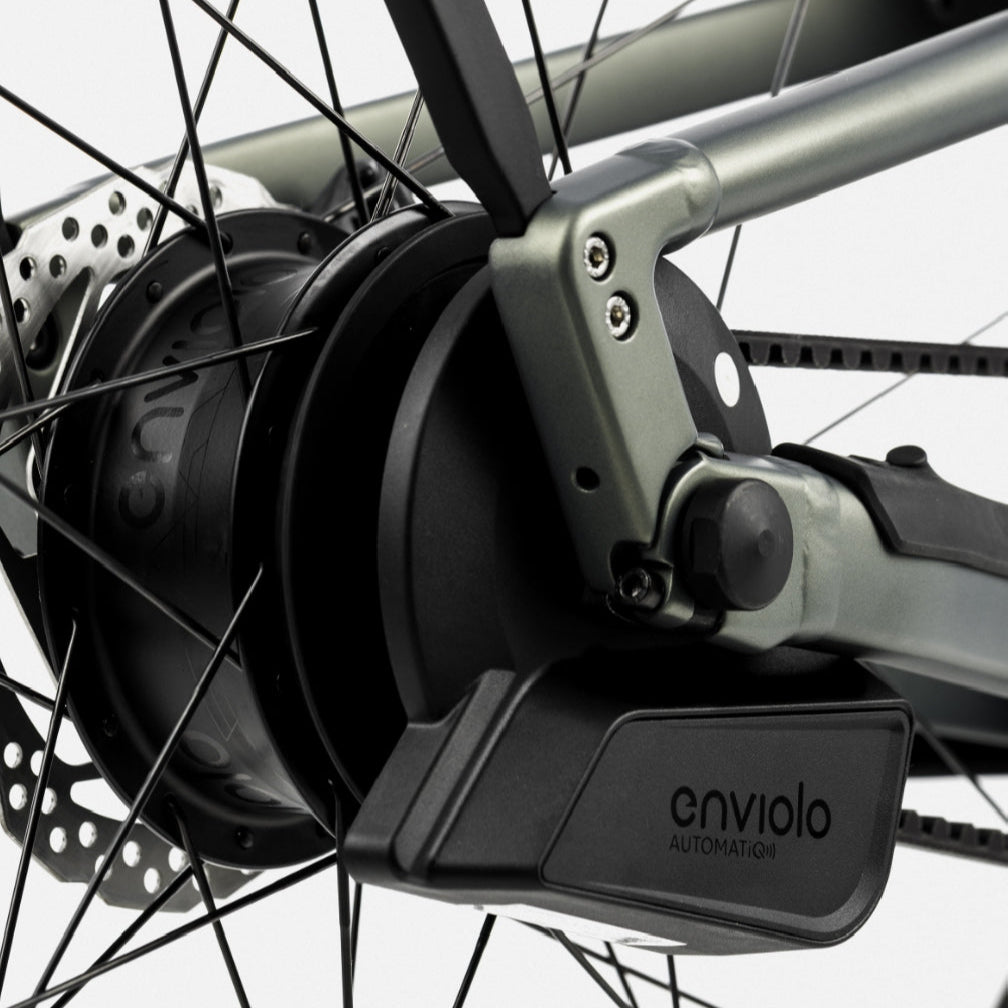

Automatic Shifting
The Diem 10 features the Enviolo Automatiq hub, which continuously provides the ideal gear ratio, ensuring you always pedal at the perfect cadence. This sealed hub, combined with a Gates belt drive system, operates smoothly without the need for maintenance or generating noise.

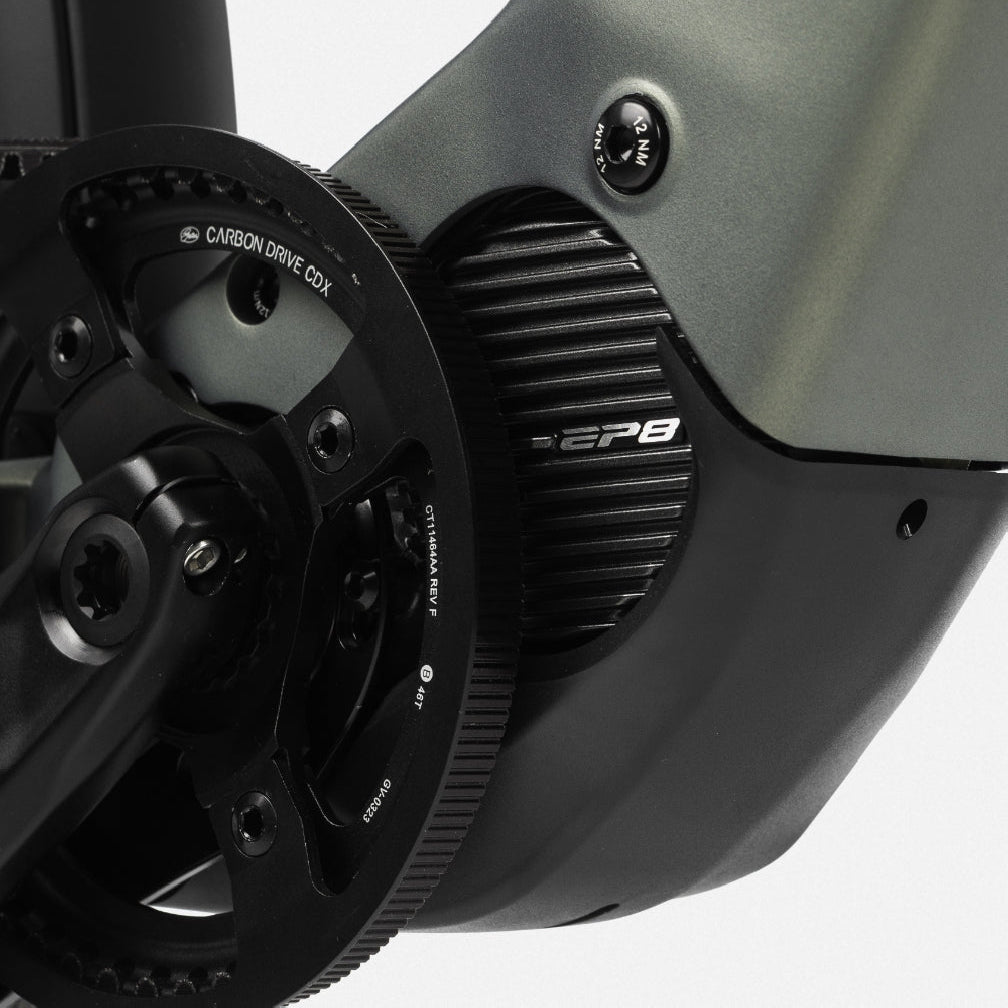

Endless Power
The Diem 10 is equipped with a Shimano EP motor delivering 85Nm of torque, providing ample power to tackle steep climbs and heavy loads effortlessly. Paired with a 630Wh battery, it offers extended range, allowing most riders to charge less than once a week. An optional 252Wh range extender is available for those seeking even longer rides.

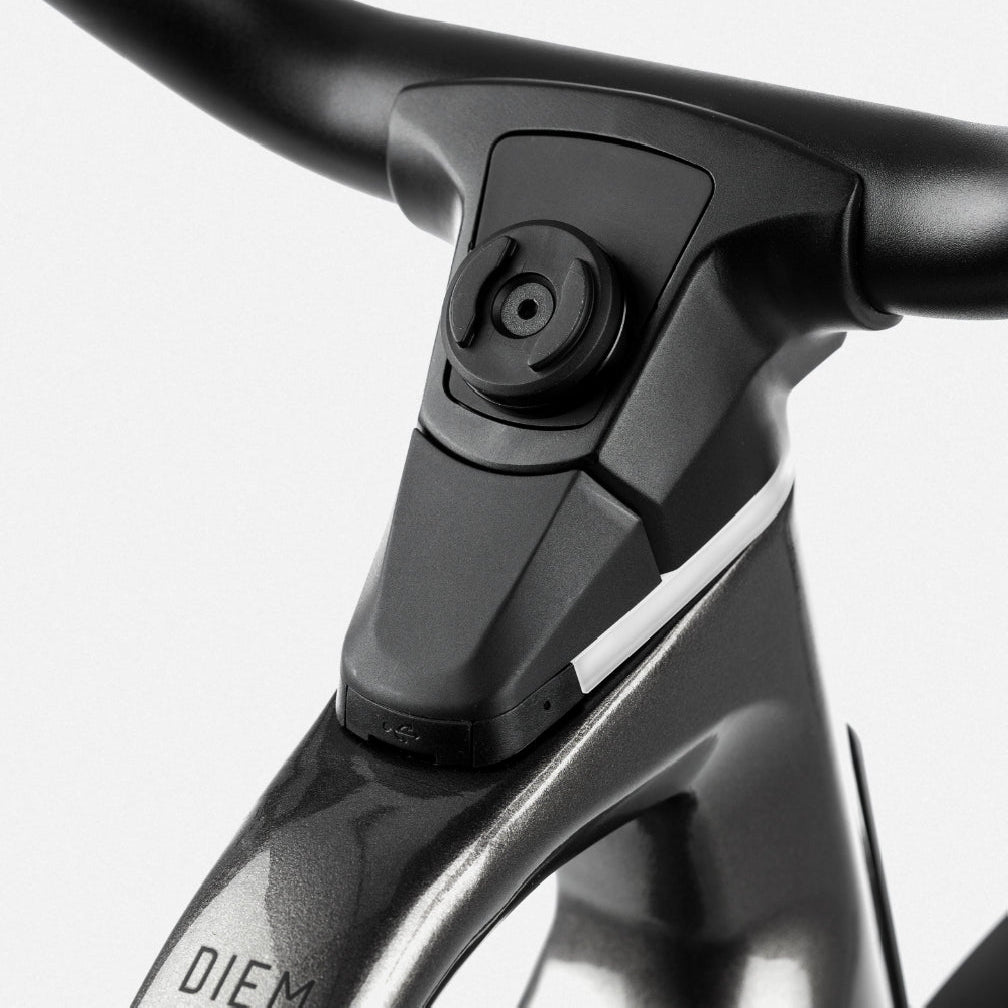

Intelligent Control
Advanced sensors monitor pedal pressure, speed, and acceleration, enabling the motor to respond instantly and adjust assistance levels accordingly. The system includes three assistance modes, easily controlled via a subtle handlebar remote with integrated LED indicators.

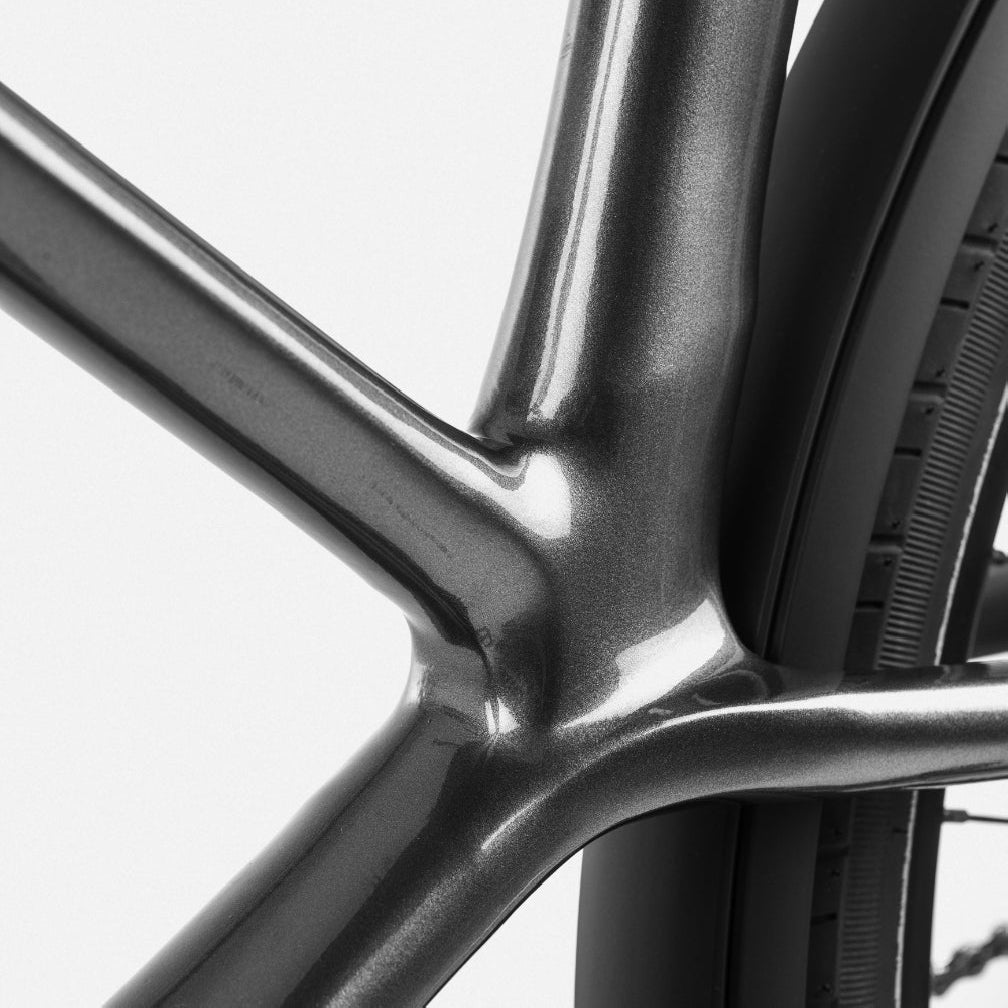

Smooth Ride Quality
The Diem 10 features a carbon fork, wider tires, and Orbea's patented Diamond Glide frame design, which allows vertical flex to absorb bumps and vibrations. This combination ensures a controlled and comfortable ride, even on rough urban streets.

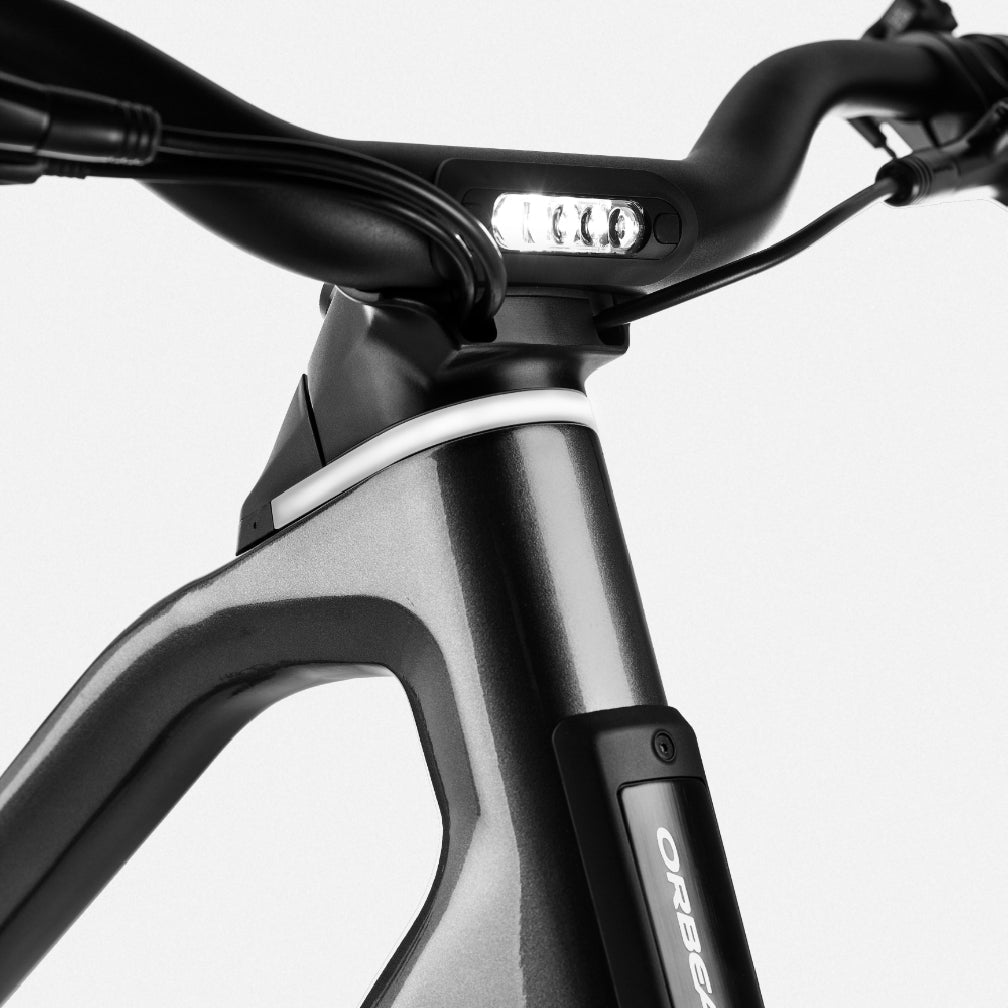

Intelligent Lighting System
An integrated high-tech lighting system automatically activates in low-light conditions, enhancing safety and visibility. Wraparound lights ensure you're visible from all angles, day or night.
Packed with clever features
The Orbea Diem 10 comes equipped with front and rear mudguards, carrier racks, kickstand, front and rear lightset and belt covers.
-
Motor
-
Controller
-
Battery
-
Charger
-
Frame material
-
Frame
-
Fork
-
Handlebar
-
Headset
-
Seatpost
-
Saddle
-
Pedals
-
Rear Derailleur
-
Brakes
-
Cassette/Freewheel
-
Chain
-
Crankset
-
Tyres
-
Wheelset
-
Extras
-
Notes
-
Age GroupAdults
-
GenderMens, Unisex
-
DisciplineLifestyle
-
SKUsSpaceship Green/M: 8434446716621, Spaceship Green/L: 8434446716652
