Orbea  |  SKU: 8434446716270

Orbea Diem 30 (2025)

$4,87400 $7,49900
Colour: Spaceship Green
Size

Special Order: This product will be ordered from our supplier upon purchase and available for collection within 7-14 business days. Read T&Cs here.
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
Fully assembled when you Click & Collect in-store
Buy Now, Pay Later with ZIP
Free service adjustment within first 6 months

Sizing Chart

Sizing and Geometry

Orbea Diem

Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.

Size Rider Height (cm)
S 153-172cm
M 164-183cm
L 176-195cm
XL 187-204cm


Geometry

DIEM 20

Measurement SM MD LG XL
Wheels 29″ 29″ 29″ 29″
Stack (mm) 601 625 649 673
Reach (mm) 422 438 454 470
Stack/Reach Ratio 1.42 1.43 1.43 1.43
Top Tube Length (mm) 586 610 634 659
Seat Tube Length (mm) 442 468 490 540
Seat Tube Angle (°) 74.7 74.3 74.0 73.7
Head Tube Length (mm) 164 187 211 234
Head Tube Angle (°) 69.0 69.5 70.0 70.5
Bottom Bracket Drop (mm) 82 82 82 82
Bottom Bracket Height (mm) 279 279 279 279
Front Center (mm) 680 699 718 737
Chainstay Length (mm) 435 435 435 435
Wheelbase (mm) 1102 1122 1141 1160
Rake (mm) 50 50 50 50
Trail (mm) 80 77 74 71
Standover Height (mm) 672 686 700 713

Bike Shipping

Delivery is available upon specific request for our special order bikes.

Bikes may only be shipped directly to a qualified bike mechanic or bike shop of your choosing, who must complete the assembly of the bike. We strictly cannot ship an unbuilt bike direct to consumer.

The buyer is responsible for all shipping and assembly costs, and is responsible for arranging assembly with their nominated bike store or mechanic.

To request a shipping quote, please submit a request and include the delivery postcode, business name of your nominated bike shop or bike mechanic, and the exact model & frame size of the bike.

Please note: All bikes sold by Ivanhoe Cycles must be assembled by a qualified mechanic or bike shop. Any assembly undertaken without professional assistance is at the customer's risk and any injury as a result of the build without professional assistance will not be covered by the warranty.

Assembly

Every bike purchased or collected in-store at Ivanhoe Cycles is fully assembled by our qualified mechanics free of charge.

Bikes ordered online for shipping* will require partial assembly, including but not limited to: installing handlebar, seatpost, front wheel; adjusting gears and brakes; tuning suspension; installing accessories or bar tape.

Disclaimer: Ivanhoe Cycles strongly advises having your assembly completed by an experienced bicycle mechanic. Any assembly undertaken without professional assistance is at the customer's risk and any injury as a result of the build without professional assistance will not be covered by the warranty.

*Shipping is restricted to certain brands due to assembly requirements.

Returns / Cancellations

If your special ordered item arrives faulty, damaged, or is differently than described, you are entitled to a full refund or replacement.

Cancellations and returns are not accepted on special orders if the consumer:
- changed their mind
- found the item cheaper elsewhere
- decided they didn't like the purchase or had no use for it
- ordered the wrong item

Contact us with any product enquiries you have prior to purchasing.

For more information, please read our Special Order terms and conditions.

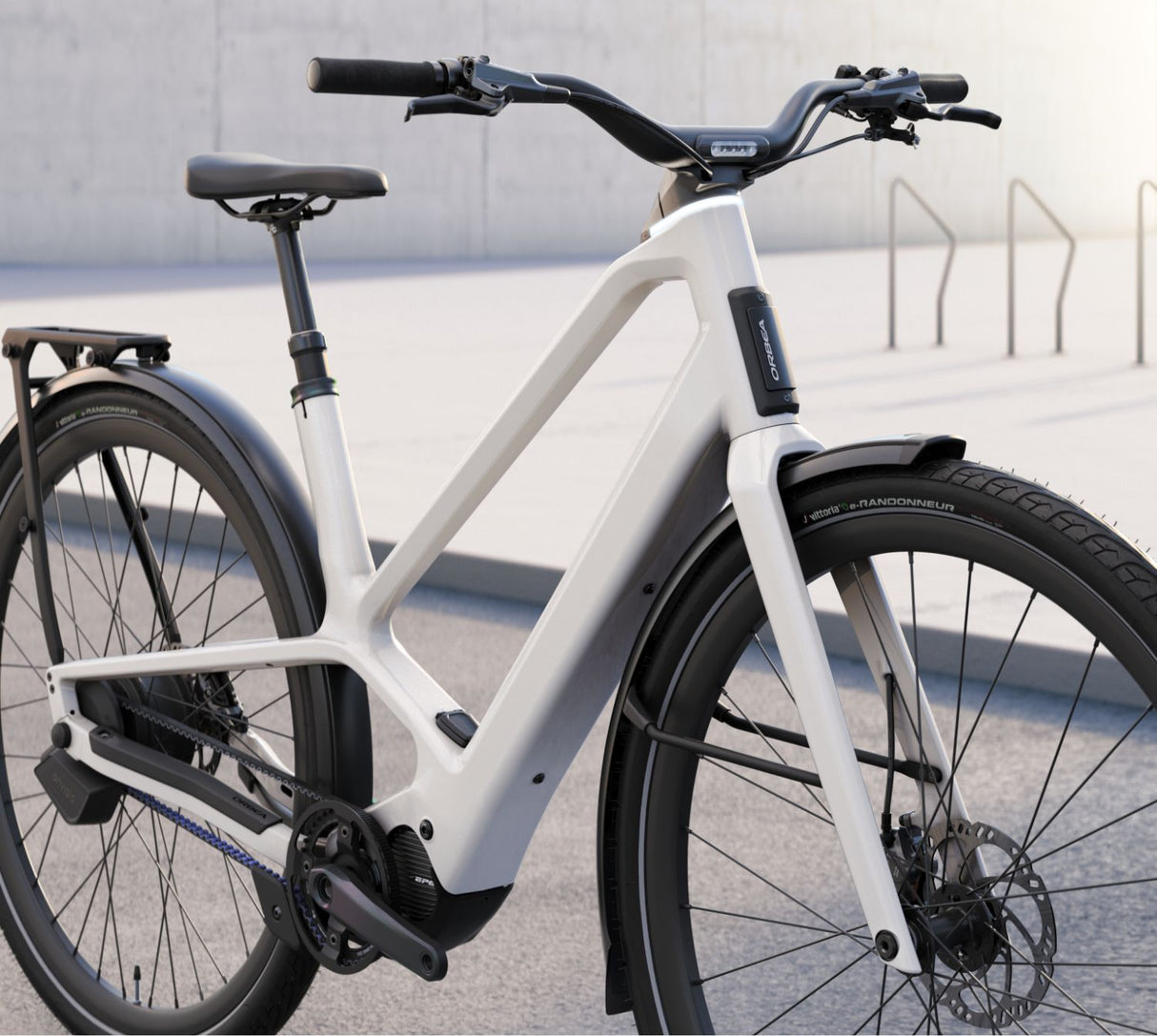

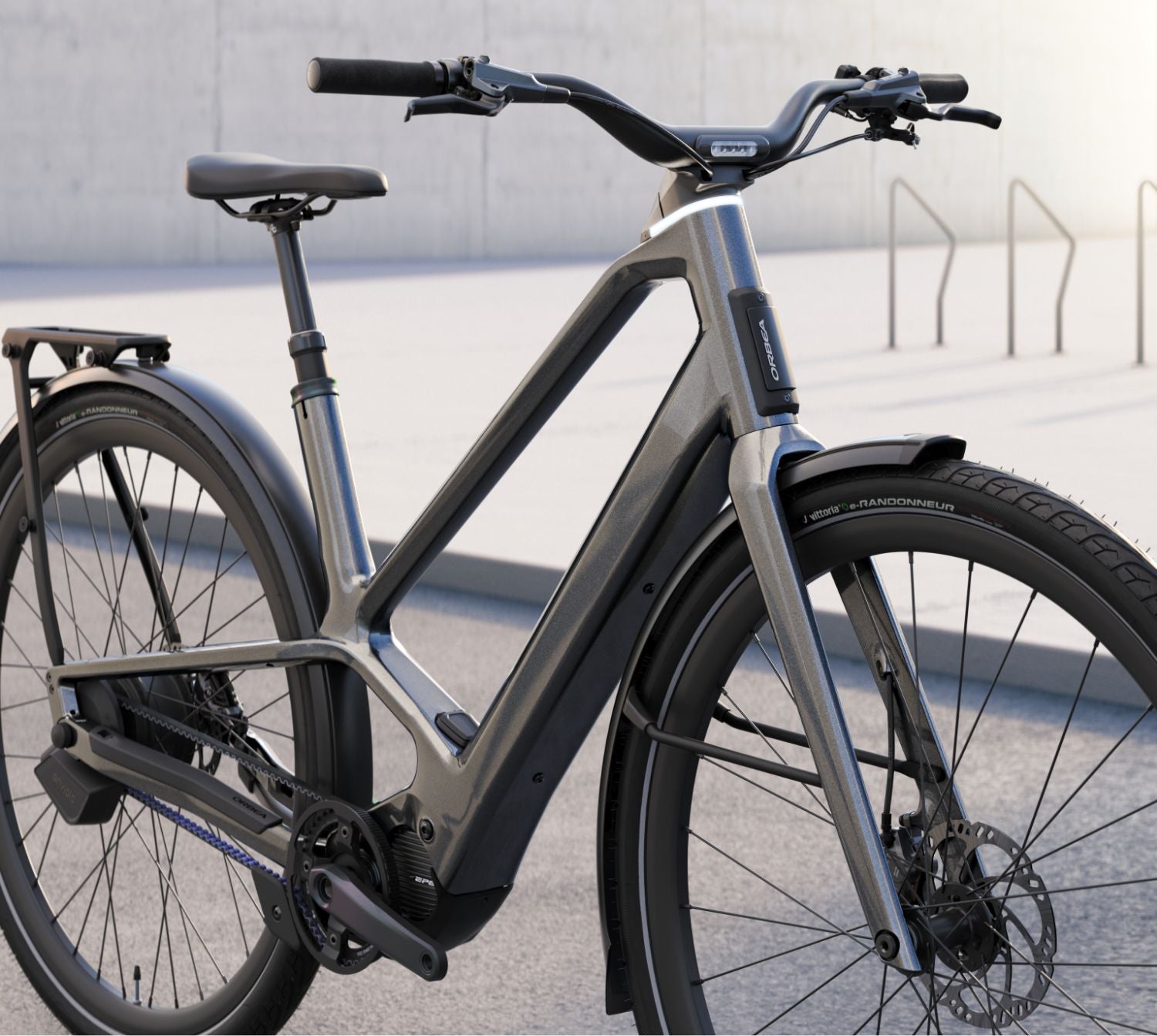

Orbea Diem 30 (2025)

Congested. Crowded. Delayed. Disconnected. Why can’t moving around the city be seamless? In fact, why can’t it be a pleasure? Make the journey the best part of your day.

A to B should be a pleasure, not a chore. Diem is a powerful, award-winning urban e-bike you can count on, a trusty partner that brings a touch of class to the day-to-day. From the first moment you ride it, you know you are on something special. Grab a Diem and seize the day!

The Diem 30 features a traditional Shimano CUES 9-Speed chain-drive system, offering a wide gear range and smooth shifting. The Diem 30 is powered by a Shimano EP600 Motor delivering 85Nm of torque and a 540Wh battery. These features collectively make the Orbea Diem 30 a versatile and reliable choice for urban commuting, combining power, comfort, and smart technology.

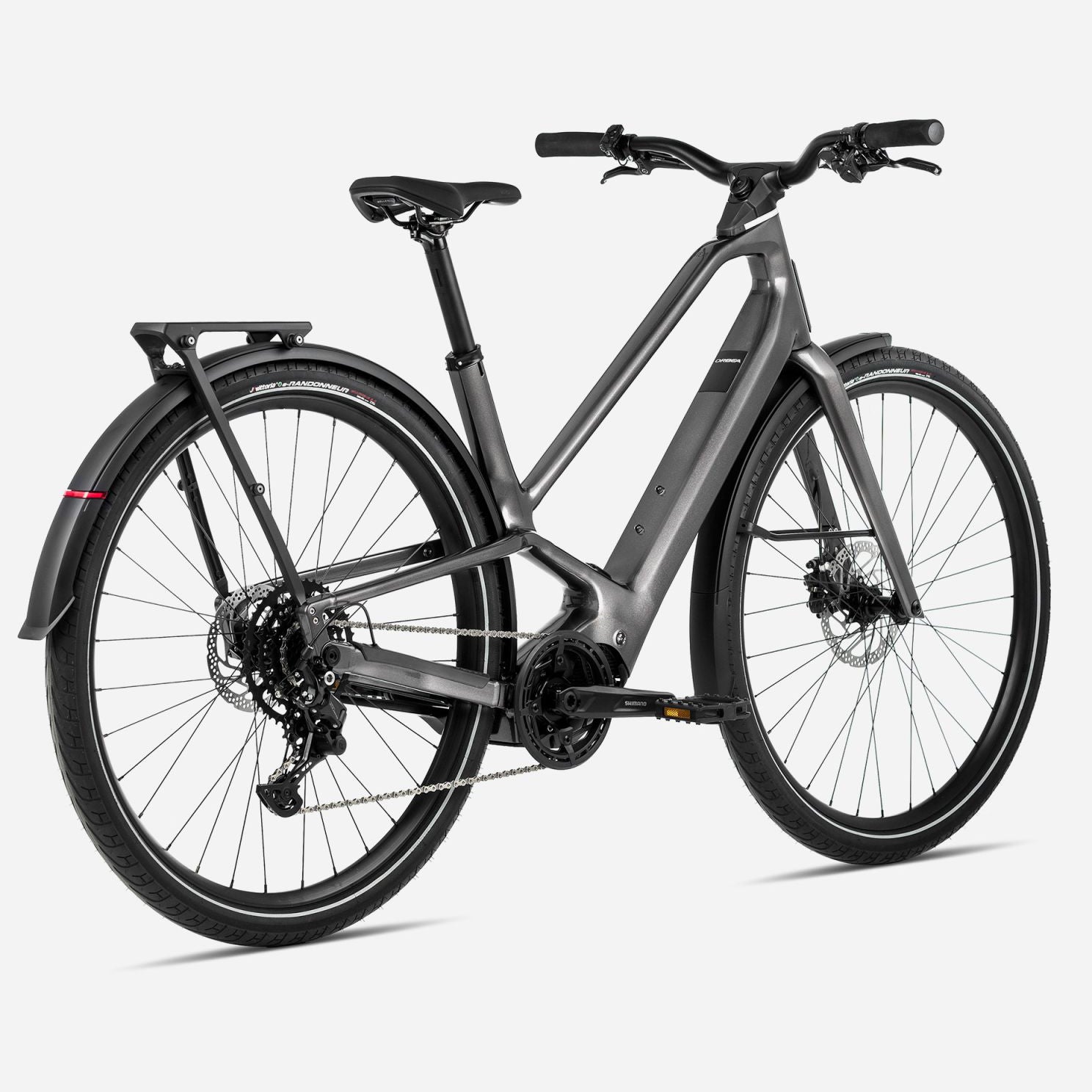

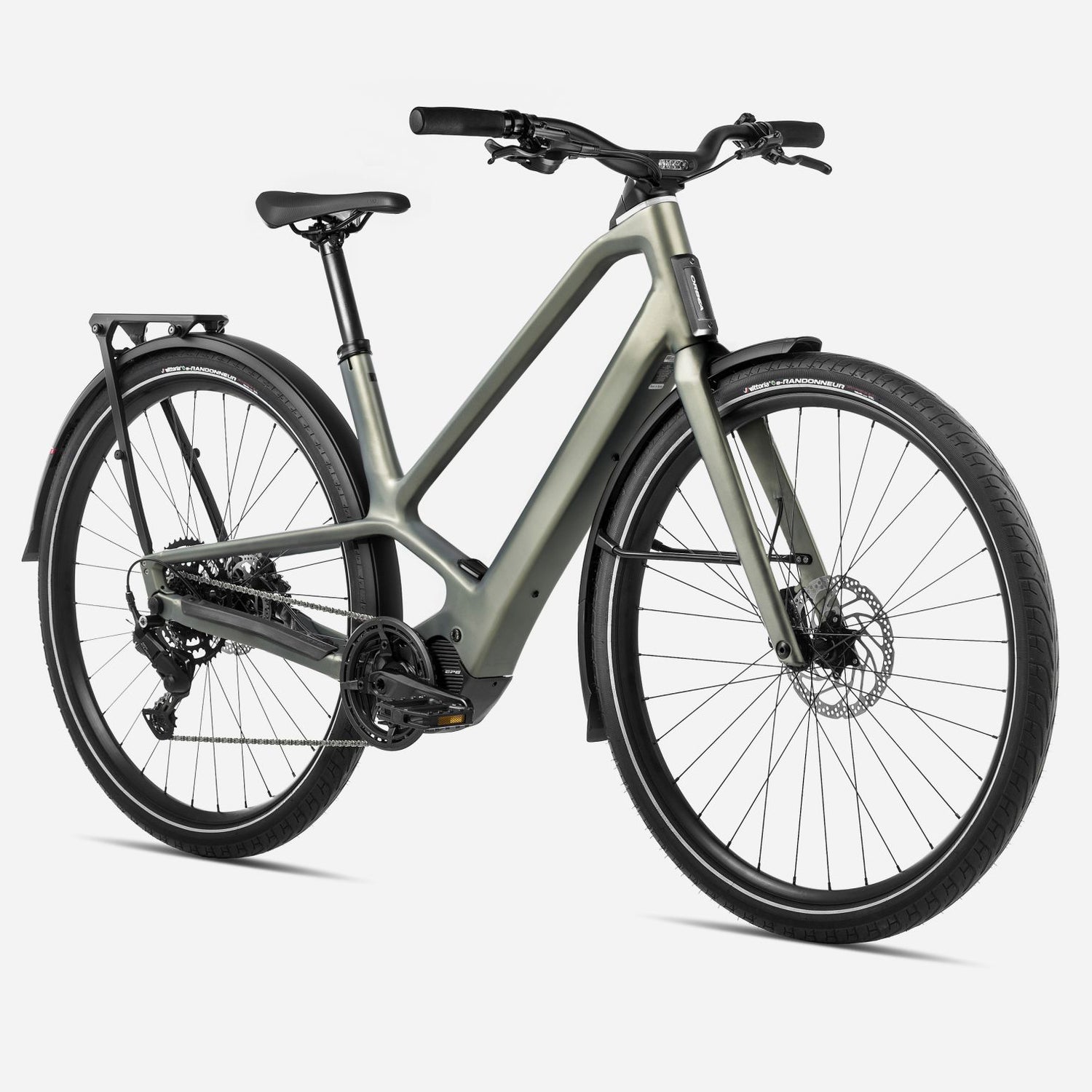

Orbea Diem 30 (2025)

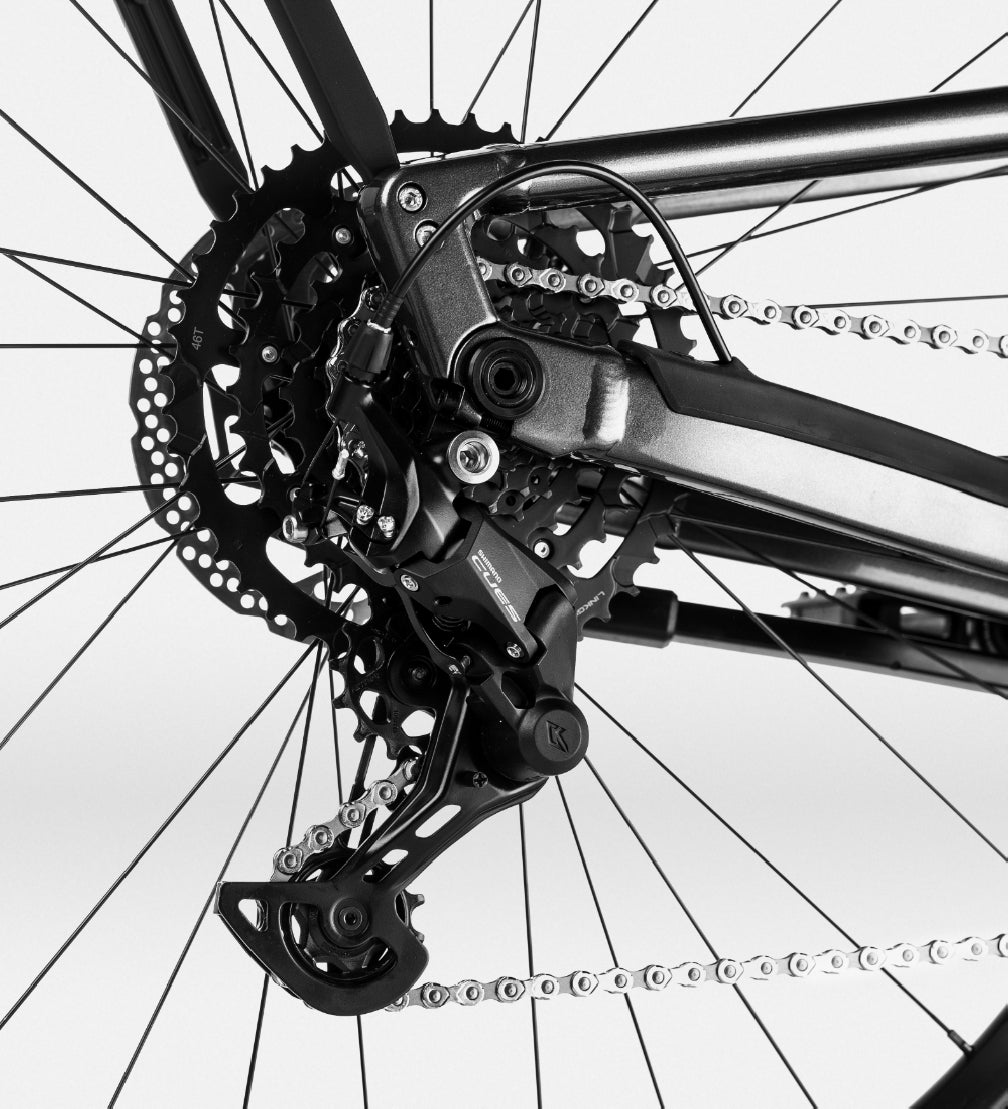

Traditional Drivetrain

The Diem 30 features a Shimano CUES 9-speed drivetrain with Linkglide technology, offering a wide gear range and smooth, precise shifting. This traditional chain-drive system is designed for durability and reliability in urban commuting.

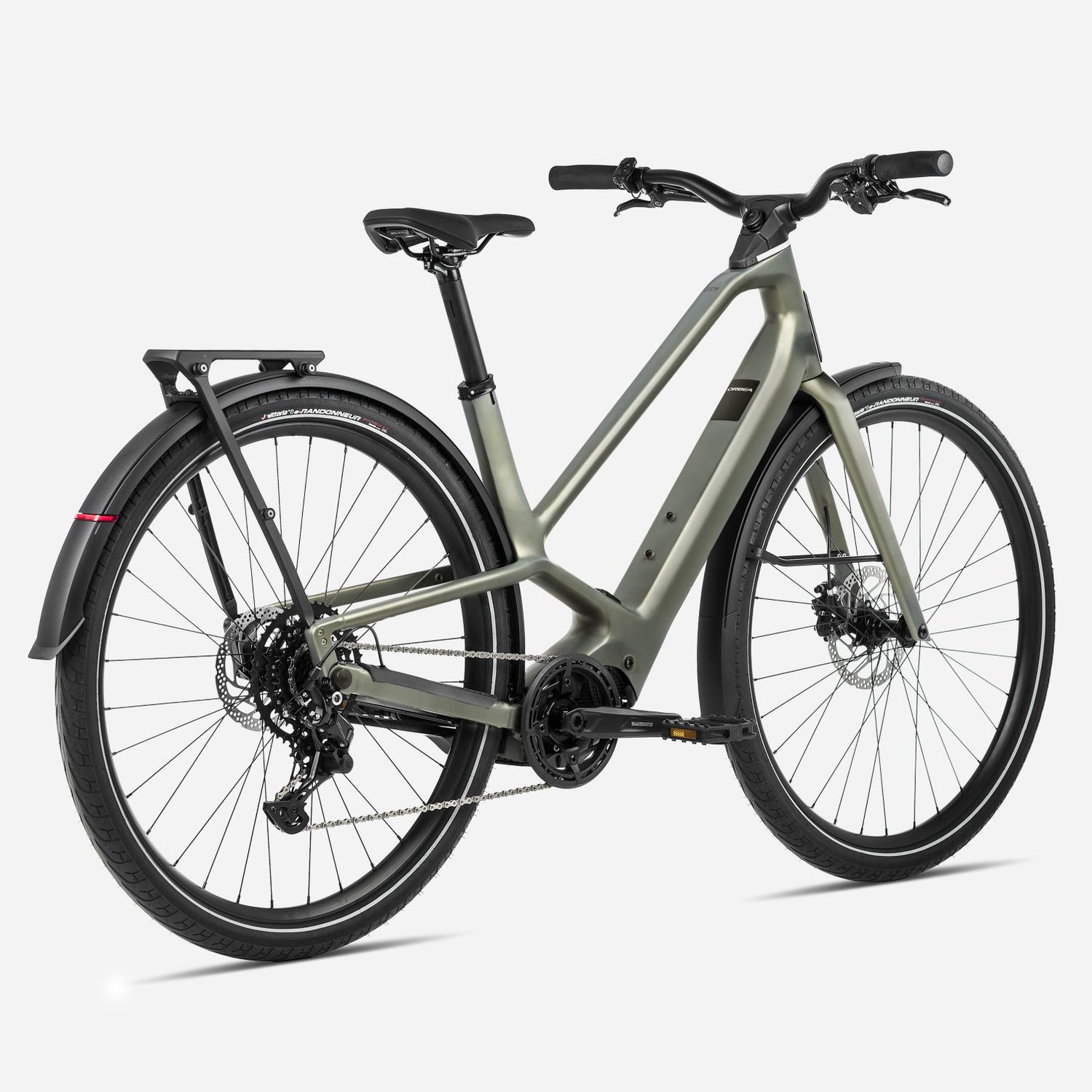

Orbea Diem 30 (2025)

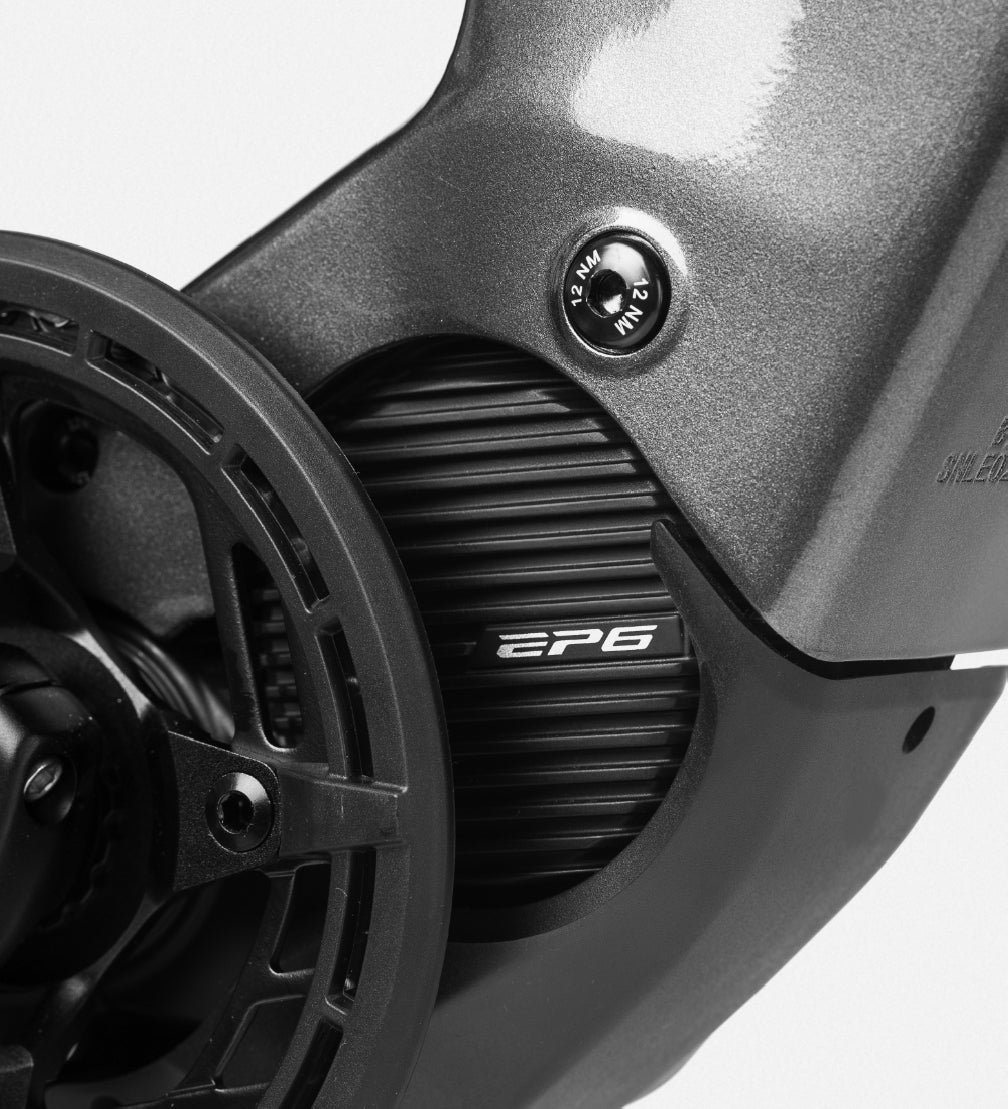

Endless Power

Equipped with a Shimano EP600 motor delivering 85Nm of torque and a 540Wh integrated battery, the Diem 30 provides ample power and range for daily rides. Orbea offers an optional 252Wh range extender for those seeking even longer journeys.

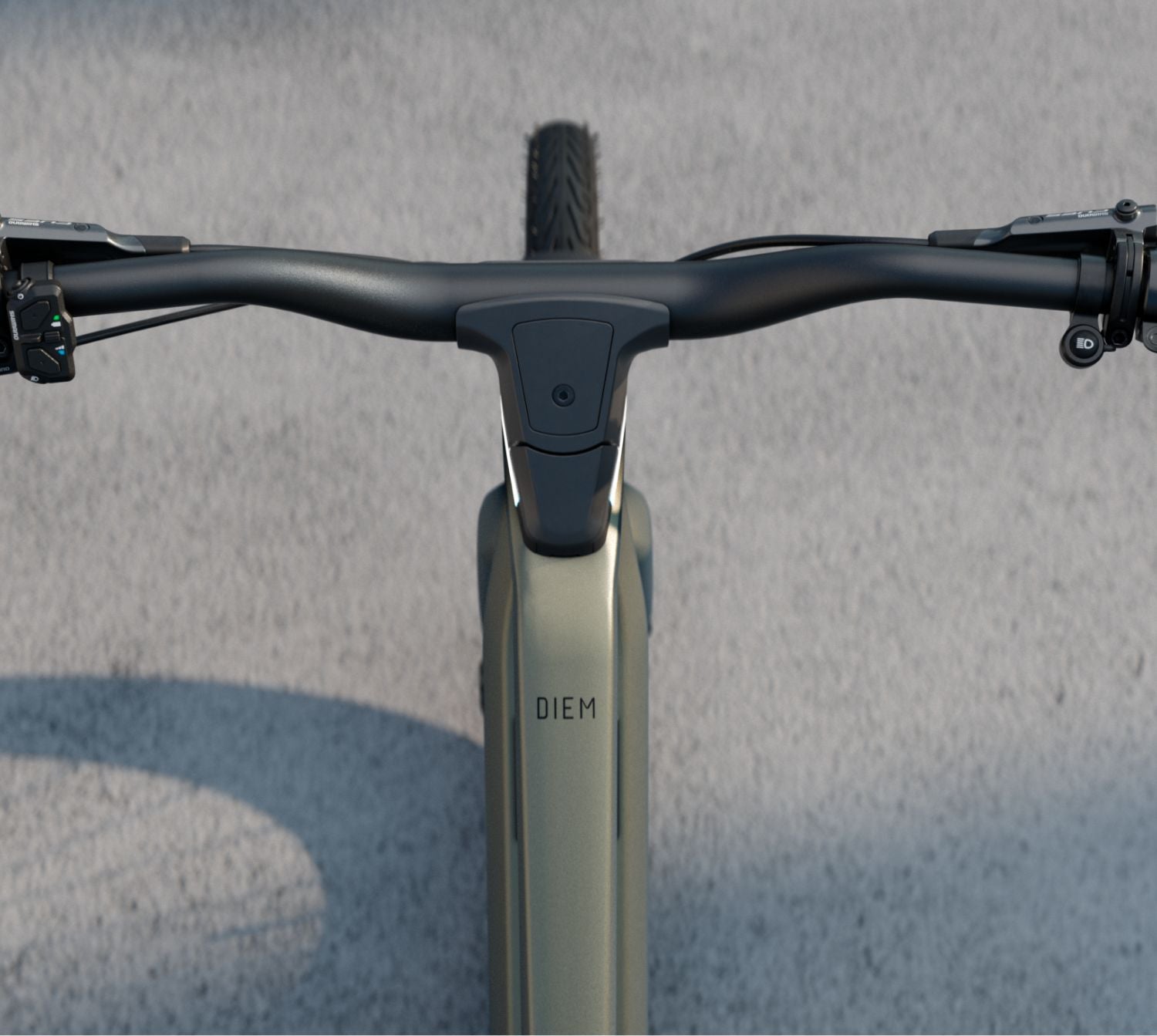

Intelligent Control

Advanced sensors monitor pedal pressure, speed, and acceleration, enabling the motor to respond instantly and adjust assistance levels accordingly. The system includes three assistance modes, easily controlled via a subtle handlebar remote with integrated LED indicators.

Orbea Diem 20 (2025)

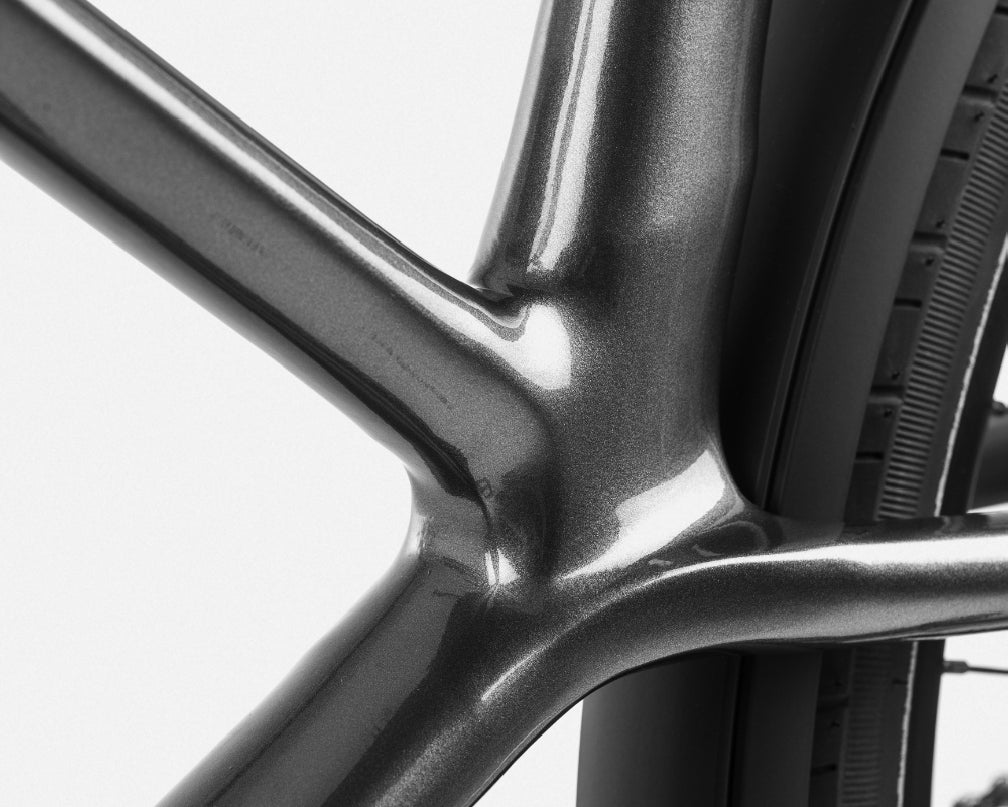

Smooth Ride Quality

The Diem 30 features a carbon fork, wider tires, and Orbea's patented Diamond Glide frame design, which allows vertical flex to absorb bumps and vibrations. This combination ensures a controlled and comfortable ride, even on rough urban streets.

Orbea Diem 20 (2025)

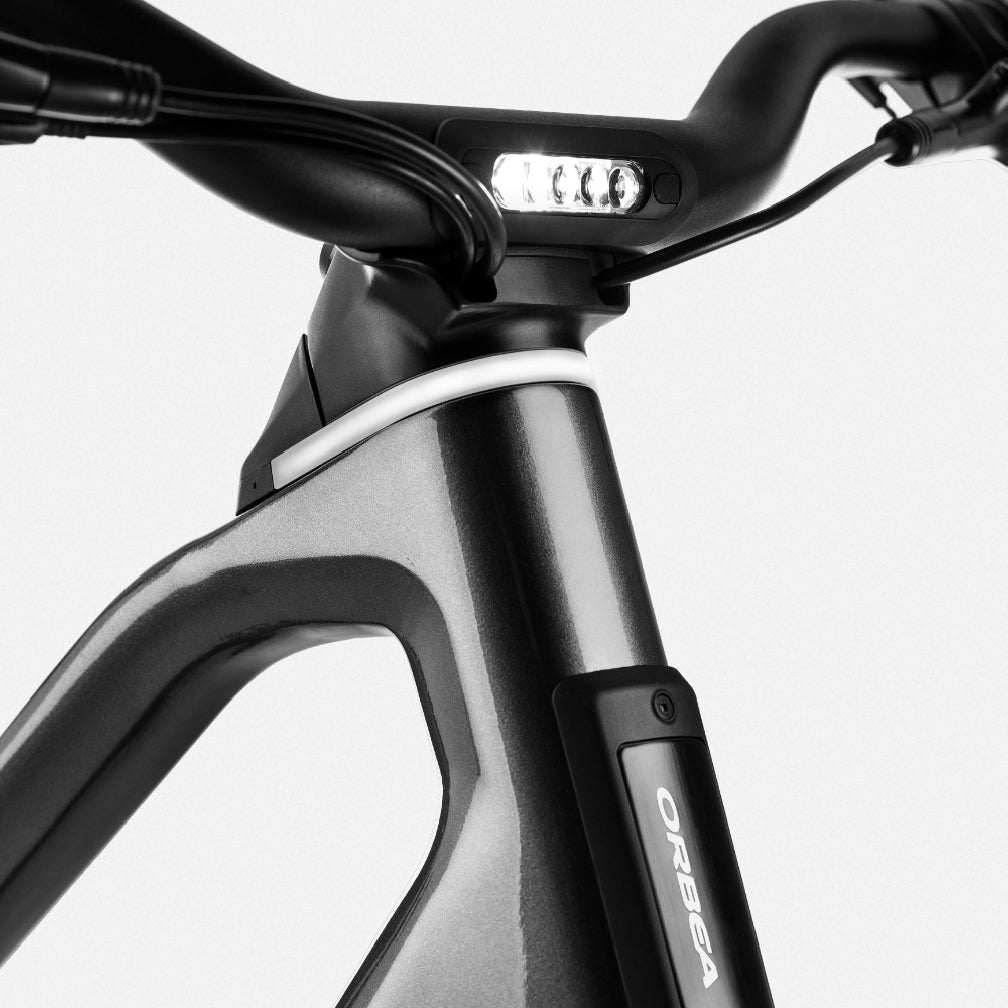

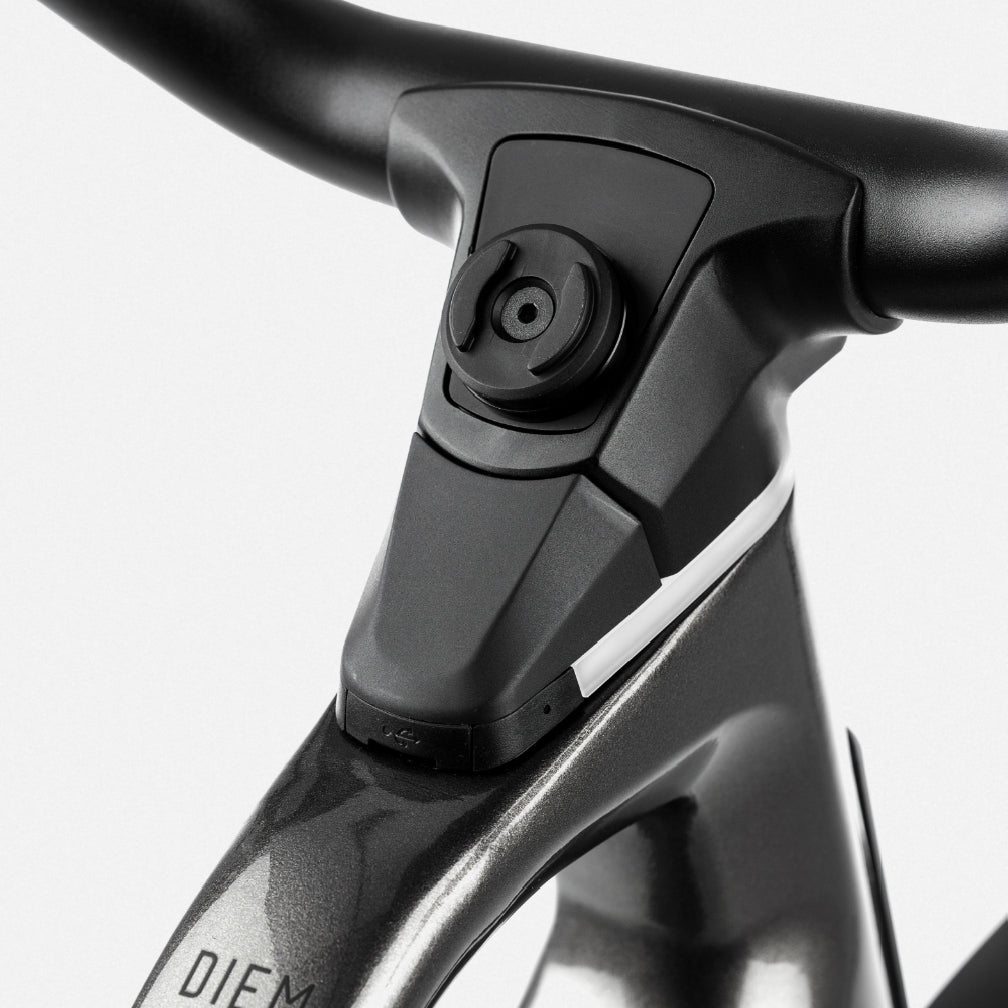

Intelligent Lighting System

An integrated high-tech lighting system automatically activates in low-light conditions, enhancing safety and visibility. Wraparound lights ensure you're visible from all angles, day or night.

Orbea Diem 20 (2025)

Thoughtful Accessories

Orbea offers a range of custom-designed accessories for the Diem 30, including racks, baskets, and child seats, all seamlessly integrated to enhance daily usability without compromising the bike's sleek aesthetics.

Award-winning design


2024 - iF Design Award
“Simply functional and elegant for the urban environment.”

2024 - Cyclingworld Europe “Product of the Year” Award
“There were products that impressed us as jurors, such as the Orbea Diem, which impressed us with its innovative overall concept and many beautifully designed details.”

2024 - Eurobike Gold Award
"Diem is an outstanding city e-Bike that combines safety, comfort, and precision with its patented frame design and SBS battery system. Its futuristic shifting system and exceptional design make it a standout in urban environments..."

2024 - Red Dot “Product Design” Award
“The elegant Diem e-bike impresses with its intelligent lighting system, which significantly increases active safety in road traffic.”

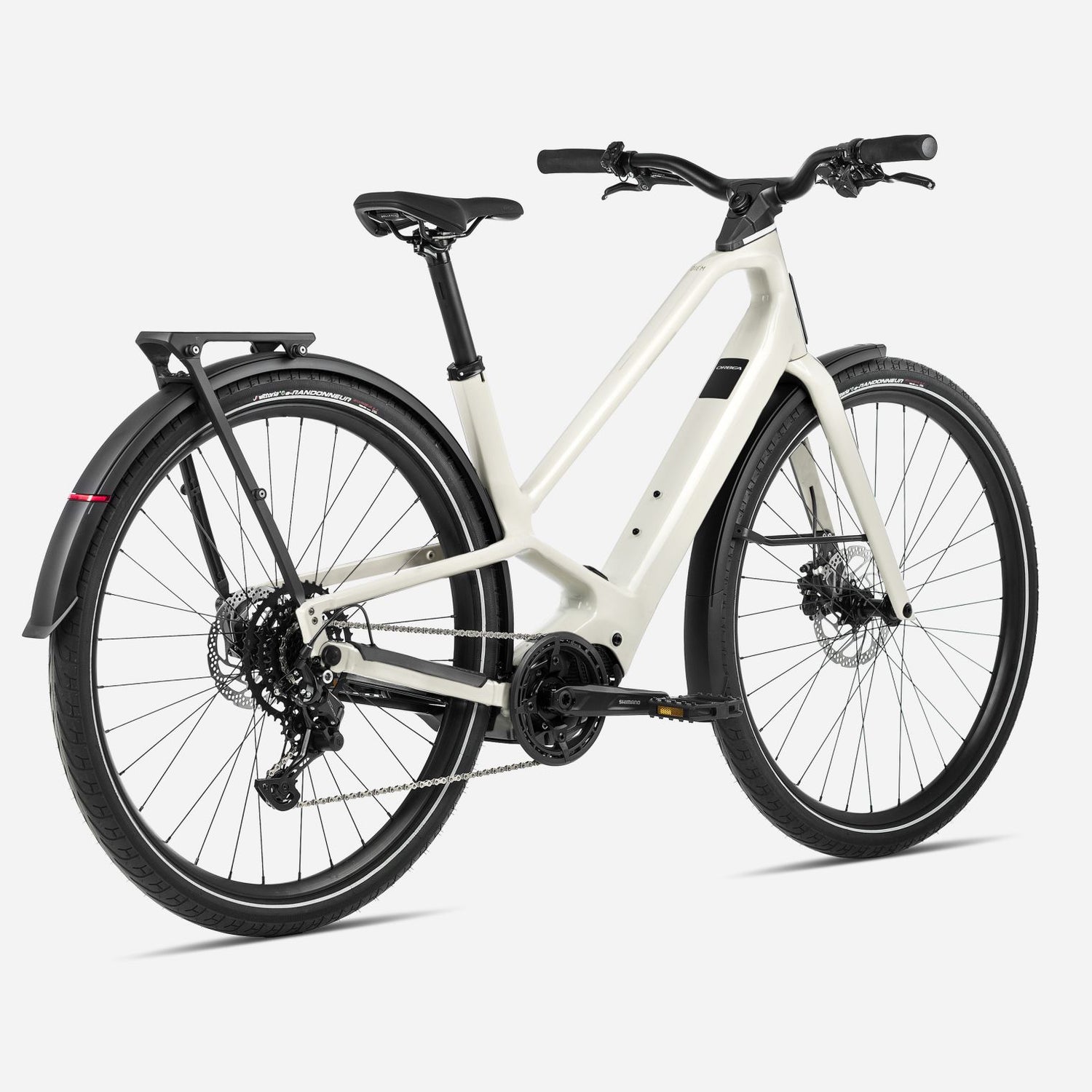

Orbea Diem 30 (2025)

$4,87400 $7,49900

Colour

Size

  • S
  • M
  • L

Motor

Shimano EP600

Controller

EN600-L

Display

N/A

Battery

Orbea Internal 540Wh (Optional 250 Wh Range Extender)

Charger

Orbea 2.Generation eBike Smart charger 42V/2-4A

Sizes

N/A

Frame material

Aluminium

Frame

Orbea Diem Hydro High Polished 2024, Flex Tech, 135x9 / 142x12, Headset Routing, Custom Kickstand, Orbea Urban Cockpit and equipment compatible

Fork

Orbea Diem carbon fork, full carbon, 1" 1/8 - 1" 1/5 , thru axle 12x1, post mount disc mount, Thrue Axle12x100mm, Long mudguards compatible.

Handlebar

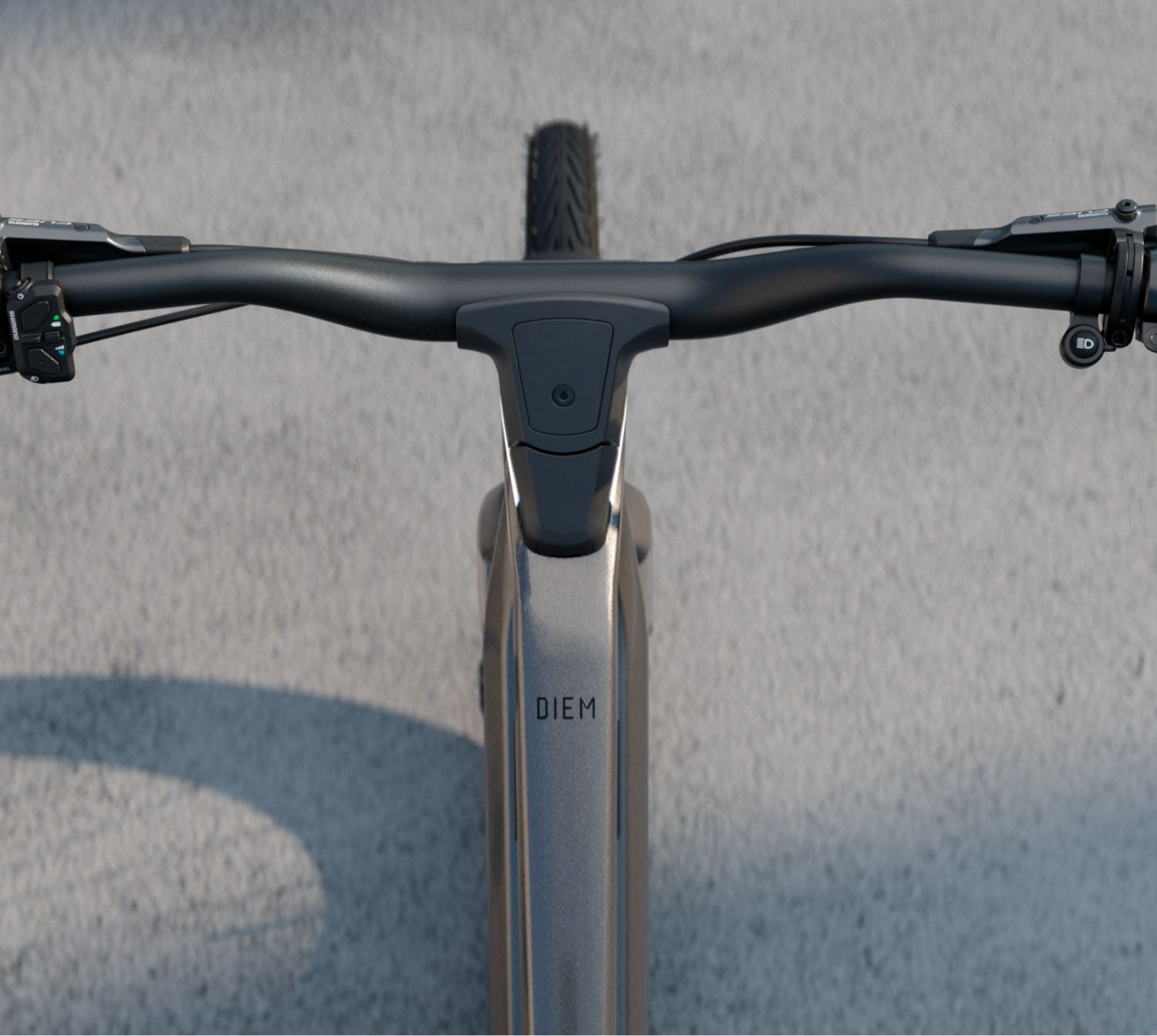

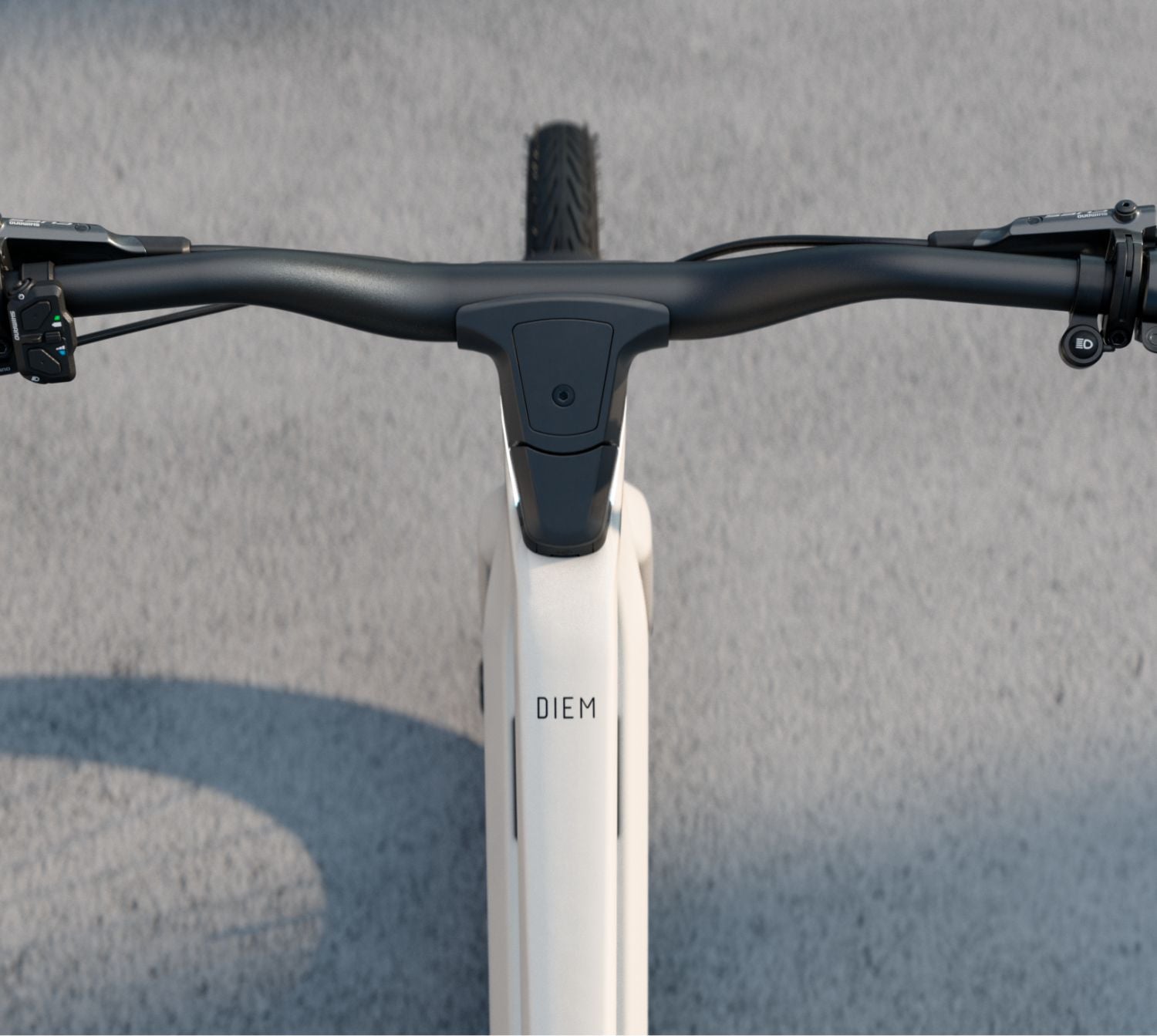

Orbea Urban, Integrated Light, Rise 54, Width 700

Grips

N/A

Bar Tape

N/A

Headset

FSA 1-1/2" Integrated Aluminium Cup

Stem

N/A

Seatpost

Alloy 31.6x300mm Offset 0

Saddle

Selle Royal Vivo Ergo

Pedals

Platform

Shifters

Shimano Cues SL-U4000

Front Derailleur

N/A

Rear Derailleur

Shimano Cues U4000 GS Shadow

Brakes

Shimano MT201 Hydraulic Disc

Brake Levers

N/A

Cassette/Freewheel

Shimano CS-LG300 11-46t 9-Speed

Chain

KMC eGlide

Crankset

Shimano Steps EM600 / Alloy 40t w/chainguard

Bottom Bracket

N/A

Rims

N/A

Hubs

N/A

Spokes

N/A

Tyres

Vittoria e-Randonneur 50-622, Reflective band

Wheel Size

N/A

Extras

Integrated smart lighting, front & rear carrier racks, mudguards, kickstand, Knog Oi Classic bell
