Orbea Occam H30 (2021)
Orbea Occam H30 (2021) - Anthracite Glitter/Candy Red / XL is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Sizing Chart
Sizing Chart
Sizing and Geometry
Orbea Occam / Occam SL
Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.
| Size | Rider Height (cm) |
|---|---|
| S | 150-170cm |
| M | 160-180cm |
| L | 170-190cm |
| XL | 180-200cm |
Geometry
| Measurement | SM | MD | LG |
|---|---|---|---|
| Seat Tube Length (mm) | 405 | 415 | 430 |
| Top Tube Length (mm) | 570 | 596 | 622 |
| Head Tube Length (mm) | 95 | 100 | 110 |
| Head Tube Angle (°) | 65.5 | 65.5 | 65.5 |
| Seat Tube Angle (°) | 78 | 78 | 78 |
| Chainstay Length (mm) | 440 | 440 | 440 |
| Wheelbase (mm) | 1191 | 1218 | 1244 |
| Bottom Bracket Drop (mm) | 37 | 37 | 37 |
| Bottom Bracket Height (mm) | 341 | 341 | 341 |
| Stack (mm) | 611 | 615 | 624 |
| Reach (mm) | 440 | 465 | 490 |
Bike Shipping
Bike Shipping
Delivery is available upon specific request for our special order bikes.
Bikes may only be shipped directly to a qualified bike mechanic or bike shop of your choosing, who must complete the assembly of the bike. We strictly cannot ship an unbuilt bike direct to consumer.
The buyer is responsible for all shipping and assembly costs, and is responsible for arranging assembly with their nominated bike store or mechanic.
To request a shipping quote, please submit a request and include the delivery postcode, business name of your nominated bike shop or bike mechanic, and the exact model & frame size of the bike.
Please note: All bikes sold by Ivanhoe Cycles must be assembled by a qualified mechanic or bike shop. Any assembly undertaken without professional assistance is at the customer's risk and any injury as a result of the build without professional assistance will not be covered by the warranty.
Assembly
Assembly
Every bike purchased or collected in-store at Ivanhoe Cycles is fully assembled by our qualified mechanics free of charge.
Bikes ordered online for shipping* will require partial assembly, including but not limited to: installing handlebar, seatpost, front wheel; adjusting gears and brakes; tuning suspension; installing accessories or bar tape.
Disclaimer: Ivanhoe Cycles strongly advises having your assembly completed by an experienced bicycle mechanic. Any assembly undertaken without professional assistance is at the customer's risk and any injury as a result of the build without professional assistance will not be covered by the warranty.
*Shipping is restricted to certain brands due to assembly requirements.
Returns / Cancellations
Returns / Cancellations
If your special ordered item arrives faulty, damaged, or is differently than described, you are entitled to a full refund or replacement.
Cancellations and returns are not accepted on special orders if the consumer:
- changed their mind
- found the item cheaper elsewhere
- decided they didn't like the purchase or had no use for it
- ordered the wrong item
Contact us with any product enquiries you have prior to purchasing.
For more information, please read our Special Order terms and conditions.
Sizing and Geometry
Orbea Occam / Occam SL
Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.
| Size | Rider Height (cm) |
|---|---|
| S | 150-170cm |
| M | 160-180cm |
| L | 170-190cm |
| XL | 180-200cm |
Geometry
| Measurement | SM | MD | LG |
|---|---|---|---|
| Seat Tube Length (mm) | 405 | 415 | 430 |
| Top Tube Length (mm) | 570 | 596 | 622 |
| Head Tube Length (mm) | 95 | 100 | 110 |
| Head Tube Angle (°) | 65.5 | 65.5 | 65.5 |
| Seat Tube Angle (°) | 78 | 78 | 78 |
| Chainstay Length (mm) | 440 | 440 | 440 |
| Wheelbase (mm) | 1191 | 1218 | 1244 |
| Bottom Bracket Drop (mm) | 37 | 37 | 37 |
| Bottom Bracket Height (mm) | 341 | 341 | 341 |
| Stack (mm) | 611 | 615 | 624 |
| Reach (mm) | 440 | 465 | 490 |

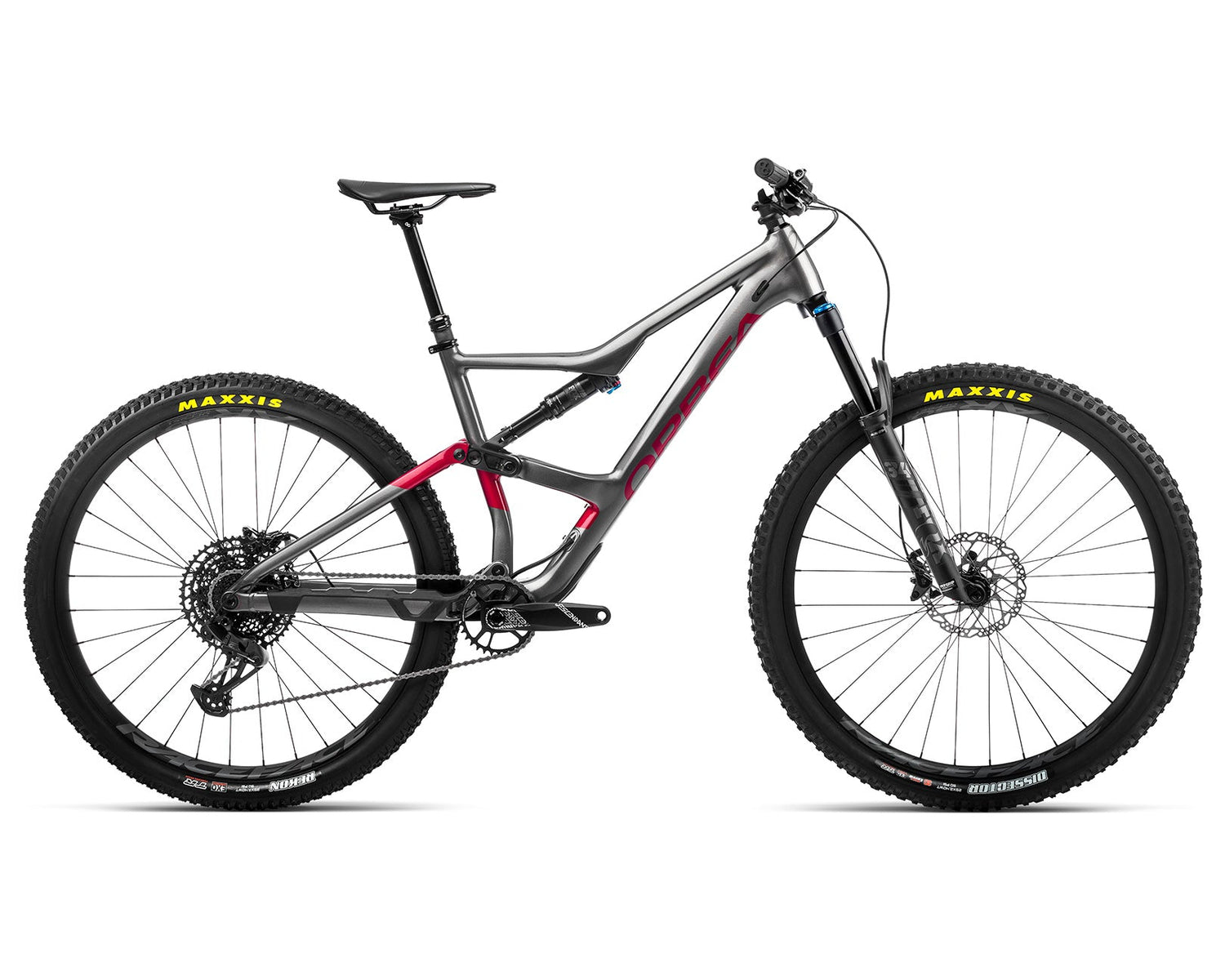

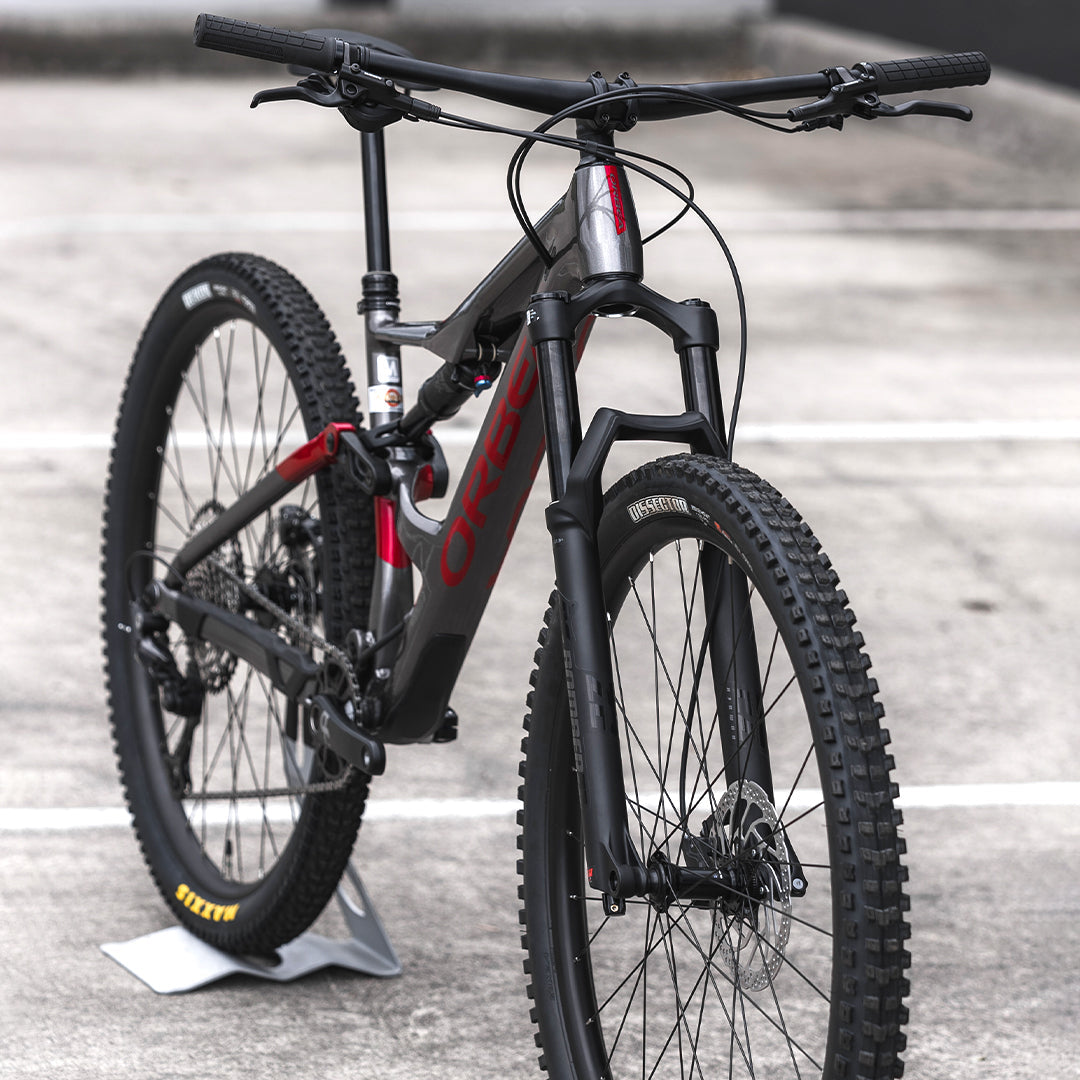

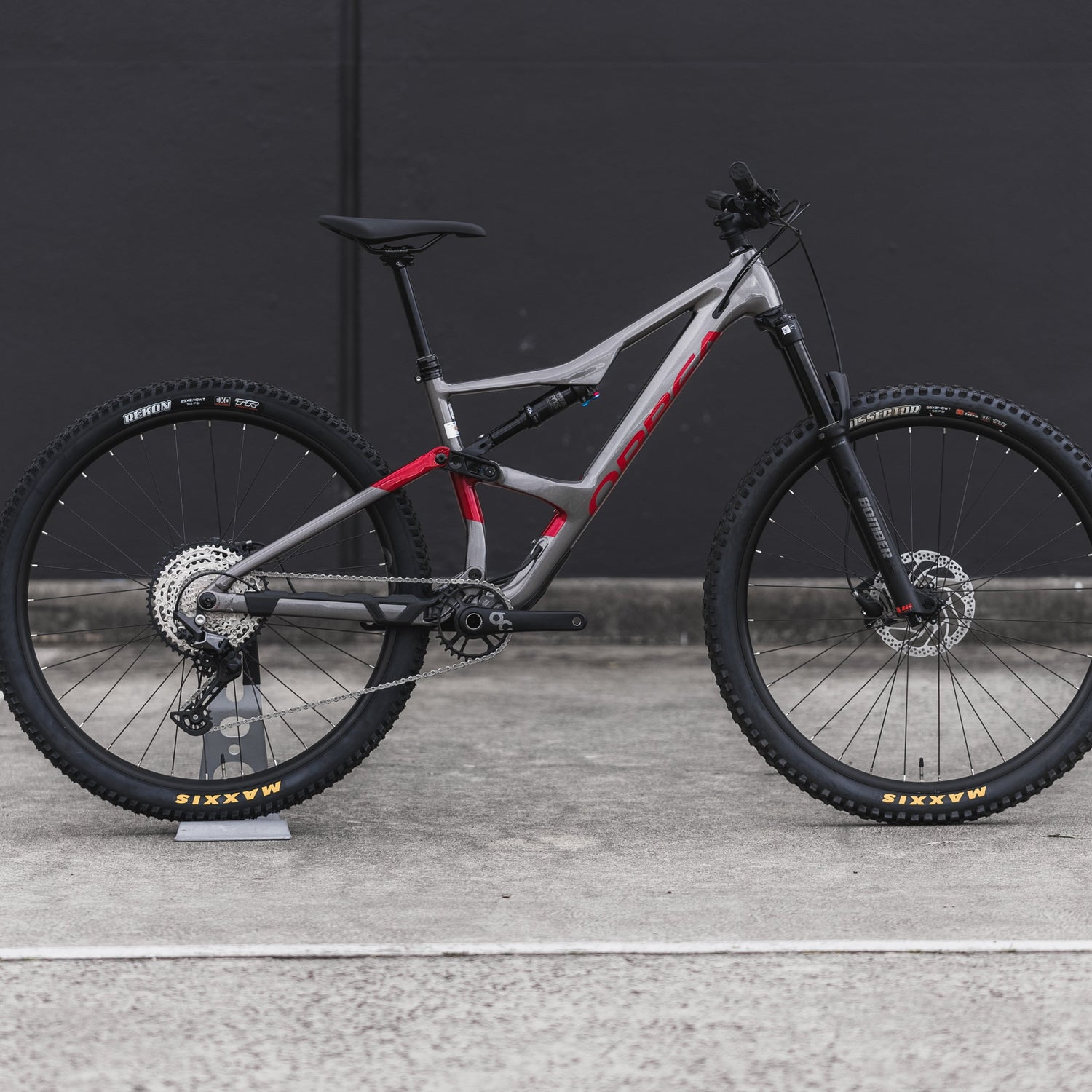

Orbea Occam H30 (2021)
Orbea Occam H30 (2021)
Do your friends ask if you intend to ride the chairlift when you invite them out for a ‘few’ park laps? Do your top routes frequently involve pushing up and down trails that aren’t on any map? Do your favorite rides begin or end with headlamps, an ice chest and great friends? Does your bike have to do everything well to get you there and back again? If you think you might be this rider, then Occam should be your bike.

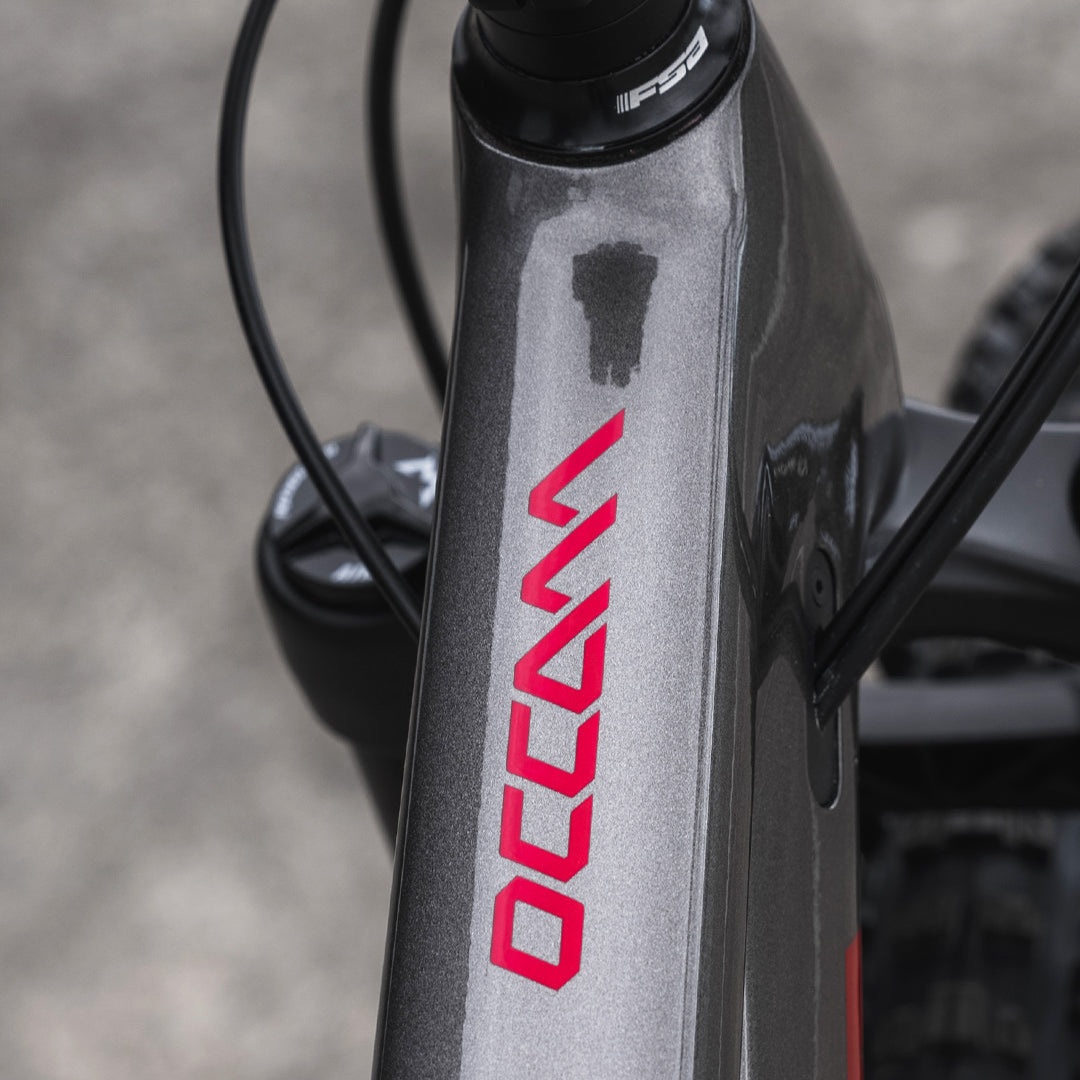

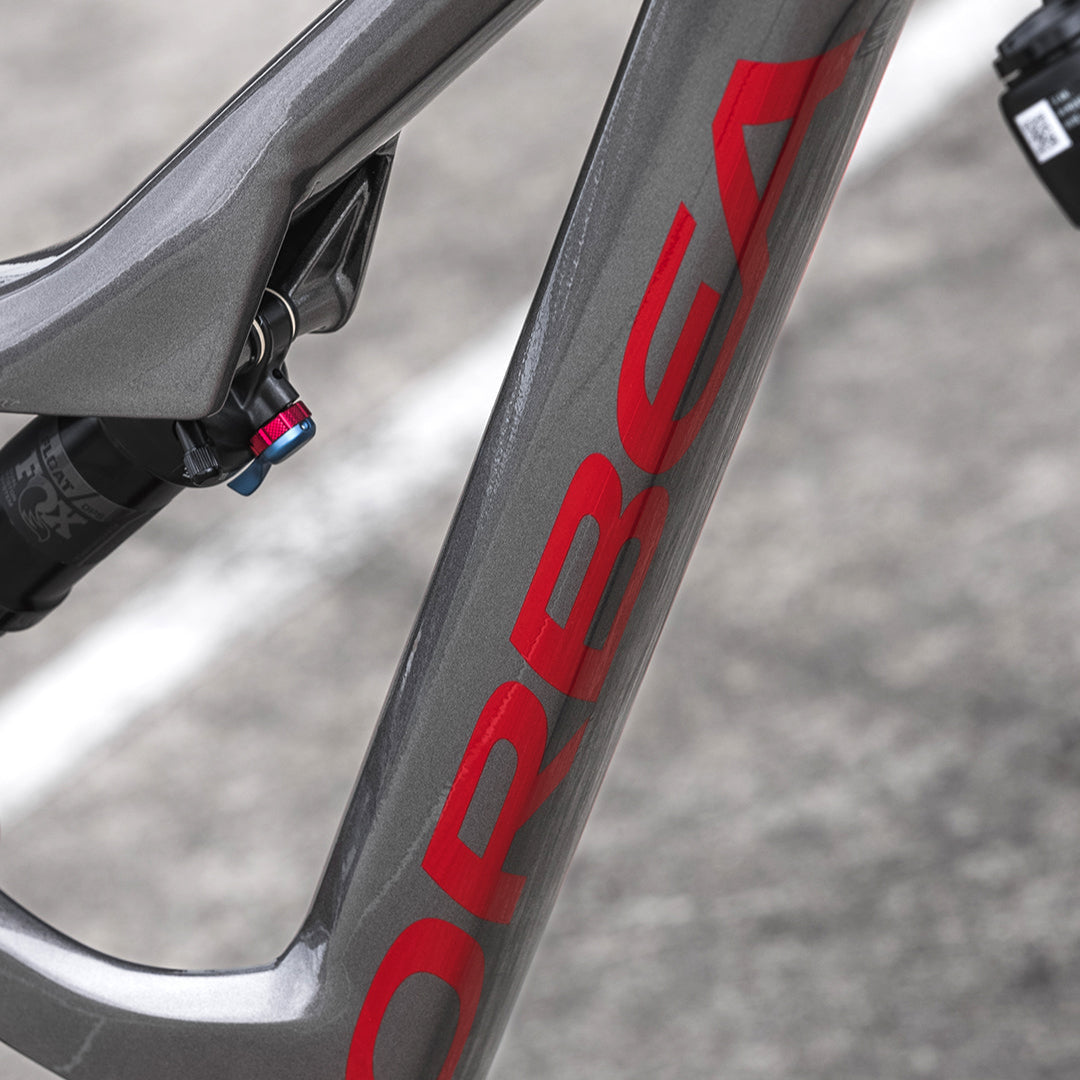

HYDROFORMED TRIPLE-BUTTED ALLOY FRAME
This lightweight yet durable frame provides excellent strength and stiffness, ensuring responsive handling and efficient power transfer on challenging trails.

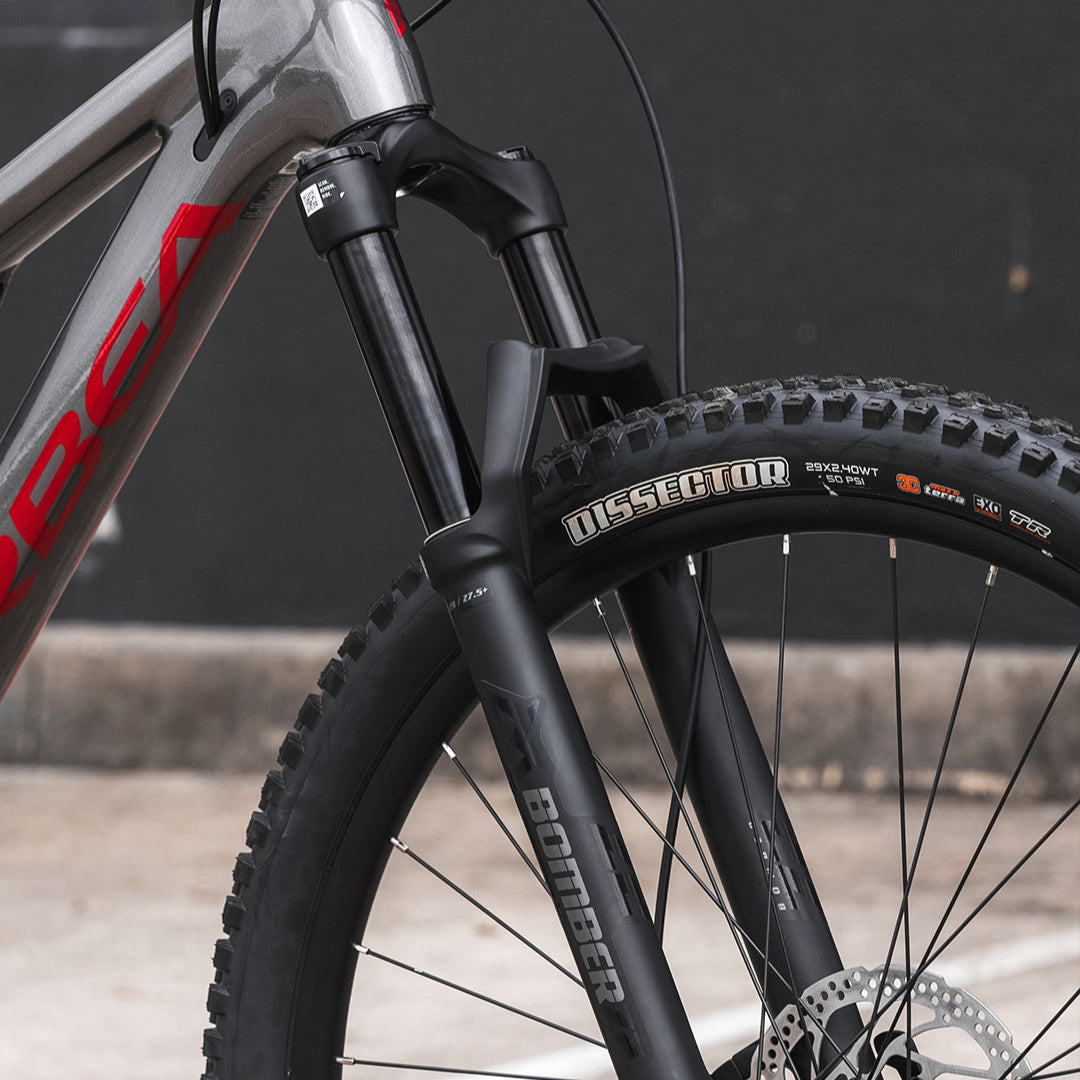

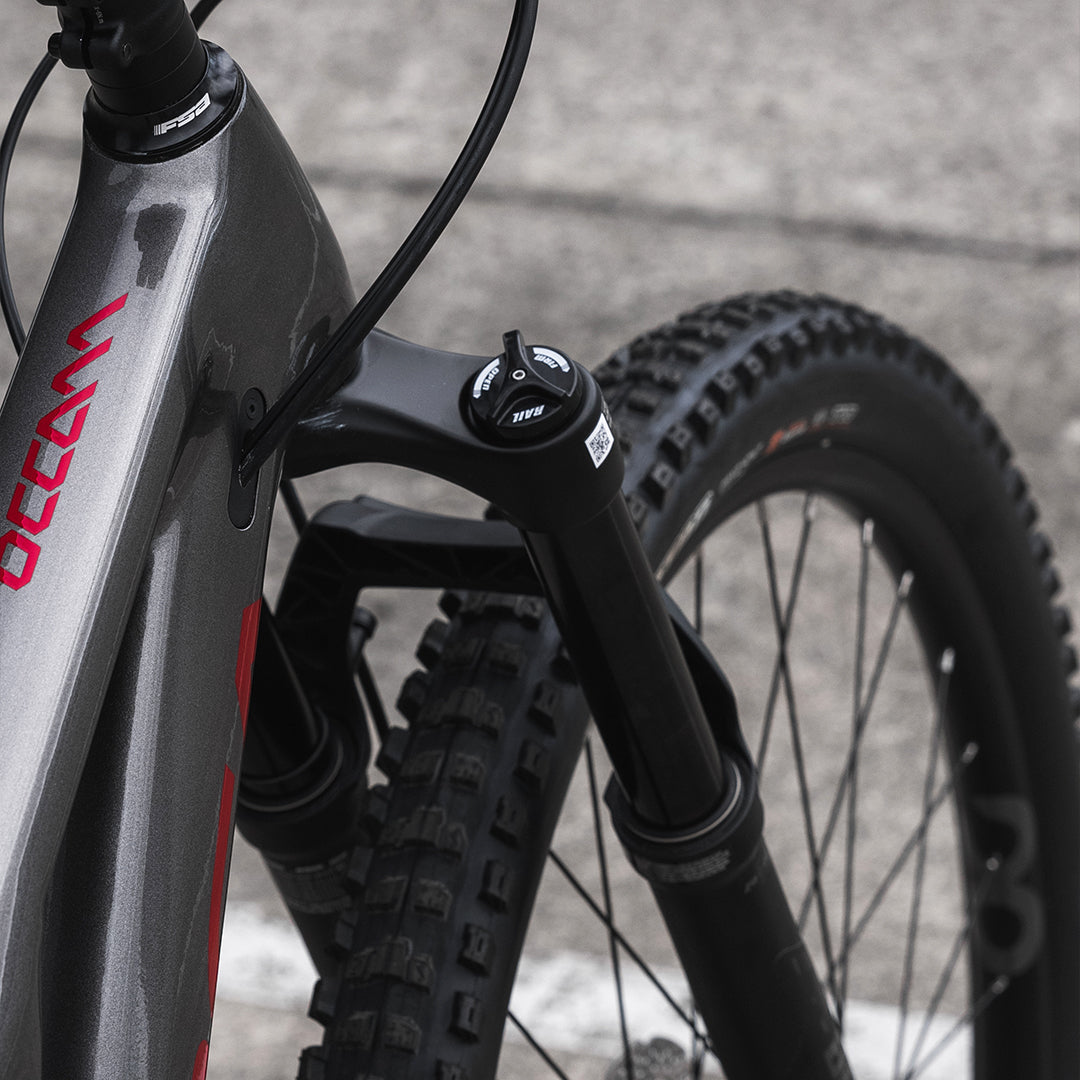

MARZOCCHI BOMBER Z2 AIR FORK
The 140mm travel air fork offers smooth suspension performance, absorbing shocks and bumps to maintain control and comfort over rough terrain.

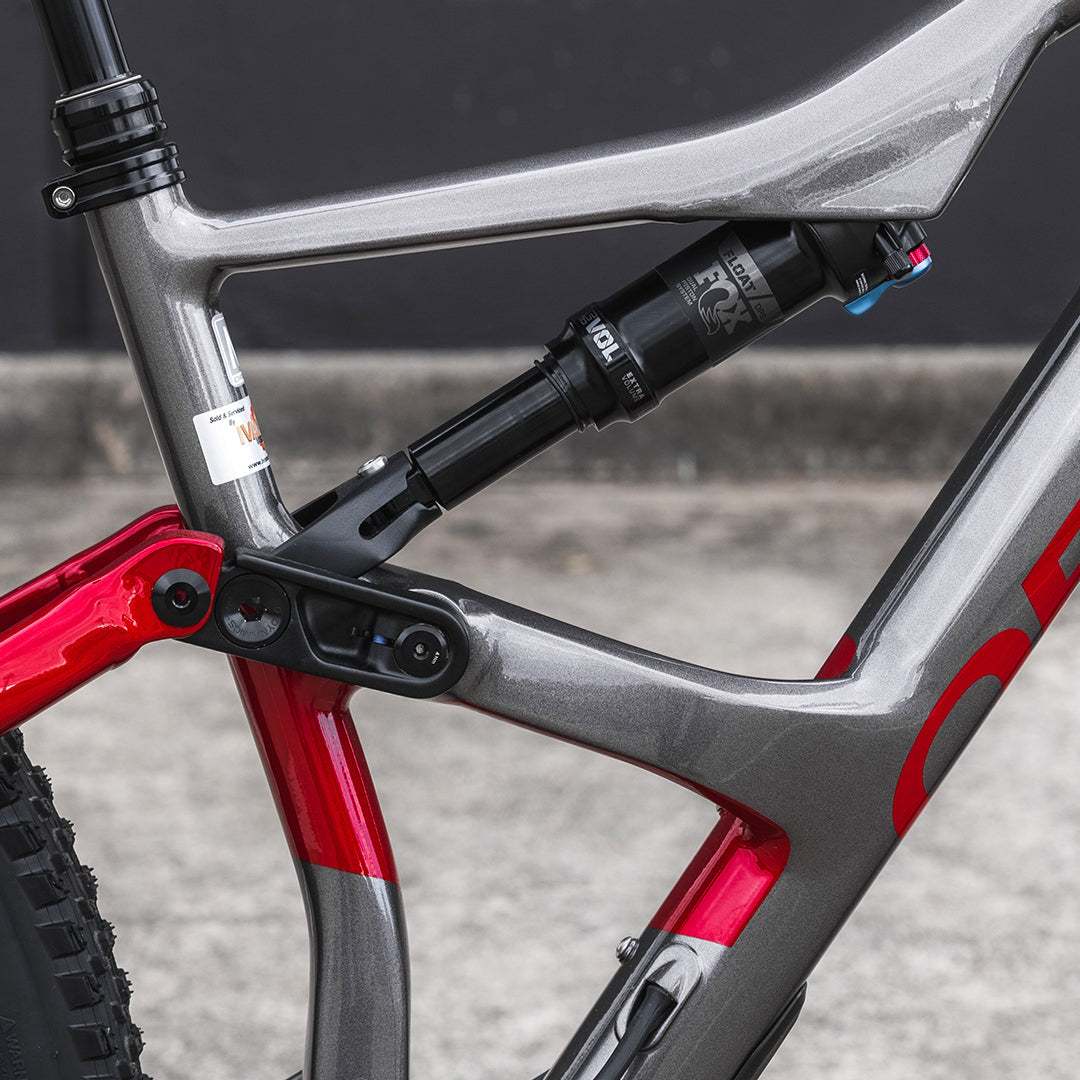

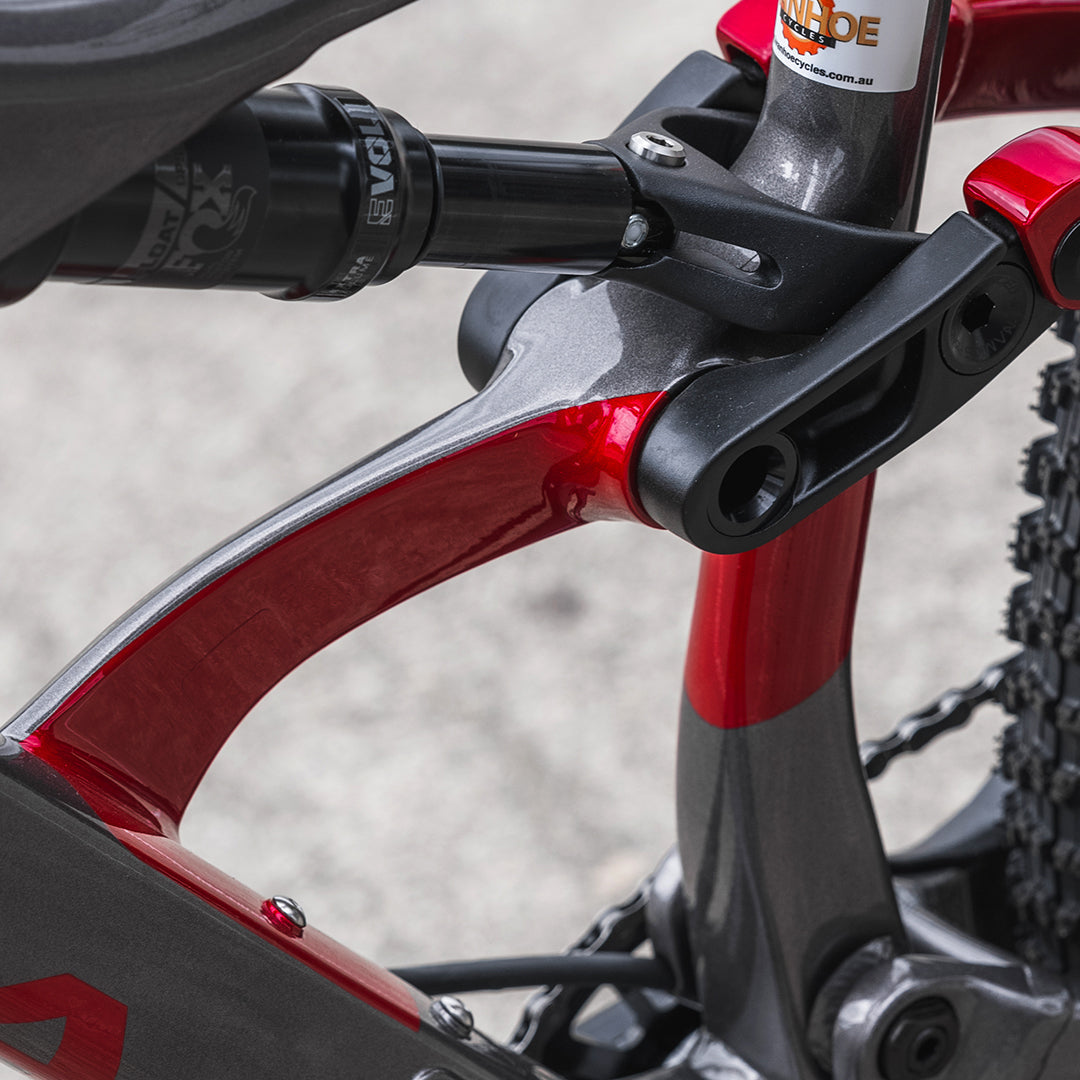

FOX FLOAT DPS PERFORMANCE SHOCK
With 140mm of rear travel and a 3-position adjust lever, this shock provides customizable damping to suit various trail conditions, enhancing traction and ride quality.

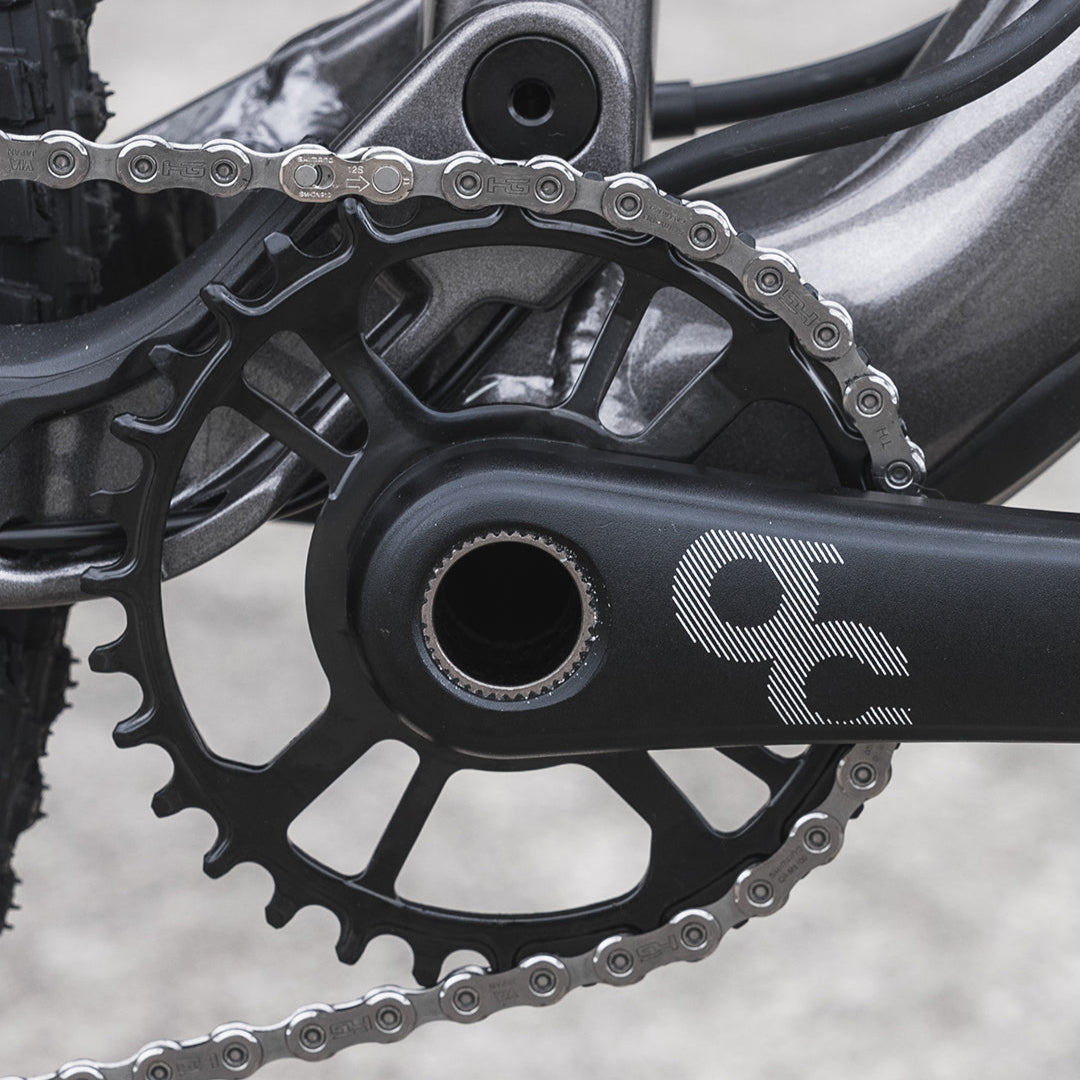

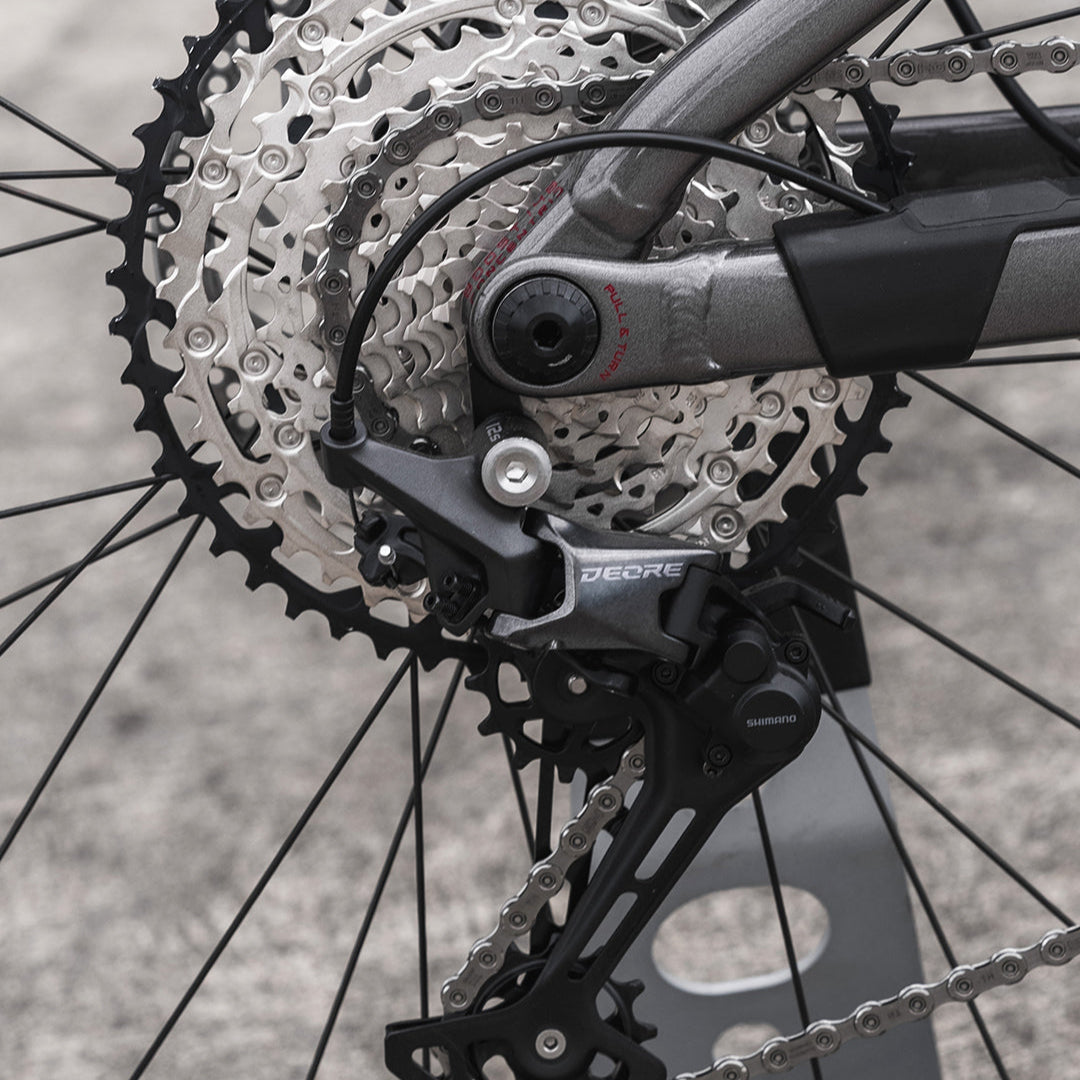

SHIMANO DEORE 12 SPEED DRIVETRAIN
The wide gear range (11-51t cassette) allows for efficient climbing and descending, ensuring smooth and reliable shifting across diverse terrains.
SHIMANO HYDRAULIC DISC BRAKES
These brakes deliver consistent and powerful stopping power, enhancing safety and control during descents and technical sections.
ORBEA OC1 29" TUBELESS READY WHEELS
The 29-inch wheels roll over obstacles more easily, while the tubeless-ready design reduces the risk of flats. Maxxis Rekon 2.4" tyres provide excellent grip and stability.
OC2 DROPPER POST
This dropper post allows for on-the-fly saddle height adjustments, enabling better maneuverability and confidence on descents.
MODERN TRAIL GEOMETRY
With a 66° head angle and 77° seat angle, the slack head angle enhances stability on descents, while the steep seat angle improves climbing efficiency, offering a balanced ride for various trail conditions.
These features collectively make the 2021 Orbea Occam H30 a versatile and capable trail bike, suitable for riders seeking performance and reliability on diverse terrains.
-
Frame material
-
Frame
-
Fork
-
Shock
-
Handlebar
-
Headset
-
Stem
-
Seatpost
-
Saddle
-
Pedals
-
Shifters
-
Front Derailleur
-
Rear Derailleur
-
Brakes
-
Cassette/Freewheel
-
Chain
-
Crankset
-
Tyres
-
Wheelset
-
Notes
-
Speeds (rear)12 Speed
-
Age GroupAdults
-
GenderMens, Unisex
-
DisciplineMountain
-
SKUAnthracite Glitter/Candy Red/XL: 8434446936067
