Orbea  |  SKU: 8434446037900

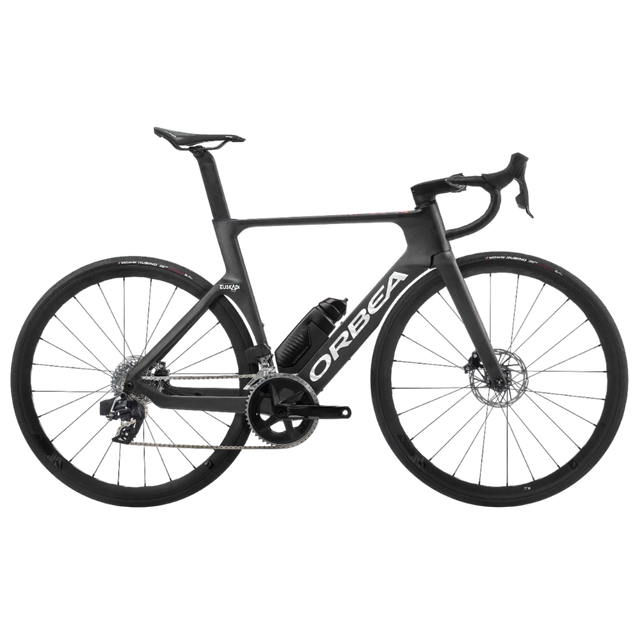

Orbea Orca Aero M31E LTD PWR (2023)

$5,49900 $9,99900
Colour: Euskadi
Size

Special Order: This product will be ordered from our supplier upon purchase and available for collection within 7-14 business days. Read T&Cs here.
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
Fully assembled when you Click & Collect in-store
Buy Now, Pay Later with ZIP
Free service adjustment within first 6 months

Sizing Chart

Sizing and Geometry

Orbea Orca Aero

Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.

Size Rider Height (cm)
47cm 155-160cm
49cm 160-166cm
51cm 167-172cm
53cm 173-179cm
55cm 180-185cm
57cm 186-191cm
60cm 192-207cm


Geometry

ORBEA ORCA AERO

Specification 47 49 51 53 55 57 60
Seat Tube (mm) 459 474 499 524 544 564 589
Top Tube (mm) 507.6 520.8 532.9 545.5 557.5 573.1 587
Head Tube (mm) 93.1 100.8 117.2 134.9 155.2 173.2 200.4
Head Angle (°) 71° 71.5° 72.2° 72.8° 73° 73.2° 73.2°
Seat Angle (°) 74.5° 74° 73.7° 73.5° 73.5° 73.2° 73.2°
Chainstay (mm) 408 408 408 408 408 408 408
Wheelbase (mm) 966.2 971 974.8 976.1 986.4 996.9 1010.8
Stack (mm) 596 505 523 542 562 580 606
Reach (mm) 370 376 380 385 391 398 404

Bike Shipping

Delivery is available upon specific request for our special order bikes.

Bikes may only be shipped directly to a qualified bike mechanic or bike shop of your choosing, who must complete the assembly of the bike. We strictly cannot ship an unbuilt bike direct to consumer.

The buyer is responsible for all shipping and assembly costs, and is responsible for arranging assembly with their nominated bike store or mechanic.

To request a shipping quote, please submit a request and include the delivery postcode, business name of your nominated bike shop or bike mechanic, and the exact model & frame size of the bike.

Please note: All bikes sold by Ivanhoe Cycles must be assembled by a qualified mechanic or bike shop. Any assembly undertaken without professional assistance is at the customer's risk and any injury as a result of the build without professional assistance will not be covered by the warranty.

Assembly

Every bike purchased or collected in-store at Ivanhoe Cycles is fully assembled by our qualified mechanics free of charge.

Bikes ordered online for shipping* will require partial assembly, including but not limited to: installing handlebar, seatpost, front wheel; adjusting gears and brakes; tuning suspension; installing accessories or bar tape.

Disclaimer: Ivanhoe Cycles strongly advises having your assembly completed by an experienced bicycle mechanic. Any assembly undertaken without professional assistance is at the customer's risk and any injury as a result of the build without professional assistance will not be covered by the warranty.

*Shipping is restricted to certain brands due to assembly requirements.

Returns / Cancellations

If your special ordered item arrives faulty, damaged, or is differently than described, you are entitled to a full refund or replacement.

Cancellations and returns are not accepted on special orders if the consumer:
- changed their mind
- found the item cheaper elsewhere
- decided they didn't like the purchase or had no use for it
- ordered the wrong item

Contact us with any product enquiries you have prior to purchasing.

For more information, please read our Special Order terms and conditions.

The Orbea Orca Aero M31e LTD Power (2023) is built for riders who crave uncompromising speed, precision, and real-time performance data.

Engineered around Orbea’s aero-optimised Orca Aero carbon frame, it delivers maximum aerodynamic efficiency thanks to aggressive tube profiles, fully internal cable routing, and a race-focused geometry.

At the heart of the build is the SRAM Rival eTap AXS 12-speed wireless groupset, offering crisp, cable-free shifting and a clean aesthetic. Integrated into the crankset is a power meter, giving you the tools to train and race with total accuracy.

The bike rolls on Fulcrum Racing 400 DB wheels, striking the ideal balance of stiffness, responsiveness, and durability for fast-paced road riding and racing. Paired with high-grip tyres and powerful hydraulic disc brakes, the M31e LTD Power offers exceptional control at speed.

Finishing touches include an OC aero carbon cockpit, a sleek carbon seatpost, and a race-tuned saddle, making the Orca Aero M31e LTD Power as sharp in performance as it is in appearance.

Whether you're attacking on flat roads, chasing breakaways, or powering through solo efforts, the Orca Aero M31e LTD Power delivers aerodynamic advantage, power data, and elite-level performance in one sleek package.

Orbea Orca Aero M31E LTD PWR (2023)

$5,49900 $9,99900

Colour

Size

  • 53cm

Motor

N/A

Controller

N/A

Display

N/A

Battery

N/A

Charger

N/A

Sizes

N/A

Frame material

Carbon

Frame

OMX Carbon

Fork

OMX Carbon

Handlebar

OC RP10 Road Performance Carbon, Reach 80, Drop 125, w/Di2 hole

Grips

N/A

Bar Tape

N/A

Headset

Acros Alloy 1-1/2” Internal Cable Routing, Stainless Steel Bearing

Stem

OC RP10 Road Performance ICR, -8o, IFC02 Computer mount interface

Seatpost

Orbea Orca OMX Carbon | Setback: 0mm/25mm

Saddle

Selle Italia SLR Boost SuperFlow L Manganese Rail

Pedals

N/A

Shifters

SRAM Rival eTap AXS, 2x12 speed

Front Derailleur

SRAM Rival eTap AXS

Rear Derailleur

SRAM Rival eTap AXS, 12 speed

Brakes

SRAM Rival eTap AXS

Brake Levers

SRAM Rival eTap AXS

Cassette/Freewheel

SRAM XG-1250 10-30T, 12 speed

Chain

SRAM Rival

Crankset

SRAM Rival AXS Powermeter Dub 35/48T

Bottom Bracket

N/A

Rims

N/A

Hubs

N/A

Spokes

N/A

Tyres

Vittoria Rubino Pro IV G2.0 TLR 700x25c

Wheel Size

N/A

Extras

N/A
