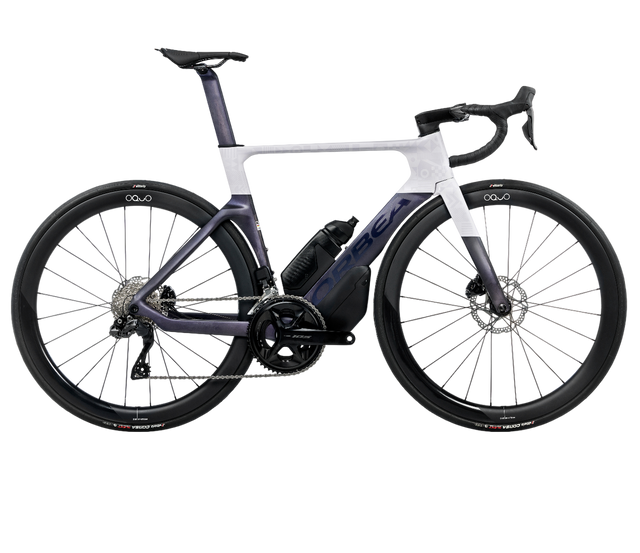

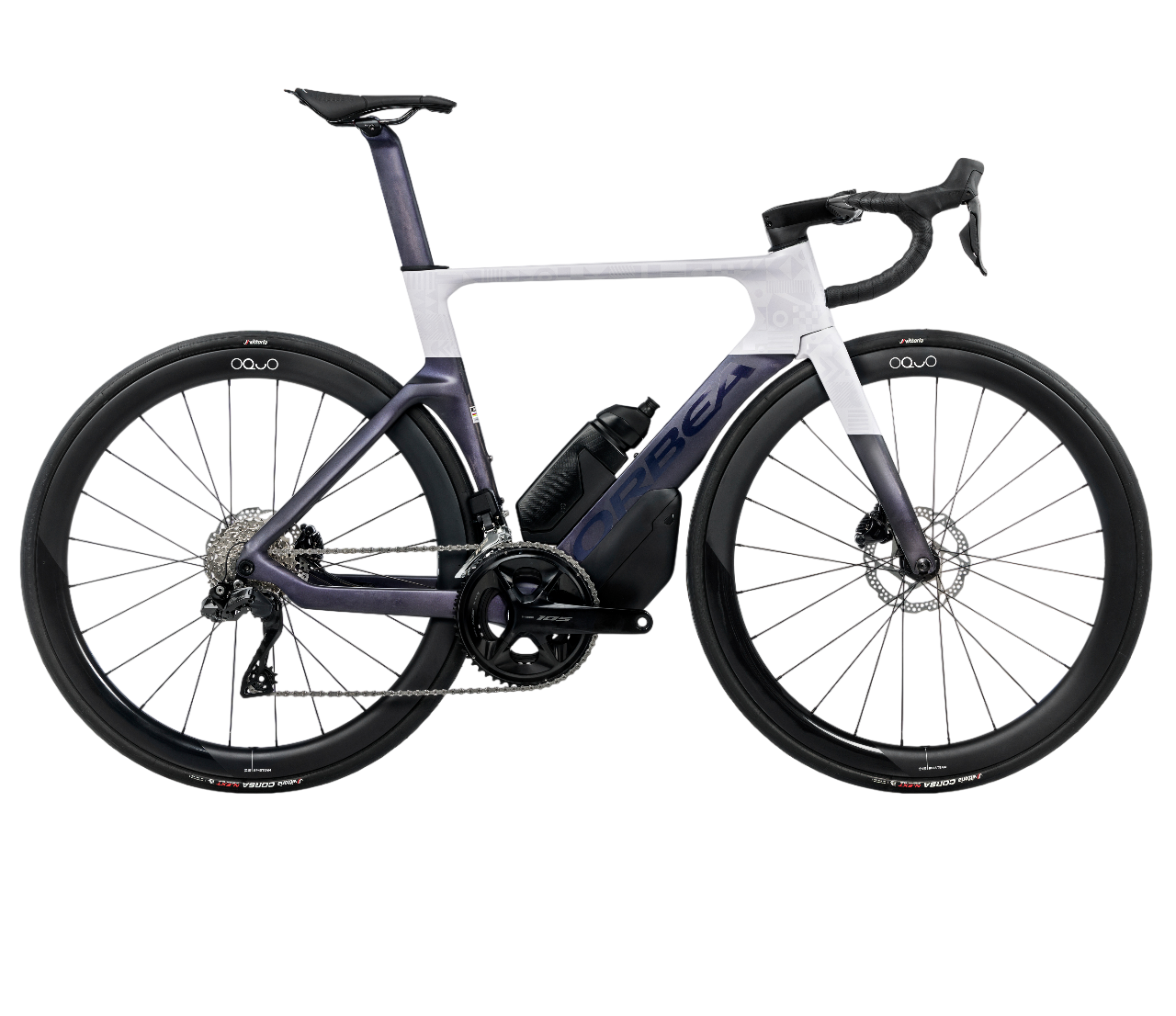

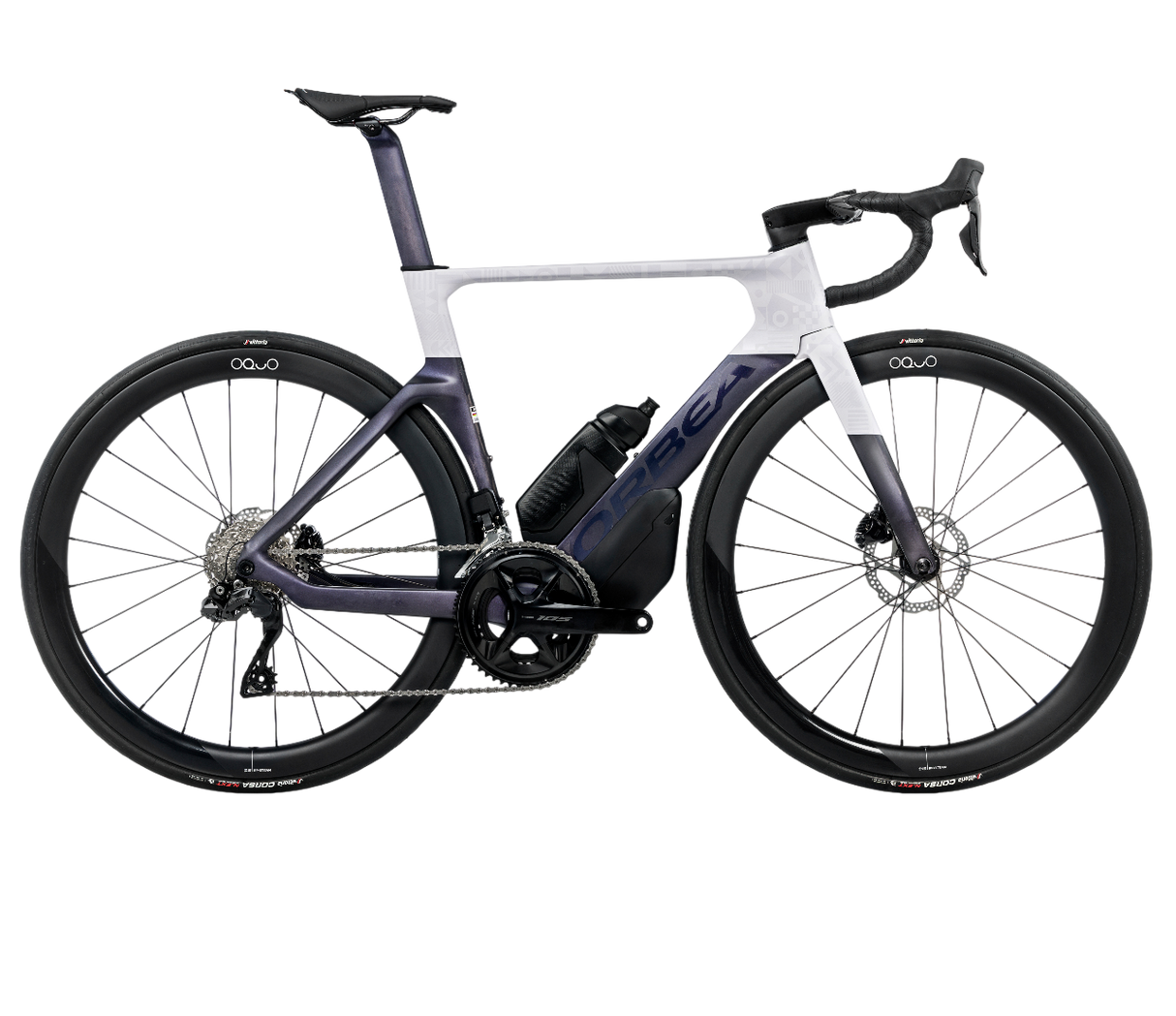

Orbea Orca Aero M35i LTD PWR (2023)
Orbea Orca Aero M35i LTD PWR (2023) - Tanzanite Lilac / 53cm is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Sizing Chart
Sizing Chart
Sizing and Geometry
Orbea Orca Aero
Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.
| Size | Rider Height (cm) |
|---|---|
| 47cm | 155-160cm |
| 49cm | 160-166cm |
| 51cm | 167-172cm |
| 53cm | 173-179cm |
| 55cm | 180-185cm |
| 57cm | 186-191cm |
| 60cm | 192-207cm |
Geometry
| Specification | 47 | 49 | 51 | 53 | 55 | 57 | 60 |
|---|---|---|---|---|---|---|---|
| Seat Tube (mm) | 459 | 474 | 499 | 524 | 544 | 564 | 589 |
| Top Tube (mm) | 507.6 | 520.8 | 532.9 | 545.5 | 557.5 | 573.1 | 587 |
| Head Tube (mm) | 93.1 | 100.8 | 117.2 | 134.9 | 155.2 | 173.2 | 200.4 |
| Head Angle (°) | 71° | 71.5° | 72.2° | 72.8° | 73° | 73.2° | 73.2° |
| Seat Angle (°) | 74.5° | 74° | 73.7° | 73.5° | 73.5° | 73.2° | 73.2° |
| Chainstay (mm) | 408 | 408 | 408 | 408 | 408 | 408 | 408 |
| Wheelbase (mm) | 966.2 | 971 | 974.8 | 976.1 | 986.4 | 996.9 | 1010.8 |
| Stack (mm) | 596 | 505 | 523 | 542 | 562 | 580 | 606 |
| Reach (mm) | 370 | 376 | 380 | 385 | 391 | 398 | 404 |
Bike Shipping
Bike Shipping
Delivery is available upon specific request for our special order bikes.
Bikes may only be shipped directly to a qualified bike mechanic or bike shop of your choosing, who must complete the assembly of the bike. We strictly cannot ship an unbuilt bike direct to consumer.
The buyer is responsible for all shipping and assembly costs, and is responsible for arranging assembly with their nominated bike store or mechanic.
To request a shipping quote, please submit a request and include the delivery postcode, business name of your nominated bike shop or bike mechanic, and the exact model & frame size of the bike.
Please note: All bikes sold by Ivanhoe Cycles must be assembled by a qualified mechanic or bike shop. Any assembly undertaken without professional assistance is at the customer's risk and any injury as a result of the build without professional assistance will not be covered by the warranty.
Assembly
Assembly
Every bike purchased or collected in-store at Ivanhoe Cycles is fully assembled by our qualified mechanics free of charge.
Bikes ordered online for shipping* will require partial assembly, including but not limited to: installing handlebar, seatpost, front wheel; adjusting gears and brakes; tuning suspension; installing accessories or bar tape.
Disclaimer: Ivanhoe Cycles strongly advises having your assembly completed by an experienced bicycle mechanic. Any assembly undertaken without professional assistance is at the customer's risk and any injury as a result of the build without professional assistance will not be covered by the warranty.
*Shipping is restricted to certain brands due to assembly requirements.
Returns / Cancellations
Returns / Cancellations
If your special ordered item arrives faulty, damaged, or is differently than described, you are entitled to a full refund or replacement.
Cancellations and returns are not accepted on special orders if the consumer:
- changed their mind
- found the item cheaper elsewhere
- decided they didn't like the purchase or had no use for it
- ordered the wrong item
Contact us with any product enquiries you have prior to purchasing.
For more information, please read our Special Order terms and conditions.
Sizing and Geometry
Orbea Orca Aero
Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.
| Size | Rider Height (cm) |
|---|---|
| 47cm | 155-160cm |
| 49cm | 160-166cm |
| 51cm | 167-172cm |
| 53cm | 173-179cm |
| 55cm | 180-185cm |
| 57cm | 186-191cm |
| 60cm | 192-207cm |
Geometry
| Specification | 47 | 49 | 51 | 53 | 55 | 57 | 60 |
|---|---|---|---|---|---|---|---|
| Seat Tube (mm) | 459 | 474 | 499 | 524 | 544 | 564 | 589 |
| Top Tube (mm) | 507.6 | 520.8 | 532.9 | 545.5 | 557.5 | 573.1 | 587 |
| Head Tube (mm) | 93.1 | 100.8 | 117.2 | 134.9 | 155.2 | 173.2 | 200.4 |
| Head Angle (°) | 71° | 71.5° | 72.2° | 72.8° | 73° | 73.2° | 73.2° |
| Seat Angle (°) | 74.5° | 74° | 73.7° | 73.5° | 73.5° | 73.2° | 73.2° |
| Chainstay (mm) | 408 | 408 | 408 | 408 | 408 | 408 | 408 |
| Wheelbase (mm) | 966.2 | 971 | 974.8 | 976.1 | 986.4 | 996.9 | 1010.8 |
| Stack (mm) | 596 | 505 | 523 | 542 | 562 | 580 | 606 |
| Reach (mm) | 370 | 376 | 380 | 385 | 391 | 398 | 404 |
Orbea Orca Aero M35i LTD PWR (2023)
It’s hard to beat the sensation of power that comes from a great aero bike. What rider is ambivalent about a machine that is designed to give back free watts? Is there a competitor who doesn’t grasp every last advantage in the battle for speed? Orca Aero delivers these prizes – along with the willingness to to go all-out, all day, without hesitation. Long live the bike that balances the emotional and rational desires inside each of us – Long live Aero.
PERFECT BALANCE
Historically, considering only the three design factors of aerodynamics, stiffness and weight rarely yields dramatic improvement. Big gains in one area always compromise one or both of the others. The key to building the best aero road bike is finding the balance of these targets, and identifying additional performance factors that allow the rider to increase efficiency.
AERODYNAMICS
Aligning the frame with the airflow, optimising cross-sections, smoothing transitions and myriad other improvements mean a big reduction in drag. Slipping effortlessly through the air, that instant feedback of a world-class aero bike. There is no better feeling.
-
Frame material
-
Frame
-
Fork
-
Handlebar
-
Bar Tape
-
Headset
-
Stem
-
Seatpost
-
Saddle
-
Pedals
-
Shifters
-
Front Derailleur
-
Rear Derailleur
-
Brakes
-
Cassette/Freewheel
-
Chain
-
Crankset
-
Hubs
-
Tyres
-
Wheelset
-
Extras
-
Notes
-
Speeds (rear)12 Speed
-
Age GroupAdults
-
GenderMens
-
DisciplineRoad
-
SKUsTanzanite Lilac/53cm: 8434446829116, Tanzanite Lilac/55cm: 8434446829154
