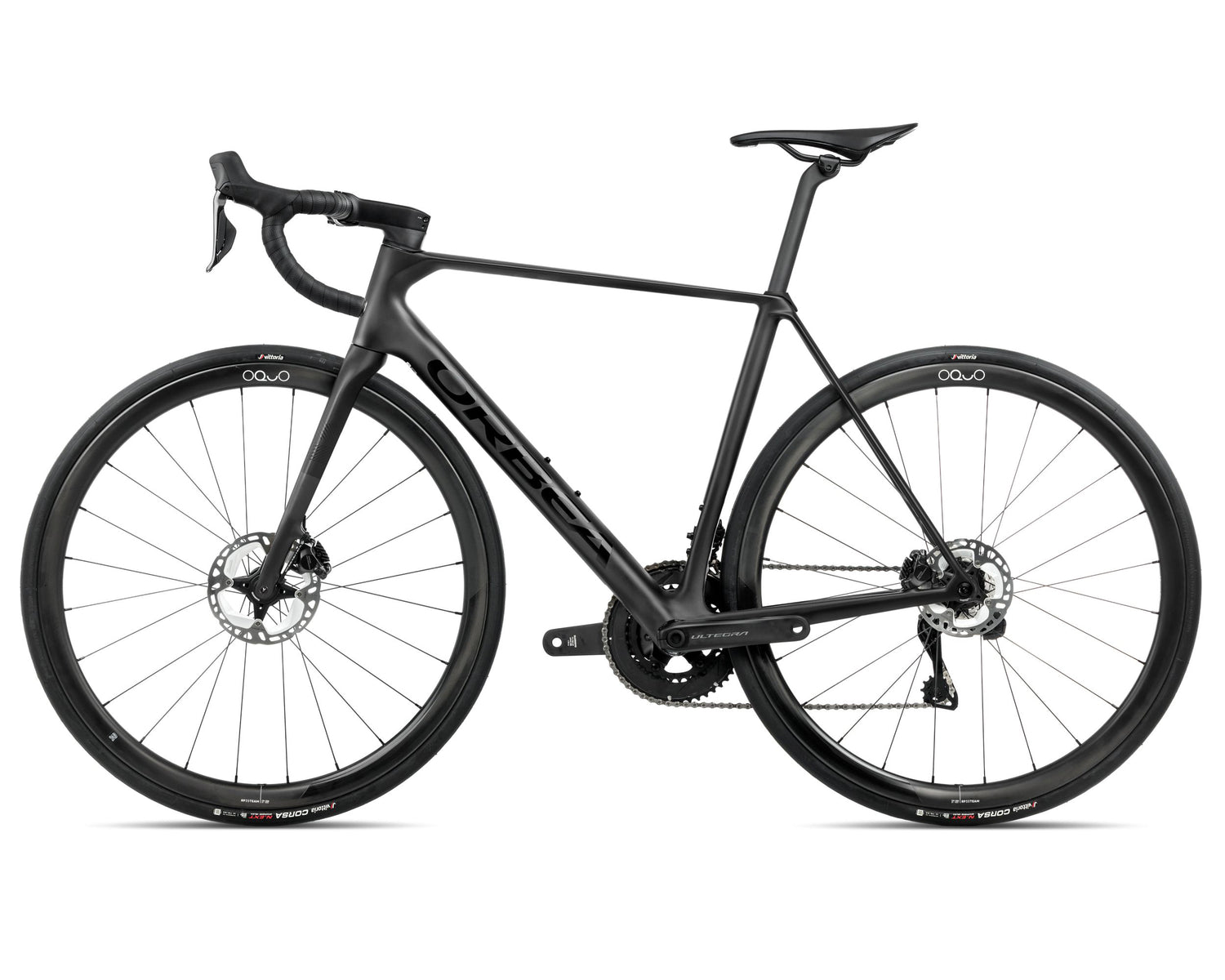

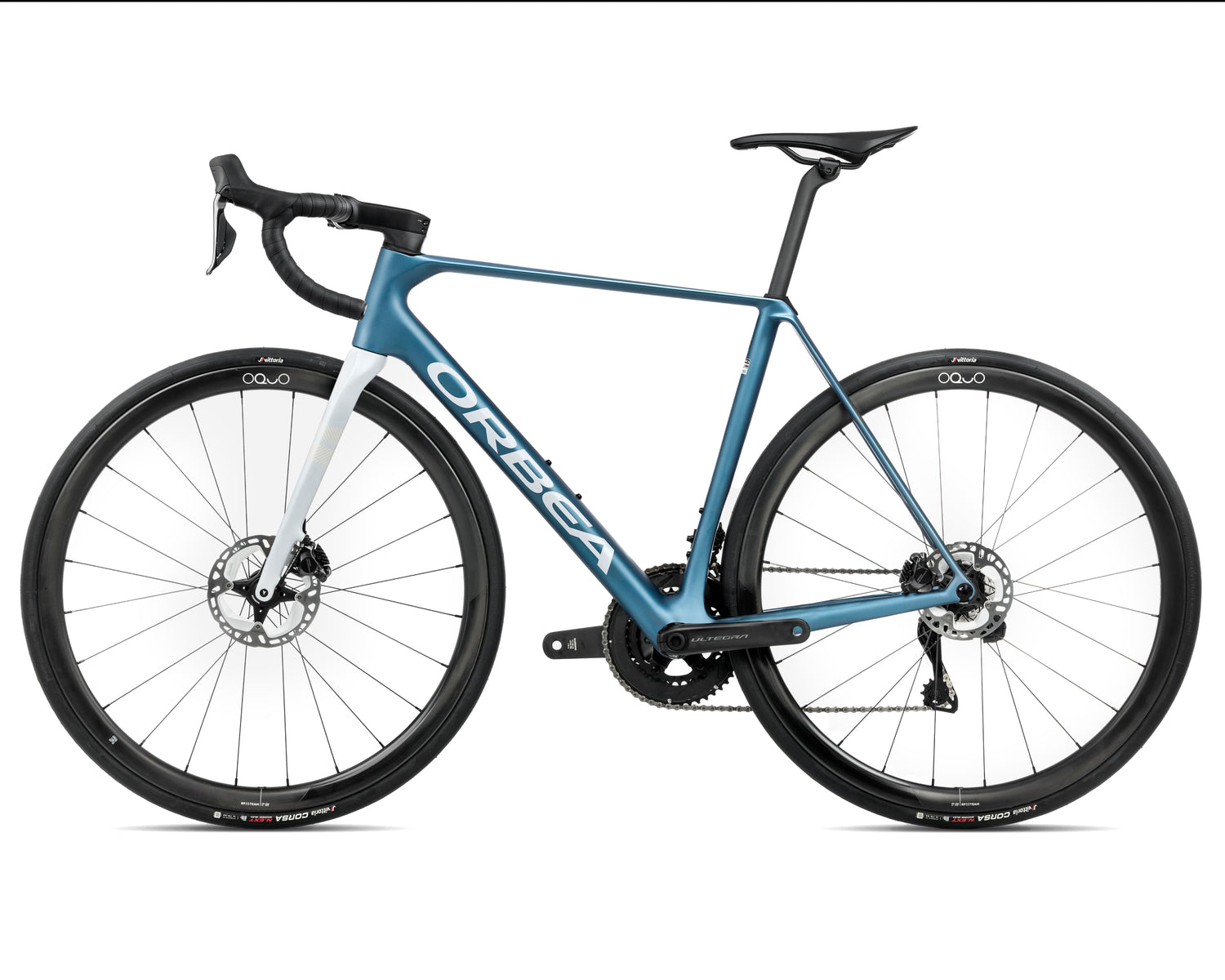

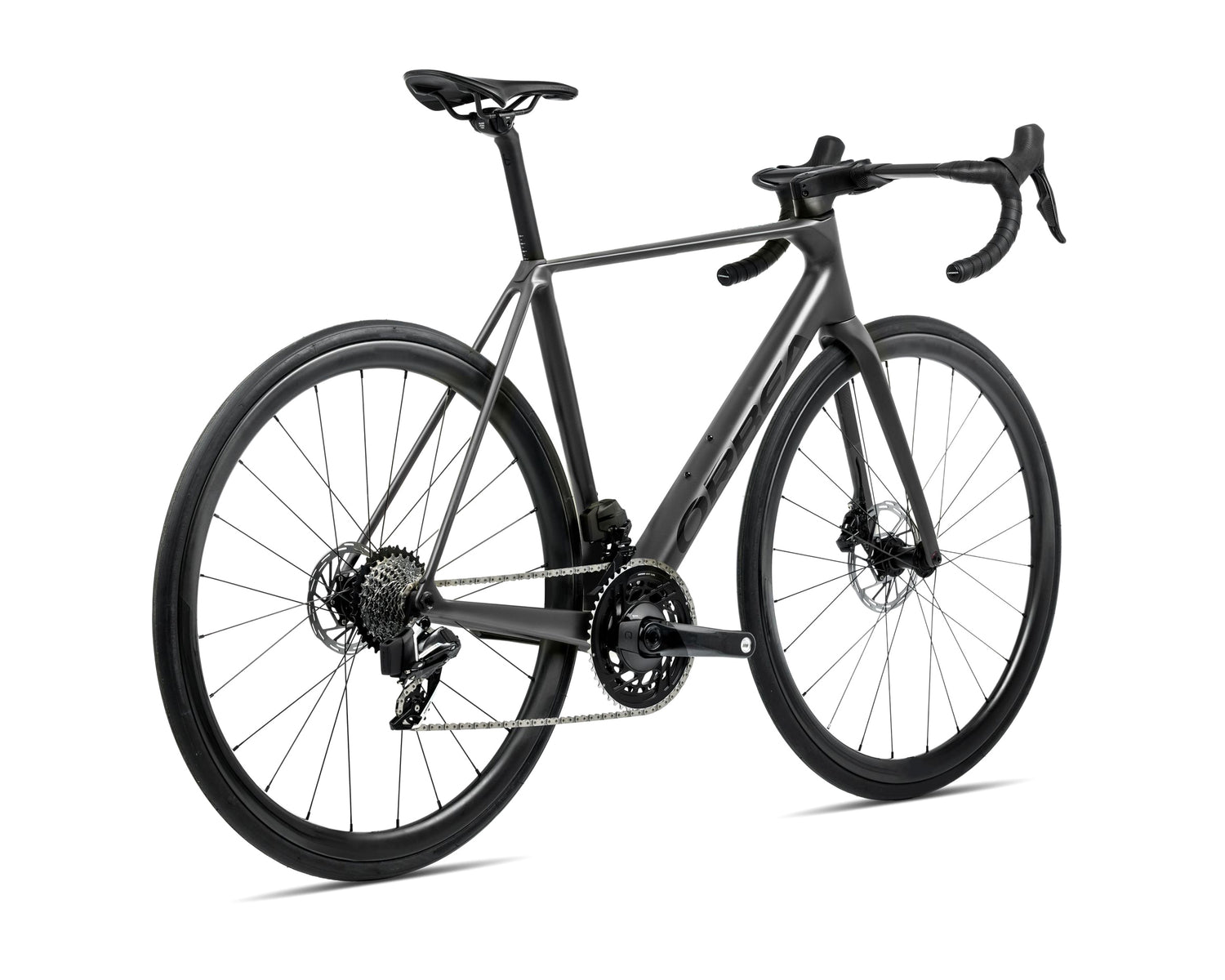

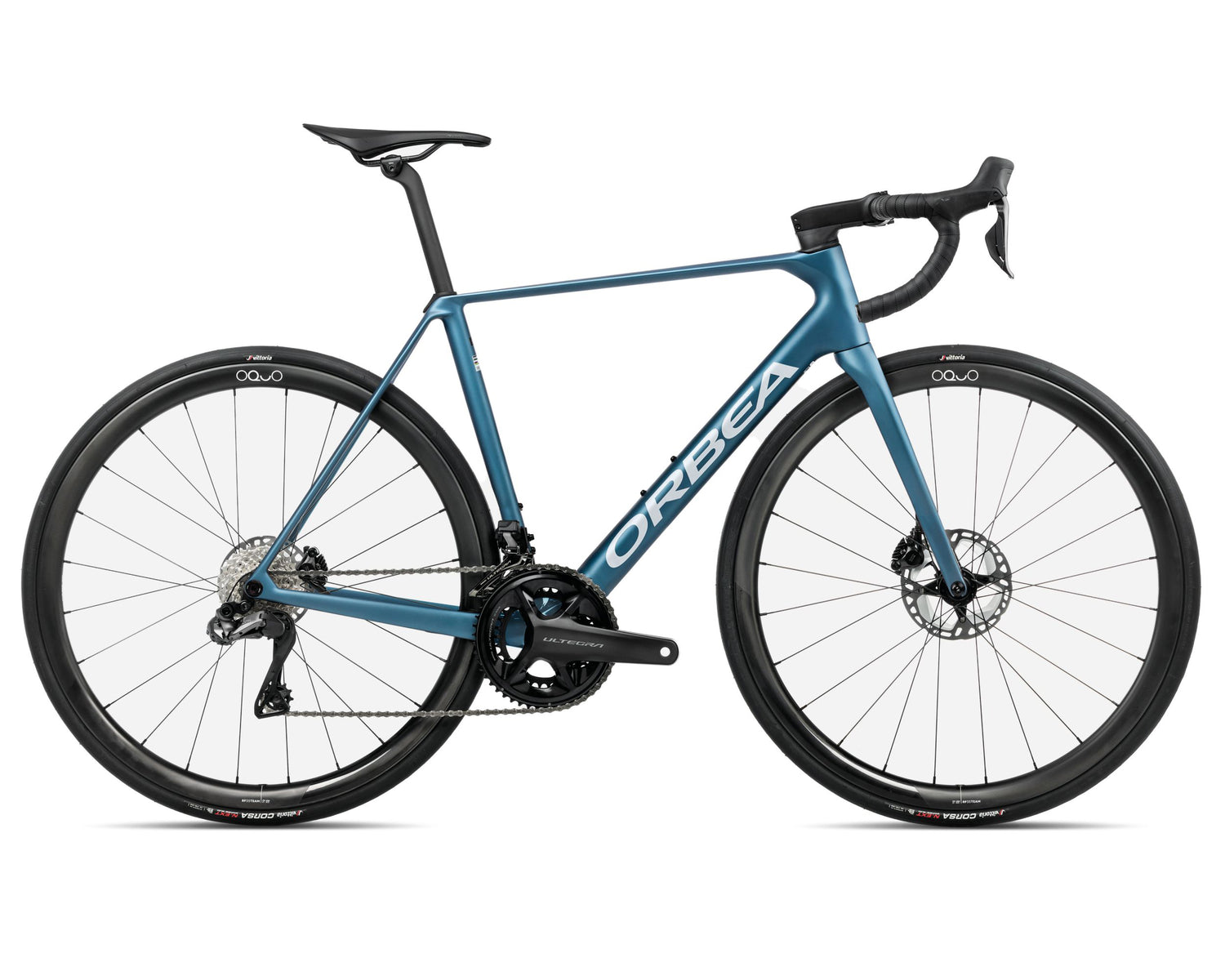

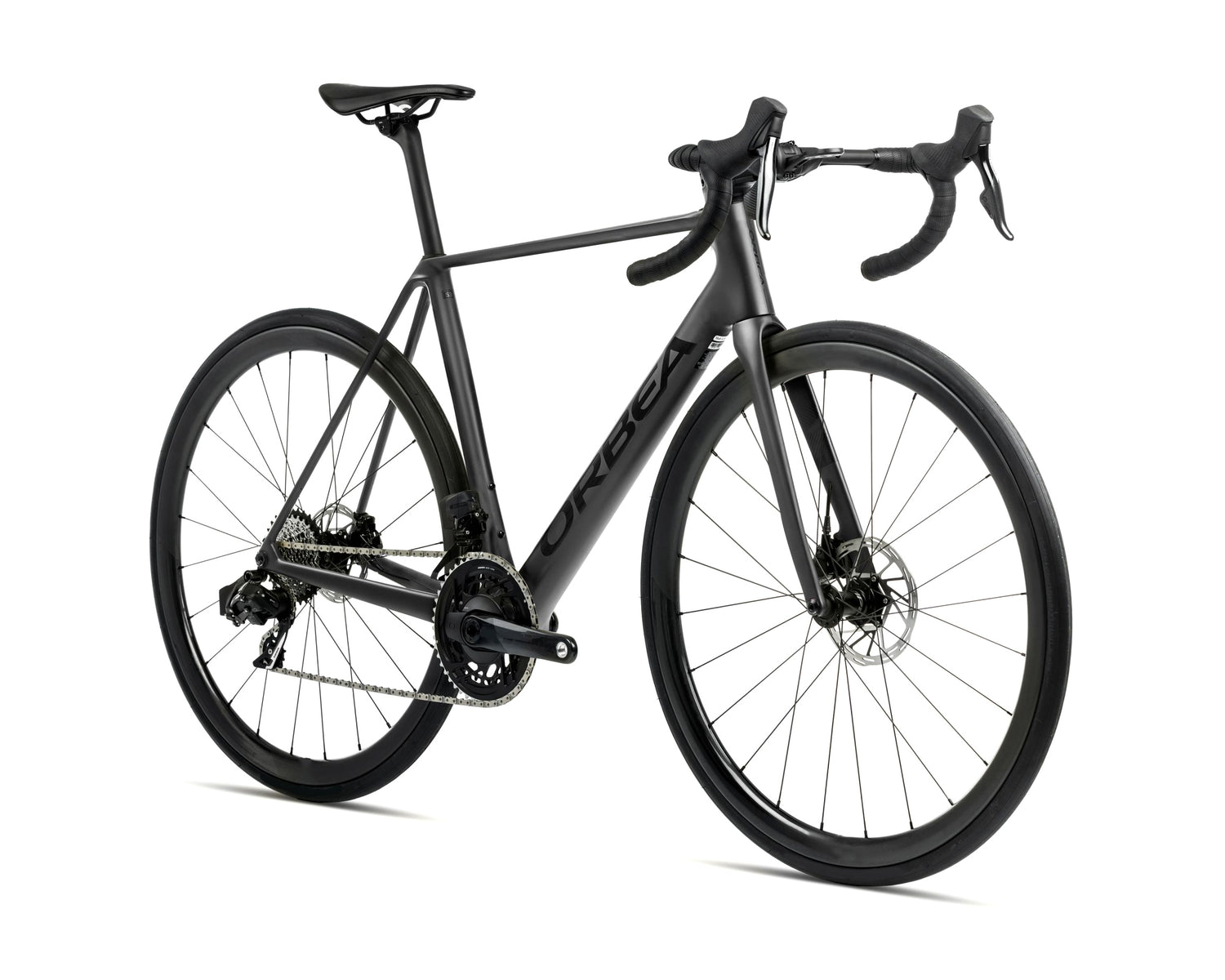

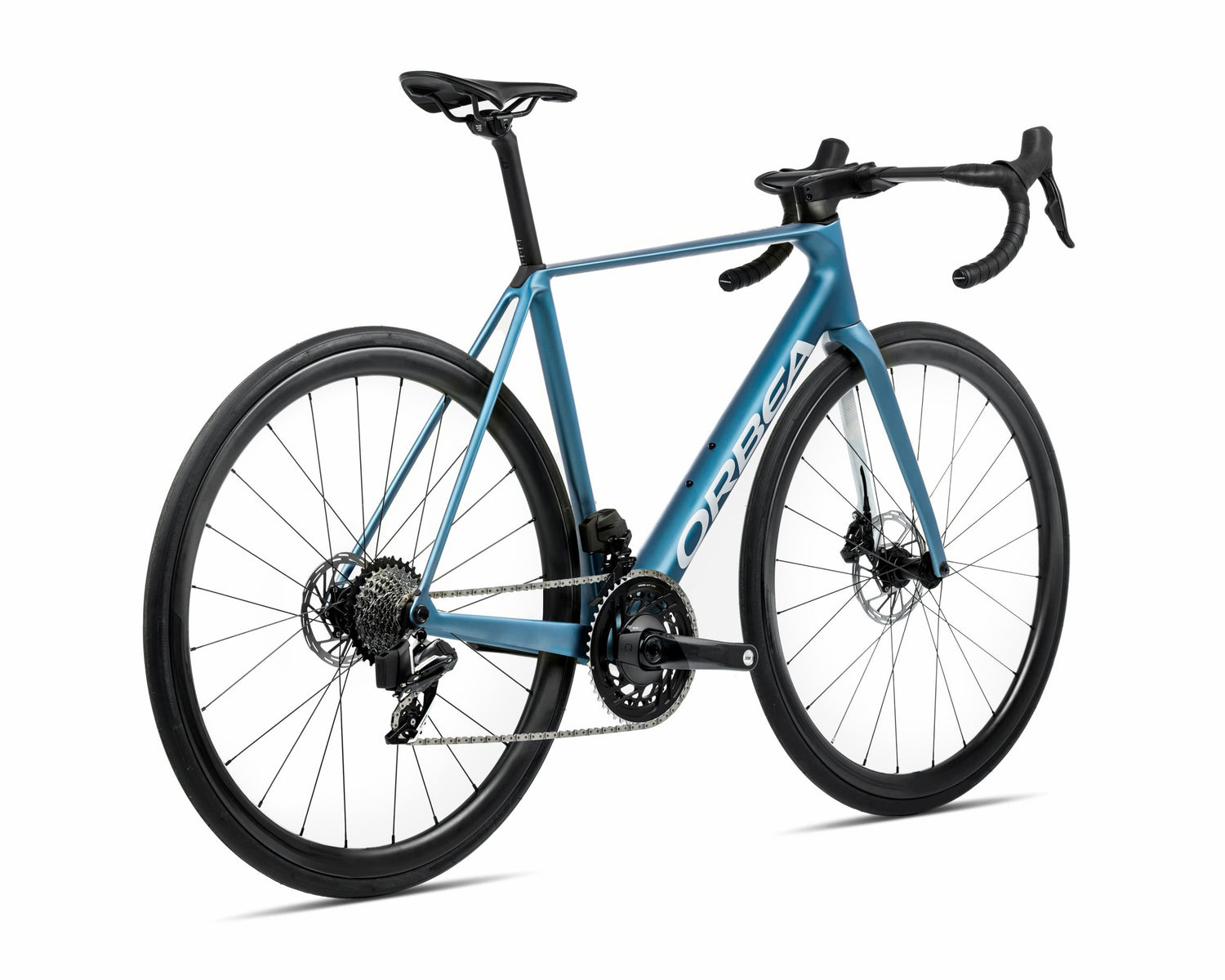

Orbea Orca M20i Team (2024)
Orbea Orca M20i Team (2024) - Ivory White/Burgundy / 55cm : This product is available for backorder only. Will ship as soon as it is back in stock.
Couldn't load pickup availability
Sizing Chart
Sizing Chart
Sizing and Geometry
Orbea Orca
Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.
| Size | Rider Height (cm) |
|---|---|
| 47cm | 155-160cm |
| 49cm | 160-166cm |
| 51cm | 167-172cm |
| 53cm | 173-179cm |
| 55cm | 180-185cm |
| 57cm | 186-191cm |
| 60cm | 192-207cm |
Geometry
| Specification | 47 | 49 | 51 | 53 | 55 | 57 | 60 |
|---|---|---|---|---|---|---|---|
| Seat Tube (mm) | 440 | 460 | 480 | 500 | 520 | 540 | 570 |
| Top Tube (mm) | 510.3 | 522.7 | 535.9 | 548.5 | 560.4 | 576 | 590 |
| Head Tube (mm) | 110.5 | 118.2 | 134.6 | 153 | 173 | 191.2 | 218.3 |
| Head Angle (°) | 71° | 71.5° | 72.2° | 72.8° | 73° | 73.2° | 73.2° |
| Seat Angle (°) | 74.5° | 74° | 73.7° | 73.5° | 73.5° | 73.2° | 73.2° |
| Chainstay (mm) | 408 | 408 | 408 | 408 | 408 | 408 | 408 |
| Wheelbase (mm) | 971.8 | 975.4 | 980 | 981.2 | 991.4 | 1001.9 | 1015.6 |
| Stack (mm) | 506 | 515 | 533 | 552 | 572 | 590 | 616 |
| Reach (mm) | 370 | 375 | 380 | 385 | 391 | 398 | 392 |
Bike Shipping
Bike Shipping
Delivery is available upon specific request for our special order bikes.
Bikes may only be shipped directly to a qualified bike mechanic or bike shop of your choosing, who must complete the assembly of the bike. We strictly cannot ship an unbuilt bike direct to consumer.
The buyer is responsible for all shipping and assembly costs, and is responsible for arranging assembly with their nominated bike store or mechanic.
To request a shipping quote, please submit a request and include the delivery postcode, business name of your nominated bike shop or bike mechanic, and the exact model & frame size of the bike.
Please note: All bikes sold by Ivanhoe Cycles must be assembled by a qualified mechanic or bike shop. Any assembly undertaken without professional assistance is at the customer's risk and any injury as a result of the build without professional assistance will not be covered by the warranty.
Assembly
Assembly
Every bike purchased or collected in-store at Ivanhoe Cycles is fully assembled by our qualified mechanics free of charge.
Bikes ordered online for shipping* will require partial assembly, including but not limited to: installing handlebar, seatpost, front wheel; adjusting gears and brakes; tuning suspension; installing accessories or bar tape.
Disclaimer: Ivanhoe Cycles strongly advises having your assembly completed by an experienced bicycle mechanic. Any assembly undertaken without professional assistance is at the customer's risk and any injury as a result of the build without professional assistance will not be covered by the warranty.
*Shipping is restricted to certain brands due to assembly requirements.
Returns / Cancellations
Returns / Cancellations
If your special ordered item arrives faulty, damaged, or is differently than described, you are entitled to a full refund or replacement.
Cancellations and returns are not accepted on special orders if the consumer:
- changed their mind
- found the item cheaper elsewhere
- decided they didn't like the purchase or had no use for it
- ordered the wrong item
Contact us with any product enquiries you have prior to purchasing.
For more information, please read our Special Order terms and conditions.
Sizing and Geometry
Orbea Orca
Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.
| Size | Rider Height (cm) |
|---|---|
| 47cm | 155-160cm |
| 49cm | 160-166cm |
| 51cm | 167-172cm |
| 53cm | 173-179cm |
| 55cm | 180-185cm |
| 57cm | 186-191cm |
| 60cm | 192-207cm |
Geometry
| Specification | 47 | 49 | 51 | 53 | 55 | 57 | 60 |
|---|---|---|---|---|---|---|---|
| Seat Tube (mm) | 440 | 460 | 480 | 500 | 520 | 540 | 570 |
| Top Tube (mm) | 510.3 | 522.7 | 535.9 | 548.5 | 560.4 | 576 | 590 |
| Head Tube (mm) | 110.5 | 118.2 | 134.6 | 153 | 173 | 191.2 | 218.3 |
| Head Angle (°) | 71° | 71.5° | 72.2° | 72.8° | 73° | 73.2° | 73.2° |
| Seat Angle (°) | 74.5° | 74° | 73.7° | 73.5° | 73.5° | 73.2° | 73.2° |
| Chainstay (mm) | 408 | 408 | 408 | 408 | 408 | 408 | 408 |
| Wheelbase (mm) | 971.8 | 975.4 | 980 | 981.2 | 991.4 | 1001.9 | 1015.6 |
| Stack (mm) | 506 | 515 | 533 | 552 | 572 | 590 | 616 |
| Reach (mm) | 370 | 375 | 380 | 385 | 391 | 398 | 392 |

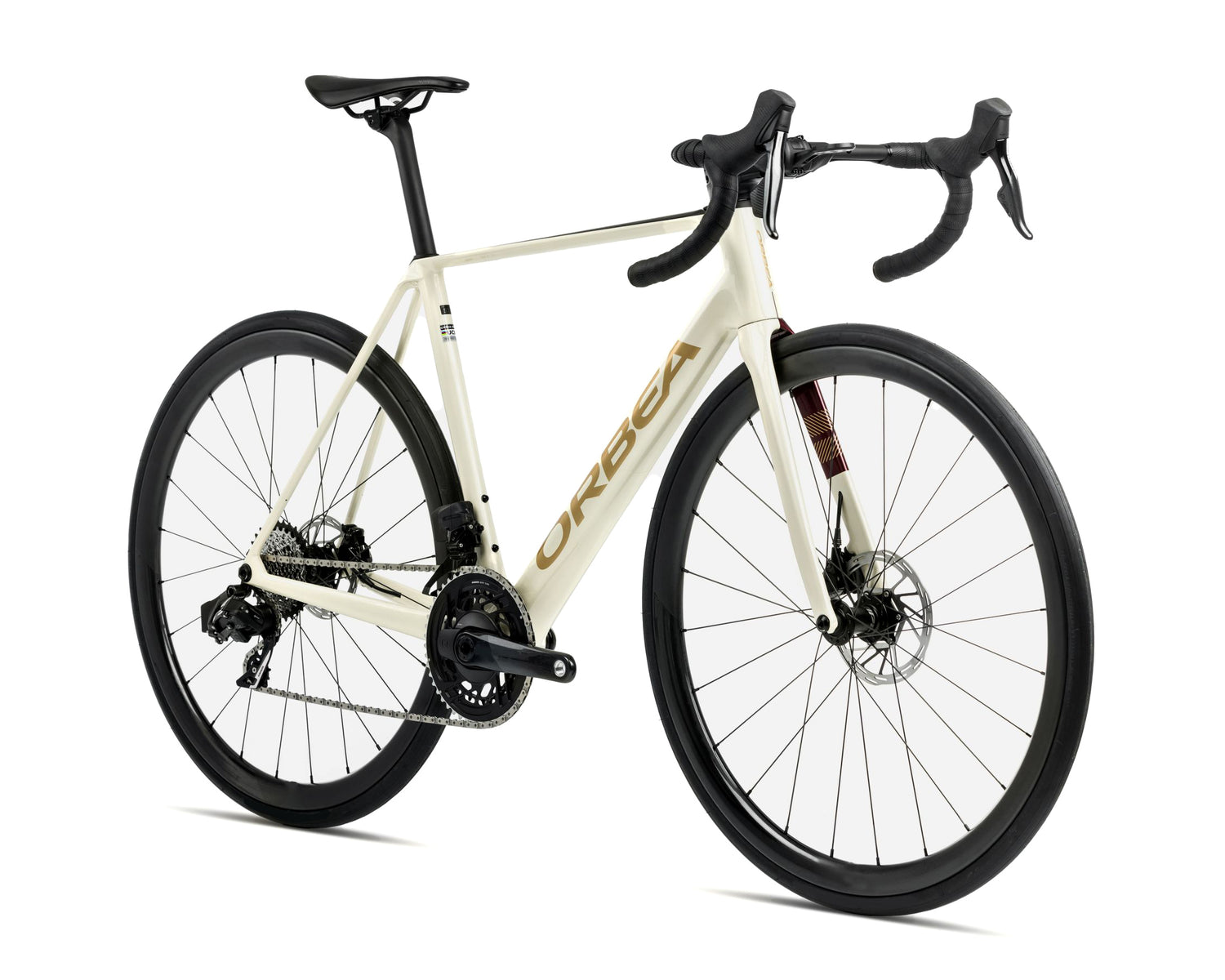

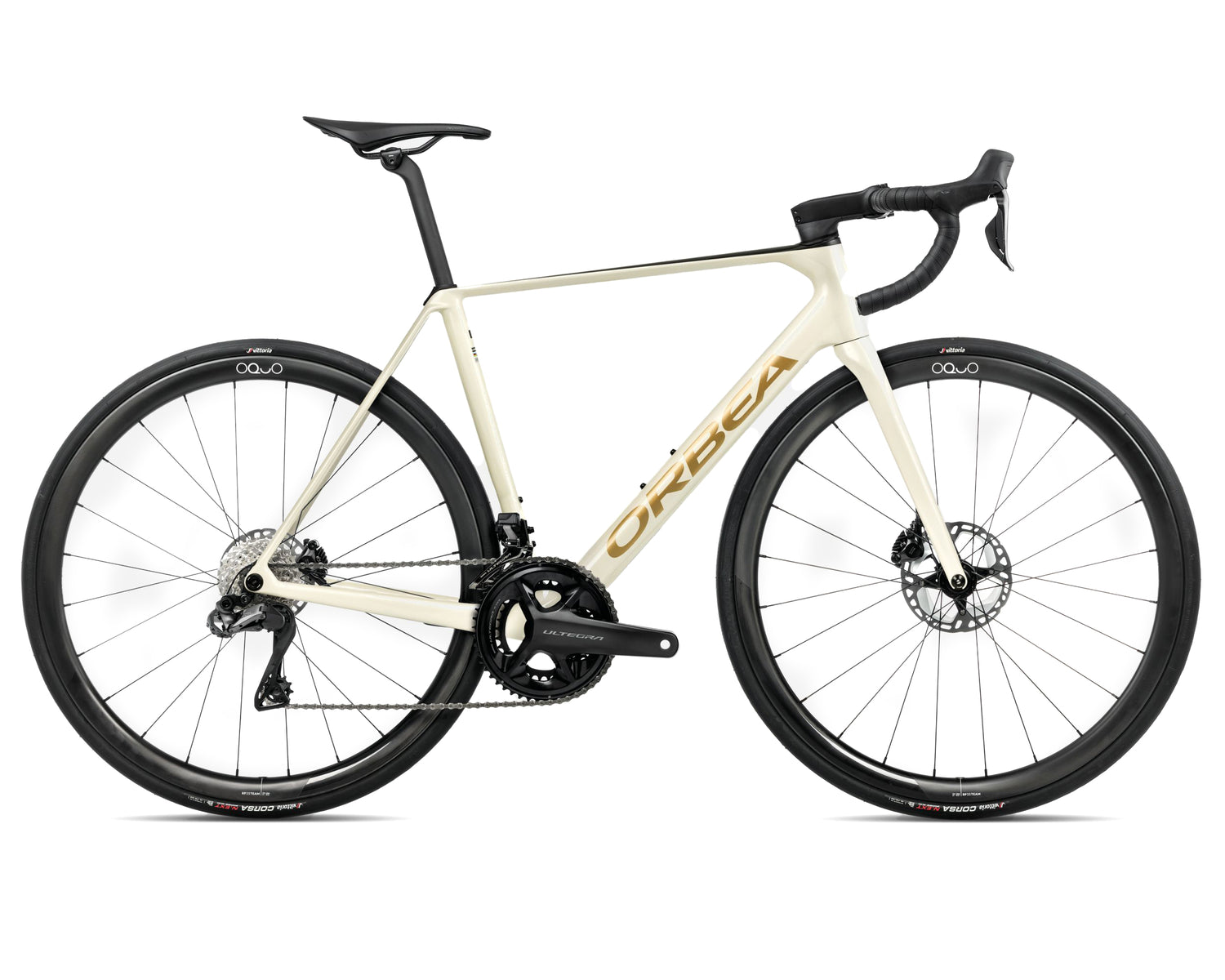

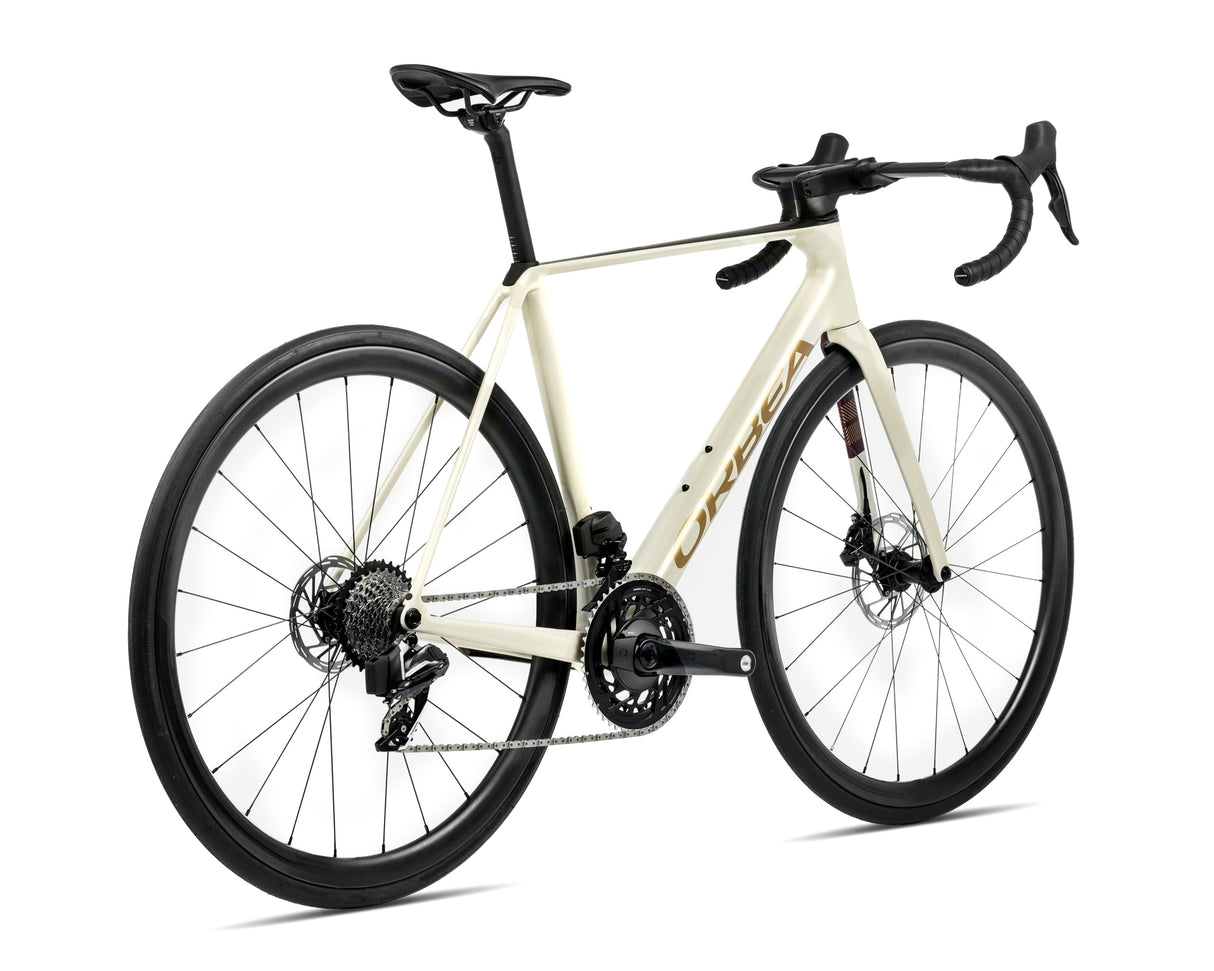

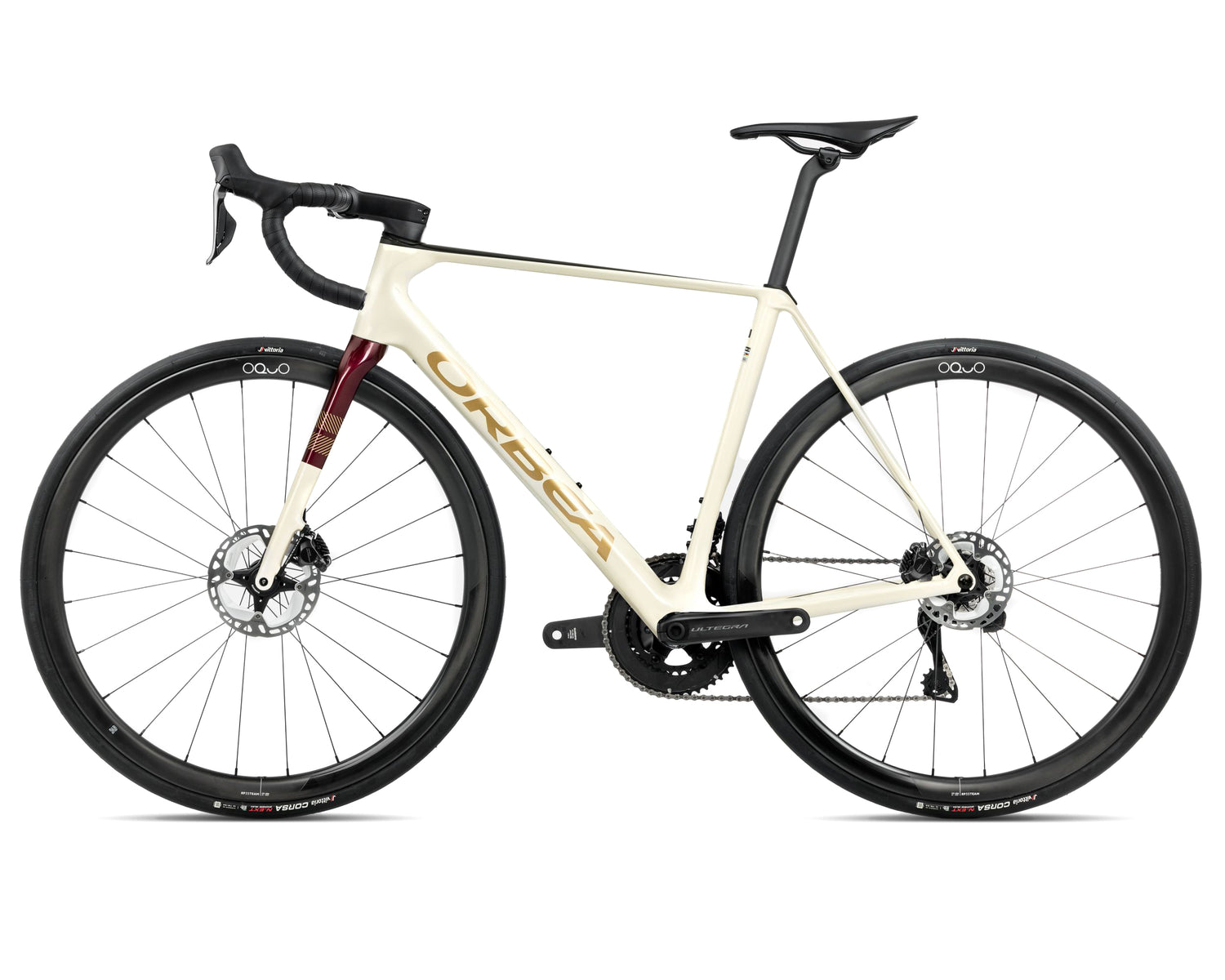

Orbea Orca M20i Team (2024)
Orbea Orca M20i Team (2024)
Orca isn’t just light. It is 6.7kg of climbing technology designed to change how you reach the top.
The feeling of a bike this light and efficient is unbeatable, and this instant acceleration, vibration absorption and responsive handling come from a frame which knows where it needs to be light and where it needs to be stiff. Welcome the ultimate climbing machine!
RIGID IN ALL THE RIGHT PLACES
But having the lightest bike is worth nothing if it isn’t stiff and efficient. When we designed Orca, we started with a target rigidity to ensure that even the strongest climbers could be sure of efficient power transmission. Then we designed Orca to be as light as possible without compromising that number.
-
Frame material
-
Frame
-
Fork
-
Handlebar
-
Bar Tape
-
Headset
-
Stem
-
Seatpost
-
Saddle
-
Pedals
-
Shifters
-
Front Derailleur
-
Rear Derailleur
-
Brakes
-
Cassette/Freewheel
-
Chain
-
Crankset
-
Tyres
-
Wheelset
-
Notes
-
Speeds (rear)12 Speed
-
Age GroupAdults
-
GenderMens, Unisex, Womens
-
DisciplineRoad
-
SKUsIvory White/Burgundy/53cm: 8434446493744, Slate Blue/Halo Silver/55cm: 8434446493799, Slate Blue/Halo Silver/57cm: 8434446493829, Ivory White/Burgundy/57cm: 8434446493805, Ivory White/Burgundy/55cm: 8434446493775, Slate Blue/Halo Silver/53cm: 8434446493768, Vulcano Black/55cm: 8434446493782, Vulcano Black/53cm: 8434446493751
