Orbea  |  SKU: 8434446794889

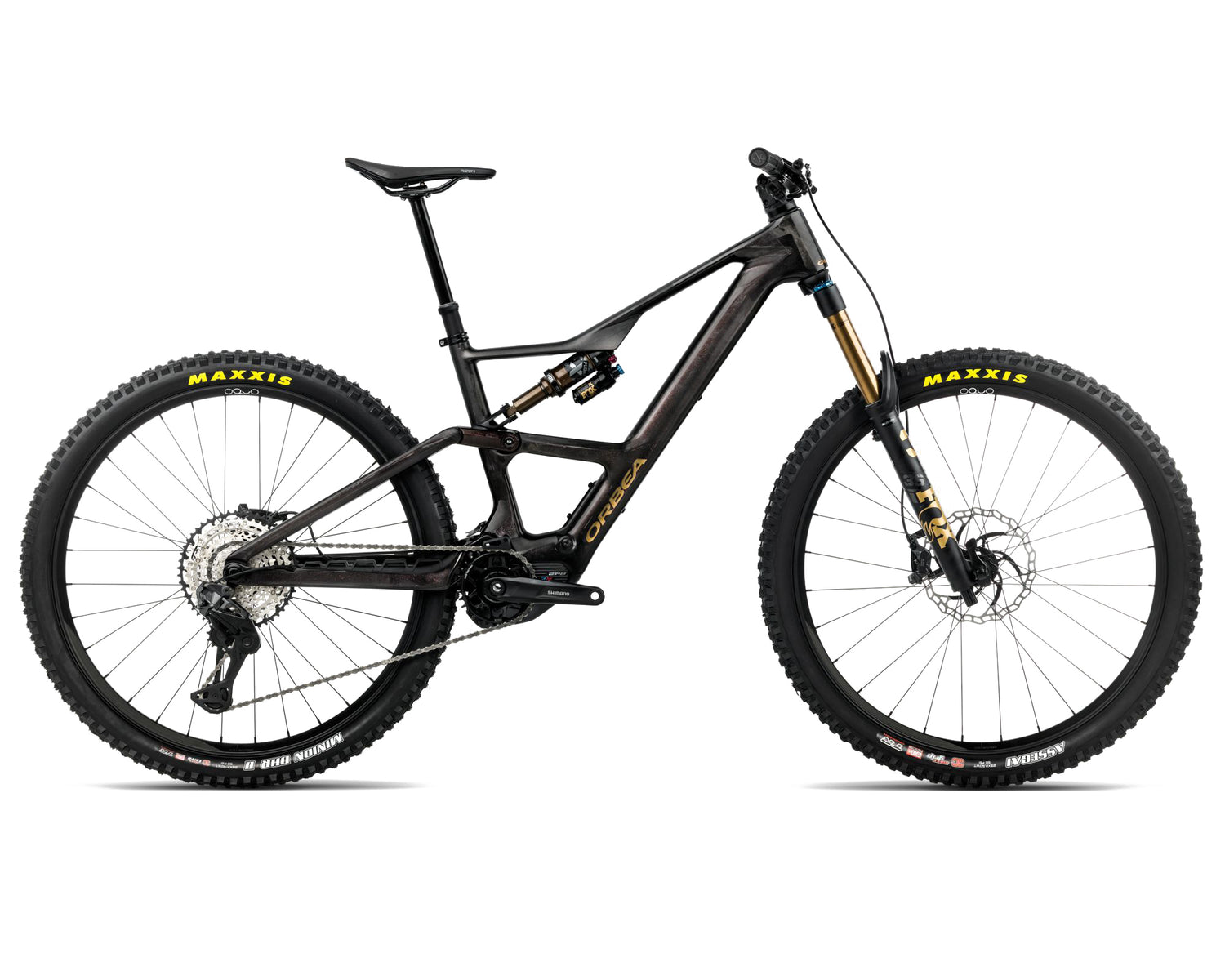

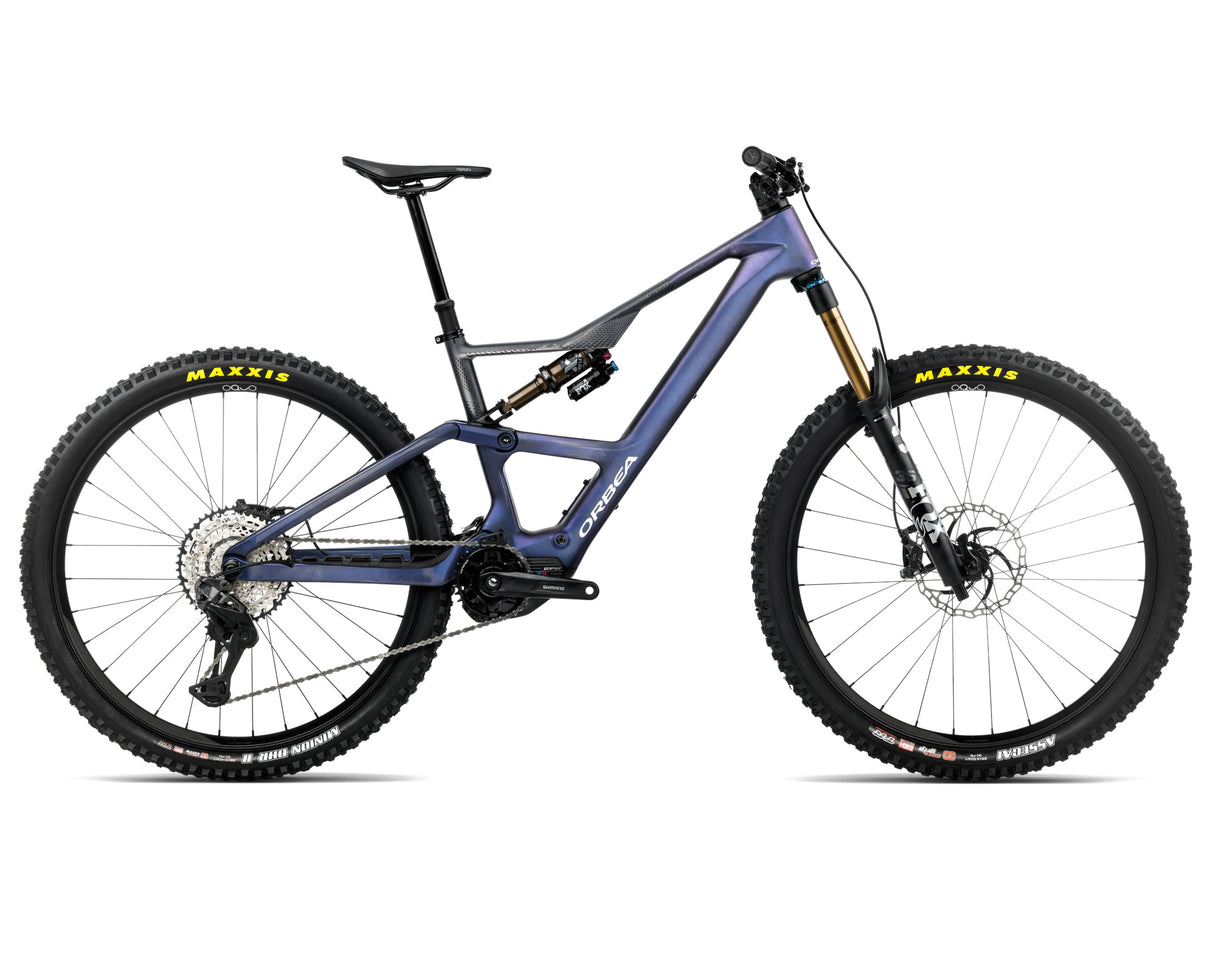

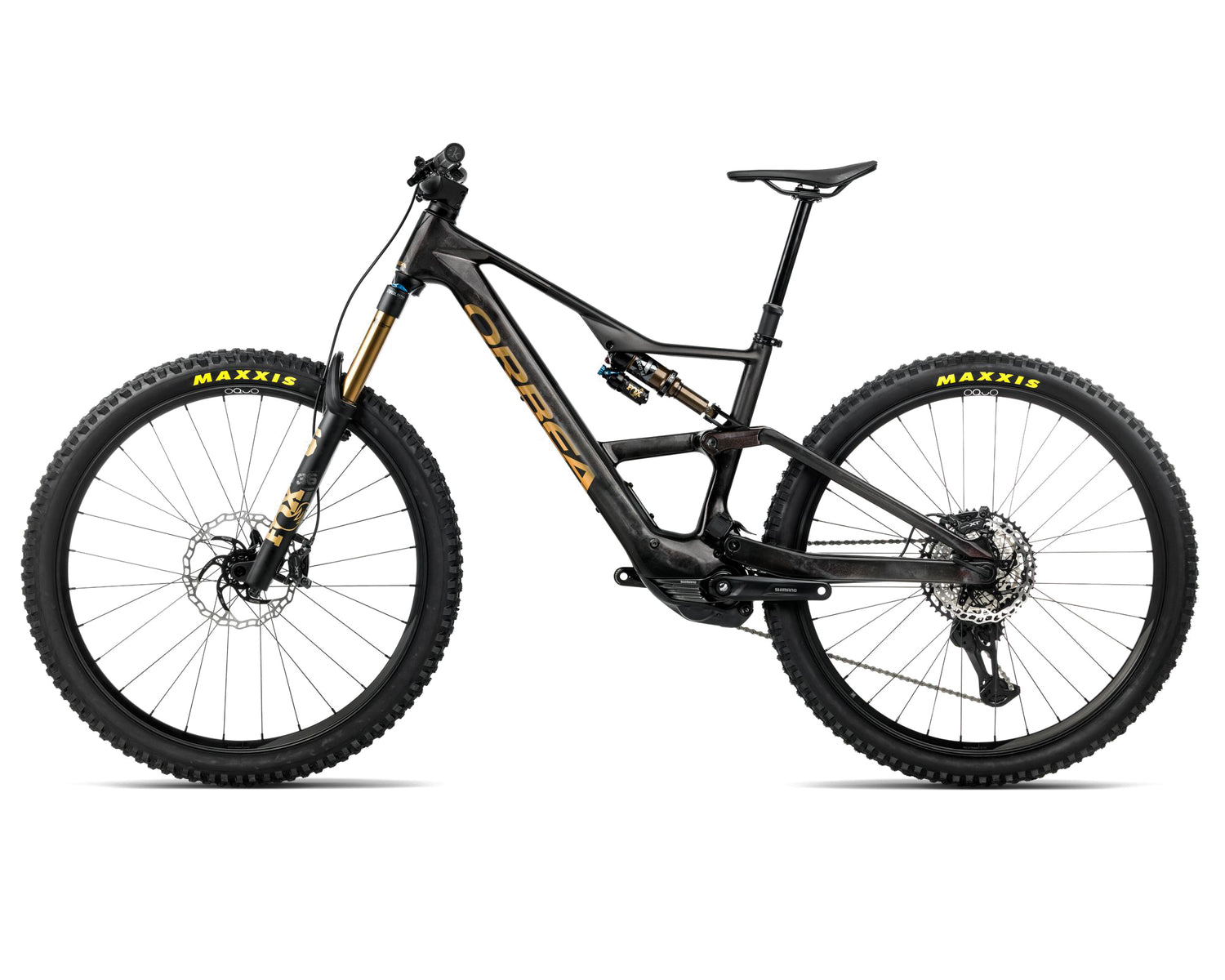

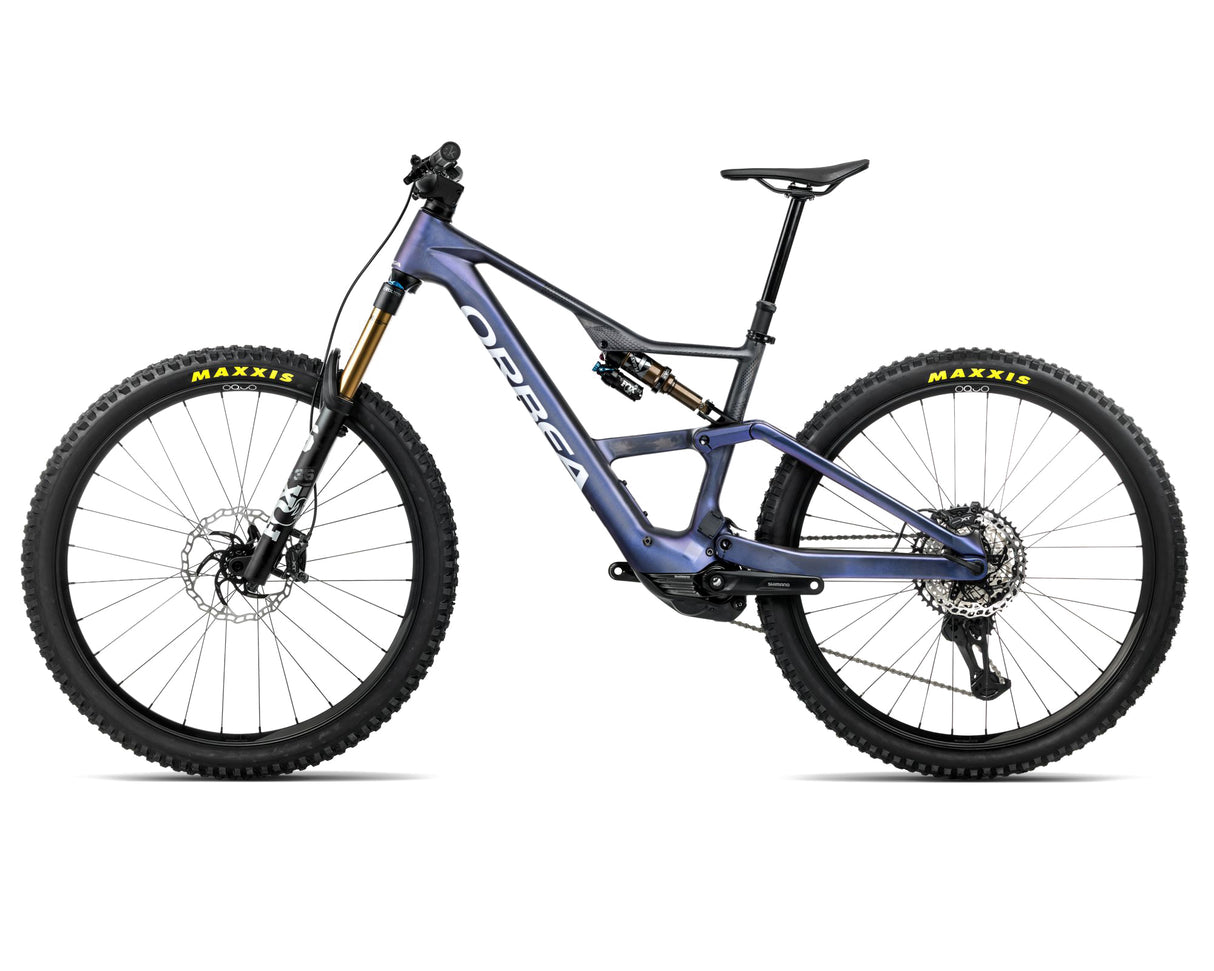

Orbea Rise LT M10 630W (2025)

$9,91900 $15,99900
Colour: Tanzanite Carbon View/Carbon Raw
Size

Special Order: This product will be ordered from our supplier upon purchase and available for collection within 7-14 business days. Read T&Cs here.
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
Fully assembled when you Click & Collect in-store
Buy Now, Pay Later with ZIP
Free service adjustment within first 6 months

Sizing Chart

Sizing and Geometry

Orbea Rise LT Carbon

Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.

Size Rider Height (cm)
S 150-170cm
M 160-180cm
L 170-190cm
XL 180-200cm


Geometry

RALLON GEO

Specification S/HI S/LO M/HI M/LO L/HI L/LO XL/HI XL/LO
Seat Tube (mm) 405 405 415 415 430 430 460 460
Top Tube (mm) 569 571 596 597 624 625 653 654
Head Tube (mm) 95 95 100 100 110 110 120 120
Head Angle (°) 64.5/64° 64.5/64° 64.5/64° 64.5/64° 64.5/64° 64.5/64° 64.5/64° 64.5/64°
Seat Angle (°) 77.5/77° 77.5/77° 77.5/77° 77.5/77° 77.5/77° 77.5/77° 77.5/77° 77.5/77°
Chainstay (mm) 440 440 440 440 440 440 440 440
Wheelbase (mm) 1201 1201 1228 1229 1257 1259 1287 1288
Stack (mm) 614 618 618 623 62 632 637 642
Reach (mm) 435 430 460 455 485 480 510 505

Bike Shipping

Delivery is available upon specific request for our special order bikes.

Bikes may only be shipped directly to a qualified bike mechanic or bike shop of your choosing, who must complete the assembly of the bike. We strictly cannot ship an unbuilt bike direct to consumer.

The buyer is responsible for all shipping and assembly costs, and is responsible for arranging assembly with their nominated bike store or mechanic.

To request a shipping quote, please submit a request and include the delivery postcode, business name of your nominated bike shop or bike mechanic, and the exact model & frame size of the bike.

Please note: All bikes sold by Ivanhoe Cycles must be assembled by a qualified mechanic or bike shop. Any assembly undertaken without professional assistance is at the customer's risk and any injury as a result of the build without professional assistance will not be covered by the warranty.

Assembly

Every bike purchased or collected in-store at Ivanhoe Cycles is fully assembled by our qualified mechanics free of charge.

Bikes ordered online for shipping* will require partial assembly, including but not limited to: installing handlebar, seatpost, front wheel; adjusting gears and brakes; tuning suspension; installing accessories or bar tape.

Disclaimer: Ivanhoe Cycles strongly advises having your assembly completed by an experienced bicycle mechanic. Any assembly undertaken without professional assistance is at the customer's risk and any injury as a result of the build without professional assistance will not be covered by the warranty.

*Shipping is restricted to certain brands due to assembly requirements.

Returns / Cancellations

If your special ordered item arrives faulty, damaged, or is differently than described, you are entitled to a full refund or replacement.

Cancellations and returns are not accepted on special orders if the consumer:
- changed their mind
- found the item cheaper elsewhere
- decided they didn't like the purchase or had no use for it
- ordered the wrong item

Contact us with any product enquiries you have prior to purchasing.

For more information, please read our Special Order terms and conditions.

The Orbea Rise LT M10 is built for riders who want the agility of a trail bike with the power and confidence of a long-travel e-MTB.

It strikes a refined balance between capability and control, using advanced geometry, top-tier components, and Orbea’s lightweight carbon frame to deliver a highly responsive ride.

Whether you're pushing the limits on technical descents or climbing steep singletrack, the Rise LT M10 is tuned to perform.

ELECTRONICS

At the heart of the Rise LT M10 is the Shimano EP801 RS Gen2 MC motor, delivering up to 85Nm of torque with Orbea’s RS (Rider Synergy) tuning.

The motor pairs seamlessly with your pedalling to create a natural-feeling boost that enhances your power without overwhelming your input.

Coupled with the 630Wh internal battery, you’ll have the extended range and confidence to ride harder and longer, with the option to add an Orbea Range Extender for even more capacity.

ENDURO-READY

Handling is precise and composed thanks to the progressive geometry and a premium suspension setup.

The bike features the Fox 36 Float Factory fork with 160mm travel up front and a Fox Float X Factory shock in the rear. Both designed to keep you planted and in control through aggressive terrain.

The long-travel build gives the Rise LT M10 the capability of an enduro bike, without the weight penalty of most full-power e-MTBs.

Rolling on OQUO MC32TEAM wheels with carbon hookless rims and DT Swiss 350 hubs, the Rise LT M10 offers exceptional stiffness and durability while keeping the overall build lightweight.

These wheels pair perfectly with wide tubeless tyres for grip, comfort, and cornering confidence on everything from loamy singletrack to rocky alpine trails.

Designed for experienced trail riders and e-MTB enthusiasts alike, the 2025 Orbea Rise LT M10 is a premium, all-mountain machine that rewards every input with smooth acceleration, stable descending, and incredible range.

Orbea Rise LT M10 630W (2025)

$9,91900 $15,99900

Colour

Size

  • M
  • L

Motor

Shimano EP801 RS Gen2 MC

Controller

Shimano EN600-L

Display

N/A

Battery

Orbea Internal 630Wh

Charger

Orbea 2.Generation eBike Smart charger 42V/2-4A

Sizes

N/A

Frame material

Carbon

Frame

Orbea Rise LT OMR 2025, 150mm travel, 29" wheels, Concentric Boost 12x148

Fork

Fox 36 Float Factory 160 Grip X QR15x110 Kashima

Handlebar

OC Mountain Control MC10 Carbon, Rise 20, Width 800

Grips

Ergon GE10

Bar Tape

N/A

Headset

Alloy 1-1/2", Black Oxidated Bearing

Stem

OC Mountain Control MC20, 0º

Seatpost

OC Mountain Control MC21, 31.6mm | Remote: Shimano SL-MT500 I-Spec EV

Saddle

Fizik Terra Ridon X5 145mm

Pedals

N/A

Shifters

Shimano SLX M7100 I-Spec EV, 1x12 speed

Front Derailleur

N/A

Rear Derailleur

Shimano XT M8100 SGS Shadow Plus

Brakes

Shimano XT M8120 Hydraulic Disc

Brake Levers

N/A

Cassette/Freewheel

Shimano CS-M7100 10-51T, 12 speed

Chain

Shimano M7100

Crankset

Shimano Steps EM600

Bottom Bracket

N/A

Rims

OQUO, alloy hookless rim, 32mm inner width

Hubs

DT Swiss 350 6-bolt

Spokes

Sapim D-Sprint / Race

Tyres

Maxxis Assegai 2.50" 60TPI 3CG/EXO+/TR MaxxGrip

Wheel Size

N/A

Extras

N/A
