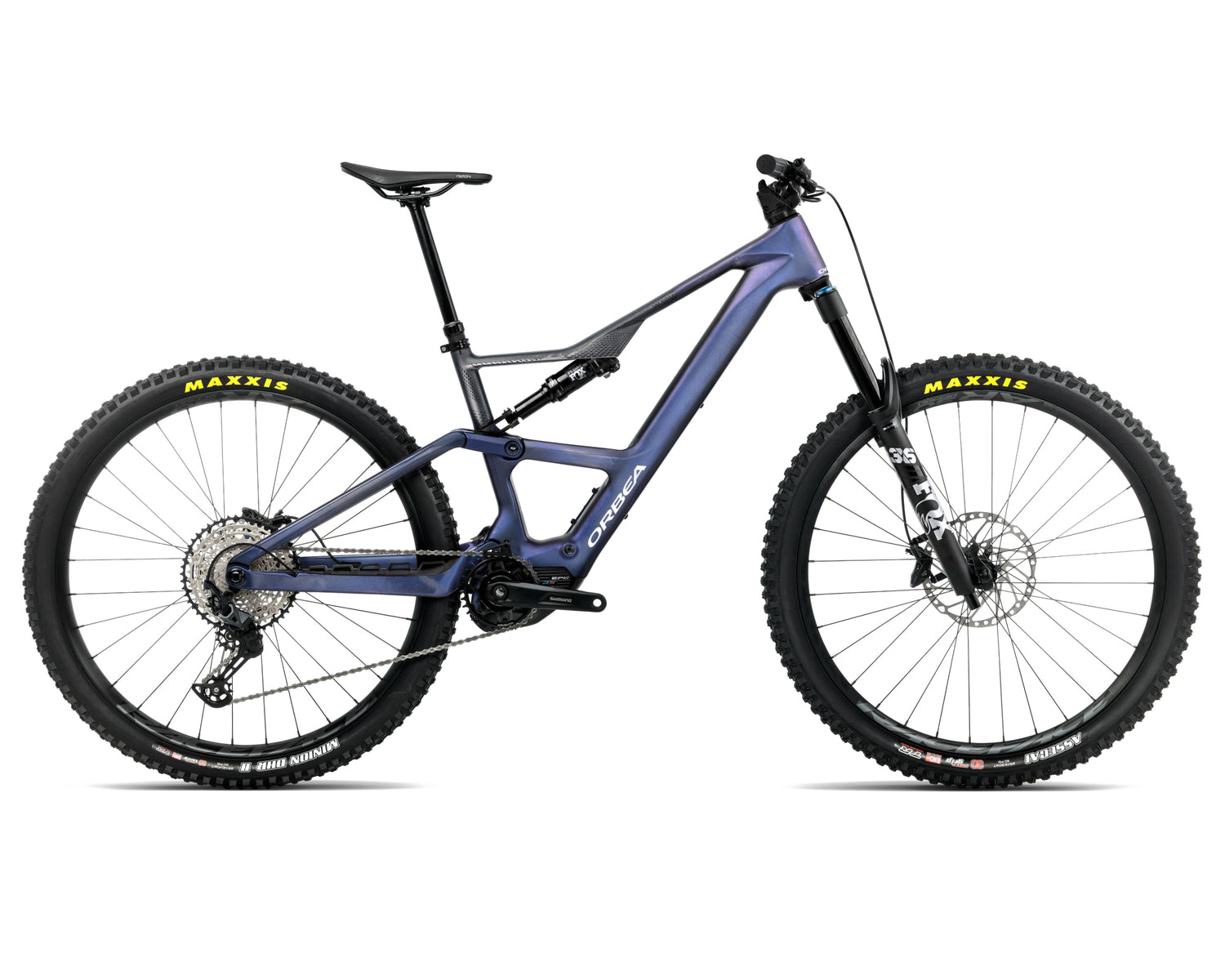

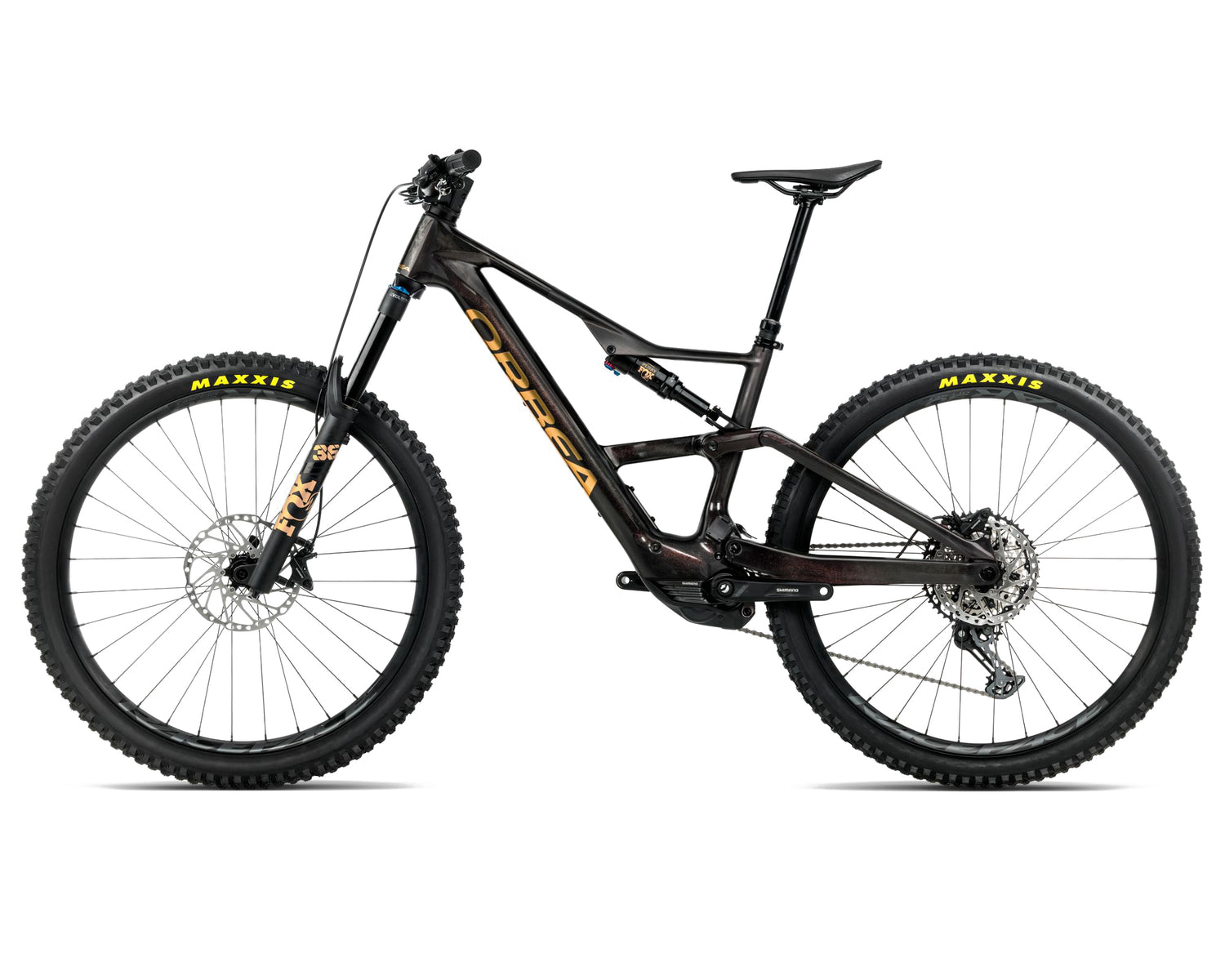

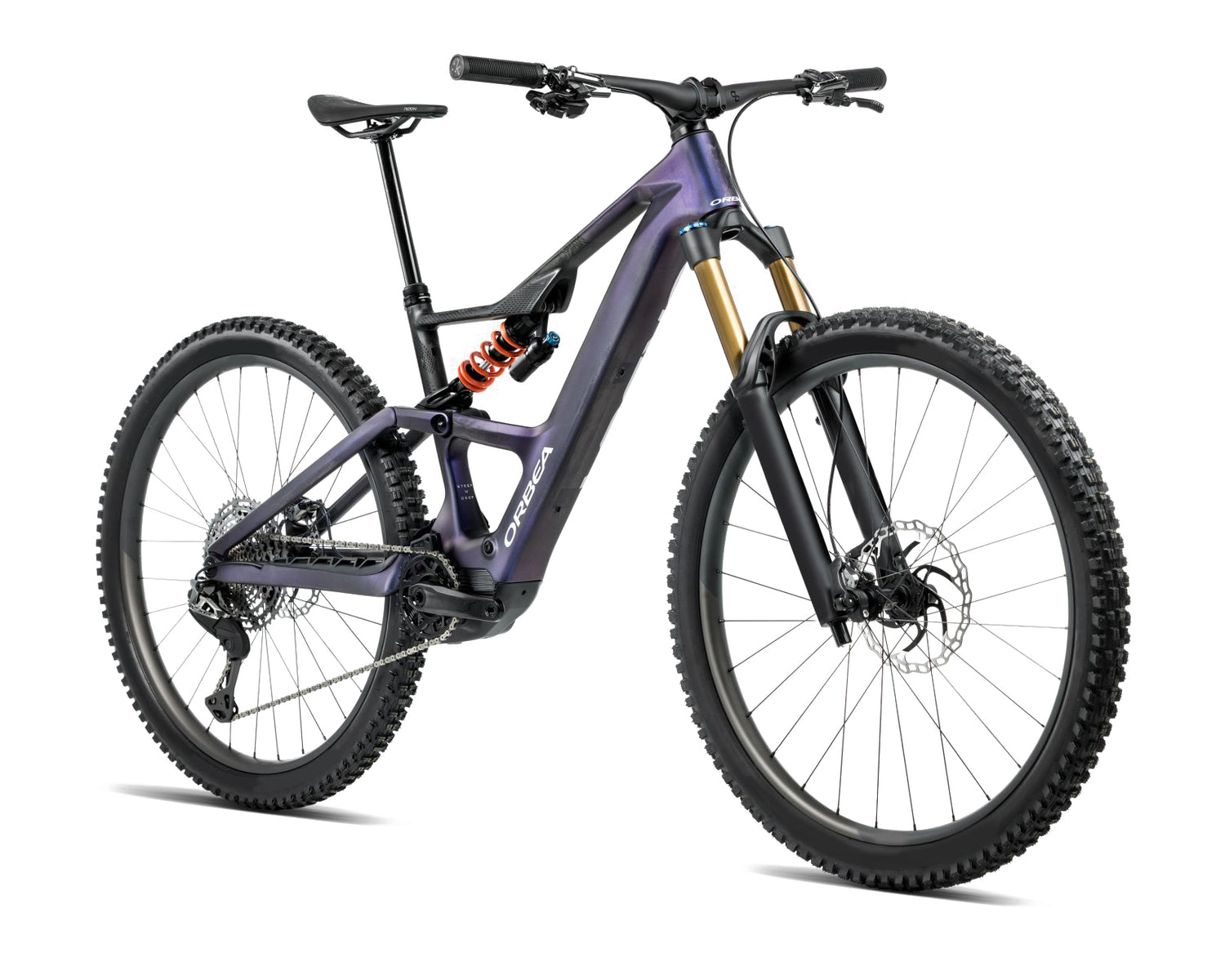

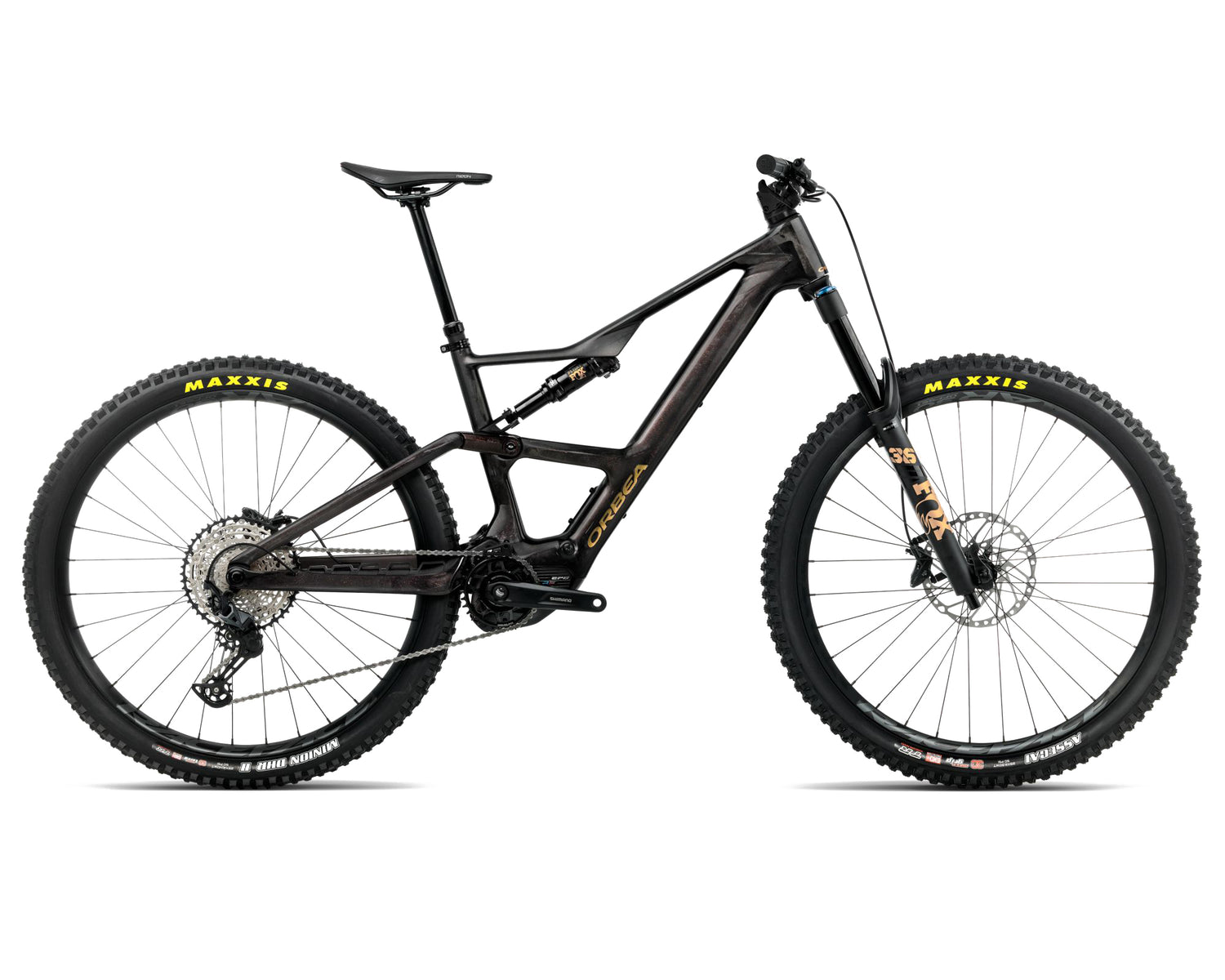

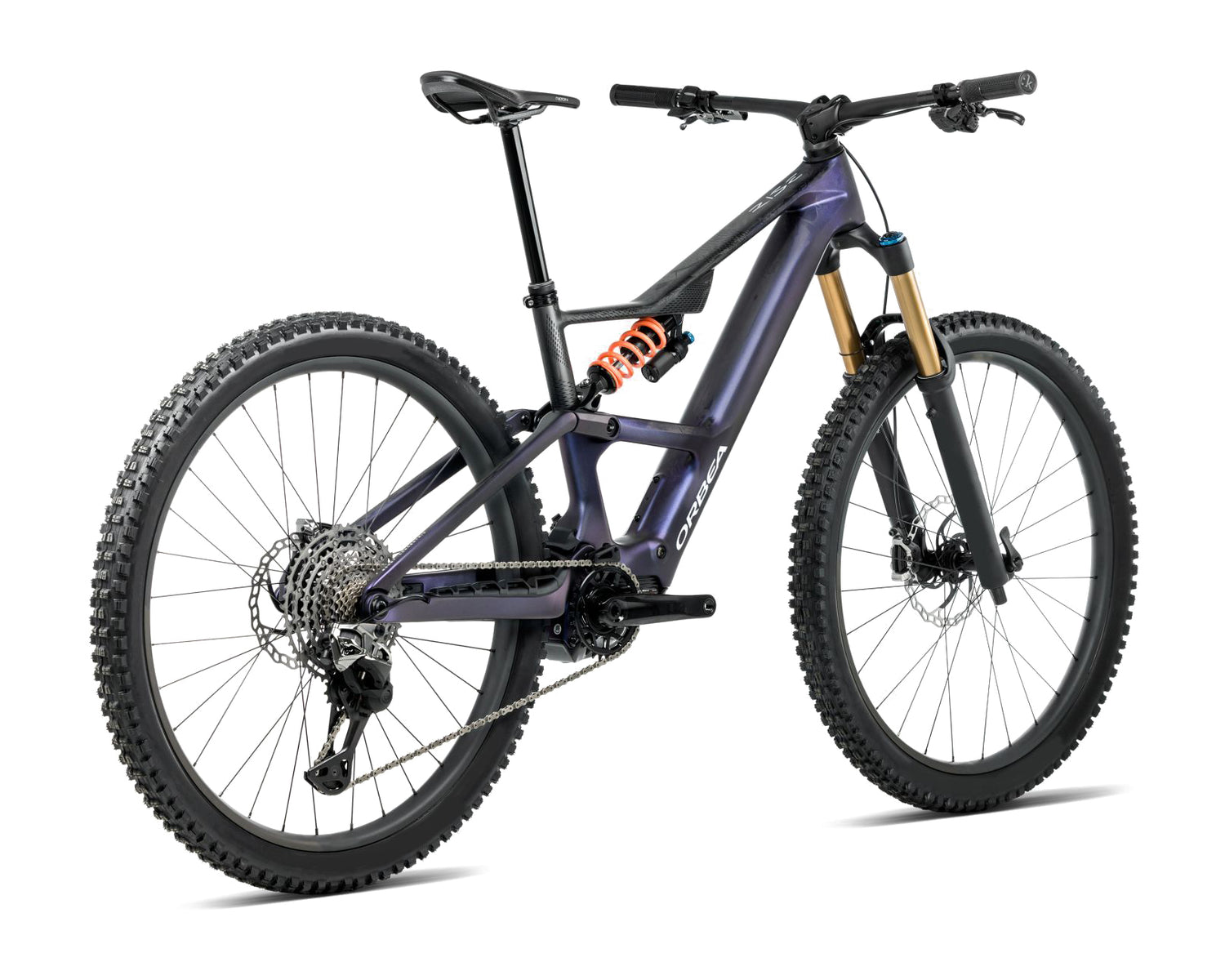

Orbea Rise LT M20 630W (2025)
Orbea Rise LT M20 630W (2025) - Tanzanite Carbon View/Carbon Raw / M is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Sizing Chart
Sizing Chart
Sizing and Geometry
Orbea Rise LT Carbon
Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.
| Size | Rider Height (cm) |
|---|---|
| S | 150-170cm |
| M | 160-180cm |
| L | 170-190cm |
| XL | 180-200cm |
Geometry
| Specification | S/HI | S/LO | M/HI | M/LO | L/HI | L/LO | XL/HI | XL/LO |
|---|---|---|---|---|---|---|---|---|
| Seat Tube (mm) | 405 | 405 | 415 | 415 | 430 | 430 | 460 | 460 |
| Top Tube (mm) | 569 | 571 | 596 | 597 | 624 | 625 | 653 | 654 |
| Head Tube (mm) | 95 | 95 | 100 | 100 | 110 | 110 | 120 | 120 |
| Head Angle (°) | 64.5/64° | 64.5/64° | 64.5/64° | 64.5/64° | 64.5/64° | 64.5/64° | 64.5/64° | 64.5/64° |
| Seat Angle (°) | 77.5/77° | 77.5/77° | 77.5/77° | 77.5/77° | 77.5/77° | 77.5/77° | 77.5/77° | 77.5/77° |
| Chainstay (mm) | 440 | 440 | 440 | 440 | 440 | 440 | 440 | 440 |
| Wheelbase (mm) | 1201 | 1201 | 1228 | 1229 | 1257 | 1259 | 1287 | 1288 |
| Stack (mm) | 614 | 618 | 618 | 623 | 62 | 632 | 637 | 642 |
| Reach (mm) | 435 | 430 | 460 | 455 | 485 | 480 | 510 | 505 |
Bike Shipping
Bike Shipping
Delivery is available upon specific request for our special order bikes.
Bikes may only be shipped directly to a qualified bike mechanic or bike shop of your choosing, who must complete the assembly of the bike. We strictly cannot ship an unbuilt bike direct to consumer.
The buyer is responsible for all shipping and assembly costs, and is responsible for arranging assembly with their nominated bike store or mechanic.
To request a shipping quote, please submit a request and include the delivery postcode, business name of your nominated bike shop or bike mechanic, and the exact model & frame size of the bike.
Please note: All bikes sold by Ivanhoe Cycles must be assembled by a qualified mechanic or bike shop. Any assembly undertaken without professional assistance is at the customer's risk and any injury as a result of the build without professional assistance will not be covered by the warranty.
Assembly
Assembly
Every bike purchased or collected in-store at Ivanhoe Cycles is fully assembled by our qualified mechanics free of charge.
Bikes ordered online for shipping* will require partial assembly, including but not limited to: installing handlebar, seatpost, front wheel; adjusting gears and brakes; tuning suspension; installing accessories or bar tape.
Disclaimer: Ivanhoe Cycles strongly advises having your assembly completed by an experienced bicycle mechanic. Any assembly undertaken without professional assistance is at the customer's risk and any injury as a result of the build without professional assistance will not be covered by the warranty.
*Shipping is restricted to certain brands due to assembly requirements.
Returns / Cancellations
Returns / Cancellations
If your special ordered item arrives faulty, damaged, or is differently than described, you are entitled to a full refund or replacement.
Cancellations and returns are not accepted on special orders if the consumer:
- changed their mind
- found the item cheaper elsewhere
- decided they didn't like the purchase or had no use for it
- ordered the wrong item
Contact us with any product enquiries you have prior to purchasing.
For more information, please read our Special Order terms and conditions.
Sizing and Geometry
Orbea Rise LT Carbon
Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.
| Size | Rider Height (cm) |
|---|---|
| S | 150-170cm |
| M | 160-180cm |
| L | 170-190cm |
| XL | 180-200cm |
Geometry
| Specification | S/HI | S/LO | M/HI | M/LO | L/HI | L/LO | XL/HI | XL/LO |
|---|---|---|---|---|---|---|---|---|
| Seat Tube (mm) | 405 | 405 | 415 | 415 | 430 | 430 | 460 | 460 |
| Top Tube (mm) | 569 | 571 | 596 | 597 | 624 | 625 | 653 | 654 |
| Head Tube (mm) | 95 | 95 | 100 | 100 | 110 | 110 | 120 | 120 |
| Head Angle (°) | 64.5/64° | 64.5/64° | 64.5/64° | 64.5/64° | 64.5/64° | 64.5/64° | 64.5/64° | 64.5/64° |
| Seat Angle (°) | 77.5/77° | 77.5/77° | 77.5/77° | 77.5/77° | 77.5/77° | 77.5/77° | 77.5/77° | 77.5/77° |
| Chainstay (mm) | 440 | 440 | 440 | 440 | 440 | 440 | 440 | 440 |
| Wheelbase (mm) | 1201 | 1201 | 1228 | 1229 | 1257 | 1259 | 1287 | 1288 |
| Stack (mm) | 614 | 618 | 618 | 623 | 62 | 632 | 637 | 642 |
| Reach (mm) | 435 | 430 | 460 | 455 | 485 | 480 | 510 | 505 |

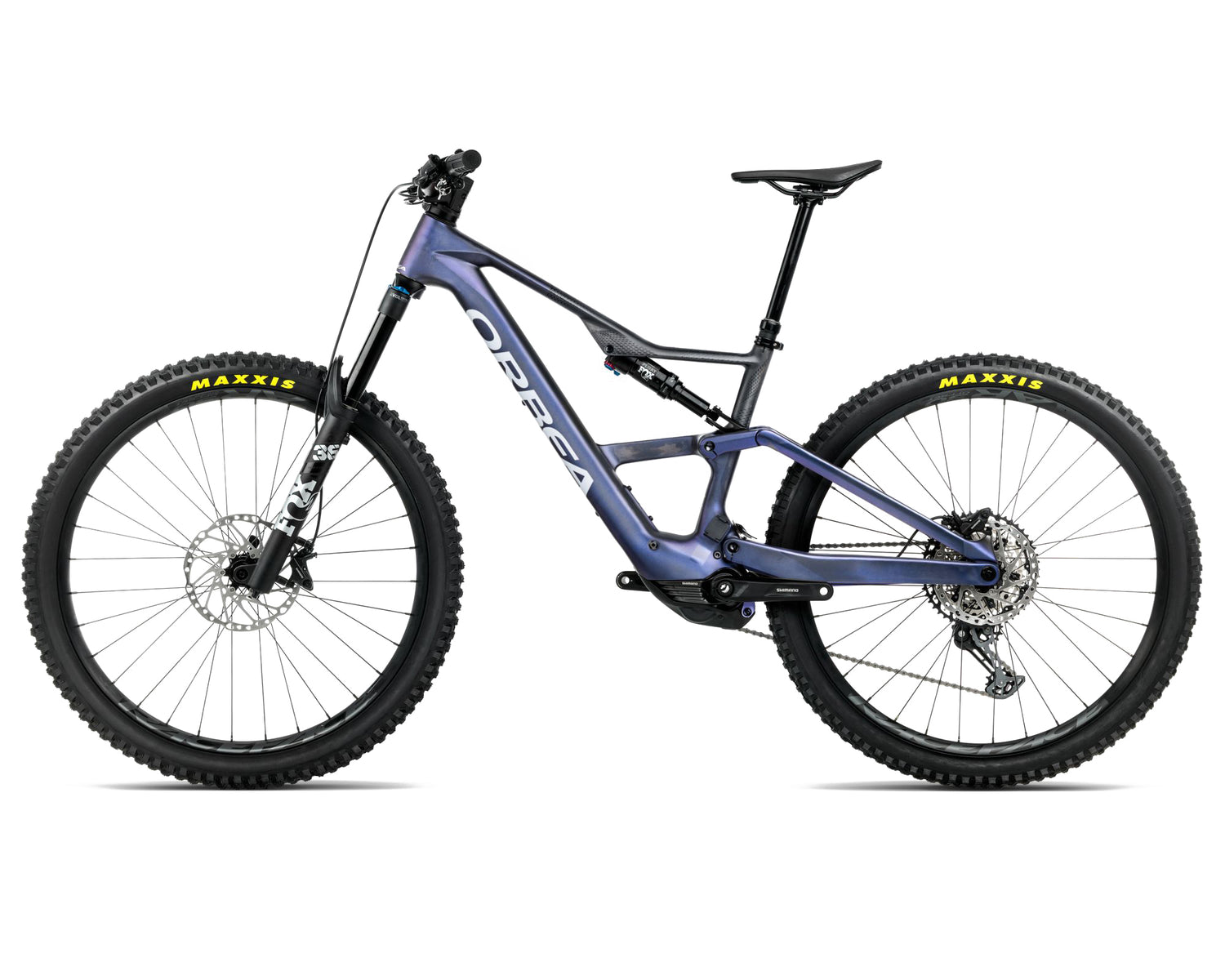

Orbea Rise LT M20 630W (2025)
The Orbea Rise LT M20 (2025) is a next-generation lightweight E-MTB designed to deliver a natural riding experience.
Updated geometry, longer travel, and the latest Shimano EP801-RS motor system.
The Rise LT M20 strikes a balance between power, agility, and efficiency for aggressive trail and light enduro-style riding.
Premium Carbon
Built around Orbea’s premium OMR carbon frame, the 2025 Rise LT features 160mm of front travel and 150mm of rear suspension.
Despite its robust performance, the frame remains light. Enhancing responsiveness on climbs, in the air and fast singletrack.
Natural Power Delivery

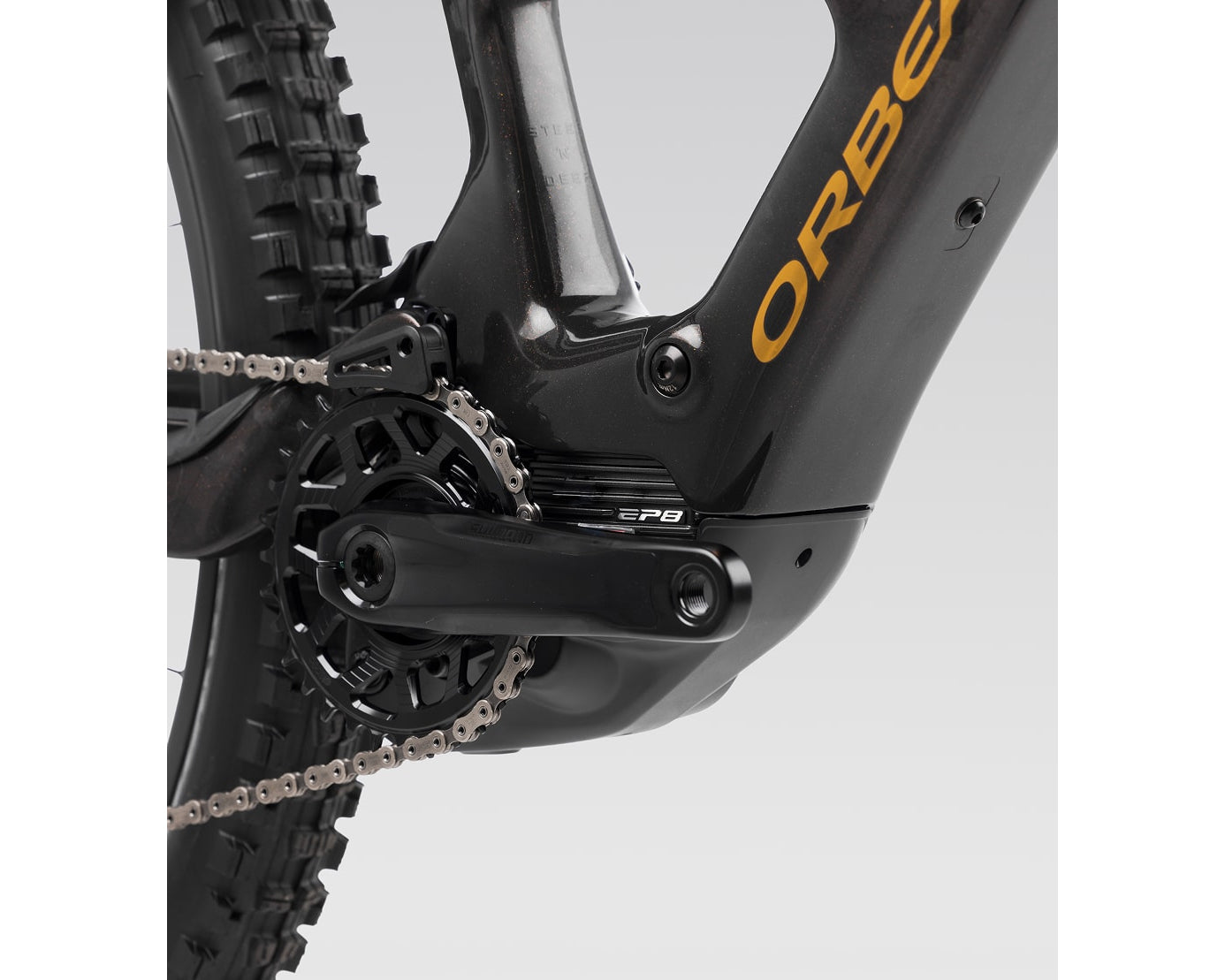

At the heart of the Rise LT is the Shimano EP801-RS motor. A custom-tuned version developed in collaboration with Orbea.
It's focus is to deliver a more natural and responsive ride feel.
60Nm of torque and smart pedal-assist modulation, provides just the right amount of support to maintain control and flow. And without overpowering the ride.
Integrated 630Wh Battery
An integrated 630Wh battery delivers extended range for demanding trail rides.
Designed to keep weight low and centred, the battery helps maintain the bike’s natural handling characteristics.
For riders seeking even longer adventures, the Rise is also compatible with Orbea’s 252Wh range extender (sold separately). It boosts total capacity to 882Wh.
Ideal for back-to-back climbs and all-day sessions.

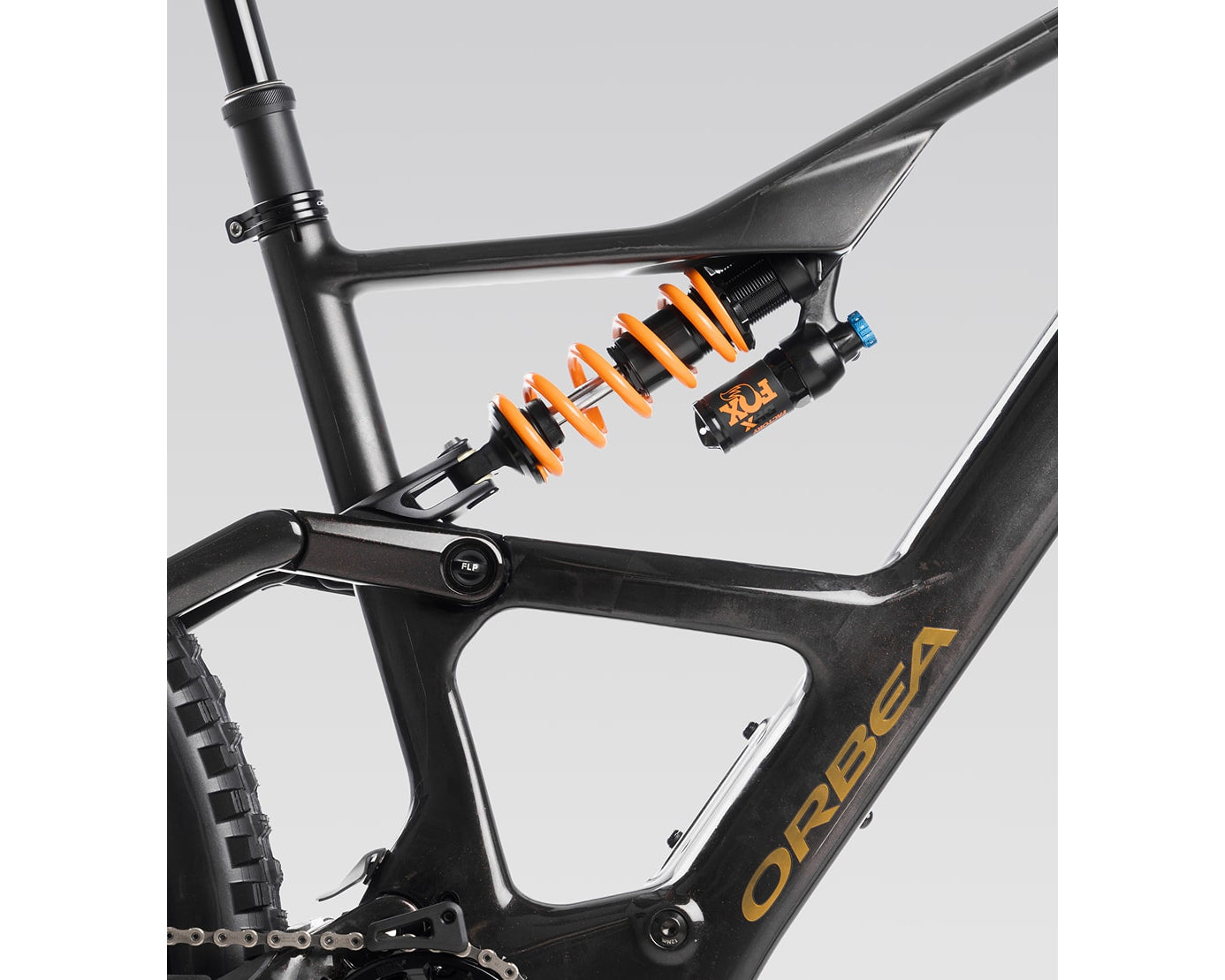

Trail-Optimised Suspension
The Rise LT is the Long Travel version.
It uses 160 of front 150mm of rear wheel travel.
Suspension setup is tuned for heavy-duty trail riding. Providing excellent small-bump sensitivity, support under load and control on technical descents.

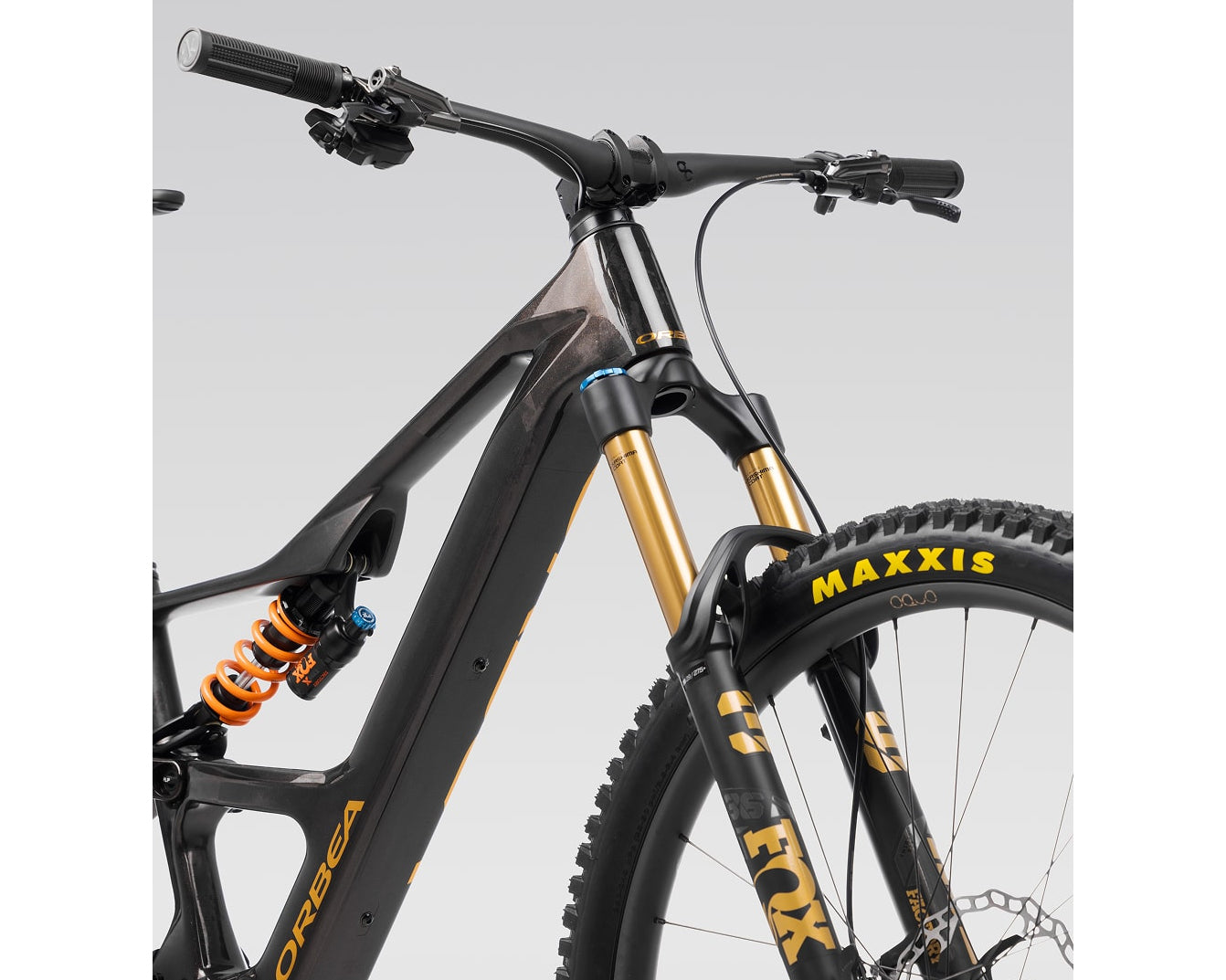

On the Rise LT M20 build, the Fox 36 fork is paired with a Fox Float DPS rear shock.
Modern Geometry
Updated geometry uses a slacker head angle, steeper seat tube, and longer reach.
All this provides stability at speed and better climbing efficiency.
The revised suspension focuses on pedalling performance and traction. Making the Rise LT feel planted and predictable.
85 Nm of Tuned, Natural Assistance
Choose RS or RS+ depending on the ride. RS gives 60 Nm for longer range, while RS+ gives 85 Nm. Rise is delivered in the RS+ mode.

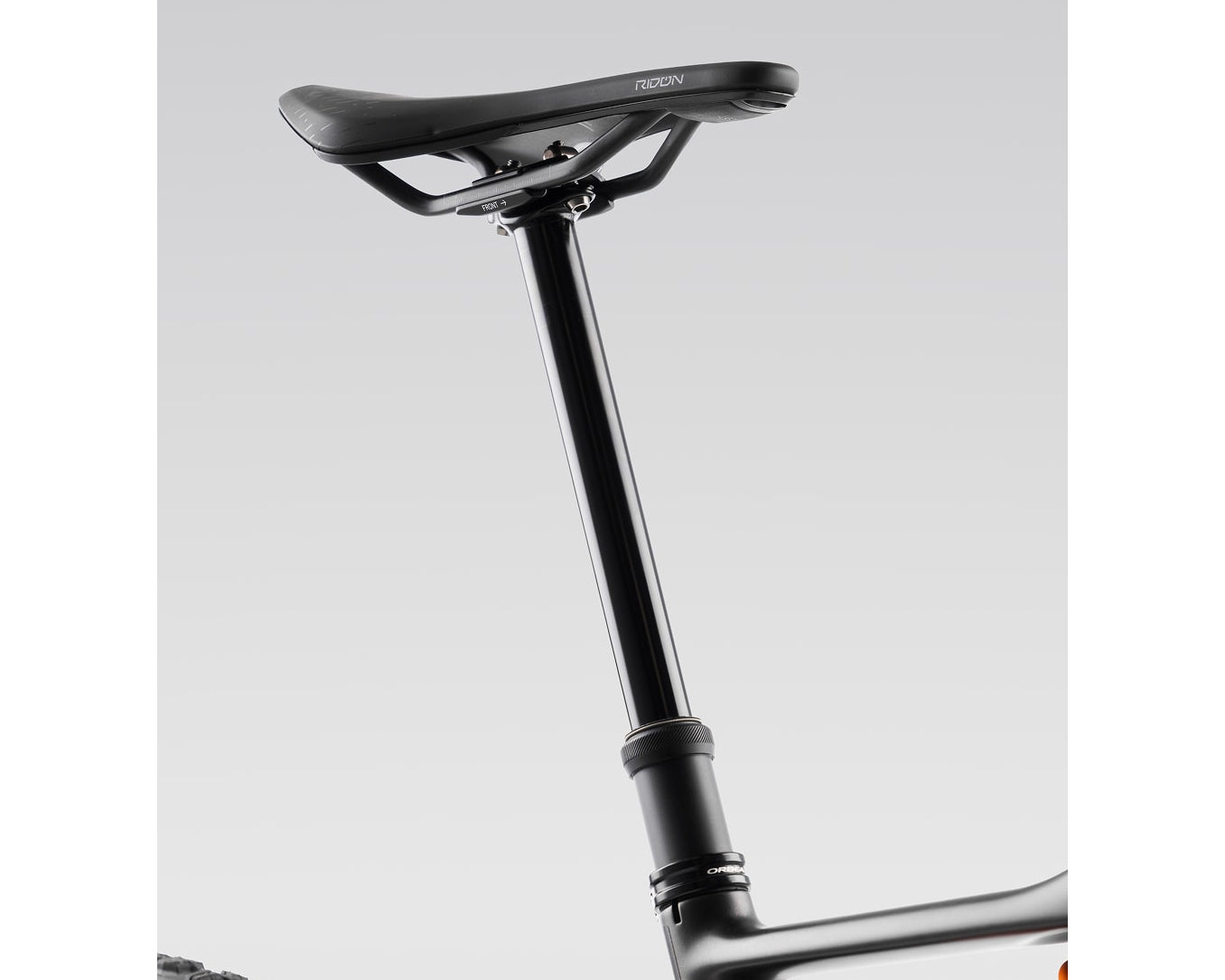

Steep 'n' Deep
Drop the saddle right out of the way to give more space to move your body and even better control. With Rise you can fit up to a 240mm dropper. Long-travel droppers are the only way!
Two Battery Choices
A choice of 420 Wh or 630 Wh batteries let you choose the perfect battery for your trails. Or add the 210 Wh range extender for the longest rides.
Attitude Adjust
Our quick flip system lets you change the geometry in just a few seconds. You can steepen the geometry for the climbs and slacken it for maximum control on the descents.
-
Motor
-
Controller
-
Battery
-
Charger
-
Frame material
-
Frame
-
Fork
-
Shock
-
Handlebar
-
Grips
-
Headset
-
Stem
-
Seatpost
-
Saddle
-
Pedals
-
Shifters
-
Front Derailleur
-
Rear Derailleur
-
Brakes
-
Brake Levers
-
Cassette/Freewheel
-
Chain
-
Crankset
-
Rims
-
Tyres
-
Extras
-
Notes
-
Speeds (rear)12 Speed
-
Age GroupAdults
-
GenderMens, Unisex
-
DisciplineMountain, Electric
-
SKUsTanzanite Carbon View/Carbon Raw/M: 8434446794728, Tanzanite Carbon View/Carbon Raw/L: 8434446794766
