Orbea Vibe H10

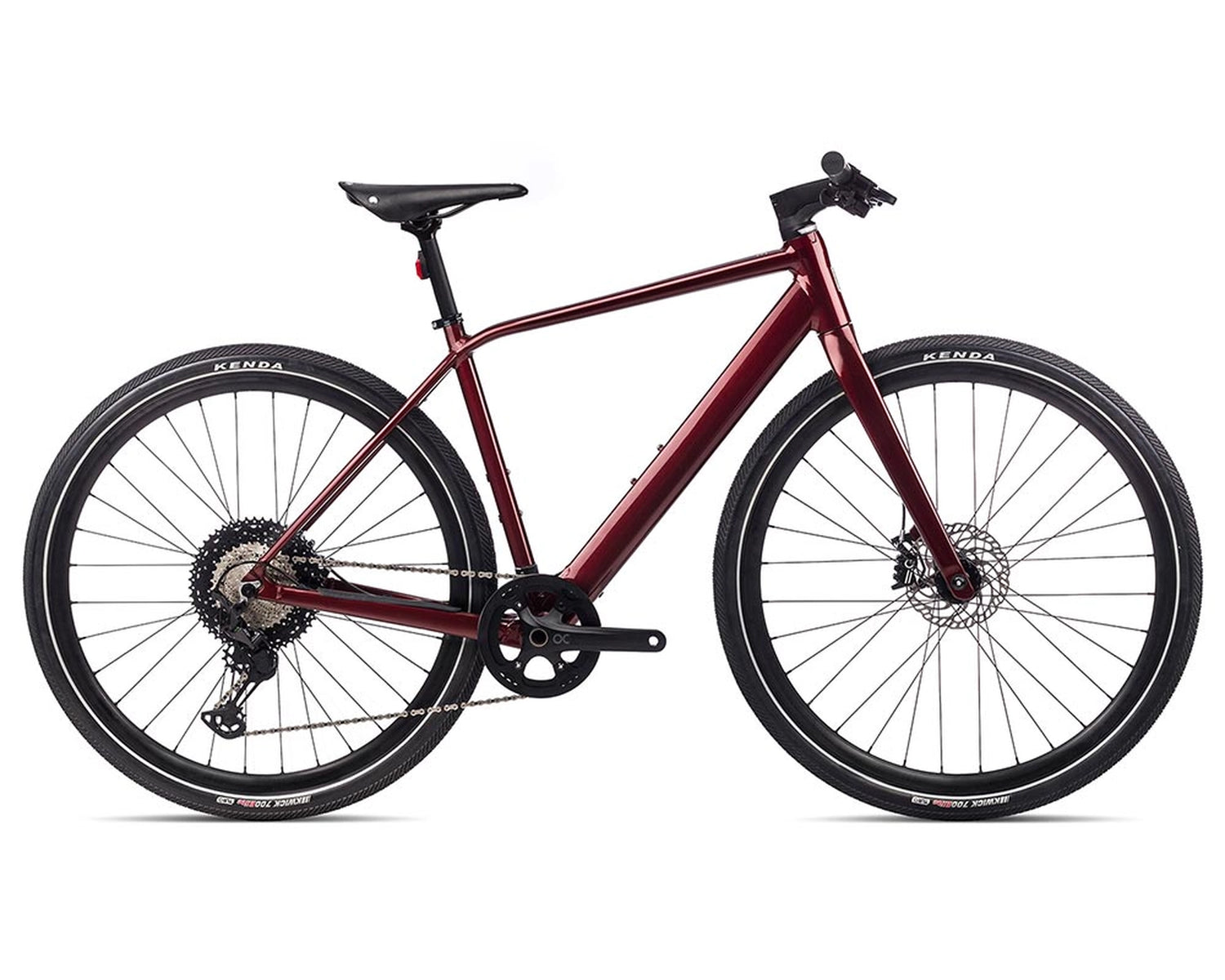

Orbea Vibe H10 (2023) - Metallic Dark Red / L : This product is available for backorder only. Will ship as soon as it is back in stock.
Couldn't load pickup availability
Sizing Chart
Sizing Chart
Sizing and Geometry
Orbea Vibe
Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.
| Sizing | Rider Height (cm) |
|---|---|
| S | 150 – 166 |
| M | 164 – 181 |
| L | 179 – 196 |
| XL | 194 – 205 |
Geometry
|
S |
M | L | XL | |
| Wheels | 700c | 700c | 700c | 700c |
| Stack (mm) | 546 | 580 | 615 | 650 |
| Reach (mm) | 380 | 395 | 410 | 430 |
| Stack/Reach Ratio | 1.44 | 1.47 | 1.50 | 1.51 |
| Top Tube Length (mm) | 507 | 530 | 547 | 571 |
| Seat Tube Length (mm) | 455 | 490 | 530 | 575 |
| Seat Tube Angle (deg) | 75 | 74.5 | 74.0 | 74.0 |
| Head Tube Length (mm) | 109 | 140 | 175 | 210 |
| Head Tube Angle (deg) | 70 | 70.5 | 71.5 | 72 |
| BB Drop (mm) | 76 | 76 | 76 | 76 |
| BB Height (mm) | 280 | 280 | 280 | 280 |
| Front Centre (mm) | 603 | 624 | 641 | 667 |
| Chainstay Length (mm) | 435 | 435 | 435 | 435 |
| Wheelbase (mm) | 1026 | 1048 | 1065 | 1091 |
| Rake (deg) | 44 | 44 | 44 | 44 |
| Trail (mm) | 80 | 77 | 70 | 67 |
| Standover Height (mm) | 775 | 809 | 842 | 881 |
| Stem Length (mm) | 90 | 90 | 90 | 90 |
| Crank Length (mm) | 170 | 170 | 170 | 170 |
| Handlebar Width (mm) | 700 | 700 | 700 | 700 |
Shipping Information
Shipping Information
This product:
Shipping available†
We offer shipping on select brands including: Rocky Mountain, Orbea, XDS, Icon, Jamis, Shogun, Schwinn, BYK, Kidvelo. These bikes are shipped unbuilt in their original box.
†Only bikes stocked at our Warehouse location are available for shipping.
Shipping upon request to your local bike shop
Some brands require the bike is delivered directly to a bicycle shop or mechanic for assembly, and shipping is not available to your residence. These include GT, Cannondale, .
Request a shipping quote to proceed.
Pickup in-store only
Certain bike brands cannot be shipped and are only available for Click and Collect or purchase in-store.
These include but are not limited to the following brands: Giant, Norco, Liv, Momentum, Malvern Star and Mongoose.
Pre-assembled bikes
†Any bikes in stock at our Heidelberg Heights, Hallam or Hoppers Crossing store locations are already fully assembled, and therefore only available for Click and Collect or purchase in-store.
Sizing and Geometry
Orbea Vibe
Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.
| Sizing | Rider Height (cm) |
|---|---|
| S | 150 – 166 |
| M | 164 – 181 |
| L | 179 – 196 |
| XL | 194 – 205 |
Geometry
|
S |
M | L | XL | |
| Wheels | 700c | 700c | 700c | 700c |
| Stack (mm) | 546 | 580 | 615 | 650 |
| Reach (mm) | 380 | 395 | 410 | 430 |
| Stack/Reach Ratio | 1.44 | 1.47 | 1.50 | 1.51 |
| Top Tube Length (mm) | 507 | 530 | 547 | 571 |
| Seat Tube Length (mm) | 455 | 490 | 530 | 575 |
| Seat Tube Angle (deg) | 75 | 74.5 | 74.0 | 74.0 |
| Head Tube Length (mm) | 109 | 140 | 175 | 210 |
| Head Tube Angle (deg) | 70 | 70.5 | 71.5 | 72 |
| BB Drop (mm) | 76 | 76 | 76 | 76 |
| BB Height (mm) | 280 | 280 | 280 | 280 |
| Front Centre (mm) | 603 | 624 | 641 | 667 |
| Chainstay Length (mm) | 435 | 435 | 435 | 435 |
| Wheelbase (mm) | 1026 | 1048 | 1065 | 1091 |
| Rake (deg) | 44 | 44 | 44 | 44 |
| Trail (mm) | 80 | 77 | 70 | 67 |
| Standover Height (mm) | 775 | 809 | 842 | 881 |
| Stem Length (mm) | 90 | 90 | 90 | 90 |
| Crank Length (mm) | 170 | 170 | 170 | 170 |
| Handlebar Width (mm) | 700 | 700 | 700 | 700 |
The Orbea Vibe H10 eBike (2023) is a stylish, minimalist urban ebike designed to elevate everyday riding. With its clean crossbar frame and lightweight design, the Vibe H30 offers a refined, no-fuss experience for riders who value simplicity and quality. Powered by the discreet MAHLE hub-drive motor and 248Wh integrated battery, it delivers smooth, natural assistance ideal for city commutes and weekend cruising.
Equipped with a carbon fork, Shimano Deore XT 12-speed drivetrain, and Shimano hydraulic disc brakes, the Vibe H10 ensures responsive handling and confident braking. Its wide 700 x 45C tyres and upright geometry add comfort and control for a relaxed yet efficient ride through urban streets.
ENOUGH ENERGY / MINIMALISM
Our Enough Energy concept is a new way to ride and Vibe is a new kind of ebike – minimalist, integrated and sleek with no bulky components to reduce the riding experience, bringing you closer to the sensation that less “e” can ultimately deliver more “bike”.
URBAN GEOMETRY
The Orbea Urban Geometry concept anticipates how riders will use bikes in the city. A more upright position for better vision and comfort keeps you feeling secure. Balance is perfect and steering is responsive without feeling too fast. A low-bar frame option makes it easy to step through the frame for those with less mobility or restrictive clothing.
We reserve the right to make changes to the product and component information appearing on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials. Due to supply chain issues, compatible parts may be substituted at any time without notice.
-
Motor
-
Controller
-
Battery
-
Charger
-
Frame material
-
Frame
-
Fork
-
Handlebar
-
Grips
-
Headset
-
Stem
-
Seatpost
-
Saddle
-
Pedals
-
Shifters
-
Rear Derailleur
-
Brakes
-
Cassette/Freewheel
-
Chain
-
Crankset
-
Bottom Bracket
-
Rims
-
Tyres
-
Extras
-
Notes
-
Speeds (rear)12 Speed
-
Age GroupAdults, Teenagers
-
GenderUnisex, Mens
-
DisciplineElectric
-
SKUsMetallic Dark Red/L: 8434446787331, Light Green/XL: 8434446787454, Blue/L: 8434446254574, Urban Green/XL: 8434446787430
