Orbea Vibe H30 EQ eBike (2022)
Orbea Vibe H30 EQ (2022) - Metallic Dark Red / XL : This product is available for backorder only. Will ship as soon as it is back in stock.
Couldn't load pickup availability
Sizing Chart
Sizing Chart
Sizing and Geometry
Orbea Vibe
Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.
| Sizing | Rider Height (cm) |
|---|---|
| S | 150 – 166 |
| M | 164 – 181 |
| L | 179 – 196 |
| XL | 194 – 205 |
Geometry
|
S |
M | L | XL | |
| Wheels | 700c | 700c | 700c | 700c |
| Stack (mm) | 546 | 580 | 615 | 650 |
| Reach (mm) | 380 | 395 | 410 | 430 |
| Stack/Reach Ratio | 1.44 | 1.47 | 1.50 | 1.51 |
| Top Tube Length (mm) | 507 | 530 | 547 | 571 |
| Seat Tube Length (mm) | 455 | 490 | 530 | 575 |
| Seat Tube Angle (deg) | 75 | 74.5 | 74.0 | 74.0 |
| Head Tube Length (mm) | 109 | 140 | 175 | 210 |
| Head Tube Angle (deg) | 70 | 70.5 | 71.5 | 72 |
| BB Drop (mm) | 76 | 76 | 76 | 76 |
| BB Height (mm) | 280 | 280 | 280 | 280 |
| Front Centre (mm) | 603 | 624 | 641 | 667 |
| Chainstay Length (mm) | 435 | 435 | 435 | 435 |
| Wheelbase (mm) | 1026 | 1048 | 1065 | 1091 |
| Rake (deg) | 44 | 44 | 44 | 44 |
| Trail (mm) | 80 | 77 | 70 | 67 |
| Standover Height (mm) | 775 | 809 | 842 | 881 |
| Stem Length (mm) | 90 | 90 | 90 | 90 |
| Crank Length (mm) | 170 | 170 | 170 | 170 |
| Handlebar Width (mm) | 700 | 700 | 700 | 700 |
Bike Shipping
Bike Shipping
Delivery is available upon specific request for our special order bikes.
Bikes may only be shipped directly to a qualified bike mechanic or bike shop of your choosing, who must complete the assembly of the bike. We strictly cannot ship an unbuilt bike direct to consumer.
The buyer is responsible for all shipping and assembly costs, and is responsible for arranging assembly with their nominated bike store or mechanic.
To request a shipping quote, please submit a request and include the delivery postcode, business name of your nominated bike shop or bike mechanic, and the exact model & frame size of the bike.
Please note: All bikes sold by Ivanhoe Cycles must be assembled by a qualified mechanic or bike shop. Any assembly undertaken without professional assistance is at the customer's risk and any injury as a result of the build without professional assistance will not be covered by the warranty.
Assembly
Assembly
Every bike purchased or collected in-store at Ivanhoe Cycles is fully assembled by our qualified mechanics free of charge.
Bikes ordered online for shipping* will require partial assembly, including but not limited to: installing handlebar, seatpost, front wheel; adjusting gears and brakes; tuning suspension; installing accessories or bar tape.
Disclaimer: Ivanhoe Cycles strongly advises having your assembly completed by an experienced bicycle mechanic. Any assembly undertaken without professional assistance is at the customer's risk and any injury as a result of the build without professional assistance will not be covered by the warranty.
*Shipping is restricted to certain brands due to assembly requirements.
Returns / Cancellations
Returns / Cancellations
If your special ordered item arrives faulty, damaged, or is differently than described, you are entitled to a full refund or replacement.
Cancellations and returns are not accepted on special orders if the consumer:
- changed their mind
- found the item cheaper elsewhere
- decided they didn't like the purchase or had no use for it
- ordered the wrong item
Contact us with any product enquiries you have prior to purchasing.
For more information, please read our Special Order terms and conditions.
Sizing and Geometry
Orbea Vibe
Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.
| Sizing | Rider Height (cm) |
|---|---|
| S | 150 – 166 |
| M | 164 – 181 |
| L | 179 – 196 |
| XL | 194 – 205 |
Geometry
|
S |
M | L | XL | |
| Wheels | 700c | 700c | 700c | 700c |
| Stack (mm) | 546 | 580 | 615 | 650 |
| Reach (mm) | 380 | 395 | 410 | 430 |
| Stack/Reach Ratio | 1.44 | 1.47 | 1.50 | 1.51 |
| Top Tube Length (mm) | 507 | 530 | 547 | 571 |
| Seat Tube Length (mm) | 455 | 490 | 530 | 575 |
| Seat Tube Angle (deg) | 75 | 74.5 | 74.0 | 74.0 |
| Head Tube Length (mm) | 109 | 140 | 175 | 210 |
| Head Tube Angle (deg) | 70 | 70.5 | 71.5 | 72 |
| BB Drop (mm) | 76 | 76 | 76 | 76 |
| BB Height (mm) | 280 | 280 | 280 | 280 |
| Front Centre (mm) | 603 | 624 | 641 | 667 |
| Chainstay Length (mm) | 435 | 435 | 435 | 435 |
| Wheelbase (mm) | 1026 | 1048 | 1065 | 1091 |
| Rake (deg) | 44 | 44 | 44 | 44 |
| Trail (mm) | 80 | 77 | 70 | 67 |
| Standover Height (mm) | 775 | 809 | 842 | 881 |
| Stem Length (mm) | 90 | 90 | 90 | 90 |
| Crank Length (mm) | 170 | 170 | 170 | 170 |
| Handlebar Width (mm) | 700 | 700 | 700 | 700 |

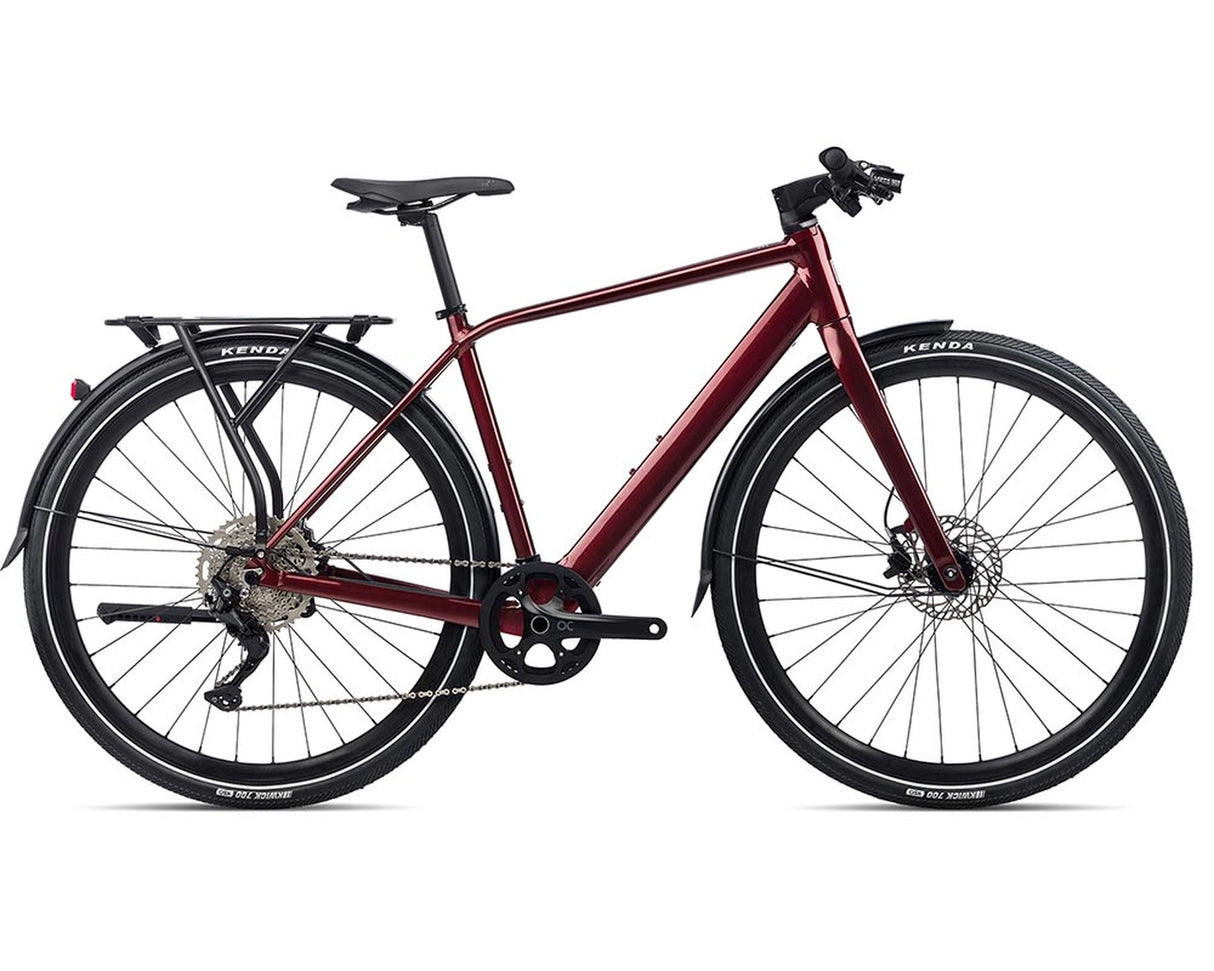

Orbea Vibe H30 EQ (2022)
The Orbea Vibe H30 EQ eBike (2022) is a lightweight, stylish urban ebike built for modern city living. Designed to blend form and function, it features a sleek frame with a fully integrated MAHLE hub-drive motor and 248Wh battery, offering smooth, reliable pedal assistance for fast-paced, everyday commuting.
Equipped with a carbon fork, Shimano Deore 1x10 drivetrain, and powerful Magura hydraulic disc brakes, the Vibe H30 EQ delivers excellent control and comfort. It comes fully equipped with CURANA Apollo 55mm fenders, a Knog OI Classic bell, and integrated Lezyne lights—front and rear—for added safety and visibility. With clean lines and quality components, this ebike is the perfect companion for efficient, car-free mobility.
ENOUGH ENERGY / MINIMALISM
Our Enough Energy concept is a new way to ride and Vibe is a new kind of ebike – minimalist, integrated and sleek with no bulky components to reduce the riding experience, bringing you closer to the sensation that less “e” can ultimately deliver more “bike”.
URBAN GEOMETRY
The Orbea Urban Geometry concept anticipates how riders will use bikes in the city. A more upright position for better vision and comfort keeps you feeling secure. Balance is perfect and steering is responsive without feeling too fast. A low-bar frame option makes it easy to step through the frame for those with less mobility or restrictive clothing.
-
Motor
-
Controller
-
Battery
-
Charger
-
Frame material
-
Frame
-
Fork
-
Handlebar
-
Headset
-
Stem
-
Seatpost
-
Saddle
-
Pedals
-
Shifters
-
Rear Derailleur
-
Brakes
-
Cassette/Freewheel
-
Chain
-
Crankset
-
Bottom Bracket
-
Rims
-
Tyres
-
Extras
-
Notes
-
Speeds (rear)10 Speed
-
Age GroupAdults, Teenagers
-
GenderUnisex, Mens
-
DisciplineElectric
-
SKUsMetallic Dark Red/XL: 8434446787034, Urban Green/XL: 8434446787041
