Orbea Vibe E-Bikes: up to 60% off
1 2
Orbea  |  SKU: 8434446297052

Orbea Vibe H30 EQ

$2,49900 $5,99900
  • Mahle X35 Plus Hub Motor
  • Magura MT30 Hydraulic Disc Brakes
  • Shimano Deore Shadow+ 10-speed Drivetrain
  • Fully Equipped with Fenders, Lezyne Front and Rear Lights, Rear Orbea Rack, and Kickstand
Colour: Black Night
Size
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay

Sizing Chart

Sizing and Geometry

Orbea Vibe

Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.

Sizing Rider Height (cm)
S  150 – 166
M 164 – 181
L 179 – 196
XL 194 – 205


Geometry

  S
 M L XL
Wheels 700c 700c 700c 700c
Stack (mm) 546 580 615 650
Reach (mm) 380 395 410 430
Stack/Reach Ratio 1.44 1.47 1.50 1.51
Top Tube Length (mm) 507 530 547 571
Seat Tube Length (mm) 455 490 530 575
Seat Tube Angle (deg) 75 74.5 74.0 74.0
Head Tube Length (mm) 109 140 175 210
Head Tube Angle (deg) 70 70.5 71.5 72
BB Drop (mm) 76 76 76 76
BB Height (mm) 280 280 280 280
Front Centre (mm) 603 624 641 667
Chainstay Length (mm) 435 435 435 435
Wheelbase (mm) 1026 1048 1065 1091
Rake (deg) 44 44 44 44
Trail (mm) 80 77 70 67
Standover Height (mm) 775 809 842 881
Stem Length (mm) 90 90 90 90
Crank Length (mm) 170 170 170 170
Handlebar Width (mm) 700 700 700 700

Shipping Information

This product:

Shipping available†

We offer shipping on select brands including: Rocky Mountain, Orbea, XDS, Icon, Jamis, Shogun, Schwinn, BYK, Kidvelo. These bikes are shipped unbuilt in their original box.

†Only bikes stocked at our Warehouse location are available for shipping.

Shipping upon request to your local bike shop

Some brands require the bike is delivered directly to a bicycle shop or mechanic for assembly, and shipping is not available to your residence. These include GT, Cannondale, .

Request a shipping quote to proceed.

Pickup in-store only

Certain bike brands cannot be shipped and are only available for Click and Collect or purchase in-store.

These include but are not limited to the following brands: Giant, Norco, Liv, Momentum, Malvern Star and Mongoose.

Pre-assembled bikes

†Any bikes in stock at our Heidelberg Heights, Hallam or Hoppers Crossing store locations are already fully assembled, and therefore only available for Click and Collect or purchase in-store.

Fully assembled when you Click & Collect in-store
Buy Now, Pay Later with ZIP
Free service adjustment within first 6 months

The Orbea Vibe H30 EQ is a sleek, lightweight urban ebike designed for modern city living.

 Its integrated motor, battery, and electronics system deliver smooth assistance, ideal for fast-paced, grab-and-go commutes. With a clean frame that fits easily into apartments or workplaces, the Vibe is both a practical transport solution and a stylish accessory.

Connect your smartphone via the EBikeMotion app for ride data, system info, and training insights. Add a handlebar mount to access full GPS navigation with offline maps, making every city journey easy and connected.

ENOUGH ENERGY / MINIMALISM

Our Enough Energy concept is a new way to ride and Vibe is a new kind of ebike – minimalist, integrated and sleek with no bulky components to reduce the riding experience, bringing you closer to the sensation that less “e” can ultimately deliver more “bike”.

URBAN GEOMETRY

The Orbea Urban Geometry concept anticipates how riders will use bikes in the city. A more upright position for better vision and comfort keeps you feeling secure. Balance is perfect and steering is responsive without feeling too fast. A low-bar frame option makes it easy to step through the frame for those with less mobility or restrictive clothing.

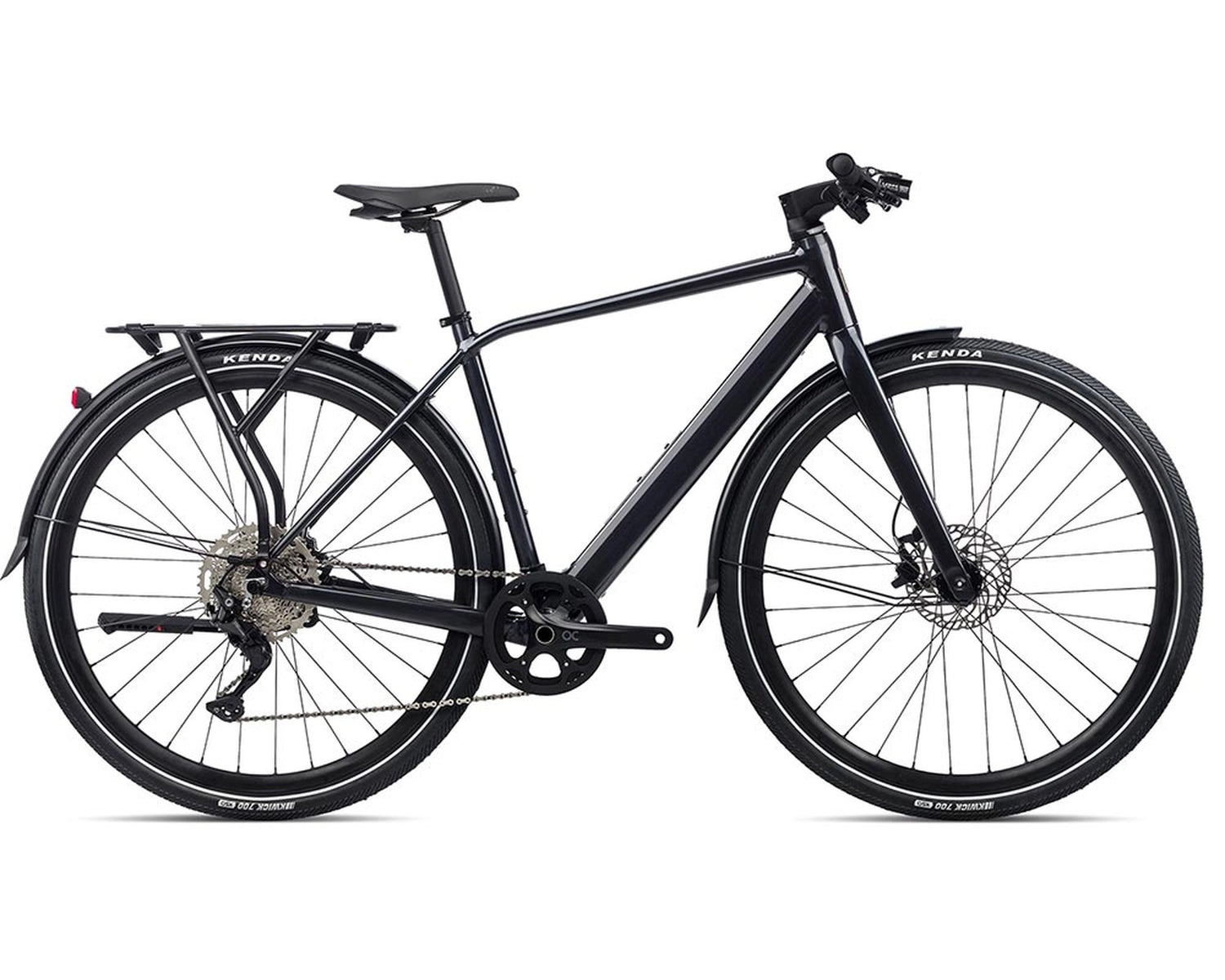

Orbea Vibe H30 EQ eBike (2023) black

Orbea Vibe H30 EQ (2023)

$2,49900 $5,99900

Colour

Size

  • XL

Motor

MAHLE MOTOR HUB X35 PLUS

Controller

MAHLE IWOC TRIO

Display

N/A

Battery

MAHLE 36V/6.9A 248WH ANT+

Charger

MAHLE X35

Sizes

N/A

Frame material

Aluminium

Frame

ORBEA VIBE TOP BAR HYDRO 6061 HYDROFORM ALUMINUM 2021, ICR CABLE ROUTING, FORGED BB, 135X9 QR, FLAT MOUNT DISC, 700X45 MAXIMUN TIRE, 1" 1/2 SEMI HEAD SET, 41X86,5 PRESSFIT BB, CARRIER AND FENDERS COMPATIBLE

Fork

ORBEA VIBE CARBON FORK, FULL CARBON, 1-1/5, 700X45 MAXIMUN TIRE, FLAT MOUNT DISC MOUNT, THRUE AXLE12X100MM, LONG MUDGUARDS COMPATIBLE.

Handlebar

ALLOY ,31.8MM, RISE 12MM, 700MM

Grips

N/A

Bar Tape

N/A

Headset

ACROS ALLOY 1-1/2" INTERNAL CABLE ROUTING

Stem

ALLOY FORGED, -6º, ICR

Seatpost

ALLOY, 27.2MM, SETBACK 20

Saddle

SELLE ROYAL LIFT 1215 URN 278X145MM

Pedals

Platform

Shifters

SHIMANO DEORE M4100

Front Derailleur

N/A

Rear Derailleur

SHIMANO DEORE M5120 SGS SHADOW PLUS

Brakes

MAGURA MT30 HYDRAULIC DISC EASY ROUTE CONNECTION

Brake Levers

N/A

Cassette/Freewheel

SHIMANO CS-M4100 11-46T 10-SPEED

Chain

KMC X10

Crankset

FORGED ALLOY, 42T, W/CHAINGUARD

Bottom Bracket

N/A

Rims

N/A

Hubs

N/A

Spokes

N/A

Tyres

KENDA K1052 700X45C REFLECTIVE TYPE+PUNCTURE PROTECTION

Wheel Size

N/A

Extras

ORBEA VIBE REAR LUGGAGE CARRIER | LEZYNE EBIKE POWER STVZO FRONT AND REAR LIGHTS 310/11 | CURANA APOLLO 55MM FENDERS | KICKSTAND
