Orbea Vibe Mid H10 Mud eBike (2022)
Orbea Vibe Mid H10 Mud (2022) - Blue / M : This product is available for backorder only. Will ship as soon as it is back in stock.
Couldn't load pickup availability
Sizing Chart
Sizing Chart
Sizing and Geometry
Orbea Vibe Mid
Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.
| Sizing | Rider Height (cm) |
|---|---|
| S | 150 – 166 |
| M | 164 – 176 |
| L | 174 – 190 |
Geometry
|
S |
M | L | |
| Wheels | 700c | 700c | 700c |
| Stack (mm) | 546 | 580 | 600 |
| Reach (mm) | 380 | 395 | 400 |
| Stack/Reach Ratio | 1.44 | 1.47 | 1.50 |
| Top Tube Length (mm) | 517 | 540 | 562 |
| Seat Tube Length (mm) | 455 | 490 | 525 |
| Seat Tube Angle (deg) | 75 | 74.5 | 74 |
| Head Tube Length (mm) | 108 | 140 | 160 |
| Head Tube Angle (deg) | 70 | 70.5 | 71.5 |
| BB Drop (mm) | 76 | 76 | 76 |
| BB Height (mm) | 280 | 280 | 280 |
| Front Centre (mm) | 603 | 624 | 616 |
| Chainstay Length (mm) | 435 | 435 | 435 |
| Wheelbase (mm) | 1026 | 1048 | 1040 |
| Rake (deg) | 44 | 44 | 44 |
| Trail (mm) | 80 | 77 | 81 |
| Standover Height (mm) | 723 | 732 | 747 |
| Stem Length (mm) | 90 | 90 | 90 |
| Crank Length (mm) | 170 | 170 | 170 |
| Handlebar Width (mm) | 700 | 700 | 700 |
Bike Shipping
Bike Shipping
Delivery is available upon specific request for our special order bikes.
Bikes may only be shipped directly to a qualified bike mechanic or bike shop of your choosing, who must complete the assembly of the bike. We strictly cannot ship an unbuilt bike direct to consumer.
The buyer is responsible for all shipping and assembly costs, and is responsible for arranging assembly with their nominated bike store or mechanic.
To request a shipping quote, please submit a request and include the delivery postcode, business name of your nominated bike shop or bike mechanic, and the exact model & frame size of the bike.
Please note: All bikes sold by Ivanhoe Cycles must be assembled by a qualified mechanic or bike shop. Any assembly undertaken without professional assistance is at the customer's risk and any injury as a result of the build without professional assistance will not be covered by the warranty.
Assembly
Assembly
Every bike purchased or collected in-store at Ivanhoe Cycles is fully assembled by our qualified mechanics free of charge.
Bikes ordered online for shipping* will require partial assembly, including but not limited to: installing handlebar, seatpost, front wheel; adjusting gears and brakes; tuning suspension; installing accessories or bar tape.
Disclaimer: Ivanhoe Cycles strongly advises having your assembly completed by an experienced bicycle mechanic. Any assembly undertaken without professional assistance is at the customer's risk and any injury as a result of the build without professional assistance will not be covered by the warranty.
*Shipping is restricted to certain brands due to assembly requirements.
Returns / Cancellations
Returns / Cancellations
If your special ordered item arrives faulty, damaged, or is differently than described, you are entitled to a full refund or replacement.
Cancellations and returns are not accepted on special orders if the consumer:
- changed their mind
- found the item cheaper elsewhere
- decided they didn't like the purchase or had no use for it
- ordered the wrong item
Contact us with any product enquiries you have prior to purchasing.
For more information, please read our Special Order terms and conditions.
Sizing and Geometry
Orbea Vibe Mid
Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.
| Sizing | Rider Height (cm) |
|---|---|
| S | 150 – 166 |
| M | 164 – 176 |
| L | 174 – 190 |
Geometry
|
S |
M | L | |
| Wheels | 700c | 700c | 700c |
| Stack (mm) | 546 | 580 | 600 |
| Reach (mm) | 380 | 395 | 400 |
| Stack/Reach Ratio | 1.44 | 1.47 | 1.50 |
| Top Tube Length (mm) | 517 | 540 | 562 |
| Seat Tube Length (mm) | 455 | 490 | 525 |
| Seat Tube Angle (deg) | 75 | 74.5 | 74 |
| Head Tube Length (mm) | 108 | 140 | 160 |
| Head Tube Angle (deg) | 70 | 70.5 | 71.5 |
| BB Drop (mm) | 76 | 76 | 76 |
| BB Height (mm) | 280 | 280 | 280 |
| Front Centre (mm) | 603 | 624 | 616 |
| Chainstay Length (mm) | 435 | 435 | 435 |
| Wheelbase (mm) | 1026 | 1048 | 1040 |
| Rake (deg) | 44 | 44 | 44 |
| Trail (mm) | 80 | 77 | 81 |
| Standover Height (mm) | 723 | 732 | 747 |
| Stem Length (mm) | 90 | 90 | 90 |
| Crank Length (mm) | 170 | 170 | 170 |
| Handlebar Width (mm) | 700 | 700 | 700 |
Orbea Vibe Mid H10 Mud (2022)

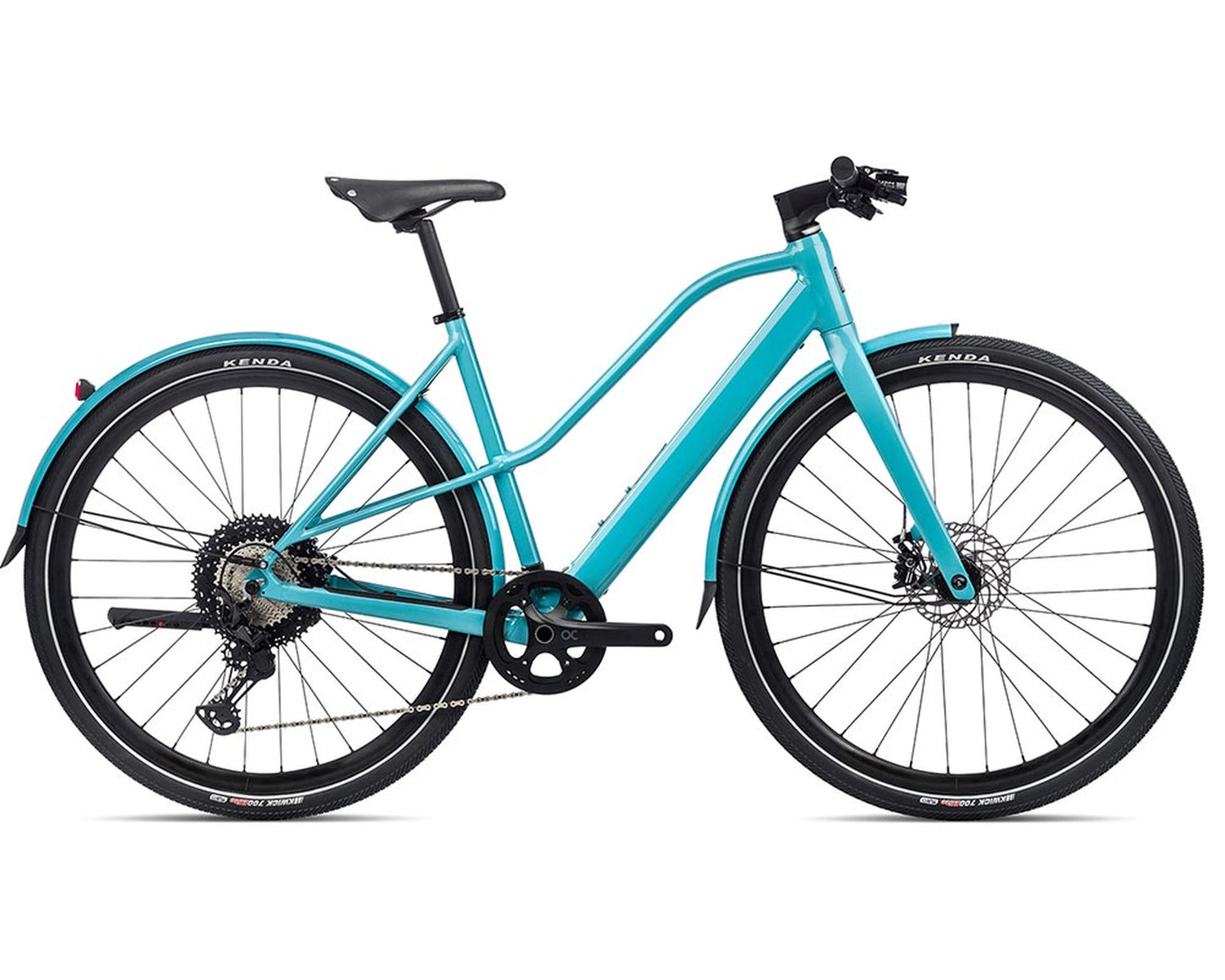

Orbea Vibe Mid H10 Mud eBike (2022)
The Orbea Vibe Mid H10 Mud 2022 is a high-performance urban ebike built for daily commuting with comfort and reliability. Powered by the efficient MAHLE X35 Plus motor and a 248Wh integrated battery, it offers smooth pedal assistance up to 25 km/h—ideal for city travel. The lightweight 6061 Hydroform aluminum frame with a carbon fork delivers durability without added weight.
Equipped with Magura MT5 hydraulic disc brakes for strong stopping power and Kenda 700x45C tyres for grip and comfort, this ebike handles wet roads and urban terrain with ease.
INTEGRATED LIGHTS
It's like magic - fully integrated lighting is just one more feature to enhance your ride. Vibe is safer and more functional with front and rear lights that announce your presence day and night.
IWOC TRIO
Vibe's control centre is an attractive and discreet handlebar mounted switch, putting function at your fingertips without removing your hands from the bar.
ICR PLUS
Internal cable routing is carefully guided along the best path under the stem and through the head tube, with no rub or rattle and is optimised for traditional and electronic shifting systems. Proprietary headset spacers smooth airflow and offer easy adjustment.
-
Motor
-
Battery
-
Charger
-
Frame material
-
Frame
-
Fork
-
Handlebar
-
Grips
-
Headset
-
Stem
-
Seatpost
-
Saddle
-
Pedals
-
Shifters
-
Rear Derailleur
-
Brakes
-
Cassette/Freewheel
-
Chain
-
Crankset
-
Tyres
-
Wheelset
-
Extras
-
Notes
-
Speeds (rear)12 Speed
-
Age GroupAdults, Teenagers
-
GenderUnisex, Womens, Mens
-
DisciplineElectric, Commuting
-
SKUsBlue/S: 8434446963124, Blue/M: 8434446963186, Blue/L: 8434446963247
