Orbea  |  SKU: 8434446234071

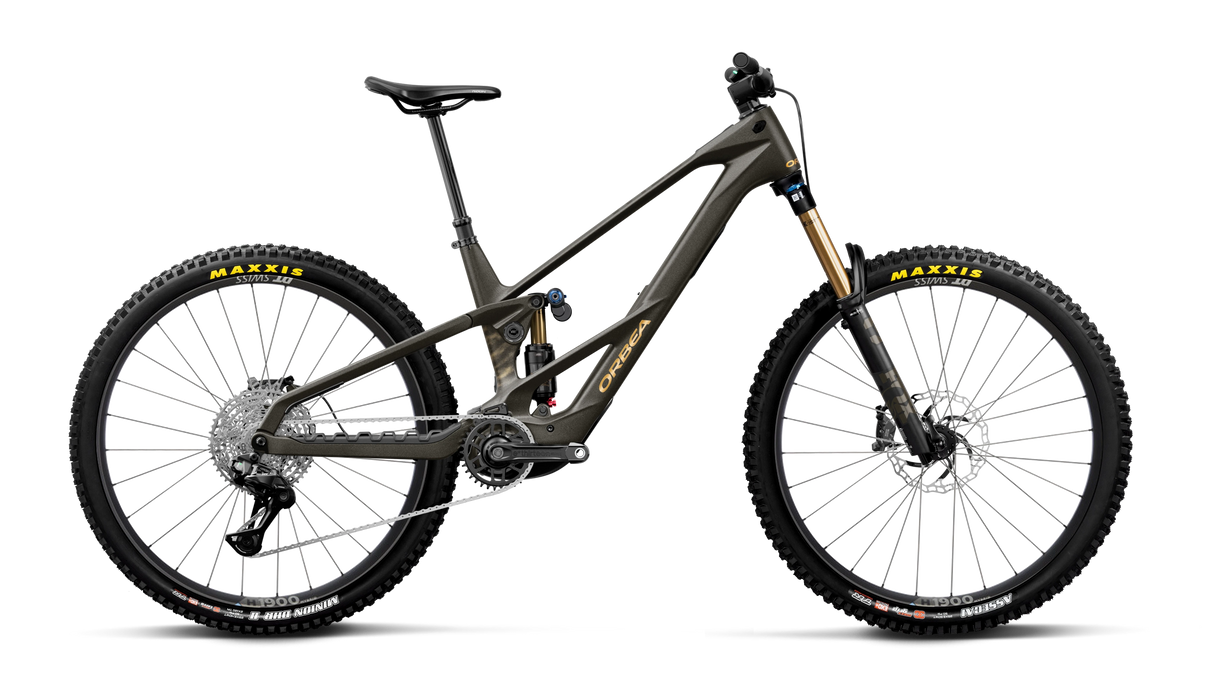

Orbea Wild LT M10 (2027)

$15,49900
Wheel Size
Colour: MyO - Customize Your Own
Size
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay

Shipping Information

This product:

Shipping available†

We offer shipping on select brands including: Rocky Mountain, Orbea, XDS, Icon, Jamis, Shogun, Schwinn, BYK, Kidvelo. These bikes are shipped unbuilt in their original box.

†Only bikes stocked at our Warehouse location are available for shipping.

Shipping upon request to your local bike shop

Some brands require the bike is delivered directly to a bicycle shop or mechanic for assembly, and shipping is not available to your residence. These include GT, Cannondale, .

Request a shipping quote to proceed.

Pickup in-store only

Certain bike brands cannot be shipped and are only available for Click and Collect or purchase in-store.

These include but are not limited to the following brands: Giant, Norco, Liv, Momentum, Malvern Star and Mongoose.

Pre-assembled bikes

†Any bikes in stock at our Heidelberg Heights, Hallam or Hoppers Crossing store locations are already fully assembled, and therefore only available for Click and Collect or purchase in-store.

Fully assembled when you Click & Collect
Buy Now, Pay Later with ZIP
Free service adjustment in first 6 months

The Orbea Wild LT M10 2027 is a full-power carbon enduro eMTB with 170mm of travel front and rear, a DJI Avinox M2S motor with Orbea's RS tune, and an 800Wh battery.

It's the Shimano XT Di2 build in Orbea's rebuilt-for-2027 Wild LT range. The same OMR carbon frame, motor and Fox Factory suspension as the flagship RS models, with wireless electronic shifting but without the electronic smart dropper and full connected ecosystem.

Motor and battery

The Avinox M2S delivers 130Nm of torque and 750W across the Eco, Trail, Turbo and Auto modes, with Superboost unlocking 150Nm and 1300W in short bursts for the steepest climbs.

Orbea's RS tune (fitted across the whole Wild LT range) makes the bike start with less pedal input and faster ramp up, which helps on technical hill-starts and ratcheting. Motor control and ride data run off the single 800Wh battery via the bar-mounted HMI remote, so there's nothing extra to charge.

Shimano XT Di2 shifting

The M10 runs Shimano's new XT M8200 Di2; fully wireless electronic shifting. Beyond the drivetrain the cockpit stays mechanical:

The M10 leaves out the RS models' electronic smart dropper (it keeps a mechanical OC MC22 post with a Shimano lever) and the Fox Live Valve Neo option. If you want the MC10-RS smart dropper and eNeo integration, they're on the M-Team RS and M-LTD RS.

M10 Build

Fox Factory suspension front and rear (38 fork with GRIP X2, Float X2 shock, both Kashima), Shimano XT four-piston brakes on 200mm Galfer Wave rotors, and e*thirteen Helix cranks.

The wheels are DT Swiss H1900 Spline 30. A tough 30mm-internal aluminium eMTB wheelset with DT's Ratchet hubs, built to shrug off enduro abuse and stay true where lighter carbon hoops would be at risk. They're wrapped in a Maxxis Assegai / Minion DD tyre combo. 155mm cranks on all sizes.

Setup and customisation

Purchased as either a full-29 or Mullet setup.

Through Orbea's MyO program you can upgrade to a 180mm fork, add custom paint and change certain parts of the bike's spec.

Orbea Wild LT M10 2027 — Specification
Frame Orbea Wild OMR carbon 2027, 29", Concentric Boost 12x148, 170mm travel
Fork Fox 38 Float Factory 170mm, GRIP X2, 15x110, Kashima
Shock Fox Float X2 Factory Trunnion, 2-Pos Adjust, Kashima, custom tune, 205x65mm
Headset Acros ZS56 (angle-adjust compatible)
Motor DJI Avinox M2S with Orbea RS tune — 130Nm / 750W (150Nm / 1300W Superboost)
Battery Avinox 800Wh
Display Avinox DP100
Charger Avinox 4A
Remote Orbea System Controller remote (HMI, motor control)
Chainring e*thirteen Helix Race e*spec direct mount, 34T, 55mm chainline
Crank e*thirteen Helix Core e*spec
Shifter Shimano XT M8200 Di2, wireless, I-Spec EV, 12-speed
Cassette Shimano CS-M7200 10-51t 12-speed
Rear derailleur Shimano XT M8200 Di2 (RD-M8260, eMTB), SGS long cage, 12-speed
Chain Shimano M6100 12-speed
Chainguide Orbea eBike chainguide
Handlebar OC Mountain Control MC21 Alu SL, 35mm rise, 800mm width
Stem OC Mountain Control MC20, 0°
Computer mount OC CM-05, Garmin/Sigma
Brakes Shimano XT M8220 4-piston hydraulic disc
Rotors Galfer Wave, 200mm front / 200mm rear
Wheels DT Swiss H1900 Spline 30 (30mm internal, alloy, Ratchet hubs)
Front tyre Maxxis Assegai 2.50" 60TPI, 3C MaxxGrip, EXO+, TR
Rear tyre Maxxis Minion 2.40" 120x2TPI, 3C MaxxTerra, DD, TR
Saddle Fizik Aidon 208x145mm, manganese rail
Seatpost OC Mountain Control MC22 dropper, 31.6mm
Dropper lever Shimano SL-MT500, I-Spec EV
Tools MT-20 FLP multitool (2/3/4/5mm hex, magnetic in pivot; 6mm in rear axle)
