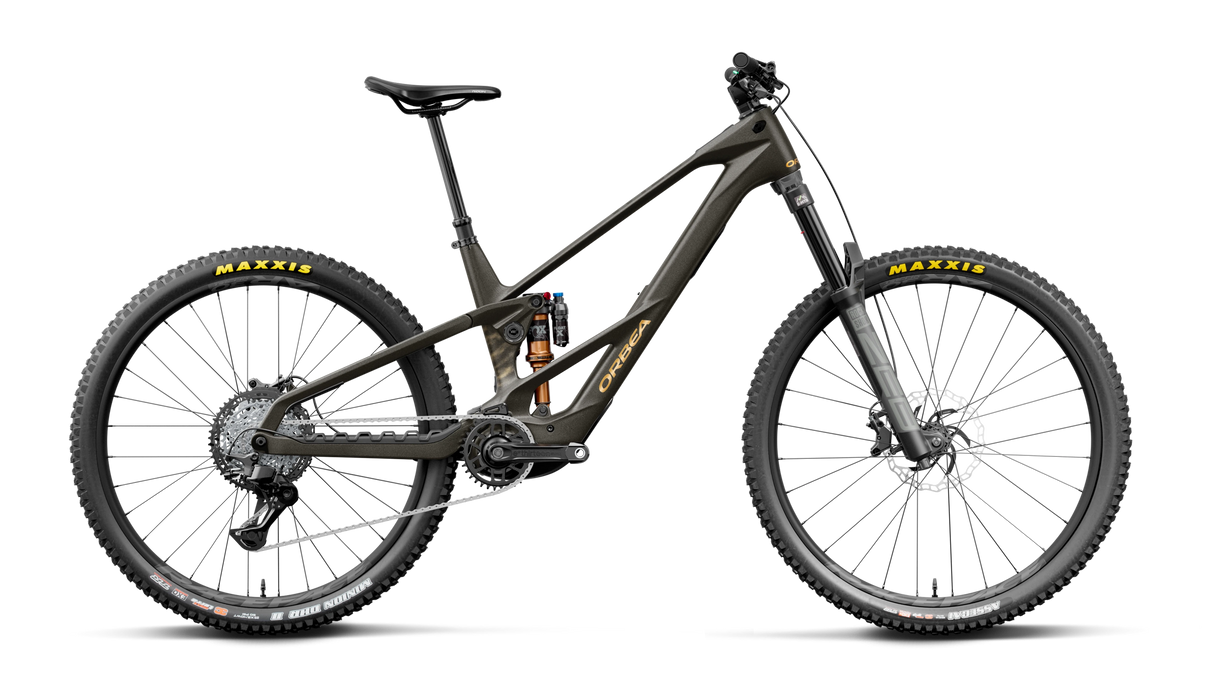

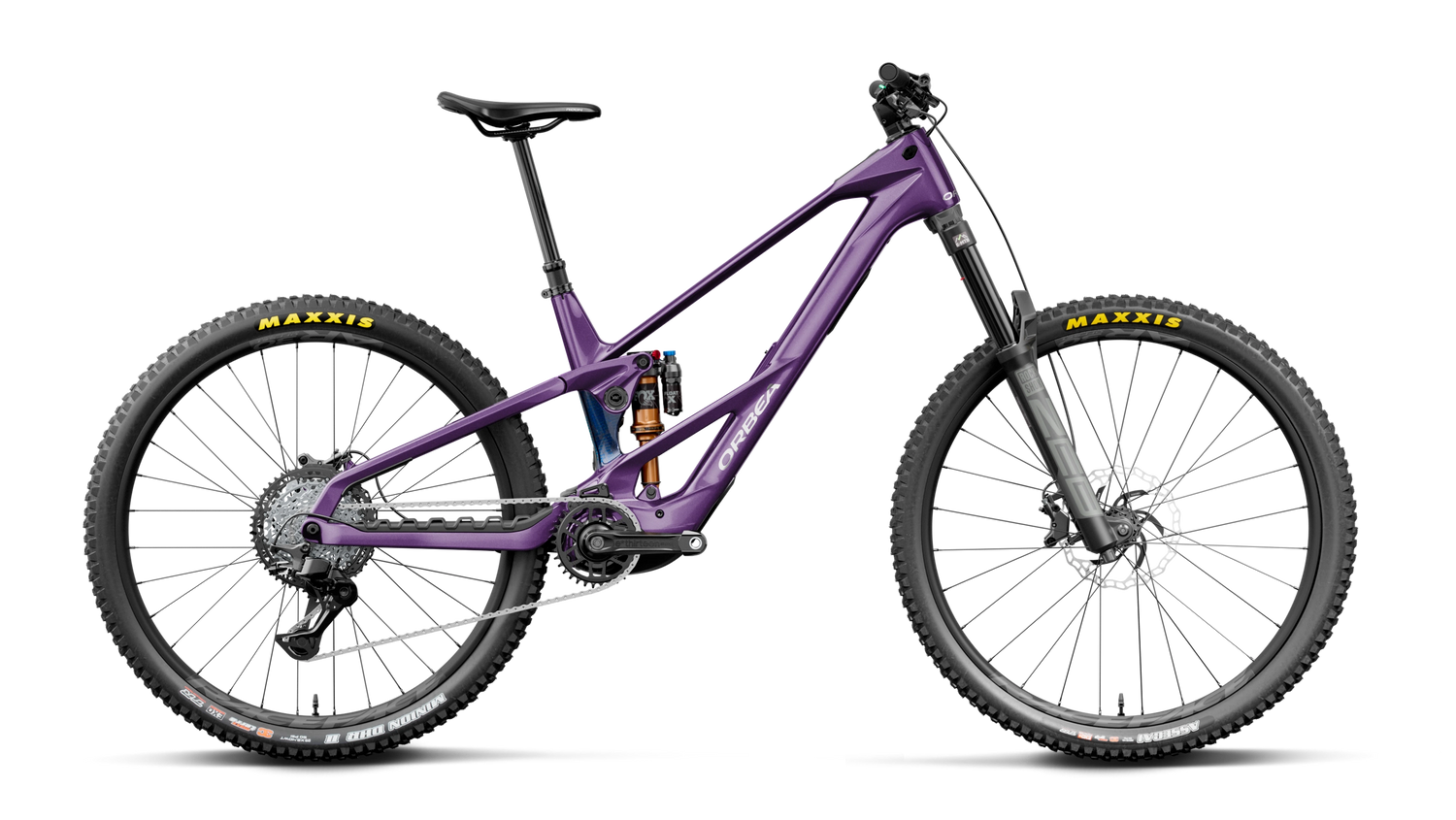

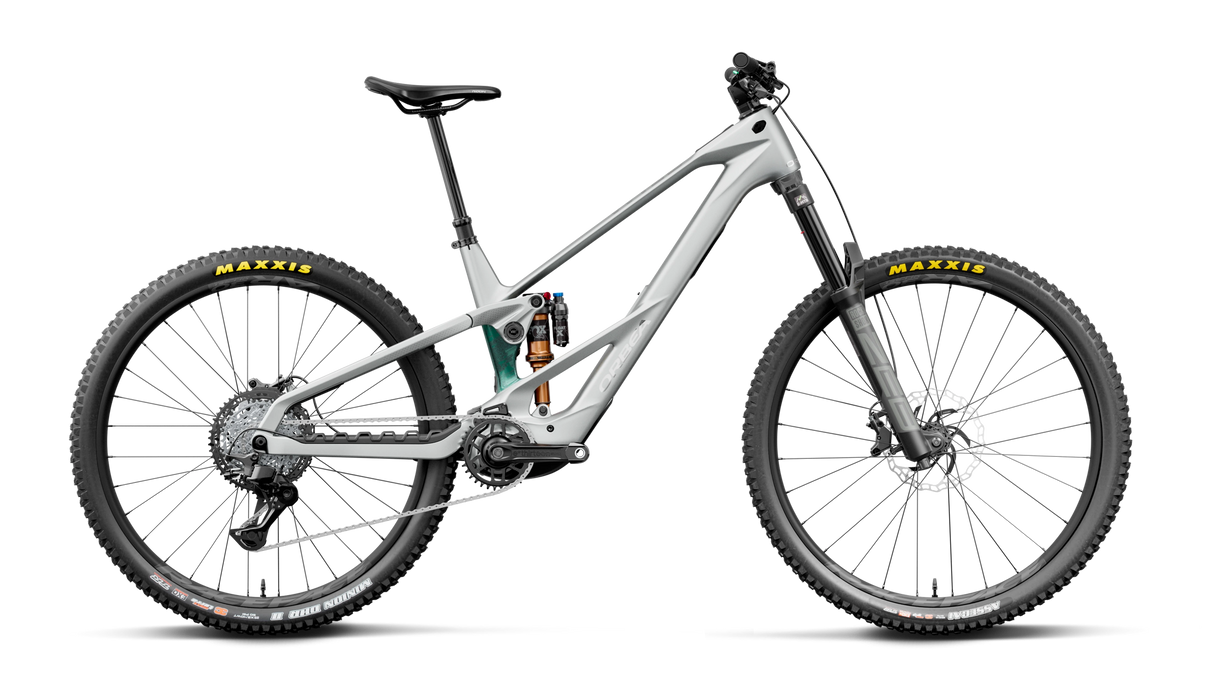

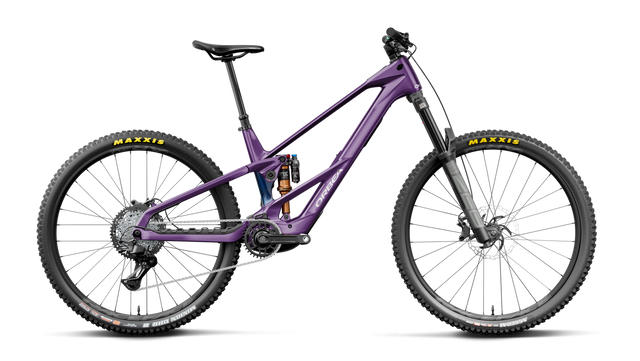

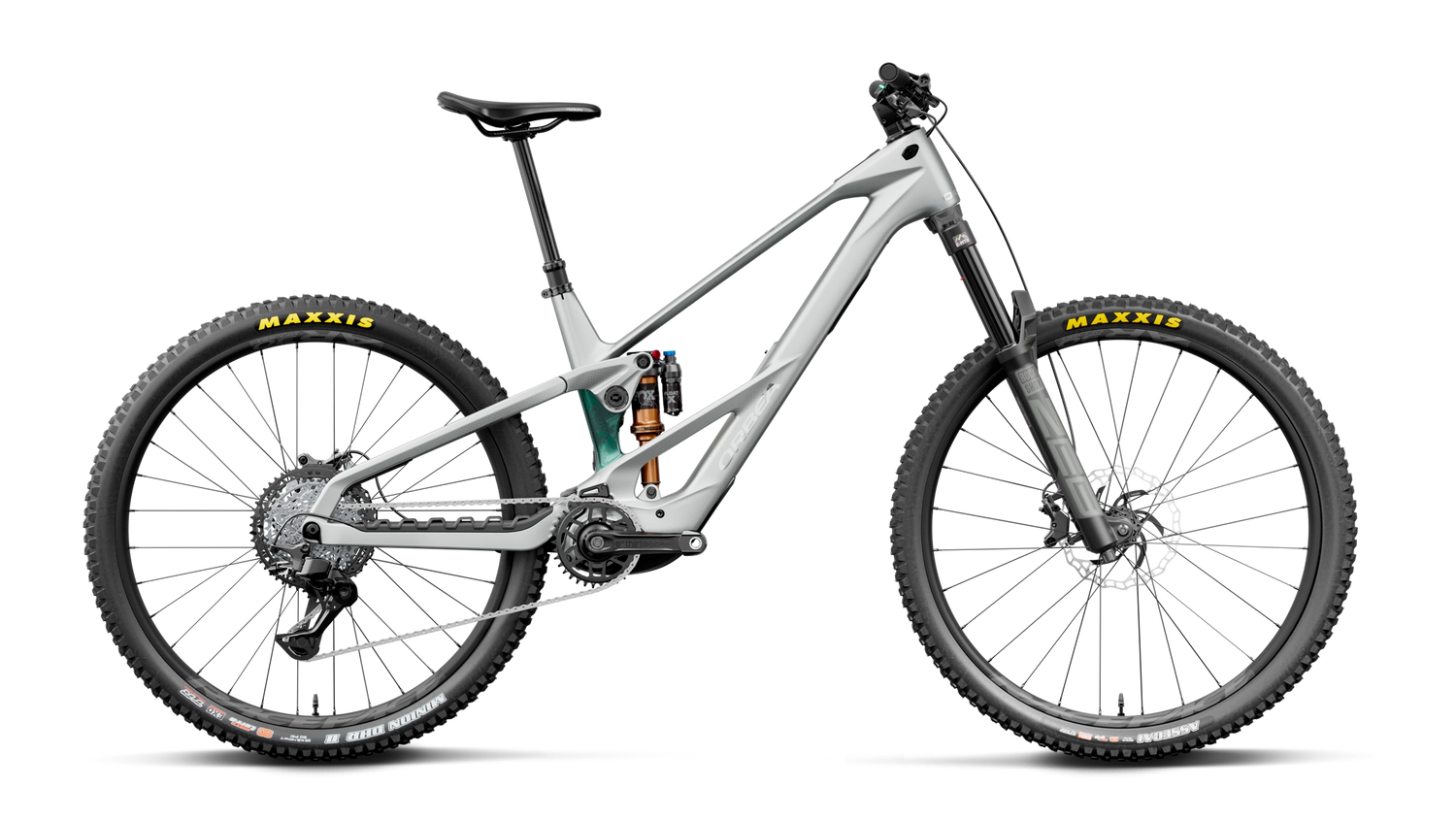

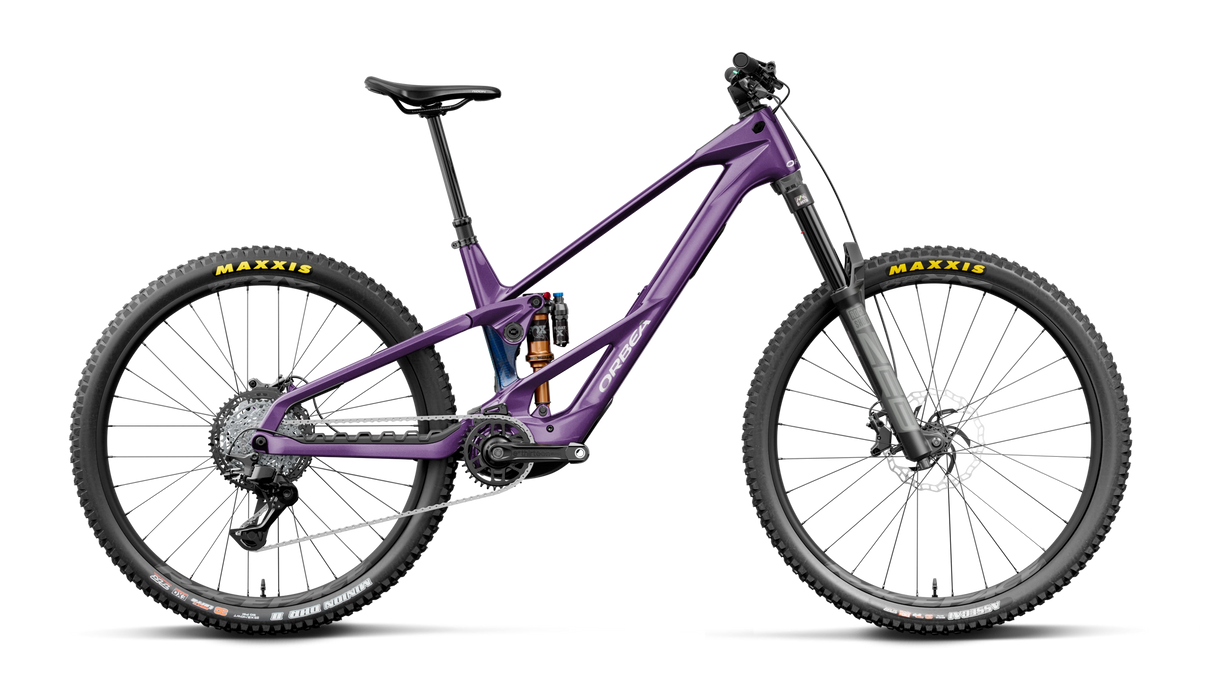

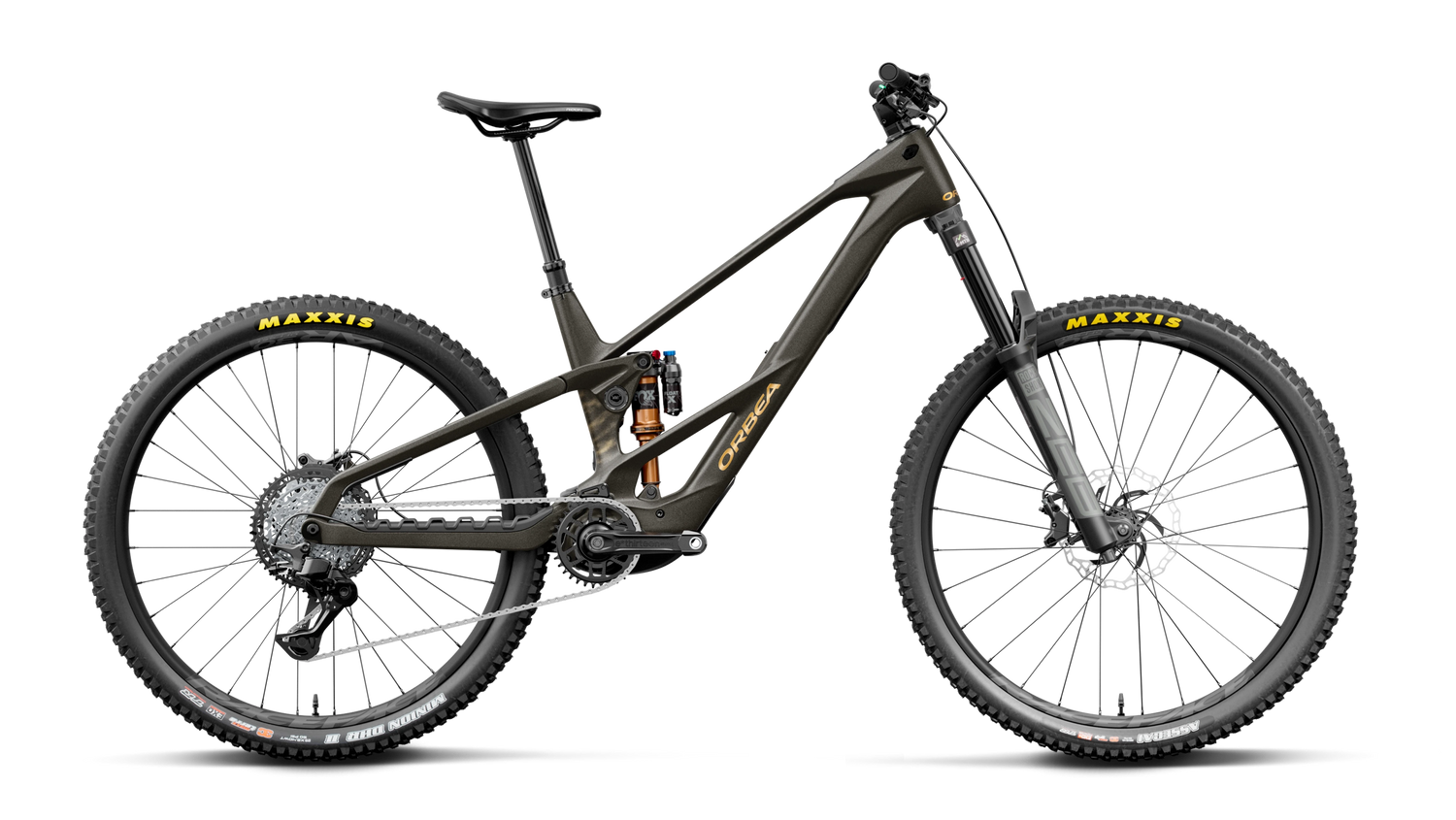

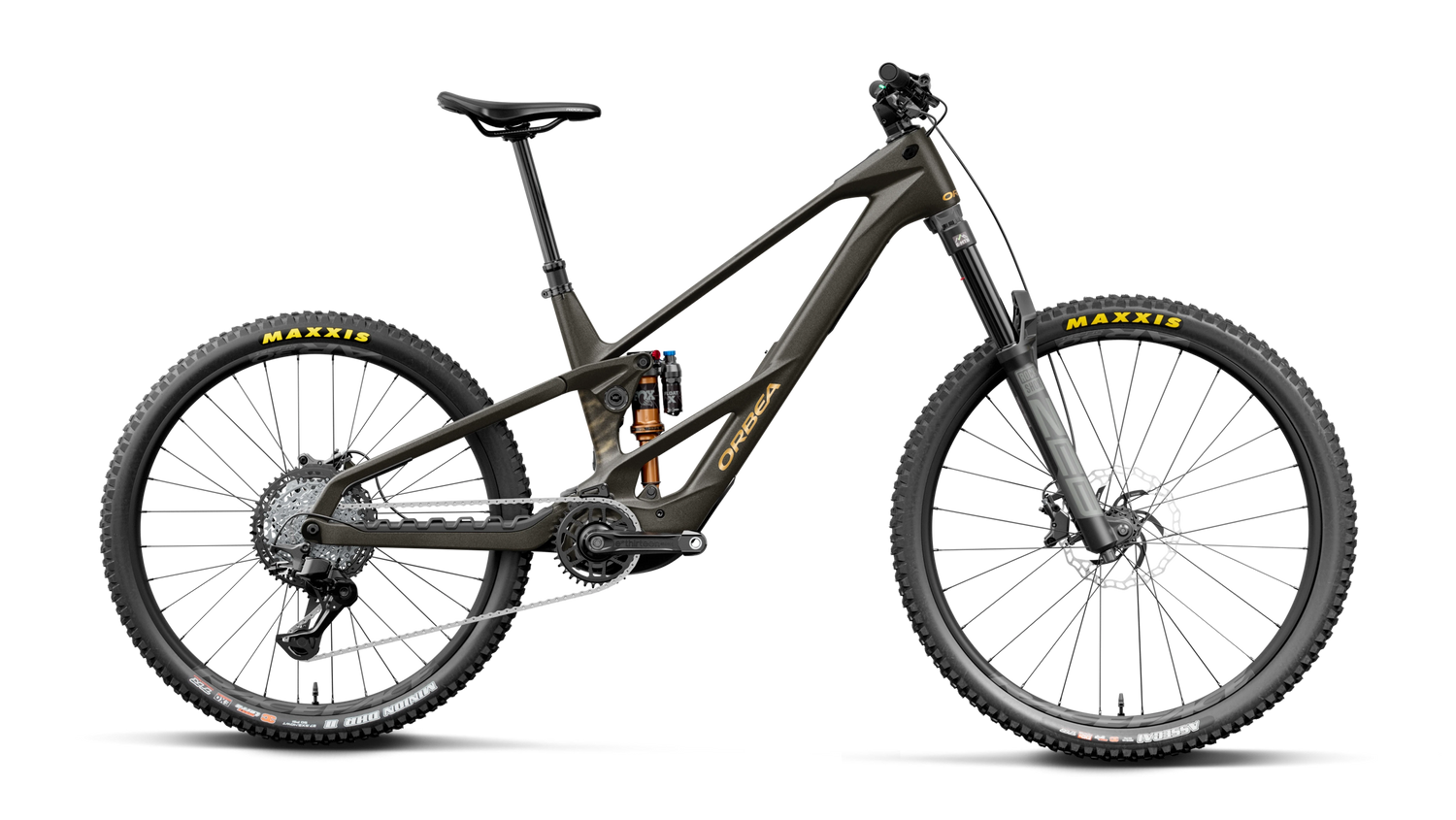

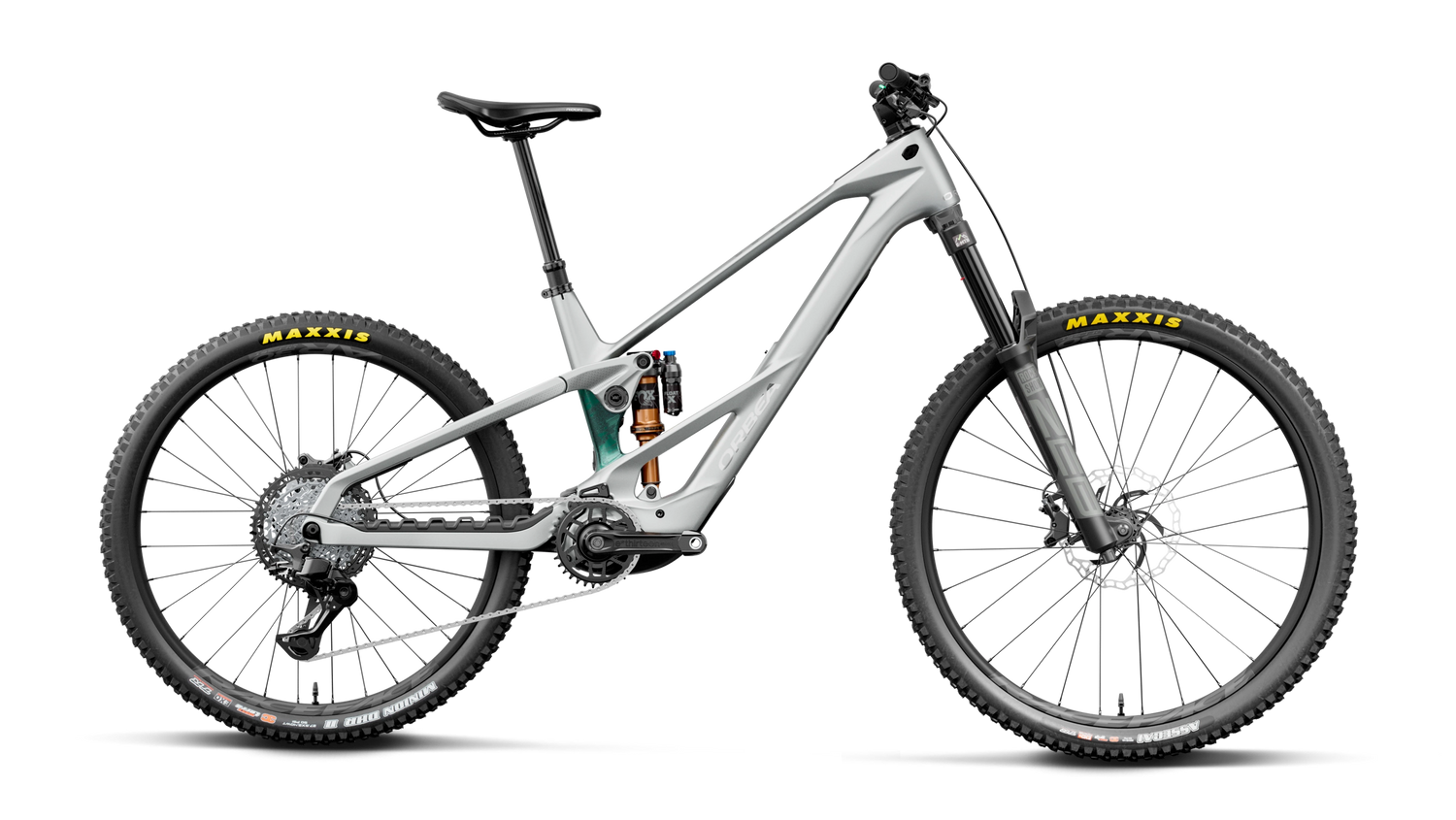

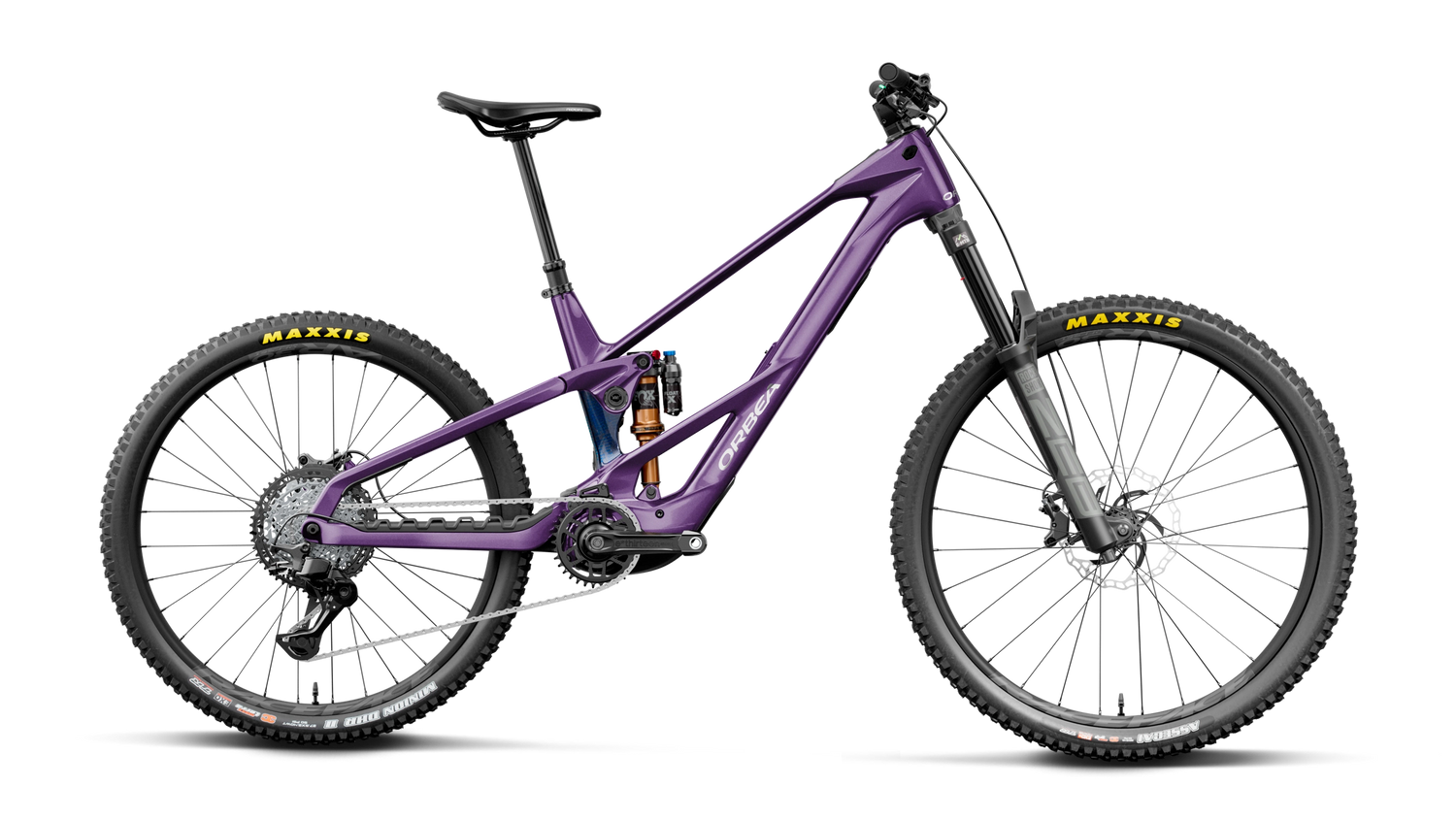

Orbea Wild LT M20 (2027)

The Orbea Wild LT M20 (2027) is a carbon-framed, long-travel electric mountain bike built for steep, technical trail riding and back-to-back descents.

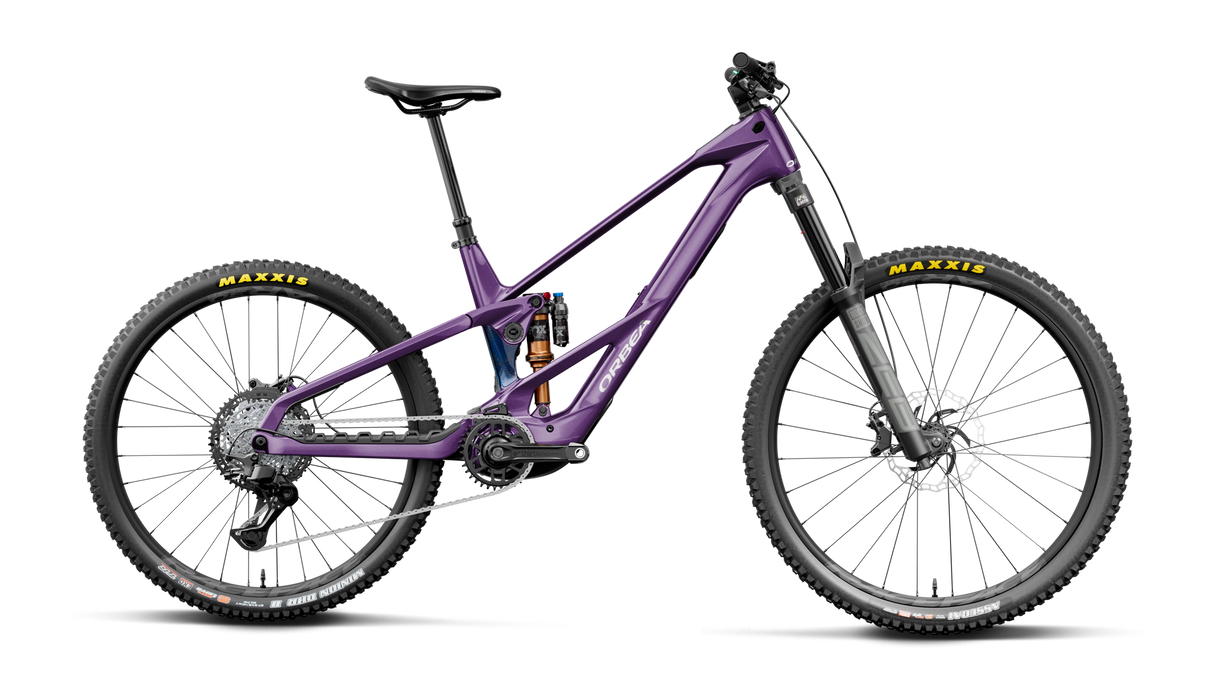

The premium carbon frame with 170mm of travel front and rear, an Avinox M2S RS motor and an 800Wh battery, and runs a full 29" or Mixed wheel setup (29" front, 27.5" rear).

Who the Wild LT M20 is for?

The Wild LT M20 suits riders who want a big-travel, all-day eMTB for enduro-style and technical terrain without paying for the electronic drivetrain and premium suspension of the RS-tier builds.

It carries the same Orbea Wild OMR carbon frame and Avinox power unit as the rest of the range, matched to a durable, easy-to-maintain Shimano Deore mechanical drivetrain.

If you value reliability and lower running costs over top-tier components, this is the build to look at.

Motor and battery

Power comes from the Avinox M2S RS motor; 130Nm of torque and 750W nominal output, rising to 150Nm and 1300W peak in Superboost. Paired with an 800Wh Avinox battery, giving the range for long backcountry loops and repeat climbs.

The Avinox DP100 top-tube display handles ride modes and data, and the included 4A Avinox charger keeps turnaround time between rides short.

Wild M20 Components

Suspension is a 170mm RockShox ZEB Base DebonAir+ fork (E-MTB specific, 15x110 Boost) matched to a Fox Float X Performance shock (Trunnion, 205x65mm, custom tune) delivering 170mm of rear travel.

Braking is handled by Shimano MT420 four-piston hydraulic disc brakes on 200mm Galfer Wave rotors front and rear. Four-piston callipers and large rotors give the consistent, fade-resistant stopping power a heavier e-bike needs on long, steep descents.

The Wild LT M20 runs a 12-speed Shimano Deore mechanical drivetrain with a 10–51T cassette for a wide climbing and traverse range. An e*thirteen Helix Core e*spec crankset with a 34T direct-mount chainring drives the system, and an Orbea eBike chainguide keeps the chain secure over rough terrain.

Mechanical shifting means no shifting battery to charge and simple trailside adjustment.

Race Face AR 30c tubeless-ready wheels are fitted with a Maxxis Assegai 2.50" (3C MaxxGrip, EXO+, folding) up front for cornering and braking grip, and a Maxxis Minion 2.40" (3C MaxxTerra, DD casing, folding) at the rear for faster rolling and added puncture protection under power. The tubeless-ready setup lets you run lower pressures for grip and reduce flats.

Finishing kit is Orbea's own OC Mountain Control range: an 800mm-wide MC30 handlebar (20mm rise), a 0º MC20 stem, and an MC22 dropper post with a Shimano SL-MT500 remote. A Fizik Aidon 208x145mm saddle and an OC computer mount (Garmin/Sigma compatible) complete the build.
