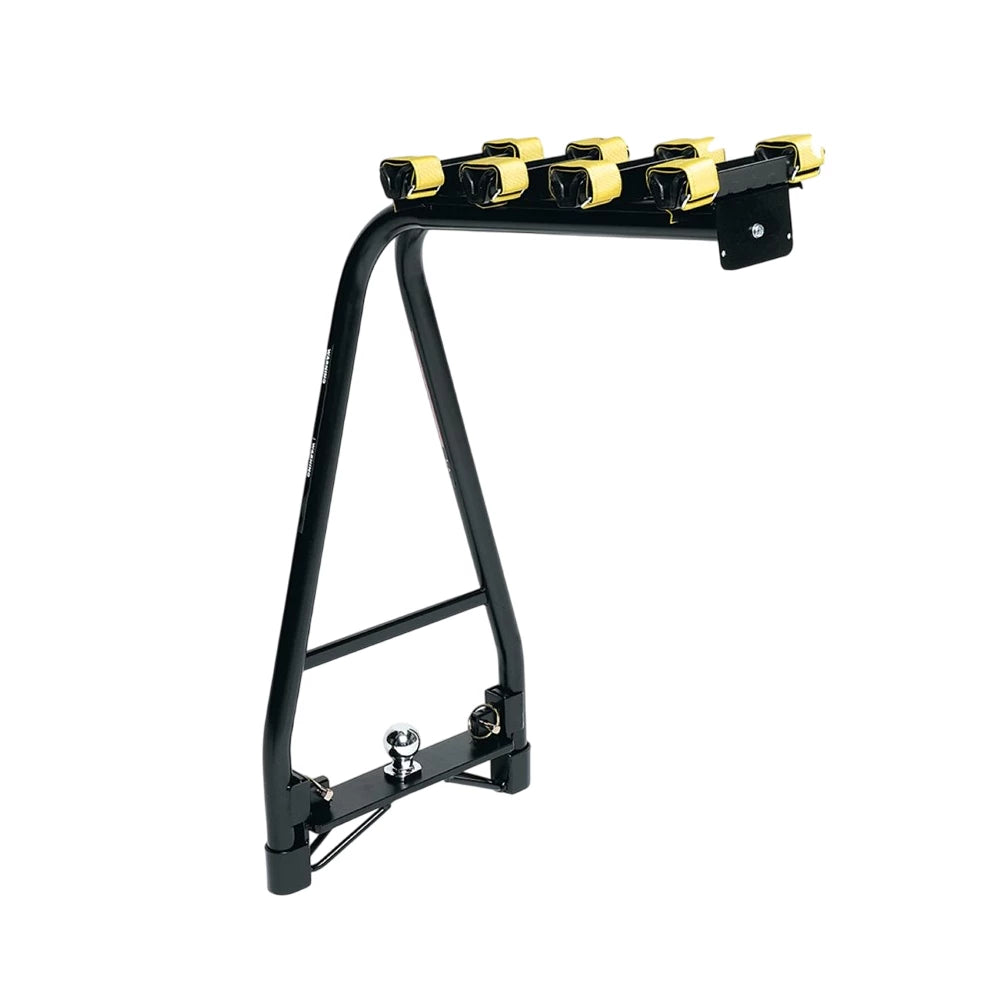

Pacific A-Frame Car Rack (4 Bike)

The Pacific A-Frame Tow Ball Carrier is a practical bike rack solution for families, cycling groups, and weekend adventurers.

Designed to fit directly onto your vehicle’s tow ball, it allows you to transport up to four bikes securely without the need for complex installations or removing the tow ball.

This carrier offers two base options to accommodate different vehicle types:

• The Standard Straight Base suits most vehicles with a standard tow bar setup.

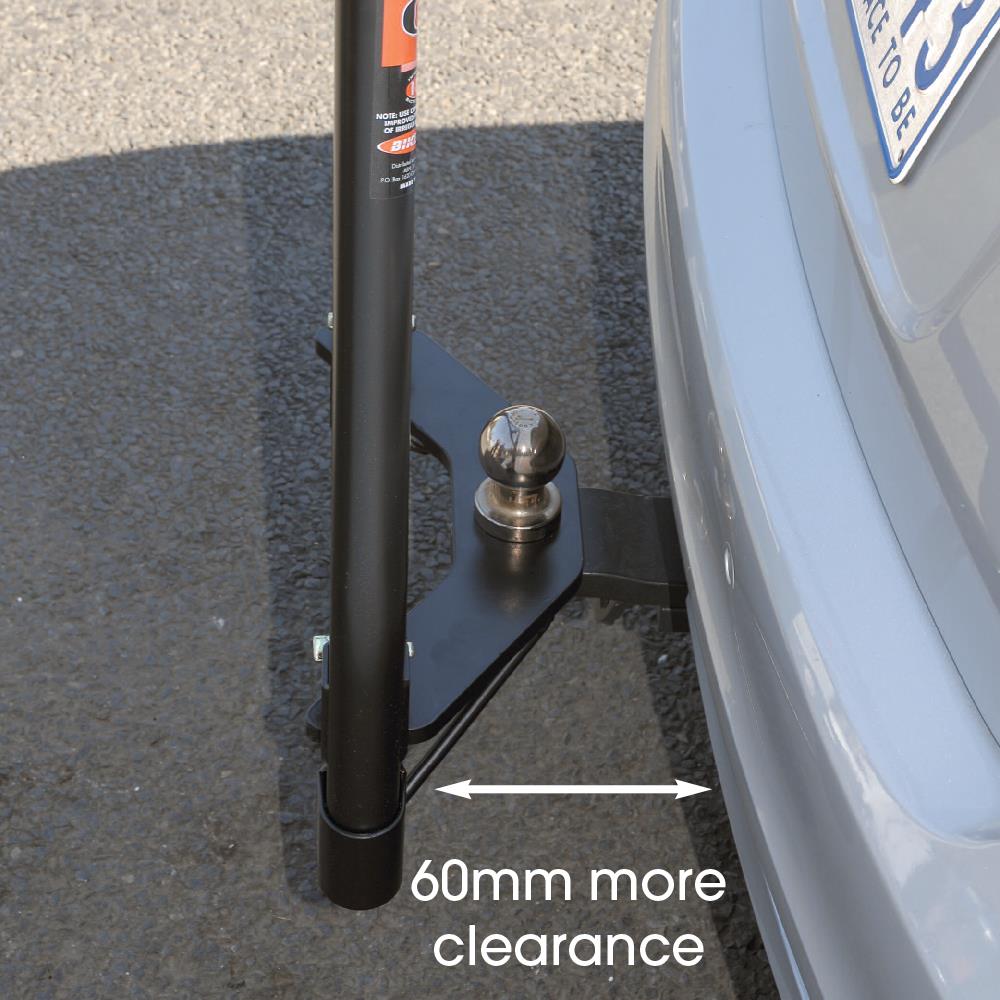

• The optional Boomerang Base offers an extra 60mm of clearance. Ideal for vehicles with rear-mounted spare tyres, low-profile tow setups, or simply when you need a bit more room between the rack and the back of the car.

Up to 4 Bikes

Perfect for family rides or group adventures. The strong, welded frame holds up to four bikes securely with minimal movement during transit.

Quick and Easy Setup

Installs directly onto a 22mm or 7/8" threaded tow ball—no need to remove the ball or install extra hardware. Great for riders who want hassle-free loading and unloading.

Compact Storage

Dismantles easily into separate parts for storage in your garage or boot when not in use.

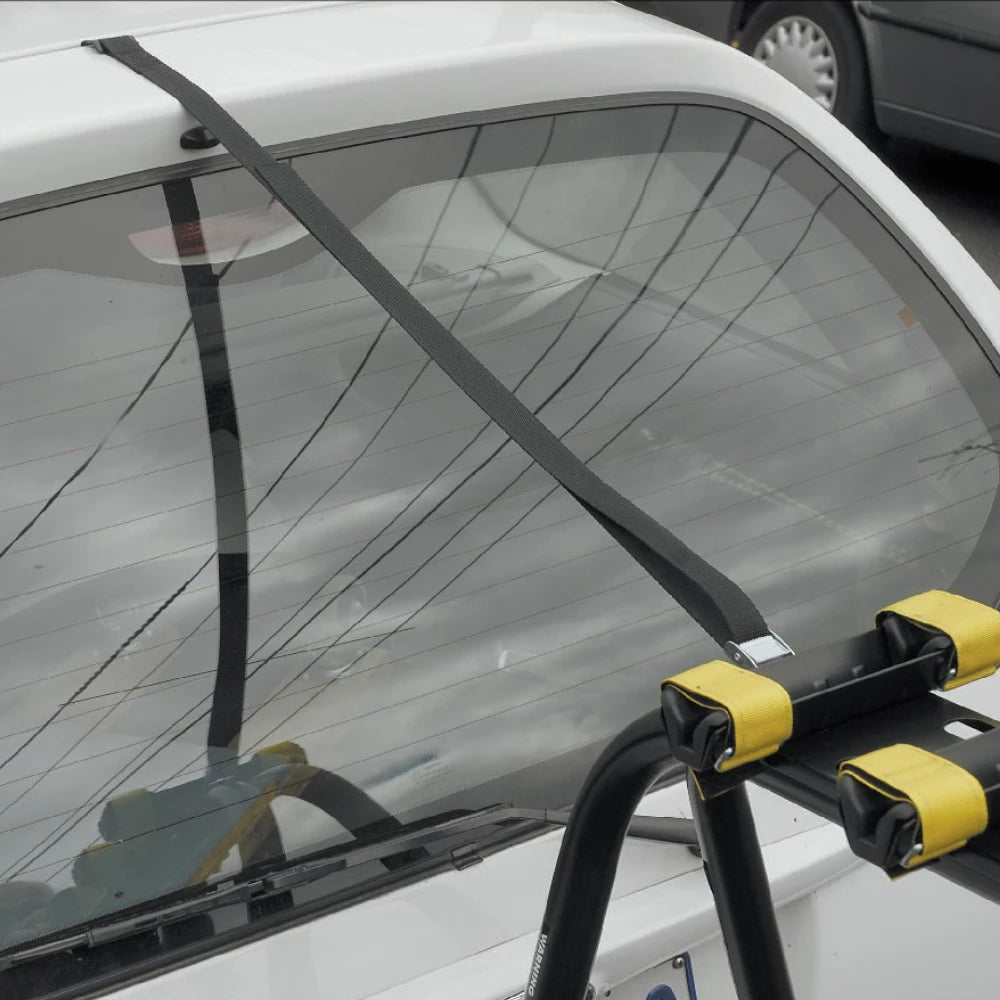

Stability Strap Included

An included strap helps stabilise bikes while driving, reducing wobble and increasing safety on longer trips.

Technical Specifications:

• Capacity: 4 standard bicycles
• Mounting: Attaches to Australian Standards-approved tow bars (750kg capacity)
• Tow Ball Fitment: 22mm or 7/8" threaded tow ball
• Material: Powder-coated steel frame
• Storage: Breaks down for compact storage
• Accessories: Supplied with a stability strap

Important Installation Notes:

• This carrier must be fitted to a tow bar located at the rear of a motor vehicle only. Not a caravan.

• Not suitable for use with towing trailers or modified rear devices.
• After loading your bikes, always check that your number plate is clearly visible from behind. If not, use the pre-drilled holes on the rack to reposition your plate.
• Legal requirements mandate that number plates must be visible and illuminated at night.
• Ensure all bolts are tightened and bikes are securely strapped before travel.
