Pro Series Universal 6511 Fork Mount Car Rack

Secure, versatile and built to last. The Pro Series Universal Fork Mount Car Rack is the ideal solution for transporting your bike safely, whether you’re heading to the trails or simply commuting around town.

This product is designed to be securely bolted down to a surface, and the adapters provided are interchangeable so it can be used with all axle types.

Universal Fit

Compatible with these front hubs:

• 9mm quick-release
• Thru-axles including 12×100 mm, 15×100 mm, and 15×110 mm

So you can mount everything from standard road bikes to modern mountain bikes.

Secure, Versatile Mounting

This mount installs securely in ute trays or other flat surfaces, designed to be bolted down. Great for customers who want a flexible storage or transport solution that can be fixed to a range of surfaces, such as: (1) the tray of a ute, (2) inside a van, (3) inside a trailer, (4) a garage wall or workbench.

Robust Construction

Built to handle the stresses of transport and regular use, providing peace of mind that your bicycle is held firmly and safely during travel.

How to install:

1. Bolt or screw down* the mount securely to your surface (this can be done after step 5 if more convenient).
2. Select the adapter suited to your wheel axle type
3. Position the adapter ring with the o-ring facing inward
4. Using the heel of your hand, push the adapter inside applying pressure equally around the circle to ensure the adapter goes in straight. The o-ring will hold the adapter in place with pressure. Tip: Hold both hands on each end of the fork mount and squeeze together.

5. Repeat for second adapter ring.
6. Remove the bike's front wheel
7. Place the fork dropouts onto the mount
8. Insert the skewer or axle until the fork is securely clamped
9. Secure the rear wheel with a strap or tie-down.

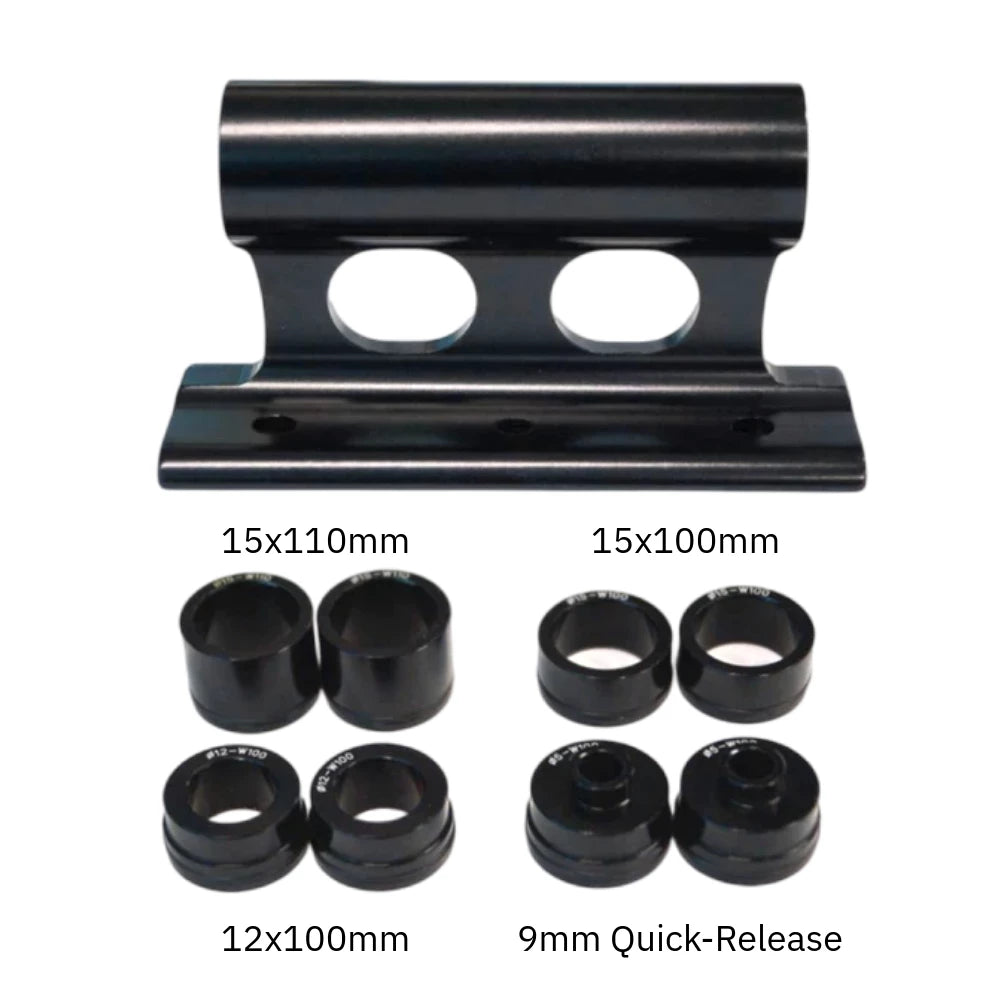

What's included:

• Fork mount
• 4x Adapters:
  - 9mm Q/R Skewer
  - 15x100mm thru-axle
  - 15x110mm thru-axle
  - 12x100mm thru-axle

*bolt/screw fittings not included.
