Rocky Mountain | SKU:
770416414905
52% off
52% off
52% off
52% off

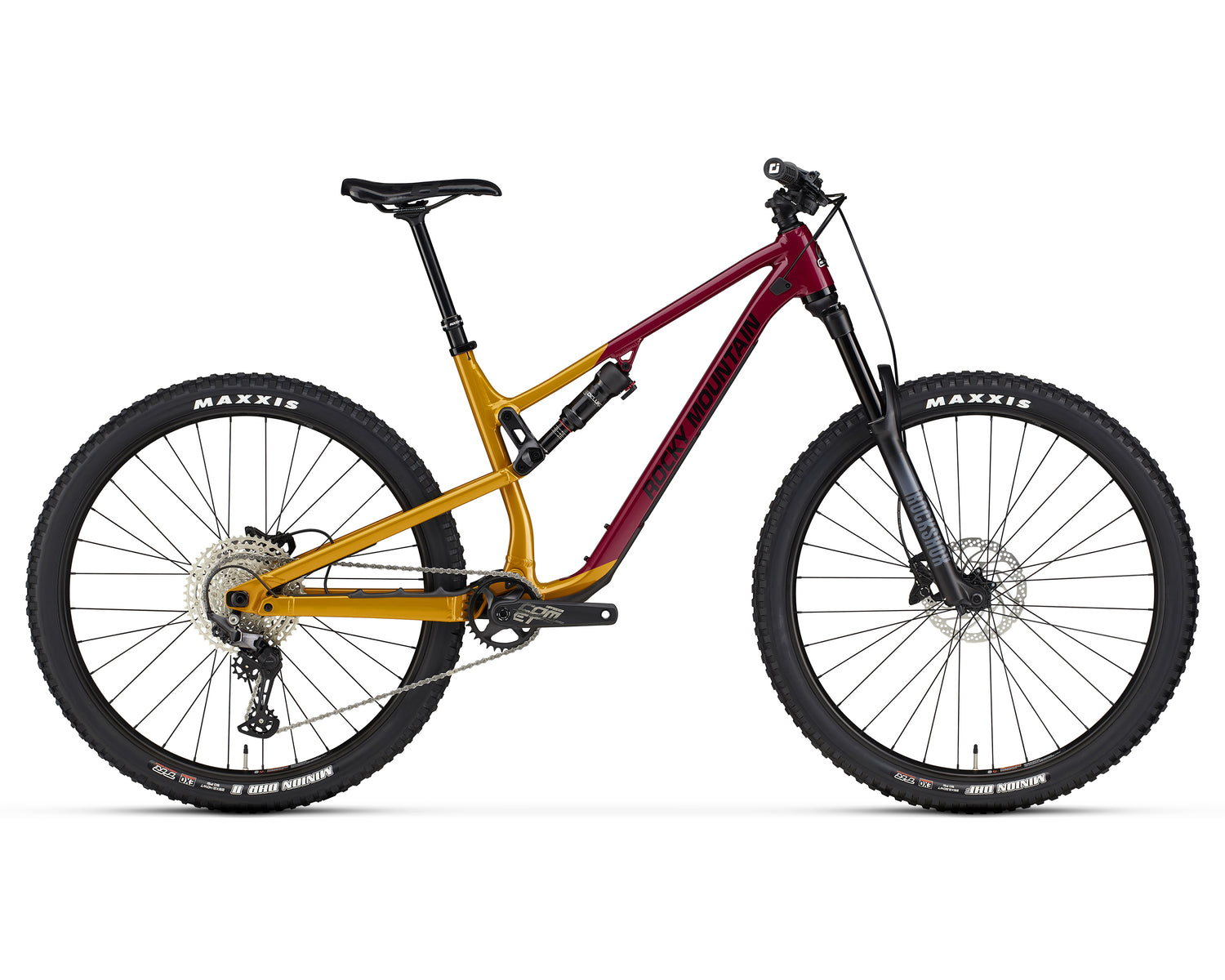

Rocky Mountain Instinct A30 (2022)
$1,99900
$4,19900
Unit price
/
Unavailable
Rocky Mountain Instinct A30 (2022) - Gold/Red / XL is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Sizing Chart
Sizing Chart
All size guides for Rocky Mountain Bikes can be found on this page. These rider measurements are intended as a guide only. Rider proportions, riding style, and personal preferences all factor in choosing the correct bike size. Visit us instore for a test-ride today.
Mountain Bikes
| Rider Height (cm) | |||||
| MODEL | XS | S | M | L | XL |
| Soul 10 | 152-165 | 160-170 | 167-180 | 177-188 | - |
| Instinct Alloy (27.5) | 142-158 | 155-168 | - | - | - |
| Instinct Alloy (29) | - | 157-170 | 167-178 | 175-188 | 185-198 |
| Instinct Carbon | 147-158 | 152-167 | 162-178 | 172-188 | 183-198 |
| Altitude Alloy (27.5) | - | 155-168 | 165-175 | - | - |
| Altitude Alloy (29) | - | - | 167-178 | 175-188 | 185-198 |
| Altitude Carbon | - | 152-167 | 162-178 | 172-188 | 183-198 |
| Element | 142-158 | 157-170 | 167-178 | 175-188 | 185-198 |
| Slayer | - | 155-168 | 165-178 | 175-188 | 185-198 |
POWERPLAY // Electric Mountain Bikes
| Rider Height (cm) | |||||
| MODEL | XS | S | M | L | XL |
| Instinct Powerplay | - | 157-170 | 167-178 | 175-188 | 185-198 |
| Altitude Powerplay | - | 157-170 | 167-178 | 175-188 | 185-198 |
Shipping Information
Shipping Information
Certain bike brands cannot be shipped and are only available for Click and Collect.
These include but are not limited to the following brands: Giant, GT, Liv, Momentum and Mongoose.
For all other brands, we can provide a shipping quote to your postcode. Please contact us by email at staff@ivanhoecycles.com.au, or text us on 0417 122 950.
Fully assembled when you Click & Collect in-store
Buy Now, Pay Later with ZIP
Free service adjustment within first 6 months
All size guides for Rocky Mountain Bikes can be found on this page. These rider measurements are intended as a guide only. Rider proportions, riding style, and personal preferences all factor in choosing the correct bike size. Visit us instore for a test-ride today.
Mountain Bikes
| Rider Height (cm) | |||||
| MODEL | XS | S | M | L | XL |
| Soul 10 | 152-165 | 160-170 | 167-180 | 177-188 | - |
| Instinct Alloy (27.5) | 142-158 | 155-168 | - | - | - |
| Instinct Alloy (29) | - | 157-170 | 167-178 | 175-188 | 185-198 |
| Instinct Carbon | 147-158 | 152-167 | 162-178 | 172-188 | 183-198 |
| Altitude Alloy (27.5) | - | 155-168 | 165-175 | - | - |
| Altitude Alloy (29) | - | - | 167-178 | 175-188 | 185-198 |
| Altitude Carbon | - | 152-167 | 162-178 | 172-188 | 183-198 |
| Element | 142-158 | 157-170 | 167-178 | 175-188 | 185-198 |
| Slayer | - | 155-168 | 165-178 | 175-188 | 185-198 |
POWERPLAY // Electric Mountain Bikes
| Rider Height (cm) | |||||
| MODEL | XS | S | M | L | XL |
| Instinct Powerplay | - | 157-170 | 167-178 | 175-188 | 185-198 |
| Altitude Powerplay | - | 157-170 | 167-178 | 175-188 | 185-198 |

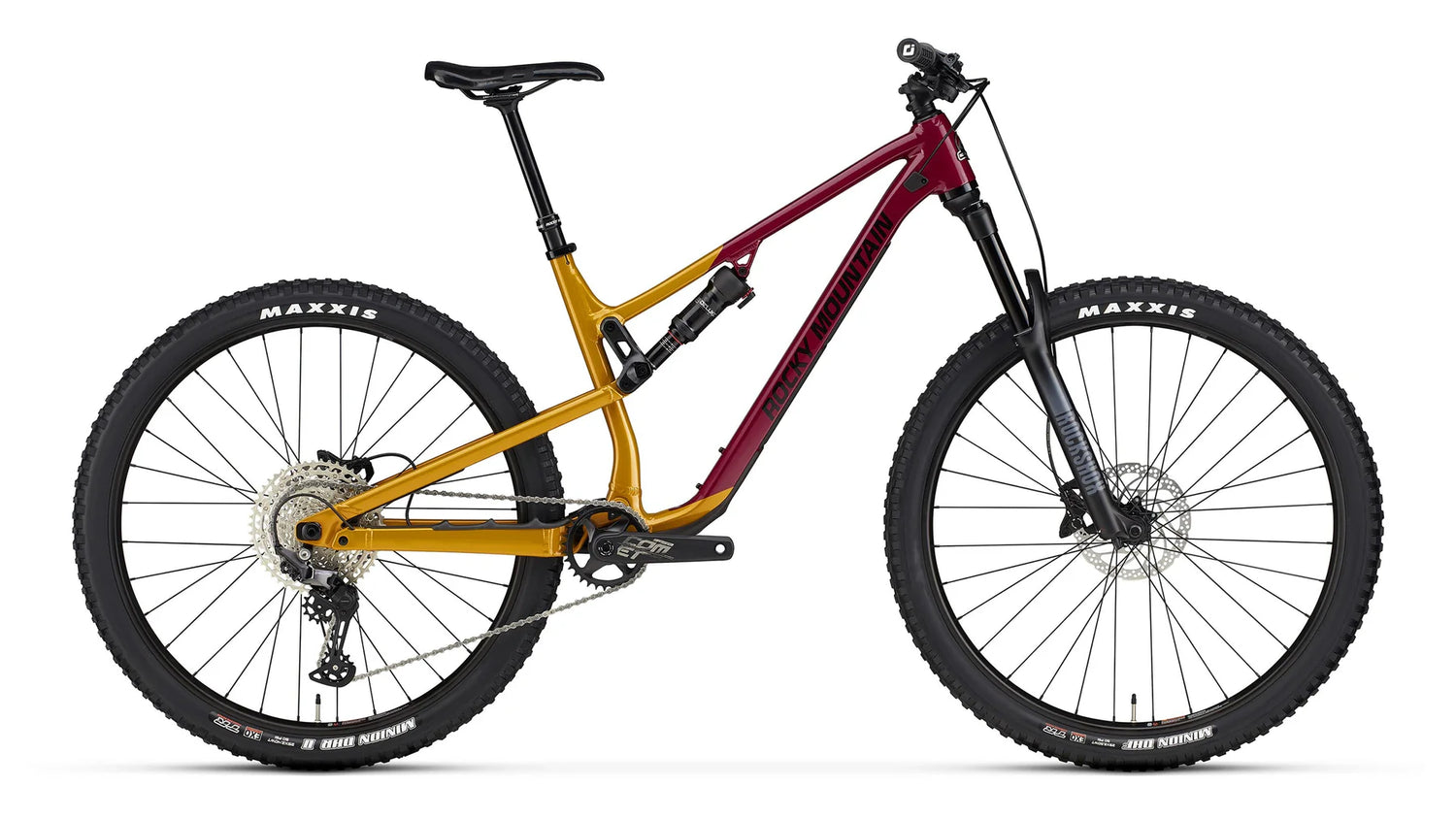

Rocky Mountain Instinct A30 (2022)
$1,99900
$4,19900
Unit price
/
Unavailable
If you’re looking for one bike that does it all, look no further than the Instinct.
We’ve designed a bike that’s capable of tackling technical trail riding but still allows you to push the pedals hard on the climbs.
We’ve updated the geometry, frame features, and suspension kinematics to make sure you feel confident on the up’s, down’s, and everything in between.
Trust your Instinct.
FEATURES
- Alloy Frame, RIDE-9 Adjustable Geometry
- Rockshox Suspension [F] 150mm [R] 140mm
- Shimano Deore 12 Speed
- 29" WTB Tubeless Ready Wheels
- Dropper Post
SPECIFICATIONS
| Frame | FORM™ Alloy. Full Sealed Cartridge Bearings. Press Fit BB. Internal Cable Routing. 2-Bolt ISCG05 Tabs. RIDE-9™ Adjustable Geometry. 2 Position Axle. 140mm Travel. FORM™ Alloy Rear Triangle |
| Fork | RockShox 35 Gold RL 150mm | 27.5 = 37mm Offset | 29 = 42mm Offset |
| Front Travel | 150 |
| Shock | RockShox Deluxe Select R | Sealed Bearing Eyelet | 25x8mm F Hardware | XS - SM = 190x45mm | MD - LG - XL = 210x52.5mm | Size-Specific tune in FAQ |
| Rear Travel | 140 |
| Headset | FSA Orbit NO.57E | Sealed 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race |
| Stem | Rocky Mountain 31.8 AM | 5° Rise | All Sizes = 40m |
| Handlebar | Rocky Mountain AM | 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp |
| Grips | ODI Elite Pro Lock On |
| Brakes | Shimano MT4120 4 Piston | Resin Pads | F: Shimano RT30 180mm | R: Shimano RT30 180mm |
| Shifters | Shimano Deore 12spd |
| Rear Derailleur | Shimano Deore 12spd |
| Cranks & Chainring | FSA Comet MegaExo HD | 32T | 24mm Spindle | Crankarm Length: XS = 165mm | SM - XL = 170mm |
| Bottom Bracket | FSA BB92 24mm |
| Cassette | Shimano Deore 10-51T 12spd |
| Chain | Shimano M6100 |
| Front Hub | Shimano MT410 | 15mm Boost |
| Rear Hub | Shimano MT410 Boost 148mm |
| Spokes | 2.0 Stainless |
| Rims | WTB ST i30 TCS 2.0 Tubeless | 32H | Tubeless Ready - Tape | Valves Incl |
| Tires | F: Maxxis Minion DHF 2.5 WT EXO Tubeless Ready | R: Maxxis Minion DHR II 2.4 WT EXO Tubeless Ready |
| Seatpost | Rocky Mountain Toonie Drop Composite 30.9mm | XS - SM = 125mm | MD = 150mm | LG - XL = 170mm |
| Saddle | WTB Volt 142 |
| Weight | 34.7 LBS | 15.77 KGS |
| Notes | We make every effort to ensure accuracy, but reserve the right to update specifications & prices without notification. |
-
Frame material
-
Frame
-
Fork
-
Shock
-
Handlebar
-
Grips
-
Headset
-
Stem
-
Seatpost
-
Saddle
-
Pedals
-
Shifters
-
Front Derailleur
-
Rear Derailleur
-
Brakes
-
Brake Levers
-
Cassette/Freewheel
-
Chain
-
Crankset
-
Bottom Bracket
-
Rims
-
Hubs
-
Spokes
-
Tyres
-
Notes
-
Weight
-
Speeds (rear)12 Speed
-
Age GroupAdults
-
GenderMens, Unisex
-
DisciplineMountain
-
SKUsGold/Red/S: 770416414783, Gold/Red/M: 770416414820, Gold/Red/L: 770416414868, Gold/Red/XL: 770416414905
