Rocky Mountain  |  SKU: 770416413106

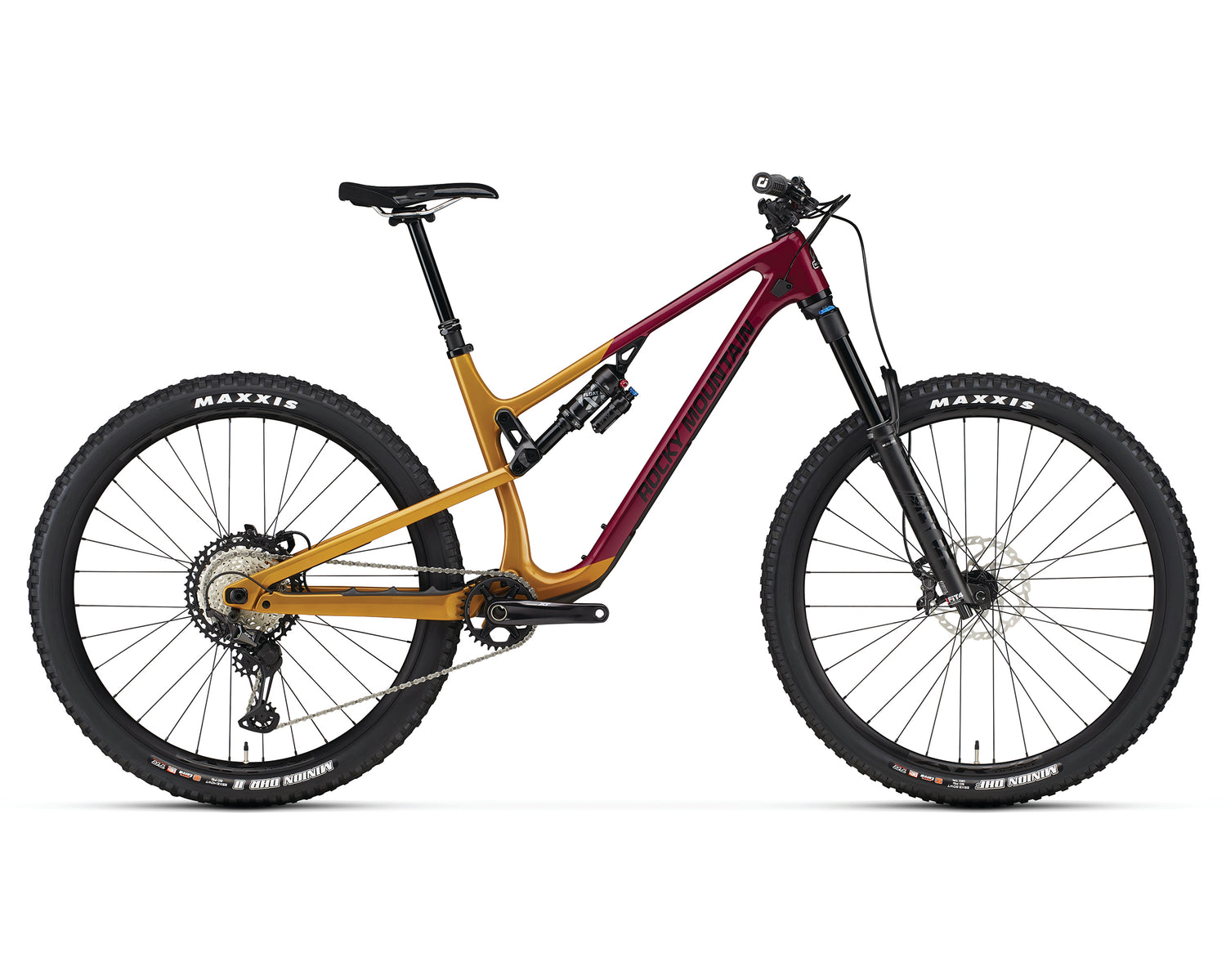

Rocky Mountain Instinct C70 Carbon (2022)

$5,49900 $11,89900
Colour: Gold/Red
Size

Special Order: This product will be ordered from our supplier upon purchase and available for collection within 7-14 business days. Read T&Cs here.
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
Fully assembled when you Click & Collect in-store
Buy Now, Pay Later with ZIP
Free service adjustment within first 6 months

Sizing Chart
All size guides for Rocky Mountain Bikes can be found on this page. These rider measurements are intended as a guide only. Rider proportions, riding style, and personal preferences all factor in choosing the correct bike size. Visit us instore for a test-ride today.

Mountain Bikes

  Rider Height (cm)
MODEL XS S M L XL
Soul 10 152-165 160-170 167-180 177-188 -
Instinct Alloy (27.5) 142-158 155-168 - - -
Instinct Alloy (29) - 157-170 167-178 175-188 185-198
Instinct Carbon 147-158 152-167 162-178 172-188 183-198
Altitude Alloy (27.5) - 155-168 165-175 - -
Altitude Alloy (29) - - 167-178 175-188 185-198
Altitude Carbon - 152-167 162-178 172-188 183-198
Element 142-158 157-170 167-178 175-188 185-198
Slayer - 155-168 165-178 175-188 185-198

POWERPLAY // Electric Mountain Bikes

  Rider Height (cm)
MODEL XS S M L XL
Instinct Powerplay - 157-170 167-178 175-188 185-198
Altitude Powerplay - 157-170 167-178 175-188 185-198

Bike Shipping

Delivery is available upon specific request for our special order bikes.

Bikes may only be shipped directly to a qualified bike mechanic or bike shop of your choosing, who must complete the assembly of the bike. We strictly cannot ship an unbuilt bike direct to consumer.

The buyer is responsible for all shipping and assembly costs, and is responsible for arranging assembly with their nominated bike store or mechanic.

To request a shipping quote, please submit a request and include the delivery postcode, business name of your nominated bike shop or bike mechanic, and the exact model & frame size of the bike.

Please note: All bikes sold by Ivanhoe Cycles must be assembled by a qualified mechanic or bike shop. Any assembly undertaken without professional assistance is at the customer's risk and any injury as a result of the build without professional assistance will not be covered by the warranty.

Assembly

Every bike purchased or collected in-store at Ivanhoe Cycles is fully assembled by our qualified mechanics free of charge.

Bikes ordered online for shipping* will require partial assembly, including but not limited to: installing handlebar, seatpost, front wheel; adjusting gears and brakes; tuning suspension; installing accessories or bar tape.

Disclaimer: Ivanhoe Cycles strongly advises having your assembly completed by an experienced bicycle mechanic. Any assembly undertaken without professional assistance is at the customer's risk and any injury as a result of the build without professional assistance will not be covered by the warranty.

*Shipping is restricted to certain brands due to assembly requirements.

Returns / Cancellations

If your special ordered item arrives faulty, damaged, or is differently than described, you are entitled to a full refund or replacement.

Cancellations and returns are not accepted on special orders if the consumer:
- changed their mind
- found the item cheaper elsewhere
- decided they didn't like the purchase or had no use for it
- ordered the wrong item

Contact us with any product enquiries you have prior to purchasing.

For more information, please read our Special Order terms and conditions.

If you’re looking for one bike that does it all, look no further than the Instinct.

We’ve designed a bike that’s capable of tackling technical trail riding but still allows you to push the pedals hard on the climbs.

We’ve updated the geometry, frame features, and suspension kinematics to make sure you feel confident on the up’s, down’s, and everything in between.

The Instinct hits the closest we’ve ever come to trail perfection thanks to a perfectly balanced technical setup.

RIDE-9 adjustment system and 2-position rear axle helps tune your Instinct to almost any terrain and riding style.

Size specific frame tuning ensures riders of every size gain every Instinct benefit.

From our suspension setup to geometry, the Instinct balances every technical advantage we offer in perfect harmony.



SPECIFICATIONS

Frame FORM™ Alloy. Full Sealed Cartridge Bearings. Press Fit BB. Internal Cable Routing. 2-Bolt ISCG05 Tabs. RIDE-9™ Adjustable Geometry. 2 Position Axle. 140mm Travel. FORM™ Alloy Rear Triangle
Fork Fox 36 Float EVOL GRIP Performance Series 150mm // 27.5 = 37mm Offset // 29 = 44mm Offset
Shock Fox Float X Performance // Sealed Bearing Eyelet // 25x8mm F Hardware // XS - SM = 190x45mm // MD - LG - XL = 210x52.5mm
Headset FSA Orbit NO.57E // Sealed 36°x45° Bearings // 30.2mm x 41mm x 7.1mm Upper // 40mm x 51.8mm x 7.5mm Lower // 1.5” Crown Race
Stem Rocky Mountain 35 AM // 5° Rise // All Sizes = 40mm
Handlebar Rocky Mountain AM // 780mm Width // 25mm Rise // 9° Backsweep // 5° Upsweep // 35 Clamp
Grips ODI Elite Pro Lock On
Brakes Shimano MT6120 4 Piston // Metal Pads // [F] Shimano RT64 180mm // [R] Shimano RT64 180mm
Shifters Shimano SLX
Rear Derailleur Shimano XT
Crankset Race Face Ride Cinch // 32T // 24mm Spindle // Crankarm Length: XS = 165mm // SM - XL = 170mm
Bottom Bracket FSA BB92 24mm
Cassette Shimano Deore 10-51T 12 speed
Chain Shimano M6100
Hubs [F] Rocky Mountain Sealed Boost 15mm // [R] Shimano SLX Boost 148mm
Spokes DT Swiss Competition 2.0/1.8/2.0
Rims WTB ST Light i30 TCS 2.0 Tubeless // 32H // Tubeless Ready - Tape // Valves Incl
Tyres [F] Maxxis Minion DHF 2.5 WT 3C MaxxTerra EXO+ Tubeless Ready // [R] Maxxis Minion DHR II 2.4 WT 3C MaxxTerra EXO+ Tubeless Ready
Seatpost Rocky Mountain Toonie Drop Alloy 30.9mm // XS - SM = 125mm // MD = 150mm // LG - XL = 170mm
Saddle WTB Volt Race 142
Notes We reserve the right to make changes to the product and component information appearing on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials.

Rocky Mountain Instinct C70 Carbon (2022)

$5,49900 $11,89900

Colour

Size

  • S (29")
  • M (29")
  • L (29")
  • XL (29")

Motor

N/A

Controller

N/A

Display

N/A

Battery

N/A

Charger

N/A

Sizes

N/A

Frame material

Carbon

Frame

FORM™ Alloy. Full Sealed Cartridge Bearings. Press Fit BB. Internal Cable Routing. 2-Bolt ISCG05 Tabs. RIDE-9™ Adjustable Geometry. 2 Position Axle. 140mm Travel. FORM™ Alloy Rear Triangle

Fork

Fox 36 Float EVOL GRIP Performance Series 150mm // 27.5 = 37mm Offset // 29 = 44mm Offset

Handlebar

Rocky Mountain AM // 780mm Width // 25mm Rise // 9° Backsweep // 5° Upsweep // 35 Clamp

Grips

ODI Elite Pro Lock On

Bar Tape

N/A

Headset

FSA Orbit NO.57E // Sealed 36°x45° Bearings // 30.2mm x 41mm x 7.1mm Upper // 40mm x 51.8mm x 7.5mm Lower // 1.5” Crown Race

Stem

Rocky Mountain 35 AM // 5° Rise // All Sizes = 40mm

Seatpost

Rocky Mountain Toonie Drop Alloy 30.9mm // XS - SM = 125mm // MD = 150mm // LG - XL = 170mm

Saddle

WTB Volt Race 142

Pedals

N/A

Shifters

Shimano SLX

Front Derailleur

N/A

Rear Derailleur

Shimano XT

Brakes

Shimano MT6120 4 Piston // Metal Pads // [F] Shimano RT64 180mm // [R] Shimano RT64 180mm

Brake Levers

N/A

Cassette/Freewheel

Shimano Deore 10-51T 12 speed

Chain

Shimano M6100

Crankset

Race Face Ride Cinch // 32T // 24mm Spindle // Crankarm Length: XS = 165mm // SM - XL = 170mm

Bottom Bracket

FSA BB92 24mm

Rims

WTB ST Light i30 TCS 2.0 Tubeless // 32H // Tubeless Ready - Tape // Valves Incl

Hubs

[F] Rocky Mountain Sealed Boost 15mm // [R] Shimano SLX Boost 148mm

Spokes

DT Swiss Competition 2.0/1.8/2.0

Tyres

[F] Maxxis Minion DHF 2.5 WT 3C MaxxTerra EXO+ Tubeless Ready // [R] Maxxis Minion DHR II 2.4 WT 3C MaxxTerra EXO+ Tubeless Ready

Wheel Size

N/A

Extras

N/A
