Rocky Mountain Instinct Powerplay A70 Alloy (2023)
Rocky Mountain Instinct Powerplay A70 Alloy (2023) - Blue/Black / XL is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping Information
Shipping Information
Certain bike brands cannot be shipped and are only available for Click and Collect.
These include but are not limited to the following brands: Giant, GT, Liv, Momentum and Mongoose.
For all other brands, we can provide a shipping quote to your postcode. Please contact us by email at staff@ivanhoecycles.com.au, or text us on 0417 122 950.
Mountain Bikes
Rider Height (cm) | |||||
MODEL | XS | S | M | L | XL |
Soul 10 | 152-165 | 160-170 | 167-180 | 177-188 | - |
Instinct Alloy (27.5) | 142-158 | 155-168 | - | - | - |
Instinct Alloy (29) | - | 157-170 | 167-178 | 175-188 | 185-198 |
Instinct Carbon | 147-158 | 152-167 | 162-178 | 172-188 | 183-198 |
Altitude Alloy (27.5) | - | 155-168 | 165-175 | - | - |
Altitude Alloy (29) | - | - | 167-178 | 175-188 | 185-198 |
Altitude Carbon | - | 152-167 | 162-178 | 172-188 | 183-198 |
Element | 142-158 | 157-170 | 167-178 | 175-188 | 185-198 |
Slayer | - | 155-168 | 165-178 | 175-188 | 185-198 |
POWERPLAY // Electric Mountain Bikes
Rider Height (cm) | |||||
MODEL | XS | S | M | L | XL |
Instinct Powerplay | - | 157-170 | 167-178 | 175-188 | 185-198 |
Altitude Powerplay | - | 157-170 | 167-178 | 175-188 | 185-198 |

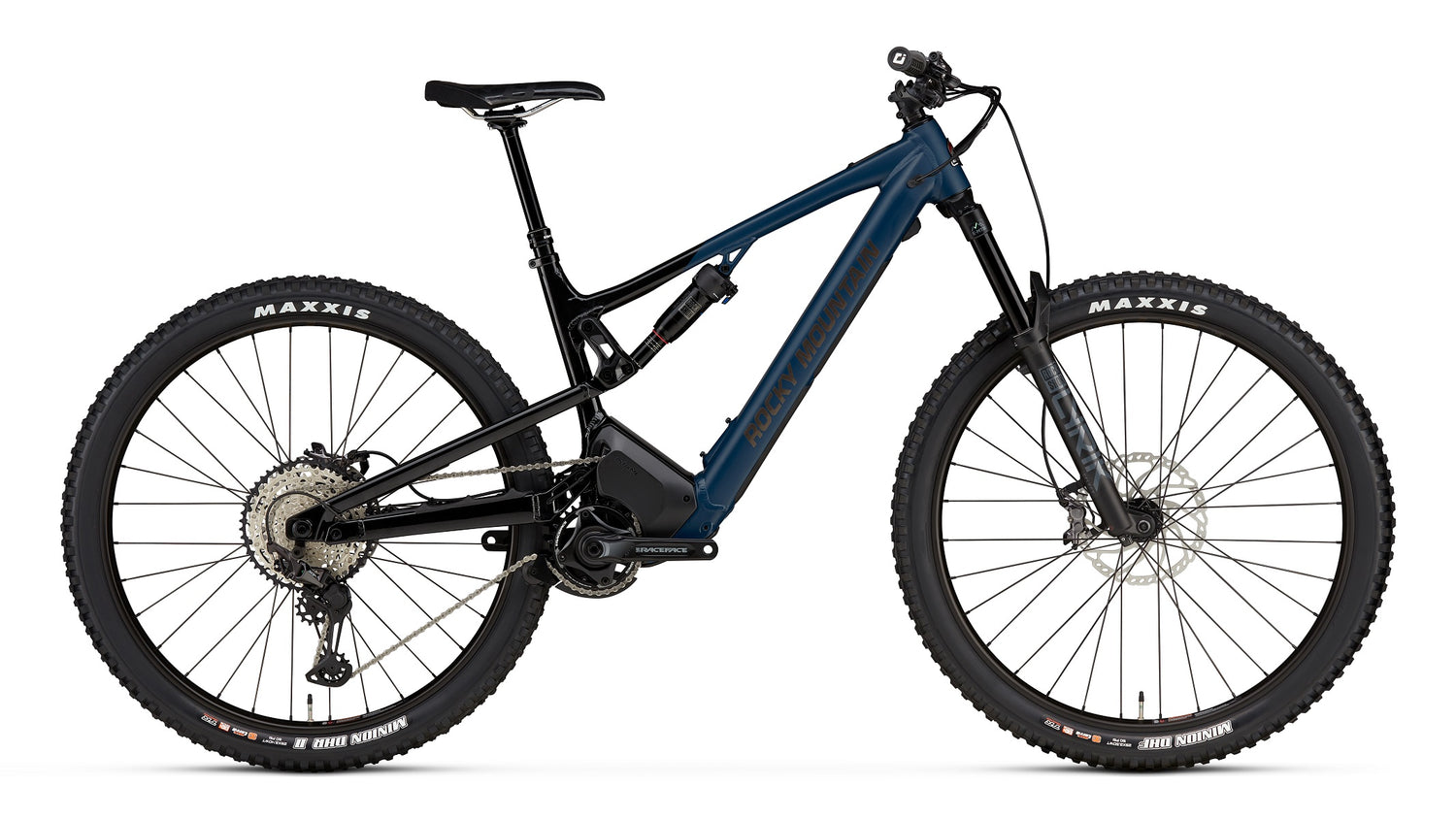

Rocky Mountain Instinct Powerplay A70 (2023)
If you’re looking to venture into the alpine or explore a new zone, the Instinct Powerplay will inspire you to go farther and seek out new adventures.
The Instinct Powerplay is built for exploration. Versatile geometry, dialled kinematics, and powered by our Dyname 4.0 drive system, you’ll be riding bigger days than ever before.
- Torque: 108Nm
- Battery Size: 720Wh
- Motor: Dyname 4.0
- Suspension Travel: [F] 150mm [R] 140mm
Key Features:
- RockShox Lyrik RC, 150mm travel
- Shimano XT Trail 4-piston hydraulic disc brakes
- DT Swiss Hybrid (E-MTB) rear hub
- Shimano SLX cassette, 12-speed
- Shimano XT rear derailleur
- Shimano XT shifter
SPECIFICATIONS
Frame | FORM™ Alloy // Integrated Display // Mid-High Pivot Smoothlink Suspension System // Press Fit BB // 2-Bolt ISCG05 Tabs // RIDE-9™ Adjustable Geometry + Suspension Rate // 140mm Travel // FORM™ Alloy Rear Triangle |
Fork | RockShox Lyrik RC // 42mm Offset // 150mm travel |
Shock | RockShox Deluxe Select R // Sealed Bearing Eyelet // 25x8mm F Hardware // All Sizes = 210x55mm // 140mm rear wheel travel |
Headset | FSA Orbit NO.57E // Sealed 36°x45° Bearings // 30.2mm x 41mm x 7.1mm Upper // 40mm x 51.8mm x 7.5mm Lower // 1.5” Crown Race |
Stem | Rocky Mountain 35 AM // 5° Rise // All Sizes = 40mm |
Handlebar | Rocky Mountain AM // 780mm Width // 25mm Rise // 9° Backsweep // 5° Upsweep // 35mm Clamp |
Grips | ODI Elite Pro Lock On |
Brakes | Shimano XT Trail 4 Piston // Metal Pads // Fr:Shimano RT66 203mm // Rr:Shimano RT66 203mm |
Shifters | Shimano XT, 12 speed |
Rear Derailleur | Shimano XT, 12 speed |
Crankset | Race Face Aeffect Cinch 34T // 24mm Spindle // Crank Length: SM - MD = 165mm // LG - XL = 170mm |
Bottom Bracket | Shimano SM-BBMT500 |
Cassette | Shimano SLX 10-51T |
Chain | Shimano M7100 |
Front Hub | Rocky Mountain Sealed Boost 15mm |
Rear Hub | DT Swiss Hybrid 370 Boost 148mm // 18T Star-Ratchet |
Spokes | Fr: DT Swiss Champion 2.0 // Rr: DT Swiss Alpine 2.3/2.0 |
Rims | WTB ST i30 TCS 2.0 Tubeless, 32H // Tubeless Ready - Tape / Valves Incl |
Tyres | Fr: Maxxis Minion DHF 2.5 WT 3C MaxxTerra EXO+ Tubeless Ready // Rr: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra EXO+ Tubeless Ready |
Seatpost | Race Face Aeffect R Dropper 30.9mm // Shimano MT500 Remote // SM = 125mm // MD = 150mm // LG - XL = 175mm |
Saddle | WTB Volt Race 142 |
Drive System | Dyname 4.0 Mountain Bike Drive // 250w Nominal Power // 880w Peak Power // 108Nm // Rocky Mountain Micro Remote // Low RPM - High Efficiency Classe 1 eMTB System // Designed in Canada |
Battery | 720 Wh Removable Integrated Li-Ion |
Remote | Rocky Mountain Micro Remote |
Display | Rocky Mountain Jumbotron // Drive System Customization // Battery & Assist Level // Trip // Speed // Cadence // Top Tube Integration |
Charger | Rocky Mountain Powerplay FAST Charger // 4A // 48V // Higo Deep Socket Connector // Overtimepack Compatible (Dyname 4) |
Rocky Mountain Bicycles Warranty
Your Rocky Mountain bike is warranted against defects in materials and manufacturing as per the following table:
Category |
Term |
Notes |
Frame members |
5 Years |
Front Triangle + rear triangle |
Frame members |
3 Years |
Maiden Front Triangle + rear triangle |
Hardware |
1 Year |
Pivots, Axles, etc… |
Paint & decals |
1 Year |
|
Rocky Mountain branded Carbon rim |
2 years |
2 year no fault replacement warranty for free, after 2 years it gets replaced for a fraction of the MSRP*.
*The warranty does not cover labour costs & shipping cost, |
Electronics |
3 Years |
Drive, iWoc, Sensors, Charger,
If Powerplay system is modified in any way, it can affect range and performance, and immediately voids the warranty. |
Drive wear items |
1 Year |
Pulleys, Pinions, Transfer Chain, Bearings |
Battery |
24 Months |
When the battery level falls below 5% charge the Powerplay Drive will progressively reduce power output to maximise range. Range varies depending on several factors, such as the assist level, ambient temperature, acceleration, wind resistance, poor maintenance, battery age, hilly and rough terrain, and or rider weight. If stored for 3+ months, charge battery every 3 months. Failure to may cause damage. *For more detailed battery warranty information, please reference the owner’s manual. |
Components |
As per original manufacturer warranty |
- |
All warranty and after-sale service must be handled by the Authorised Rocky Mountain Dealer who sold the complete bicycle or frame. We cover your Rocky Mountain frame from the original date of purchase of your new bicycle against defects in material and workmanship, according to the frame material and the type of use made of the bicycle.
Rocky Mountain’s limited warranty also covers bicycles previously used for personal and commercial activity such as rental (including at bike parks), courier services, police, security, etc., against defects in material and workmanship. The limited warranty applies for the remainder of the warranty period from the original date of purchase from Rocky Mountain. In such cases, hardware, bearings, pivots, and bushings are excluded from our warranty policy. The original sales receipt, bicycle registration confirmation or other proof of purchase is required for all claims.
For 2021 bikes and newer models, the original limited warranty is transferable to second-hand owners. For the limited warranty to apply, the registration of the bike must be done online both by the original owner and the second-hand owner. The original invoice will not be required for the second-hand owner.
Please register the bike to transfer the warranty: https://bikes.com/pages/bike-registration
FRAME MATERIAL / TYPE OF USE
- Carbon Fibre: 5 years - Limited*
- Aluminium – front & fully suspended: 5 years - Limited*
- *Please refer to limitations stated below
OTHER WARRANTY COVERAGE AGAINST DEFECTS IN WORKMANSHIP AND MATERIALS
- Coating – paint and decals: 1 year
- Frame hardware, suspension, pivots and bushings*: 1 year
- DH & Freeride frame hardware, pivots and bushings: 6 months
*Links are part of the frame.
NOTE
- Installation of components, parts, or accessories not originally intended for or compatible with the bicycle (or frame) as sold.
- Purchasing a Rocky Mountain Bicycle from an unauthorised dealer.
- Purchasing a Rocky Mountain Bicycle or frame off third party internet sites (as eBay) no matter what the listing says.
- Paint fading caused by the effects of ultraviolet light (UV) or outdoor exposure is not covered by this limited warranty
- Rocky Mountain does not warrant against any damage caused to your bicycle during installation or removal of any protective film products
- Scratches and/or chips in the paint caused by dirt, rocks, road debris, roof rack transport etc... is not covered by this limited warranty
- The use of components, parts, or accessories not compatible with the bicycle (or
- frame)
- Damage on Pressfit bottom bracket caused by improper service or materials/parts is not covered by the Rocky Mountain Limited Warranty.
DETAIL OF WHAT IS NOT COVERED UNDER WARRANTY
- Normal wear and tear on tires, tubes, brakes, gear cables, brake pads,bearings,etc., are not covered. Your authorised Rocky Mountain dealer will inform you of what these normal maintenance items consist of.
- Consequential damage or any damage caused by accident, misuse or abuse.
- Improper assembly and/or lack of proper maintenance, sandblasting, sanding, grinding, wire brushing, filing, welding, brazing, drilled holes, anodising, repainting, or chrome plating is not covered under your warranty and may void the warranty of the component manufacturers.
- You take great personal risk and shall forfeit the warranty, as outlined in the Warranty Table, when you ride in extreme terrain as depicted in mountain bike videos., e.g, ride «trials» style courses, ride ramps, do stunts, ride on BMX tracks, ride in the city downstairs and embankments, or ride in other similar terrain. It is important to note that bent components, frames, forks, handlebars, seat posts, pedals, cranks and wheel rims are signs of accidents and/or abuse.
- Labour for part replacement or changeover is not included.
- Rocky Mountain retains the right to repair or replace at its discretion any part that is deemed a valid warranty. Please note that Rocky Mountain cannot guarantee a colour match to the original component.
Warranty Procedure
- Rocky Mountain retains the right to repair or replace at its discretion any part that is deemed a valid warranty.
- Please note that Rocky Mountain does not guarantee a color match to the original frame or component. Rocky Mountain will try to match color as best as possible. This warranty, or any implied warranty, is limited to the repair of the defective parts or replacement of defective parts with those of equal or greater value at the sole discretion of Rocky Mountain.
- Rocky Mountain is not obligated to provide support for non-Rocky Mountain branded products. Rocky Mountain does not manufacture its non-Rocky Mountain products and may not be able to provide repair facilities or spare parts in relation to them.
- If your product is considered Out of Warranty, we offer a possible crash replacement program. A discount off the purchase price of a frame part can be offered at our discretion. This crash replacement program is only offered to the original owner of the bike that has broken his Rocky Mountain frame and needs a replacement. Our service agent will communicate pricing and availability on the bikes or frames.
EXCLUSION AND LIMITATION OF DAMAGES
THE WARRANTY OF ROCKY MOUNTAIN IS LIMITED TO THE REPAIR OR REPLACEMENT OF THE PRODUCTS AND DOES NOT GRANT ANY WARRANTY EITHER EXPRESSED OR IMPLIED, LEGAL OR CONVENTIONAL AND DISCLAIMS ANY AND ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSES, AND ROCKY MOUNTAIN SHALL UNDER NO CIRCUMSTANCES BE LIABLE FOR DIRECT OR INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES EVEN WHERE ROCKY MOUNTAIN HAS BEEN ADVISED OF SUCH DAMAGES AND ROCKY MOUNTAIN’S LIABILITY SHALL BE LIMITED TO $ 50.00.
