Disc Brake Shimano XT Trail BR-M8220 Upgrade Kit

Since the launch of the original Deore XT groupset in 1980, Shimano has built a reputation for reliability, durability, and functional design in mountain biking. The new XT BR-M8220 hydraulic disc brakes continue that tradition, developed specifically for aggressive trail and enduro riding where consistent power and control are essential.

Designed for Control and Clean Integration

The BR-M8220 features a redesigned brake lever with the oil reservoir positioned parallel to the handlebar. Combined with a revised hose outlet, this creates a cleaner cockpit appearance and improved cable routing.

A closer lever pivot point allows the blade to follow the natural arc of your finger more effectively.

This improves ergonomics and reduces hand fatigue, particularly on longer descents. The additional contact point near the grip increases lever stability, minimising flex and delivering a more direct, consistent braking feel.

Tool-free reach adjustment is handled by a rotary dial, allowing riders to fine-tune lever position quickly and easily.

Updated Servo Wave Technology

Shimano’s updated Servo Wave mechanism increases braking power while reducing the amount of force required at the lever.

Initial lever movement quickly brings the pads into contact with the rotor, followed by a progressive increase in power.

The result is:

• Less hand effort under heavy braking
• Improved modulation and control
• A stable and consistent bite point

Low Viscosity Mineral Oil System

The BR-M8220 uses a revised sealing system and is designed exclusively for Shimano’s new low viscosity (LV) mineral oil.

Benefits include:

• More consistent performance across a wide temperature range
• Reduced brake fade on long descents
• Improved stability of the pressure point
• Faster hydraulic response between lever and caliper

The system connects via the proven SM-BH90 hydraulic hose, which balances flexibility for clean routing with efficient power transfer.

4-Piston Enduro Caliper

The compact 4-piston caliper delivers high stopping power suitable for enduro and aggressive trail riding. While visually refined and low-profile, it provides strong and consistent braking performance in demanding terrain.

Revised brake pads are designed to reduce noise and minimise rattling on rough trails. Cooling fins, combined with the caliper’s aluminium construction, help dissipate heat effectively under sustained braking.

What's Included

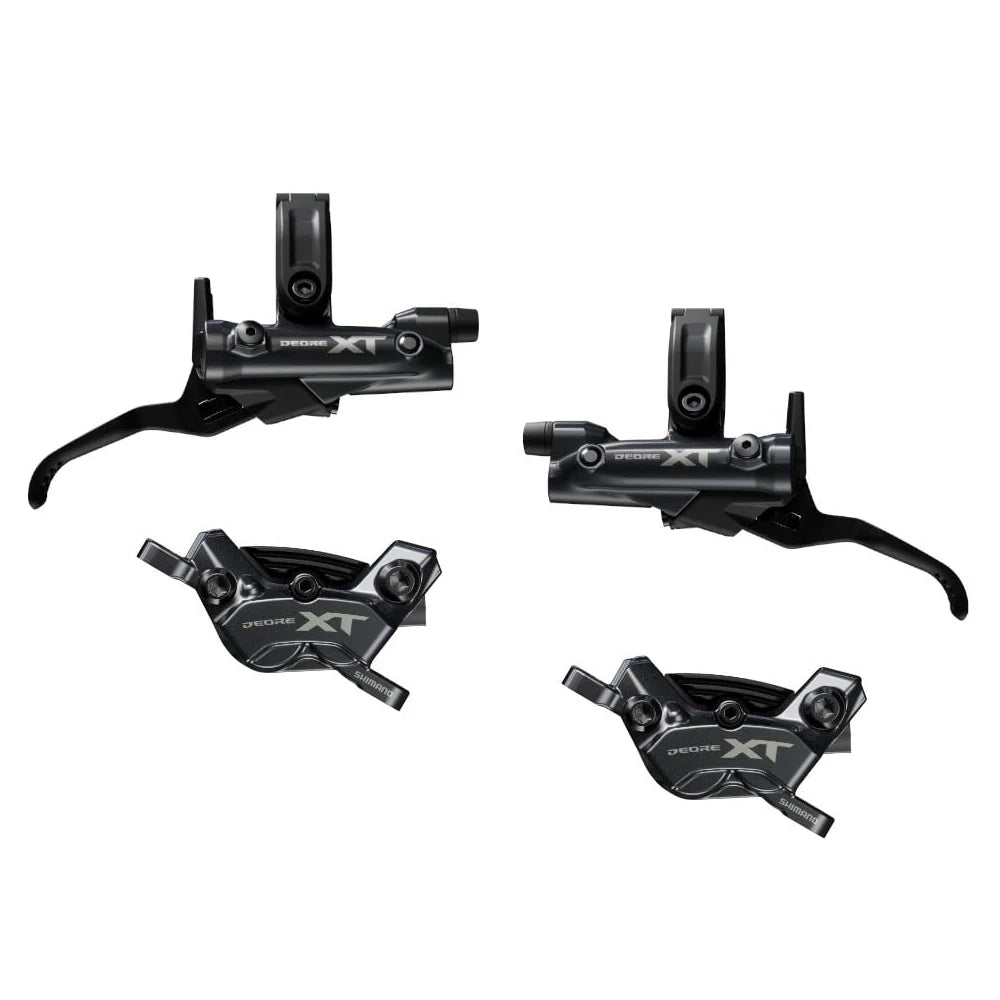

• 1x SHIMANO Deore XT disc brake 4-piston BL-M8200 + BR-M8220, resin Brake Pads with cooling fins
• 1x SHIMANO Deore XT disc brake 4-piston BL-M8200 + BR-M8220, resin Brake Pads with cooling fins
• 1x bottle of SHIMANO LV (Low Viscosity) mineral oil, 100 ml each
• 2x pairs of resin brake pads

Specifications
Brake caliper material: Aluminum
Brake lever material: Aluminum
Housing material: Aluminum
Mounting bolt material: Steel
Piston: 4
Brake mounting: Postmount
Recommended brake rotor: Shimano RT-CL 800
Brake fluid: Shimano LV (Low Viscosity) mineral oil only
Brake hose: Plastic
Brake Pad: Resin brake pads with cooling fins
Brake lever design: 2 fingers
Grip width adjustment: yes, tool-free via adjustment wheel
Pressure point adjustment: no
Clamp: split
Cable length: 1000 mm | 1700 mm
