Maxxis Tyre Technologies
RUBBER COMPOUND
3C MaxxTerra
An intermediate compound configuration used in select mountain tires. 3C MaxxTerra is softer and offers more traction than 3C MaxxSpeed, yet provides better treadwear and less rolling resistance than MaxxGrip.
3C MaxxGrip
3C MaxxGrip uses the softest rubber compounds to offer the ultimate in grip and slow rebound properties for unparalleled traction in downhill applications.
Dual Compound
The firmest compound. Uses a firm rubber at the base of the knobs, and a slightly softer rubber on the top of both the centre and side knobs for a simple construction.
CASING OPTIONS
EXO
EXO is a cut- and abrasion-resistant material added to the sidewalls of many Maxxis mountain bike and gravel tires. This densely woven fabric is lightweight and highly flexible, ensuring that the performance of the tire remains unaffected. Choose EXO Protection for enhanced durability for gravel, XC, and light-duty trail riding.
EXO+
EXO+ is Maxxis’ medium-duty puncture protection option suitable for all-around trail riding and light weight e-bikes. We begin with a durable 60 TPI casing, add in our legendary EXO puncture protection layer in the sidewalls, and top it off with a small butyl insert around the bead. The tough casing and EXO material ward off damage from rocks and roots, while the butyl insert protects the tire from pinch flats and helps prevent rim damage.
DoubleDown (DD)
DoubleDown (DD) is the next step in the evolution of the dual-ply tire casing for enduro racing. Two 120 TPI casing layers reinforced with a butyl insert provide the enduro racer with the support and protection of a downhill tire, but in a lighter package.
Downhill (DH)
Two layers of casing material are used from bead to bead, providing additional protection and sidewall stiffness for downhill applications.
OTHER TECH
Tubeless Ready (TR)
Tubeless tires provide the rider with many benefits: the ability to run lower air pressures, which improves traction; lower rolling resistance when compared to a tube-type tire; and less chance of flatting because there is no tube. Liquid sealants should only be used in the following types of tires: tubeless road, tubular, and tubeless ready. The use of liquid sealants in any other Maxxis tyre will void the warranty.
Wide Trail (WT)
Wide Trail (WT) construction optimizes the tyre’s tread layout and profile on today’s modern, wider rims. Traditional tyres are designed around older, narrower rims and can create an overly square tire profile, leading to less than optimal performance. WT tyres are optimized for a 35mm inner rim width but are proven to work over a range from 30-35mm inner rim widths, depending on the rider’s preference.
Wide Trail XC tyres are optimized for use with 30mm internal width rims, but they will perform well on rims as narrow as 25mm. Maxxis does not recommend rims wider than 30mm or narrower than 25mm
E-25/E-50 E-BIKE RATING
The E-25 and E-50 ratings are industry standards used to classify electric bike tires based on their suitability for different riding conditions and performance capabilities.
E-25 Rating - Suitable for urban and leisurely rides, designed primarily for paved surfaces. These tyres offer a good balance between efficiency and comfort, making them ideal for everyday commuting or recreational purposes.
E-50 Rating - Designed for more demanding terrains and off-road adventures. They are characterized by their robust construction and enhanced durability, offering superior traction, grip, and puncture resistance. E-50 rated tyres are suitable for riders who frequently encounter unpaved trails, gravel paths, or challenging surfaces.

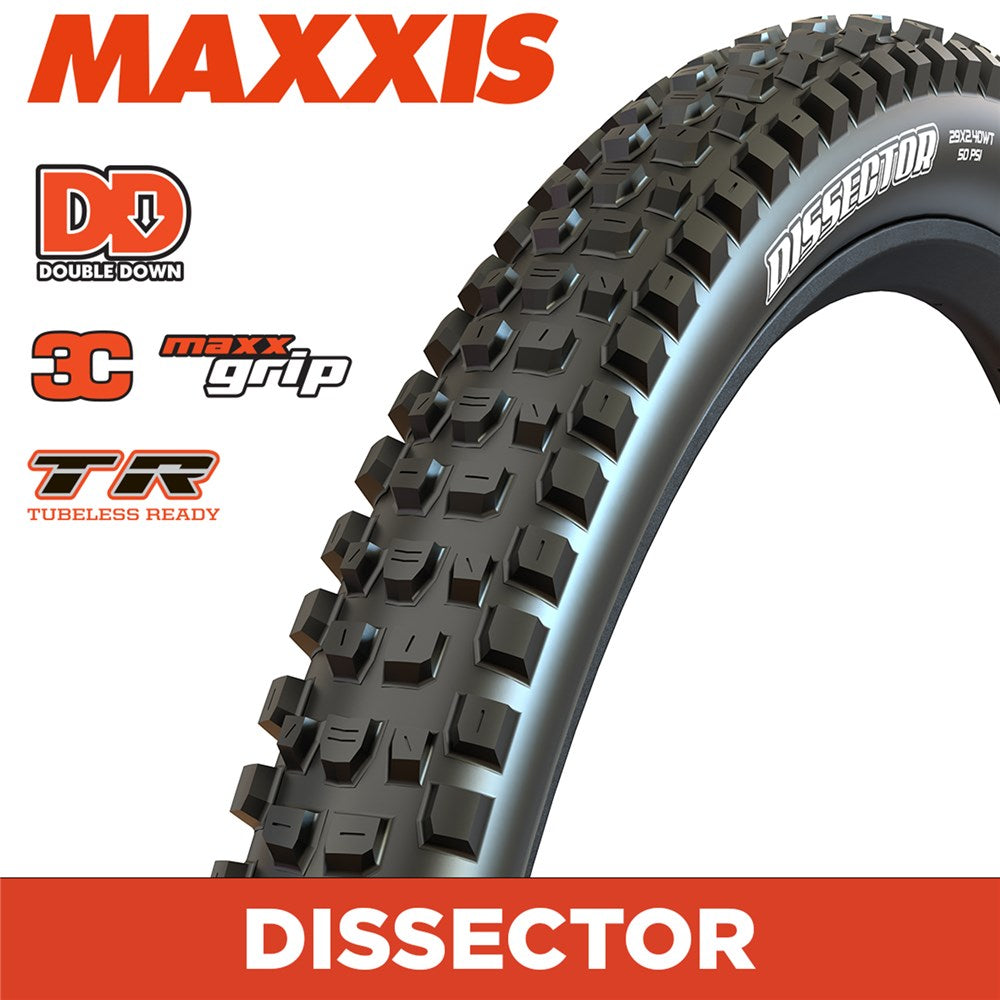

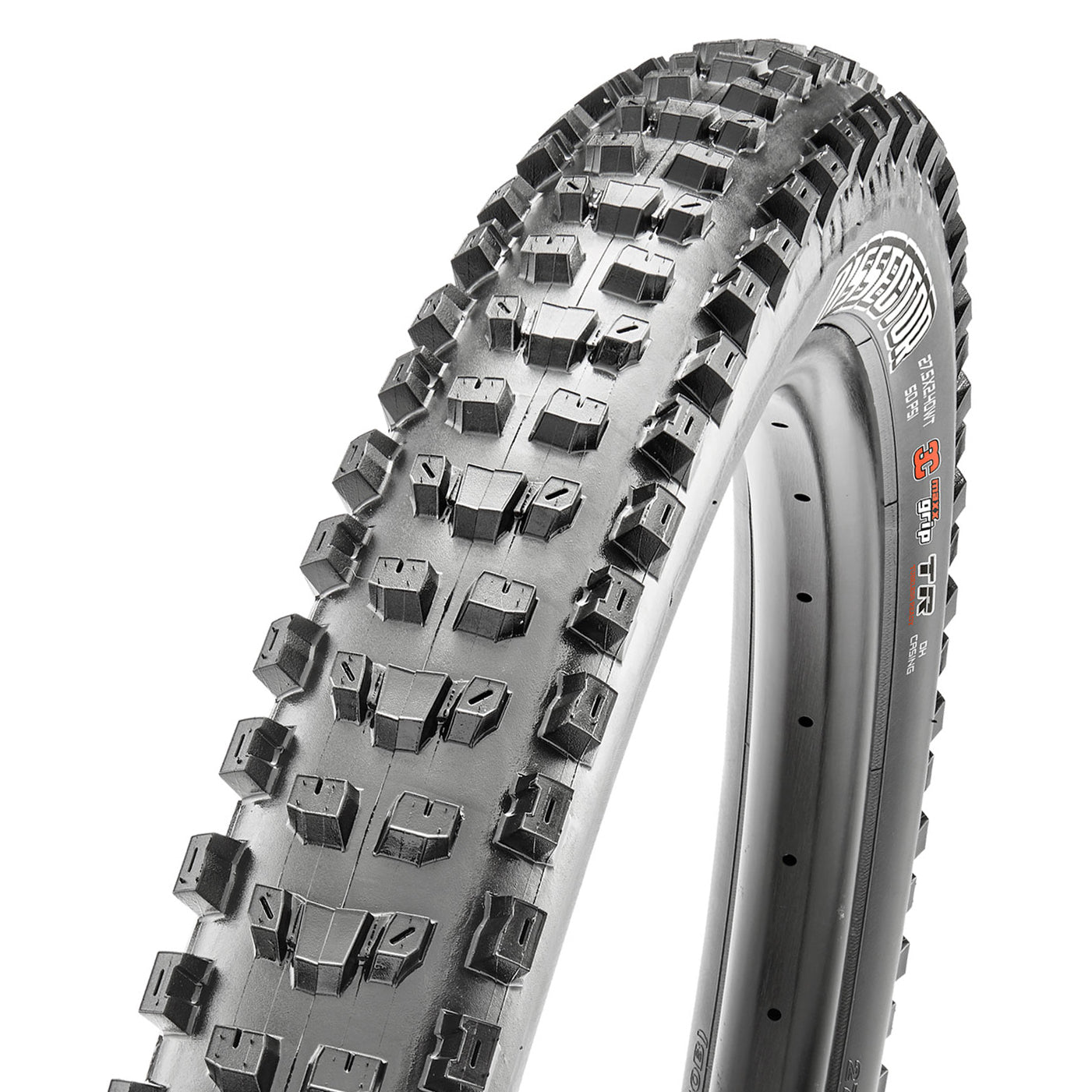

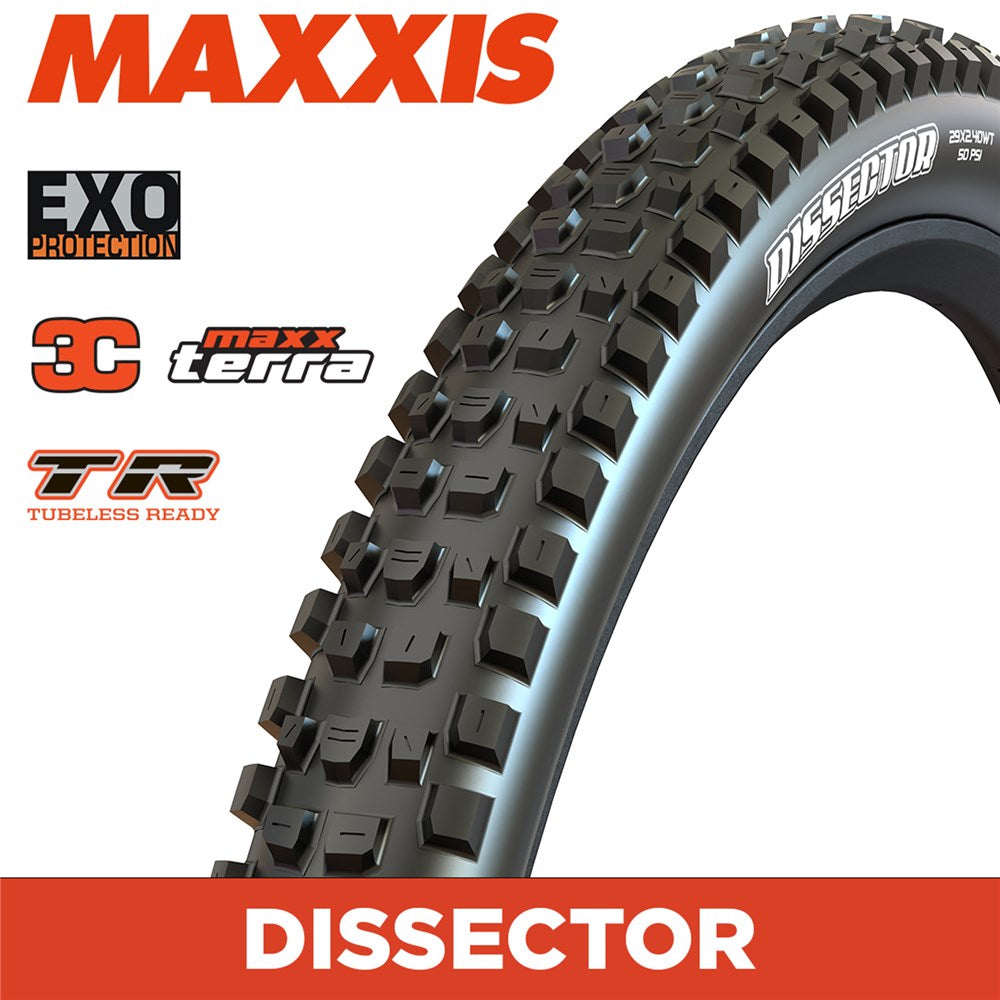

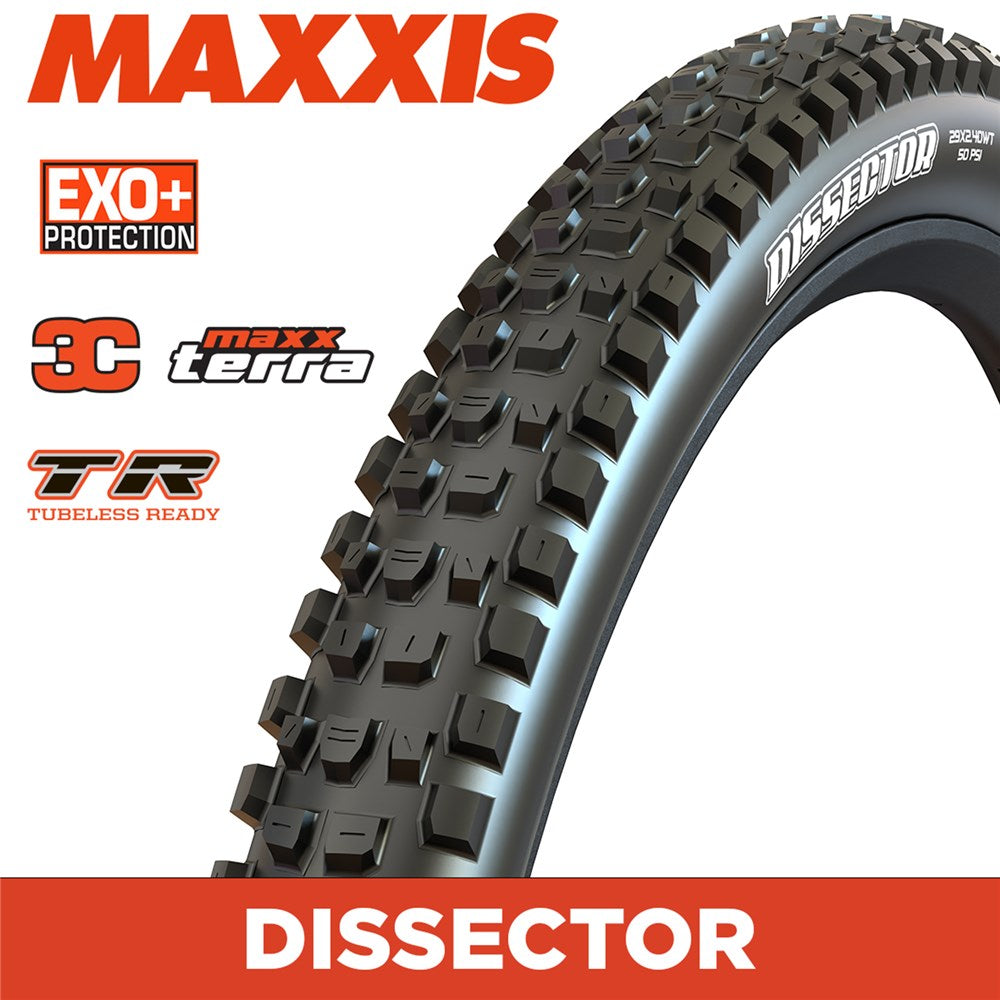

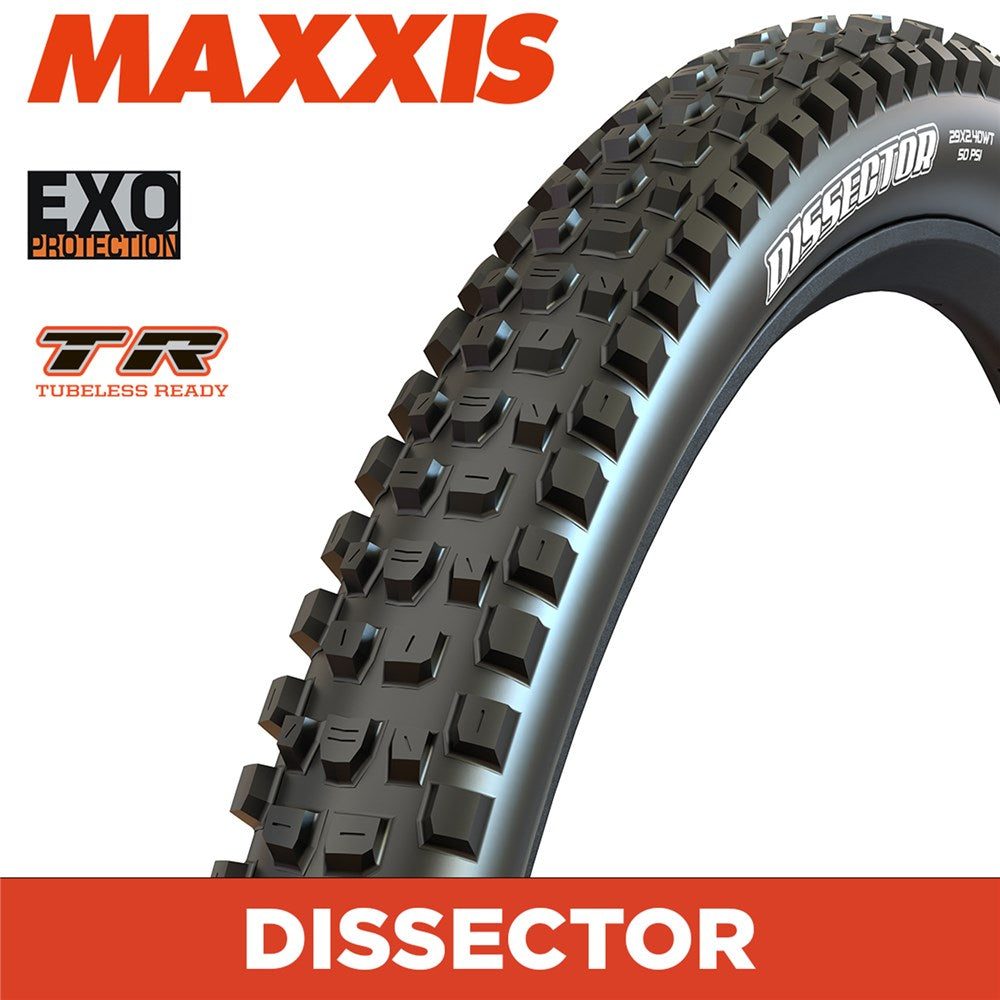

Tyre 29 x 2.40 Maxxis Dissector G2 Folding TR

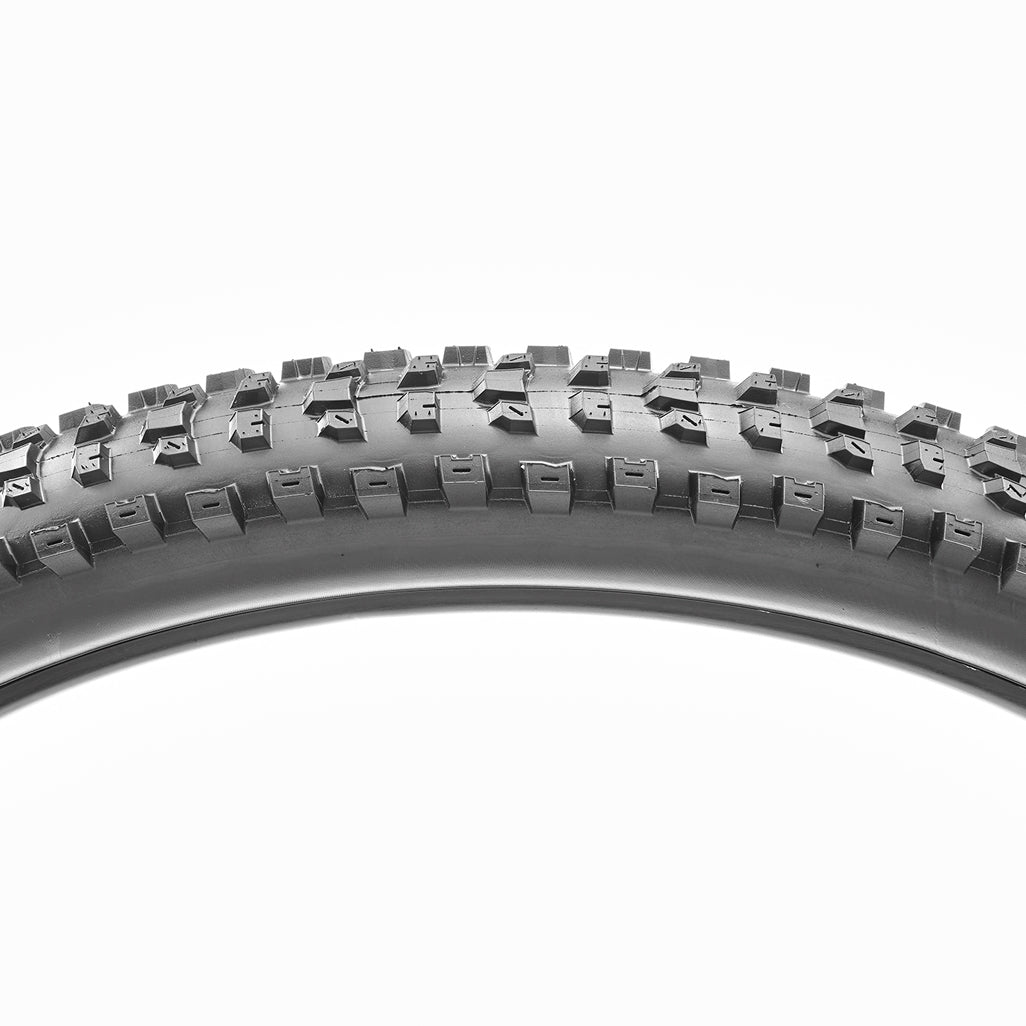

The Maxxis Dissector returns with a host of upgrades that improve performance across the board. Most notably, the side knobs have been completely redesigned with a larger footprint and reworked sipes, boosting stability and predictability in corners—especially on hard terrain.

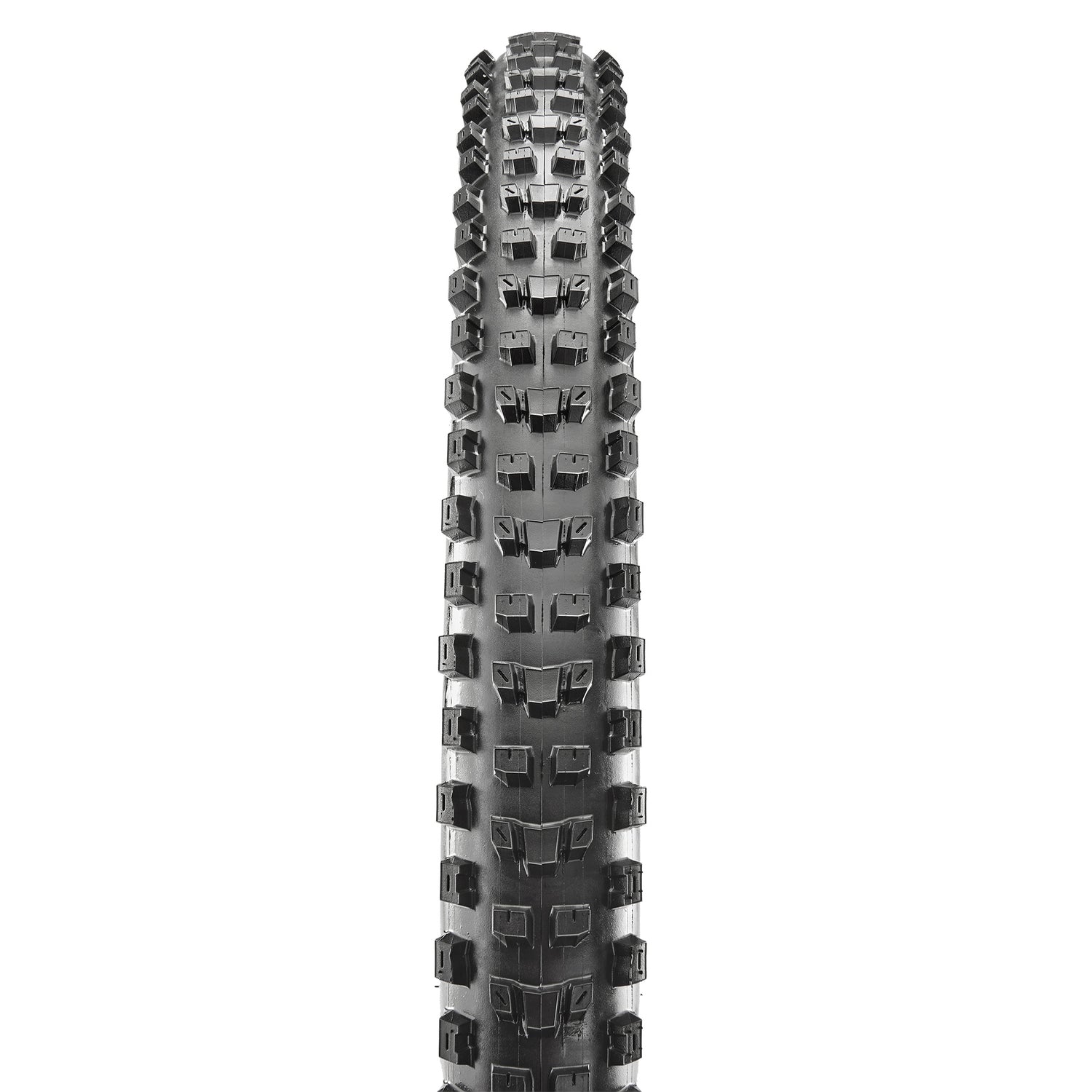

The new shape resists deflection under load, increasing both durability and control. Side knob engagement is also quicker, giving riders a more confident, planted feel in turns. The center tread retains the familiar 2-3-2 layout, but the center “3” has been split into individual knobs for improved braking traction and better terrain conformity. Transition knobs have been pushed outward, creating a smoother, more consistent feel as the tire leans over.
Like the side knobs, the center tread also benefits from revised sipes for enhanced grip and longevity. These updates make the Dissector an even more versatile option for short- to mid-travel trail bikes. It excels as a front tire on bikes with 130–140mm of travel, especially when paired with a fast-rolling rear like the Forekaster or Rekon. On longer travel bikes (150mm+), it serves as a fast, confident rear tire in dry conditions.
Best for: Dry, hardpacked, rocky, or rooty terrain
Recommended setups:
- 130mm travel: Dissector front / Forekaster or Rekon rear
- 140mm travel: Dissector front / Dissector rear
- 150+mm travel: Minion or Assegai front / Dissector rear
SPECIFICATIONS
| Model | Size | ETRTO | TPI | Bead | Weight (g) | Compound | PSI | Technology | Color |
|---|---|---|---|---|---|---|---|---|---|
| TB00241300 | 29X2.40 | 61-622 | 60 | FOLDABLE | 949 | DUAL | 50 | EXO/TR | Black |
| TB00241200 | 29X2.40 | 61-622 | 60 | FOLDABLE | 956 | 3C MAXX TERRA | 50 | 3CT/EXO/TR | Black |
| TB00241100 | 29X2.40 | 61-622 | 60 | FOLDABLE | 1249 | 3C MAXX GRIP | 50 | 3CG/TR/DH | Black |
| TB00259800 | 29X2.40 | 61-622 | 120 | FOLDABLE | 1022 | 3C MAXX TERRA | 50 | 3CT/EXO+/TR | Black |
| TB00241400 | 29X2.40 | 61-622 | 120 | FOLDABLE | 1154 | 3C MAXX GRIP | 50 | 3CG/TR/DD | Black |
| TB00240800 | 29X2.60 | 66-622 | 60 | FOLDABLE | 1051 | DUAL | 40 | EXO/TR | Black |
| TB00237000 | 29X2.60 | 66-622 | 60 | FOLDABLE | 1122 | 3C MAXX TERRA | 40 | 3CT/EXO/TR | Black |
| TB00236900 | 29X2.60 | 66-622 | 120 | FOLDABLE | 1199 | 3C MAXX TERRA | 40 | 3CT/EXO+/TR | Black |
-
Compatible Bike Type
-
ERTRO
-
Compound
-
Bead Type
-
Seal TypeTubeless
-
DisciplineMountain
-
SKUs3C MaxxTerra/EXO+: 4717784045054, Dual Compound/EXO: 4717784045061, 3C MaxxTerra/EXO: 4717784045078, 3C MaxxGrip/EXO+: 4717784045085, 3C MaxxGrip/DoubleDown: 4717784045092, 3C MaxxTerra/DoubleDown: 4717784045108
