XDS AD7
XDS AD7 - Black / M : This product is available for backorder only. Will ship as soon as it is back in stock.
Couldn't load pickup availability
Sizing Chart
Sizing Chart
Sizing and Geometry
XDS AD7
Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.
| Size | Rider Height (cm) |
|---|---|
| XS | 155-165cm |
| S | 165-175cm |
| M | 172-180cm |
| L | 178-185cm |
| XL | 182-190cm |
Geometry
| Specification | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Seat Tube (mm) | 450 | 480 | 500 | 520 | 540 |
| Top Tube (mm) | 500 | 515 | 530 | 545 | 565 |
| Head Tube (mm) | 93.1 | 100.8 | 117.2 | 134.9 | 155.2 |
| Head Angle (°) | 71° | 71.5° | 72.0° | 72.5° | 73° |
| Seat Tube Angle (°) | 75° | 74° | 74° | 74° | 74° |
| Chainstay (mm) | 405 | 405 | 405 | 405 | 405 |
| Wheelbase (mm) | 970 | 972 | 973 | 984 | 1,001 |
| Fork Offset (mm) | 50 | 50 | 45 | 45 | 45 |
| Bottom Bracket Drop (mm) | 70 | 70 | 70 | 70 | 68 |
| Stack (mm) | 494 | 506 | 520 | 531 | 550 |
| Reach (mm) | 368 | 370 | 381 | 393 | 407 |
Shipping Information
Shipping Information
This product: Shipping options available.
Shipping available†
We offer shipping on select brands including: Rocky Mountain, Orbea, XDS, Icon, Jamis, Shogun, Schwinn, BYK, Kidvelo. These bikes are shipped unbuilt in their original box.
†Only bikes stocked at our Warehouse location are available for shipping.
Shipping upon request to your local bike shop
Some brands require the bike is delivered directly to a bicycle shop or mechanic for assembly, and shipping is not available to your residence. These include GT, Cannondale, .
Request a shipping quote to proceed.
Pickup in-store only
Certain bike brands cannot be shipped and are only available for Click and Collect or purchase in-store.
These include but are not limited to the following brands: Giant, Norco, Liv, Momentum, Malvern Star and Mongoose.
Pre-assembled bikes
†Any bikes in stock at our Heidelberg Heights, Hallam or Hoppers Crossing store locations are already fully assembled, and therefore only available for Click and Collect or purchase in-store.
Sizing and Geometry
XDS AD7
Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.
| Size | Rider Height (cm) |
|---|---|
| XS | 155-165cm |
| S | 165-175cm |
| M | 172-180cm |
| L | 178-185cm |
| XL | 182-190cm |
Geometry
| Specification | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Seat Tube (mm) | 450 | 480 | 500 | 520 | 540 |
| Top Tube (mm) | 500 | 515 | 530 | 545 | 565 |
| Head Tube (mm) | 93.1 | 100.8 | 117.2 | 134.9 | 155.2 |
| Head Angle (°) | 71° | 71.5° | 72.0° | 72.5° | 73° |
| Seat Tube Angle (°) | 75° | 74° | 74° | 74° | 74° |
| Chainstay (mm) | 405 | 405 | 405 | 405 | 405 |
| Wheelbase (mm) | 970 | 972 | 973 | 984 | 1,001 |
| Fork Offset (mm) | 50 | 50 | 45 | 45 | 45 |
| Bottom Bracket Drop (mm) | 70 | 70 | 70 | 70 | 68 |
| Stack (mm) | 494 | 506 | 520 | 531 | 550 |
| Reach (mm) | 368 | 370 | 381 | 393 | 407 |

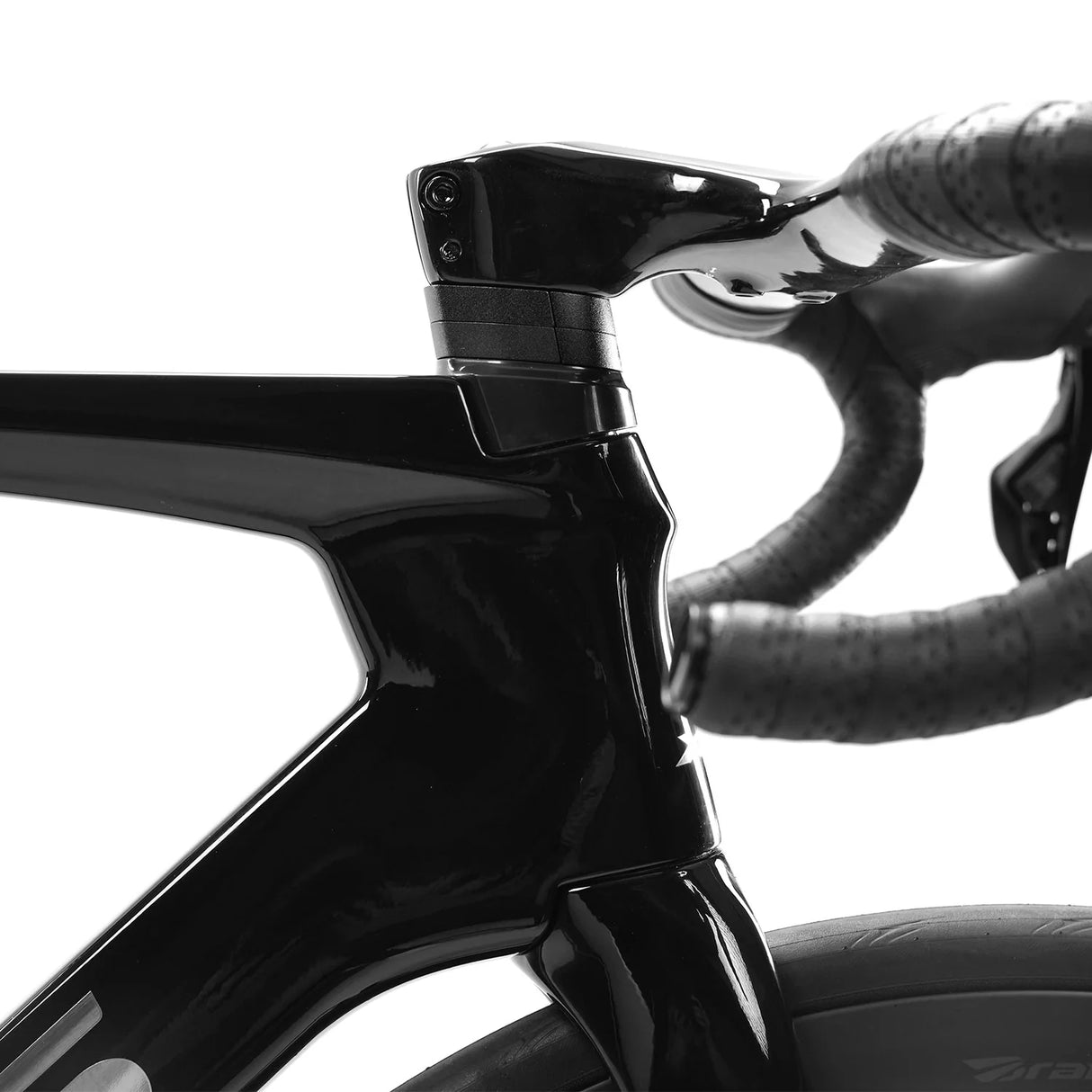

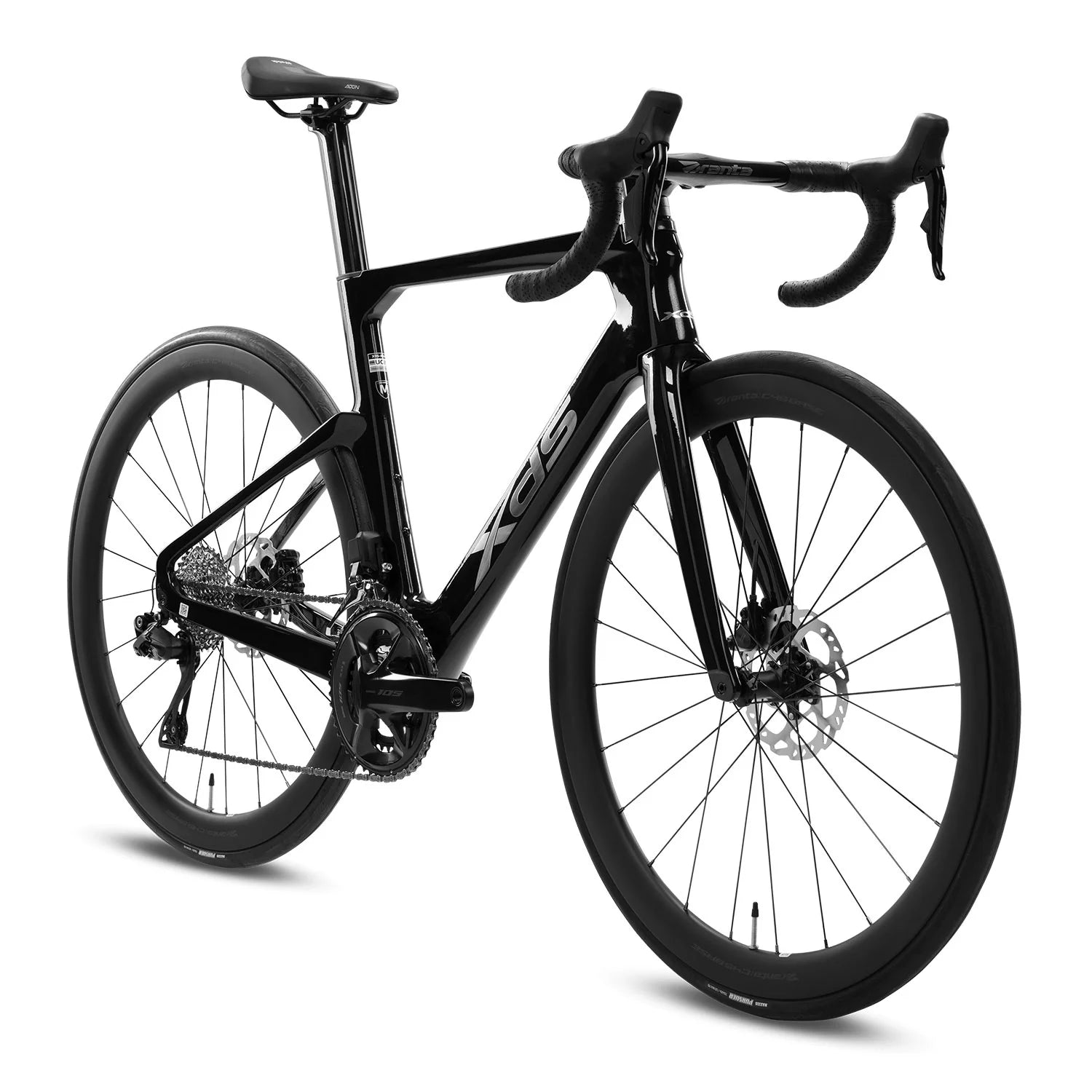

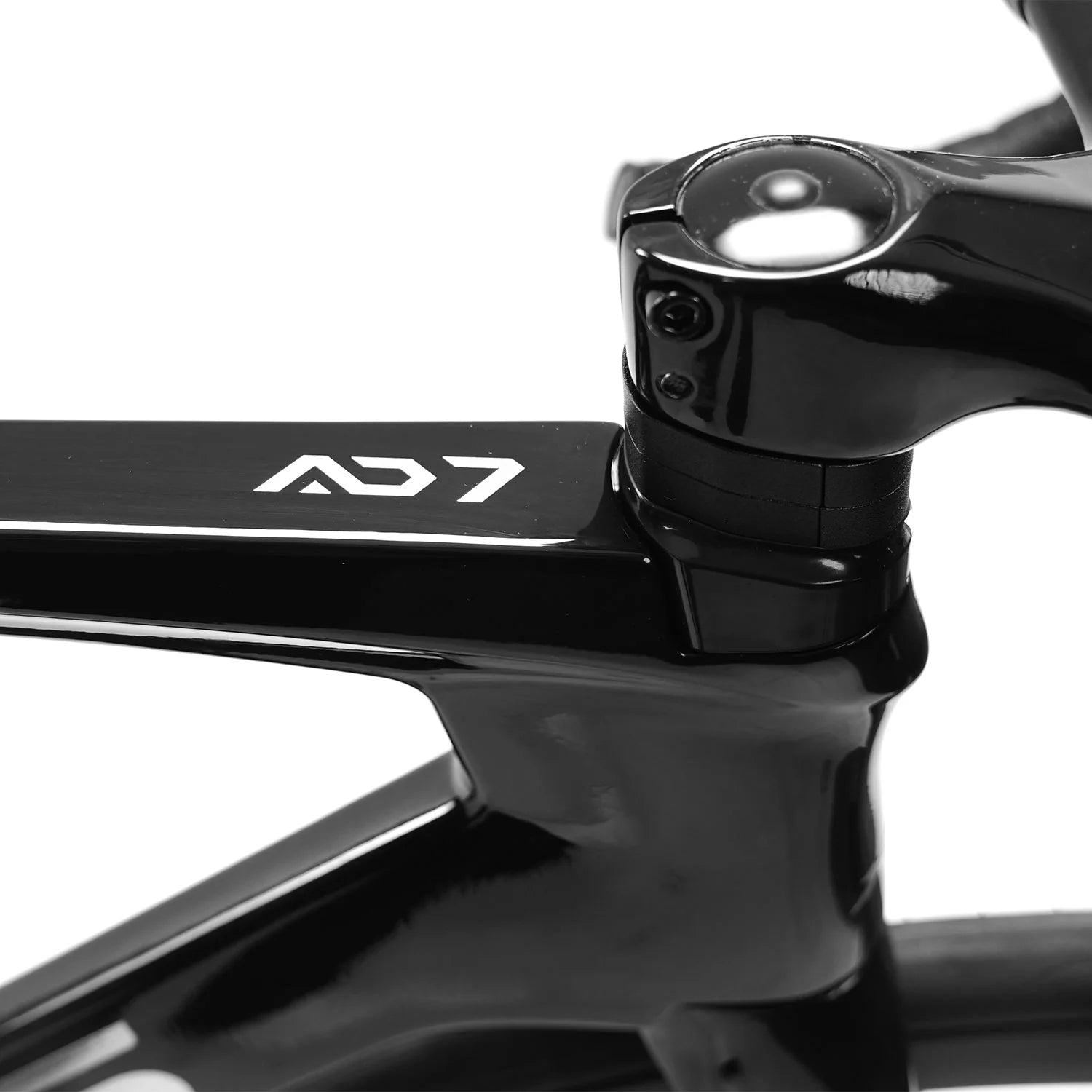

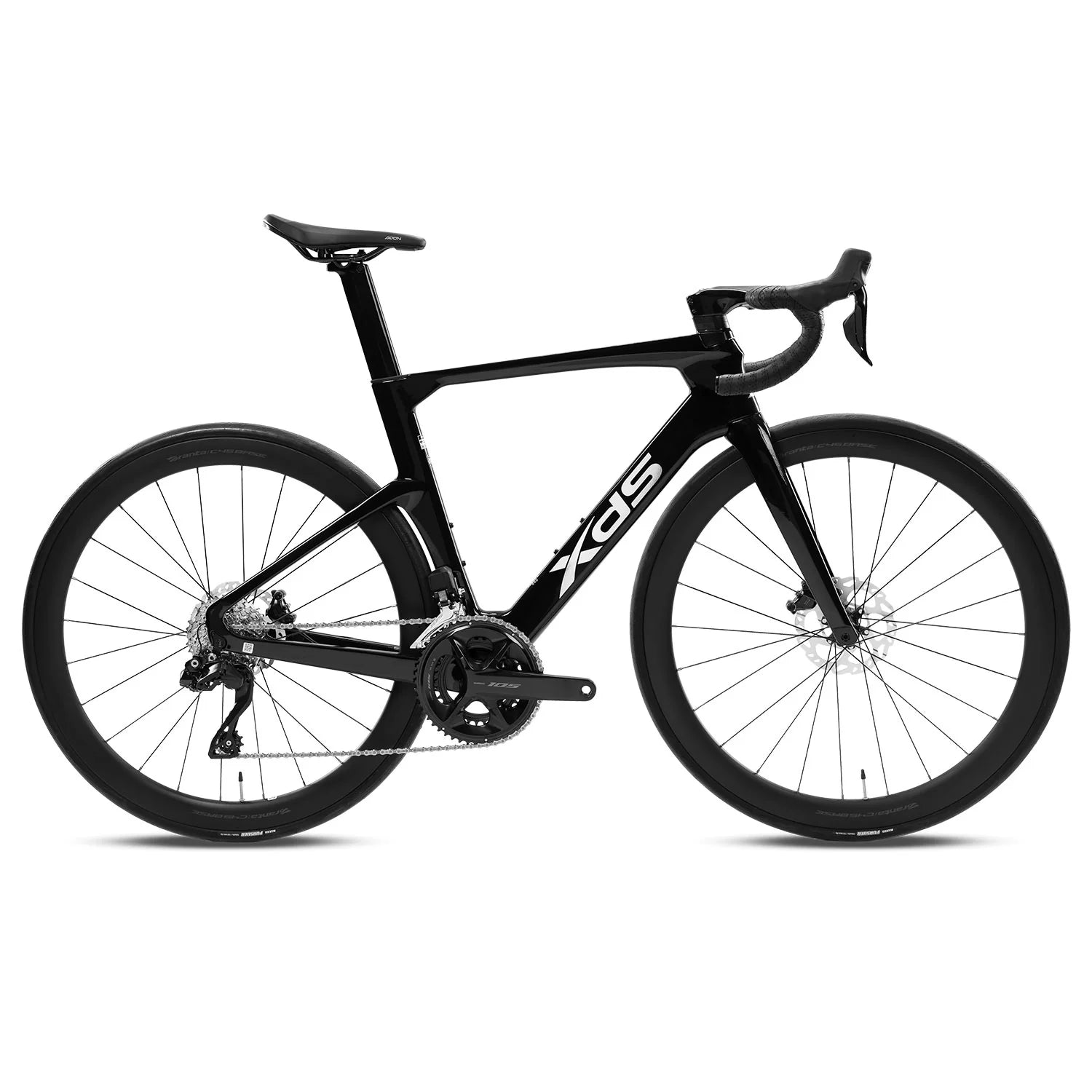

XDS AD7

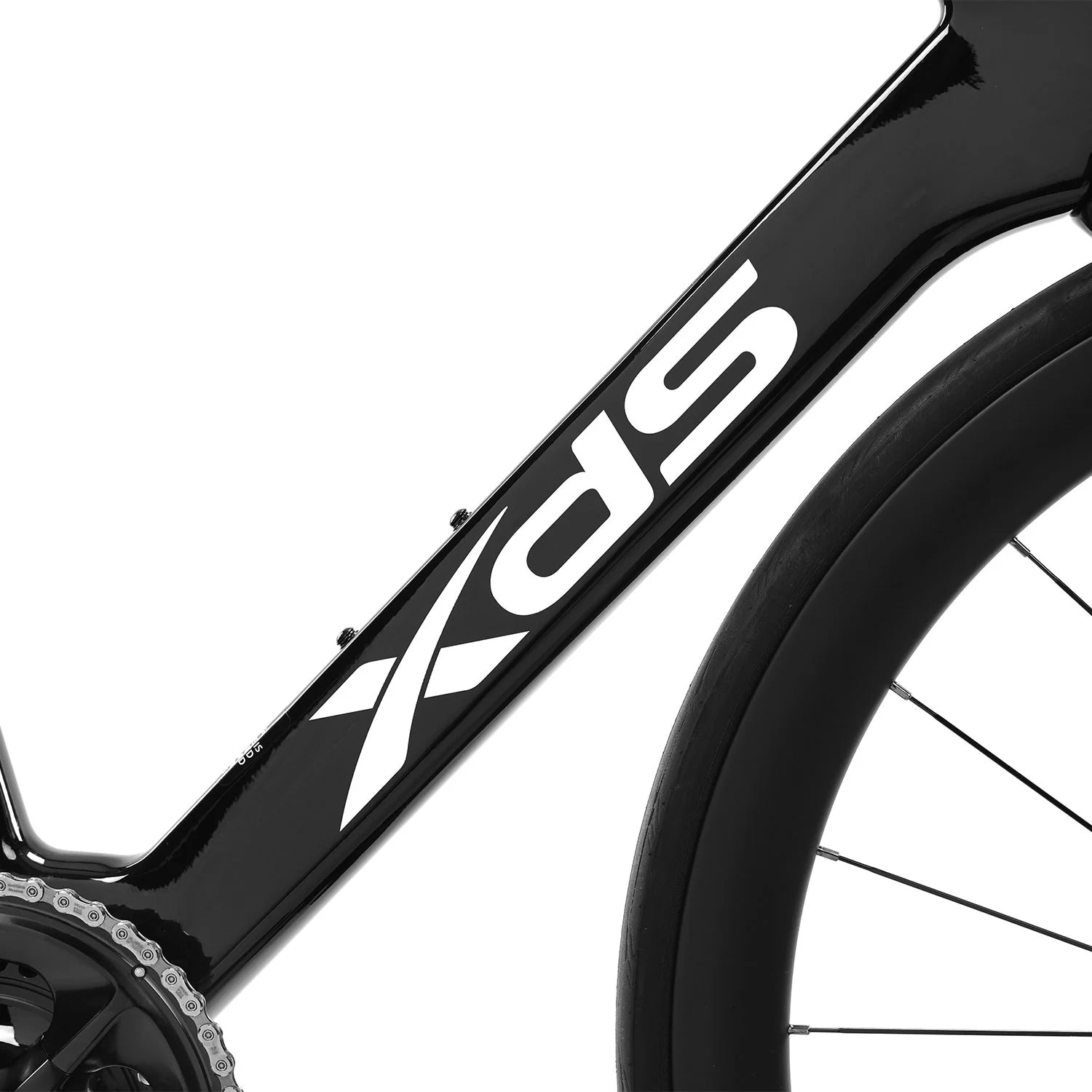

The XDS AD7 is a high-performance carbon road bike that blends advanced materials with elite-level geometry inspired by the XLAB AD Series seen in the UCI World Tour.
Its full carbon frame and fork deliver exceptional stiffness and responsiveness, while the race-proven geometry mirrors the aggressive stance and aerodynamic efficiency of professional-grade machines.
This design ensures optimal power transfer and handling, giving riders a competitive edge whether sprinting, climbing, or cruising. With its sleek profile and precision engineering, the AD7 offers a riding experience that feels straight out of the pro peloton.

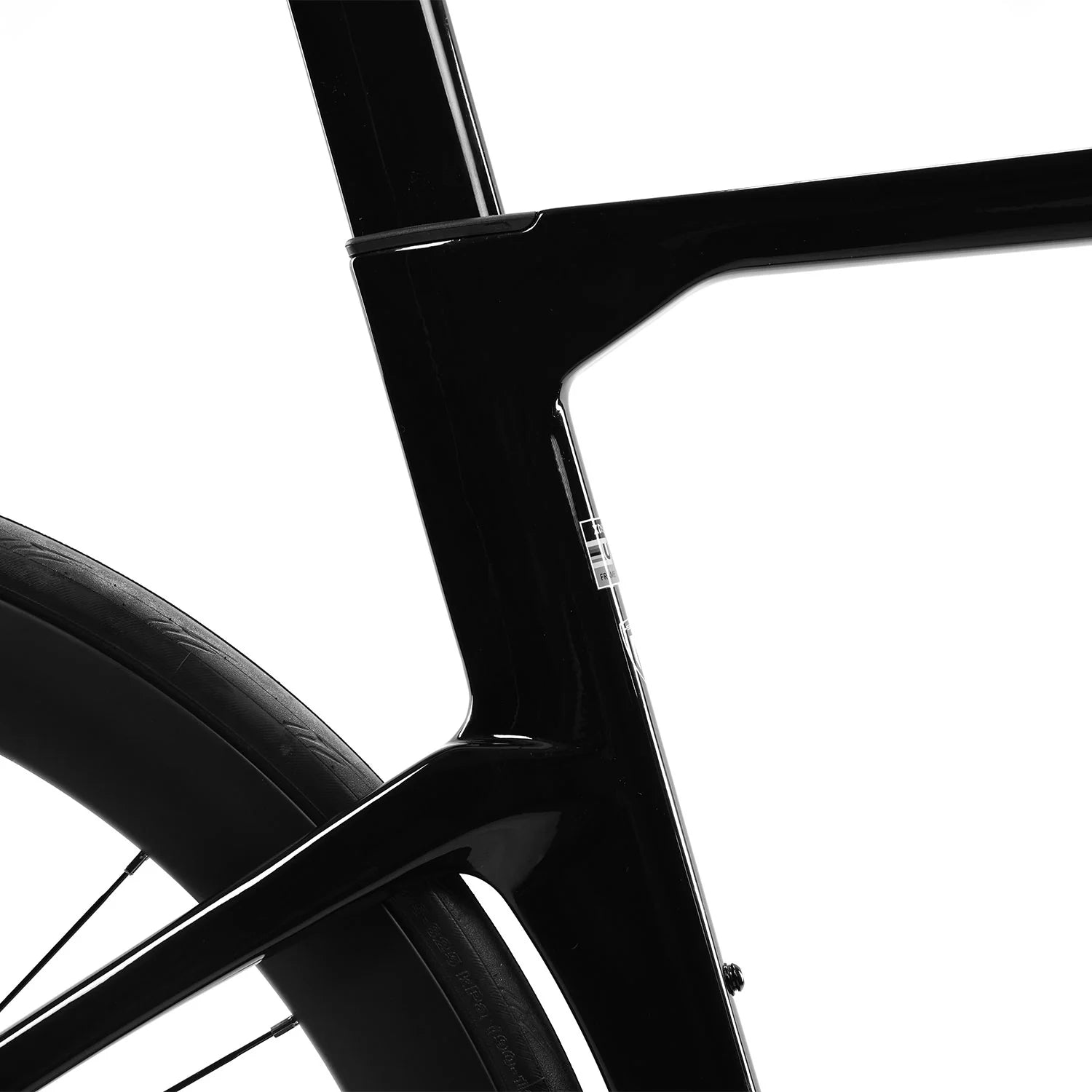

Aerodynamic Excellence
The XDS AD7 is built with a focus on aerodynamic excellence, drawing inspiration from the XLAB AD Series used in the UCI World Tour.
Its frame features sleek, wind-cheating tube shapes and an aggressive geometry that reduces drag and maximises speed.
Every angle and contour is designed to help riders maintain momentum with less effort, especially during high-speed sprints and long solo efforts.

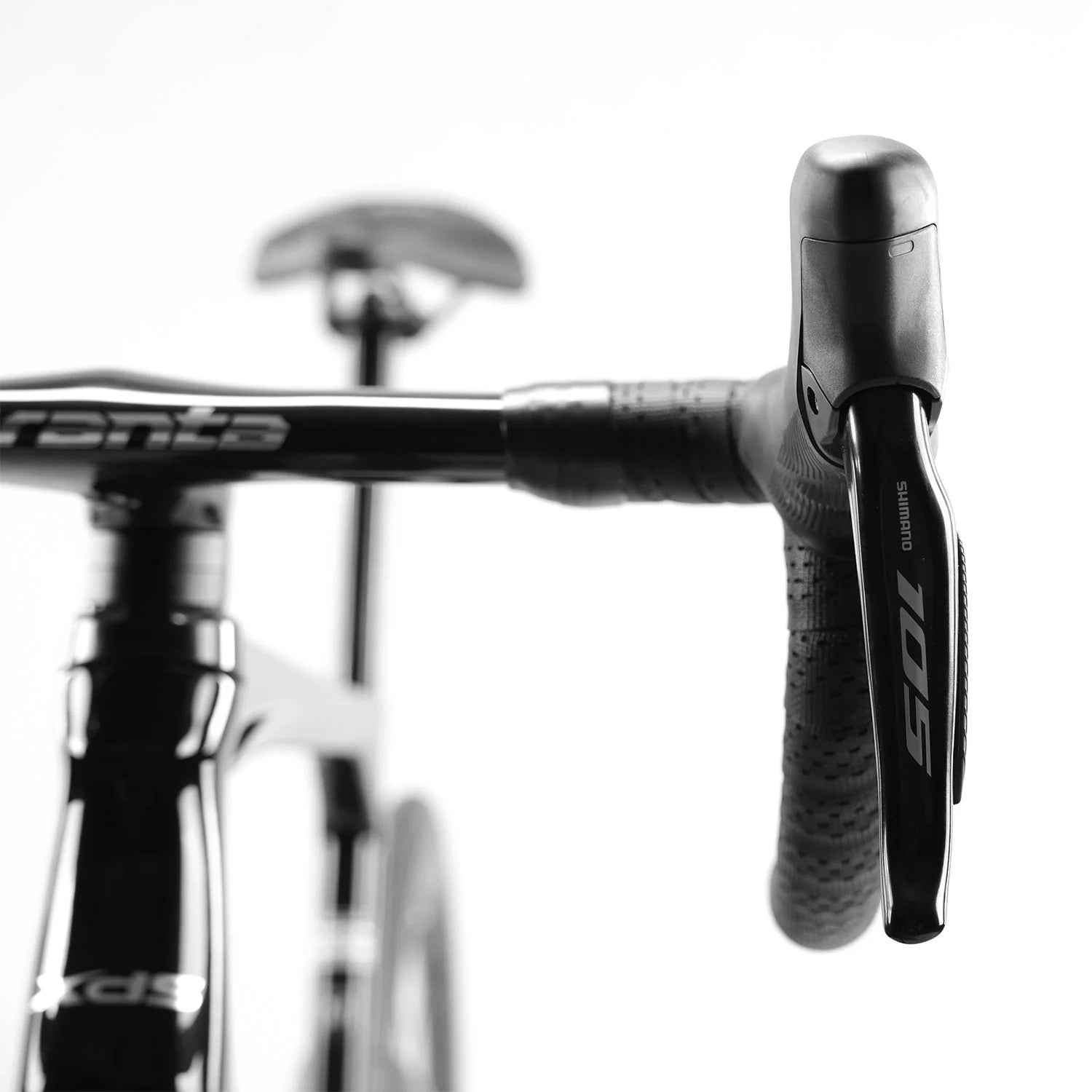

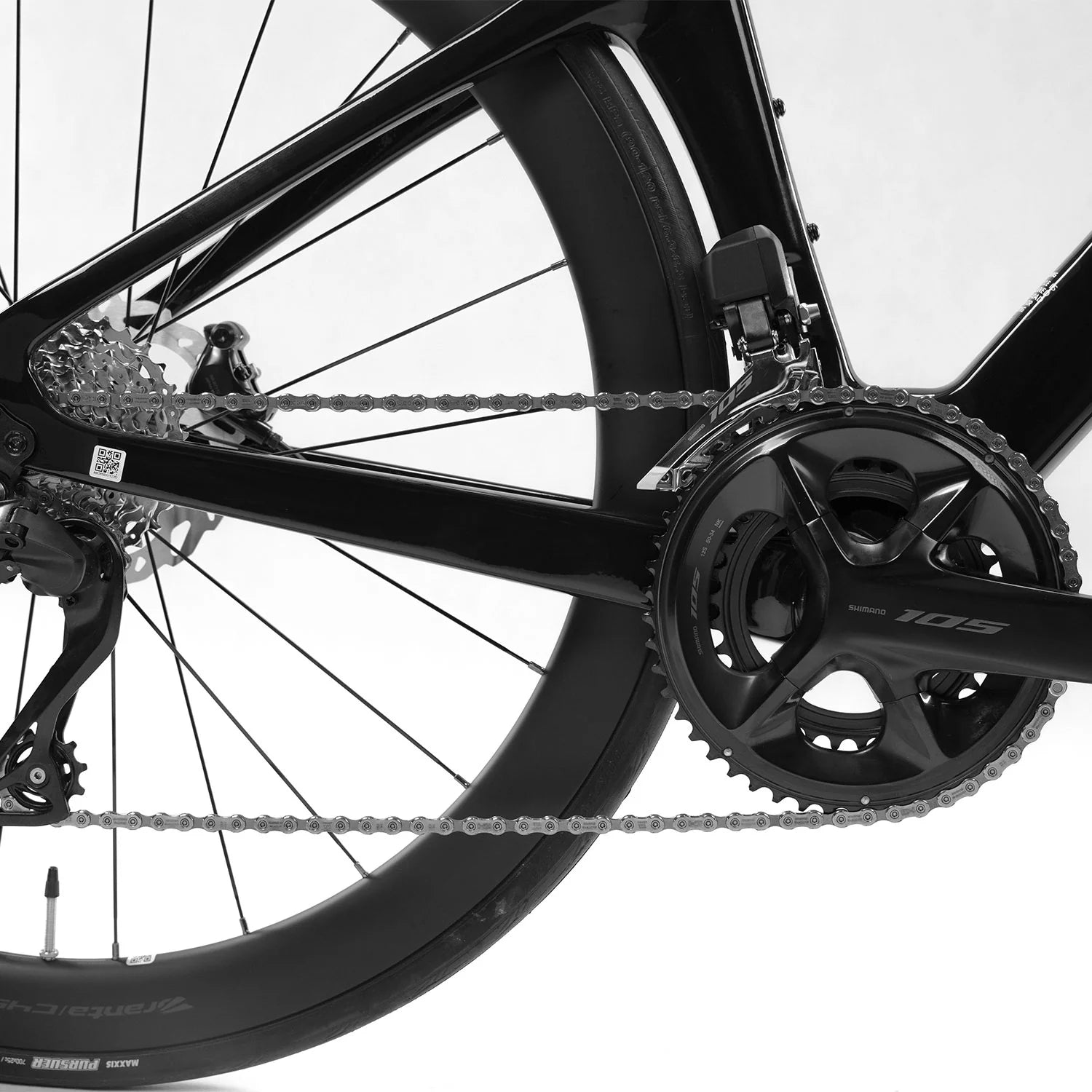

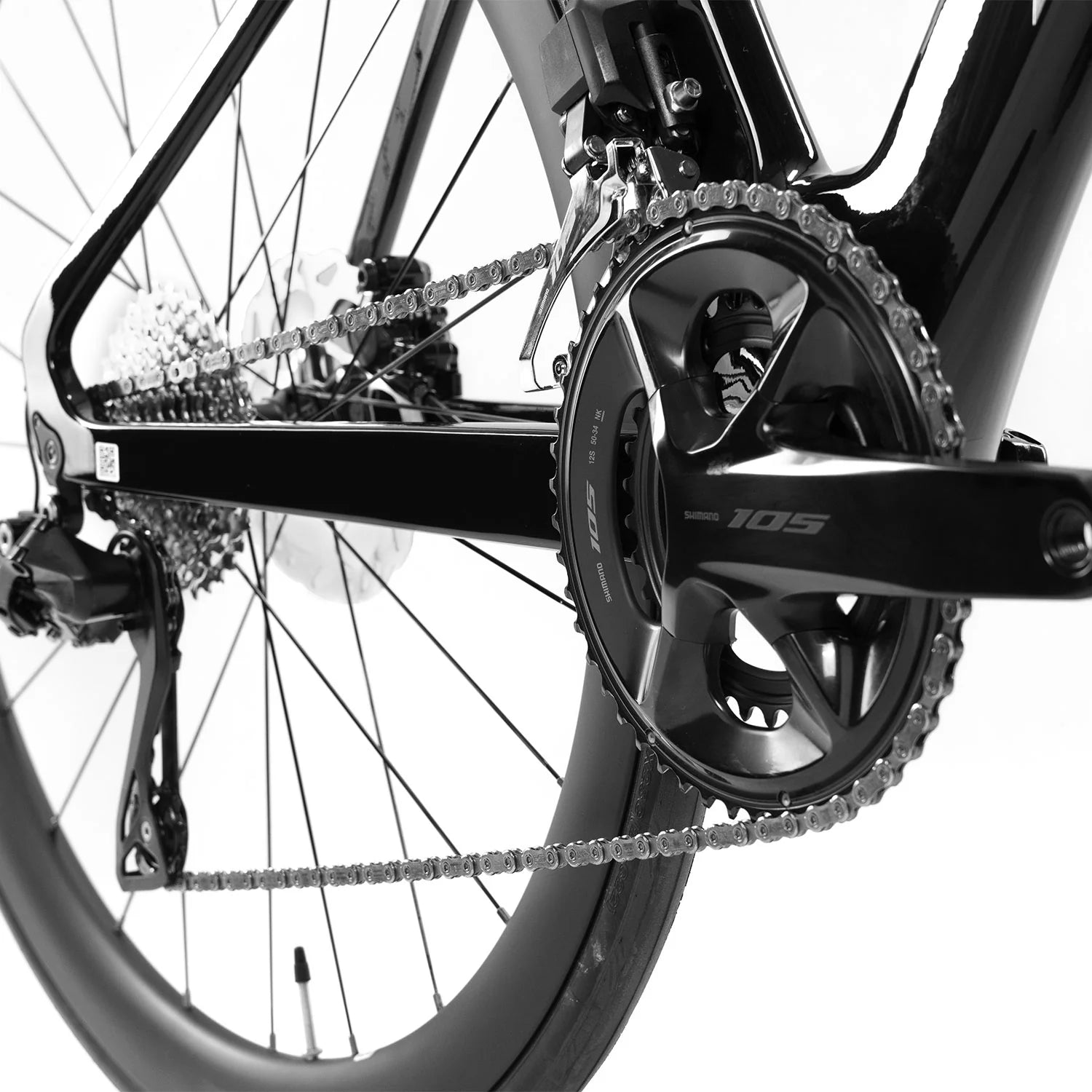

Shimano 105 Di2 equipped
With the Shimano 105 Di2 electronic groupset, the XDS AD7 delivers a modern, high-performance shifting experience that’s both intuitive and reliable.
The Di2 system offers lightning-fast gear changes at the touch of a button, eliminating the need for mechanical cables and reducing maintenance.
Its precise, consistent shifting under all conditions ensures that you stay in the right gear at the right time, whether you're climbing, descending, or sprinting.
Branta Carbon Wheels
The Branta Base carbon wheels on the AD7 are designed to elevate your ride with a perfect blend of speed and style.
Their deep-section carbon rims provide aerodynamic benefits that help you slice through the air, while their lightweight construction improves acceleration and climbing efficiency.
Built for durability and responsiveness, these wheels offer a smooth, stable ride even at high speeds.
-
Frame material
-
Frame
-
Fork
-
Handlebar
-
Stem
-
Seatpost
-

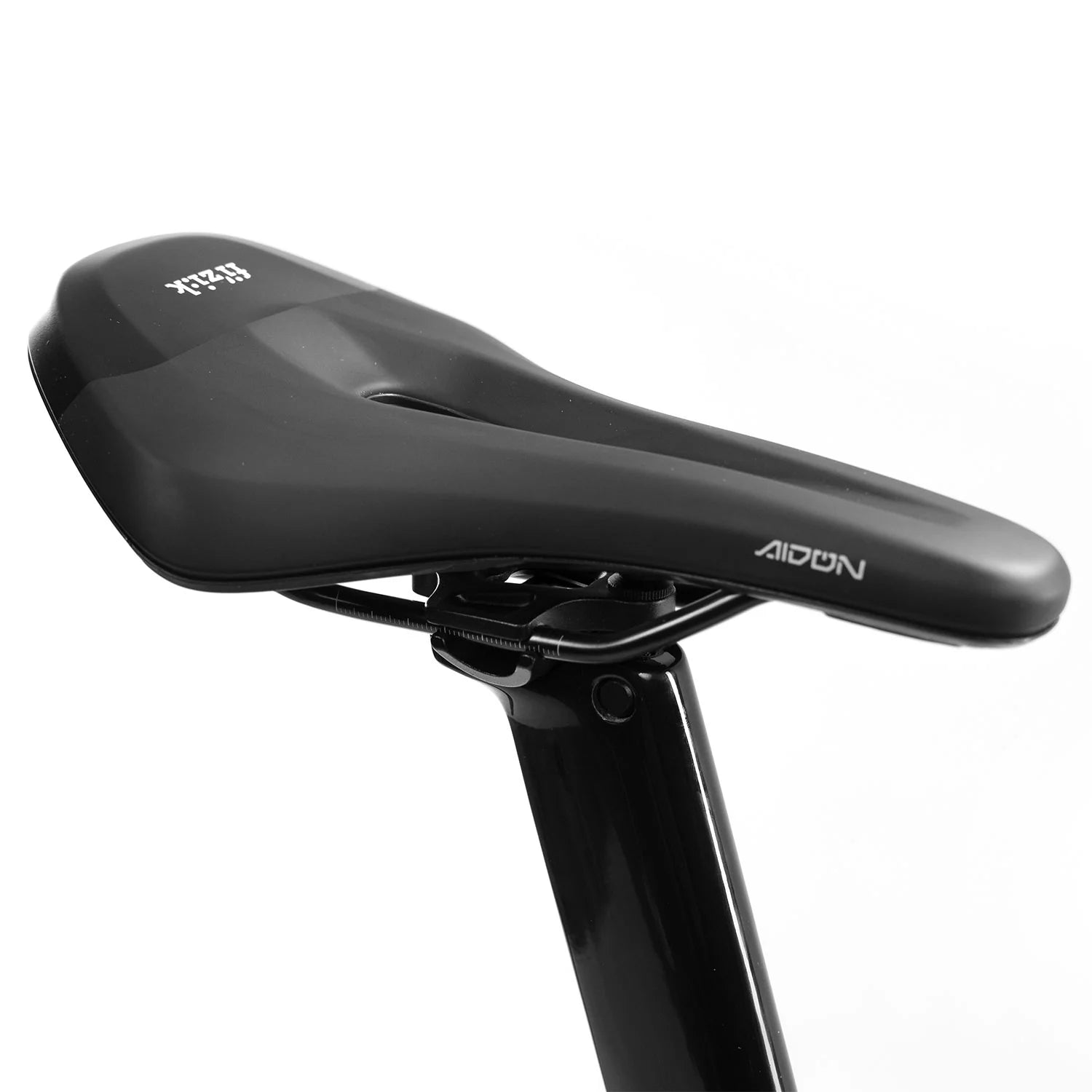

Saddle
-
Pedals
-
Shifters
-
Front Derailleur
-
Rear Derailleur
-

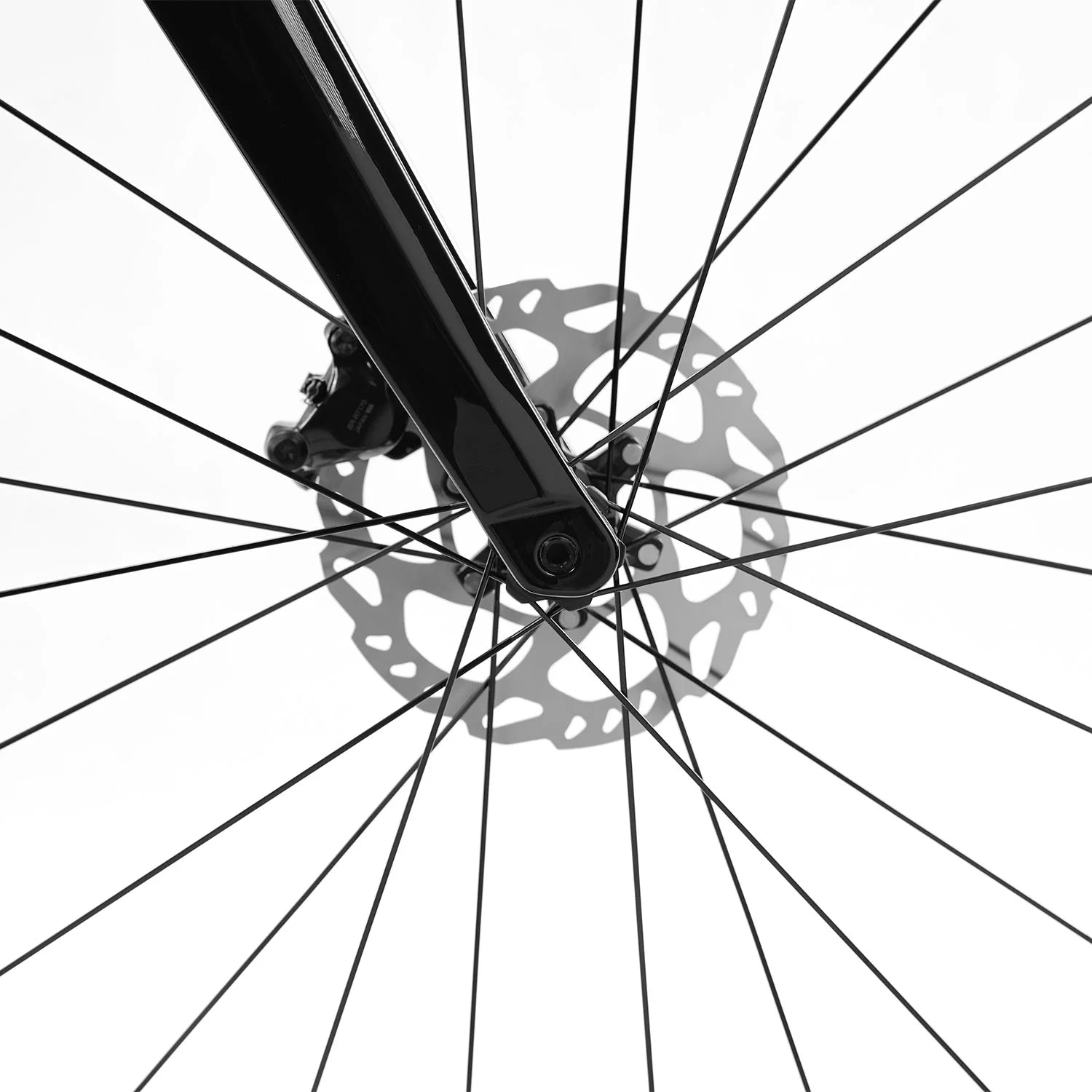

Brakes
-
Cassette/Freewheel
-
Chain
-
Crankset
-
Bottom Bracket
-
Tyres
-
Wheelset
-
Notes
-
Speeds (rear)12 Speed
-
Age GroupAdults
-
GenderMens, Unisex, Womens
-
DisciplineRoad
-
SKUsBlack/M: 9347166087010, Black/L: 9347166087027
