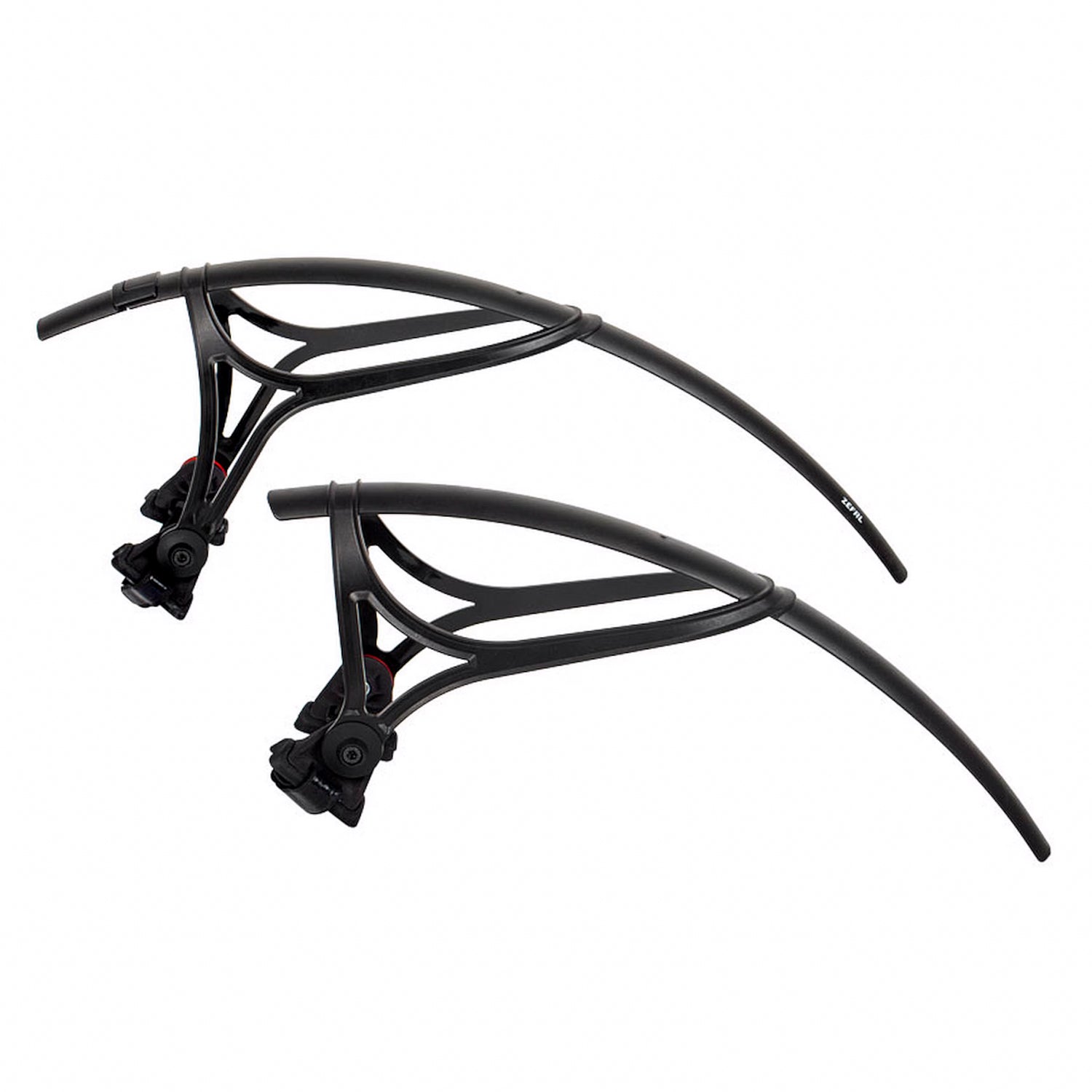

Zefal Shield R35 Road Mudguard Set

Efficient protection against mud and splashing water, discreet design and easy installation: Thanks to these advantages, we recommend mounting the Zéfal Shield R35 mudguard set on your road bike.

The wheel protector set uses the Zéfal MD-FIX attachment system, which you can adjust individually to the diameter of the seat stays and fork tubes of your bike. Plus, the attachment has lockable pivot points that allow you to precisely align the mudguards to the frame geometry and optimise their protective effect.

The Zéfal Shield R35 Gravel mudguard set also comes with three extensions of different lengths that allow the rear mudguard to be extended towards the seat tube to maximise protection depending on the frame geometry.

FEATURES

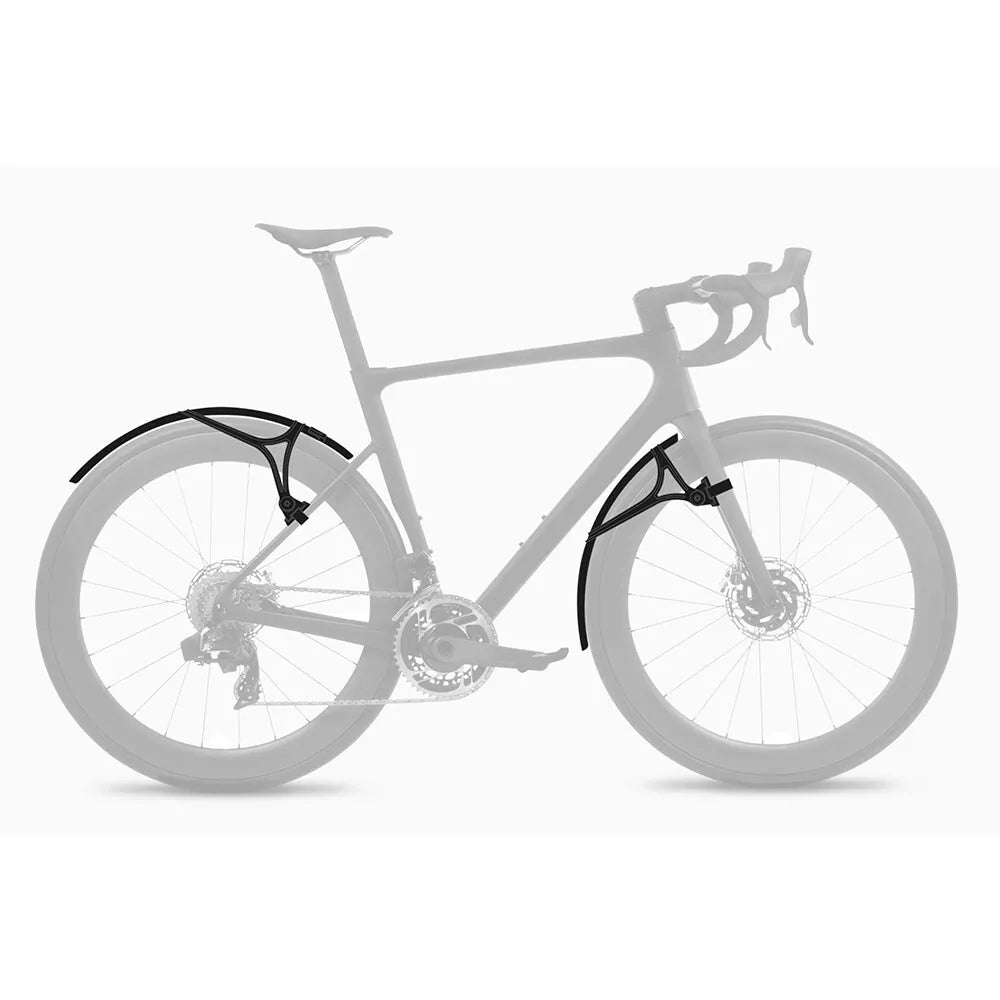

• Mudguard set with universal mounting for road bikes

• High protection against mud and splash water

• Adjustable MD-FIX attachment for high compatibility

• Adjustable angle of inclination to optimise the protective effect

• Three extensions for different length rear mudguard

SPECIFICATIONS

• Material: plastic

• Fits fork crown diameter (front mudguard): approx. Ø 17 mm – 41 mm

• Fits seat stay diameter (rear mudguard): approx. Ø 17 mm – 34 mm

• Compatible tyre sizes: 650 C (26") / 650 B (27.5") / 700 C (28")

• Max. tyre width: up to 30 mm

• Length of front mudguard: approx. 459 mm

• Length of rear mudguard: approx. 516 mm (with 20 mm extension)

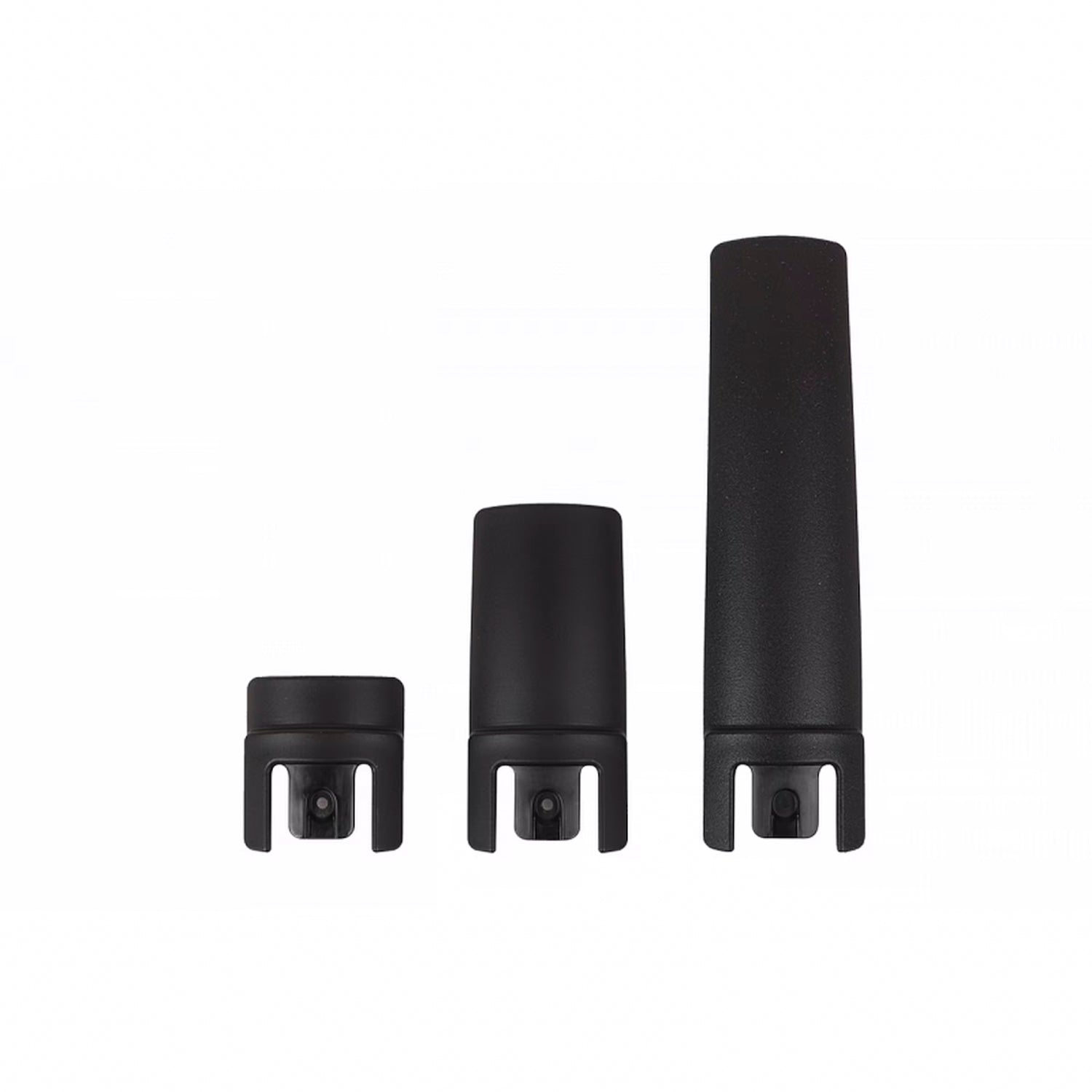

• Mudguard extension: 20 mm / 60 mm / 120 mm

• Weight: approx. 407 g (set with 20 mm extension)

In the box:

• 1 front mudguard

• 1 rear mudguard

• 3 mudguard extensions (20 mm / 60 mm / 120 mm)
